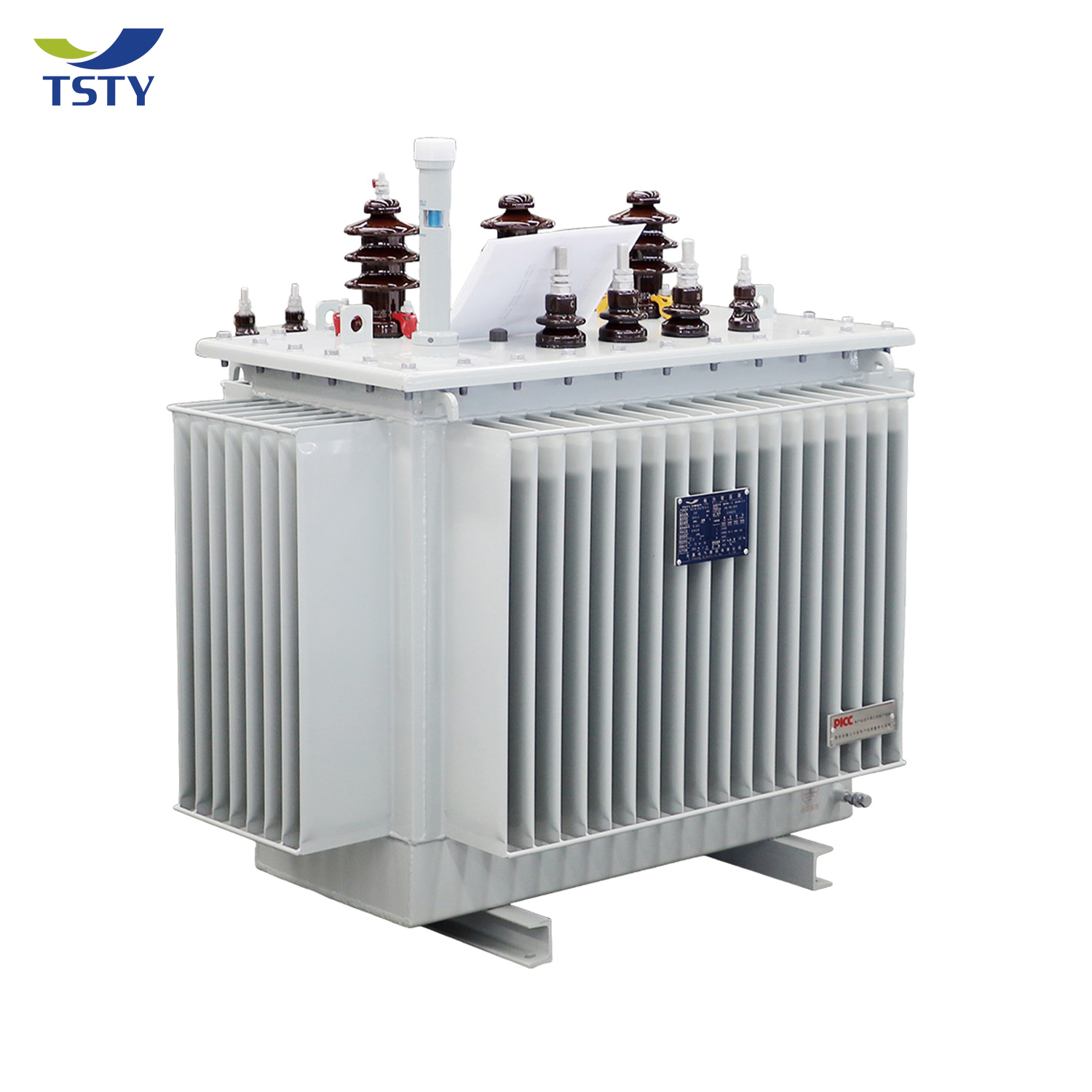

10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
1 / 5
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer
10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer

10kV S11 Electrical Transformer 110v 220v 35kv 440v 480v Step up Step Down Three Phase Oil Immersed Transformer

Send Inquiry

Product Description

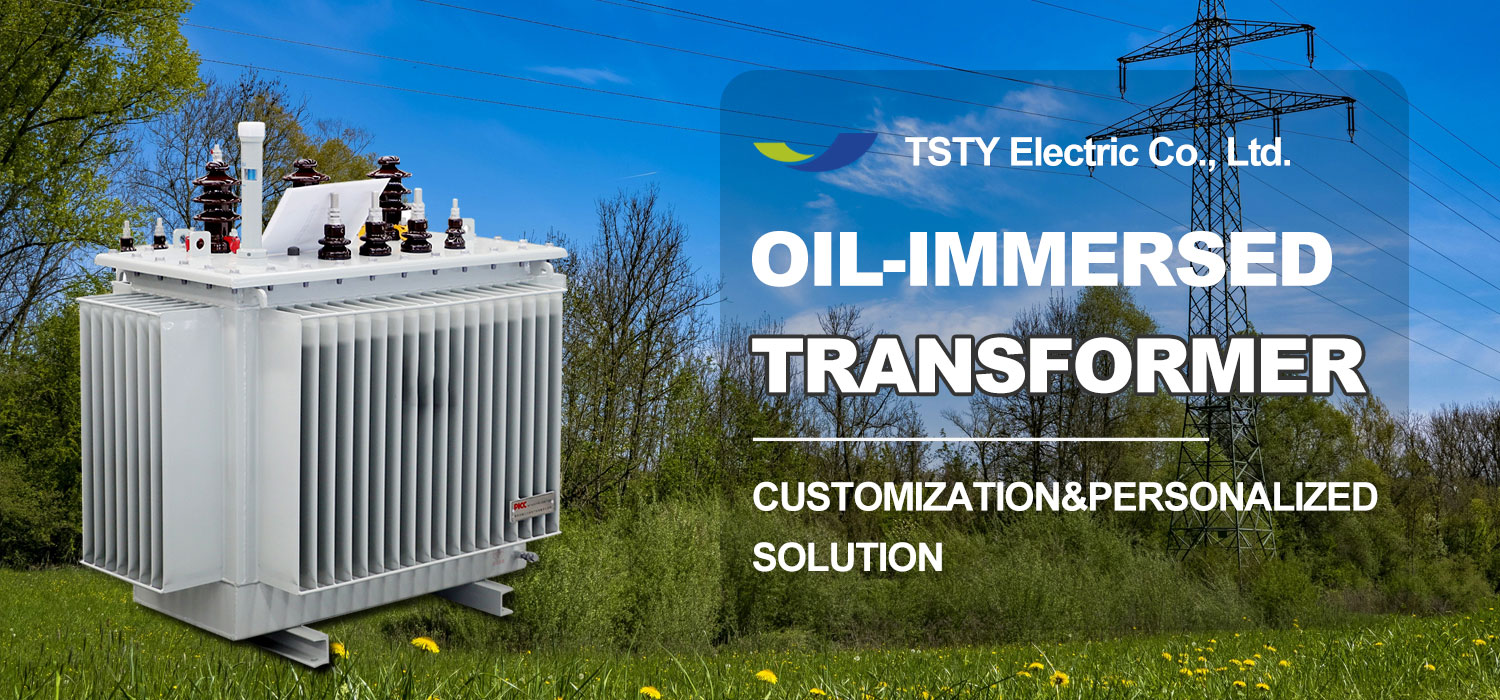

Oil Immersed Transformer
Oil Immersed Transformers
Specializing in producing a range of oil-immersed transformers for 13 years, from the S9 to S22 series. With voltages ranging from 6kV to 35kV and capacities from 15kVA to 10,000kVA, these products can meet your needs in any scenario or application. Even the smallest bolt is made of hot-dip galvanized material, which ensures it won't rust for 30 years.
Product Advantages
Brand-new mineral insulating oil without PCB.
Low temperature rise for long-term full-load Operation.
Compliant with IEC standards and holds CE/ISO Certificates.
Fully galvanized coating to prevent rust.
Professional design experience with exports to 60 Countries.
We can also customize according to your demand!
Technical Parameter for S11 Series 6kv-11kv No-load Voltage Regulation Transformers
Rated Capacity (KVA) Voltage Combination Connection Group Symbol No-load Loss (W) Load Loss (W) Impedance Voltage (%) No-load Current (%) L*W*H (mm) Gauge Horizontal*Vertical (mm) Active parts Weight * Oil Weight (kg) Total Weight (kg)
High Voltage (KV) Tapping Range of High Voltage Low Voltage (KV)
30 6
6.3
10
10.5
11		 ±5%
±2x2.5%		 0.4 Dyn11
Yzn11
Yyn0		 100 630/600 4 2.8 980*735*1145 400*400 178*78 355
50 130 910/870 2.5 1017*758*1205 450*400 240*92 415
63 150 1090/1040 2.4 1035*785*1285 450*400 285*105 505
80 180 1310/1250 2.2 1065*800*1290 450*400 330*110 540
100 200 1580/1500 2.1 1072*820*1305 450*400 345*116 590
125 240 1890/1800 2 1155*1105*1315 450*400 415*135 705
160 280 2310/2200 1.9 1235*850*1535 550*550 485*135 835
200 340 2730/2600 1.8 1282*860*1557 550*550 582*168 965
250 400 3200/3050 1.7 1310*940*1605 550*550 695*210 1135
315 480 3830/3650 1.6 1465*1120*1915 660*650 855*255 1520
400 570 4520/4300 1.5 1440*1165*1725 660*650 950*295 1590
500 680 5410/5150 1.4 1510*1250*1845 660*650 1150*320 1905
630 810 6200 4.5 1.3 1650*1140*1925 660*650 1500*435 2015
800 980 7500 1.2 2125*1175*2315 820*820 1910*760 3510
1000 1150 10300 1.1 2150*1380*2575 820*820 2125*880 3850
1250 1360 12000 1 2355*1485*2575 820*820 2605*960 4610
1600 1640 14500 0.9 2335*1750*2635 820*820 3125*1150 5420
2000 1940 18300 5 0.4 1940*1400*1700 820*820 2420*780 4200
2500 2290 21200 0.4 2050*1480*1800 820*820 2560*780 4680
Note: Parameter is for reference only, if any changes should follow the factory technical data.

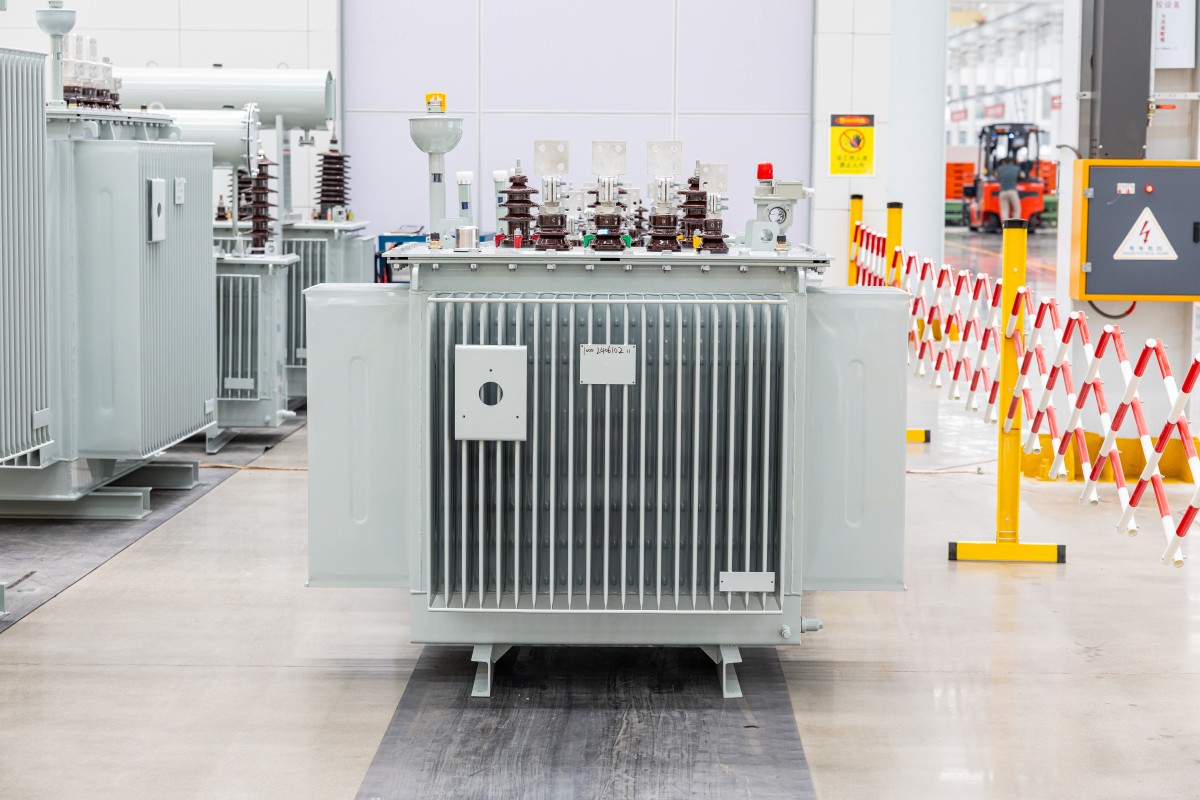

Transformer Details View 1

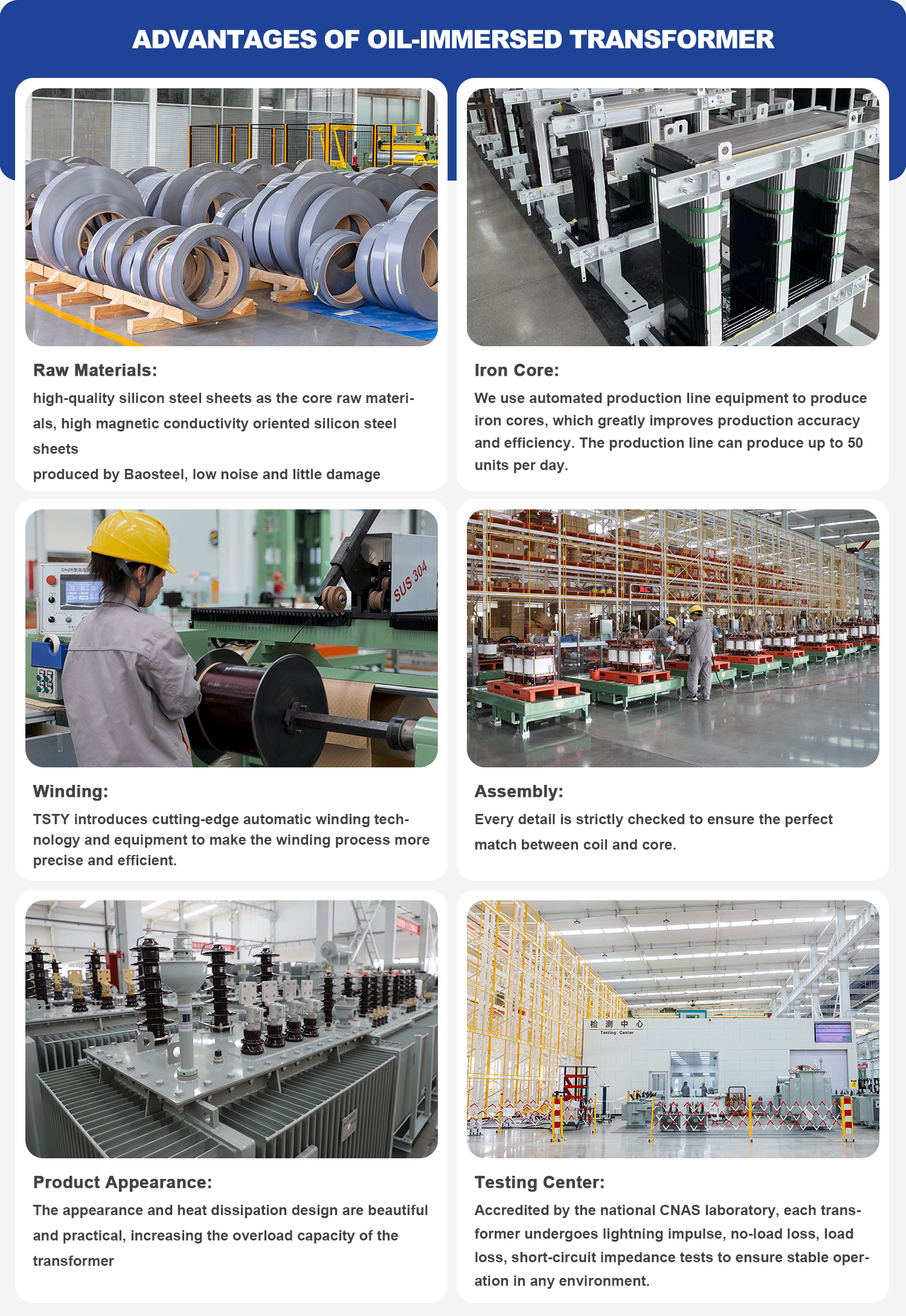

Transformer Details View 2
Just tell us the capacity and voltage you need and get a quotation!

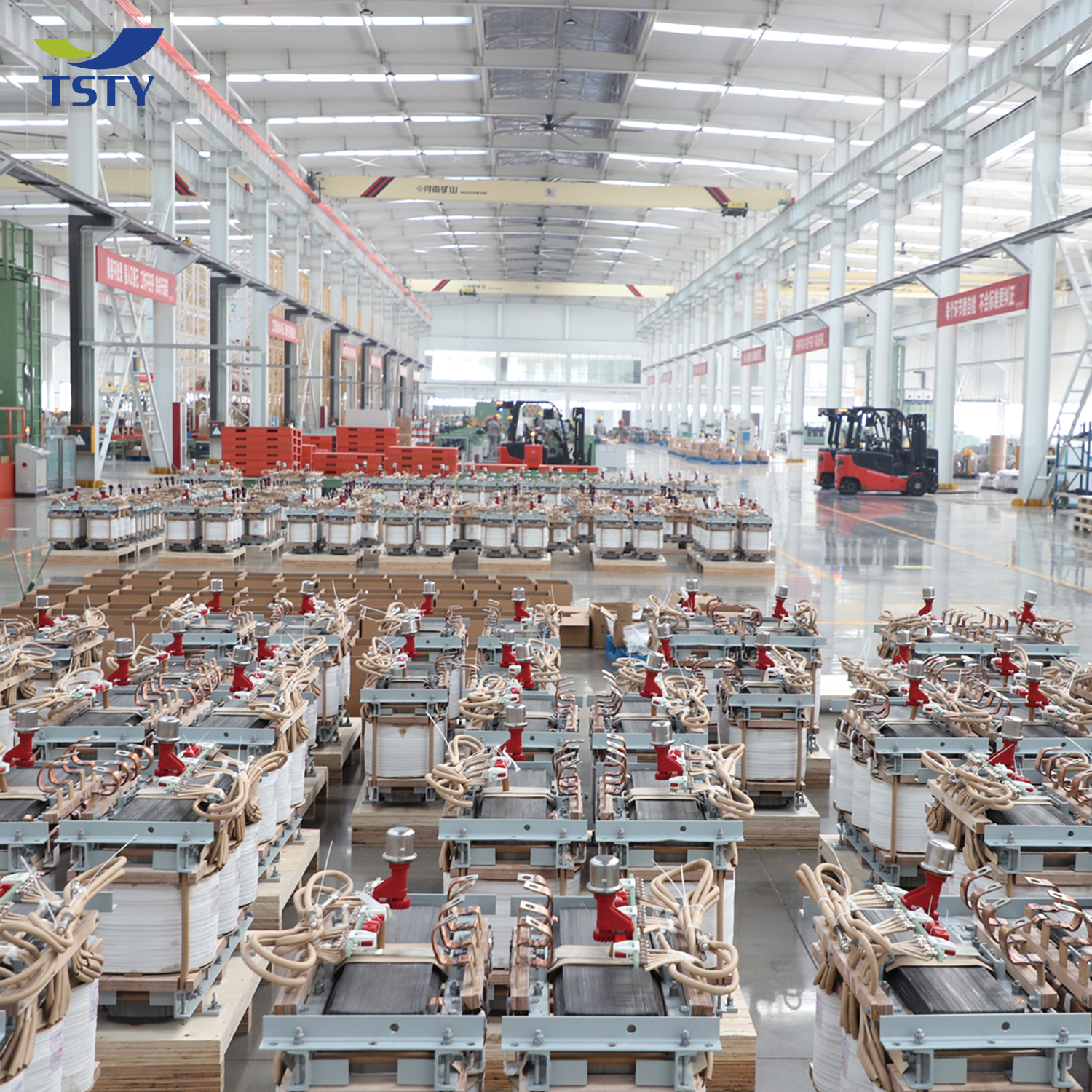

Production Capacity

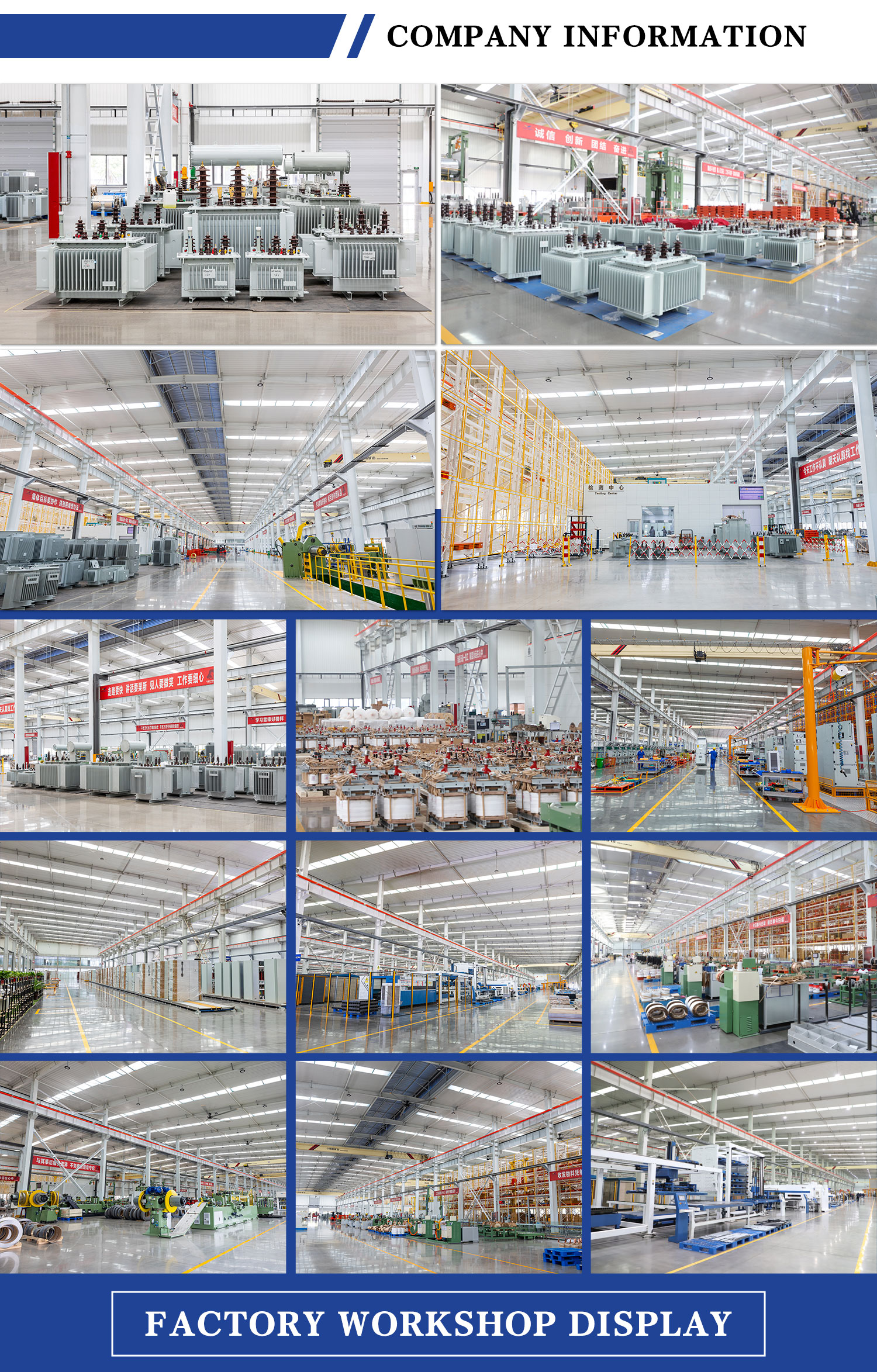

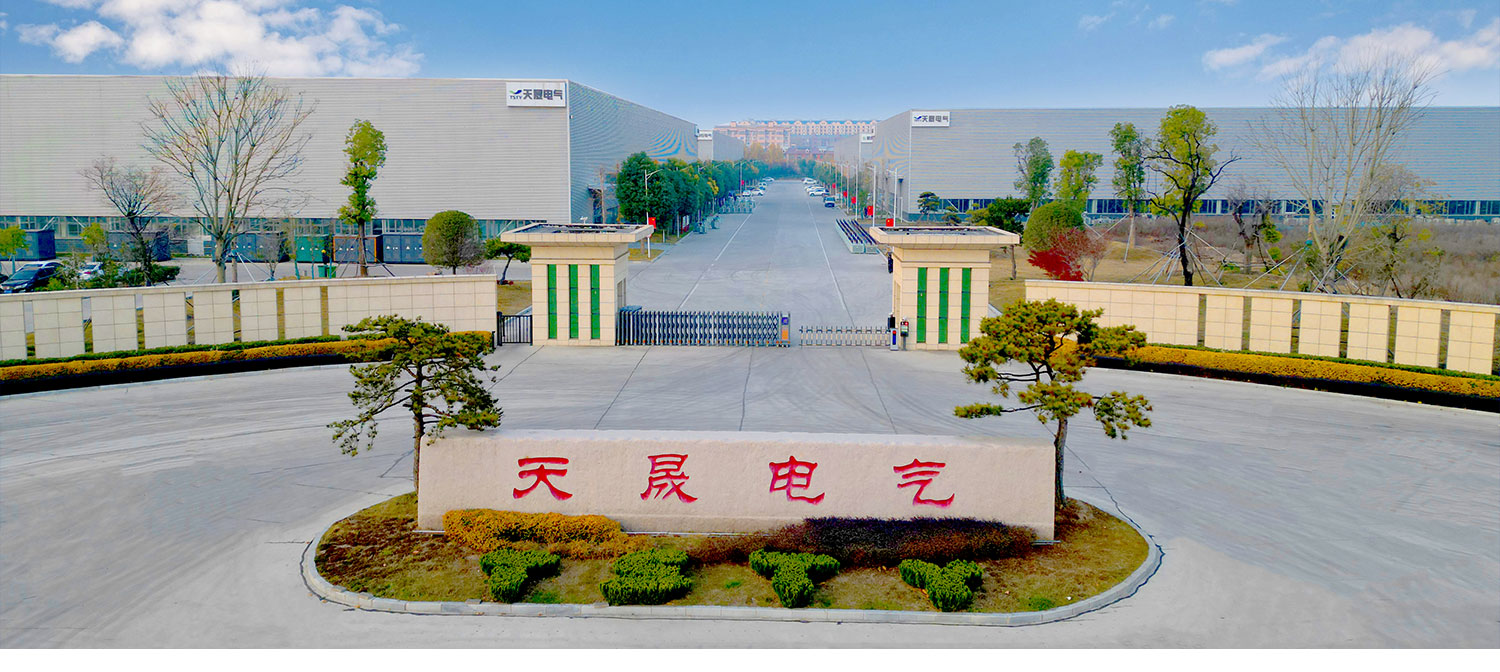

Production Facility 1
Production Facility 2
Established in 2011 with a construction area of 250,000 square meters, 500+ employees, and 158 invention patents. Power products cover power transformers, distribution transformers, substation transformers, high and low voltage switchgear, wind power, photovoltaic power generation equipment, etc.

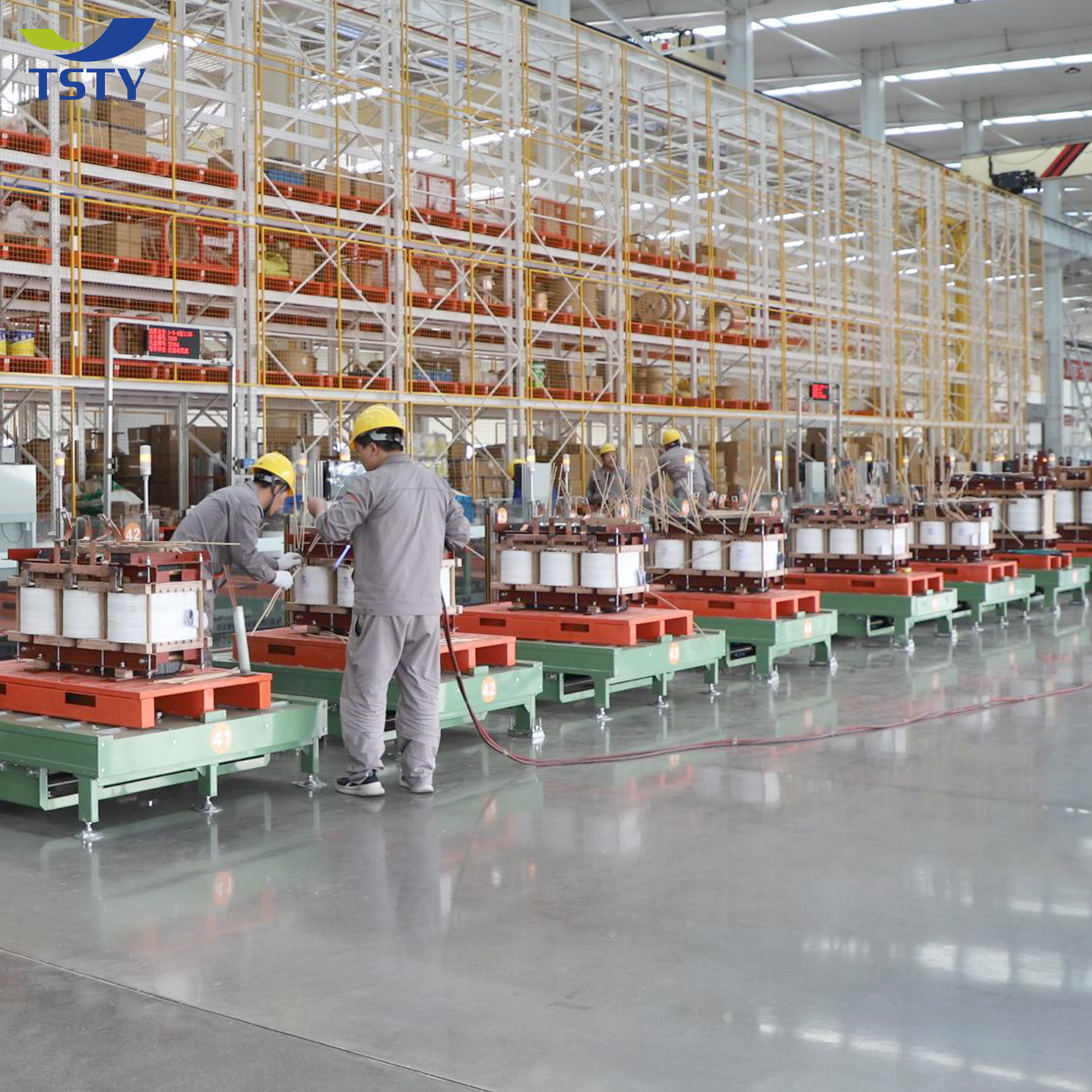

Every link of our workshop adopts advanced automation and intelligent equipment. Smart warehouse WMS, smart RGV/AGV trolleys, MES production management system and 5G communication technology realize the real-time seamless transmission of the whole process data and control system, showing the three high characteristics of automation, process standard and intelligence.
Passed ISO9001, IEC, SGS, Intertek, CCC, CE, BV, GOST Certified, etc. Products have been sold to more than 60 countries, such as Indonesia, Chile, Netherlands, Hungary, England, Philippines, Pakistan, Bangladesh, South Africa, Zambia, Tanzania, Saudi Arabia, UAE, Mexico and other countries.
Adheres to the core strategic deployment of "Let green electricity change the world" and achieves a win-win situation for power equipment and environmental protection.
Certifications
Product Certifications

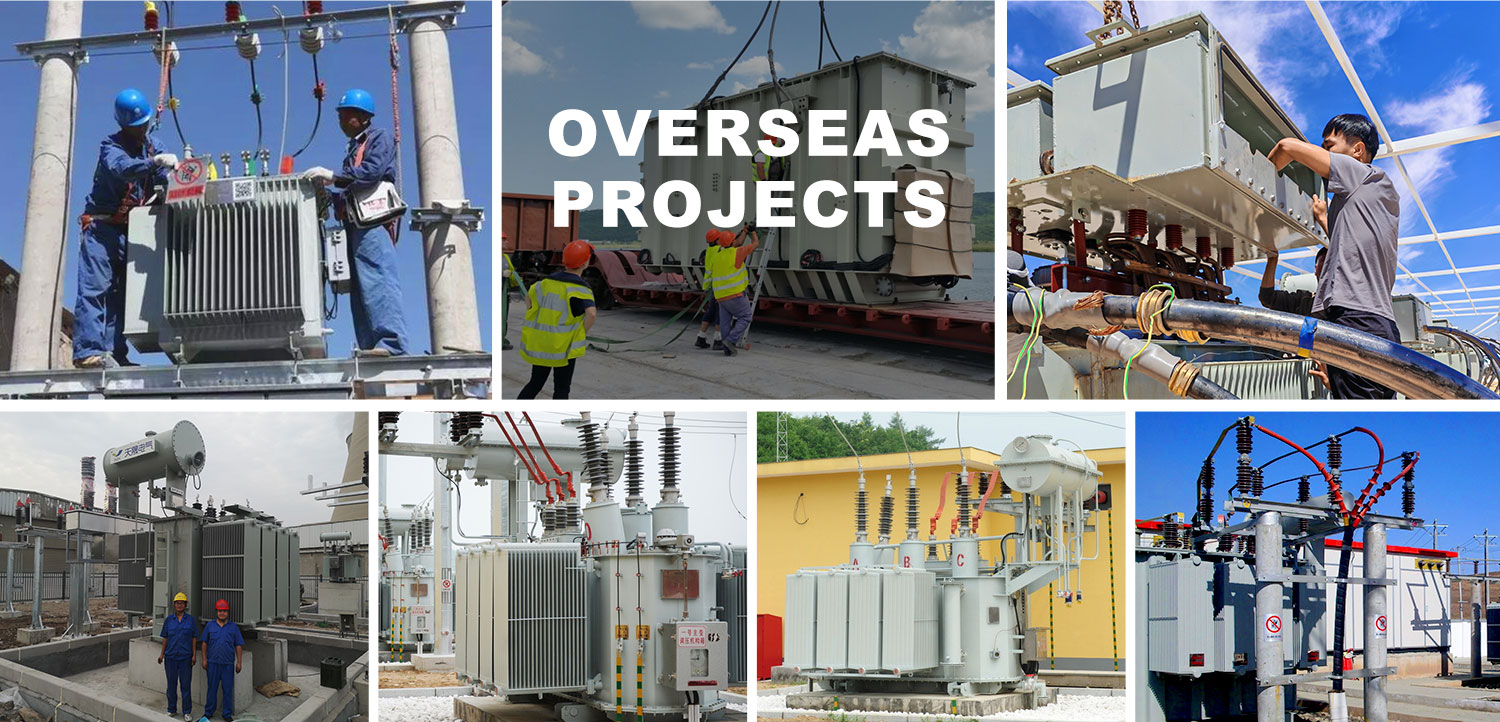

Customer Case
Customer Project Case
Packaging & Shipping
Packaging Process
Shipping Logistics
Frequently Asked Questions
QWhat's your major products?
Oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear.
QCan your product be customized?
Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions, our product can be customized according to your requirements.
QWhen can I get the price?
Usually we quote within 24 hours after we get your inquiry.
QWhat about lead or shipping time?
The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.
QDo you offer guarantee for the products?
Yes. We offer at least one year guarantee for all of our transformers.
QWhat is your advantage?
Advanced production equipment, stable quality, fast delivery, professional & good & prompt service. Also some free parts can be provided for you.
