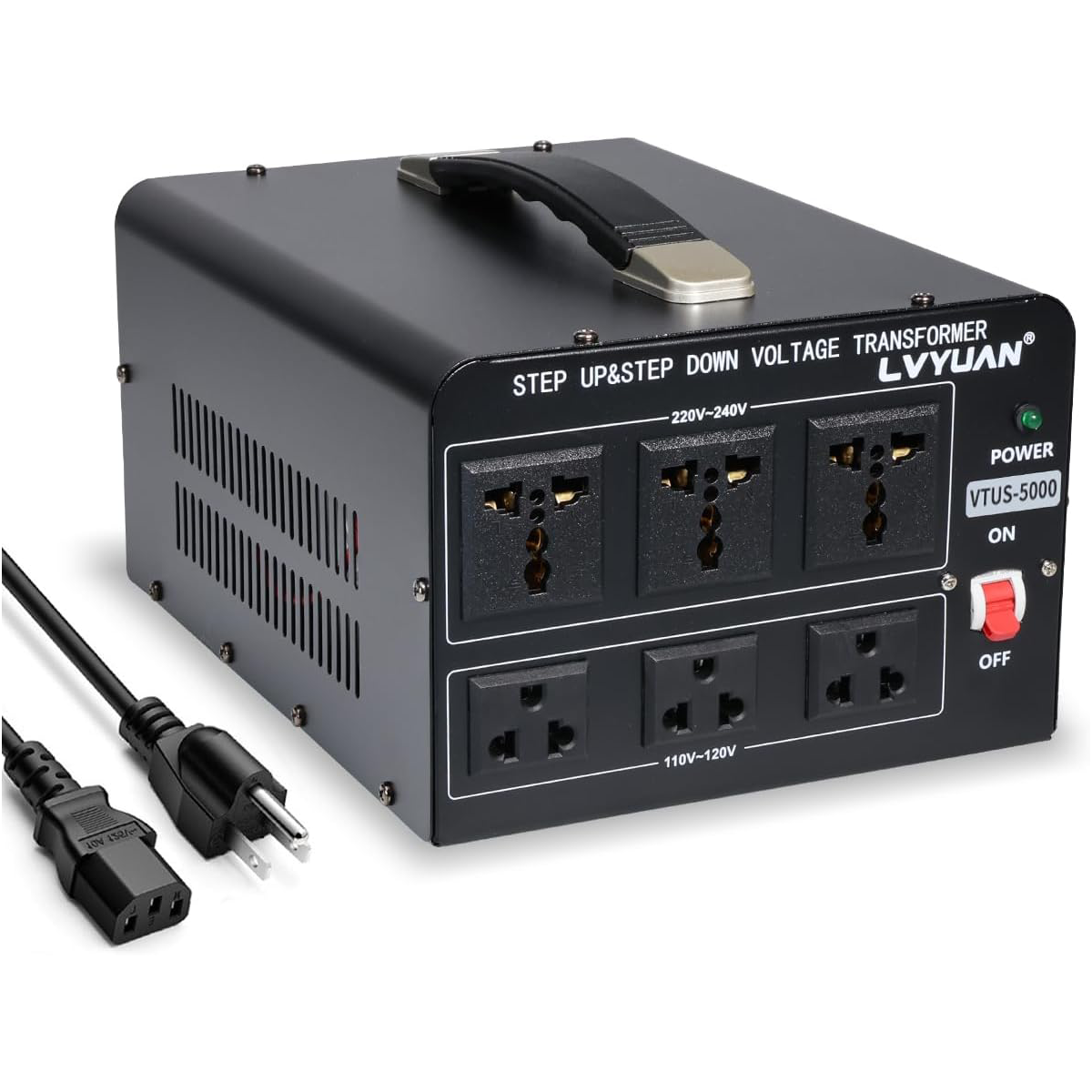

5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
1 / 5
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use
5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use

5000W Heavy Duty Step up Step Down Transformer 110V 220V Auto Voltage Converter for Global Use

Send Inquiry

Product Description

Product Specifications
Power 300W 500W 1000W 2000W 3000W 5000W
Size (mm) 175*110*80 175*130*105 210*150*150 210*162*130 250*190*160 250*190*160
Weight (KG) 2 3.1 4.5 5.9 6.8 7.8
US Standard Socket 1 1 2 2 3 3
Universal Socket 1 2 2 2 3 3
Circuit Breaker √ √ √ √ √ √
Voltage Conversion Input: 110V-120V, Output: 220V-240V / Input: 220V-240V, Output: 110V-120V

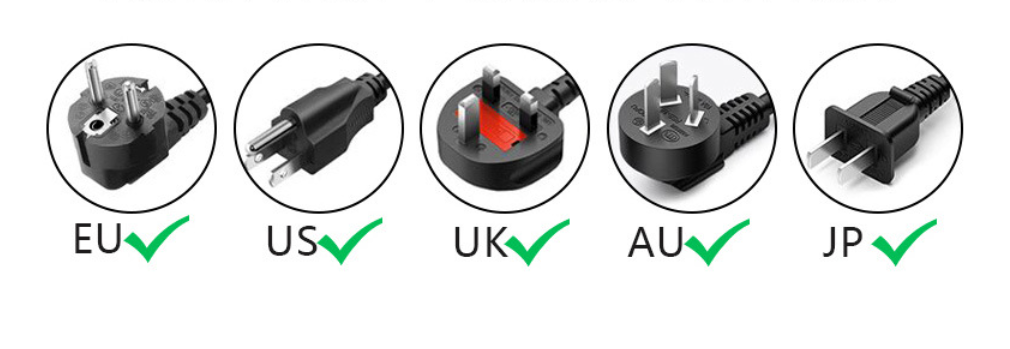

Output Plug US / UK / EU / AU / Universal / JP
Color Black / White
Product View 1
Product View 2

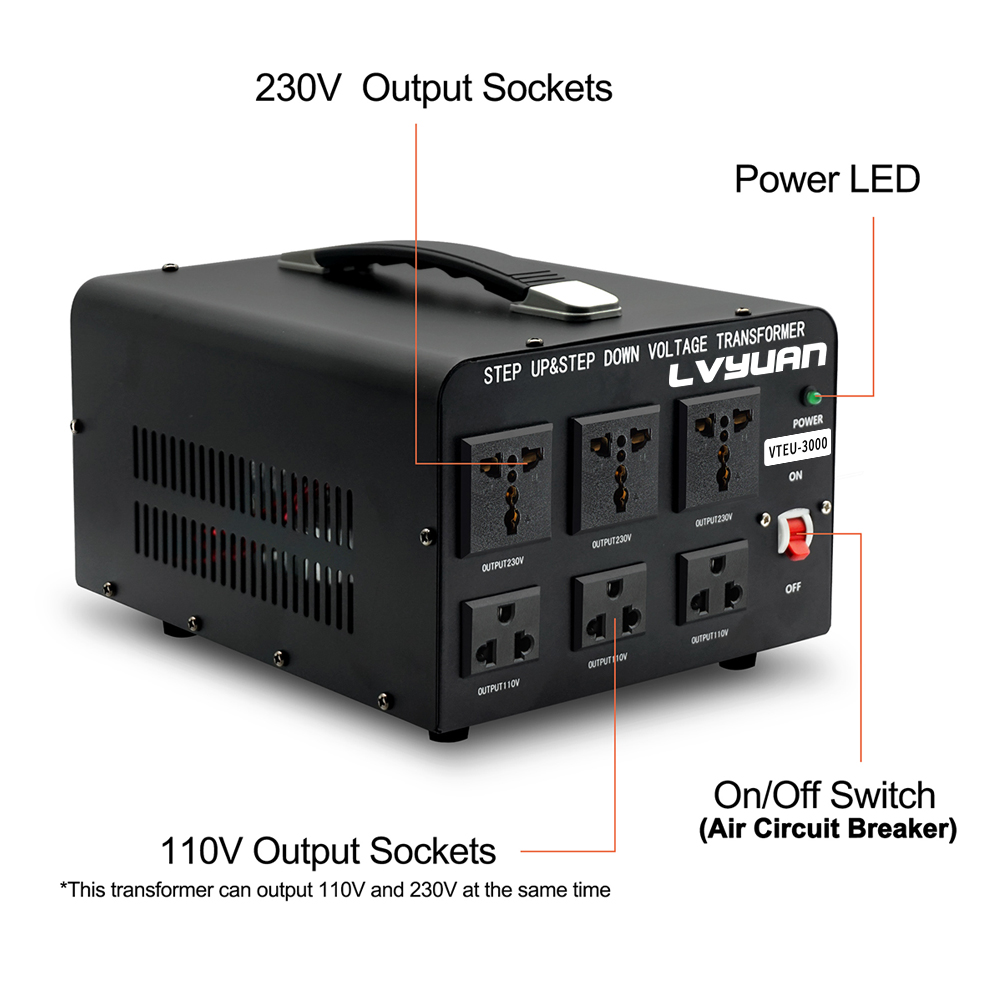

Product View 3

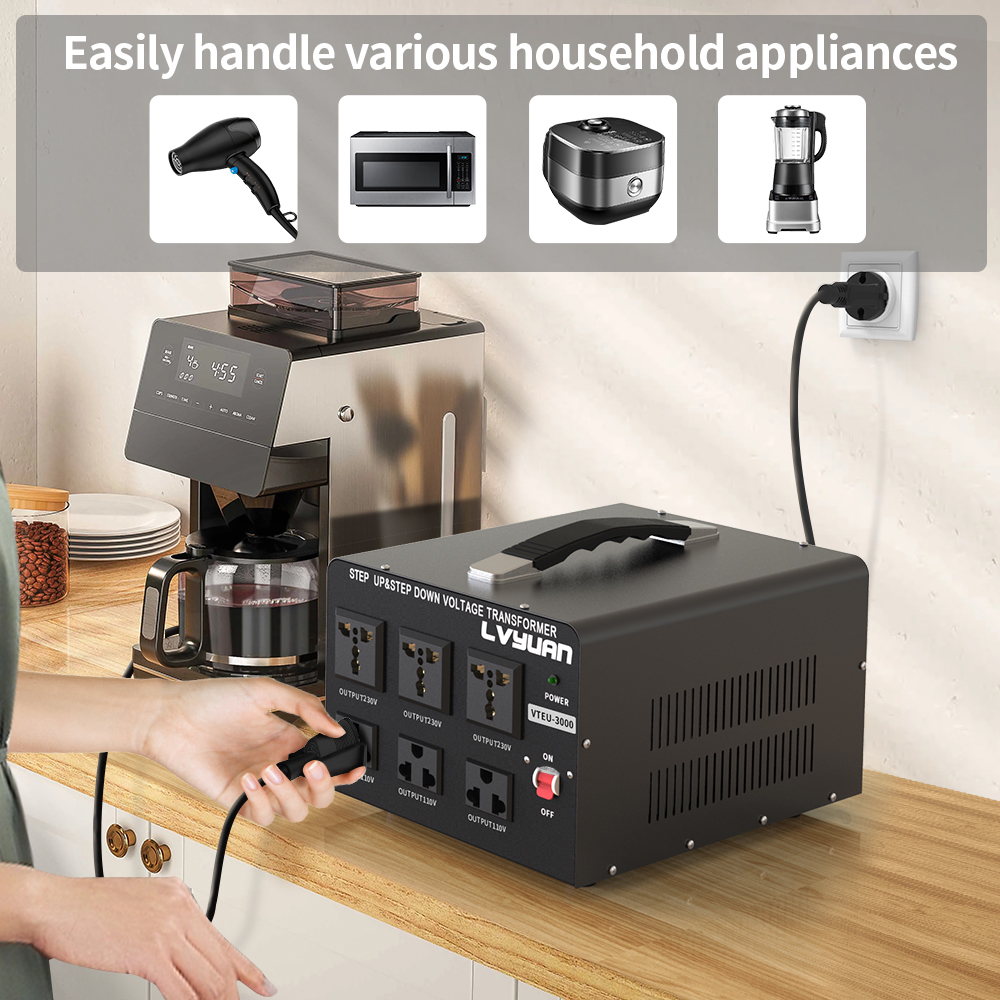

Product View 4

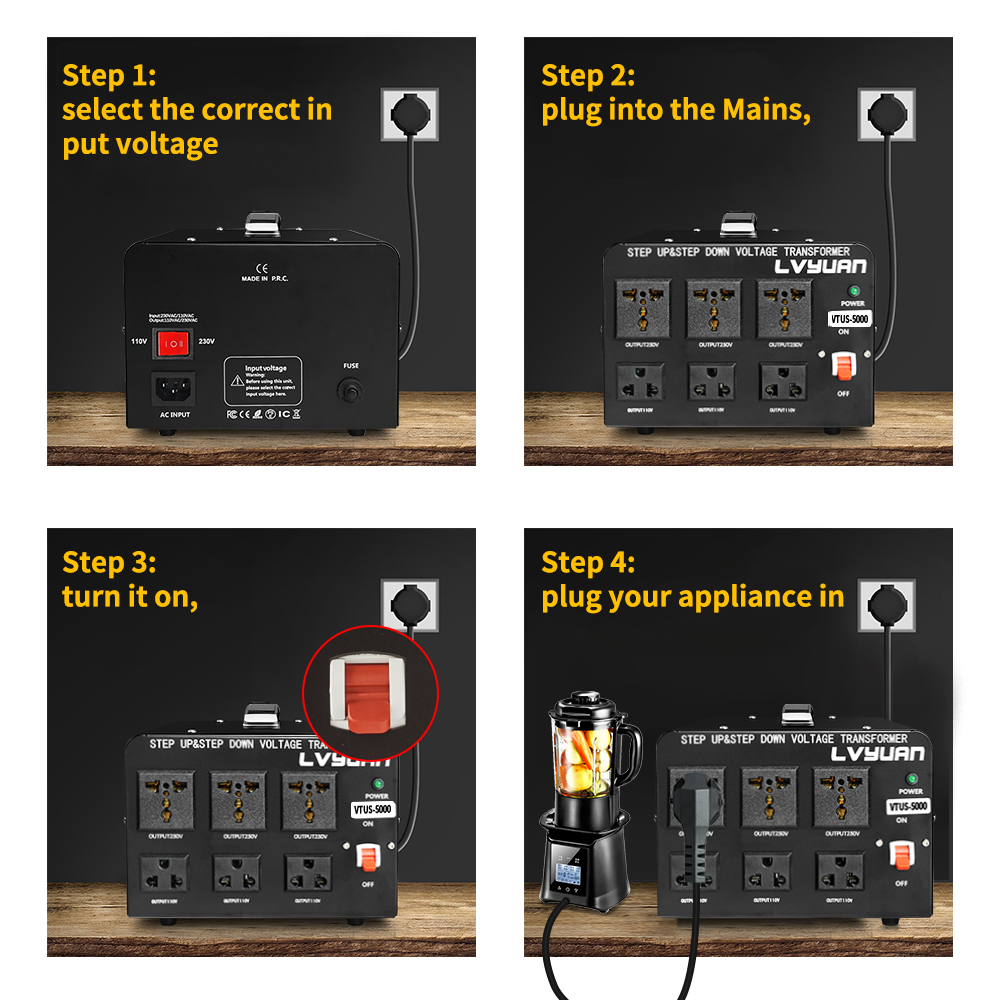

Product View 5
Voltage Transformer Features
Technical Layout
⚡

Heavy Duty Performance

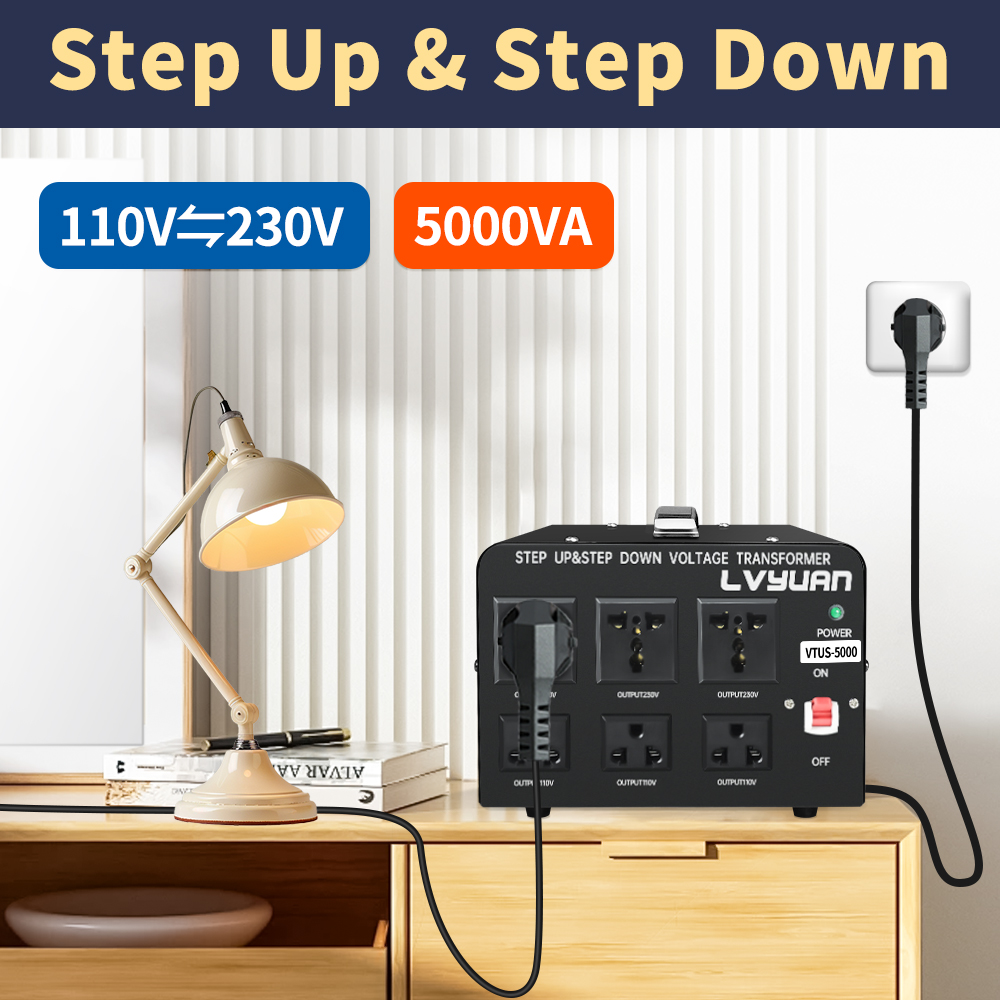

5000 Watts Heavy Duty Step Up/Down Voltage Transformer Converter. Supports bidirectional conversion: 110-120V to 220-240V and 220-240V to 110-120V. Features 100% loading capacity.

🔌

Simultaneous Output

Equipped with 110-120V USA Output Sockets and 220-240V Universal Sockets. Includes a detachable power cord compatible with various international standards.

🛡️

Advanced Protection

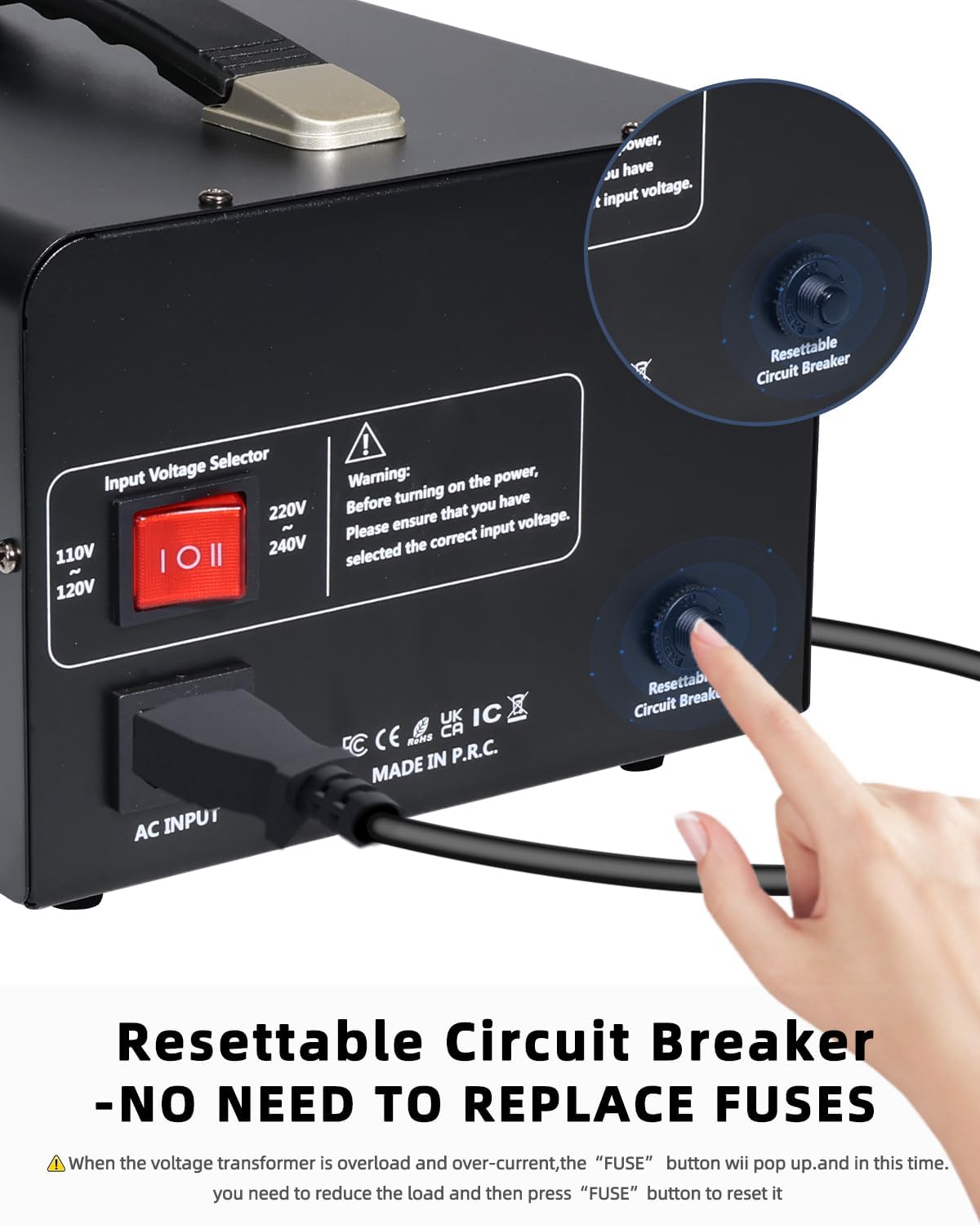

2 Resettable Circuit Breakers: No fuse replacement required. Simply press the reset button to restore the circuit. Features full range over-current and overload protection.

🌿

Eco-Friendly & Silent

Made of environmentally friendly materials. Fanless cooling design ensures odorless and noise-free operation, ideal for indoor environments.

For Optimal Use
  • Avoid Overloading: Do not exceed the maximum power. For appliances with motors/compressors (e.g., refrigerators, air conditioners), the starting power is 2-4 times the listed rating.
  • Device Compatibility: Ensure total starting power of all connected devices does not exceed the converter's peak output. For color TVs, calculate twice the listed capacity.
  • Proper Storage: Store in a well-ventilated area, away from direct sunlight, heat sources, moisture, oil, or flammable substances. Keep out of reach of children.
  • Circuit Breaker Reset: If the circuit opens, switch the unit "OFF", unplug appliances to reduce load, press the reset button, and restart devices one by one.
Application & Feedback

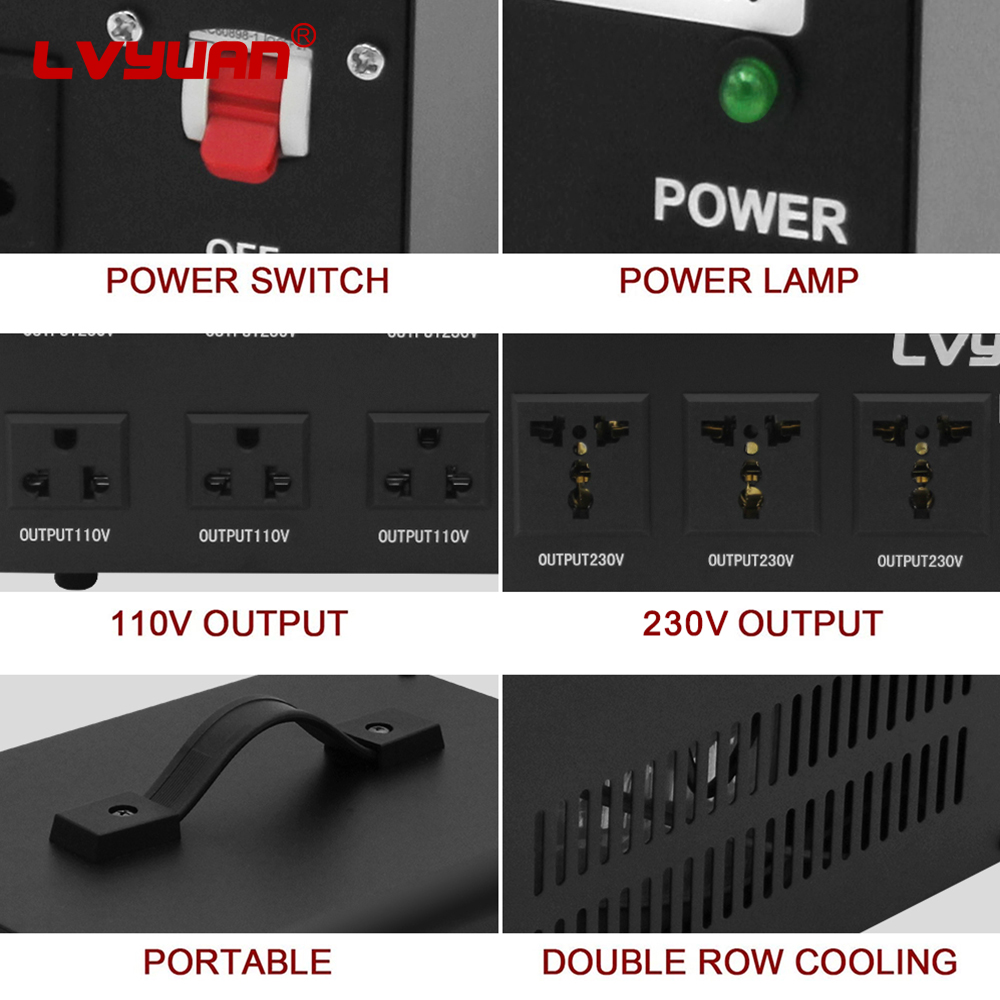

Application

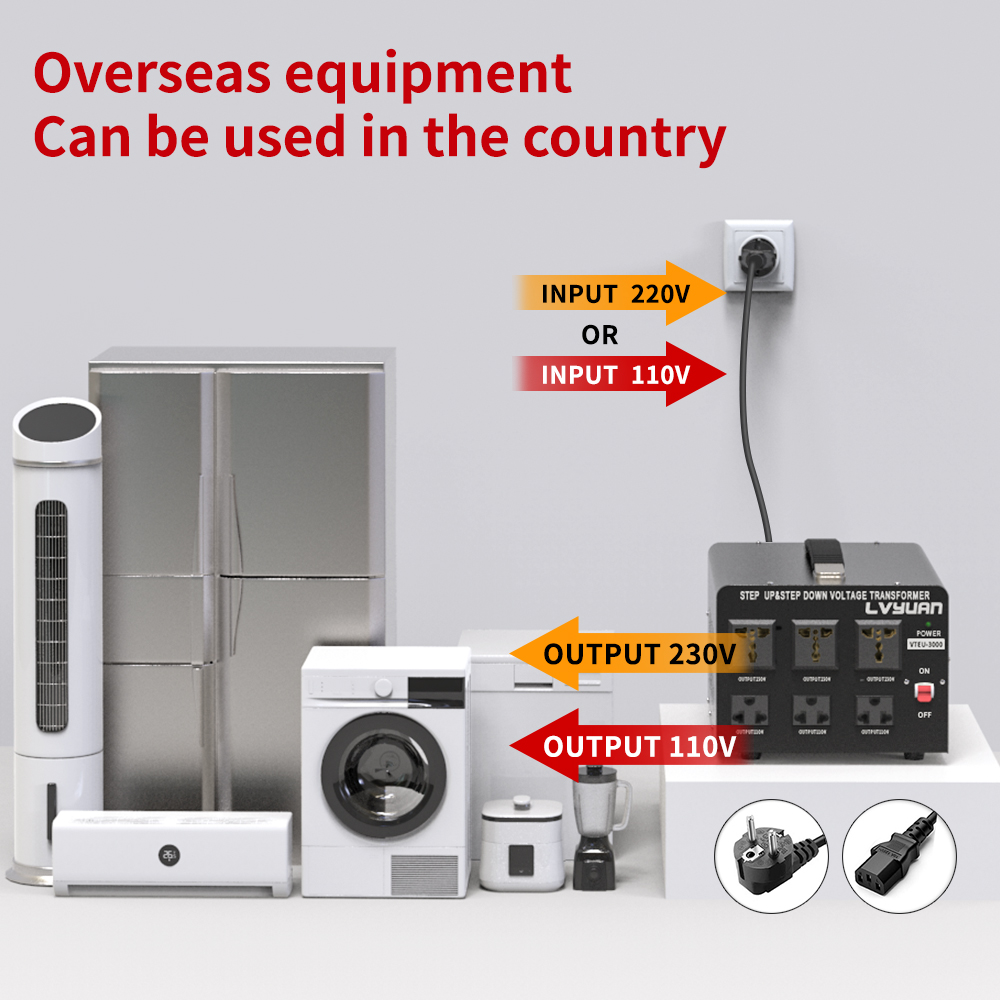

Usage Scenario

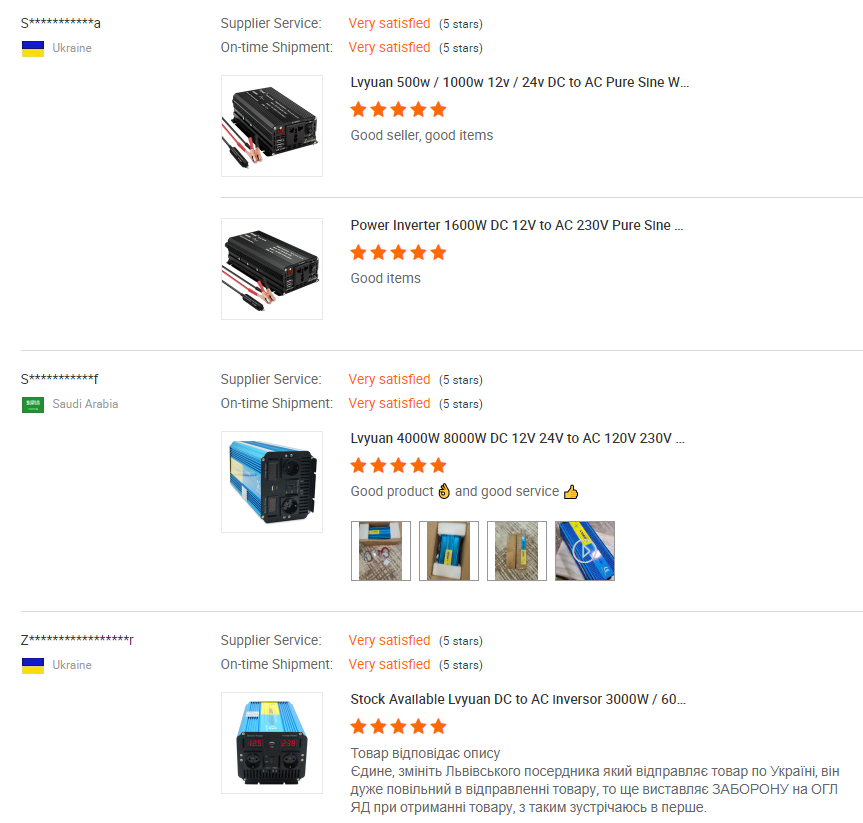

Customer Feedback
Factory Strength & Quality Control
Certifications
Warehouse

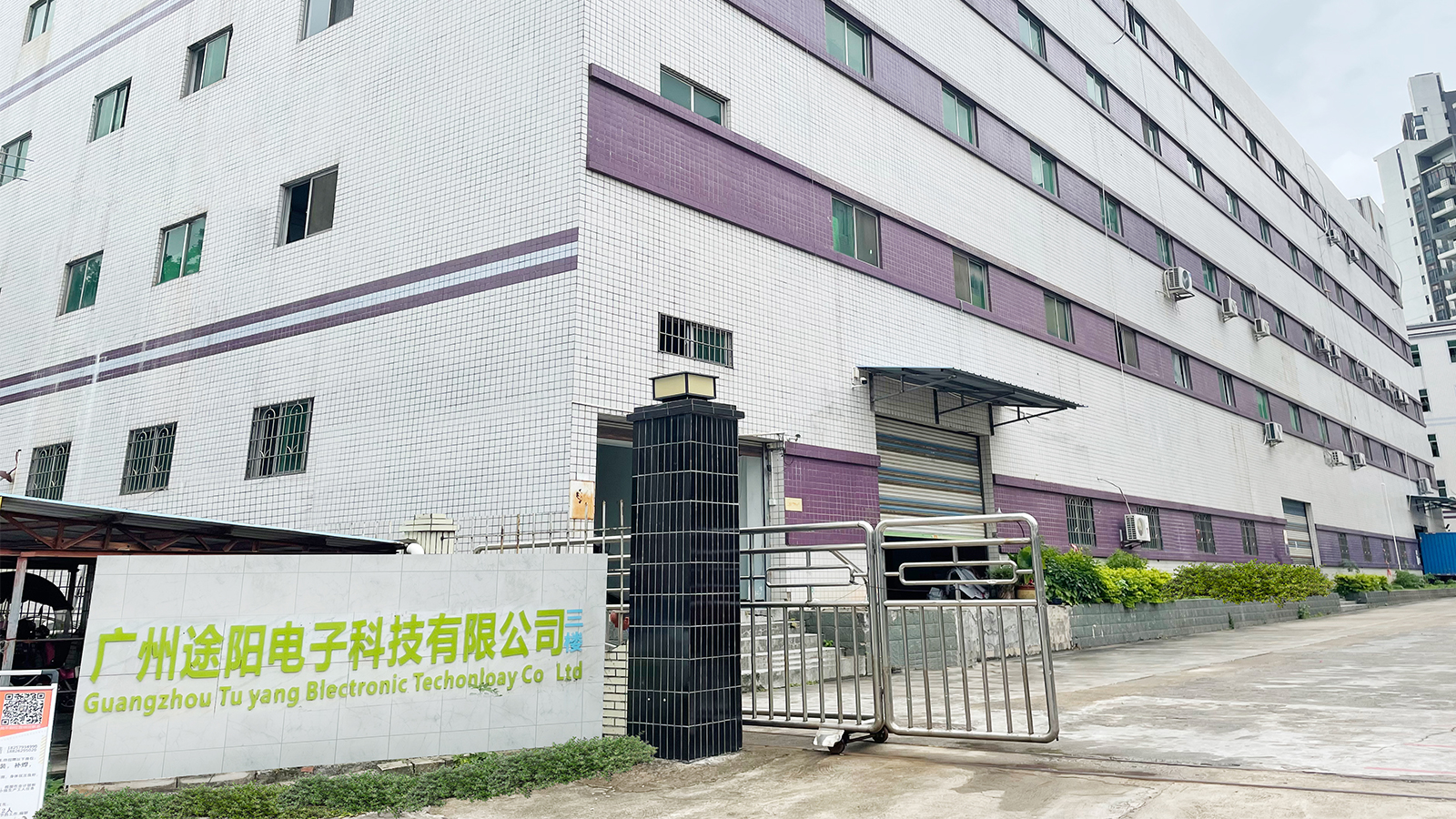

Production Line
🏭

Why Choose Us?

  • Highest quality raw materials for maximum durability.
  • Innovative design team meeting global market demands.
  • Competitive pricing with strict quality maintenance.
  • Fast overseas shipping and efficient order processing.
  • Customization services (OEM/ODM) to meet unique requirements.
  • Professional industry support and expert advice.
Manufacturing Process

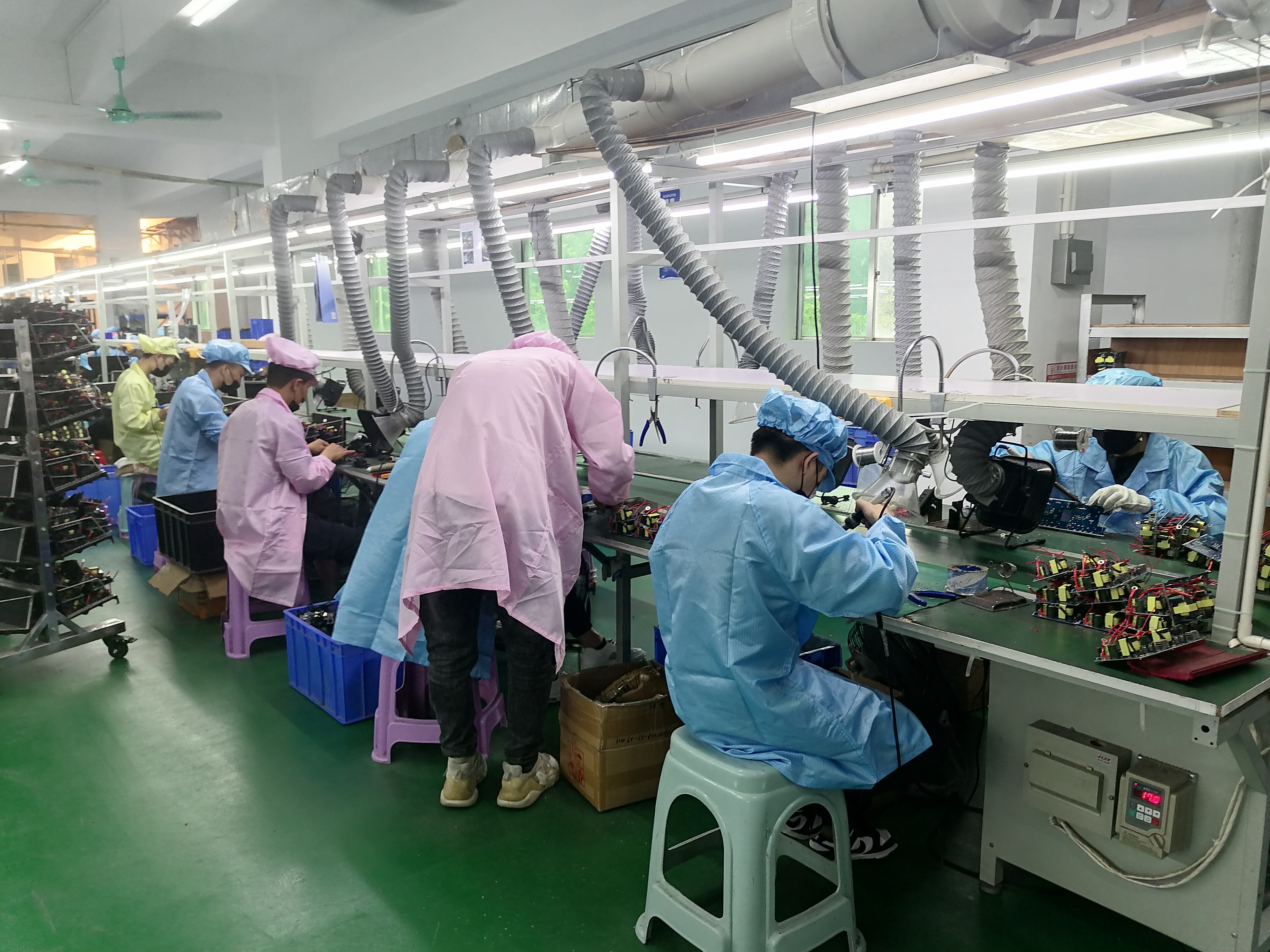

Assembly

ASSEMBLY PROCESS

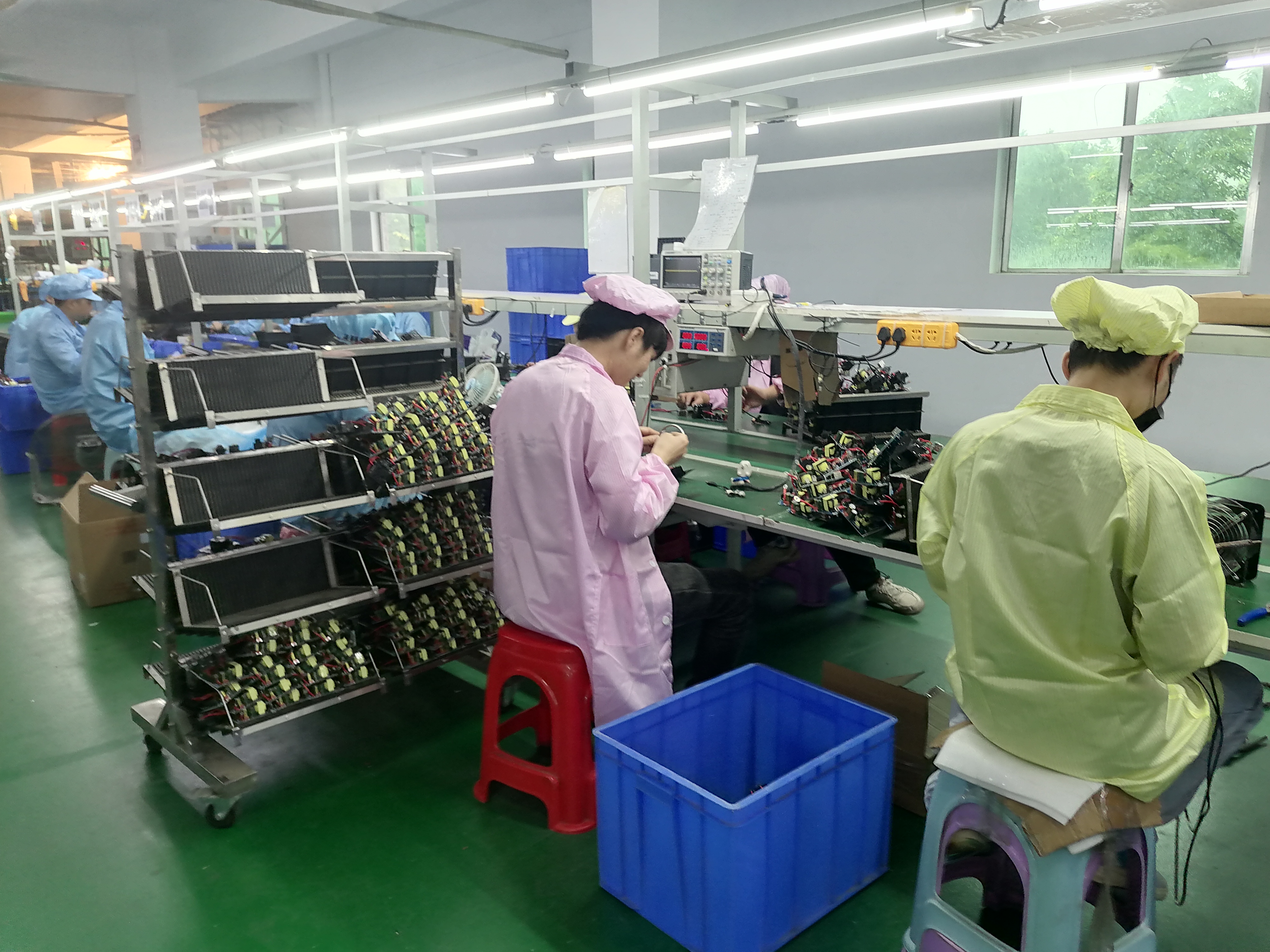

Function Test

FUNCTION TEST

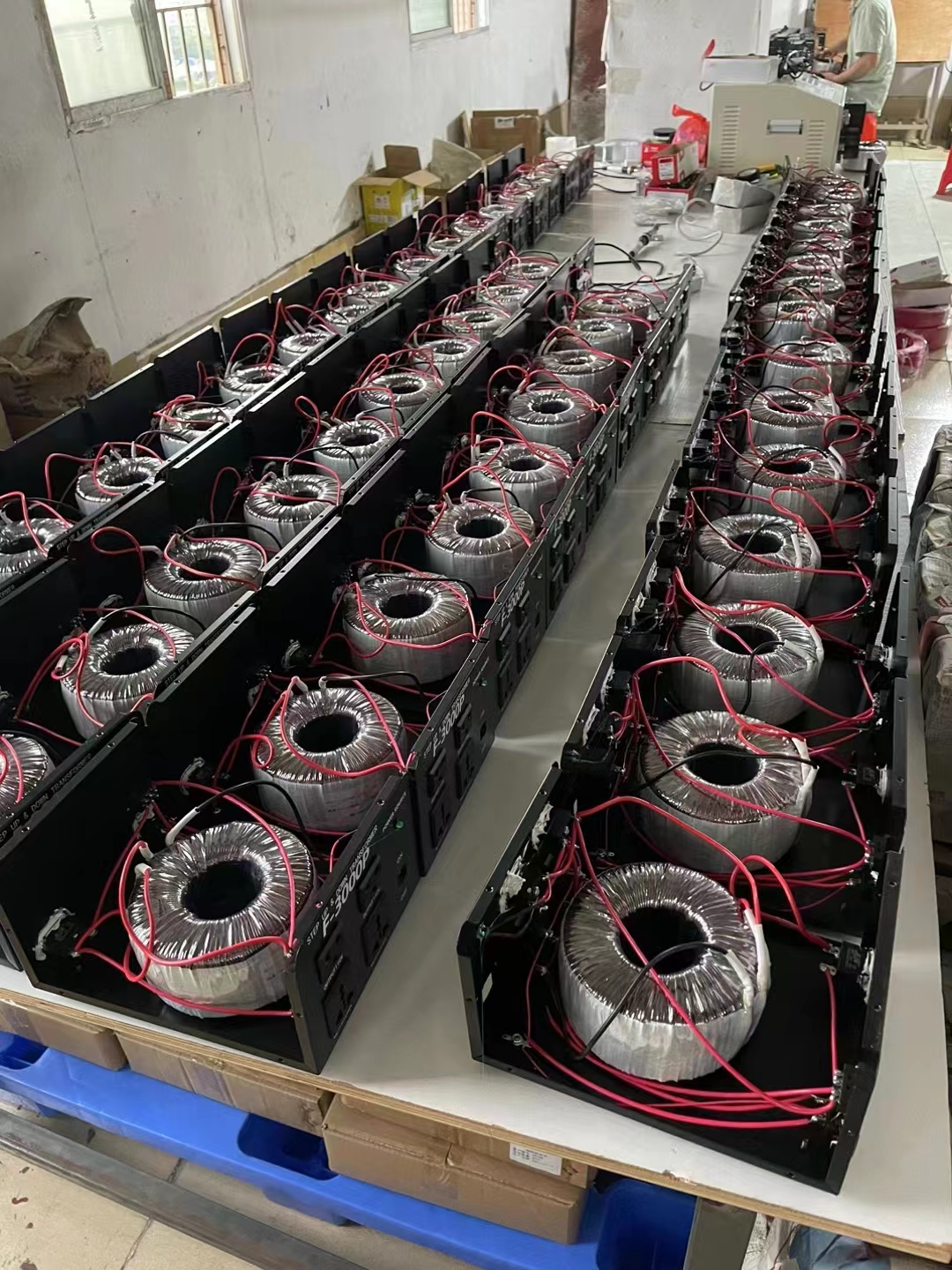

Aging Test

AGING TEST

Professional Power Solutions

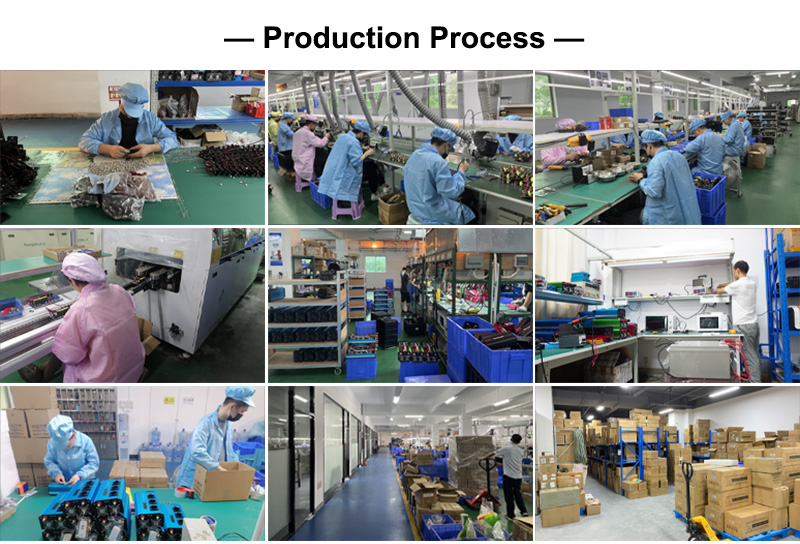

Factory Overview

We are a professional supplier specializing in Pure Sine Wave Power Inverters, UPS Inverters, and Voltage Converters. Our products are widely used in vehicles, travel, camping, and medical emergency applications. All units pass CE, FCC, ROHS, and PSE testing with 100% full-load inspection to ensure safety features like short-circuit, overload, and over-temperature protection are fully functional.

Equipped with automatic wave soldering and SMT machines, our R&D department provides strong technical support for OEM and ODM projects, with a production capacity of up to 10,000 units per day.

Frequently Asked Questions
Q1: Will it convert 220V 50Hz to 110V 60Hz? Does it convert frequency? No, these transformers only convert voltage, not frequency. Most modern electronics are compatible with both 50/60Hz, but please check your device.
Q2: Is it an isolation transformer? No, this is an autotransformer designed for efficient voltage step-up and step-down.
Q3: Do you offer OEM/ODM services? Yes, we provide comprehensive customization services for sockets, plugs, colors, and technical specifications to meet your unique requirements.
Q4: How do you inspect product quality before shipment? We perform strict testing including aging tests at higher than rated power for 5-10 minutes, simulated environment testing for components, and a final power-on test before packaging.
Q5: Can I use this for a hair dryer or coffee maker? Yes, provided the total wattage of the appliance is within the transformer's capacity. For heat-producing or motor-driven appliances, we recommend a transformer with 2-3 times the appliance's rated wattage.
Q6: Is the transformer noisy during operation? Our transformers use a fanless cooling design and high-quality core components, making them virtually noise-free and suitable for quiet home or office use.
