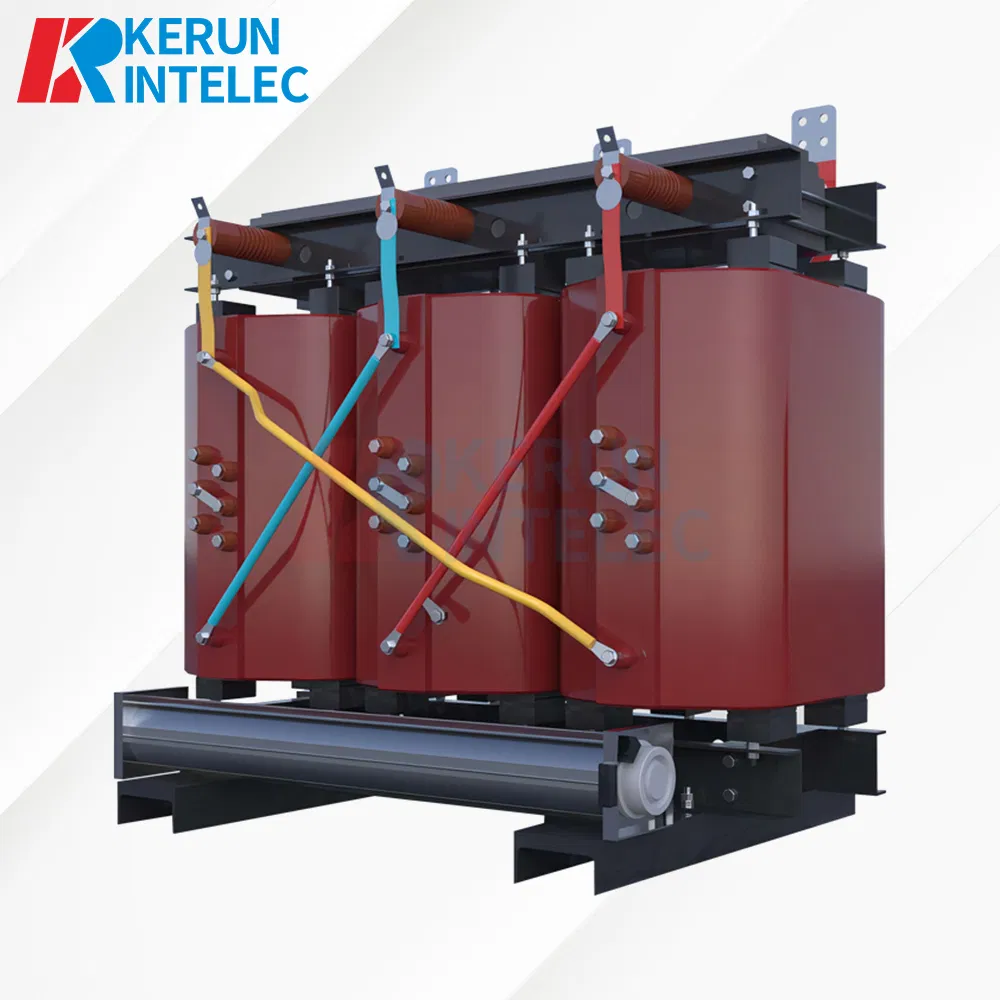

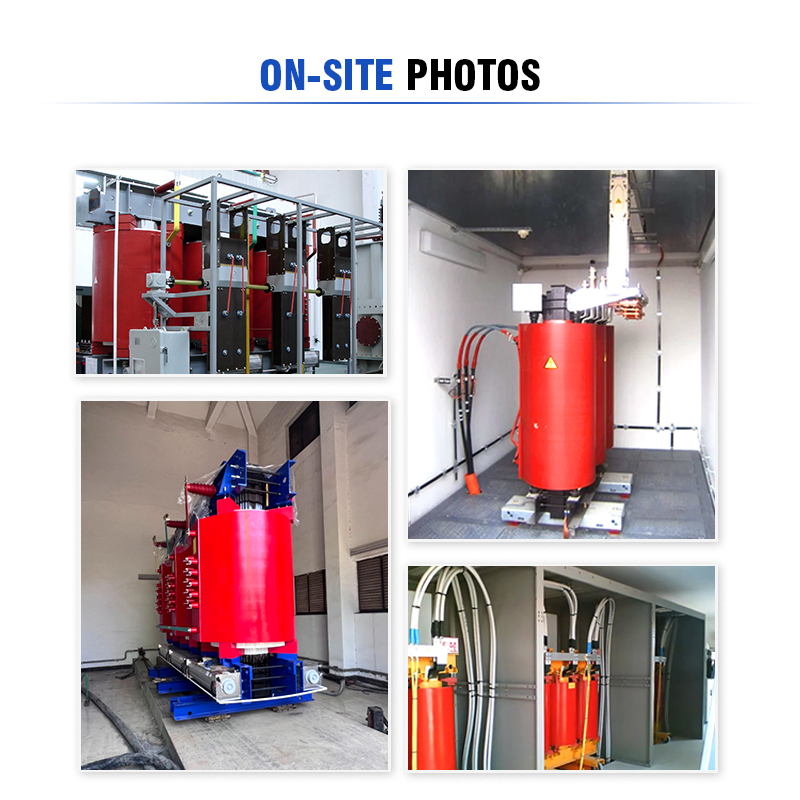

10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
1 / 5
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer

10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
Dry Type
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC, IEC, IEEE, CNAS
Usage
Distribution Transformer, Three-Phase Transformer
Frequency Characteristics
Power Frequency
Shape of Core
Ring
Rated H.V.
6/10/11/15/20/33/35kv
Rated L.V.
0.4kv
Winding Material
Copper/Aluminium
Vector Group
Dyn11/Yyn0/Yd11/Ynd11
Core Material
Silicon Steel/Amorphous Alloy Coil Core
Applied Standard
IEC, IEEE, CNAS
Rated Power
up to 20mva
Insulation Level
H/F
Frequency
50Hz/60Hz
Transport Package
Wooden Pallets/ Wooden Frames/ Wooden Boxes
Specification
Customize
Origin
China
HS Code
8504210000
Production Capacity
500000
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
400.000kg
Product Description

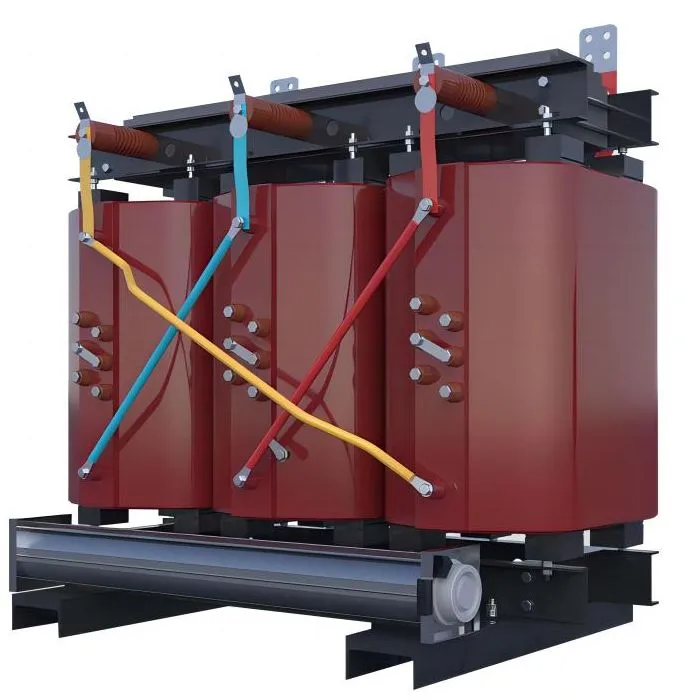

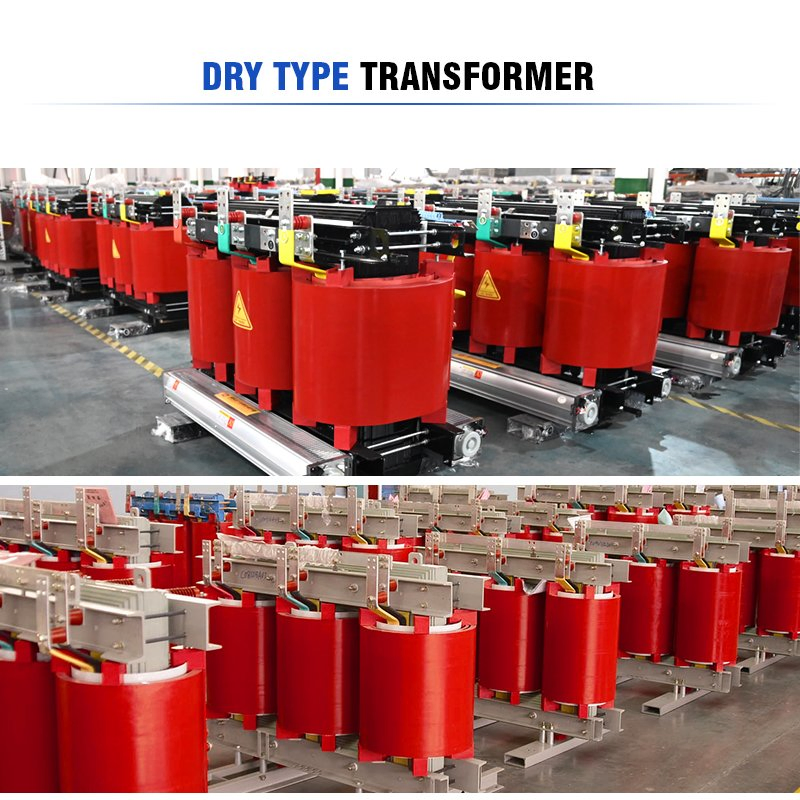

Cast Resin Dry Type Transformer

Cast Resin Dry Type Transformer

Technical Description

  • Rated power: up to 20MVA
  • Primary voltage: up to 35kV
  • Secondary voltage: up to 480 V
  • Cooling type: AN/AF
  • Frequencies: 50 Hz/60 Hz

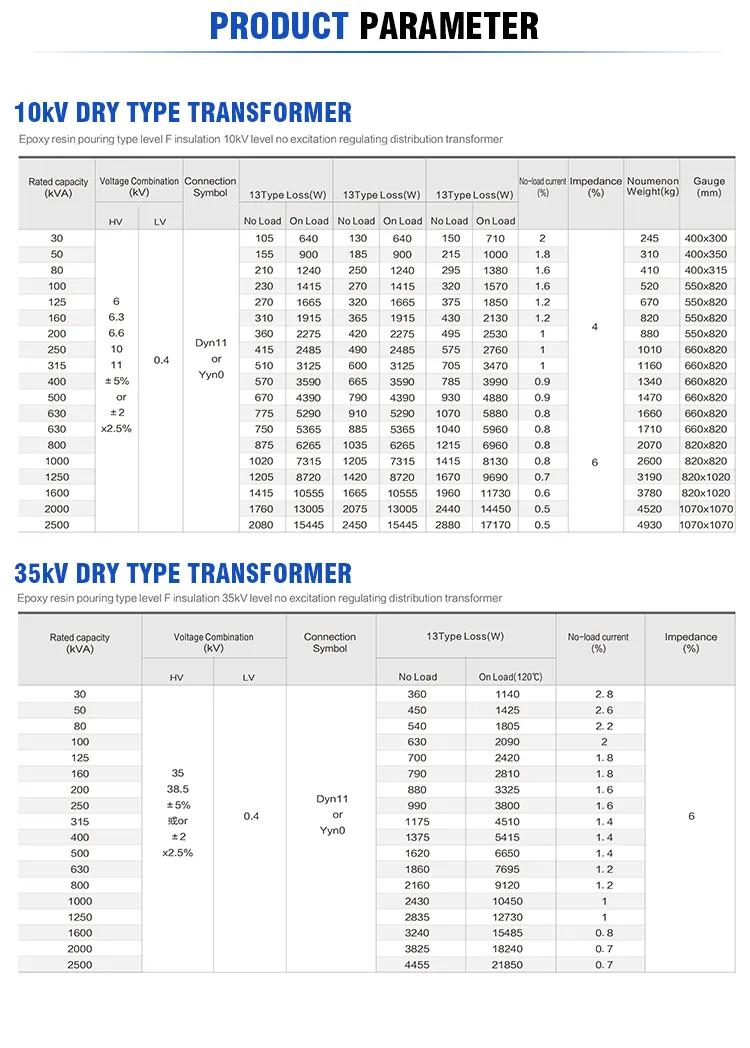

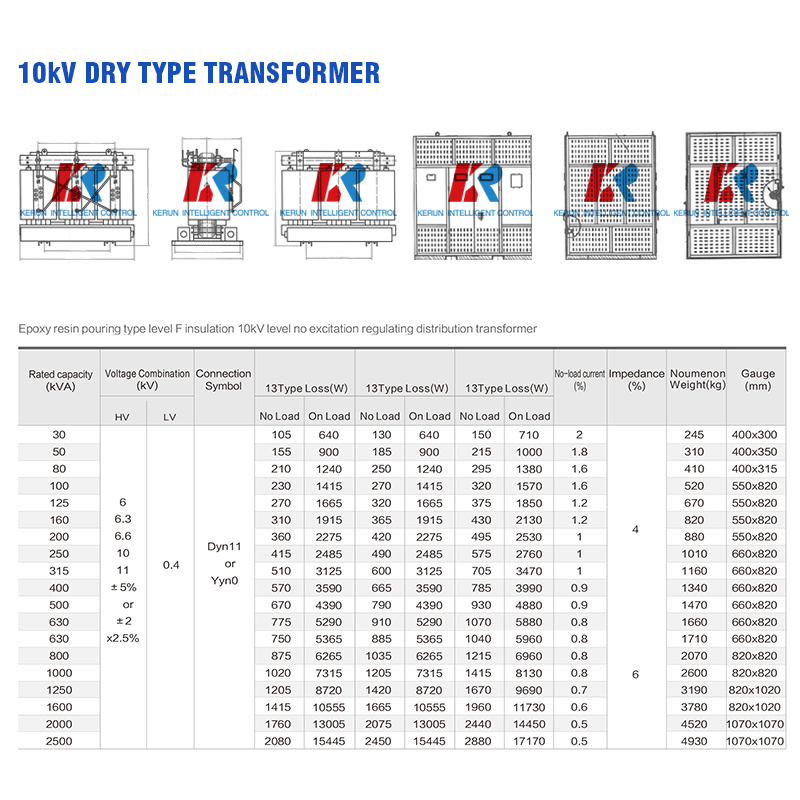

10kV Dry Type Transformer
Rated capacity (kVA) Voltage Combination (kV) Connection Symbol 13Type Loss(W) 13Type Loss(W) 13Type Loss(W) No-load current (%) Impedance (%) Noumenon Weight(kg) Gauge (mm)
HV LV No Load On Load No Load On Load No Load On Load
30 6

6.3

6.6

10

11

±5%

Or
±2 x2.5%		 0.4 Dyn11

or

YynO		 105 640 130 640 150 710 2 4











6		 245 400x300
50 155 900 185 900 215 1000 1.8 310 400x350
80 210 1240 250 1240 295 1380 1.6 410 400x315
100 230 1415 270 1415 320 1570 1.6 520 550x820
125 270 1665 320 1665 375 1850 1.2 670 550x820
160 310 1915 365 1915 430 2130 1.2 820 550x820
200 360 2275 420 2275 495 2530 1 880 550x820
250 415 2485 490 2485 575 2760 1 1010 660x820
315 510 3125 600 3125 705 3470 1 1160 660x820
400 570 3590 665 3590 785 3990 0.9 1340 660x820
500 670 4390 790 4390 930 4880 0.9 1470 660x820
630 775 5290 910 5290 1070 5880 0.8 1660 660x820
630 750 5365 885 5365 1040 5960 0.8 1710 660x820
800 875 6265 1035 6265 1215 6960 0.8 2070 820x820
1000 1020 7315 1205 7315 1415 8130 0.8 2600 820x820
1250 1205 8720 1420 8720 1670 9690 0.7 3190 820x1020
1600 1415 10555 1665 10555 1960 11730 0.6 3780 820x1020
2000 1760 13005 2075 13005 2440 14450 0.5 4520 1070x1070
2500 2080 15445 2450 15445 2880 17170 0.5 4930 1070x1070

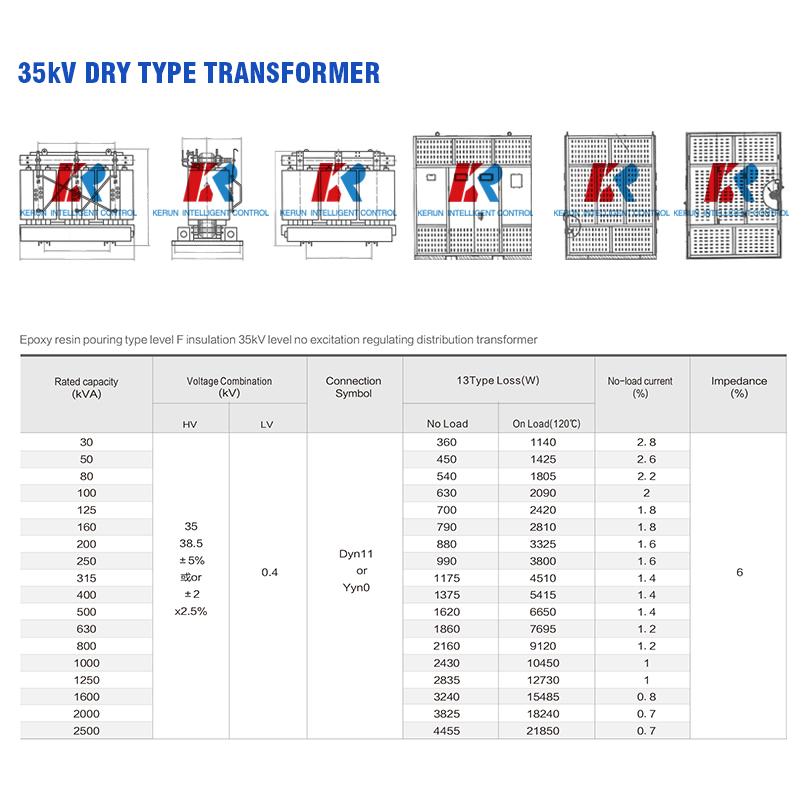

35kV Dry Type Transformer
Rated capacity (kVA) Voltage Combination(kV) Connection Symbol 13Type Loss(W) No-load current (%) Impedance (%)
HV LV No Load On Load(120ºC)
30 35

38.5

±5%
or

±2

x2.5%		 0.4 Dyn11
or
YynO		 36C 1140 2.8 6
50 450 1425 2.6
80 540 1805 2.2
100 630 2090 2
125 700 2420 1.8
160 790 2810 1.8
200 880 3325 1.6
250 990 3800 1.6
315 1175 4510 1.4
400 1375 5415 1.4
500 1620 6650 1.4
630 1860 7695 1.2
800 2160 9120 1.2
1000 2430 10450 1
1250 2835 12730 1
1600 3240 15485 0.8
2000 3825 18240 0.7
2500 4455 21850 0.7
Dry Type Transformer Standards Compliant
  • Suitable for both indoor or outdoor.
  • Air temperature: Maximum temperature: +40ºC; Minimum temperature:-25ºC.
  • Humidity: Monthly average humidity 95%; Daily average humidity 90% .
  • Altitude above sea level: Maximum installation altitude: 2000m.
  • Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
  • No frequent violent shake.
Dry Type Transformer Advantage
  • Safety: Since dry transformers do not contain flammable or toxic liquids that can leak or catch fire.
  • Environmental protection: type power transformers do not use harmful liquids or liquids to work, so they will not release harmful gases into the environment causing greenhouse effect.
  • Low noise: due to the use of laminated iron core technology and multiple layers of insulating paint on the outside of the iron core, the noise of the cast resin dry type transformer is reduced.
  • Low loss: dry-type transformer adopts higher grade silicon steel sheet, which belongs to high energy efficiency grade transformer, the no-load loss is 15% lower than SCB12 transformer, and the load loss is 10% lower than SCB12 transformer.
  • Low installation cost: small size, light weight, less space occupation, no need for fire extinguishing system and low installation cost.
  • Maintenance: Since the dry-type transformer does not use liquid for filling and the use of accessories, it requires almost no maintenance.
  • Sustainability: small partial discharge (usually below 10PC), high reliability, long-term safe operation can be guaranteed, and the service life can reach 30 years.
  • Good heat dissipation effect: the composite insulation composed of pure resin and glass fiber has extremely high electrical strength, which improves the heat dissipation efficiency of the winding surface.
Dry Type Transformer Applications
  • Chemical, oil, and gas industry.
  • Environmentally sensitive areas (e.g. water protection areas).
  • Fire-risk areas (e.g. forests).
  • Inner-city substations.
  • Indoor and underground substations.
  • Renewable generation (e.g. off-shore wind turbines ).

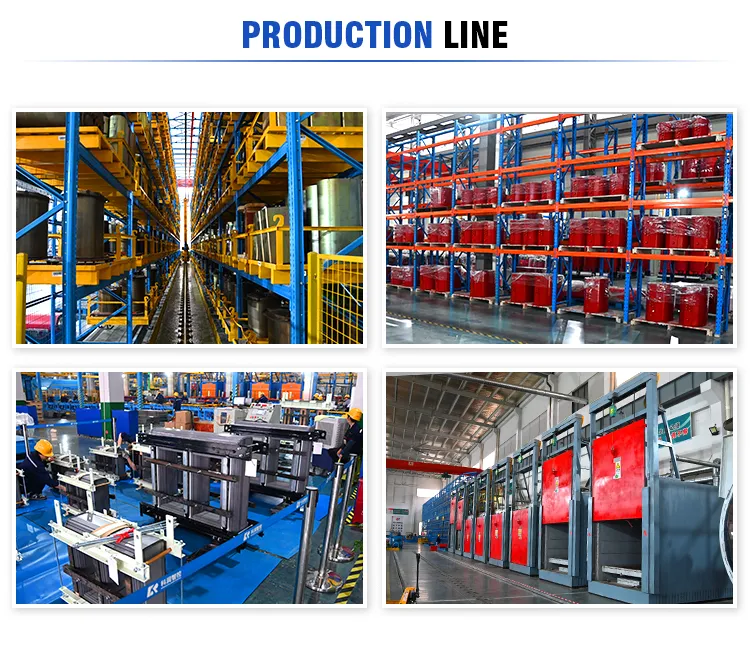

Dry Type Transformer Gallery 1

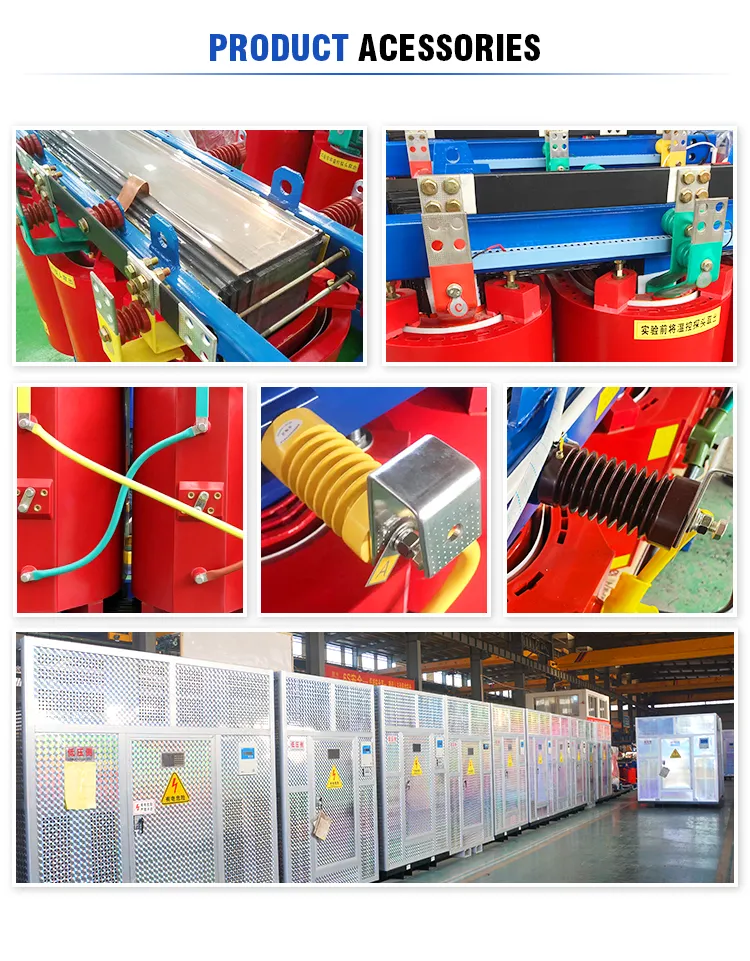

Dry Type Transformer Gallery 2

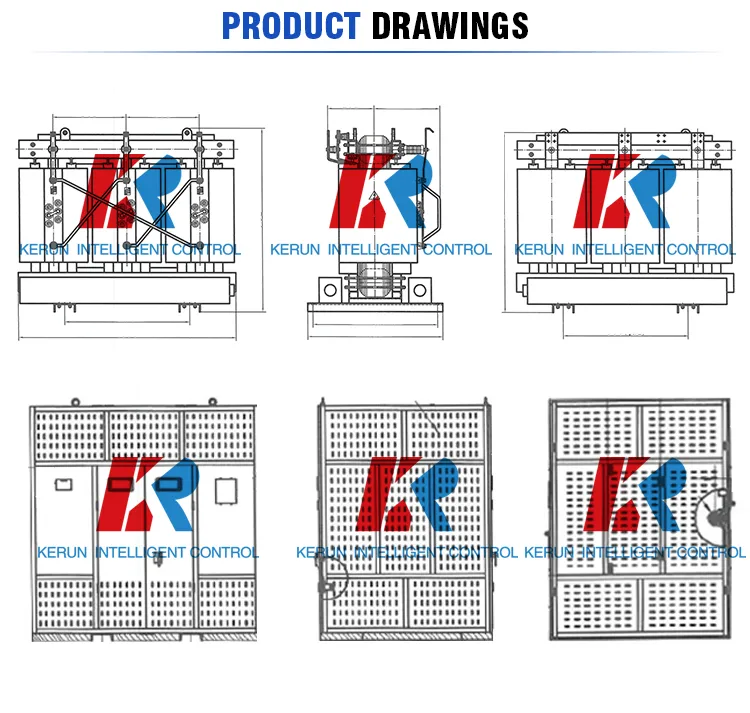

Dry Type Transformer Gallery 3
Dry Type Transformer Gallery 4

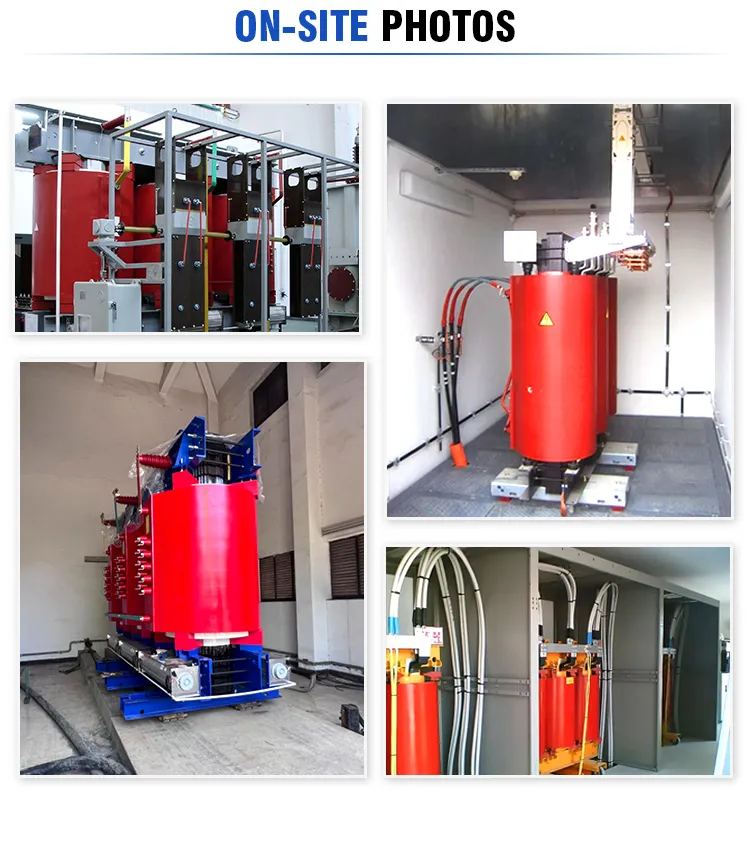

Dry Type Transformer Gallery 5

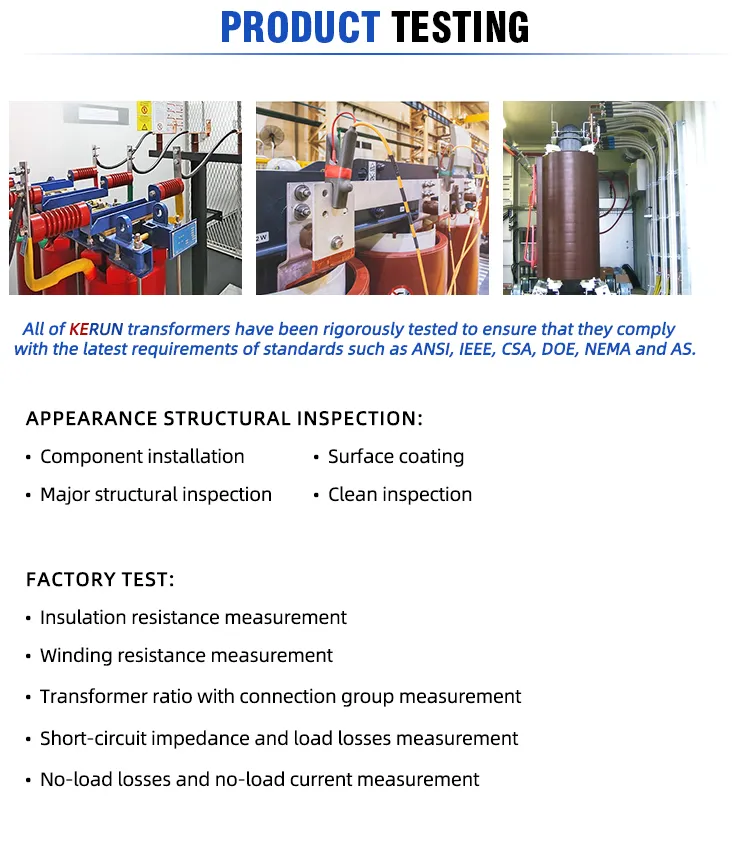

Dry Type Transformer Gallery 6
Dry Type Transformer Gallery 7
Dry Type Transformer Gallery 8

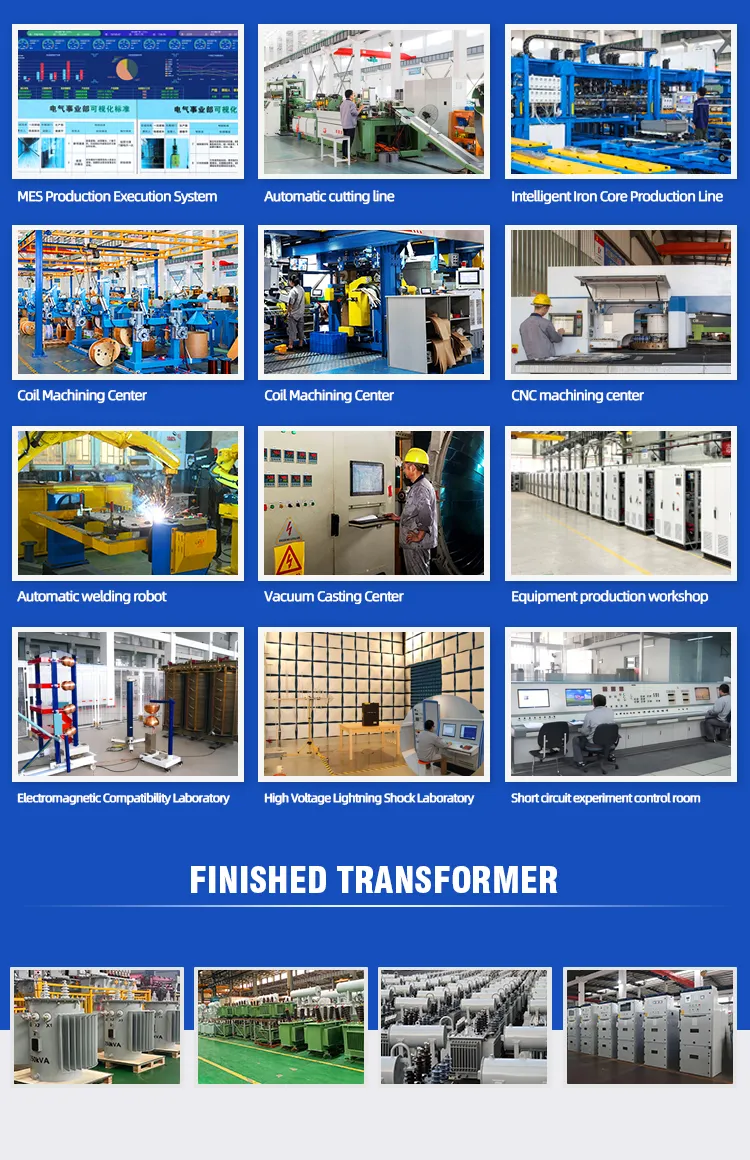

Dry Type Transformer Gallery 9
Dry Type Transformer Gallery 10
Dry Type Transformer Gallery 11
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional transformer manufacturer with more than 20 year's experience. Support OEM&ODM.
Which markets do you mostly export to?
We are exporting to more than 20 countries in South America, North America, Europe, Middle East, Africa and so on.
What certificates and standards do you have?
ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates. Product compliant standards include IEC, ANSI, KEMA, GOST standard.
How long is your delivery time?
After determining the plan, we will complete production and shipping within 20 days. It mainly depends on the quantity.
What is the standard of package?
Our normal package are divided into three types: wooden pallets, wooden frames, and wooden boxes. Also it can be customized.
What currencies and payment Type do you support?
Payment Currency: USD, CNY. Payment Type: T/T, L/C.
