Product Description

Product Display
Transformer Details
PRODUCT OVERVIEW

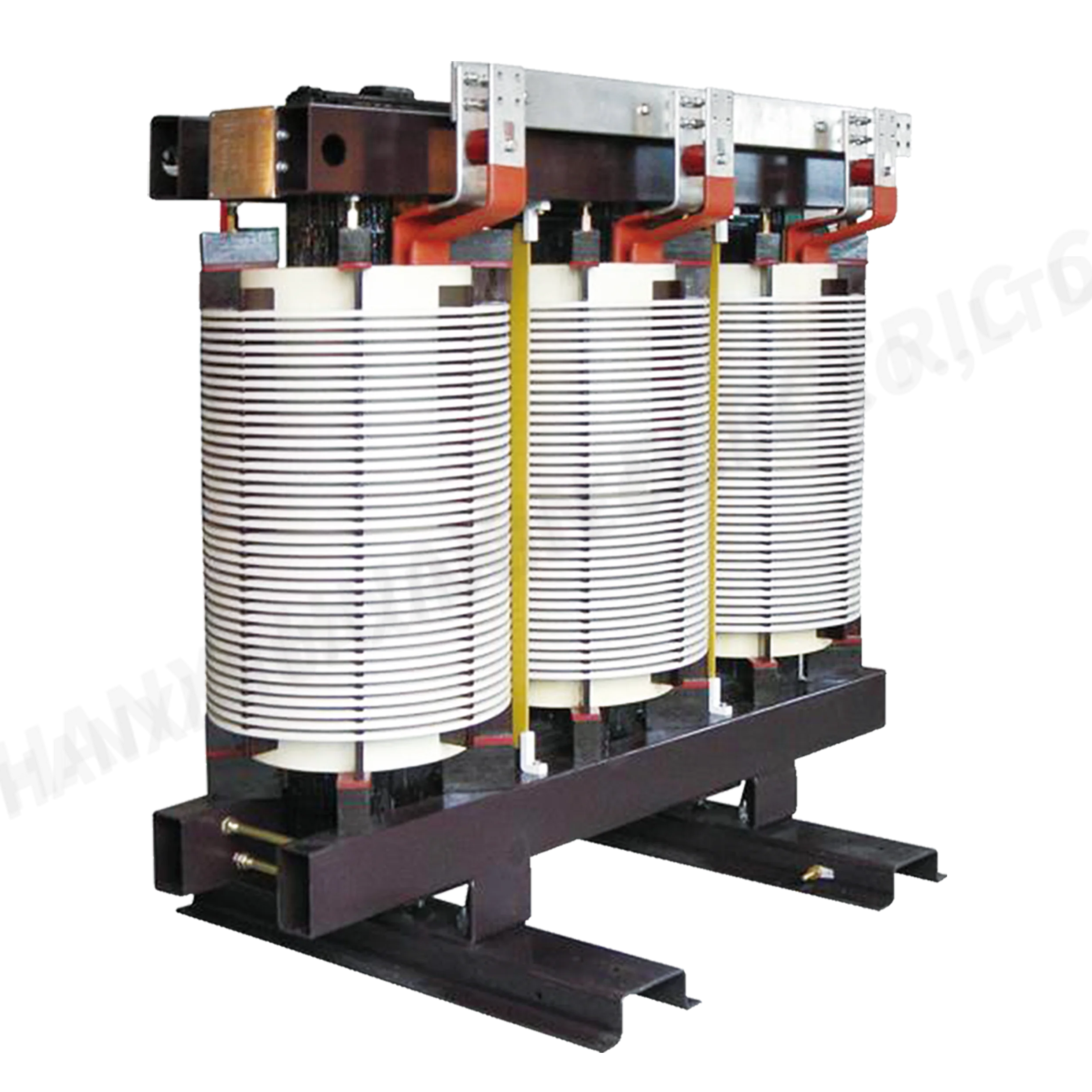

SG (H) series dry-type transformer is a type of transformer whose core and winding is not immersed in insulating oil. Structurally, it can be divided into two types: (1) Solid insulation encapsulated winding. (2) No encapsulated winding. Ideal for fire-proof and explosion-proof locations such as general buildings and subways.
PERFORMANCE CHARACTERISTICS
  • No oil, no pollution, flame retardant, self-extinguishing and fire prevention.
  • Low loss, high efficiency and low noise.
  • Small local discharge (under 30 PC) and high reliability for long-term safe operation (up to 30 years).
  • Resistance to crack and temperature change, high mechanical strength, and strong sudden short-circuit resistance.
  • Good moisture-proof property; can run normally under 100% humidity without drying treatment.
  • No need for separate transformer room or oil collecting pits, reducing construction costs.
  • Easy installation, no debugging, and almost no maintenance required.
TECHNICAL PARAMETERS
Table 1: Primary rated voltage grade 6 kV and 10 kV dry-type transformer performance
Rated capacity (kVA) Primary Voltage (kV) Secondary Voltage (kV) Join Group Free Load Loss (W) Load Loss (W) Impedance Voltage (%)
1006 / 100.4Dyn11/Yyn040516914.0
5006 / 100.4Dyn11/Yyn0117952544.0
6306 / 100.4Dyn11/Yyn0135963274.0
8006 / 100.4Dyn11/Yyn0153974866.0
20006 / 100.4Dyn11/Yyn03060155526.0
25006 / 100.4Dyn11/Yyn03600184876.0
INSULATION LEVEL & SIZE
Rated voltage (kV) Power Frequency Withstand Voltage (kV)
≤ 13
2050
3570
Product Dimensions
Capacity (kVA) Length × Width × Height (mm) Gross Weight (kg)
1001000×620×1080430
2001150×620×1145890
25001815×920×18205150
APPLICATIONS

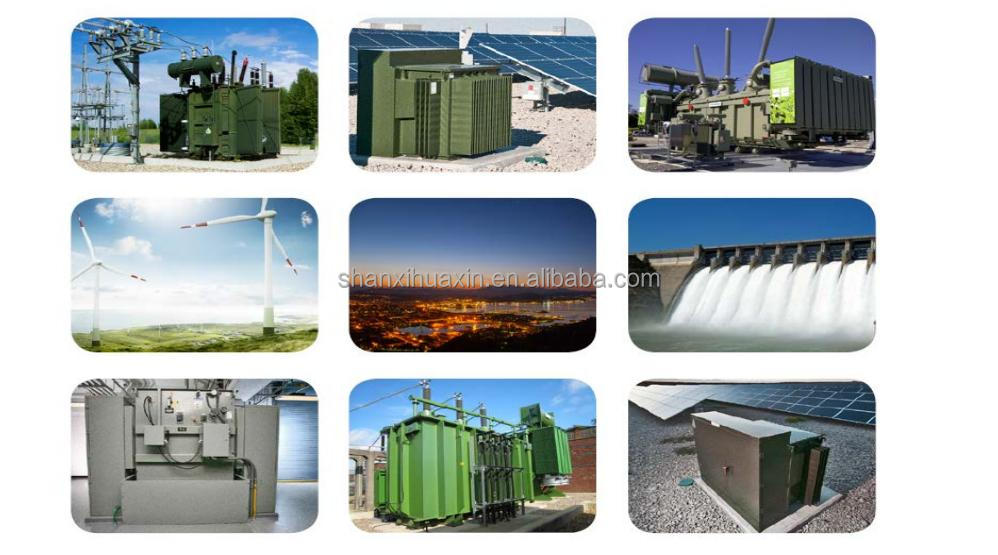

Suitable for high fire protection requirements and humid environments: Airports, Power Plants, Metallurgy, Hospitals, High-rise Buildings, Shopping Malls, Petrochemical Plants, and Nuclear Submarines.
PRODUCT GALLERY
Transformer Photo 1
Transformer Photo 2
Transformer Photo 3
Transformer Photo 4
Transformer Photo 5
Transformer Photo 6
CERTIFICATIONS & EXHIBITIONS
Our products are certified by CSA, UL, SASO, and CE. We maintain an ISO 9001 Quality Management System.
Certificate 1
Certificate 2
Certificate 3
Exhibition 1
Exhibition 2
Exhibition 3
FREQUENTLY ASKED QUESTIONS
1. Are you a manufacturer?
Yes, we are a professional manufacturer with six industrial manufacturing bases covering an area of about 650mu.
2. What is the guarantee for your products?
The standard warranty period is 12 months from commissioning or 18 months after delivery, whichever comes sooner.
3. Which certifications do your products hold?
Our company and products are certified by CSA, UL, SASO, CE, ISO 9001, 3C, and KEMA.
4. What are the accepted payment methods?
We accept payments via T/T (Telegraphic Transfer) and L/C (Letter of Credit).
5. What is the typical production lead time?
Generally, production takes 4 to 6 weeks, depending on the specific product style and requirements.
6. Is maintenance required for dry-type transformers?
SG series dry-type transformers are designed for easy installation with almost no maintenance required, significantly lowering long-term operational costs.
