Product Description

Basic Specifications

Model NO.
SCB11-30/10
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001, CCC, CE
Frequency
50-60Hz
Type
Voltage Transformer
Insulating Medium
Epoxy Resin
Protection Grade
IP20 and IP23
Core Material
Silicon Steel

Product Overview

6kV up to 35kV Dry Type Transformer with Cast Epoxy Resin
Professional high voltage power distribution solution using amorphous alloy resin insulated technology.

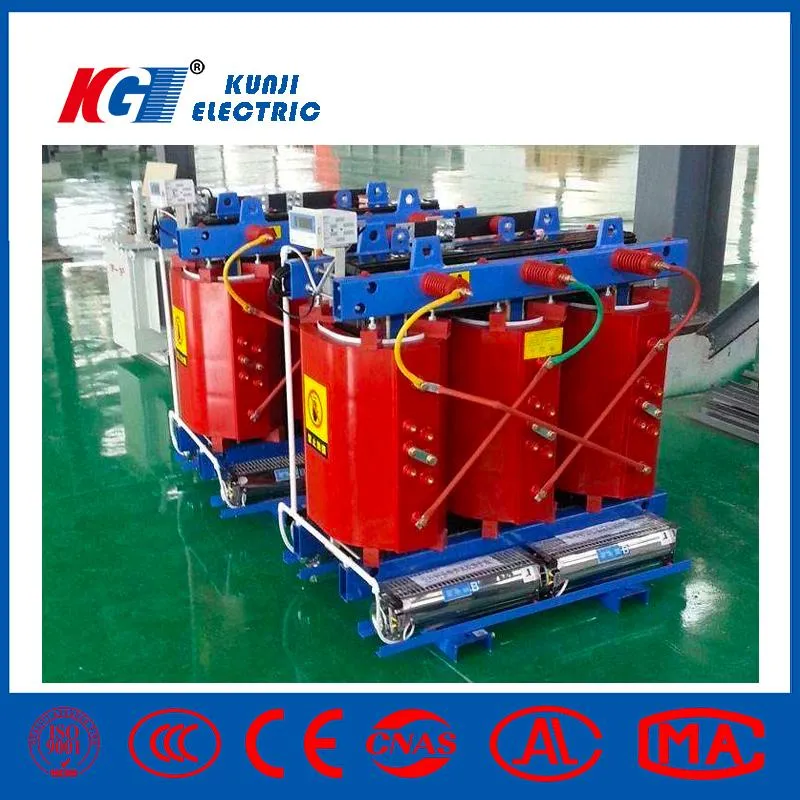

Dry Type Transformer

Technical Parameters

Rated VoltageHV coil: Up to 35kV; LV coil: 0.208--1.14 KV
Tap RangeStandard: ±2.5%, ±5% (Other ratings available)
Power CapacityThree phase: 30 - 3150 KVA; Frequency: 50Hz/60Hz; Impedance: 4-8%
ConnectionsHV: Delta; LV: Wye with neutral point
TemperatureClass F Insulation; Ambient min -25°C; Rise limit 40°C

Performance Features

◈ Rated capacity: 30~6000kVA
◈ Rated HV: 6kV to 35 kV
◈ Cooling methods: ONAN, ONAF, AN or AF
◈ Regulator: off-circuit or on-load tap changing
◈ Phase: Single Phase or Three Phases
◈ Connection Symbol: Yyn0, Dyn11 or others
◈ Altitude: Design up to 2000m (Customizable above)
◈ Environment: Runs in 100% relative humidity

Technical Data Chart

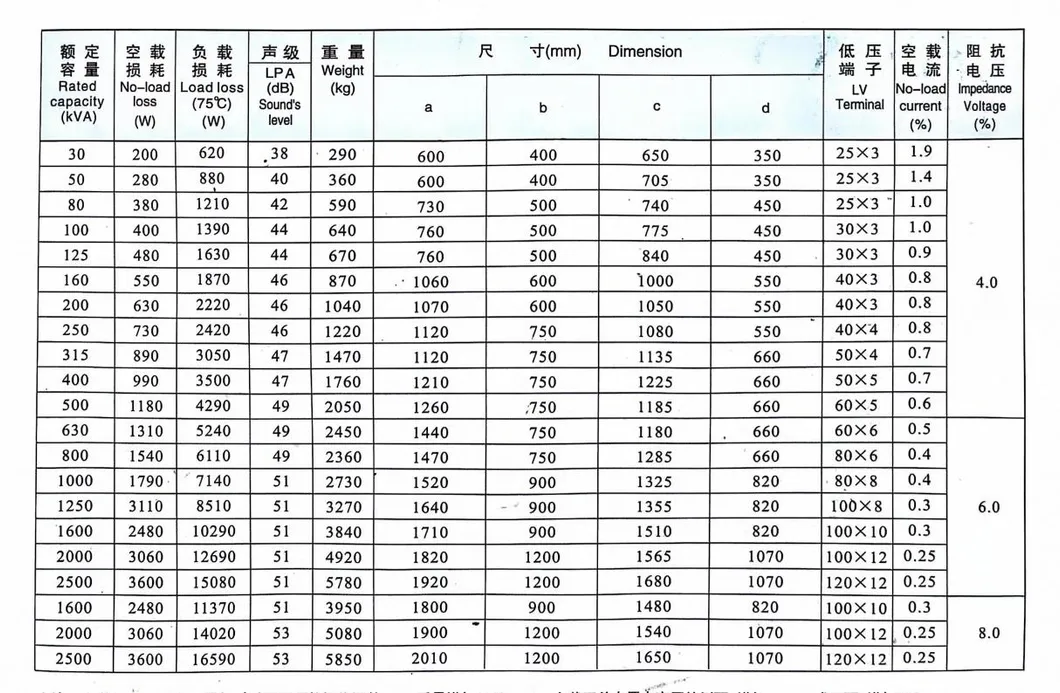

Technical Parameter Chart

Production & Facilities

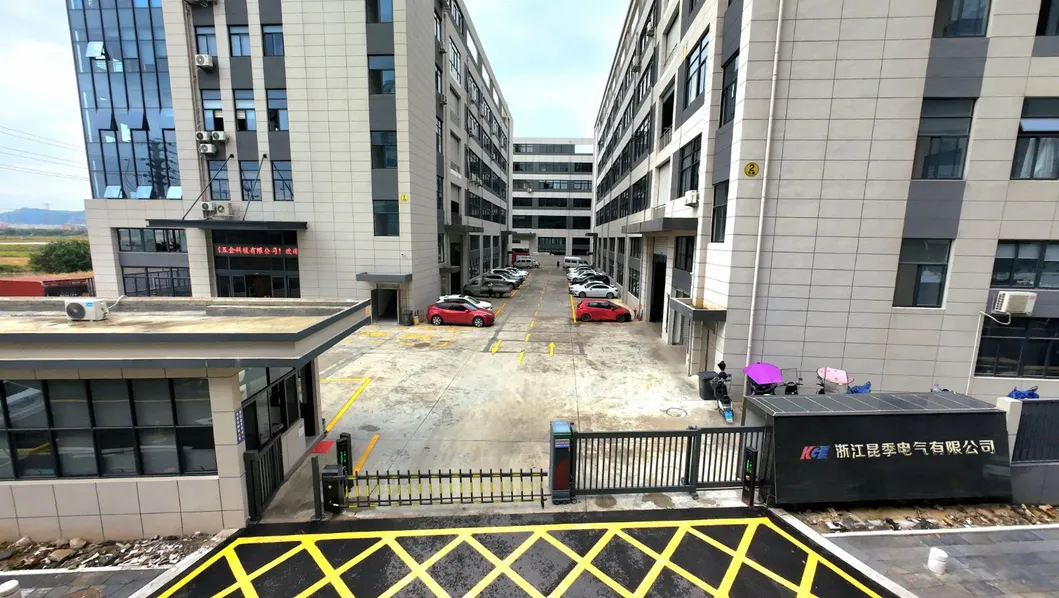

Manufacturing Center

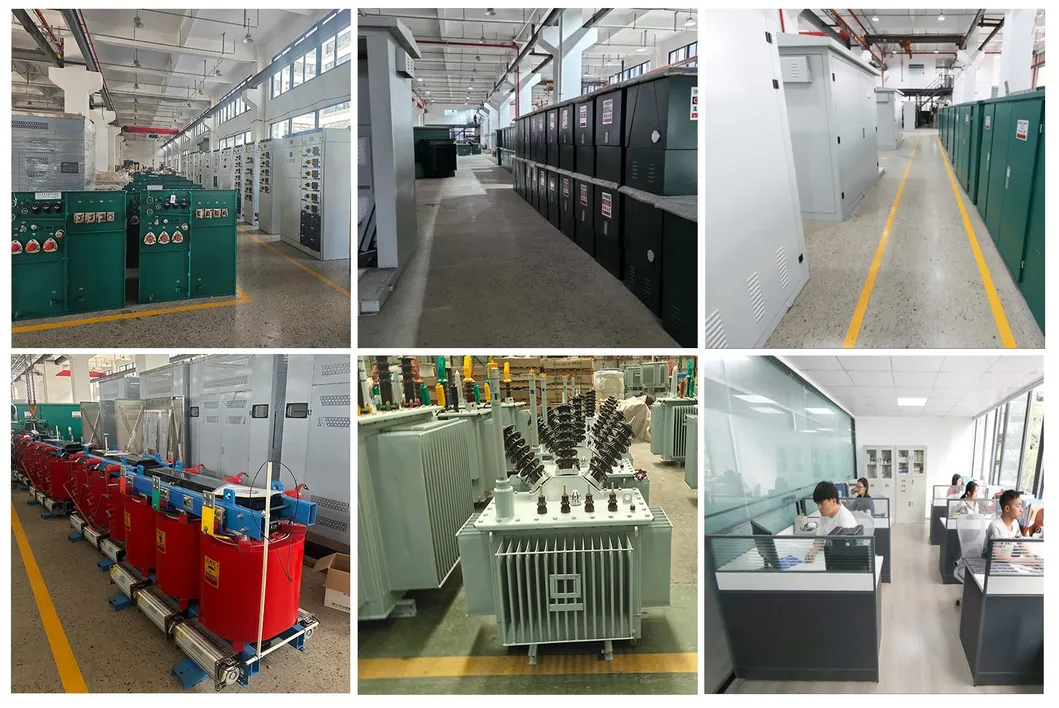

Workshop Certificates

Packaging & Shipping

Package Size
600.00cm * 400.00cm * 650.00cm
Gross Weight
290.000kg

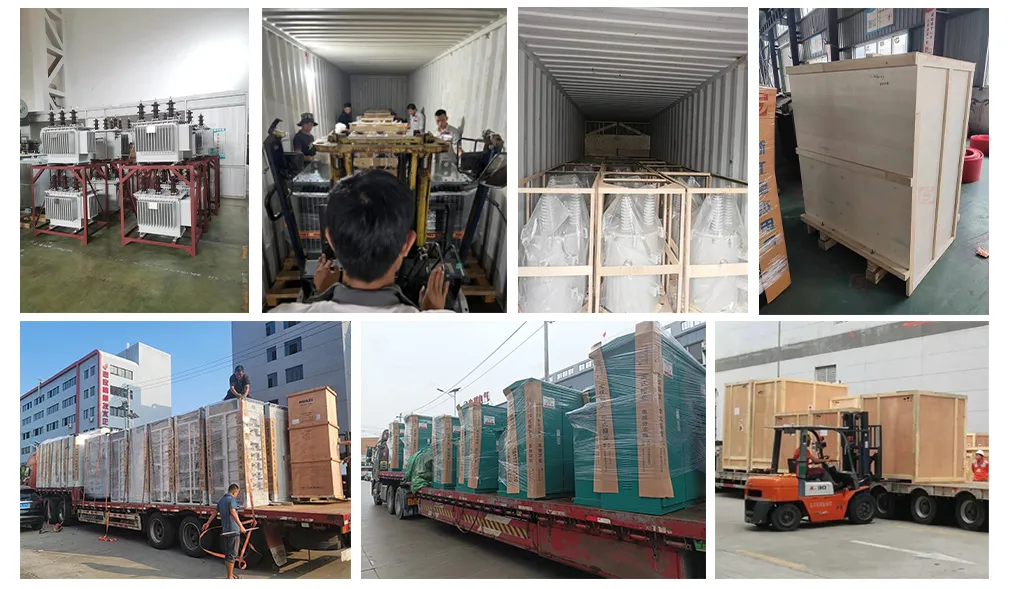

Packaging Detail 1 Packaging Detail 2

Frequently Asked Questions

1. Are you a manufacturer or trading company?
We are a professional factory with over 10 years of experience in high and low voltage switchgears, substations, and transformers.
2. Do you offer customized services?
Yes, we provide OEM/ODM services. Our technical team can design projects based on your specific drawings and parameters.
3. What is the standard lead time for delivery?
It depends on the quantity and requirements, but generally, products are available within 5 to 10 working days.
4. Can these transformers operate in harsh environments?
Yes, our dry-type transformers are designed to operate in 100% relative humidity and other challenging environmental conditions.
5. What are the accepted payment terms?
Standard terms are 30% T/T in advance and 70% before shipment. We also accept L/C and West Union.
6. How do you handle quality control issues?
We analyze detailed photos of any reported issues through our quality testing department and provide a solution within 2 days.
