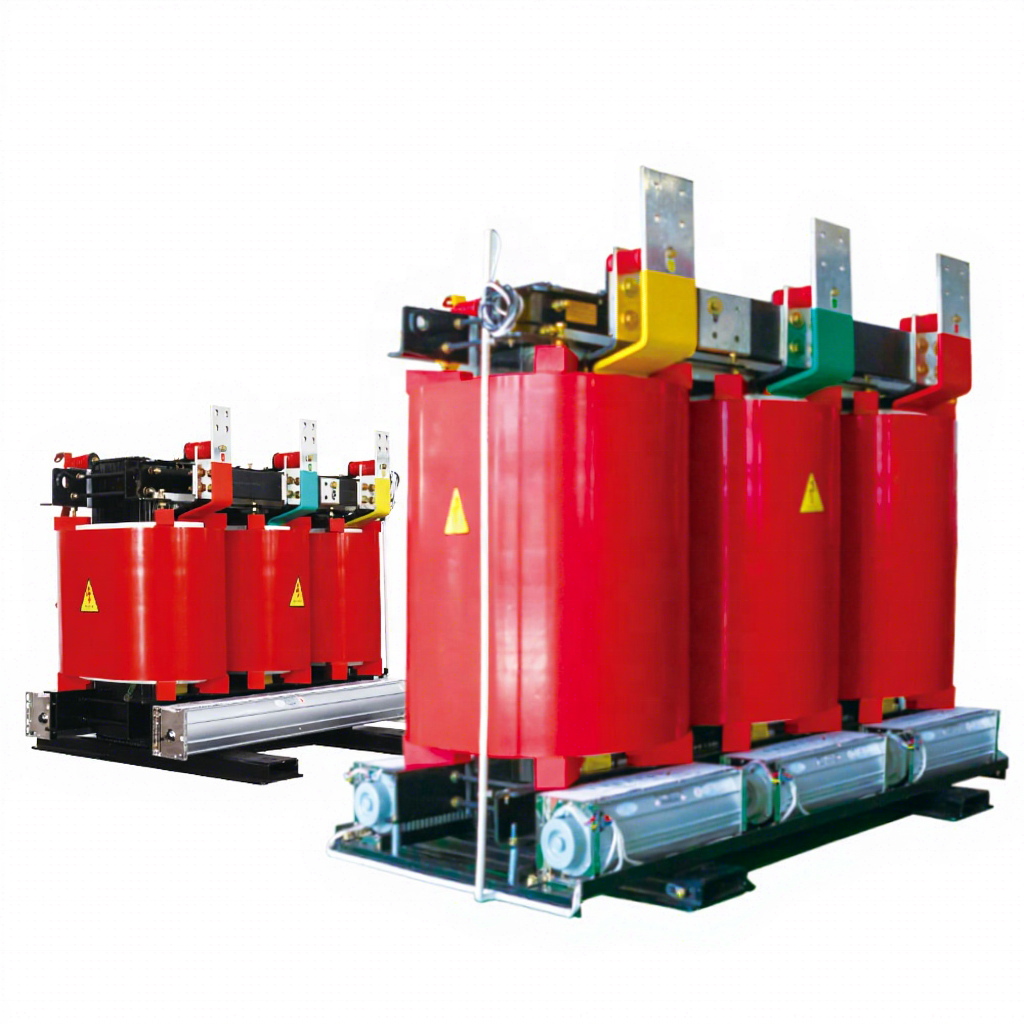

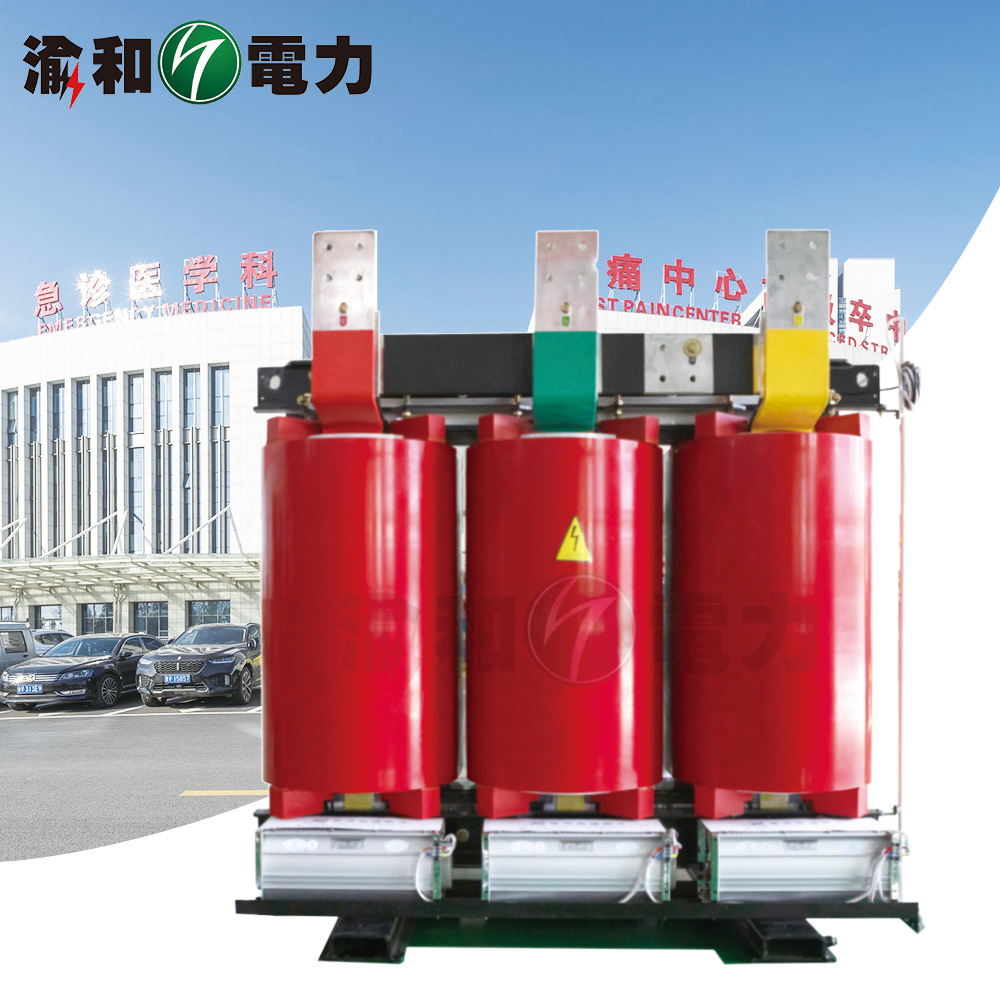

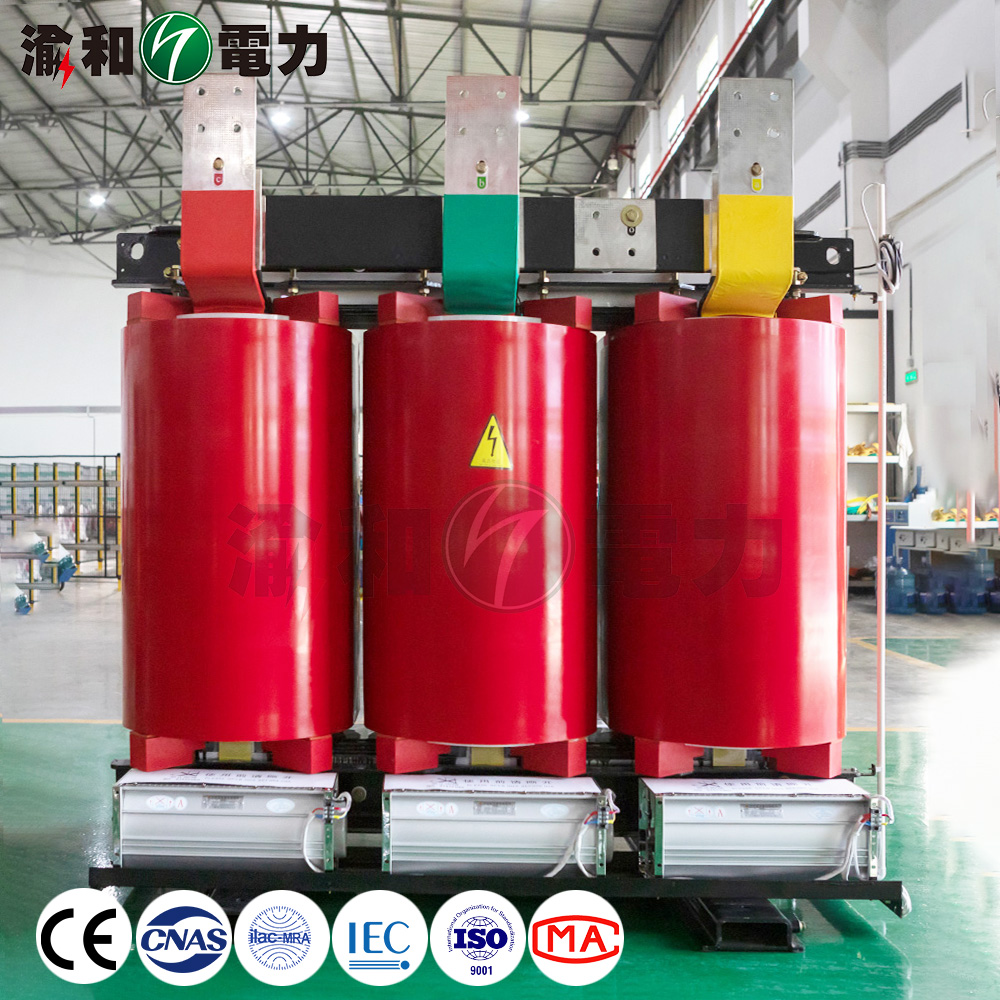

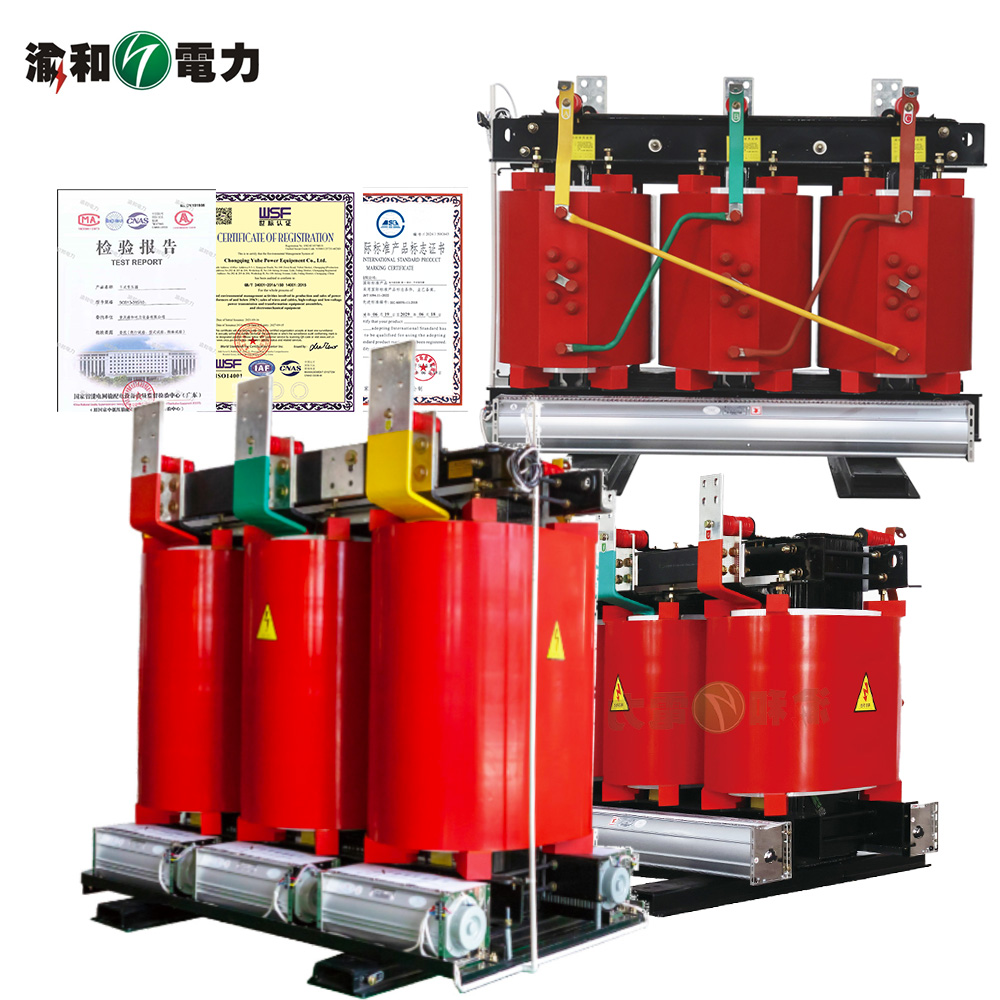

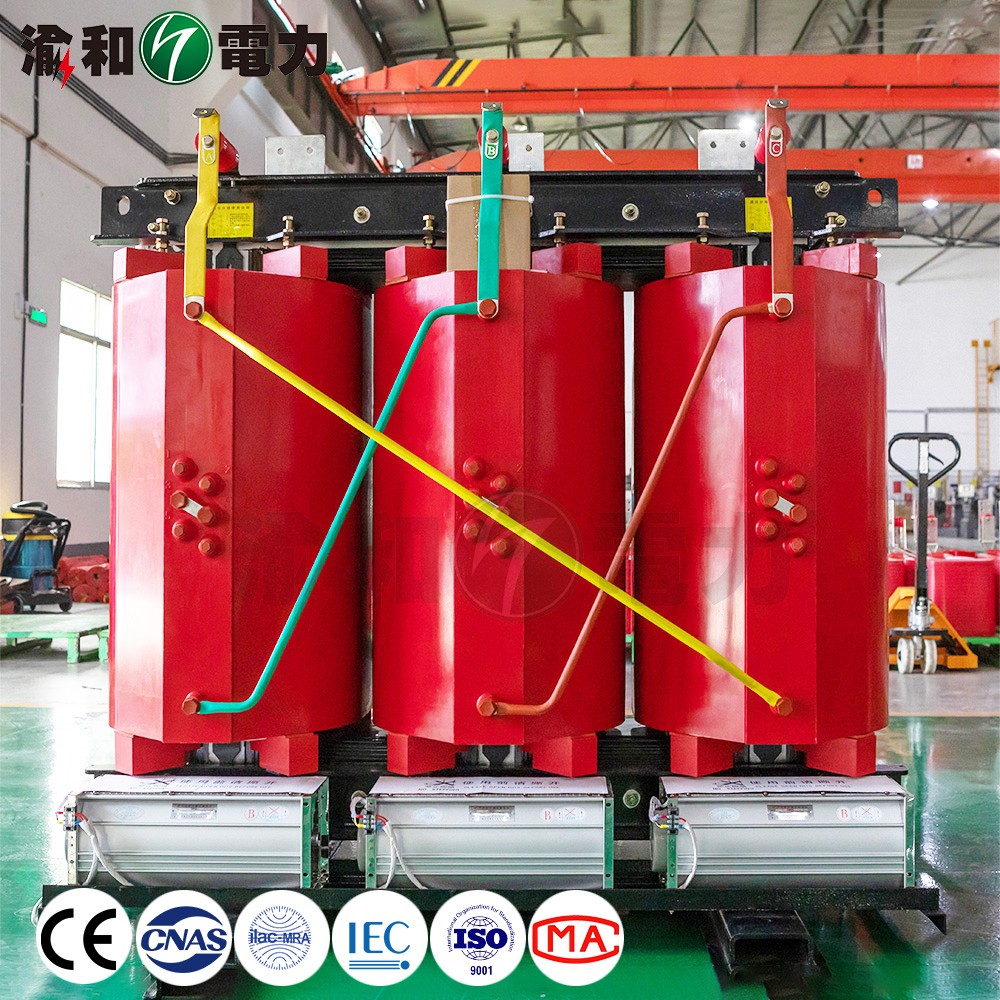

Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
1 / 5
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA
Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA

Indoor Three Phase Dry Type Isolation Transformer 11KV 22KV / 400V 500KVA to 2000KVA

Send Inquiry

Product Description

Power Equipment Header
Transformer Banner
Introduction

Established in 2011, we are a comprehensive enterprise integrating research and development, manufacturing, sales, and services of electric power equipment. Our main product line includes:

  • ◈SCB12, SCB13, SCB14, and SCB18 series of epoxy resin cast dry-type transformers (10KV, 20KV, and 35KV).
  • ◈S13, S20, and S22 series of oil-immersed power transformers.
  • ◈SCBH15(17/19), S(B)H15(21/25)-M series of amorphous alloy transformers.

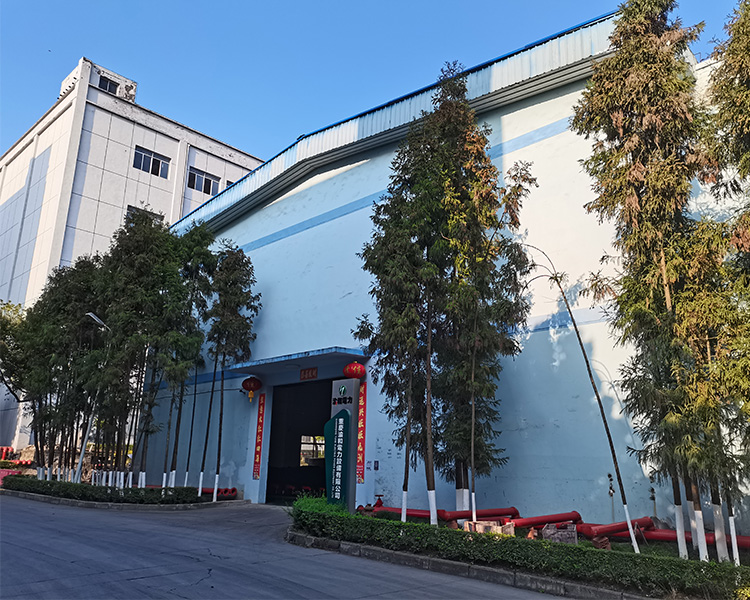

Manufacturing Facility
Process 1
Process 2
Process 3
Process 4
Product Description & Technical Specifications
Rated Capacity (kVA) Voltage Combination (kV) Connection Symbol No-load Loss (W) Load Loss (W) by Insulation Rank No-load Current %
H.V. Tapping % L.V. 130℃ (B) 155℃ (F) 180℃ (H)
306, 6.3, 6.6, 10, 10.5, 11±5, ±2 x 2.50.4Yyno/Dyn11706707107604.0
50Yyno/Dyn1190940100010704.0
100Yyno/Dyn111301480157016904.0
160Yyno/Dyn111702000213022804.0
250Yyno/Dyn112302590276029604.0
400Yyno/Dyn113103750399042804.0
630Yyno/Dyn114205530588062904.0
1000Yyno/Dyn115507650813087606.0
1600Yyno/Dyn117601105011730125806.0
2500Yyno/Dyn1112001615017170184506.0

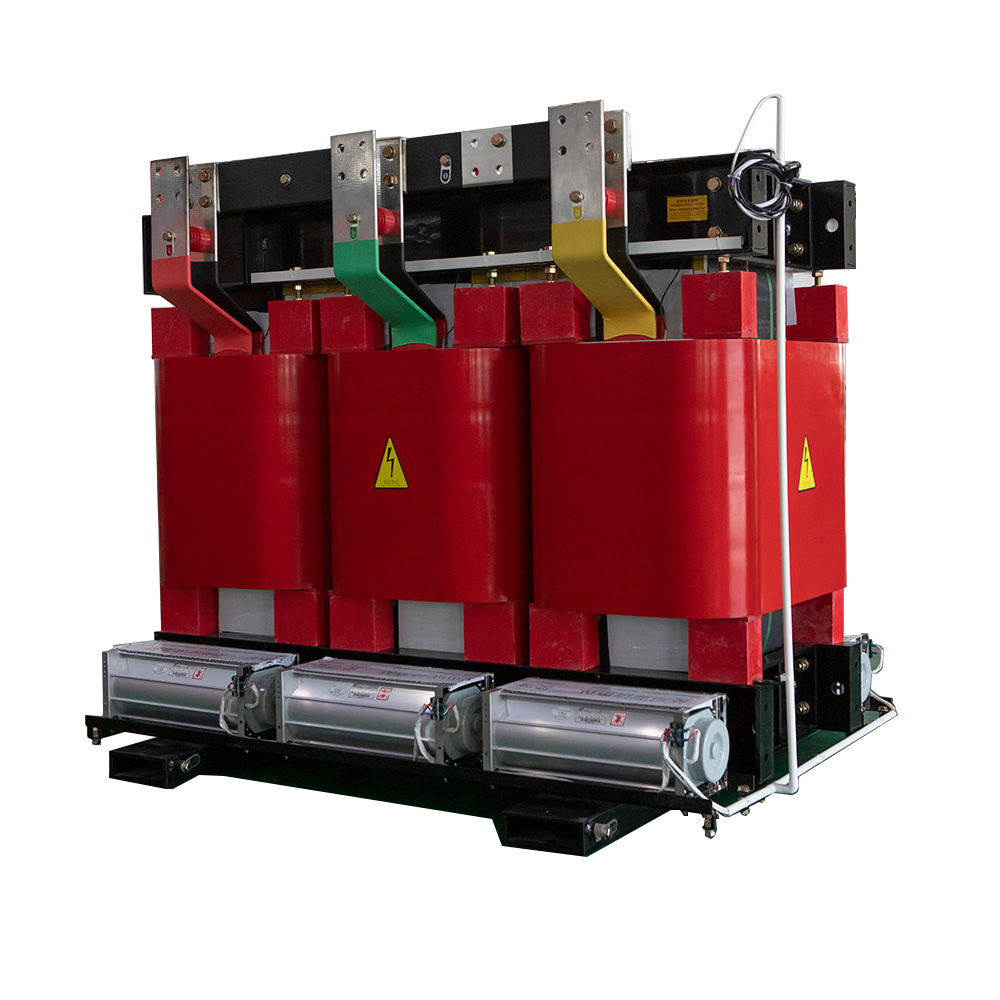

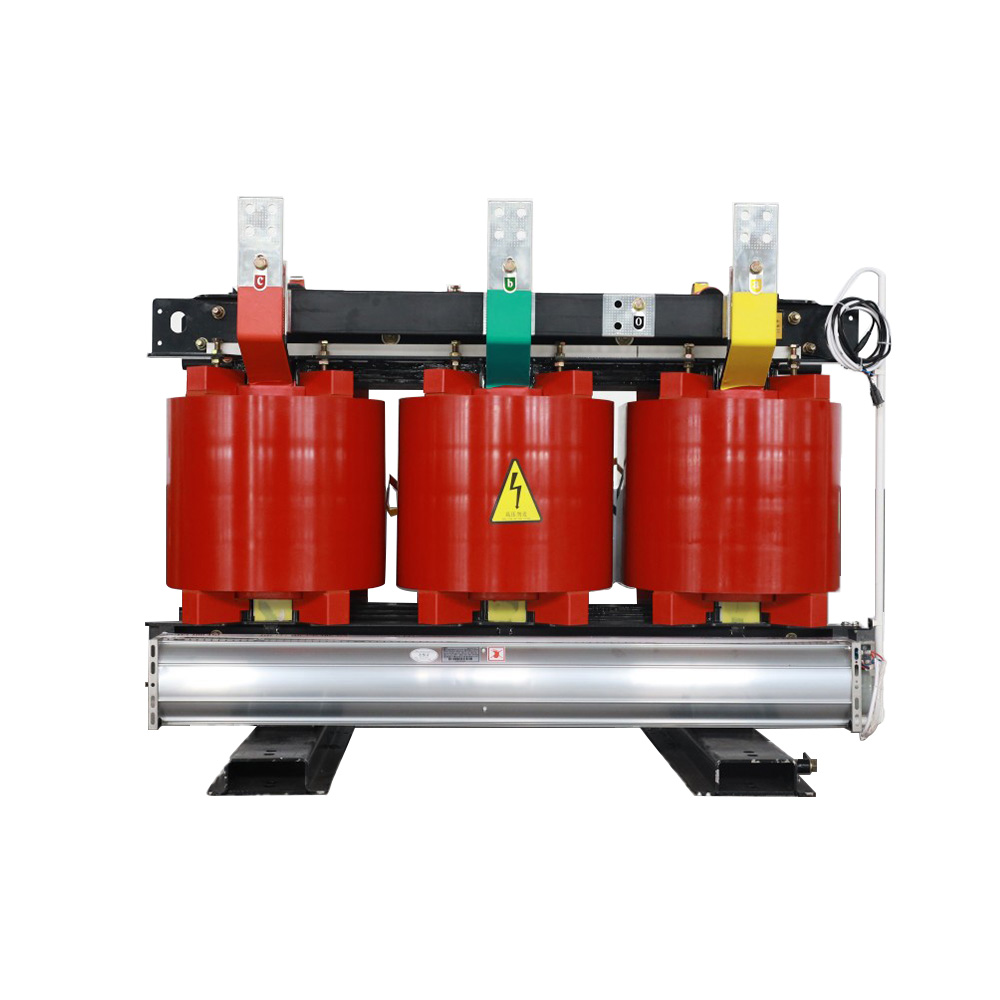

Cast Resin Dry Type Transformer

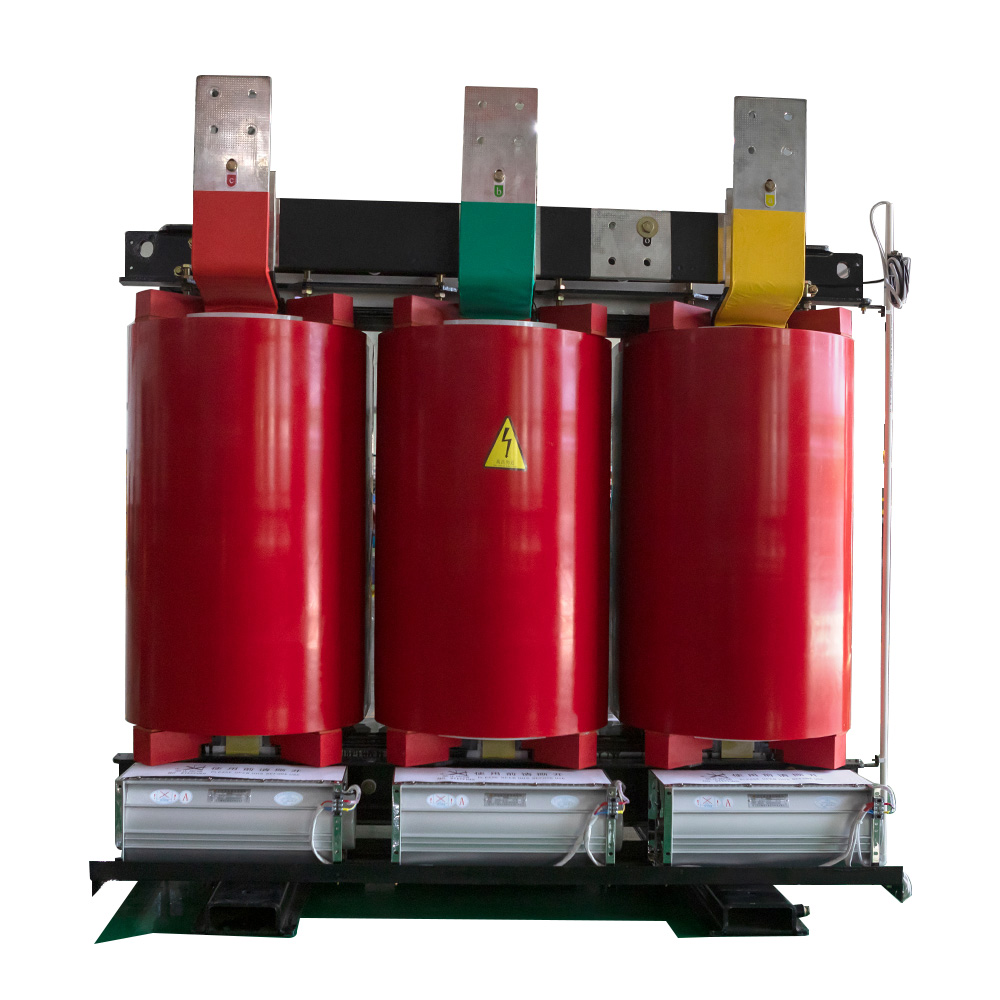

Cast Resin Transformer

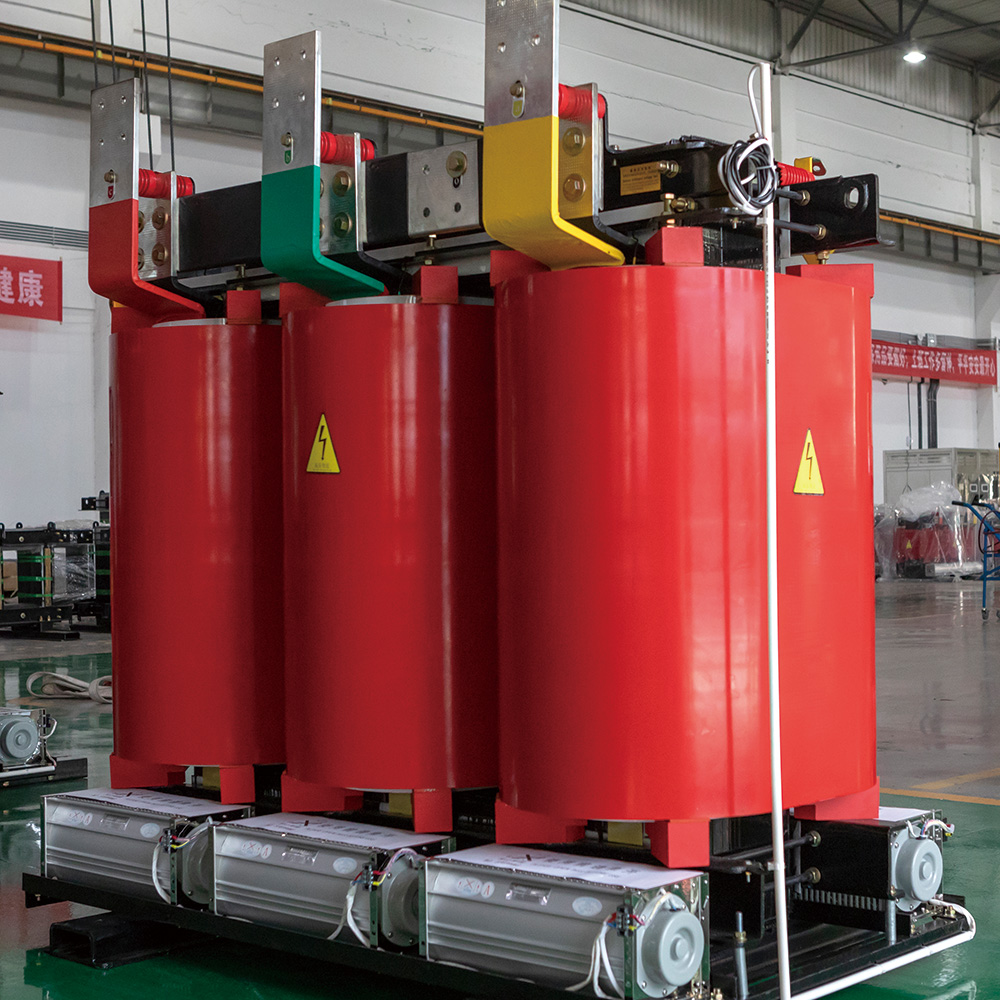

Detail 1

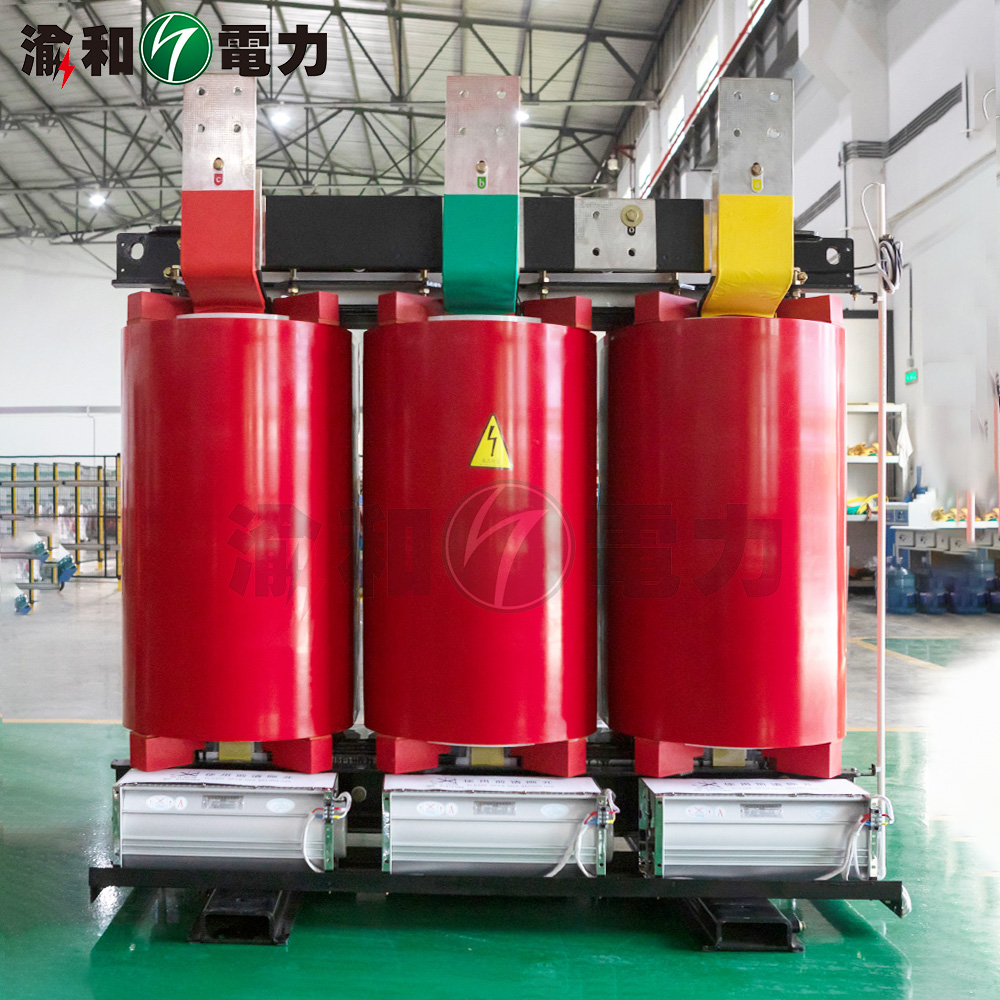

Detail 2

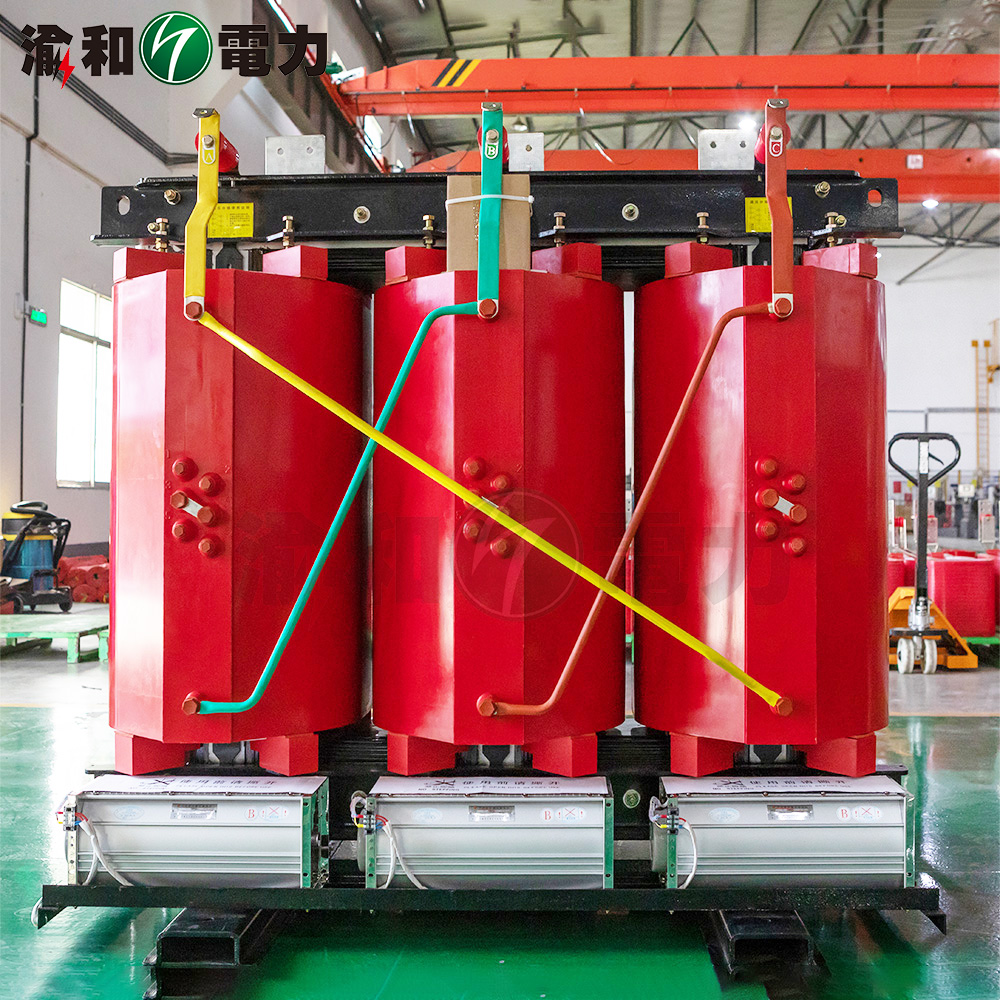

Detail 3
Standard Features
  • ✔Voltage: Up to 35KV
  • ✔Rating: Up to 31.5MVA
  • ✔BIL: Up to 200KV
Options
  • ✔Standard Design (HV/LV by resin cast)
  • ✔VPI / Rectifier with dual secondary
  • ✔Amorphous Core
Our Product Advantages
  • ★Low Partial Discharge ≤ 5Pc
  • ★Low Working Temperature to -25℃
  • ★E3, C3 and F1 Class
  • ★Low Temperature Rise (90K-125K)
  • ★High Impulse Voltage & Short Circuit Withstand
Manufacturing & Quality Control

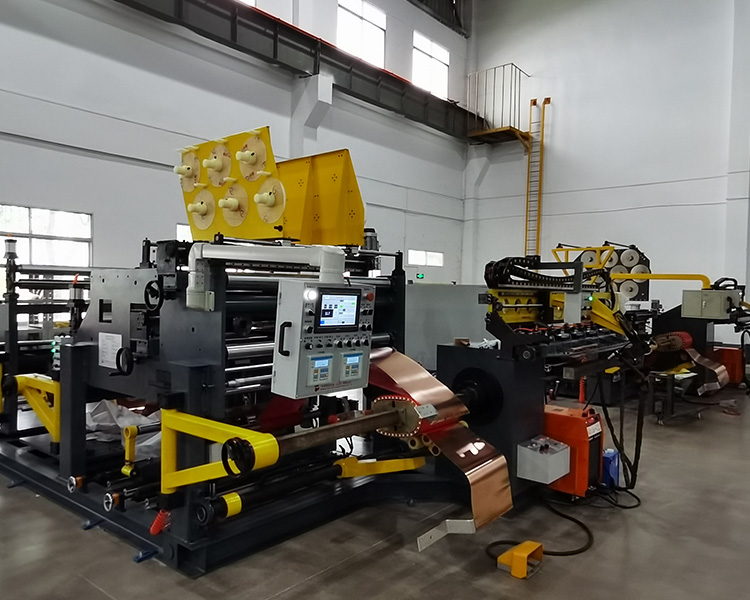

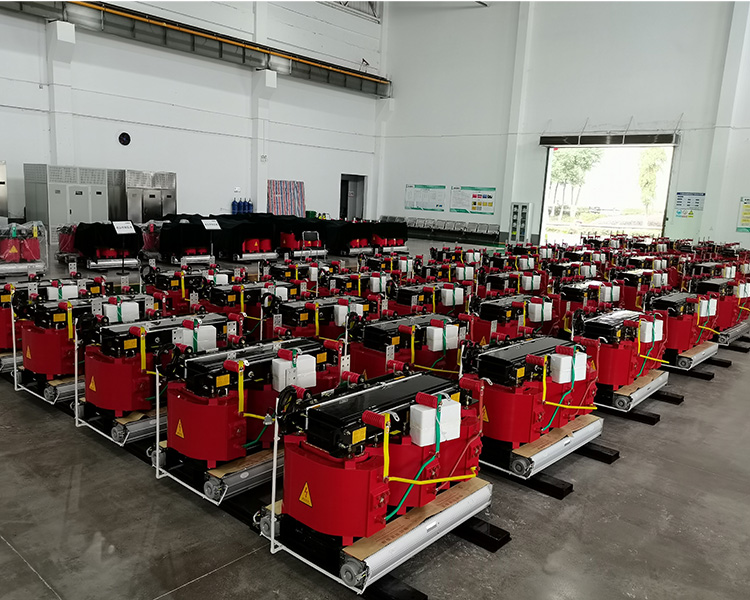

Production Line

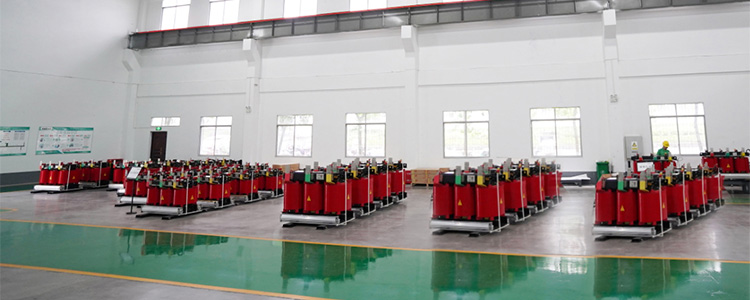

Workshop
Test 1

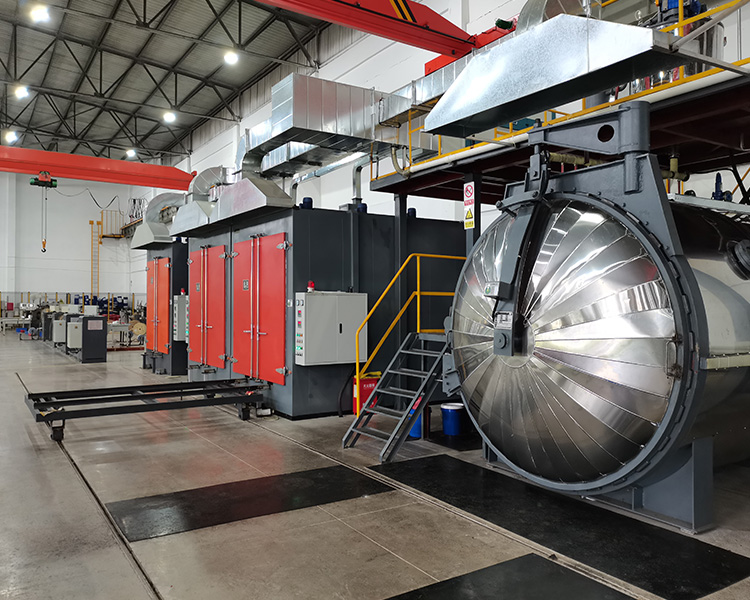

Test 2
Test 3
Our Certificates
Certificate 1
Certificate 2
Certificate 3
Certificate 4
Award 1
Award 2
Factory Overview
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a leading and professional manufacturer of Box type substations, dry type transformers, oil-immersed transformers, and package compact substations since 2010.
Q: Can your products be customized?
A: Yes. Considering differences in voltage, frequency, and other specialties of transformer products in different countries and regions, our products can be customized according to your specific requirements.
Q: When can I get the price?
A: Usually we quote within 24 hours after we receive your inquiry.
Q: What about the lead or shipping time?
A: The lead time depends on the quantity ordered, generally within 30 days upon receipt of advance payment.
Q: What are your preferred terms of payment?
A: We primarily accept T/T and L/C.
Q: Why should we buy from you rather than other suppliers?
A: With over 10 years of specialization in transformer production, we have our own R&D and design team, over 10 patent certificates, and ISO-9001, ISO-14001, and ISO-45001 certifications. We provide high quality, fast delivery, guaranteed after-sales service, and factory-direct pricing.
