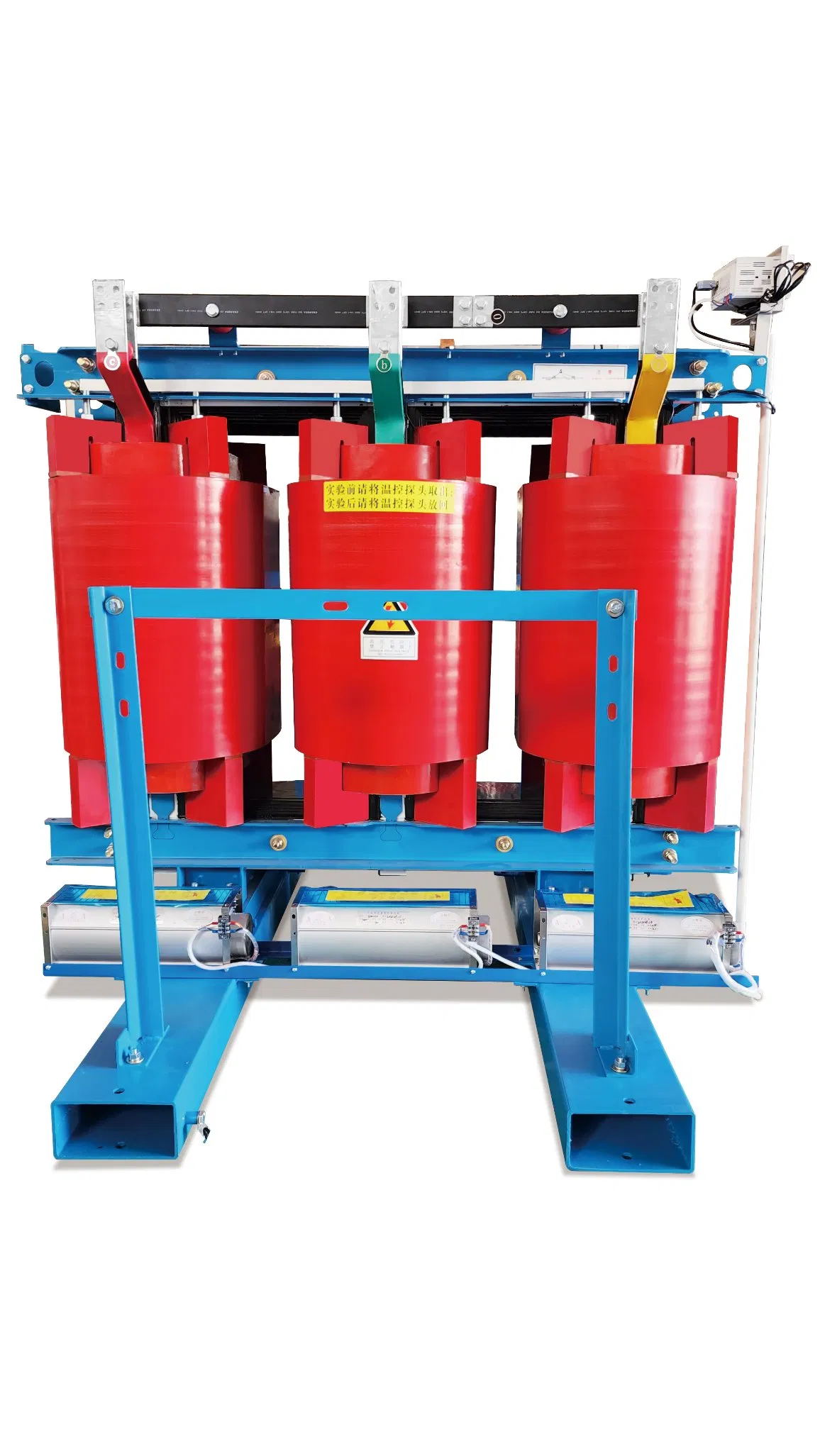

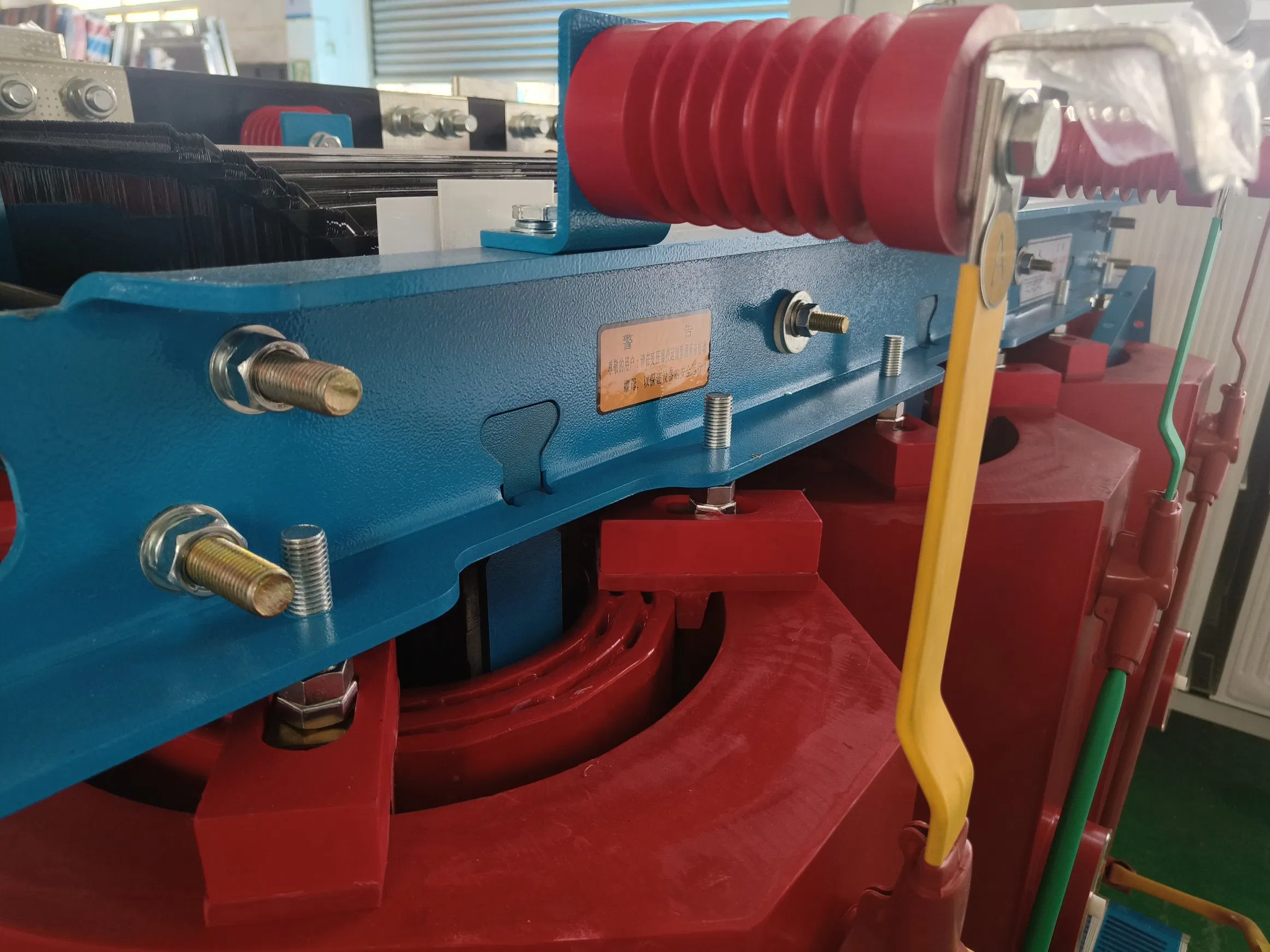

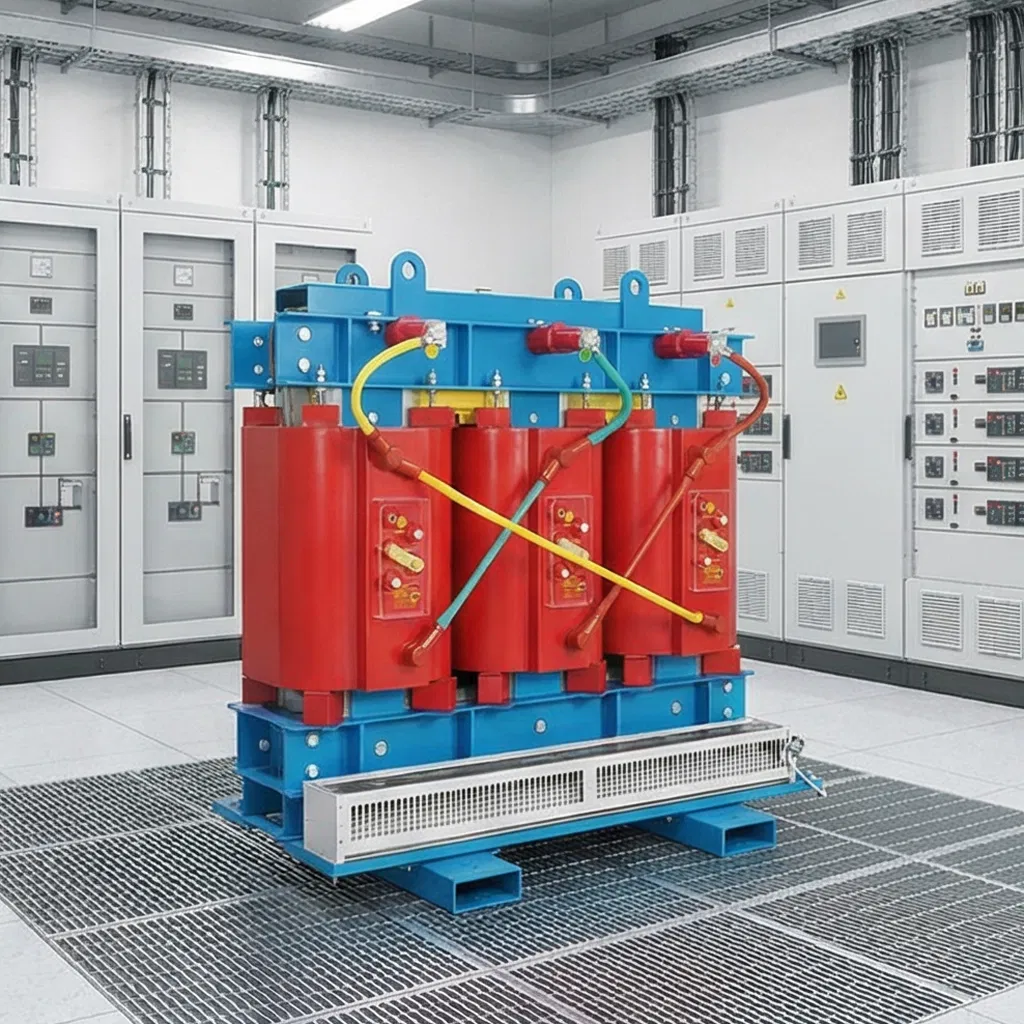

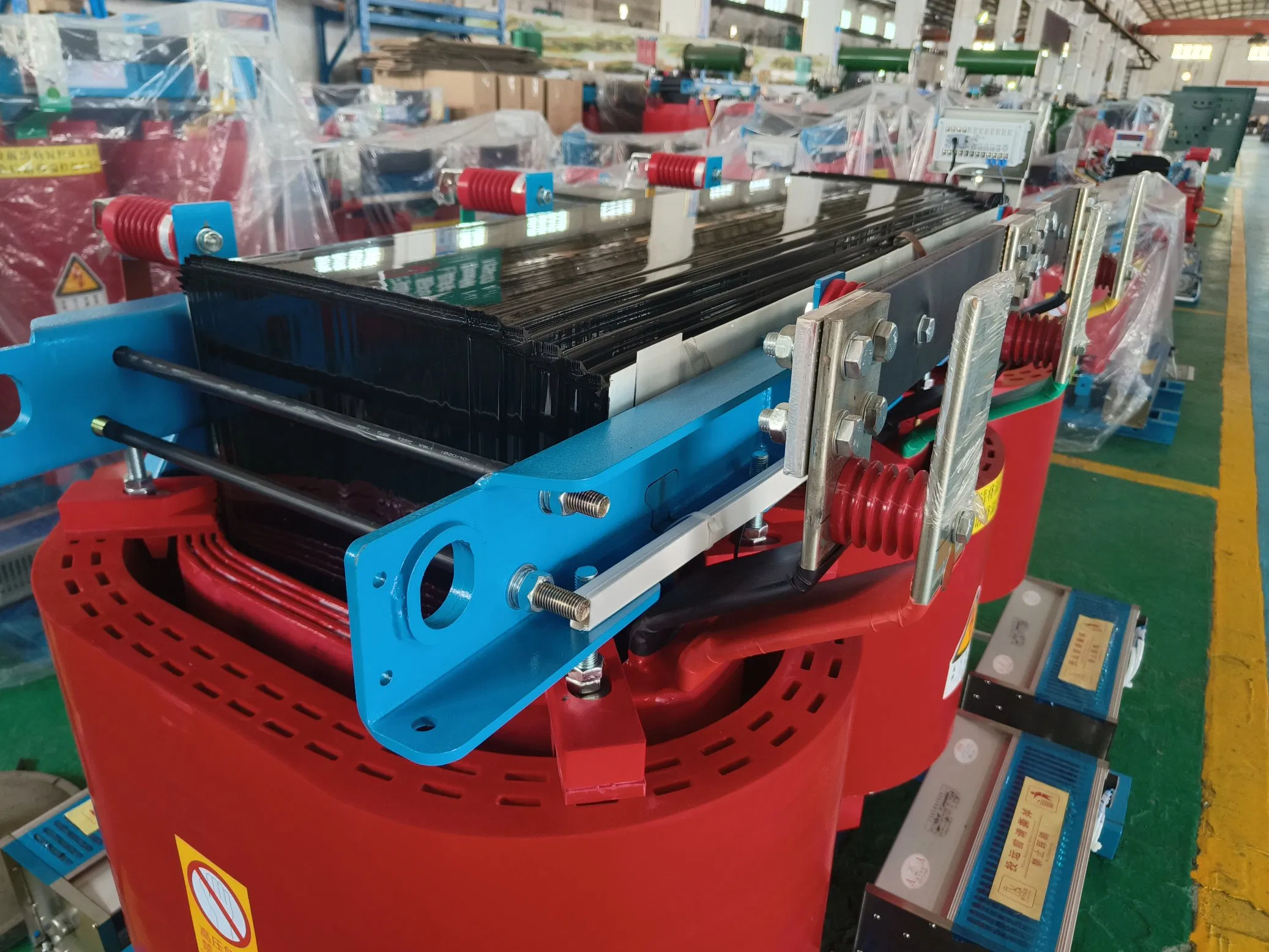

100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
1 / 5
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure
100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure

100kVA 150kVA 630kVA 1000kVA 2000kVA 3000kVA Step Down Hv 20kv 15kv 10kv to 0.4kv 3 Phase Electrical Resin-Cast Dry Type Power Transformer with IP20 Enclosure

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
SC(B)
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Distribution Transformer
Frequency
High Frequency
Shape of Core
Ring
Cooling System
Nature Air + Fans
Connection
Dyn11 / Yyn0; Delta or Star
Insulation Level
Li75 AC35/AC5
Voltage Class
10kv, 35kv
Capacity Range
30kVA Upto 10mva
Package Size
1440.00cm * 1035.00cm * 1130.00cm

Product Overview

SC(B) series products are resin cast dry type transformers that are installed indoor with fire prevention functions. They are the first choice for places with limited spaces, close to the load center, or special places which have higher requirements of fire-proof.

These transformers are widely used in various industries such as power stations, hospitals, factories, buildings, commercial centers, airports, transportation tunnels, chemical plants, and ships. They can operate in harsh conditions such as high humidity, fire risk, and seismic events without compromising performance.

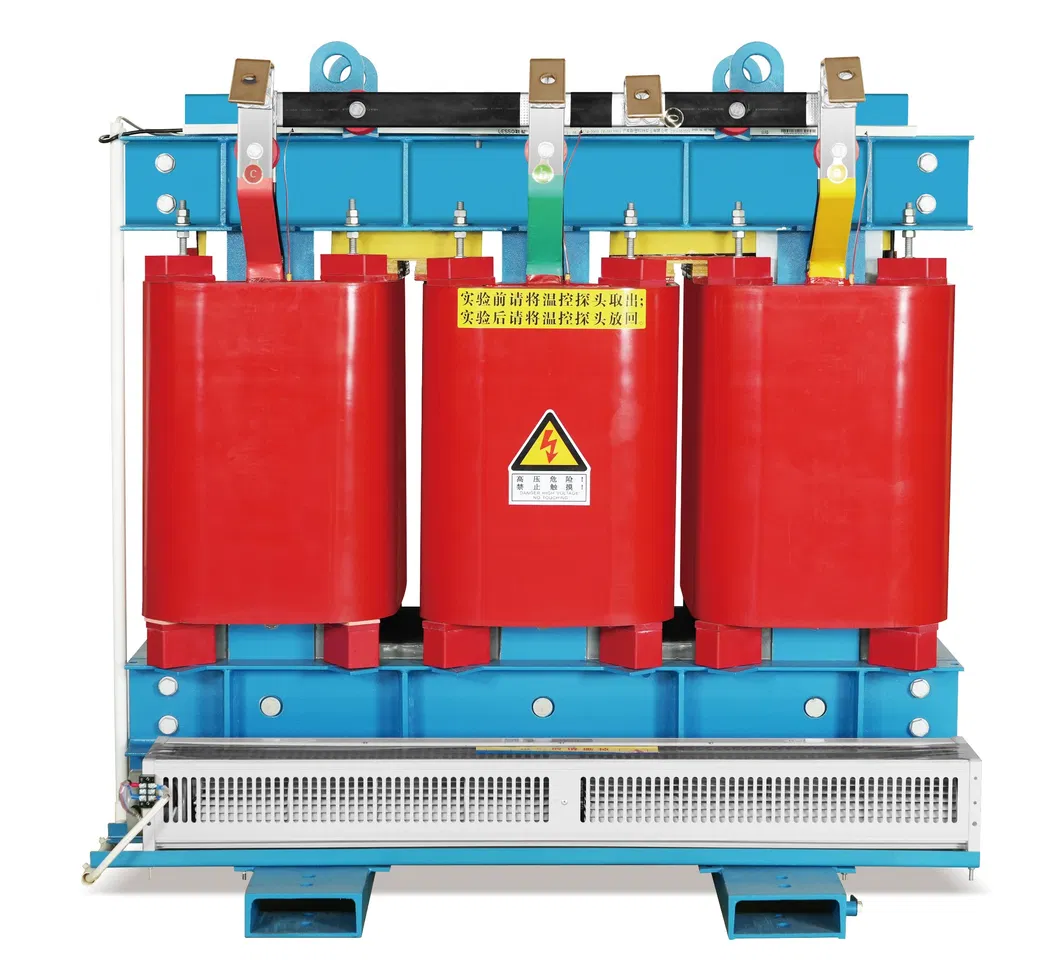

Dry Type Power Transformer

Technical Advantages

  • Low Noise & Low Loss: Advanced design using high-quality grain-oriented cold-rolled silicon steel.
  • Low Partial Discharge: Ensures safe, long-term transformer operation.
  • Short-Circuit Resistance: Epoxy glass fiber mesh structure insulation & vacuum resin casting.
  • Fire Prevention: High-level insulation with excellent impact resistance.

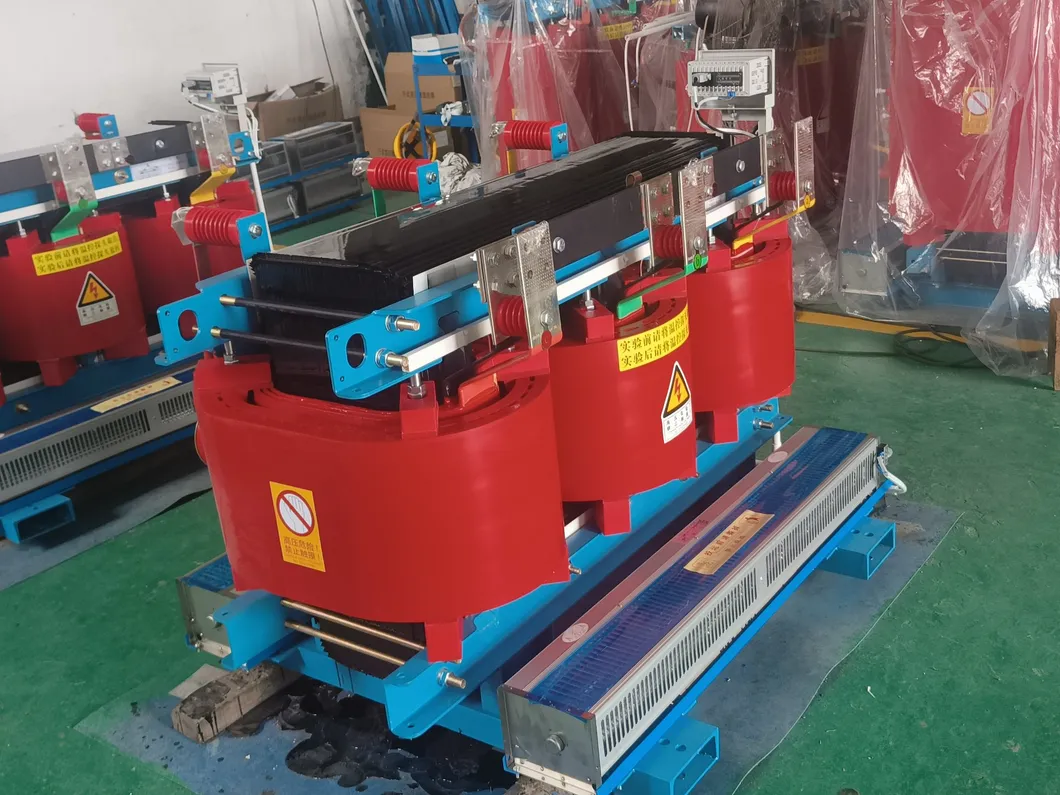

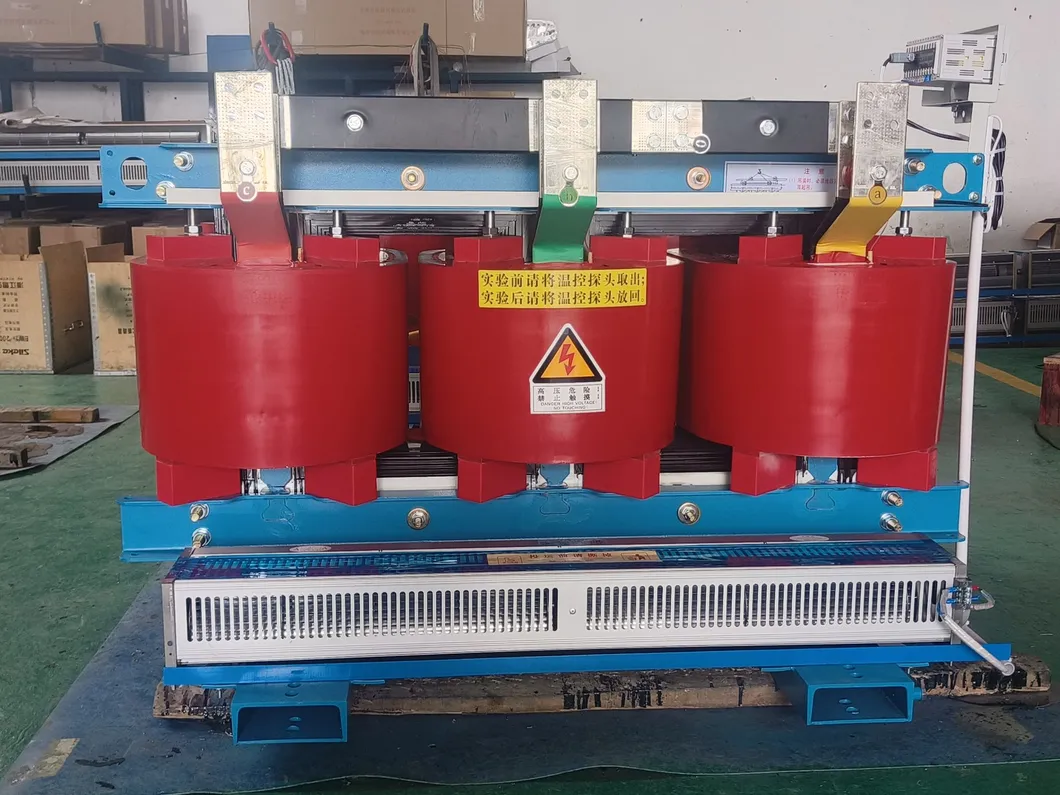

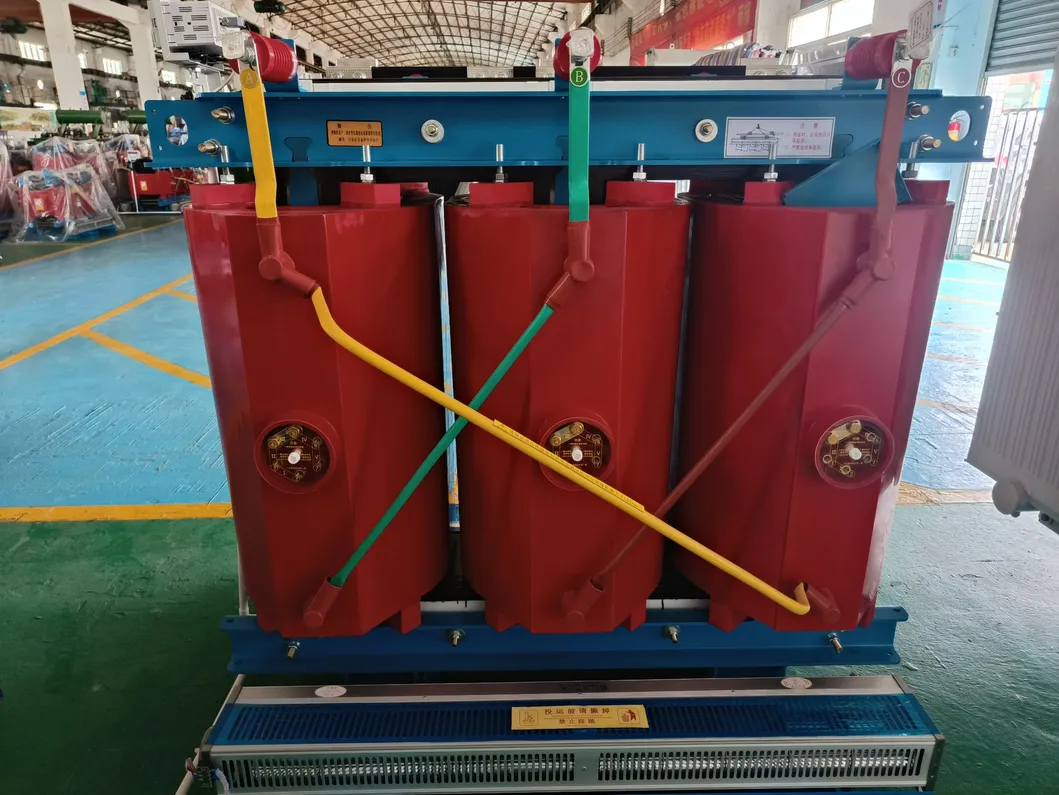

Transformer Component 1 Transformer Component 2 Transformer Component 3

Technical Specifications

Standards IEC60726, GB 1094.11-2022, GB/T10228-2023, GB20052-2020 Insulation Level LI75 AC35/AC5
Capacity Range 30~10,000kVA Partial Discharge ≤10PC
Voltage Class 10KV, 35KV Insulation Grade F
Tapping Range ±2x2.5% / ±5% Max. Heat Rise 100k
Cooling AN (Air Nature) / AF (Air + Fan) Protection IP00, IP20, IP23

Why Choose Resin-Cast Dry Type?

  • Safety: Eliminates flammable liquids, reducing leak or fire risks.
  • Maintenance-Free: No oil changes, tests, or spill cleanups required.
  • Easy Installation: No special vaults or foundations needed; place close to load.
  • Eco-Friendly: No harmful gas emissions or greenhouse contributions.
  • Seismic Resistance: Rigid structure withstands vibrations and shocks.
  • Durable: High-quality insulation materials for damp or contaminated areas.

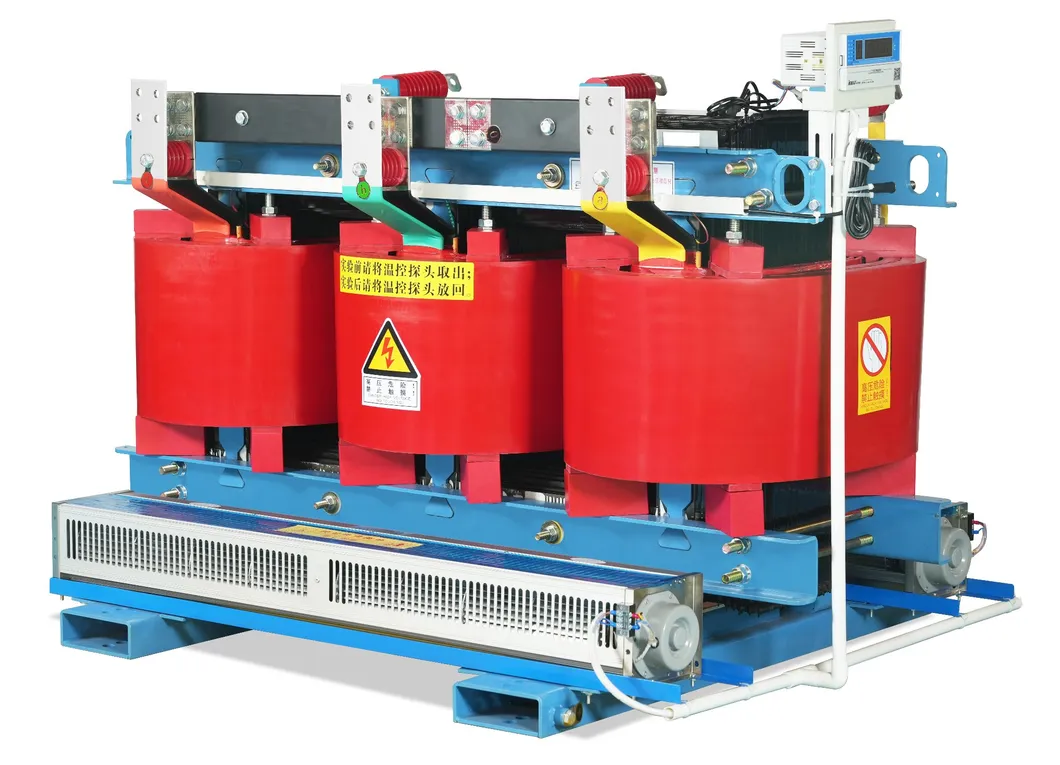

Transformer Feature

Production Capability

We produce a wide range of distribution transformers from 30kVA to 2500kVA (or above) with voltage classes of 10KV/35KV. Our portfolio includes dry-type, oil-immersed, underground, rectifier, and prefabricated transformers, as well as HV/MV/LV switchgears. Our annual production capacity exceeds 5 million kVA.

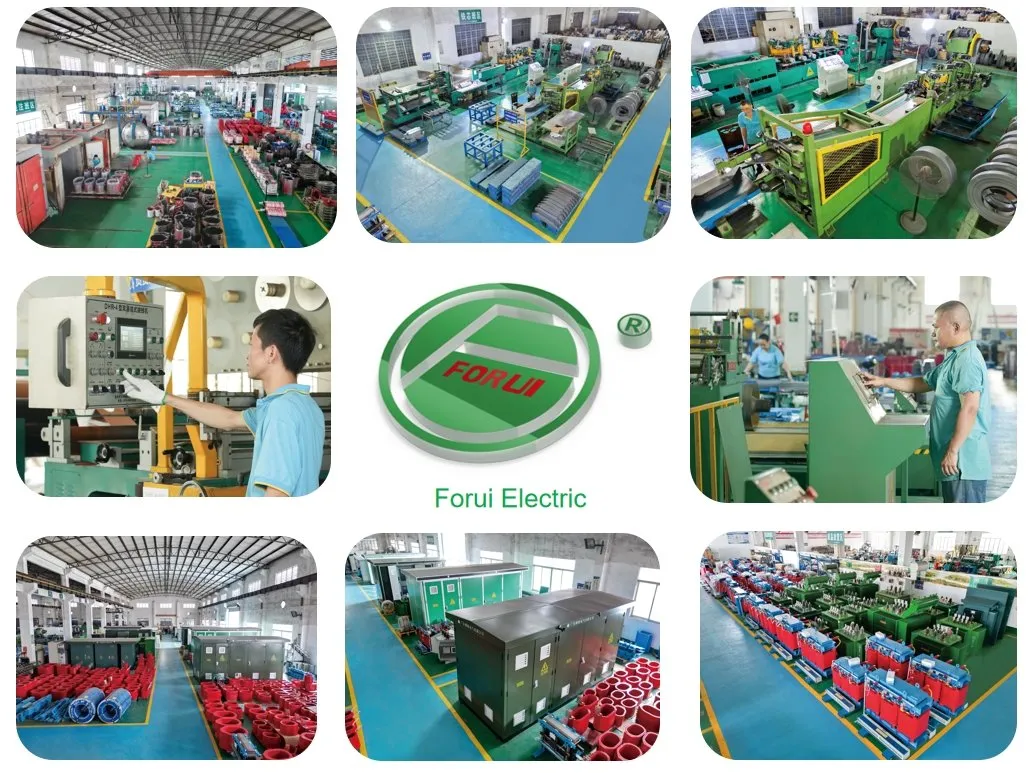

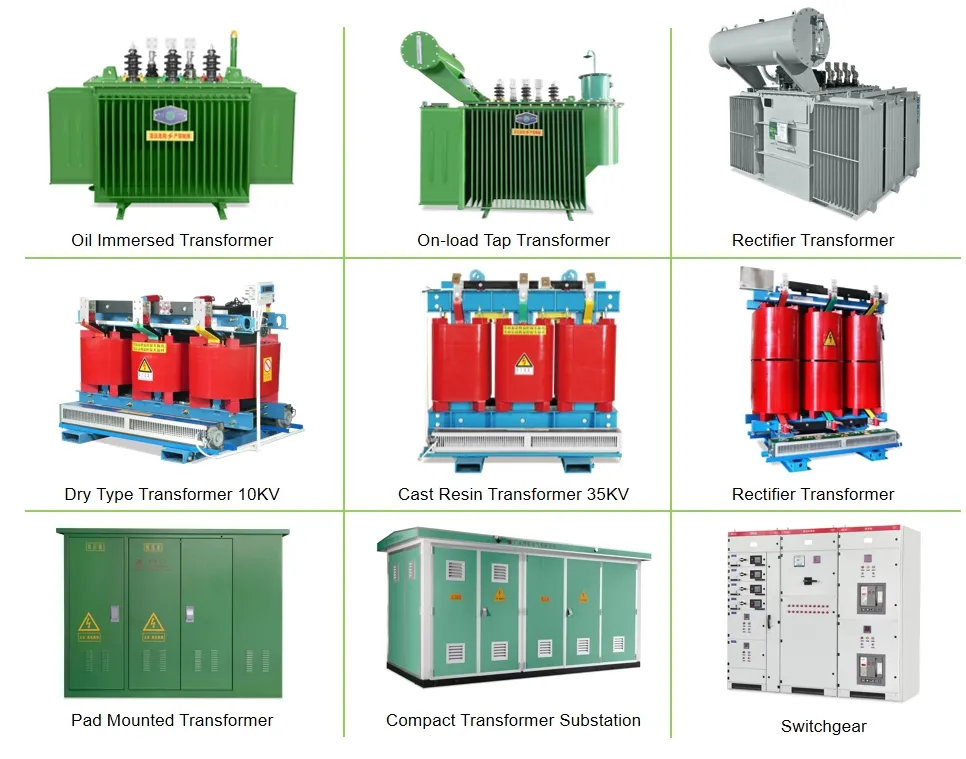

Product Line Overview Factory Workshop

Frequently Asked Questions

What are the main benefits of an SC(B) series dry-type transformer?
The main benefits include fire safety, moisture resistance, maintenance-free operation, and a compact design that allows it to be installed close to the load center.
Is it suitable for high-humidity environments?
Yes, the epoxy resin casting provides excellent protection against moisture ingress, making it ideal for high humidity and damp areas.
What cooling methods are used?
The transformers use Air Nature (AN) cooling for normal operation and can be equipped with Fans (AF) to increase capacity and handle overloads.
Does this transformer require an oil containment pit?
No, because it is a dry-type transformer without flammable liquids, it does not require oil containment pits, fire walls, or complex fire suppression systems.
What is the standard capacity range?
The capacity range typically spans from 30kVA up to 10,000kVA (10mva), catering to a wide variety of industrial and commercial needs.
Which standards do these transformers comply with?
They are designed and manufactured in compliance with international standards such as IEC 60726 and various national electrical safety codes.
