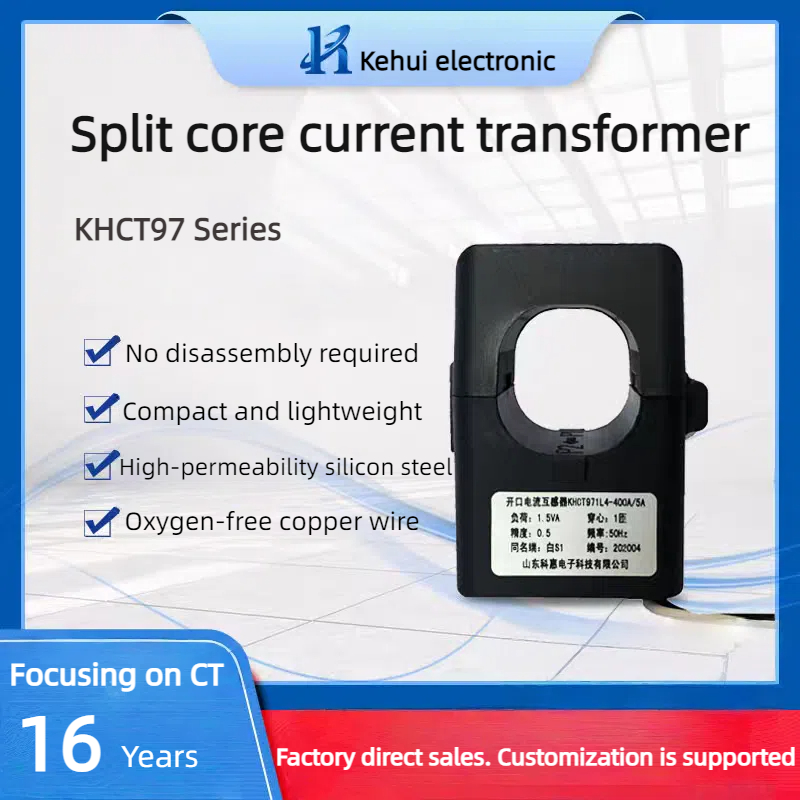

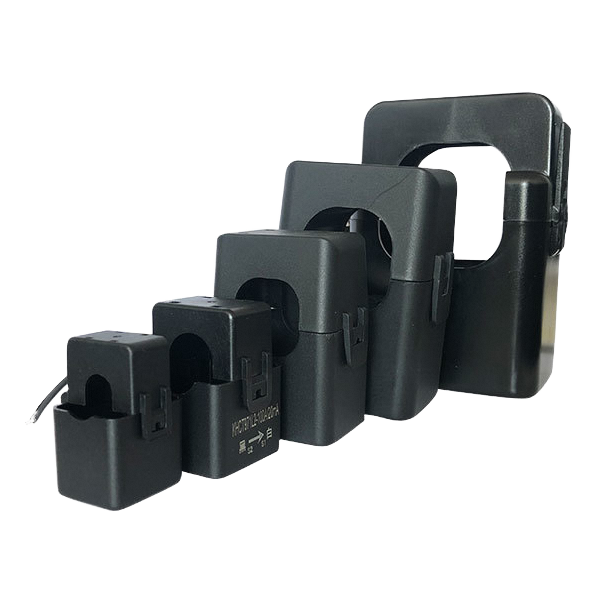

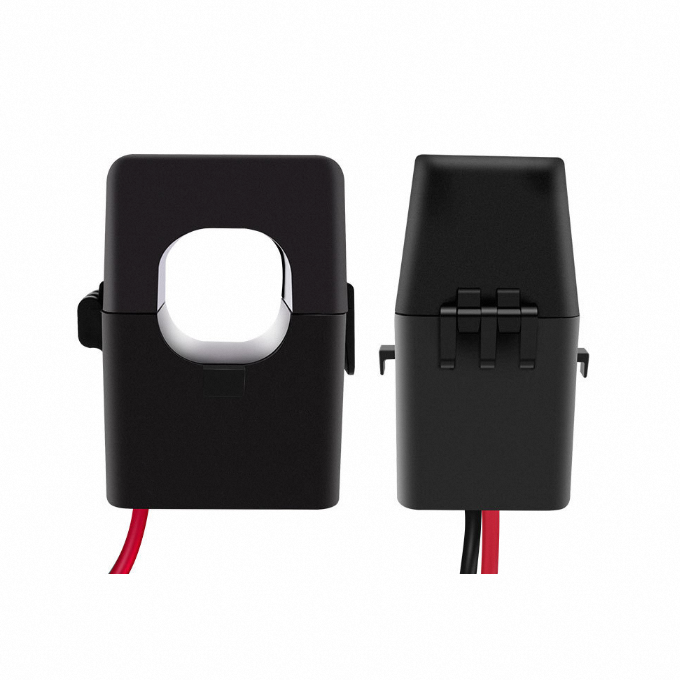

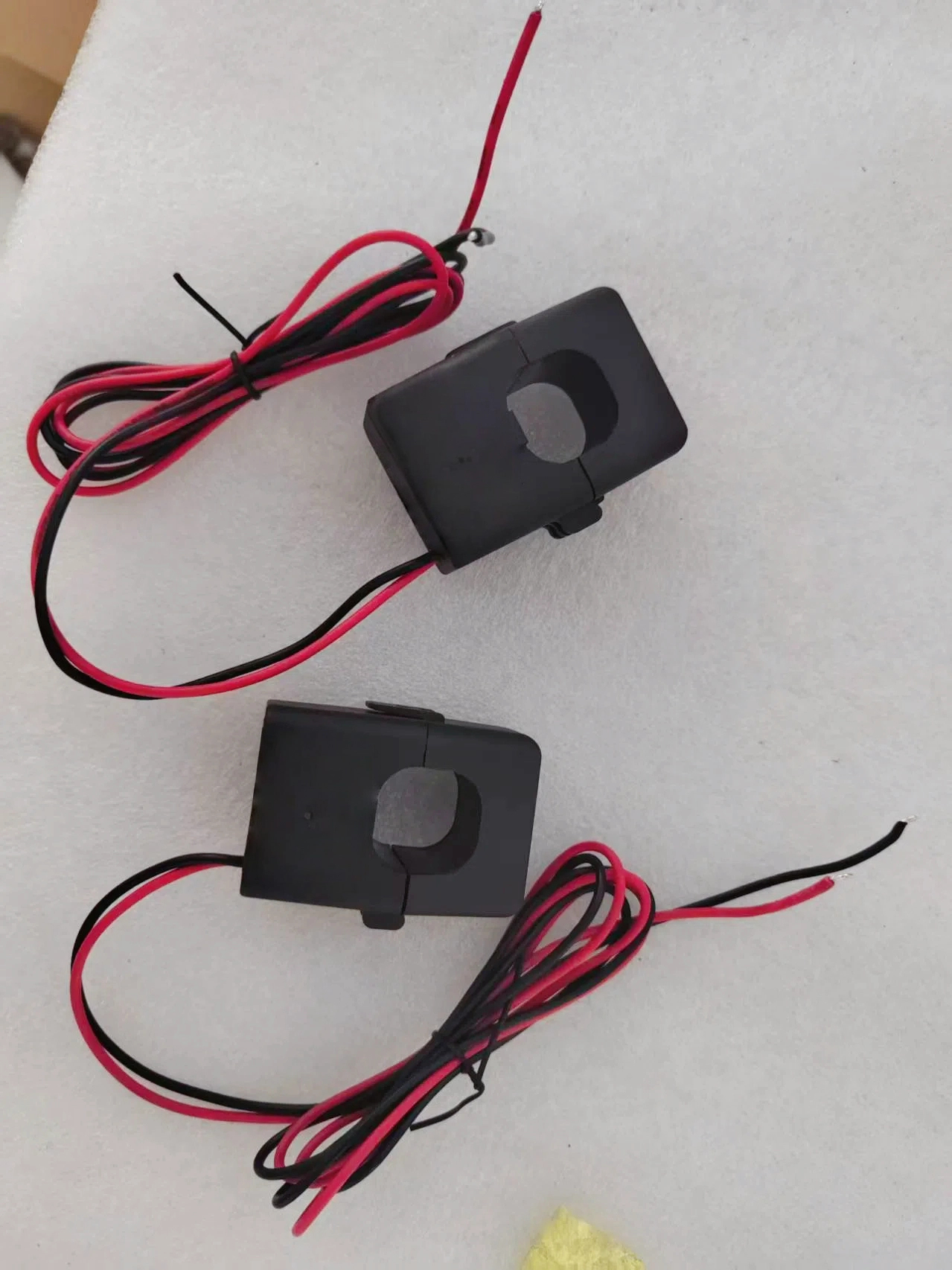

Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
1 / 5
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure
Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure

Professional Split Core Current Transformer 150A/5A 300A/5A 600A/5A 8000A/5A Single Phase 0.5% Accuracy 50/60Hz No Power Failure

Send Inquiry

Product Description

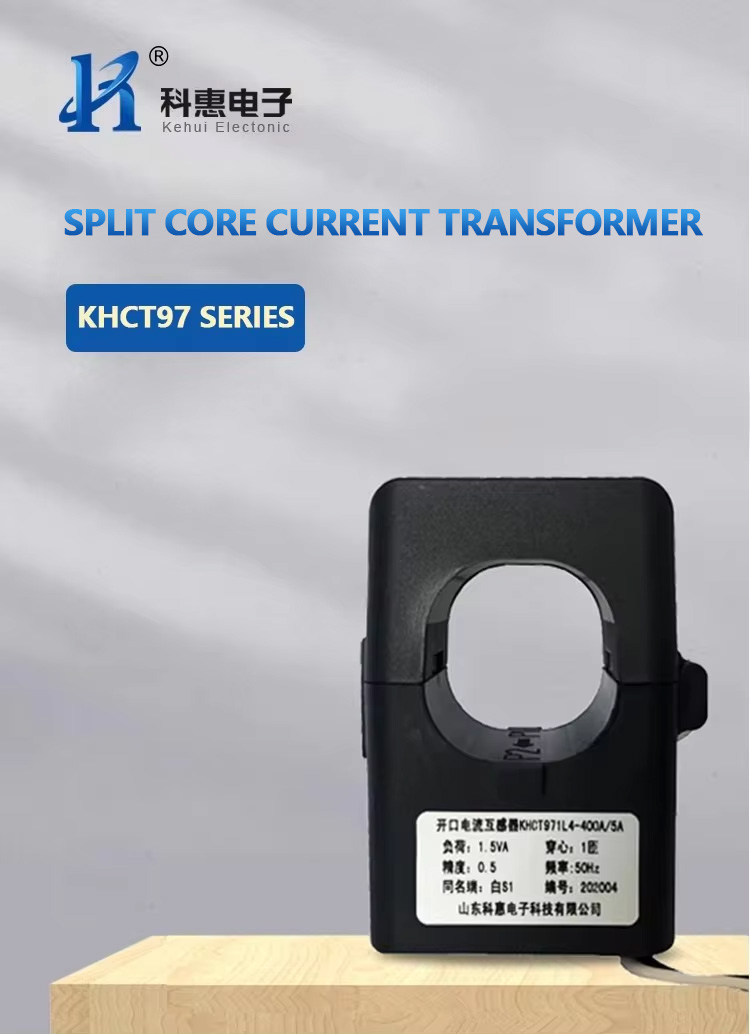

Product Display 1
Product Display 2
Product Display 3
Quick Specifications
MOQ 2 sets
Package Box or custom
Delivery Date In 5 days
Quality Assurance Provide

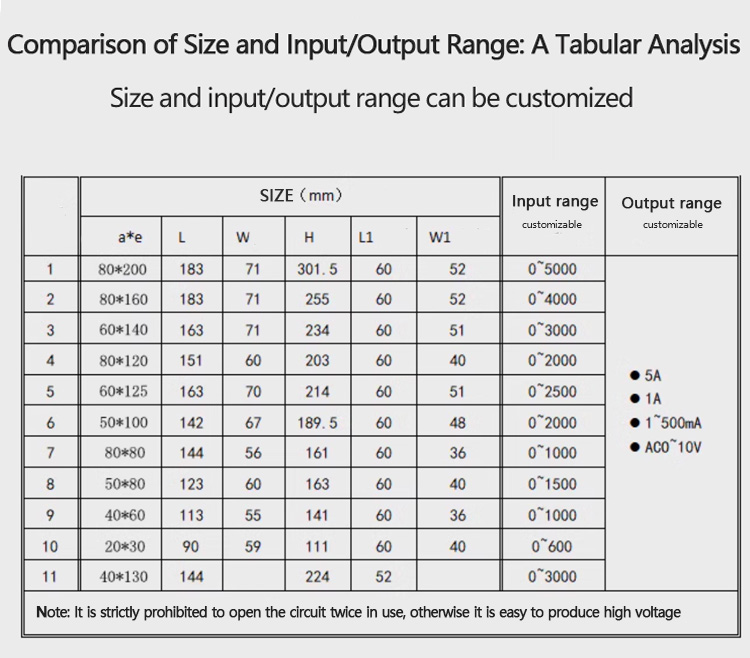

Details 1
Details 2

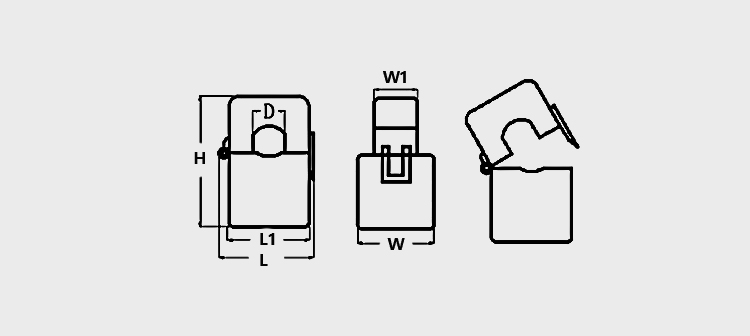

Overall Dimensions (mm)
Model No. D L L1 H W W1 Input Range (Custom) Output Range (Custom)
1 10 29 23 40 26 14 1A~75A 5A
1A
1-200mA
AC 0~5V
2 16 36 29.5 46 32 19 1A~150A
3 24 51.5 43 65 33 27 1A~400A
4 36 67 57 85 41 34 1A~600A
5 50 88 77 114 48 29 1A~1200A
5X 50 80 69 107 48 29 1A~800A
Note: It is strictly prohibited to open the circuit twice in use, otherwise it is easy to produce high voltage.

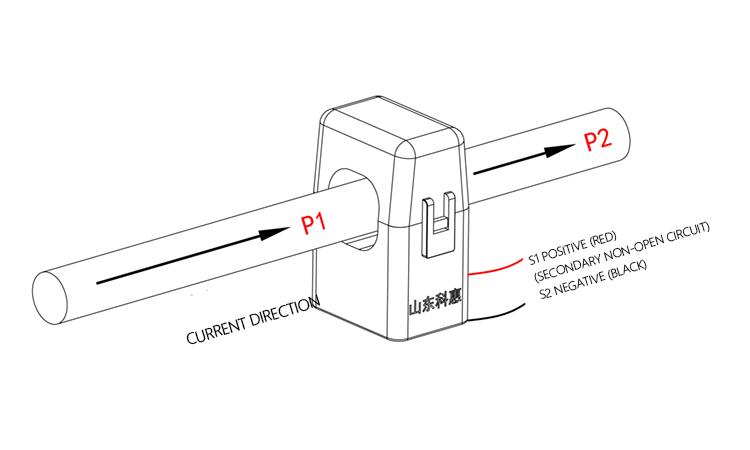

Technical Drawing

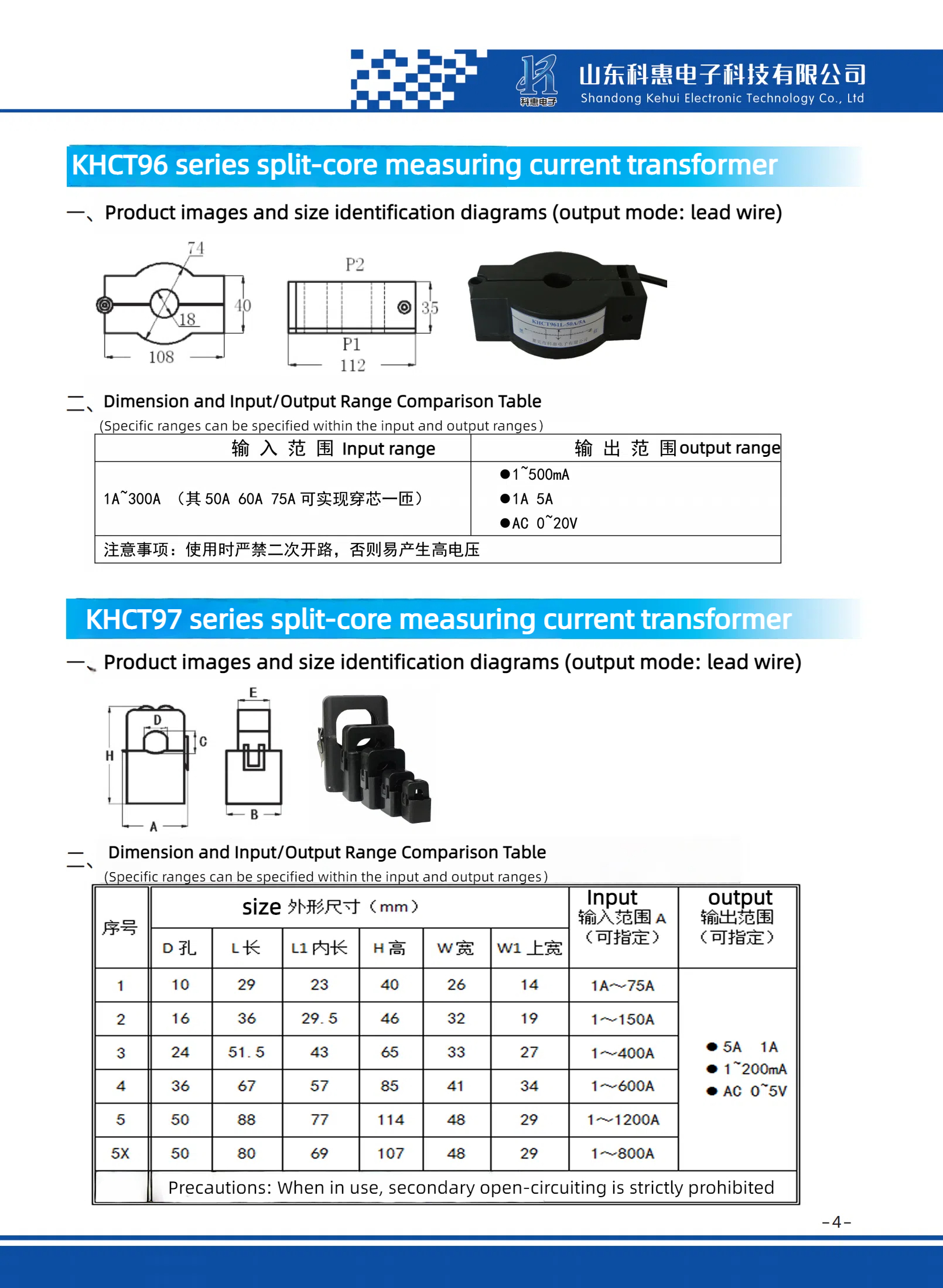

Installation Guide
INSTALLATION PRECAUTIONS
  • S1 and S2 are not allowed to open the circuit;
  • The direction through the center is indicated by the label arrow;
  • The buckle is fastened until you hear a click.

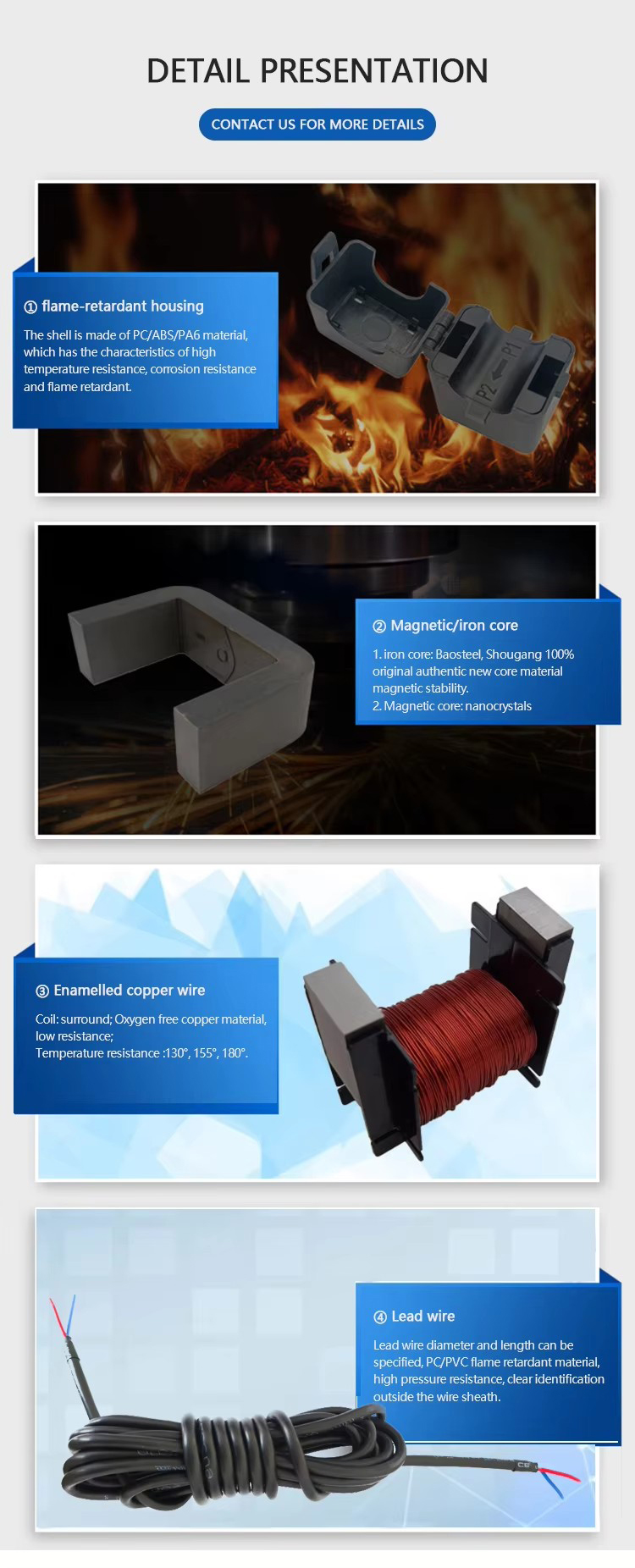

Gallery 1

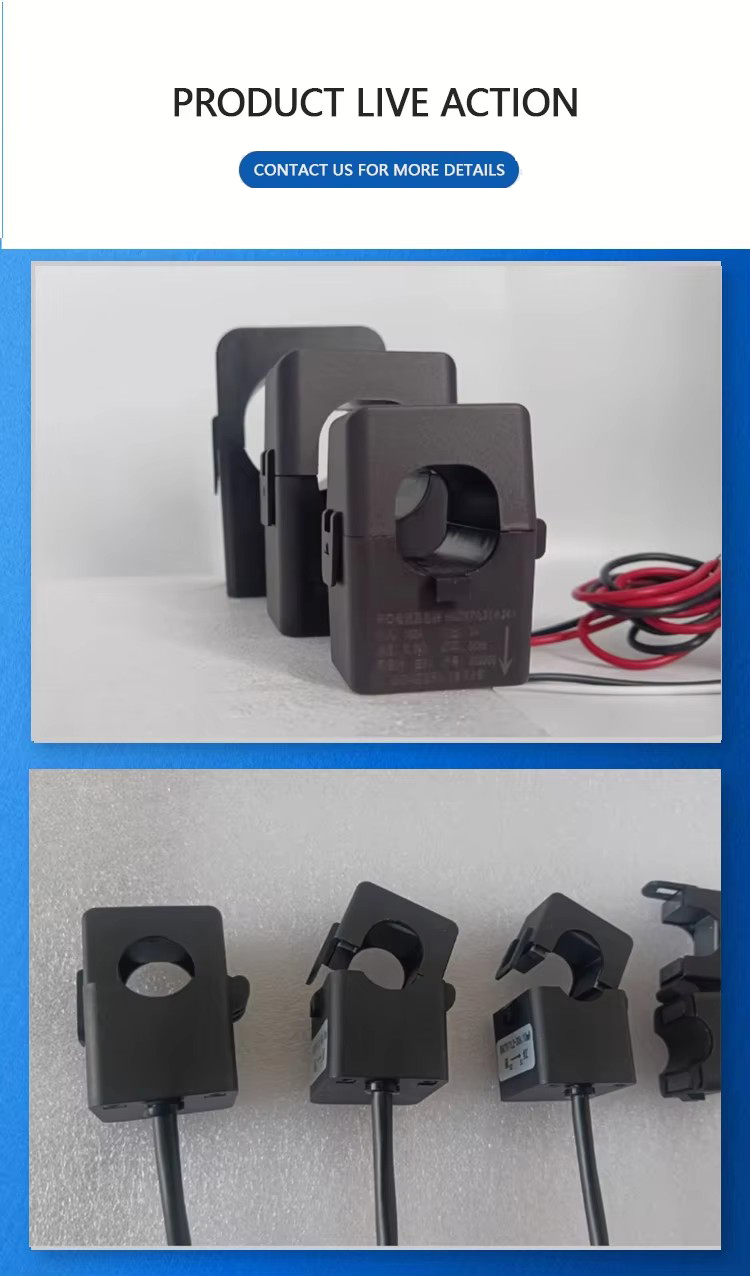

Gallery 2

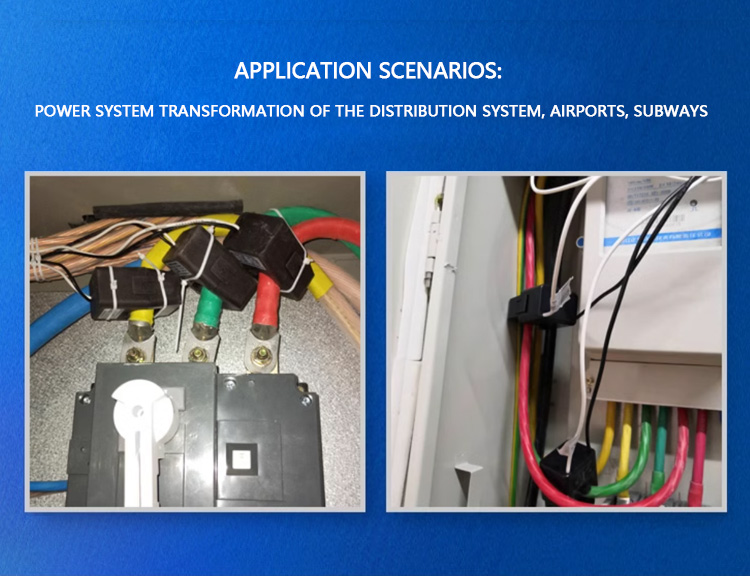

Gallery 3
Gallery 4
Gallery 5
Gallery 6
Frequently Asked Questions
1. What is the minimum order quantity (MOQ)?
The minimum order quantity for this product is 2 sets.
2. How long does the delivery take?
Orders are typically processed and delivered within 5 days.
3. Can the input and output ranges be customized?
Yes, we provide customization for both input ranges (from 1A to 1200A depending on the model) and output ranges (including 5A, 1A, 1-200mA, and AC 0~5V).
4. What safety precautions should be taken during use?
It is strictly prohibited to open the circuit twice during use to avoid the production of high voltage. Additionally, ensure S1 and S2 are not open circuit.
5. What type of packaging is provided?
We offer standard box packaging or can provide custom packaging solutions based on your requirements.
6. Is there a quality assurance guarantee?
Yes, we provide quality assurance for all our products to ensure reliable performance.
