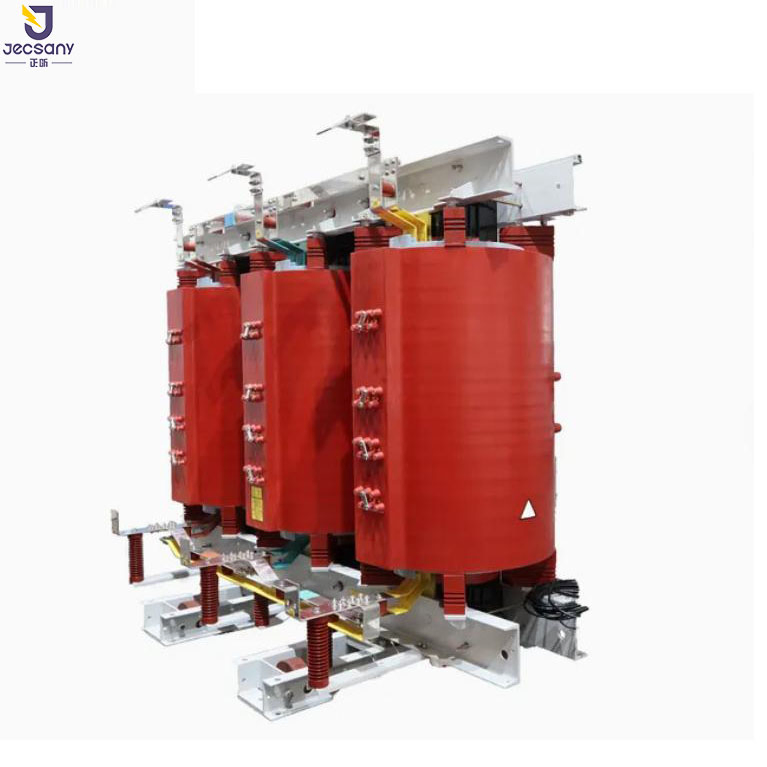

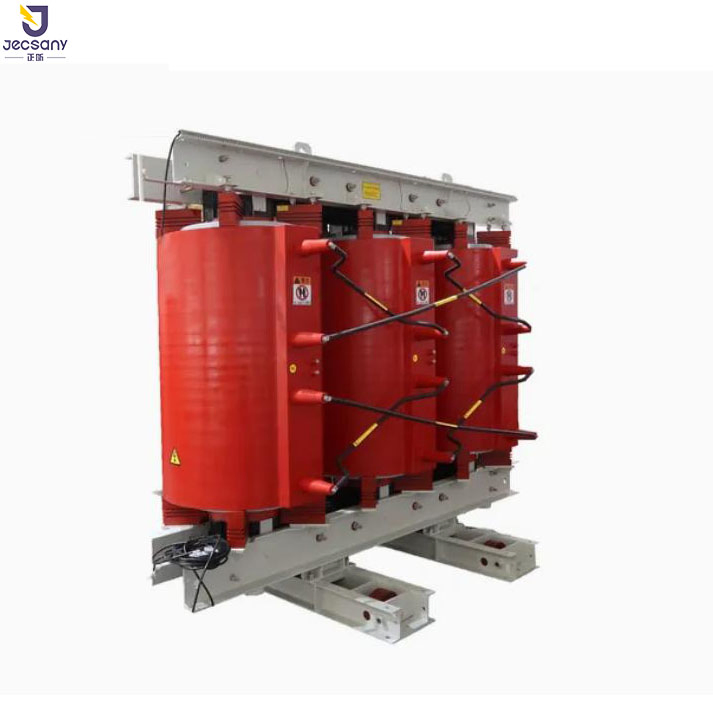

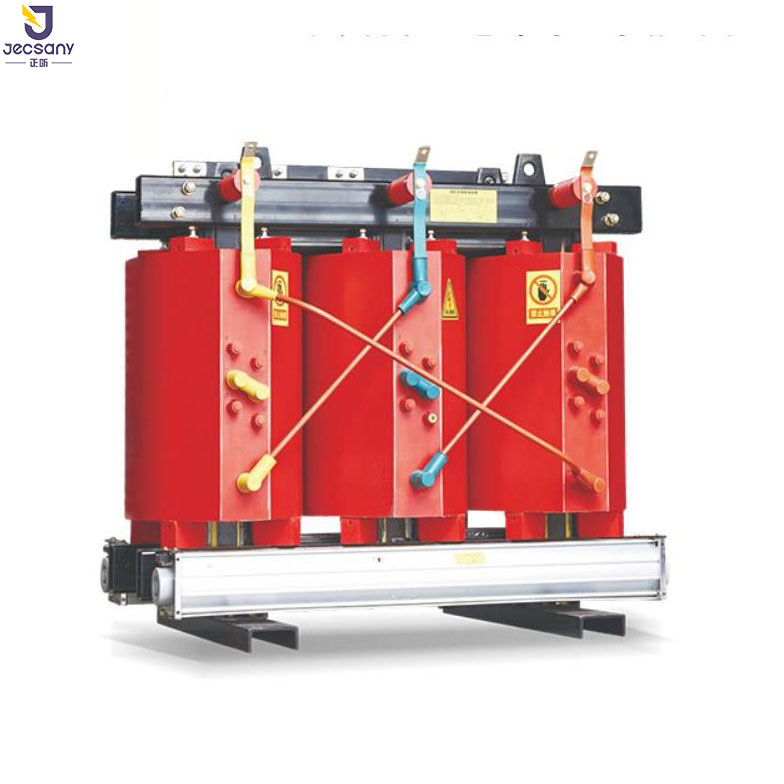

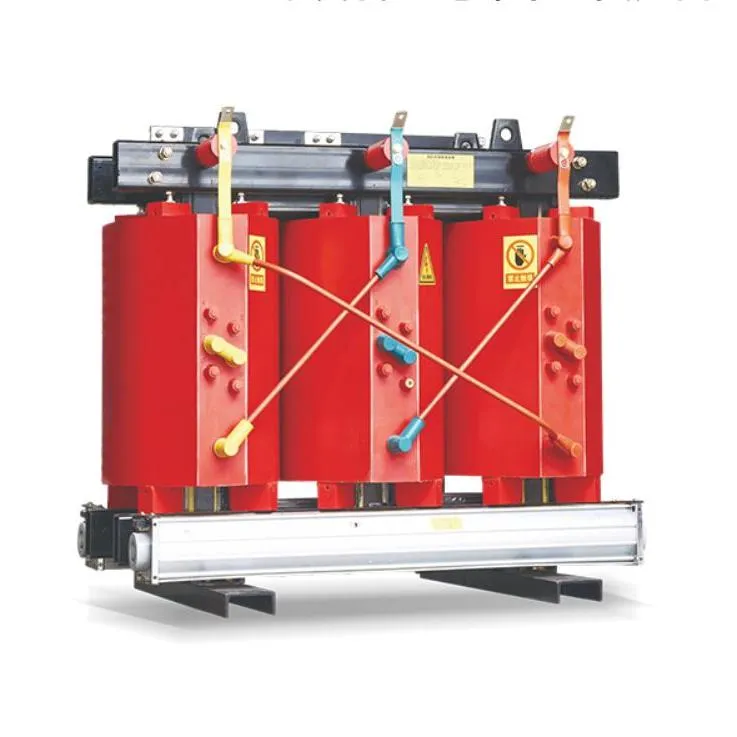

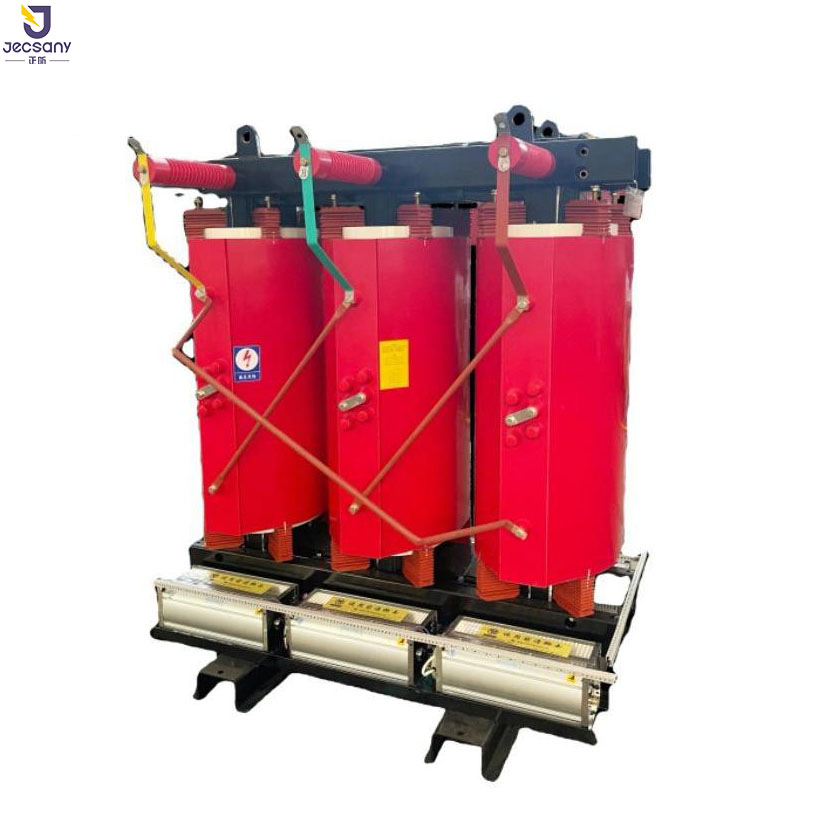

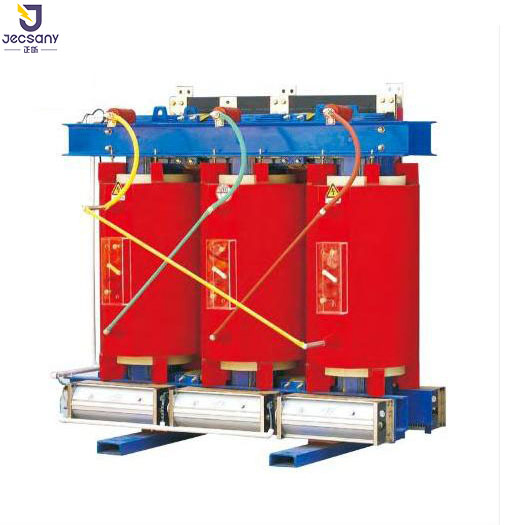

Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
1 / 5
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer
Resin Cast Three Phase Dry Type Step Down Transformer

Resin Cast Three Phase Dry Type Step Down Transformer

Send Inquiry

Product Description

Three-Phase Step Down Resin Dry Type Transformer

Resin Cast Three Phase Dry Type Step Down Transformer
Product Description

The Three-Phase Step Down Resin Dry Type Transformer is a highly efficient and reliable power distribution solution designed to step down higher voltage levels to lower, usable voltages in industrial, commercial, and residential applications. Encapsulated in high-quality epoxy resin, this transformer offers exceptional thermal and electrical insulation, ensuring long-term durability and safety in demanding environments.

Key Features
✓High Efficiency: Designed to minimize energy losses, ensuring optimal performance.
✓Dry-Type Construction: Oil-free and non-flammable, making it environmentally friendly.
✓Resin Encapsulation: Protects against moisture, dust, and corrosive substances.
✓Thermal Stability: Superior heat dissipation enables stable operation under high loads.
✓Low Noise Levels: Engineered for quiet performance in hospitals and offices.
✓Compact & Lightweight: Space-saving design for easy integration.
✓Fire-Resistant: Self-extinguishing properties reduce fire hazards.
✓Low Maintenance: Robust construction eliminates frequent servicing needs.
✓International Compliance: Meets IEC, IEEE, and CE standards.
Product Details

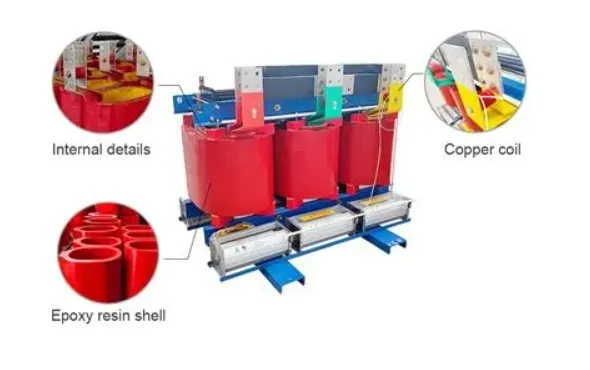

Product Detail 1

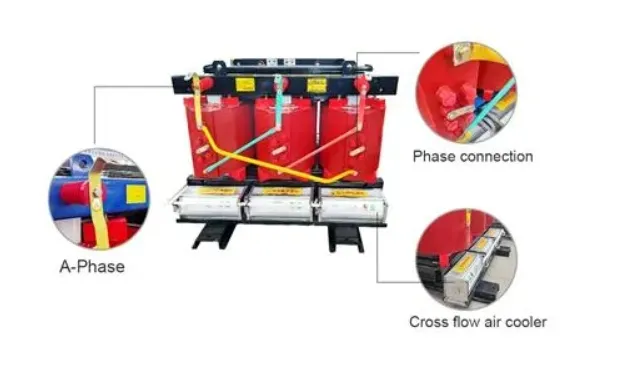

Product Detail 2
Technical Parameters
Rated Capacity (KVA) Voltage Combination & Tap Range Connection No-load Loss (W) Load Loss (W) No-load Current (%) Short Circuit Impedance (%)
HV (KV) HV Taps Range (%) LV (KV)
30 - 2500 6, 6.6, 10, 10.5, 11 ±5%, ±2x2.5% 0.4 Dyn11 130 - 2520 710 - 17170 2.6 - 1.0 4 - 6
Packaging & Shipping
Packaging Box
Shipping Preparation

Shipping Methods: By sea via major international ports including Ningbo and Shanghai.

Frequently Asked Questions (FAQ)
Q1: What are the benefits of a resin-cast dry-type transformer compared to oil-immersed ones? A: Resin-cast transformers are oil-free, non-flammable, and environmentally friendly. They require significantly less maintenance and are much safer for indoor installations due to the lack of fire risk.
Q2: Can these transformers handle harsh environmental conditions? A: Yes, the high-quality epoxy resin encapsulation provides excellent protection against moisture, dust, and corrosive elements, making it ideal for harsh industrial environments.
Q3: Are the transformers suitable for noise-sensitive areas? A: Absolutely. Our transformers are engineered for low noise levels, making them perfect for hospitals, schools, residential buildings, and offices.
Q4: Does this product comply with international safety standards? A: Yes, our Three-Phase Step Down Resin Dry Type Transformers fully comply with IEC, IEEE, and CE standards for quality and safety.
Q5: What is the typical maintenance requirement for this transformer? A: Due to its robust construction and dry-type design, maintenance is minimal. There are no oils to check or replace, reducing overall operational costs and downtime.
Q6: What voltage ratings are available? A: We offer a wide range of ratings, typically including High Voltage (HV) options like 6kV, 10kV, and 11kV, stepping down to 0.4kV, with capacities ranging from 30KVA up to 2500KVA.
