TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
1 / 5
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale
TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale

TSTY Best New Product of Single Phase Pole Mounted Transformer Manufacture Direct Sale

Send Inquiry

Product Description

Products Description

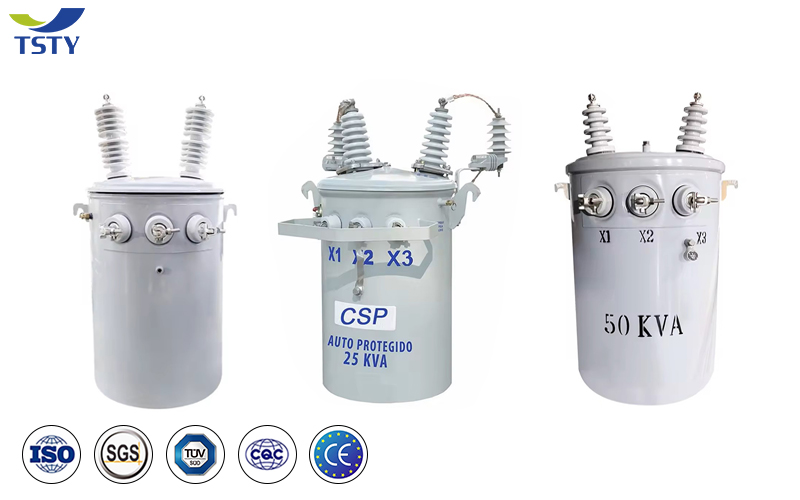

TSTY Pole Mounted Transformer

This transformer may be used alone for the supply of a single phase load or as one of three units in a bank for the supply of a three phase load. The unit may be direct-mounted to a wooden or concrete pole, or cluster mounted on a pole for three phase use. The single phase oil-immersed transformers are designed for servicing residential overhead distribution loads. They are also suitable for light commercial loads, industrial lighting and diversified power applications.

TSTY Pole Mounted Transformer
Technical Data

Technical Data for Single-Phase Pole Mounted Distribution Transformer

Capacity (KVA) High Voltage (KV) Low Voltage (V) Loss (W) Weight (KG) Height (mm)
No-load Loss On-load Loss
10 6 / 6.3 / 10 / 10.5 / 11 / 13.2 120 / 240 / 480 / 347 / 600 19 75 161 940
15 36 120 199 940
25 50 195 266 970
37.5 80 290 313 990
50 105 360 375 1040
75 135 500 408 1060
100 190 650 484 1060
167 210 850 741 1080
250 350 1410 845 1150
Product Showcase
Transformer detail view
Transformer interior components
Transformer core production

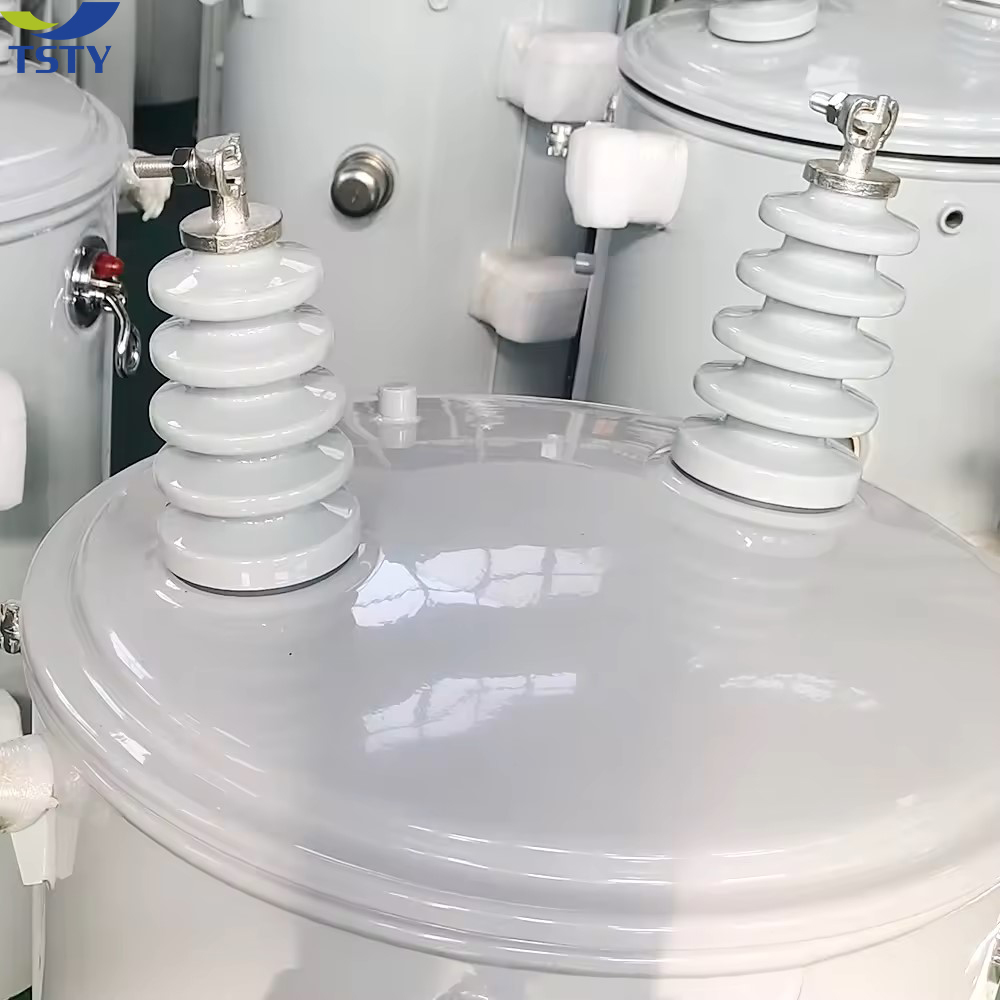

Transformer manufacturing process
Winding process
Assembly line

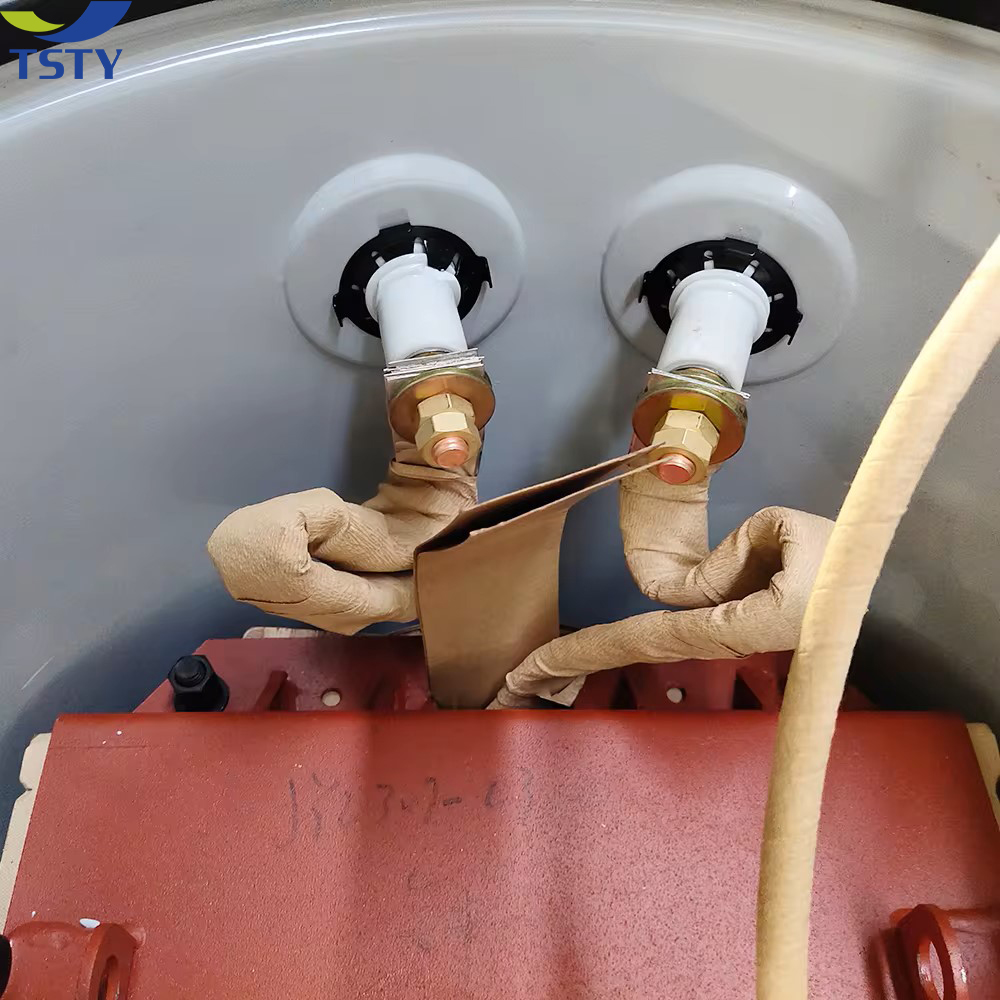

Internal structural details
Enclosure process

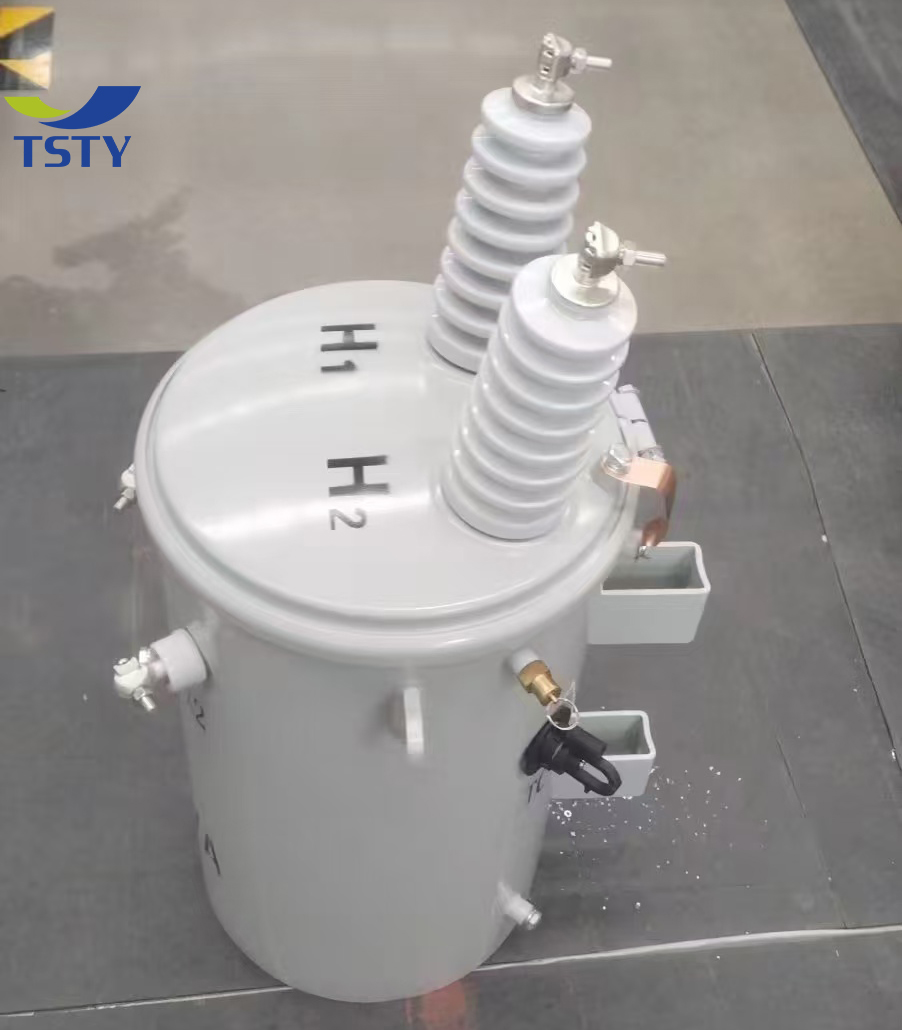

Finished transformer unit
❖
FINISHED PRODUCT

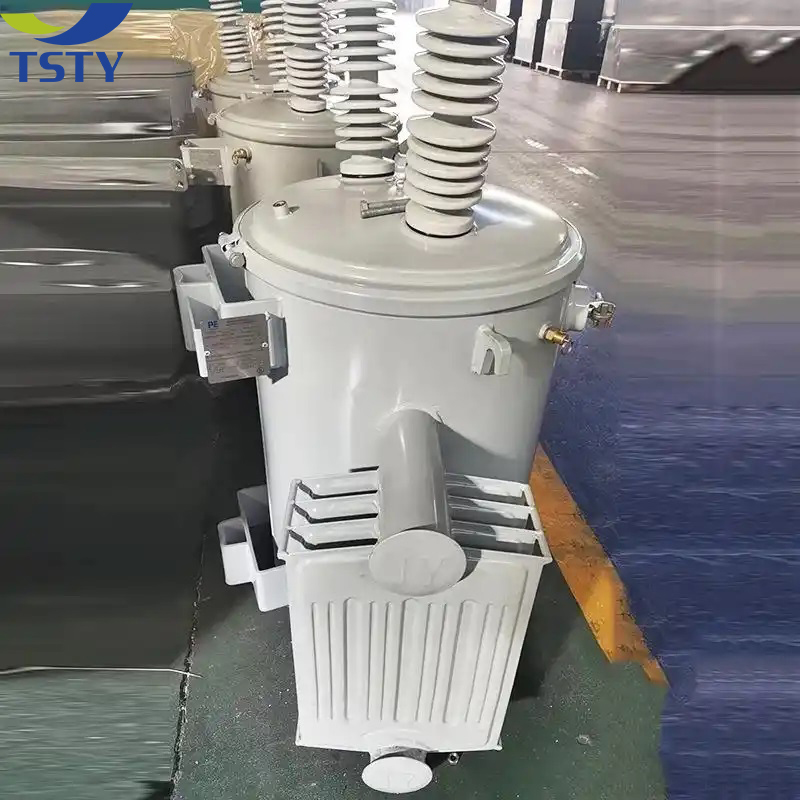

Finished Single Phase Transformer
Quality inspected transformer
Ready for dispatch
Company Overview
Company office and plant facade

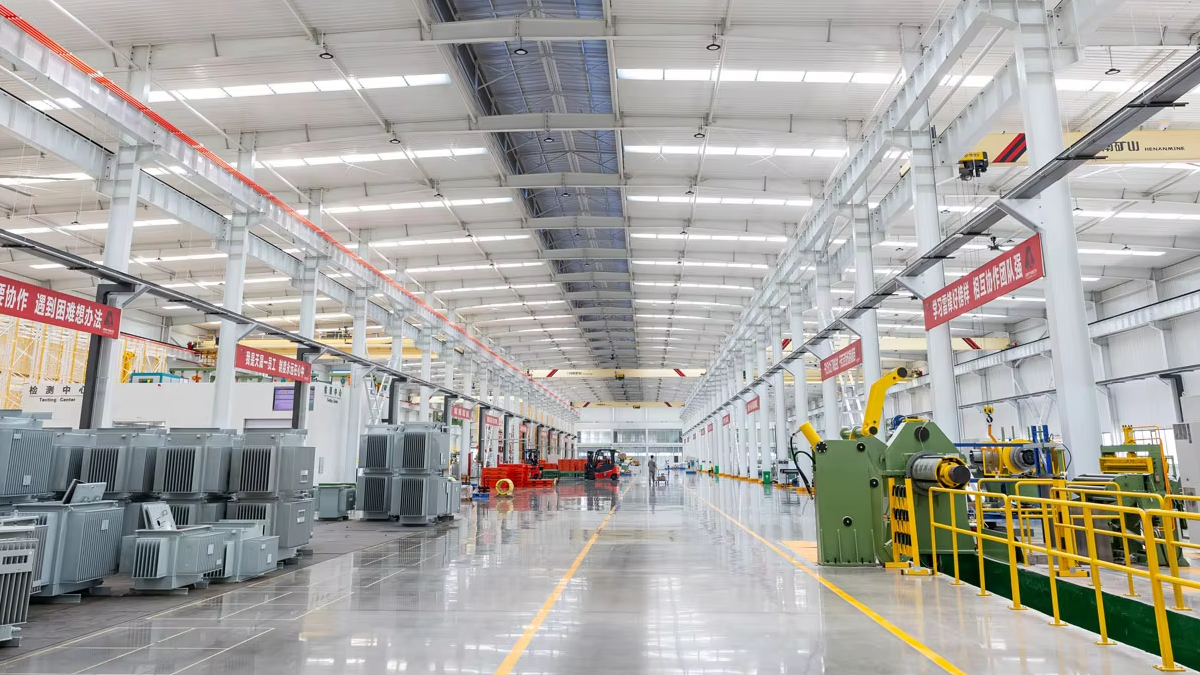

VR view of the factory floor
Production department
Testing laboratory facility
Advanced assembly workshop
Storage and logistics area
Frequently Asked Questions
What is a pole mounted transformer used for?
A pole mounted transformer is used to step down high distribution voltage to a lower service voltage suitable for residential and light commercial applications. It can be used as a single unit for single-phase loads or in a bank of three for three-phase loads.
Can these transformers be mounted on different types of poles?
Yes, these units are designed to be direct-mounted onto wooden or concrete poles, and they can also be cluster-mounted on a single pole for three-phase configurations.
Are these transformers suitable for indoor installation?
No, these single-phase oil-immersed transformers are specifically designed for servicing outdoor residential overhead distribution loads and light commercial configurations.
What voltage capacities are supported by these single-phase transformers?
They support high voltages ranging from 6KV to 13.2KV and low voltages including 120V, 240V, 480V, 347V, and 600V, covering a wide range of grid specifications.

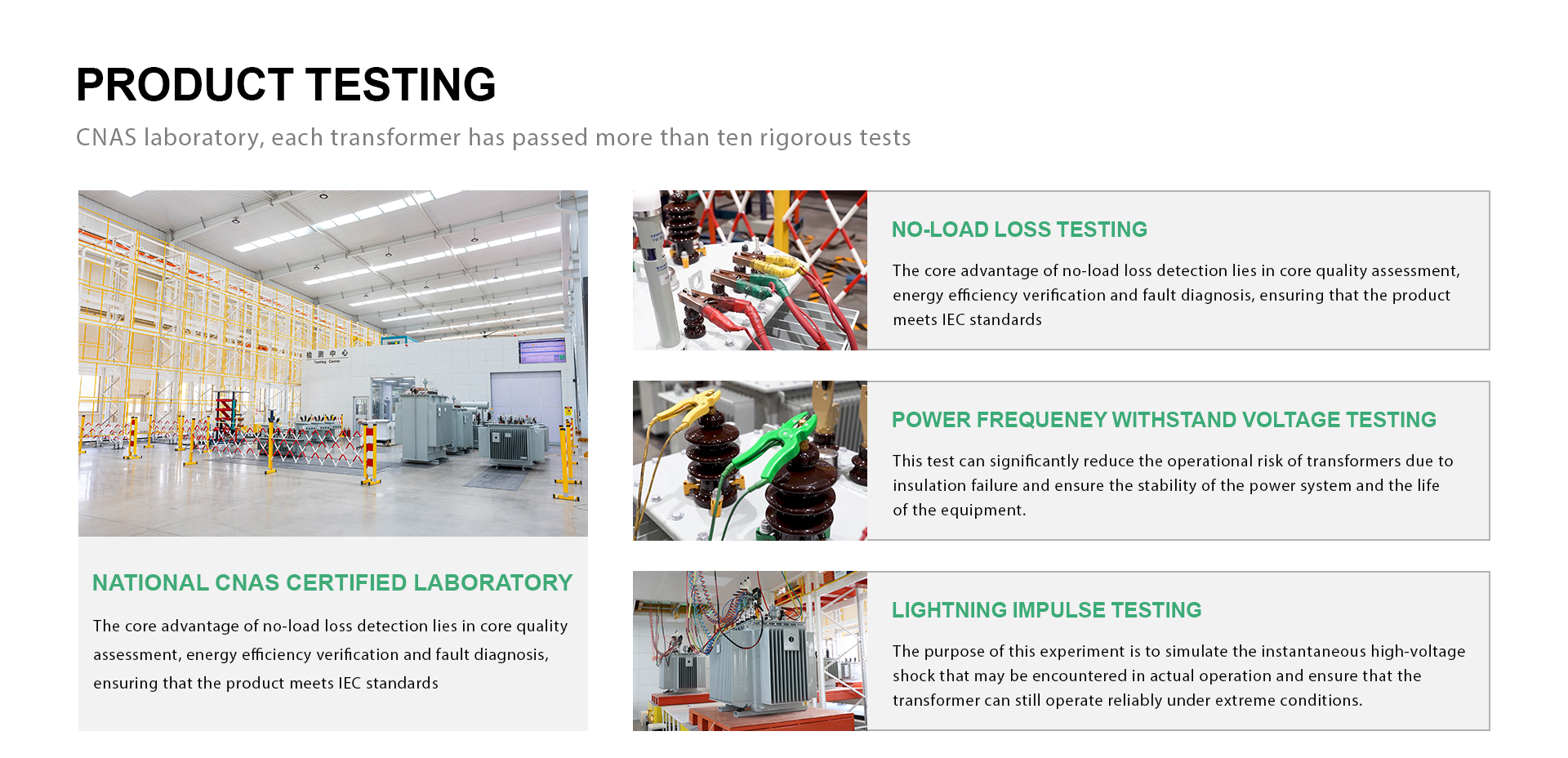

How is the quality of the finished products ensured?

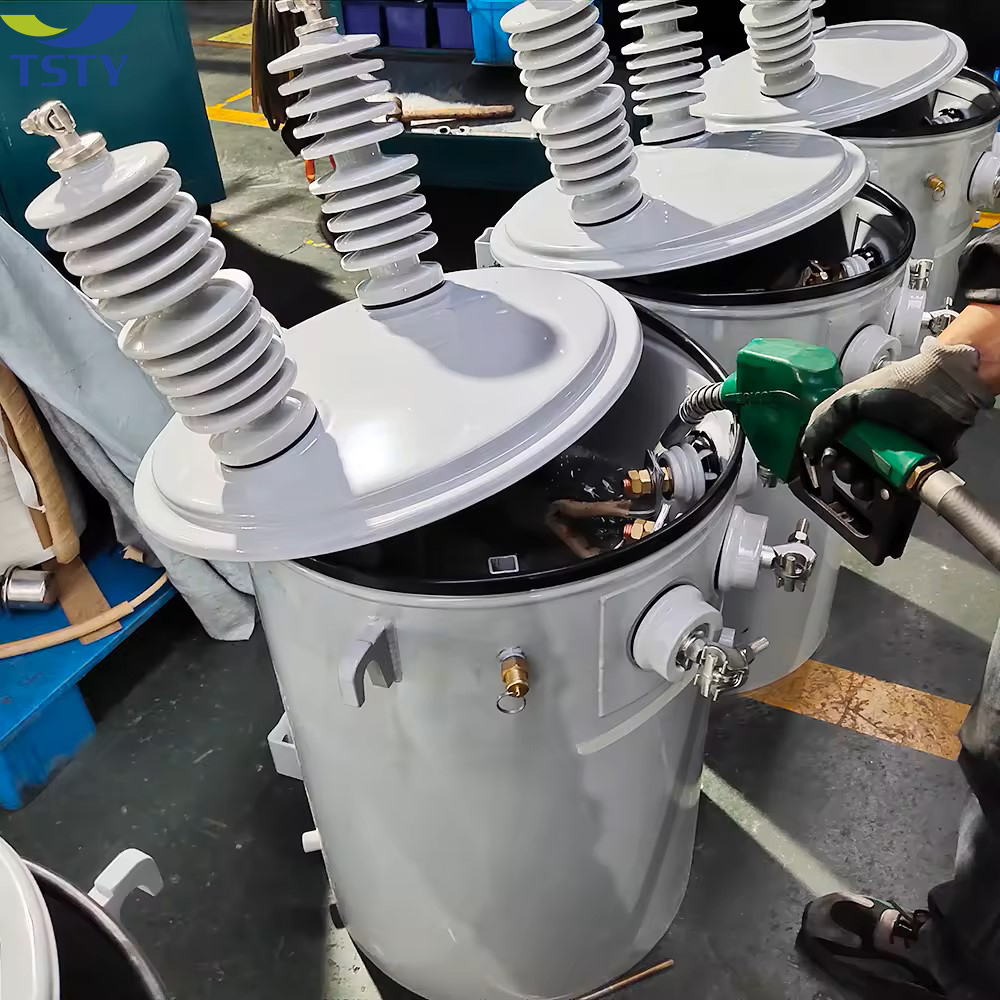

Each transformer goes through professional core assembly, winding, vacuum oiling, and rigorous performance testing in dedicated facilities to meet industrial efficiency and safety standards.
