Factory Price 15kva 16 kva Single Phase Oil Immersed Distribution Transformer
⚡
Single phase pole mounted transformers are specifically designed for stepping utility distribution voltages (from 2400V to 34500V) down to lower utilization voltages. While some units serve commercial and industrial needs at voltages such as 277V, 240/480V, 2400V, and 4800V, the majority are utilized for the single phase 120/240V residential supply.
These transformers are also suitable for small substations and various miscellaneous applications. We offer two primary types: the conventional pole mounted transformer and the Completely Self Protected (CSP) transformer, with power ratings available up to 167kVA.
Local After-Sales
Comprehensive after-sales service and installation support are available globally. Our local partners provide 24-hour technical consultation and engineering services.
Customization
With over 20 years of export experience, our engineering team is proficient in international standards. We design and produce units based on your specific technical parameters.
Certifications
Our products fully comply with or exceed international standards including ANSI/IEEE, CSA, and DOE, holding UL/cUL, CSA, and CESI certificates.
Products Description
Single Phase Pole Mounted

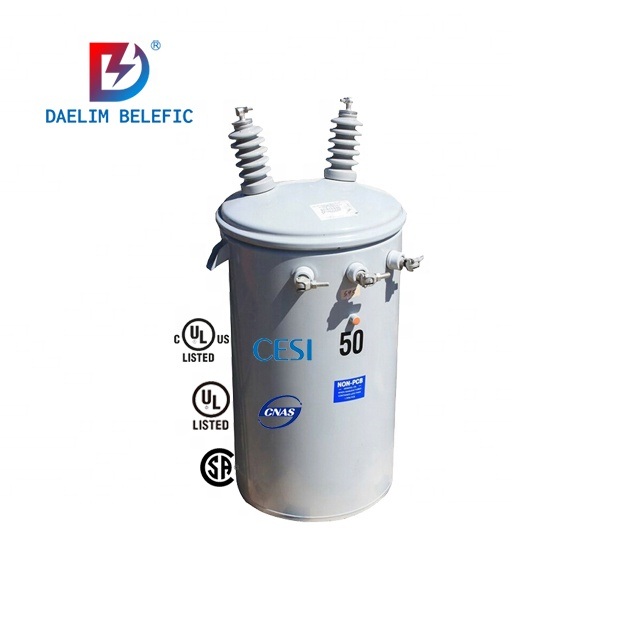

Quality Certifications
25kVA Single Phase
50kVA Single Phase
75kVA Single Phase
Single Phase Transformer Specification
| Technical Data For Single Phase Pole Mounted Transformer (Conventional) |
| Rate Power |
High Voltage |
Low Voltage |
No Load Losses (W) |
On Load Losses (W) |
Weight (kg) |
| 10kVA | 34500/19920V
13800/7957V
13200/7620V
12470/7200V
or others | 120-240V
240-480V
347V
600V | 36 | 120 | 150 |
| 15kVA | 50 | 195 | 210 |
| 25kVA | 80 | 290 | 258 |
| 37.5kVA | 105 | 360 | 340 |
| 50kVA | 135 | 500 | 395 |
| 75kVA | 190 | 650 | 480 |
| 100kVA | 210 | 850 | 583 |
| 167kVA | 350 | 1410 | 680 |
| Technical Data For Single Phase Pole Mounted Transformer (CSP Type) |
| Rate Power |
High Voltage |
Low Voltage |
No Load Losses (W) |
On Load Losses (W) |
Weight (kg) |
| 10kVA | 34500/19920V
13800/7957V
13200/7620V
12470/7200V | 120-240V
240-480V
347V
600V | 50 | 120 | 150 |
| 15kVA | 65 | 195 | 205 |
| 25kVA | 105 | 290 | 245 |
| 37.5kVA | 140 | 360 | 335 |
| 50kVA | 180 | 500 | 370 |
| 75kVA | 250 | 650 | 505 |
Standard & Optional Features
Standard Features
- Lifting lugs and arrester mounting pads
- Cover-mounted high voltage porcelain bushings
- Low voltage bushings with eyebolt terminals
- Polyester insulated self-venting cover
- ANSI support lugs (hanger brackets)
- Tank ground pad and oil fill plug
CSP Type Exclusives
- Primary protective link (mounted in HV bushing)
- Integrated Surge Arrester
- Secondary circuit breaker
- Overload signal light and reset handle
Optional Accessories
- Surge Arrester & Protective Link
- Current Limiting Fuse
- Low Voltage Circuit Breaker
- Signal Light & Emergency Control
- Tap Changer & Dual Voltage Switch
- Tank Pressure Relief Device
Quality Control & Testing
All transformers are tested in strict accordance with the latest versions of applicable ANSI, IEEE, CSA, DOE, and NEMA standards.
Routine Tests
- Leak test and Polarity test
- Resistance and Ratio test
- No-load losses and excitation current
- Load losses and impedance
- Applied and Induced voltage
Performance Tests
- Temperature Rise (Automated heat run)
- Audible Sound Level (NEMA compliance)
- Lightning Impulse (Sequence simulation)
- Short-circuit capability test
Recommended Products
Substation Transformer
HV Transformer
Oil Immersed Transformer
Single Phase Pad Mounted
Overhead Transformer
Three Phase Pad Mounted
Frequently Asked Questions
What is the difference between Conventional and CSP transformers?
Conventional transformers require external protective devices, whereas Completely Self Protected (CSP) units include internal high-voltage fuses, secondary circuit breakers, and integrated surge arresters for better lightning and overload protection.
What international standards do your transformers meet?
Our transformers are designed and tested to meet or exceed ANSI/IEEE, CSA, and DOE energy efficiency standards, ensuring high performance and safety for global markets.
What is the typical production lead time?
For conventional distribution transformers, the standard production time is approximately 6 to 8 weeks, depending on the specific order volume and customization requirements.
Can these transformers be used for renewable energy projects?
Yes, our transformer solutions are widely used in renewable energy projects, including solar power, wind power generation, and Battery Energy Storage Systems (BESS).
Do you provide technical reports for the testing phase?
Absolutely. Each transformer undergoes strict routine tests, and a detailed test report identified by the serial number is provided for every unit.
Is customization available for specific voltages?
Yes, our engineering team can customize the high voltage (up to 34500V) and low voltage parameters to match the specific grid requirements of your country or project.
