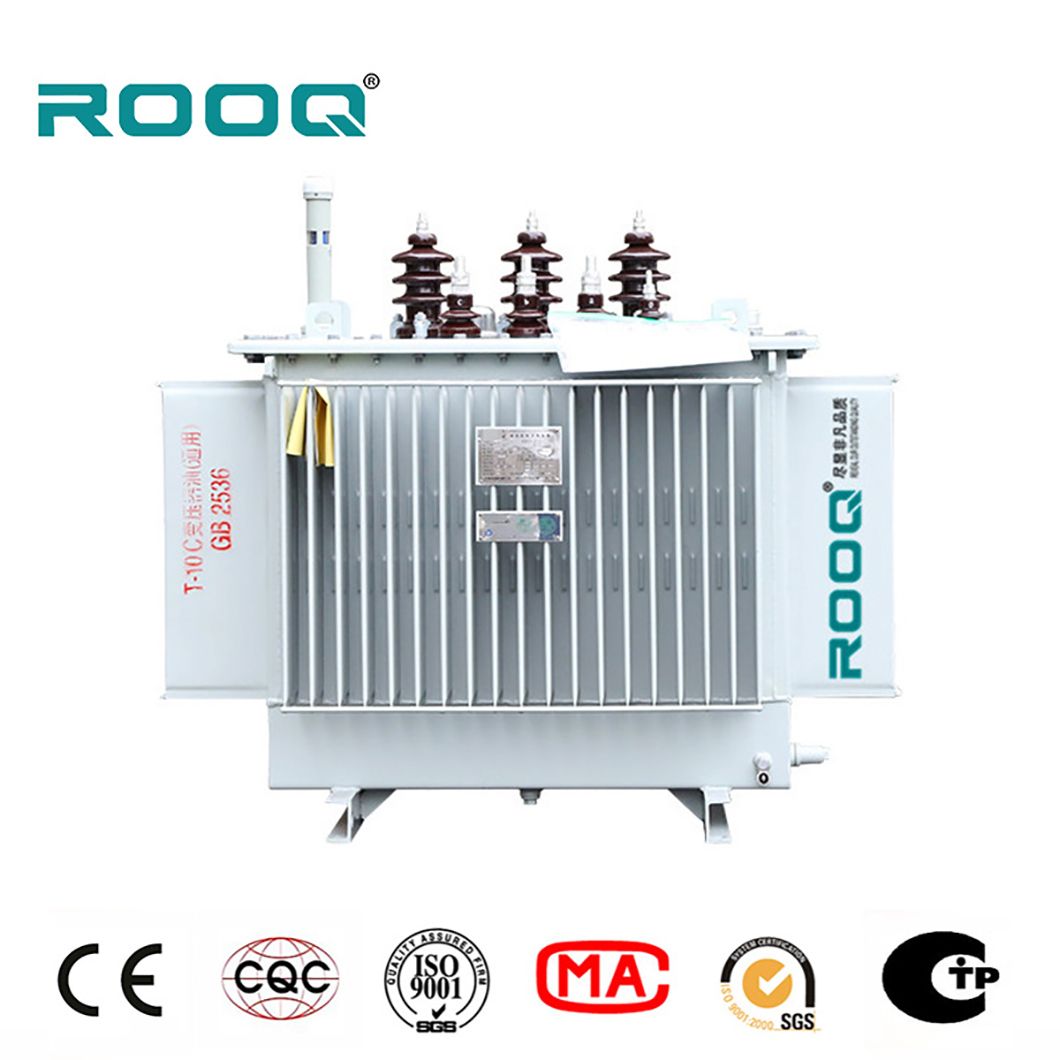

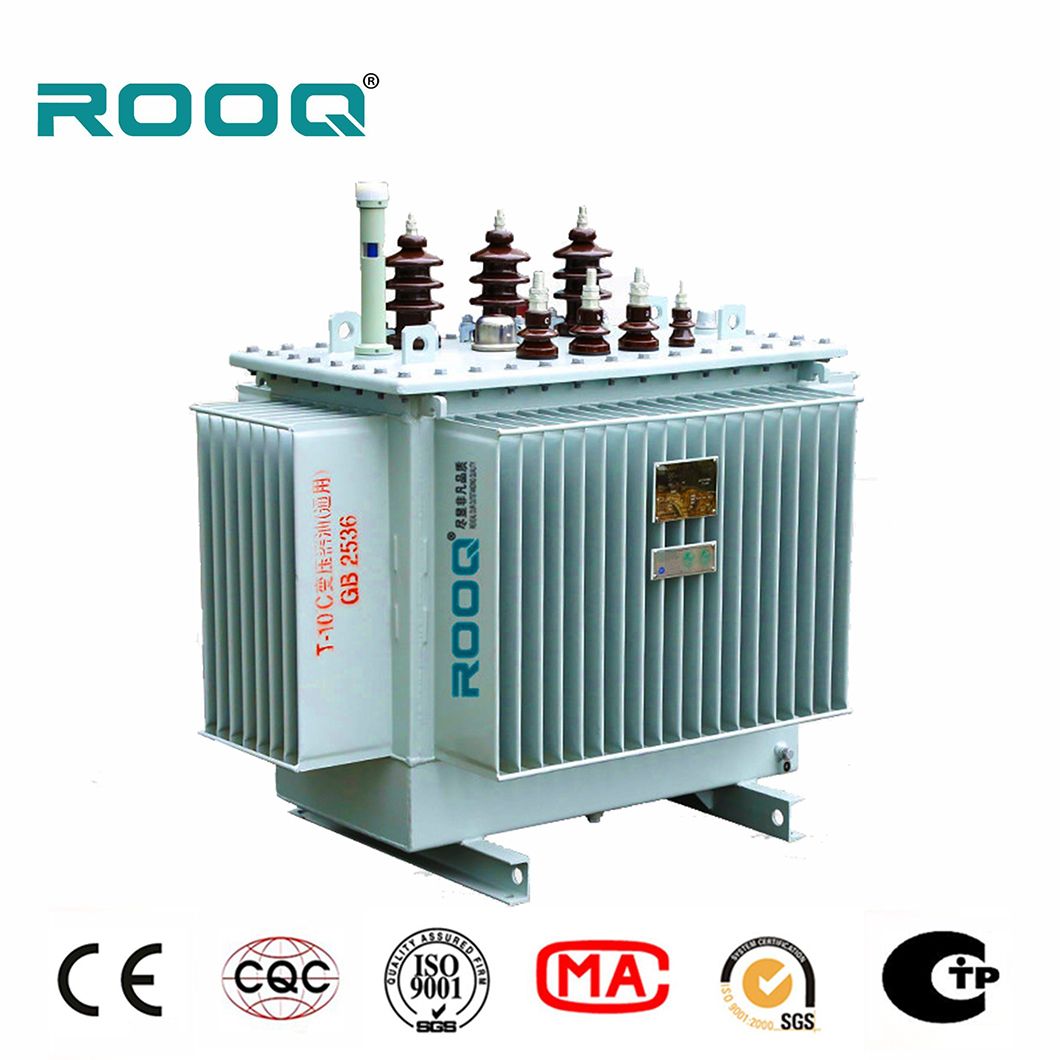

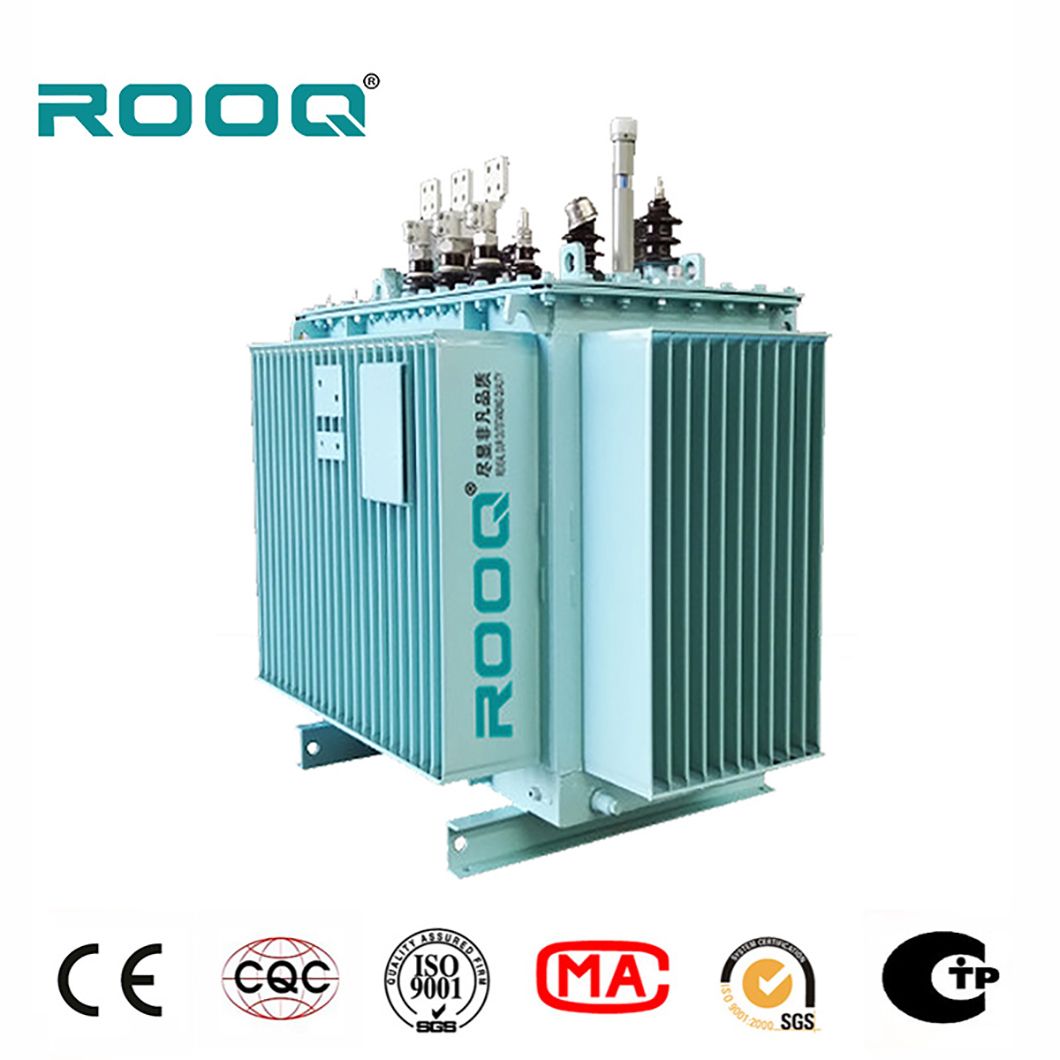

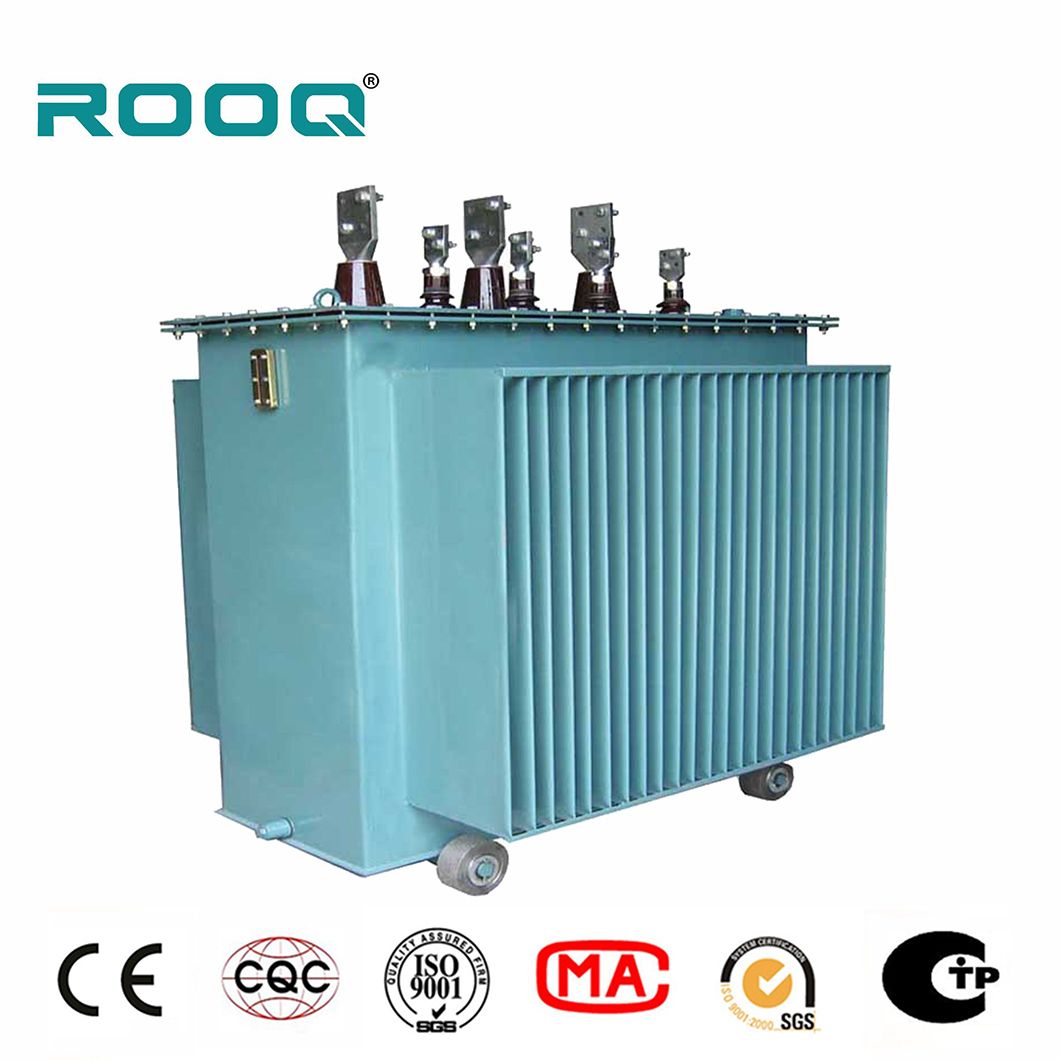

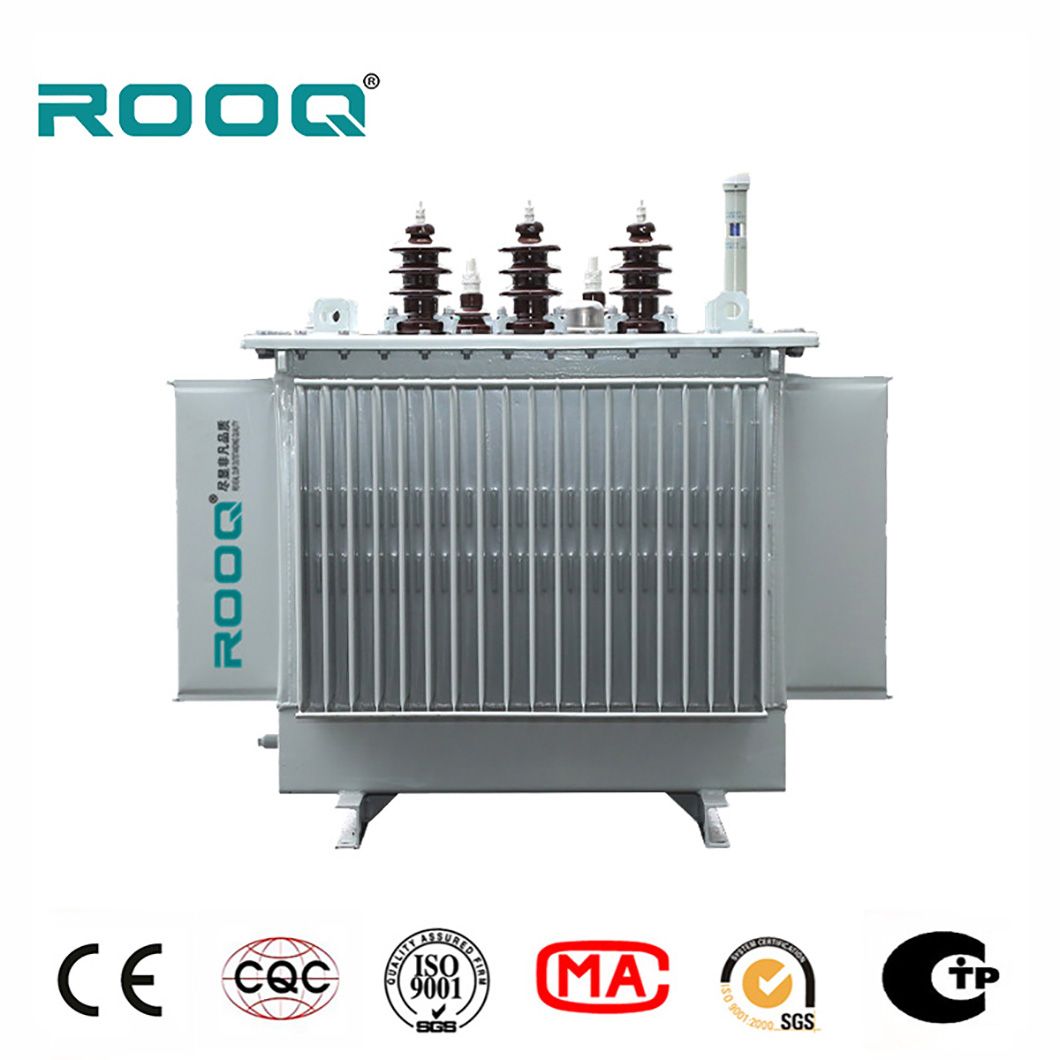

35kV/400V 400kVA Three Phase Oil Immersed Distribution Transformer

Product Description

35kV/400V 400kVA Three Phase Oil Immersed Distribution Transformer

The technology-oriented enterprise specializes in R&D, production, sales and services of power transformers, HV/LV switch cabinets and related products. The factory offers a complete range of power distribution transformers.

The 33kV series three phase oil filled distribution transformer is a kind of energy-saving oil filled distribution power transformer classified as S9 / S11 / S13 series (with no-load tap changer, OCTC) and SZ9 / SZ11 / SZ13 series (with on-load tap changer, OLTC).

Type: Oil filled distribution transformer / Oil immersed distribution transformer / Liquid filled transformer
Rated Capacity: 630kVA
Rated Voltage: 33kV/11kV, 33kV/415V, 33kV/6.6kV, 33kV/380V, 35kV/10kV, 35kV/0.4. (Customizable based on requirements)
Why choose our distribution transformer?
Low loss, low noise, low partial discharge, low temperature rise and energy-saving.
Adopt the latest insulation structure to ensure stability.
Excellent anti-short-circuit ability for enhanced safety.
Heat dissipating elements adopt corrugated sheet or sheet radiator components.
High quality cold rolled grain oriented silicon steel sheet core with 45-degree full oblique joints.
Applications

Power stations, compact transformer stations, normal industrial factories, mines, hospitals, buildings, airports, tunnels, chemical plants, nuclear power plants, etc.

Service Environment
Device Type: Outdoor type
Elevation: Standard up to 1000m (Special custom available for >1000m)
Temperature: Range from -25°C to +40°C (Extended range up to -45°C available)
Mounting Ambient: No corrosive gas, no obvious dirt environment

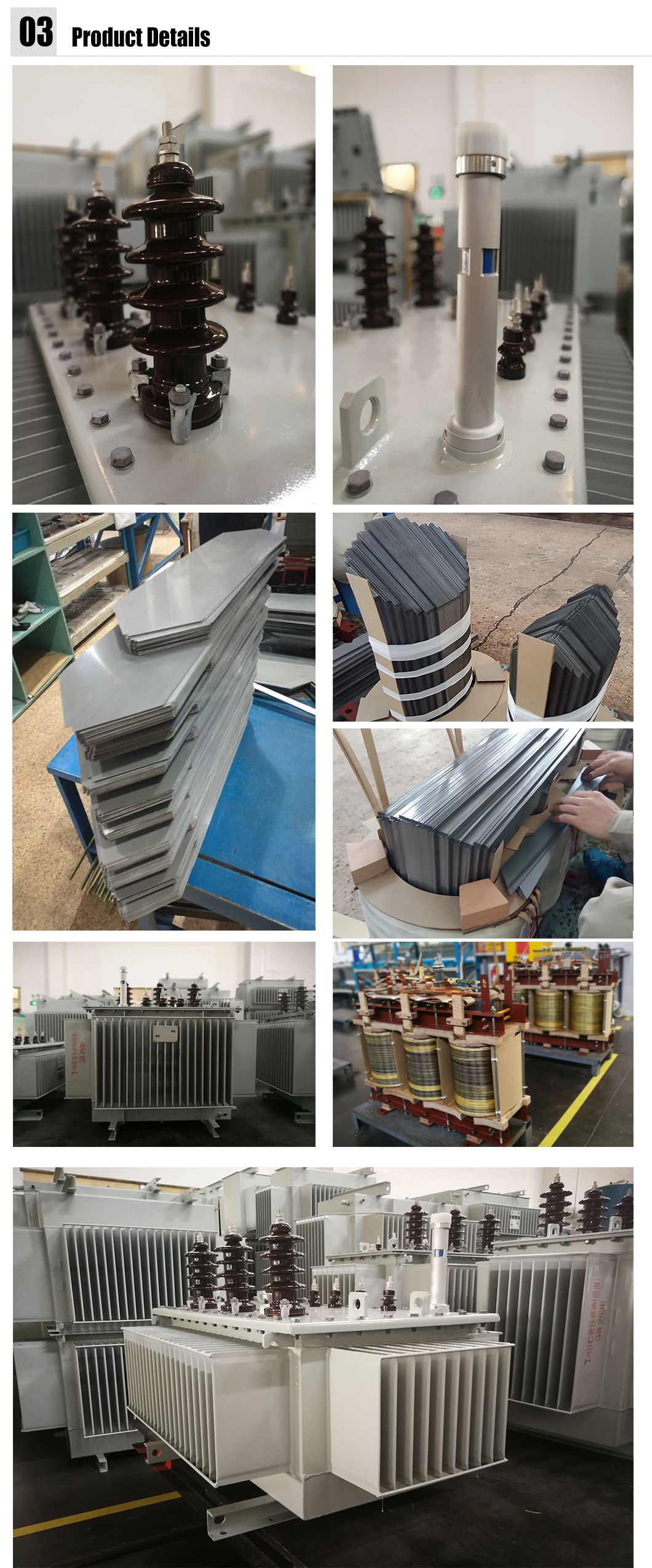

Distribution Transformer Specification
Transformer Details

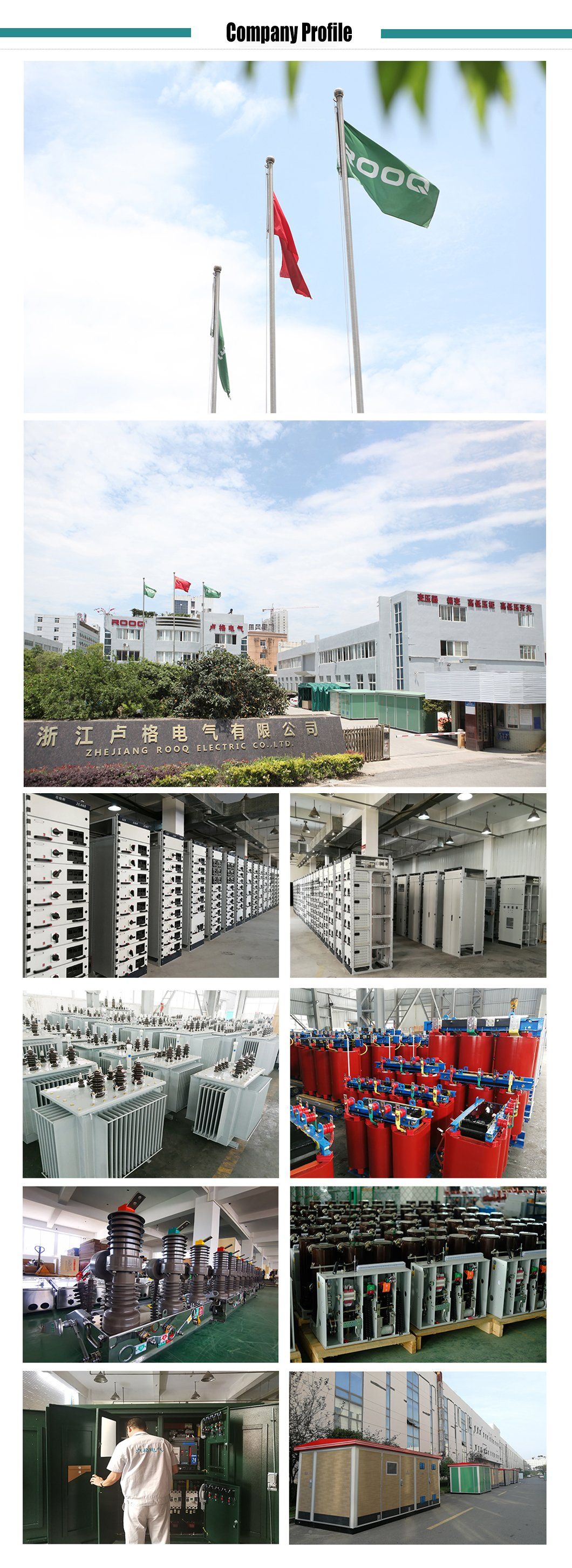

Manufacturing Quality
About Our Manufacturing Excellence

Established in September 2008, the company has been committed to professional development through strong technical force, advanced equipment, and extensive manufacturing experience. Certified by ISO9000, we utilize CAD to provide environment-friendly, energy-saving, and high-quality products. Currently, production includes HV/LV power distribution cabinets, pre-fabricated substations, and power distribution transformers. Our products serve global markets across Central Asia, Africa, Southeast Asia, the Middle East, and South America.

Quality Control
Q1: How long is the warranty for the products?
We provide 24 months warranty for the whole machine from the on-board time.
Q2: What is the typical delivery time?
Usually, production takes 15-20 days after receiving the advanced payment. Stock may be available for standard 10kV series transformers for immediate delivery.
Q3: Can you provide customized OEM or ODM products?
Yes, we provide customized products as per your request. Both OEM and ODM are acceptable for non-standard requirements.
Q4: What are the accepted payment terms?
We currently accept T/T (Telegraphic Transfer) or L/C (Letter of Credit).
Q5: Can you provide original documents like Form A or Form E?
Yes, we can offer Form A, Form E, C/O, and other necessary original documents upon request during order placement.
Q6: What after-sales support do you offer?
We implement a 7*24 service mechanism and a life-long maintenance policy to ensure timely and warm support for all our customers.
