Table 1: 6kV & 10kV Dry-Type Transformer Performance Parameters
| Rated Capacity (kVA) |
Voltage Combination |
Join Group Label |
Loss (W) |
Impedance Voltage (%) |
Free Load Current (%) |
| Primary Voltage (kV) |
Tapping Range |
Secondary Voltage (kV) |
No-load Loss |
Load Loss |
| 100 | 6 / 10 | ±5% or ±2×2.5% | 0.4 | Dyn11 / Yyn0 | 405 | 1691 | 4.0 | 1.08 |
| 500 | 1179 | 5254 | 4.0 | 0.72 |
| 630 | 1359 | 6327 | 4.0 | 0.6 |
| 630 | 1314 | 6413 | 6.0 | 0.6 |
| 800 | 1539 | 7486 | 6.0 | 0.6 |
| 2000 | 3060 | 15552 | 6.0 | 0.48 |
| 2500 | 3600 | 18487 | 6.0 | 0.48 |
Table 2: Insulation Level
| Rated Voltage (kV) |
Rated Short-time Power Frequency Withstand Voltage (kV) |
| ≤ 1 | 3 |
| 20 | 50 |
| 35 | 70 |
PRODUCT SIZE & WEIGHT
| Capacity (kVA) |
Dimensions (L×W×H) mm |
Gross Weight (kg) |
| 100 | 1000×620×1080 | 430 |
| 200 | 1150×620×1145 | 890 |
| 2500 | 1815×920×1820 | 5150 |

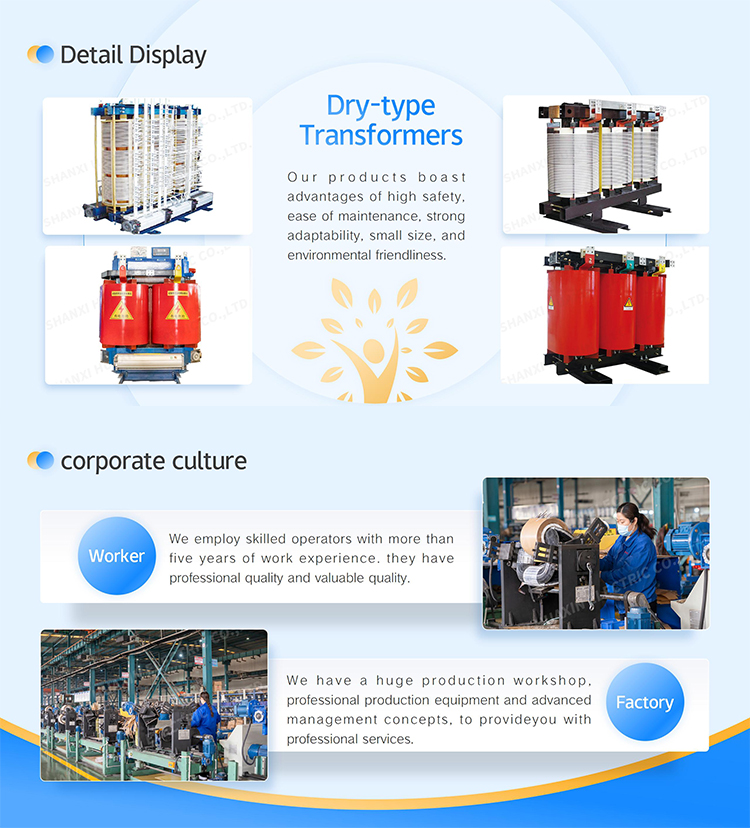

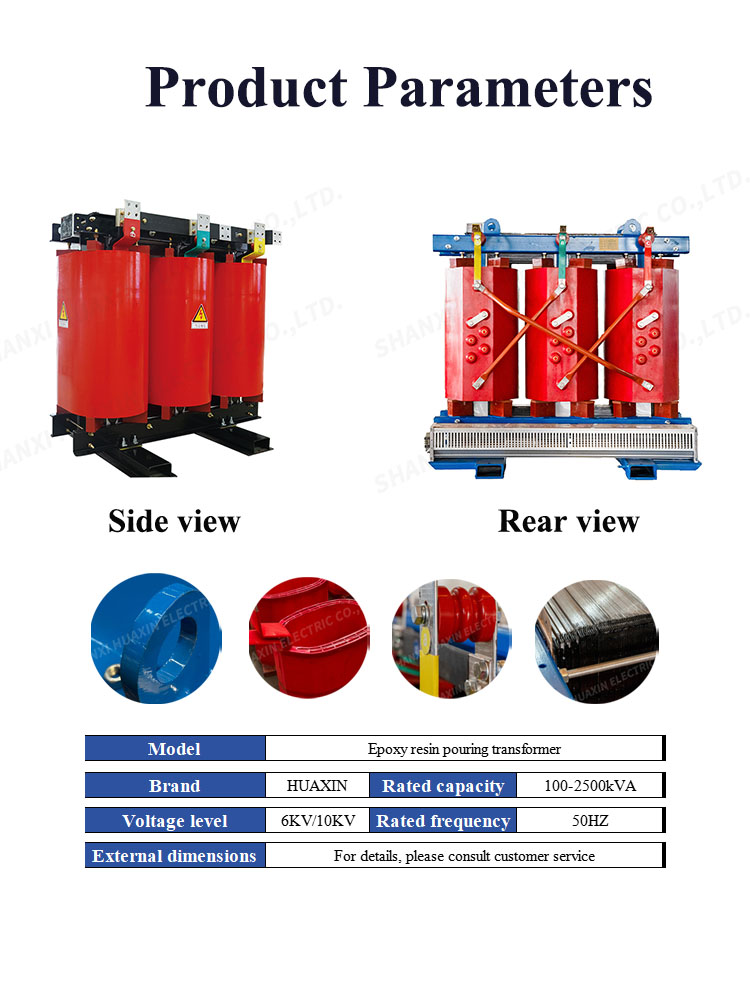

PRODUCT OVERVIEW

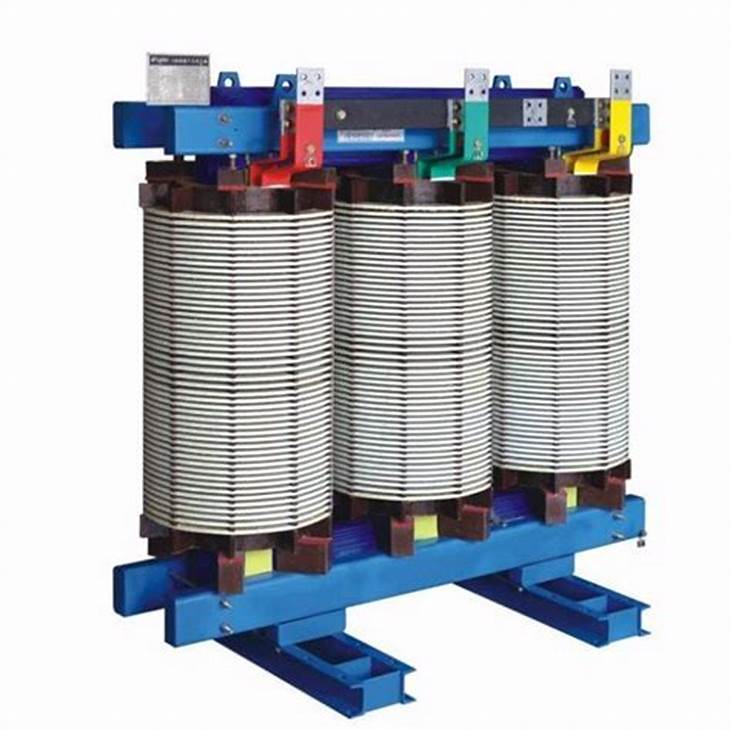

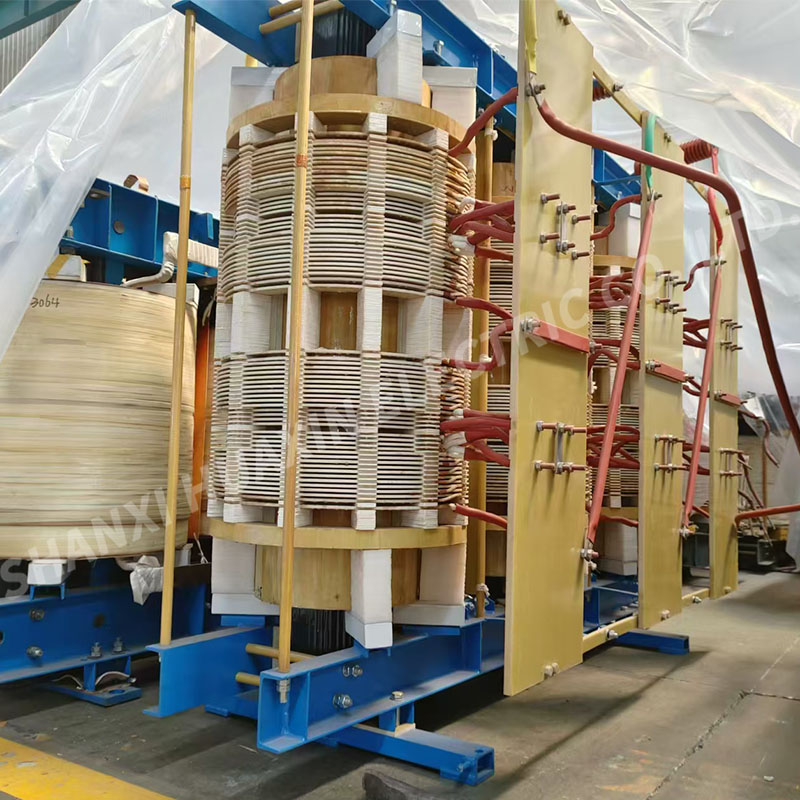

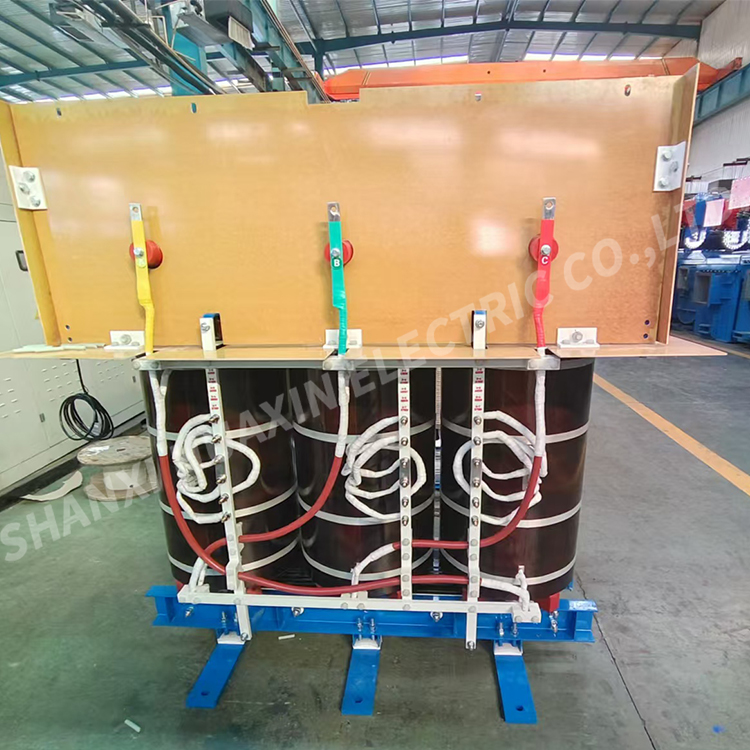

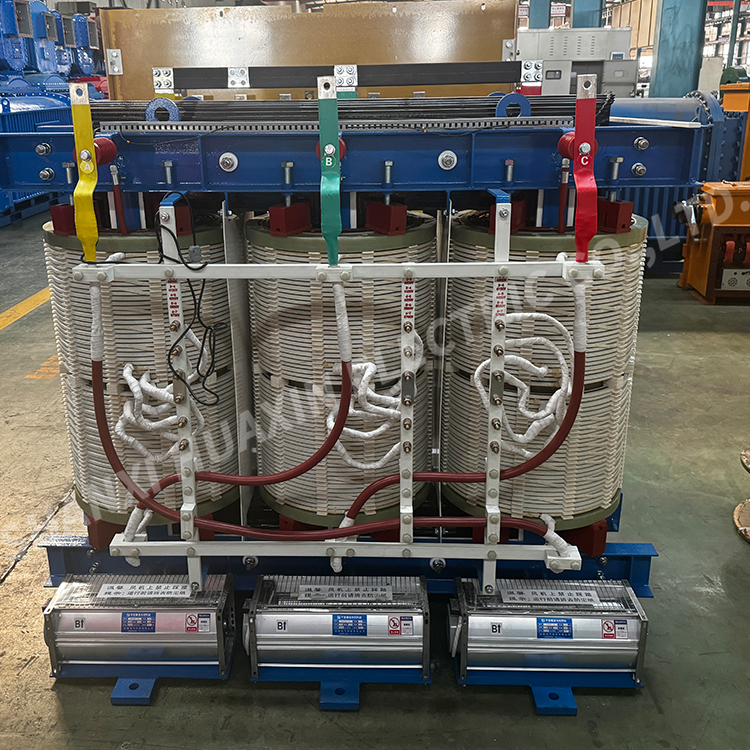

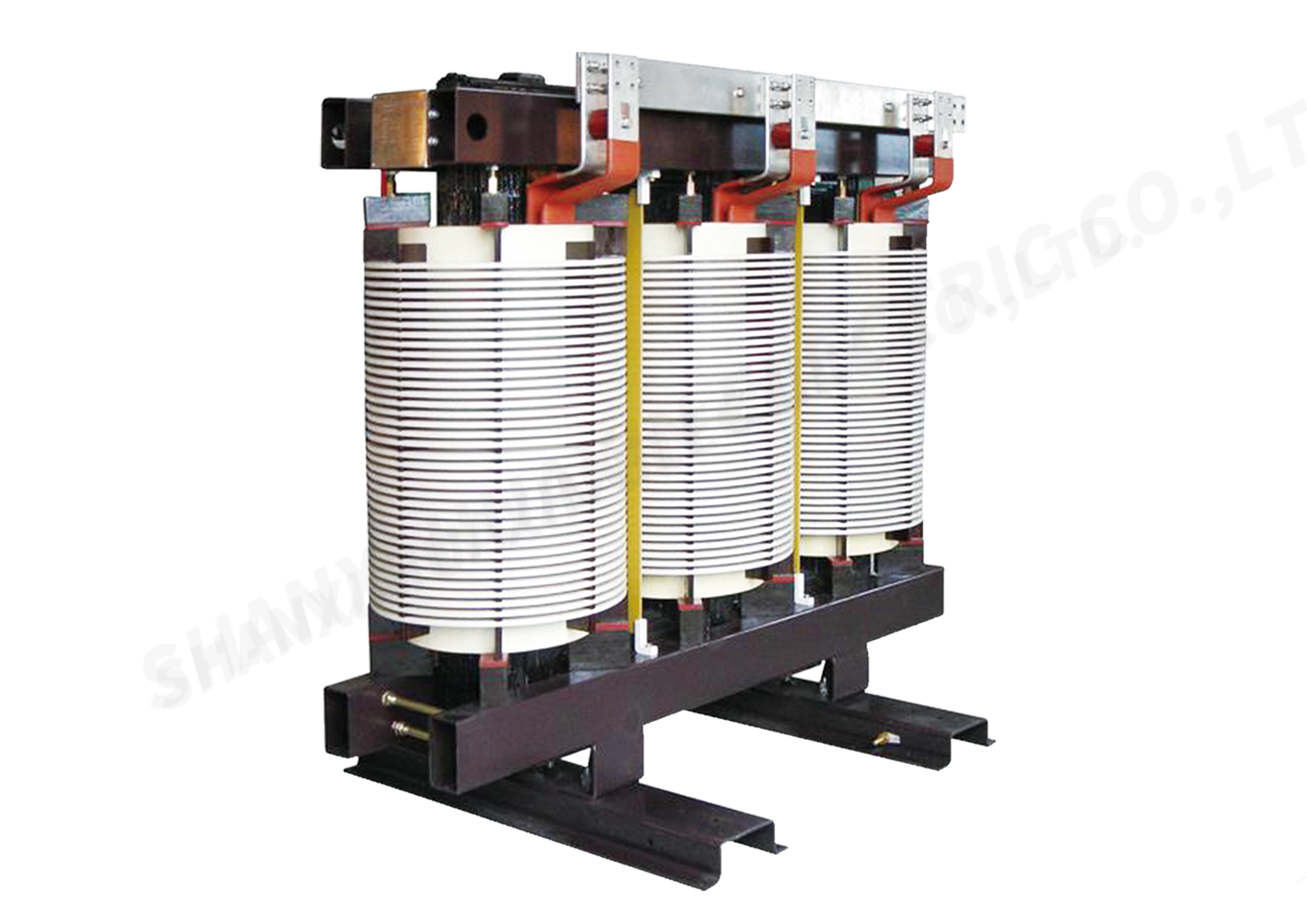

SG (H) series dry-type transformer is a high-performance transformer where the core and winding are not immersed in insulating oil.
It is available in two structural types: Solid insulation encapsulated winding and non-encapsulated winding.
It is ideal for fire-proof and explosion-proof environments.
PERFORMANCE CHARACTERISTICS
No oil, zero pollution, flame retardant, and self-extinguishing for superior fire prevention.
Low loss, high efficiency, and ultra-low noise operation.
Small local discharge (under 30 PC) with a reliable long-term service life of up to 30 years.
Excellent resistance to cracks, temperature fluctuations, and sudden short-circuits.
Superior moisture-proof properties; capable of running under 100% humidity without prior drying.
Cost-effective installation: No separate transformer room, oil collecting pits, or heavy load-bearing beams required.
TECHNICAL PARAMETERS
Rated Capacity: 100-2500kVA
Rated Voltage: Primary 10kV/6kV; Secondary 0.4kV (Customizable)
Frequency: 50Hz / Phase: Three-phase
Cooling Method: AN/AF
Insulation Grade: Grade H
APPLICATION AREAS
Suitable for environments with high fire protection requirements, large load fluctuations, or humid conditions including:
Airports, Power Plants, Metallurgy, Hospitals, High-rise Buildings, Shopping Malls, Petrochemical Industry, and Nuclear Power Stations.
EXHIBITIONS & FACTORY SHOWCASE
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a professional manufacturer with six industrial manufacturing bases covering an area of approximately 650mu across multiple industrial parks.
2. What is the guarantee for your products?
The standard warranty period is 12 months from commissioning or 18 months after delivery, whichever date is sooner.

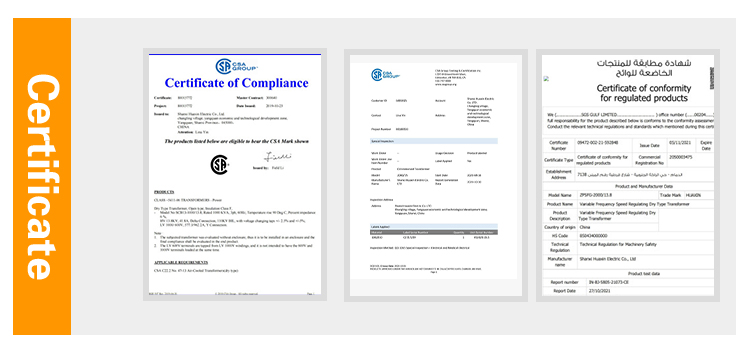

3. Which certificates do you hold?
Our company and products are certified by CSA, UL, SASO, CE, ISO 9001, 3C, and KEMA.
4. What are the accepted payment methods?
We accept payments via T/T (Telegraphic Transfer) and L/C (Letter of Credit).
5. How long is the production lead time?
Generally, production takes between 4 to 6 weeks, depending on the specific product style and order requirements.
6. Can the technical parameters be customized?
Yes, we offer various configurations for primary and secondary voltages, as well as capacity adjustments to meet specific project needs.
