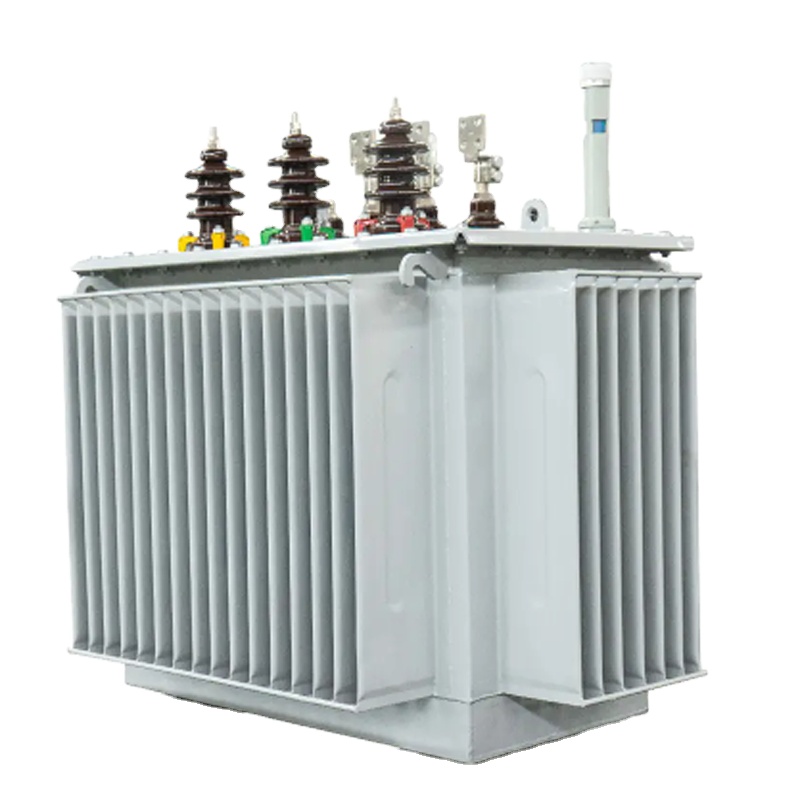

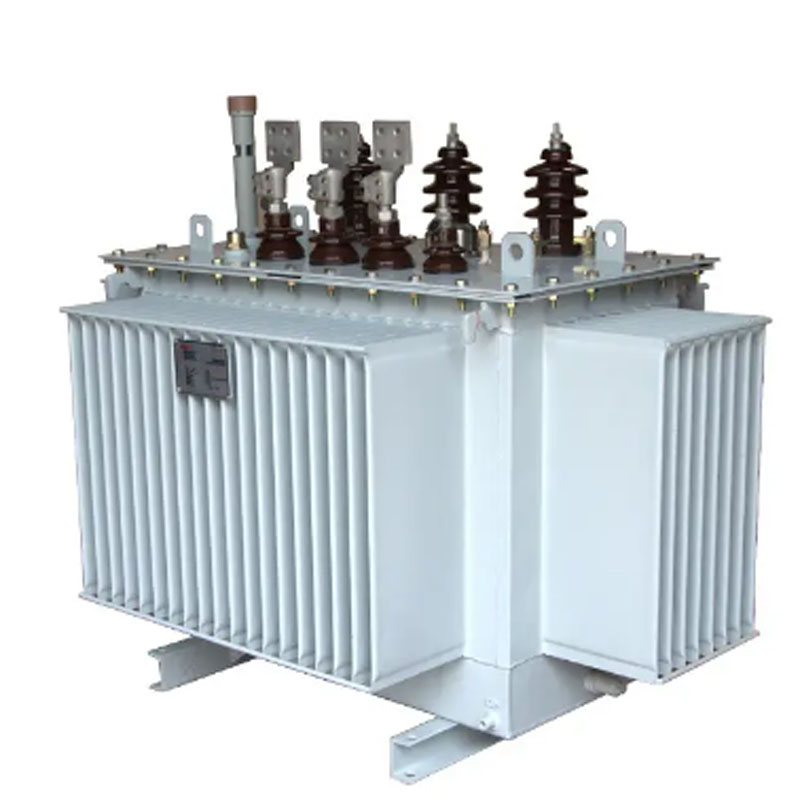

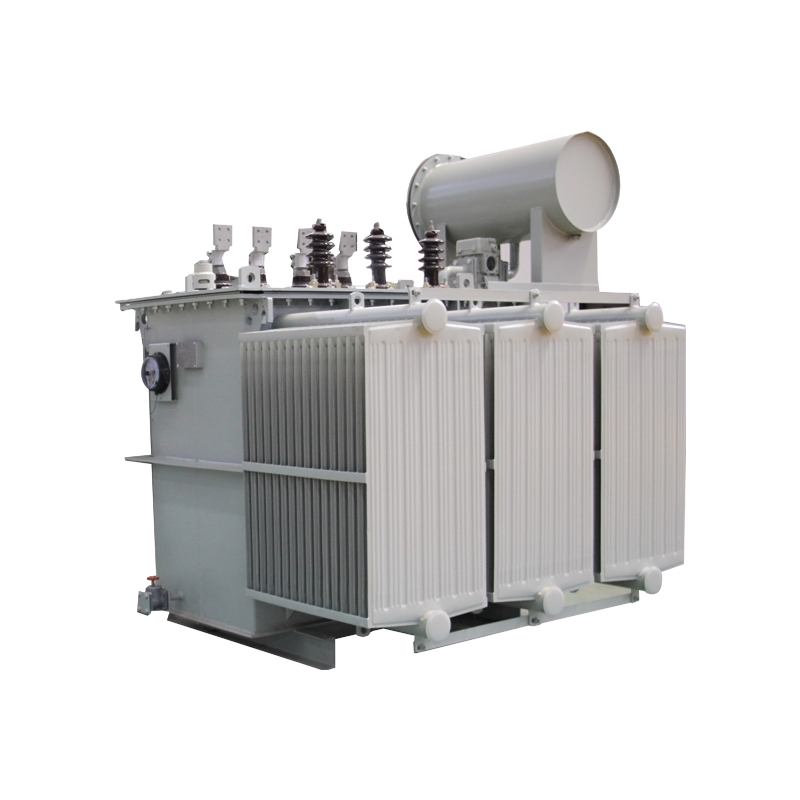

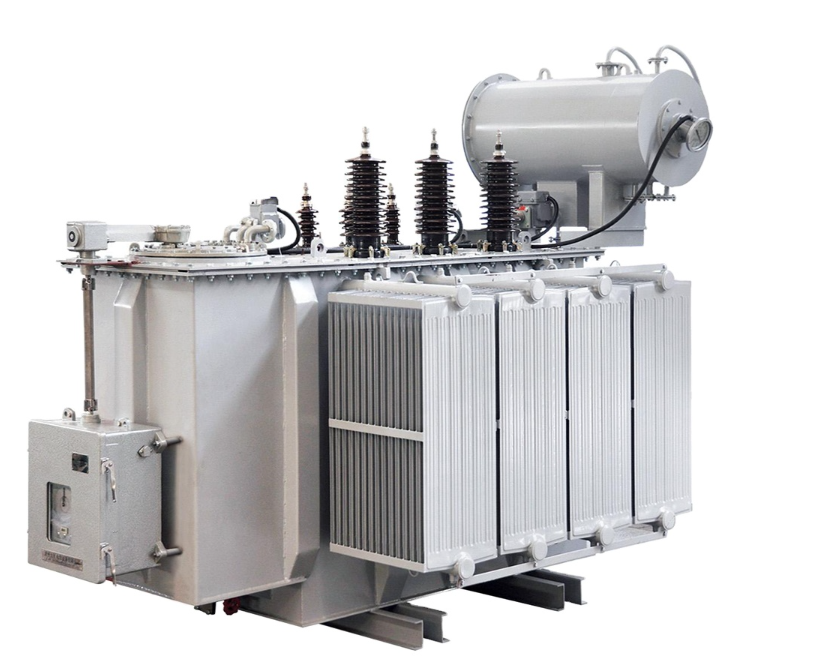

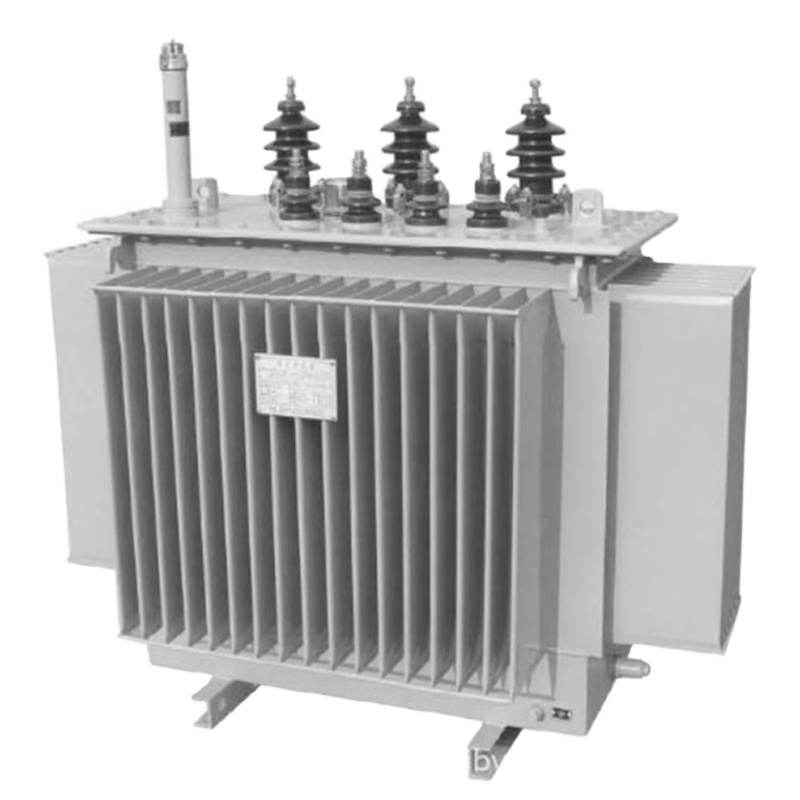

100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
1 / 5
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer
100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer

100kVA-1500kVA Aluminum Winding Oil Immersed Power Transformer 33kV MV HV Step Down Distribution Transformer

Send Inquiry

Product Description

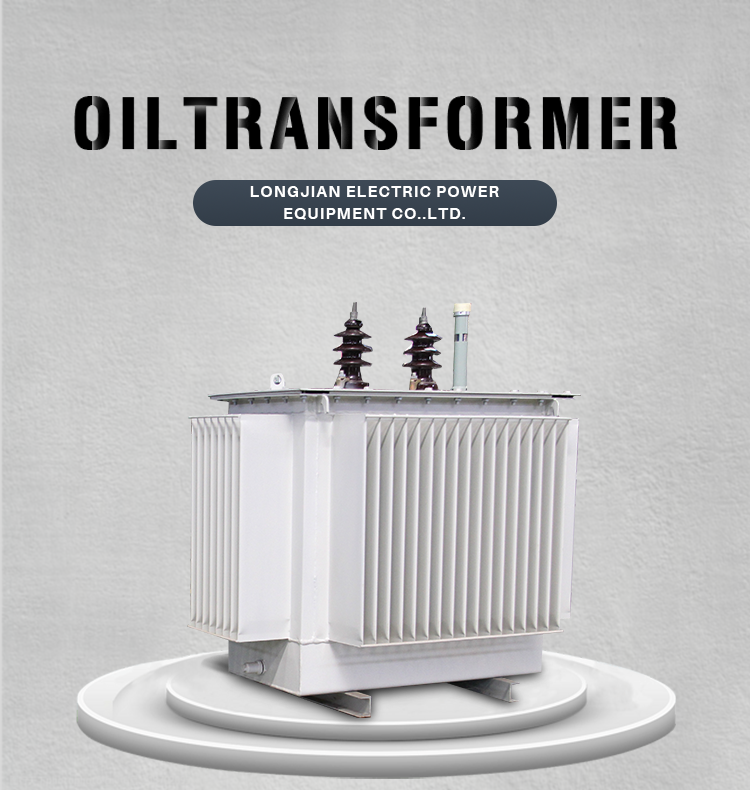

Product Display
Product Overview
Technical Design

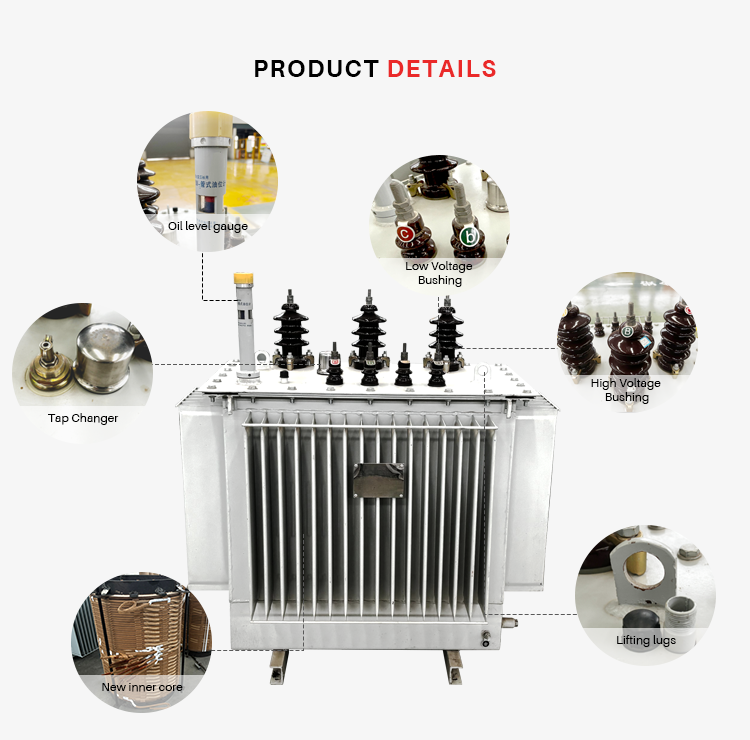

Components
Features

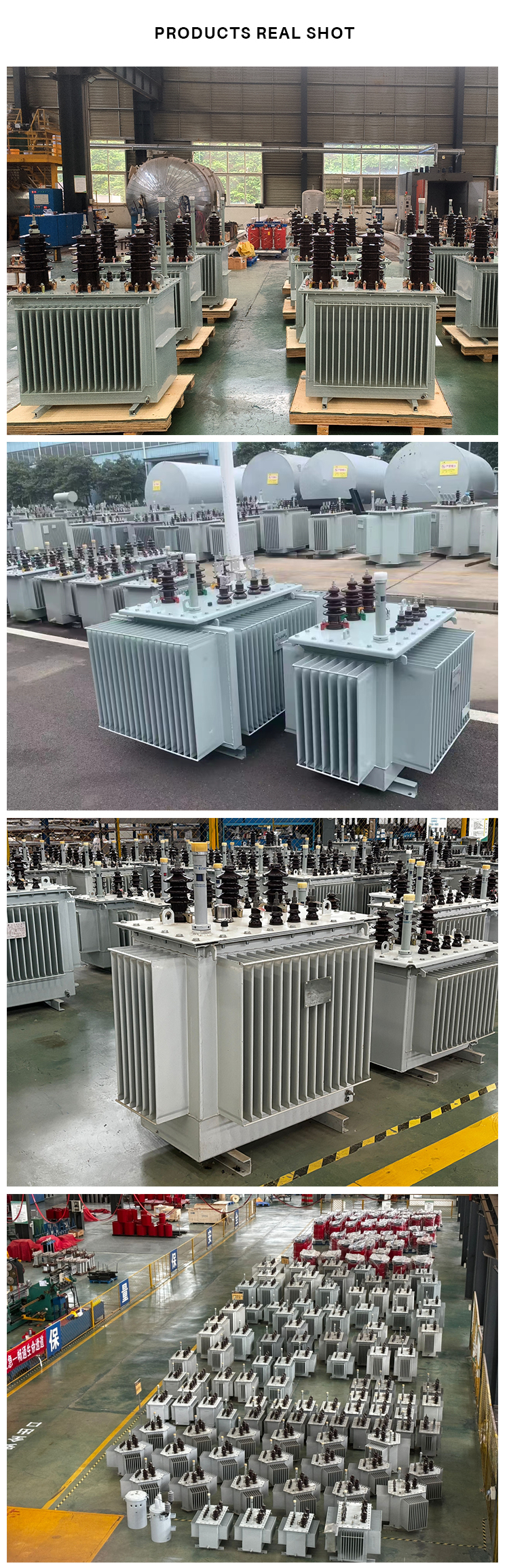

Operational View
Technical Parameter List
Rated Power (KVA) Rated Voltage Loss (W) On Load Current (%) Oil Weight (KGS) Total Weight (KGS) Dimension (L*W*H)
H.V (KV) L.V (V) No Load On Load
303.3 / 6.0 / 6.3 / 6.6
10 / 11 / 13.2 / 13.8
15 / 20 / 22 / 24
30 / 33 / 35 / 36		380 / 400
415 / 433 / 440		1006002.175305750*500*990
50130870280405800*480*1030
6315010401.995455830*615*1060
10020015001.8120530890*645*1145
12524018001.7130670910*600*1185
16028022001.6140810910*700*1280
20034026001.51608901000*760*1240
25040030501.417510201285*730*1290
30040034501.418511701280*740*1385
40057043001.321514101310*750*1432
50068051001.226016451365*765*1540
63081062001.131020701485*815*1615
80098075001.037024551640*930*1590
10001150103001.042528001860*1120*1630
12501360120000.948033201860*1120*1830
16001640145000.855041751975*1175*1900
Production & Quality Control

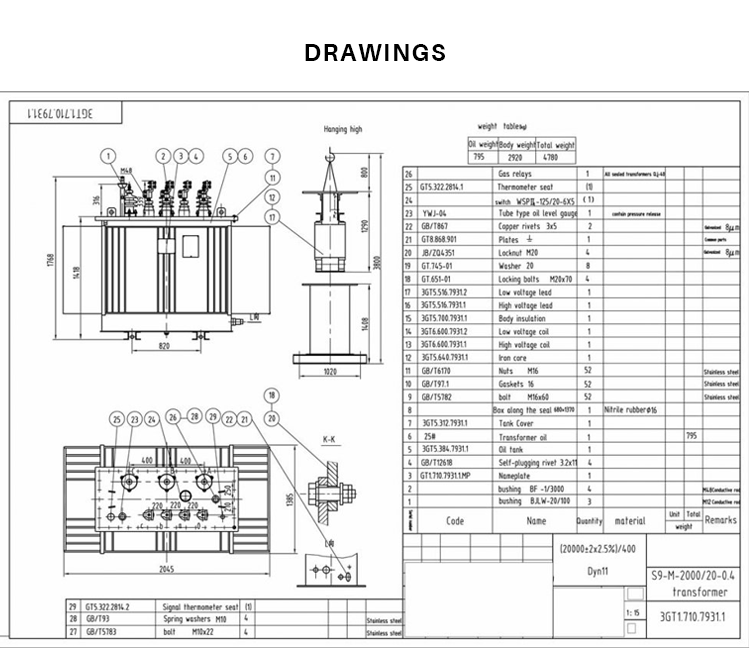

Manufacturing
Process

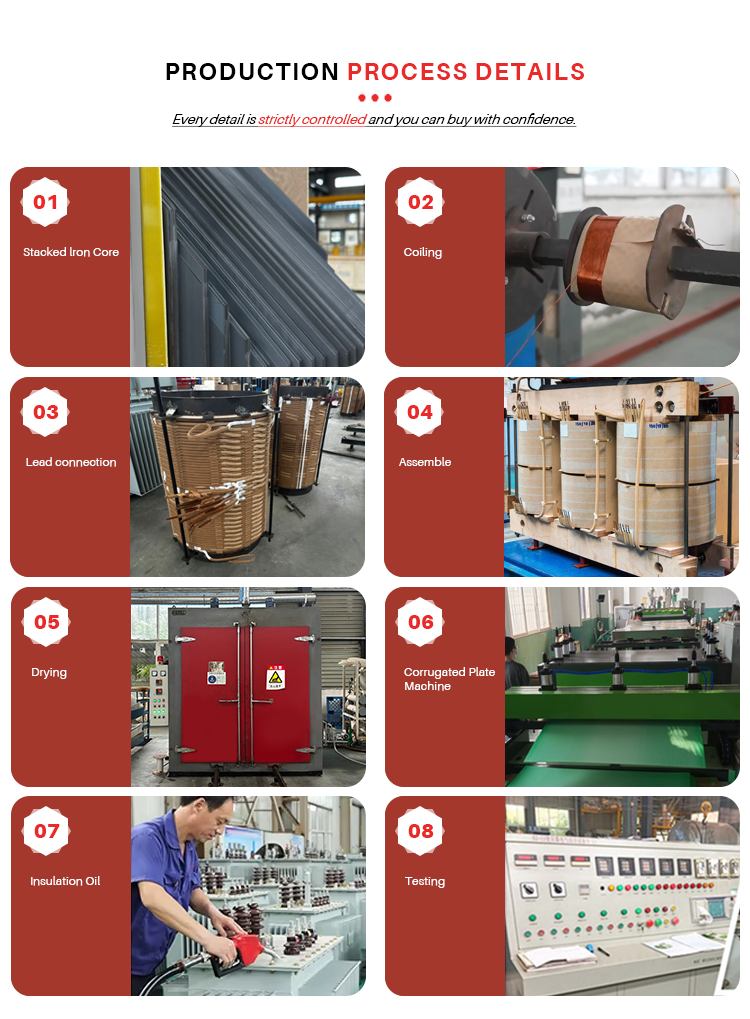

Quality Control
Testing

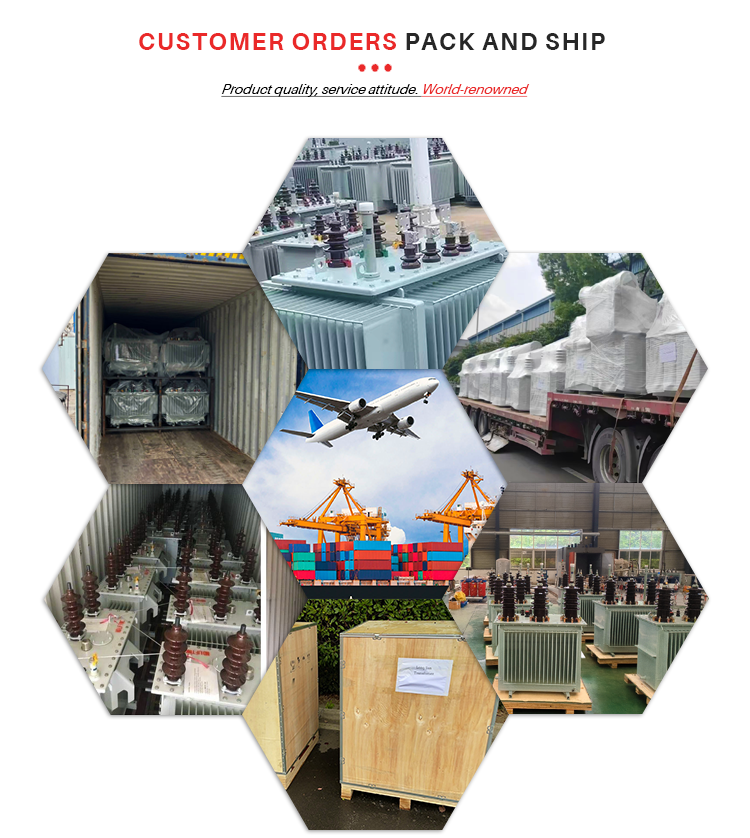

Final Product

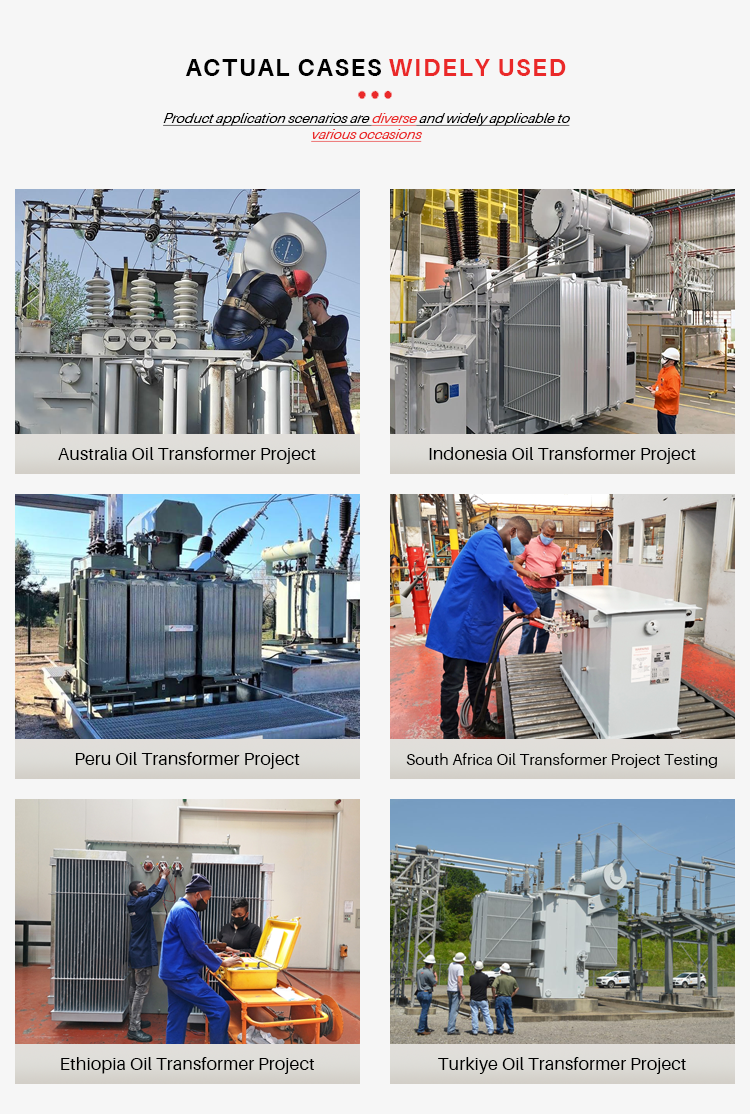

Application Scenario
Frequently Asked Questions
What is the range of rated power available for these transformers?
The transformers are available in a wide range of rated power, starting from 30 KVA up to 1600 KVA, covering various industrial and commercial needs.
What primary and secondary voltage options are supported?
High voltage (H.V) options range from 3.3 KV to 36 KV, while low voltage (L.V) options typically include 380V, 400V, 415V, 433V, and 440V.
Are these transformers designed for energy efficiency?
Yes, our technical parameters specify both No Load and On Load loss values to ensure optimal energy performance and reduced operational costs.
What are the typical dimensions for a 1000 KVA unit?
A standard 1000 KVA transformer unit has approximate dimensions of 1860*1120*1630 mm, with a total weight of about 2800 KGS.
How is the cooling handled in these transformers?
These units utilize high-quality transformer oil for insulation and cooling, with specific oil weights provided in the technical data for maintenance planning.
Can these transformers handle high-altitude or extreme temperature environments?
The design is robust and follows international standards for varied environmental conditions. Please consult the technical specifications for specific altitude and temperature derating factors.
