Main functions and features:

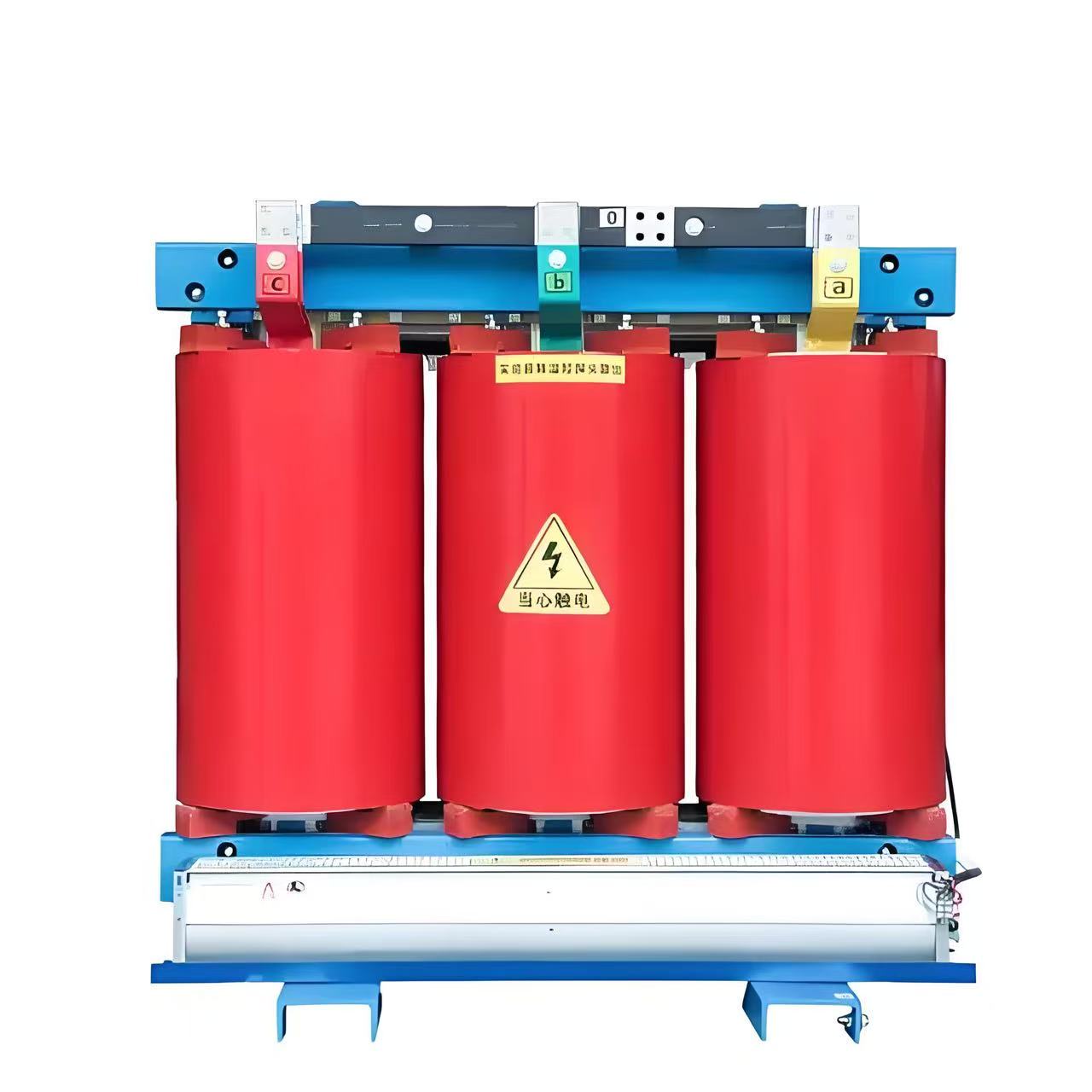

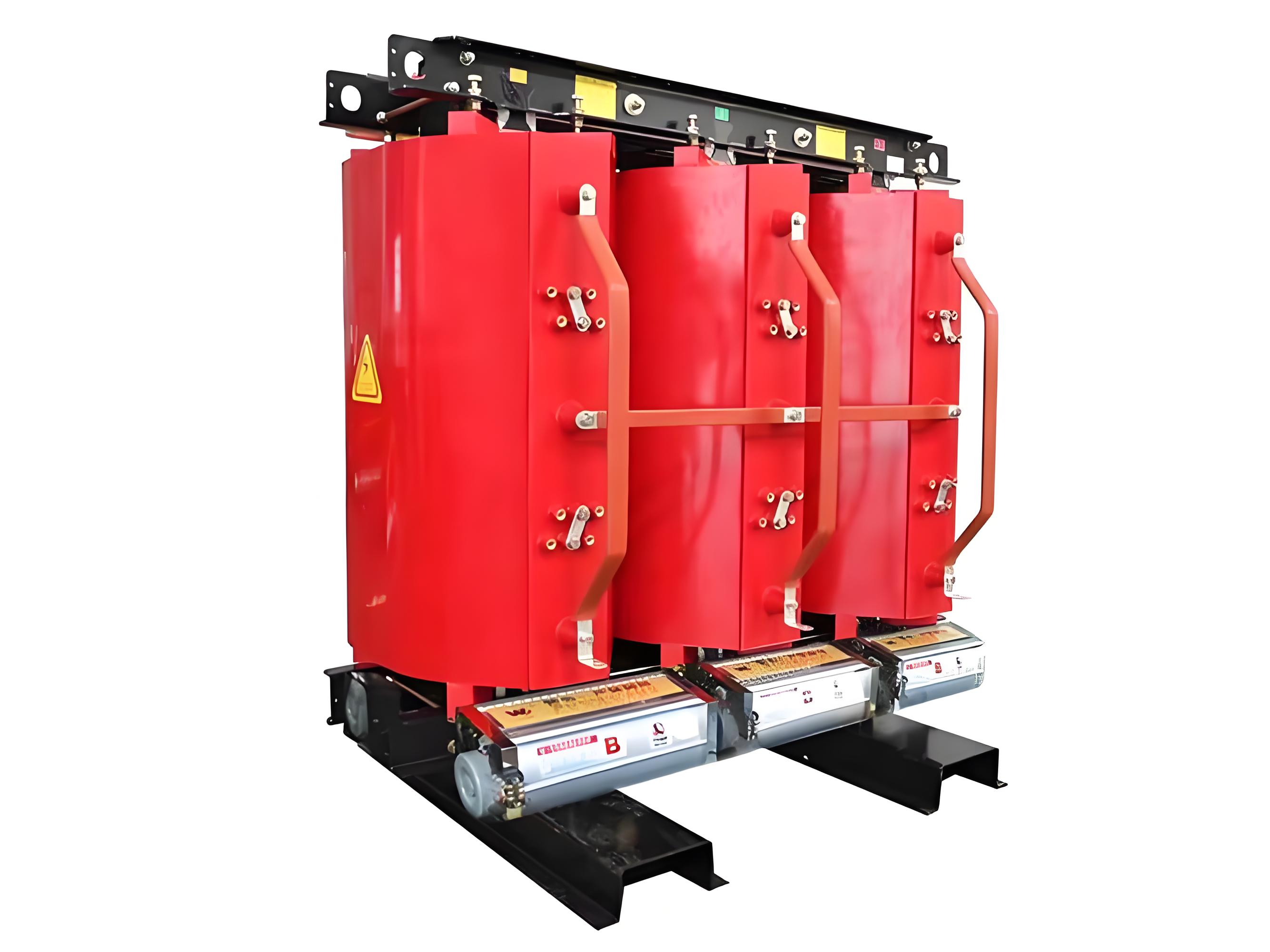

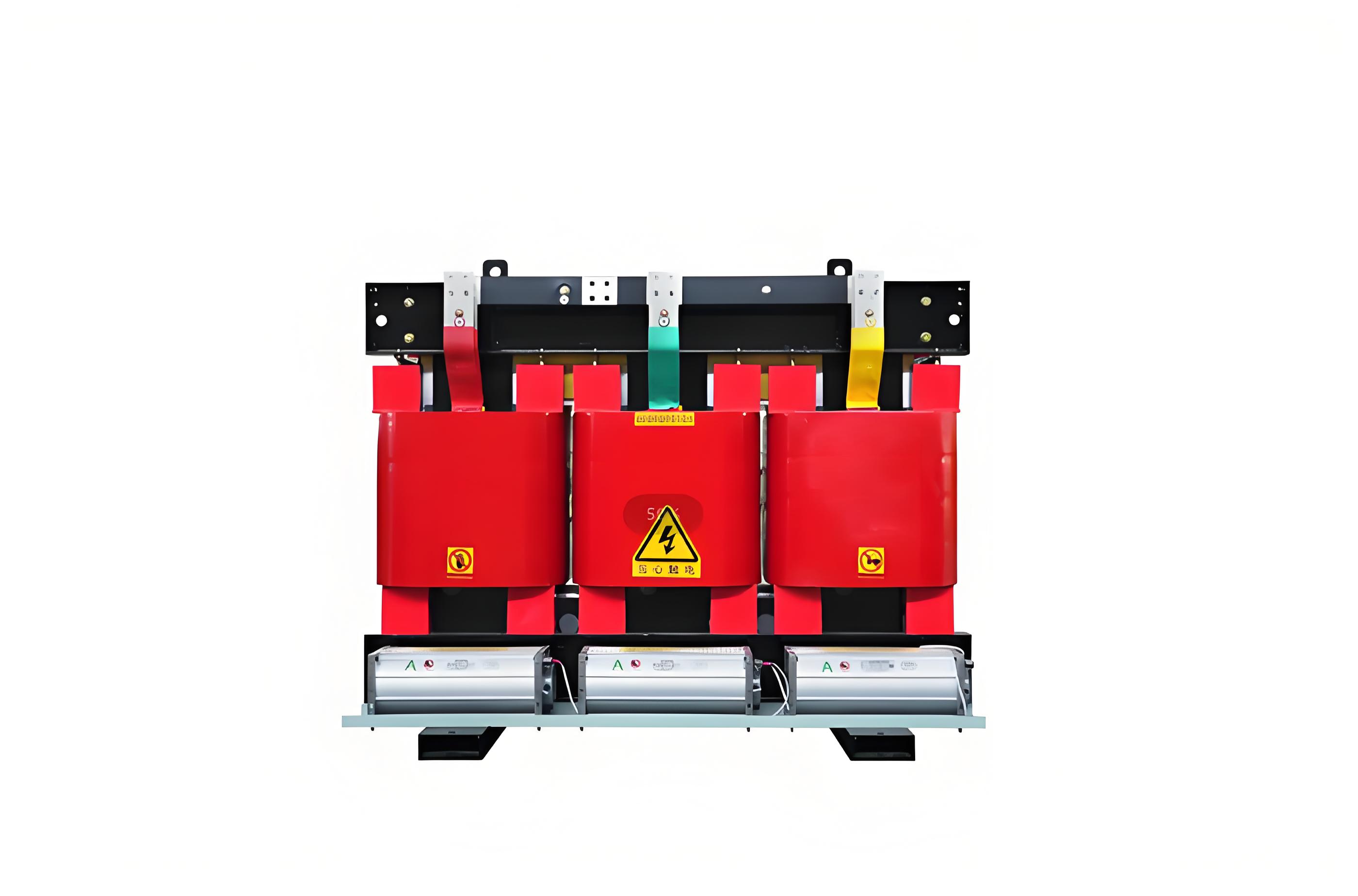

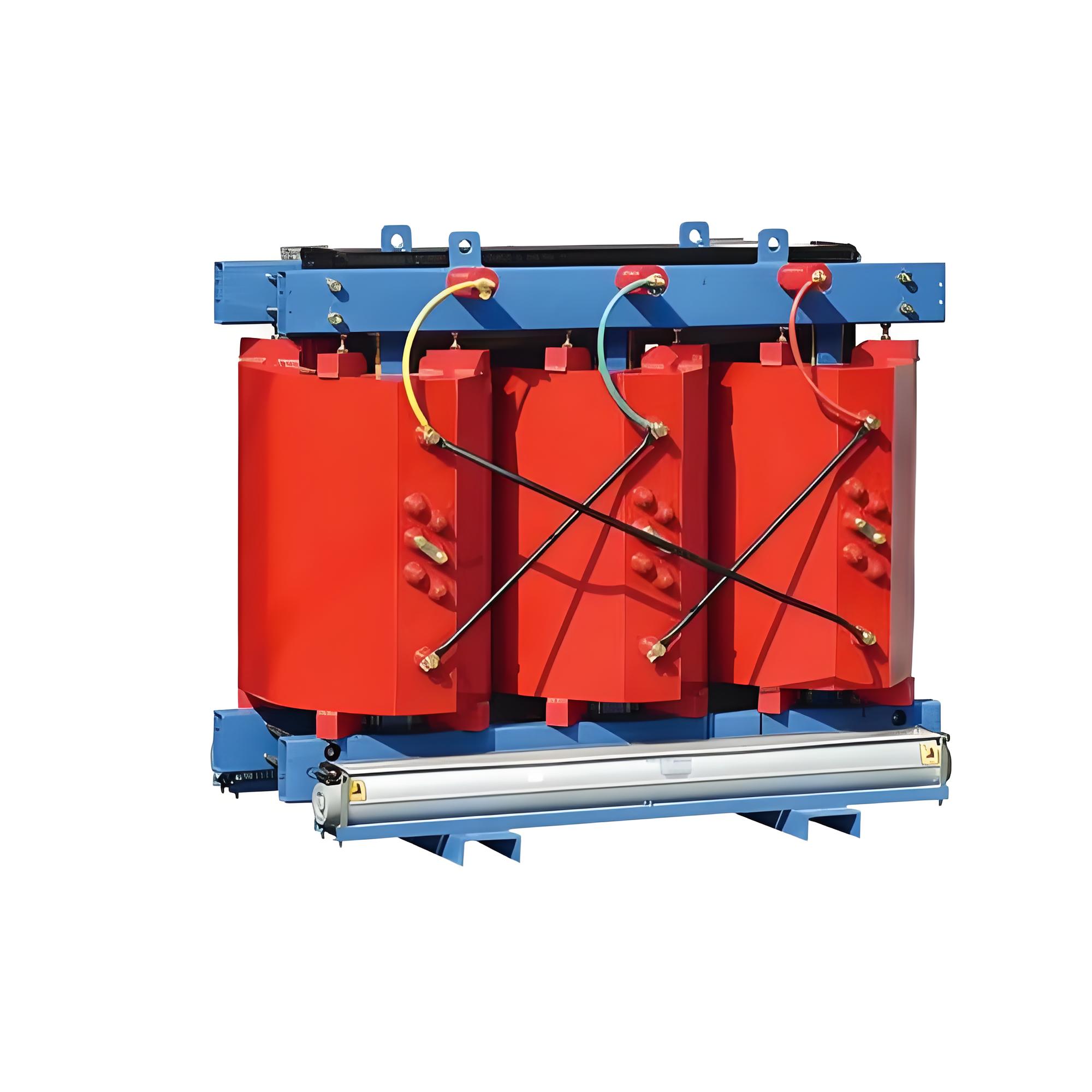

SCB10 epoxy resin cast three-phase transformer is safe, flame retardant and fire-proof, and pollution-free, and can be directly installed in the load center. Maintenance-free and easy to install. It has good moisture-proof performance and can be put into operation without pre-drying after shutdown. Low loss, low local discharge, low noise, and forced air cooling conditions cannot operate at 120% of the rated load. We have a complete temperature protection control system to provide reliable guarantee for the safe operation of the transformer. The reliability indicators of this product have reached the domestic advanced level.

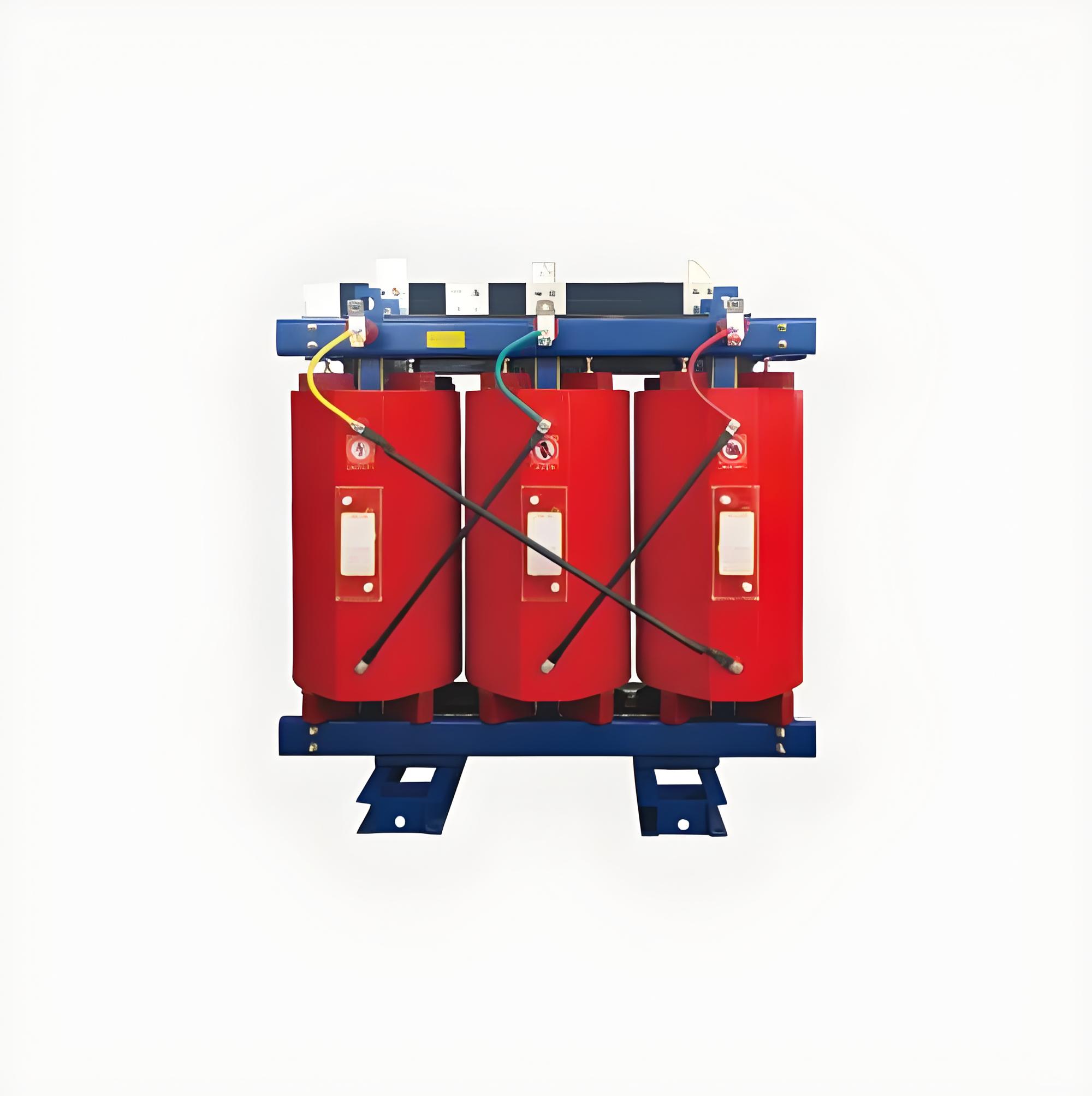

| Model | Loss (W) | Impedance (%) | No-load Current (%) | Connection Group | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|
| No-load | Load (F) | Load (H) | |||||
| SCB11-30/10 | 170 | 665 | 710 | 4 | 3.2 | Yyno/Dyn11 | 880*660*800 |
| SCB11-50/10 | 240 | 940 | 1010 | 4 | 2.8 | - | 910*660*860 |
| SCB11-80/10 | 320 | 1300 | 1390 | 4 | 2 | - | 970*660*950 |
| SCB11-100/10 | 350 | 1480 | 1590 | 4 | 2.4 | - | 980*660*975 |
| SCB11-125/10 | 415 | 1735 | 1865 | 4 | 2.2 | - | 1030*660*1015 |
| SCB11-160/10 | 475 | 2000 | 2145 | 4 | 2.2 | - | 1070*660*1030 |
| SCB11-200/10 | 545 | 2380 | 2545 | 4 | 2 | - | 1130*660*1030 |
| SCB11-250/10 | 630 | 2590 | 2785 | 4 | 2 | - | 1180*660*1210 |
| SC11-315/10 | 770 | 3265 | 3505 | 4 | 1.8 | - | 1210*660*1240 |
| SCB11-400/10 | 855 | 3750 | 4025 | 4 | 1.8 | - | 1280*960*1320 |
| SCB11-500/10 | 1015 | 4590 | 4920 | 4 | 1.8 | - | 1320*960*1350 |
| SCB11-630/10 | 1175 | 5530 | 5920 | 4 | 1.6 | - | 1460*960*1390 |
| SCB11-800/10 | 1300 | 6545 | 7015 | 6 | 1.6 | - | 1520*960*1420 |
| SCB11-1000/10 | 1550 | 7650 | 8240 | 6 | 1.4 | - | 1560*960*1480 |
| SCB11-1250/10 | 1830 | 19120 | 19760 | 6 | 1.4 | - | 1630*1210*1500 |
| SCB11-1600/10 | 2140 | 11040 | 11840 | 6 | 1.4 | - | 1680*1210*1620 |
| SCB11-2000/10 | 2700 | 13600 | 14640 | 6 | 1.2 | - | 1750*1210*1720 |
| SCB11-2500/10 | 3200 | 16160 | 17360 | 6 | 1.2 | - | 1840*1210*1860 |

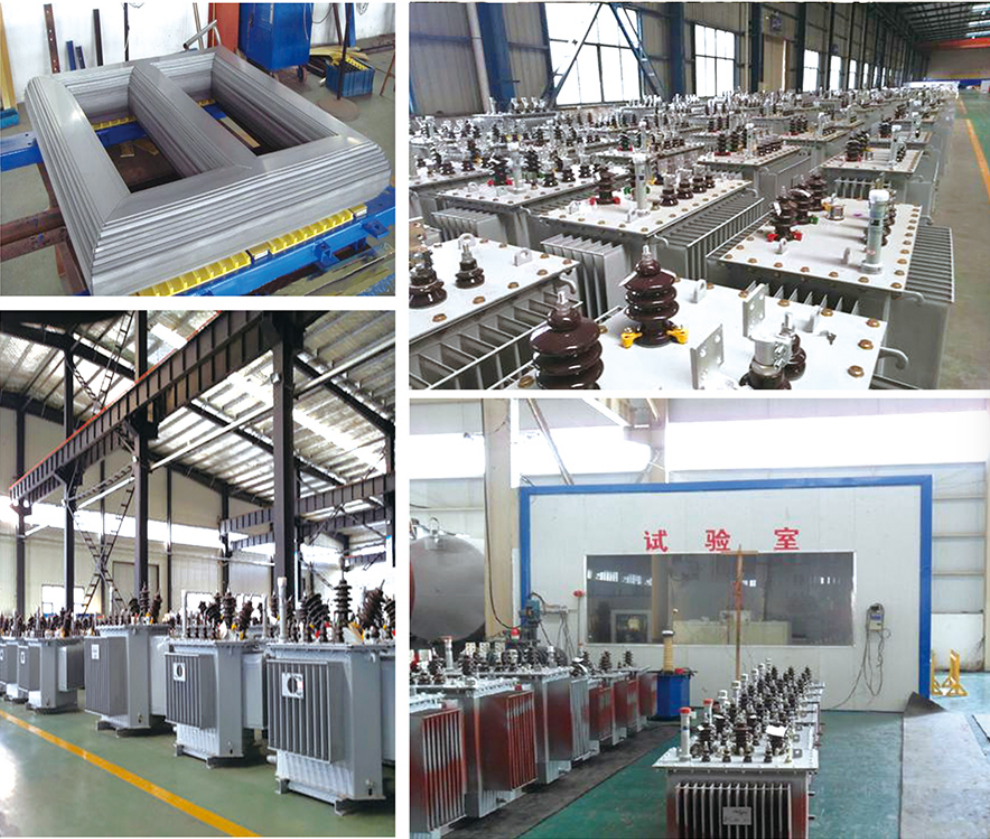

The workshop has strict process management and closed management systems, and regularly conducts purification and dust reduction inspection and control to meet the requirements necessary for the production of high-voltage electrical products. It has passed IS09001 quality certification and third-party inspection and certification for international bidding.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
High-quality product quality is the basis for survival and development. While organizing production strictly in accordance with national and international standards, the company has continuously improved the quality management system. The quality management system has passed ISO9001 certification to provide customers with high-quality products, efficient work, and sincere services.
