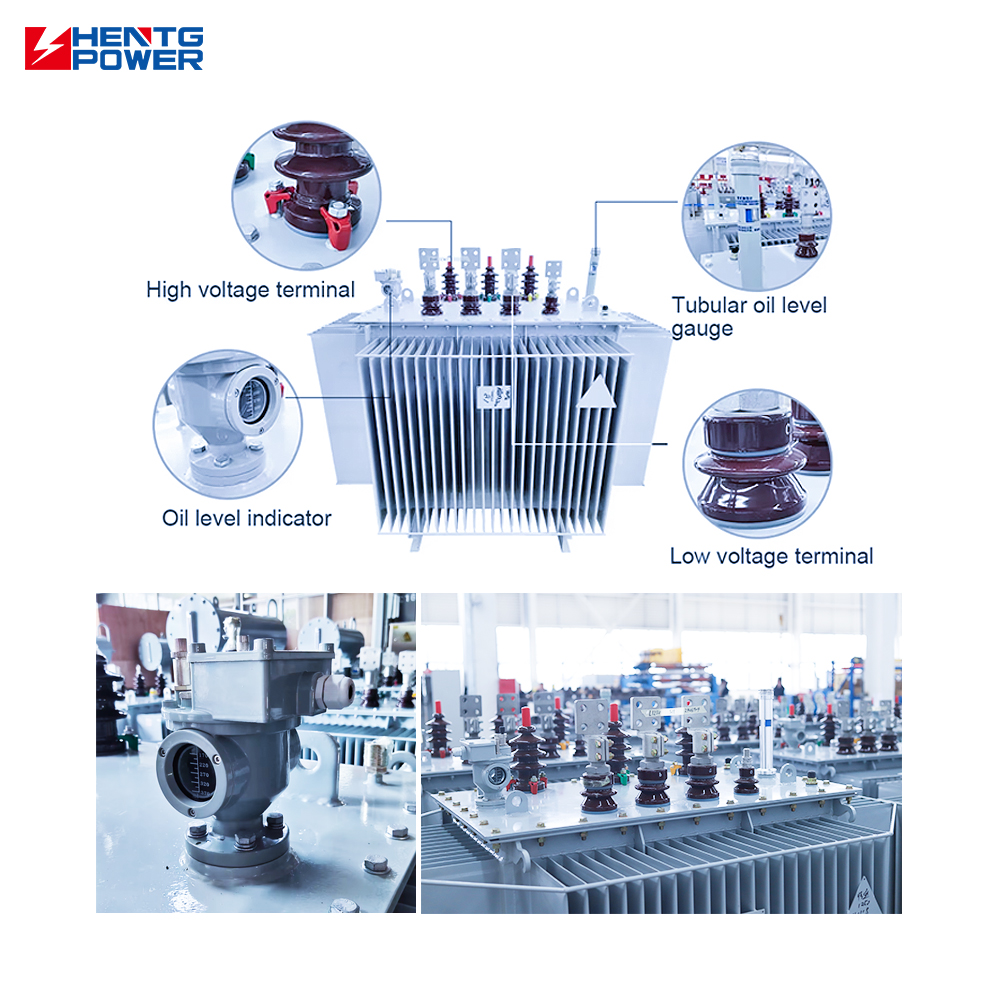

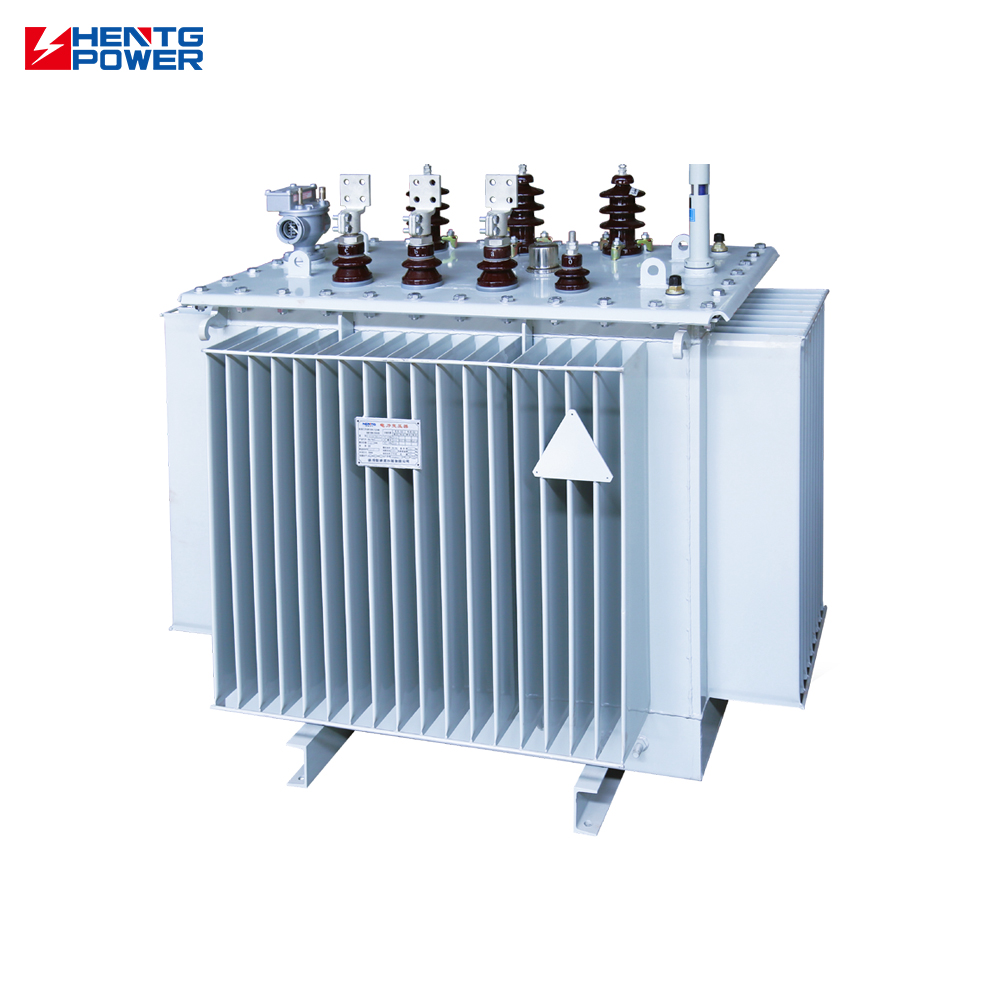

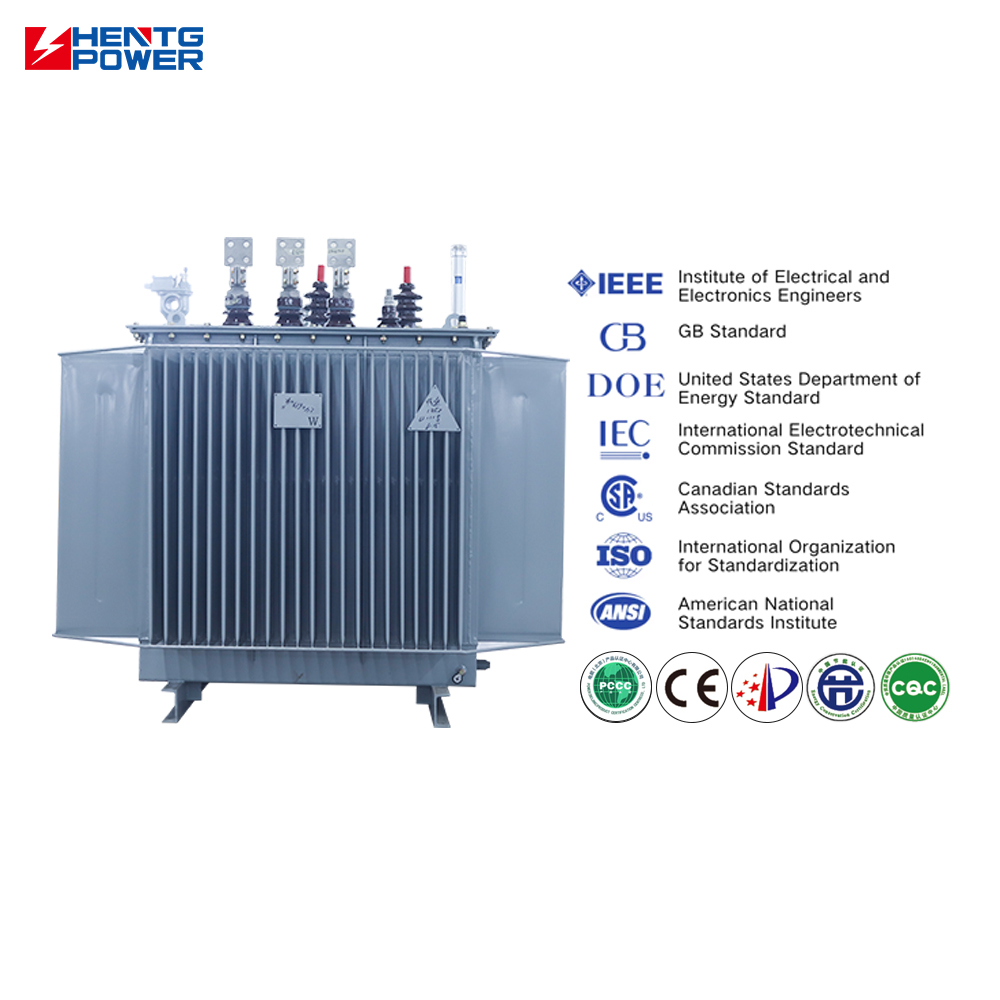

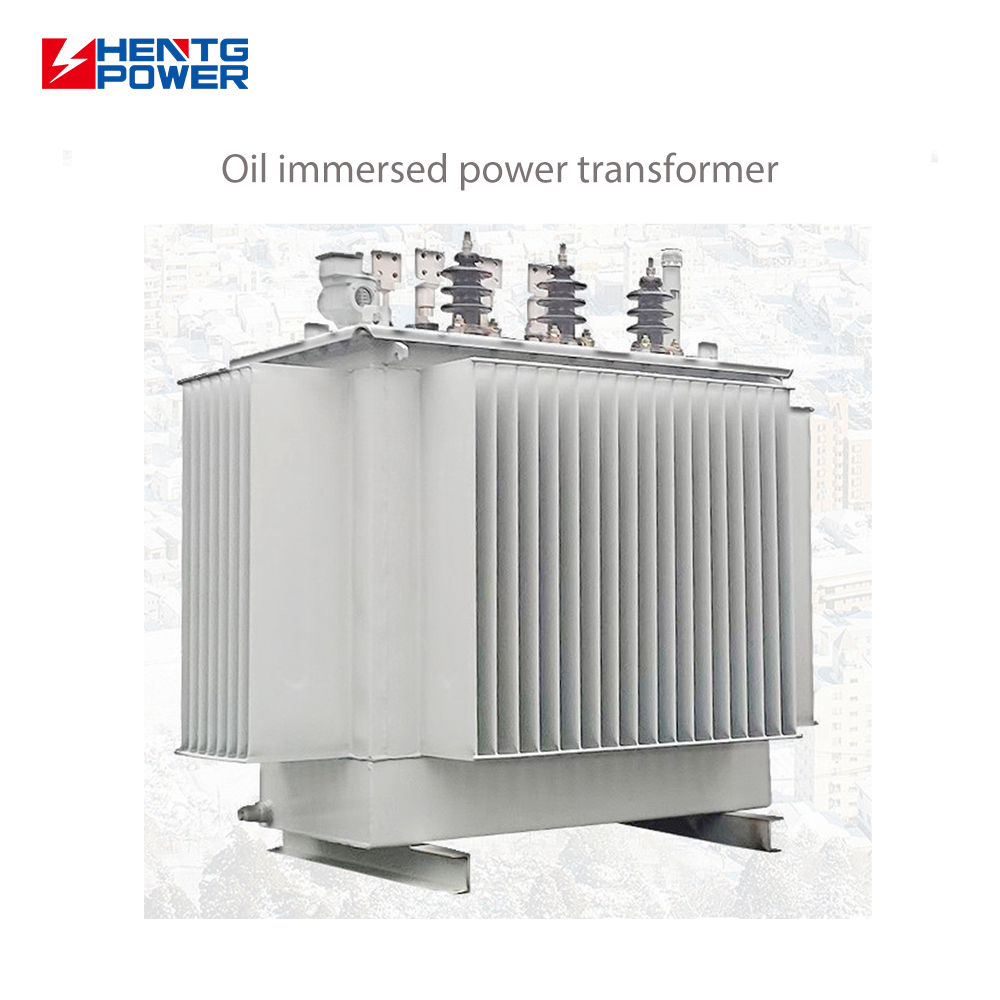

Hermetically Sealed Oil-immersed Distribution Transformer
250KVA 315KVA Three-Phase Oil-Immersed Step-Down Distribution Transformer
PRODUCTS DESCRIPTION
Type S13 oil-immersed distribution transformer is based on the original S11 distribution transformer, through the research and application of new materials and new technologies and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to reduce the no-load loss and noise purposes. Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.
Ideal distribution equipment for urban and rural distribution network centers.
OUR ADVANTAGES

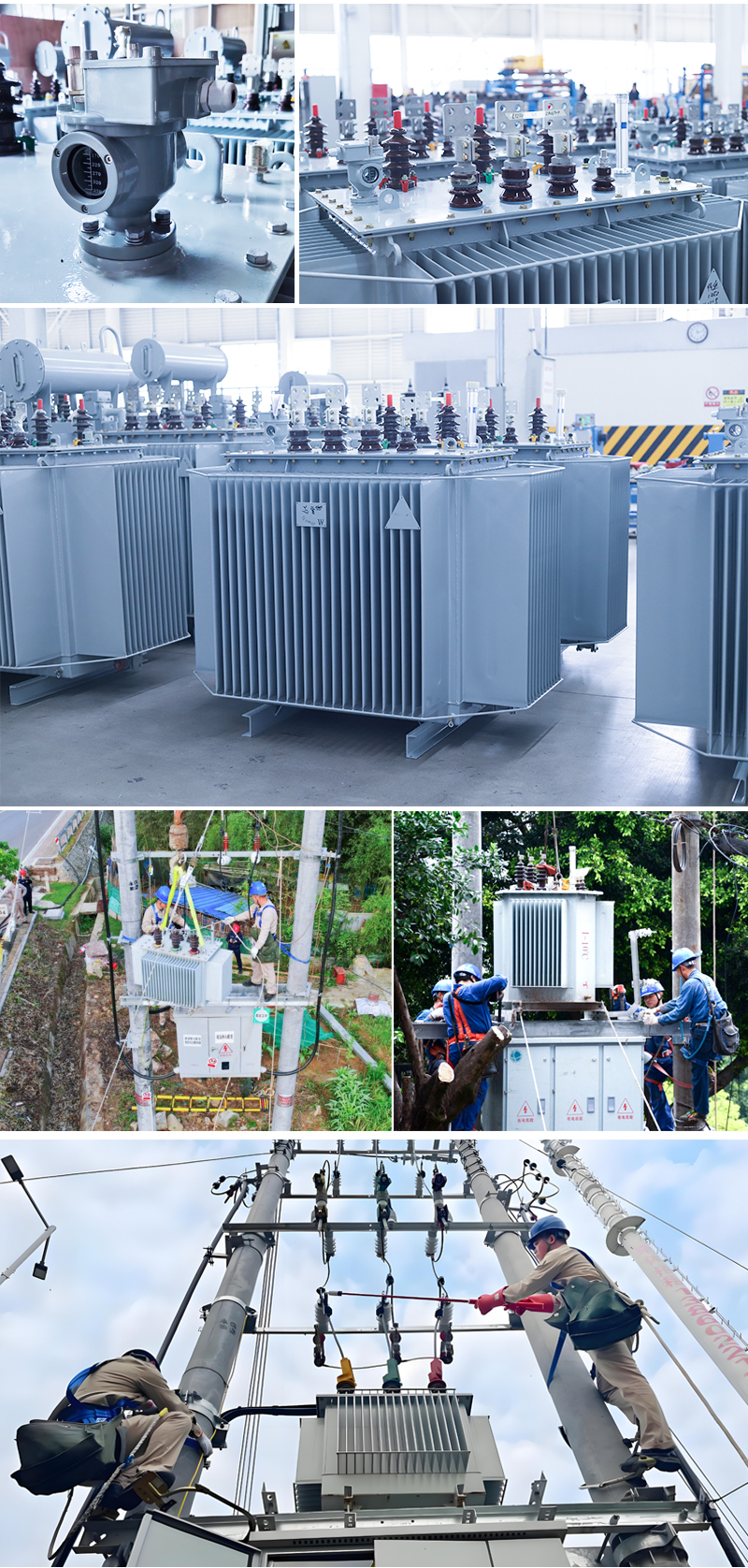

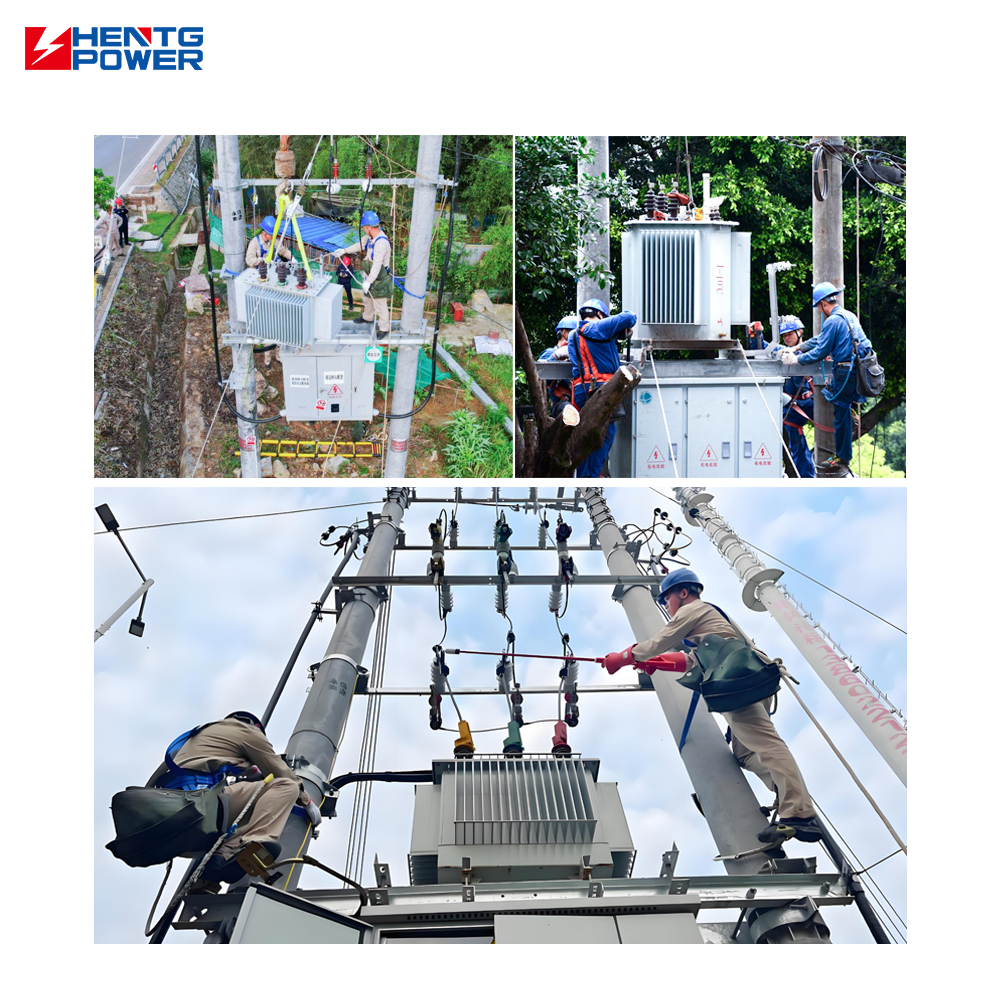

The Type S13 oil-immersed distribution transformer is widely used in residential areas, commercial centers, industrial parks, and rural electrification projects.
- Higher Energy Efficiency: Uses high-quality silicon steel sheets and optimized magnetic circuit designs, reducing no-load losses by 20–30% compared to S11 models.
- Improved Temperature Rise Performance: Enhanced oil circulation and cooling systems help maintain stable operation under load. Better thermal management leads to longer insulation life.
- Reduced Noise Levels: Use of high-permeability silicon steel and precision manufacturing lowers magnetostriction, resulting in quieter operation.
- Robust Mechanical Design: Improved short-circuit resistance due to optimized winding structure and clamping. Core and coil assembly is more stable, reducing vibration and mechanical stress.
- Longer Service Life: Better materials and structural improvements lead to extended service life, often reaching 20–30 years under proper conditions.
PRODUCT PARAMETERS
| 30 | Yyn0 / Dyn11 | 10
6.3
6 | ±5%
±2X2.5% | 0.4 | 80 | 630 | 600 | 1.5 | 4.0 |
| 50 | 100 | 910 | 870 | 1.3 | 4.0 |
| 100 | 150 | 1580 | 1500 | 1.1 | 4.0 |
| 160 | 200 | 2310 | 2200 | 1.0 | 4.0 |
| 250 | 290 | 3200 | 3050 | 0.9 | 4.0 |
| 315 | 340 | 3830 | 3650 | 0.9 | 4.0 |
| 400 | 410 | 4520 | 4300 | 0.8 | 4.0 |
| 500 | 480 | 5410 | 5150 | 0.8 | 4.0 |
| 630 | Yyn0 / Dyn11 | 10/6.3/6 | ±5% | 0.4 | 570 | 6200 | 6200 | 0.6 | 4.5 |
| 1000 | 830 | 10300 | 10300 | 0.6 | 4.5 |
| 1600 | 1170 | 14500 | 14500 | 0.5 | 4.5 |
| 2500 | 1600 | 21200 | 21200 | 0.4 | 5.0 |

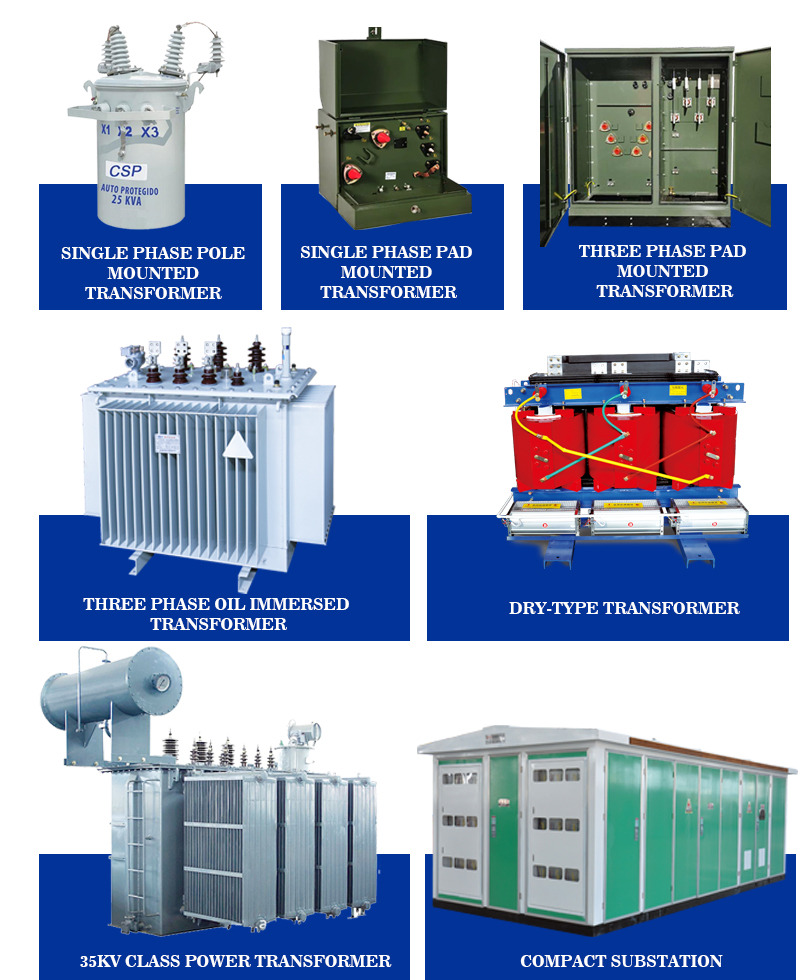

TRANSFORMER CATALOG

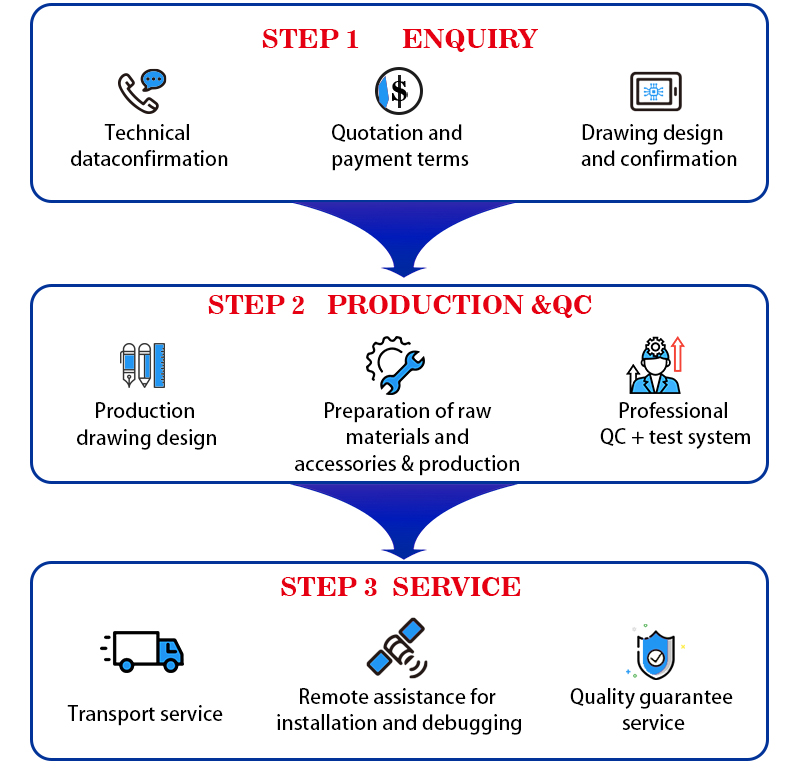

CONSULTING PROCESS
1

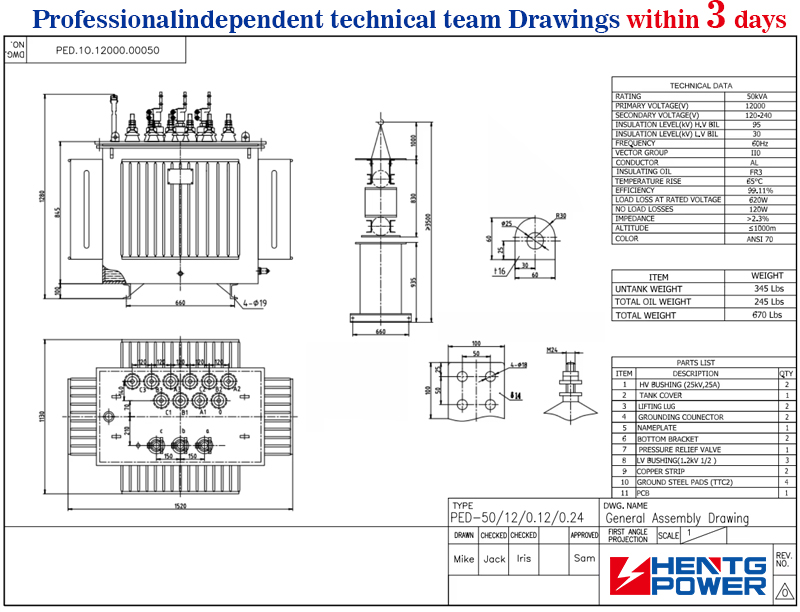

Inquiry & Quotation: Rapid response within 1 hour with professional recommendations, technical drawings, and reasonable quotations.
2
Production & Quality Control: Factory production with strict raw material screening. 100% inspection including QC and test reports before shipment.
3
Installation & Support: Professional guidance for installation with over 2 years of warranty service and technical support.
WHY CHOOSE US
- Professional 30+ senior engineers offer 24-hour online service.

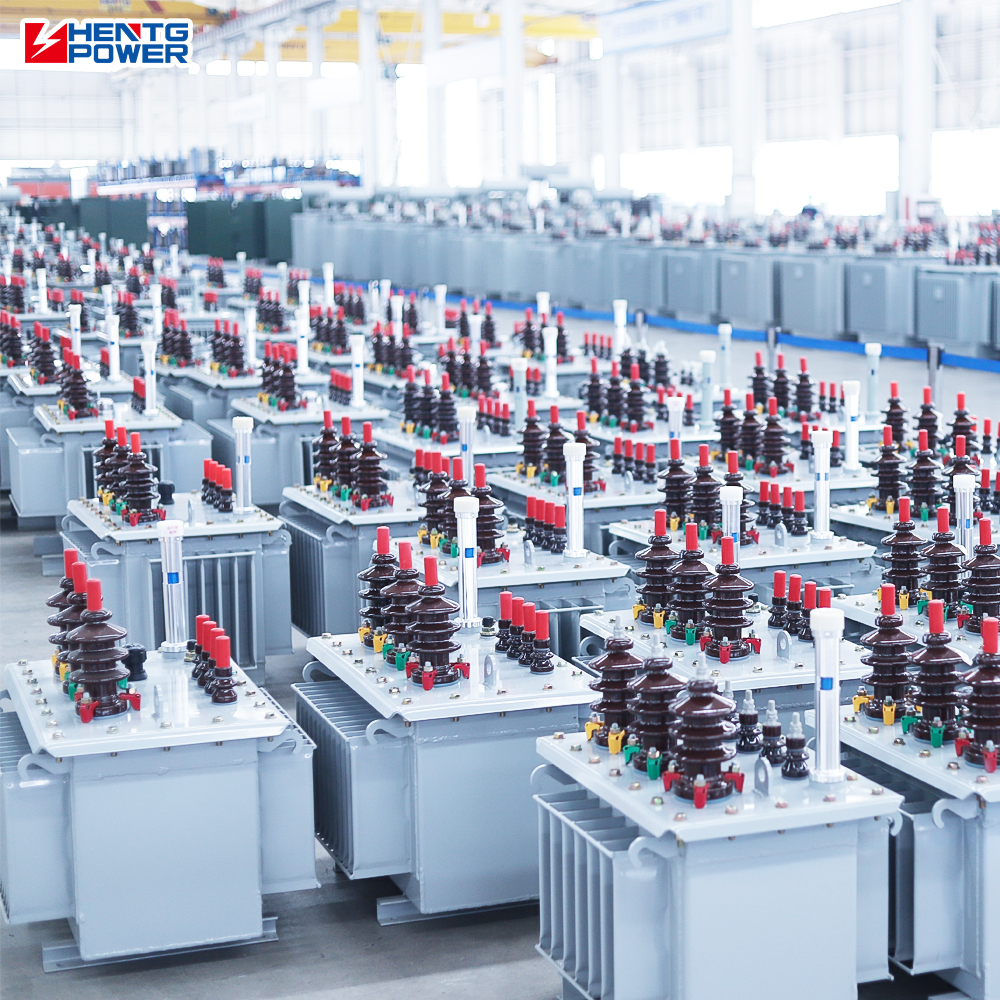

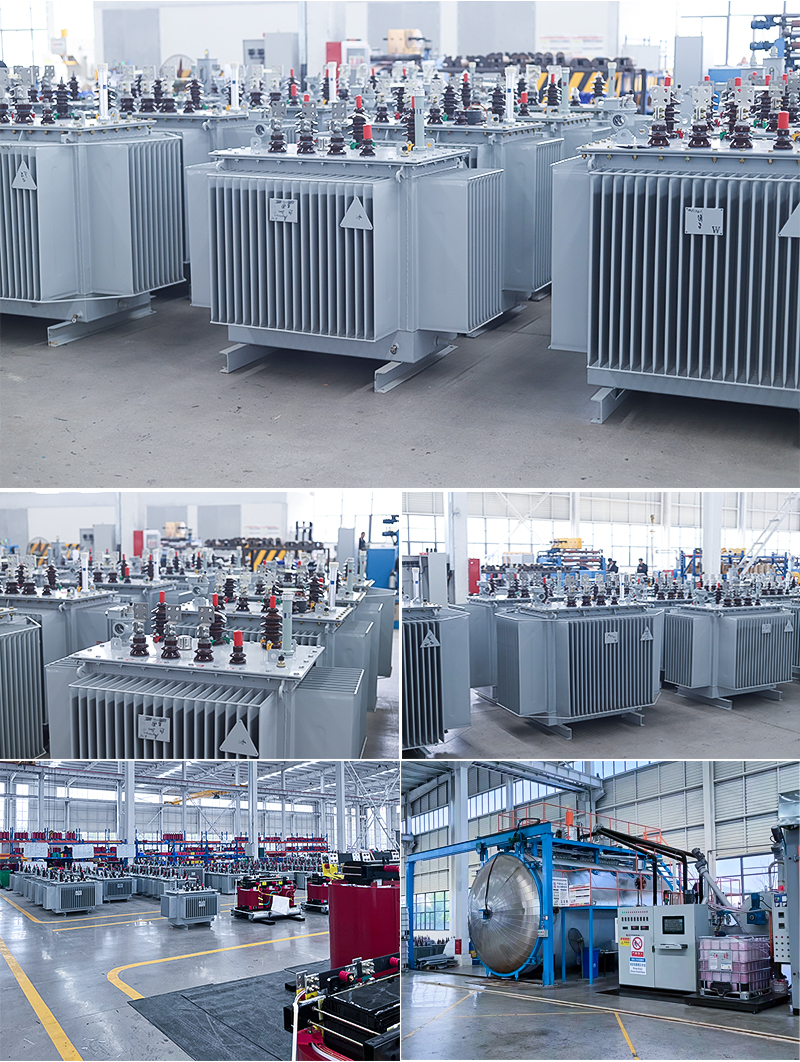

- 100,000 m² factory with 4 production lines and 10,000+ sets annual capacity.
- 100% OQC testing with 25 detection contents.
- 15 years of power transformer design and production experience.

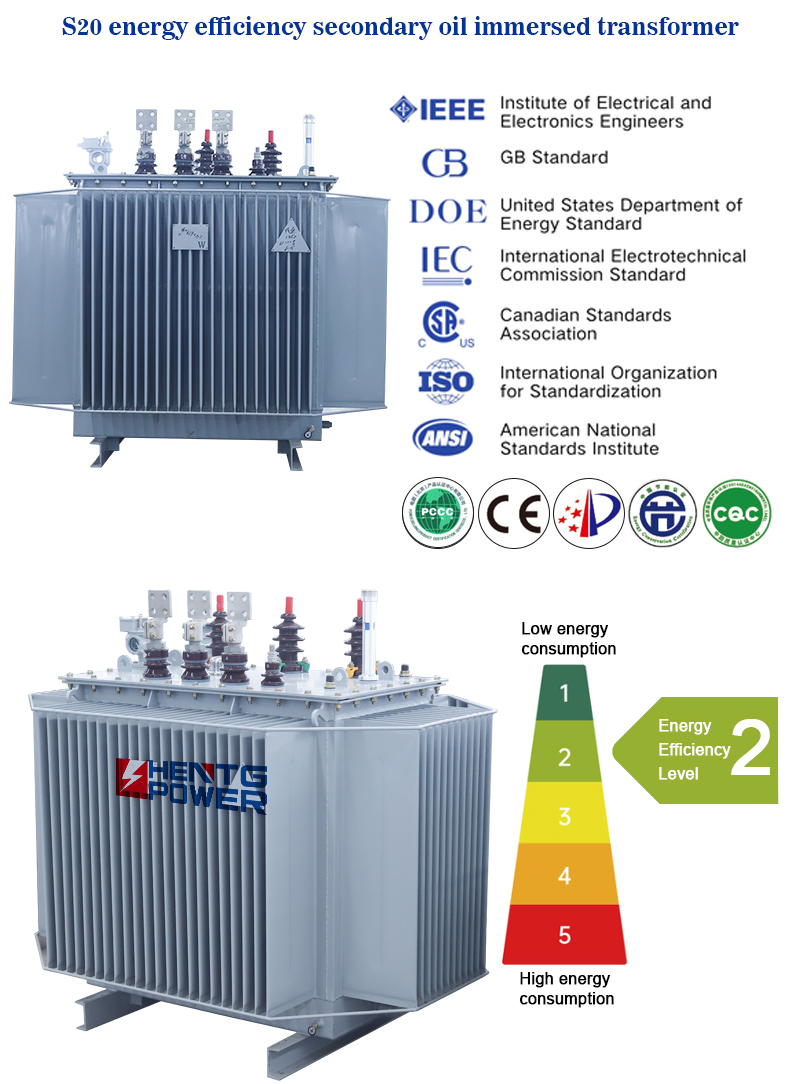

- Compliance with GB 20052-2024 / ANSI / IEEE / DOE2016 / CSA / IEC60076 standards.
- Global on-site technical support.
COMPANY PROFILE
Specializing in reliable, high-performance solutions for global power systems since 2011. With an 100,000 m² factory, over 250 skilled workers, and more than 30 senior engineers, we are dedicated to delivering high-quality transformer solutions with a strong production capacity of 20,000 units/year.
Our products comply with GB 20052-2024 and IEC 60076 standards. We offer a wide range of transformers including dry type, oil immersed, substation, switchgear, and distribution boxes used globally in the United States, Africa, Middle East, and Southeast Asia.
Frequently Asked Questions
Q: What is the main advantage of the S13 series compared to S11?
A: The S13 series reduces no-load losses by 20–30% and significantly lowers noise levels through optimized core and winding designs.
Q: How do you guarantee the quality of the transformers?
A: We conduct 100% Outgoing Quality Control (OQC) with 8 comprehensive testing procedures. We provide QC and test reports and accept Factory Acceptance Tests (FAT).
Q: Which international standards do your products meet?
A: Our transformers comply with GB 20052-2024, IEC 60076, ANSI/IEEE, DOE2016, and CSA standards.
Q: What is the expected service life of an oil-immersed transformer?
A: With proper maintenance and operating conditions, our S13 transformers typically have a service life of 20 to 30 years.
Q: Do you provide installation support?
A: Yes, we have a professional technical team to guide installation and we also support on-site installation services globally.
Q: What is your typical response time for technical inquiries?
A: Our senior engineers offer 24-hour online service and typically respond within 30 minutes to any technical inquiry.
