Product Description

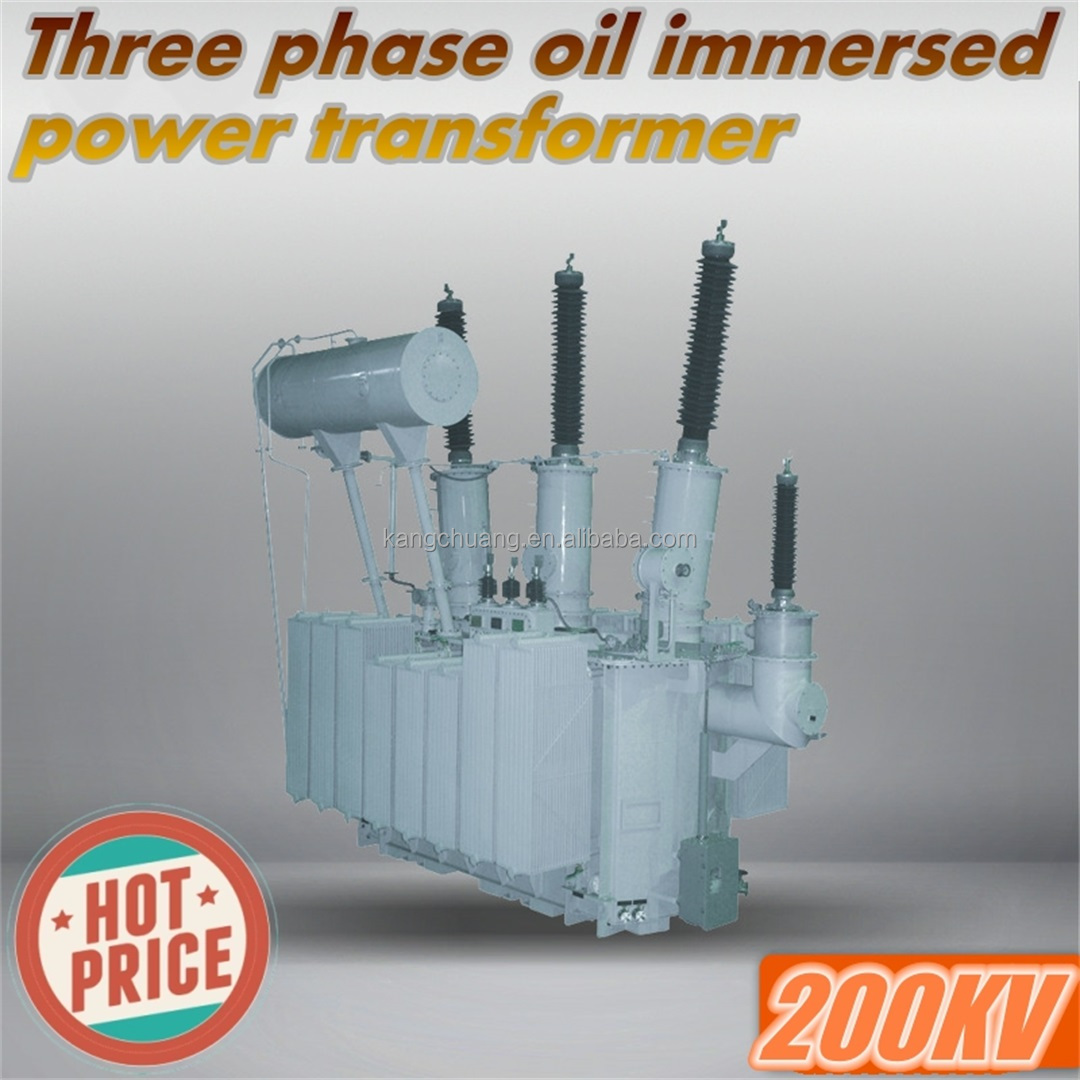

Our Factory produce voltage rating 500kV and below, capacity rating 1000MVA and below series oil immersed power transformers. Through optimization and innovation, we have successfully produced a series of power transformers with low noise, low loss, low partial discharge and high short-circuit resistance. The power transformer has adopted a series of major reforms in materials, processes and structures, featuring small size, light weight, high efficiency, low loss, low noise and reliable operation, which can reduce a large number of power grid losses and operating costs and achieve remarkable economic benefits.

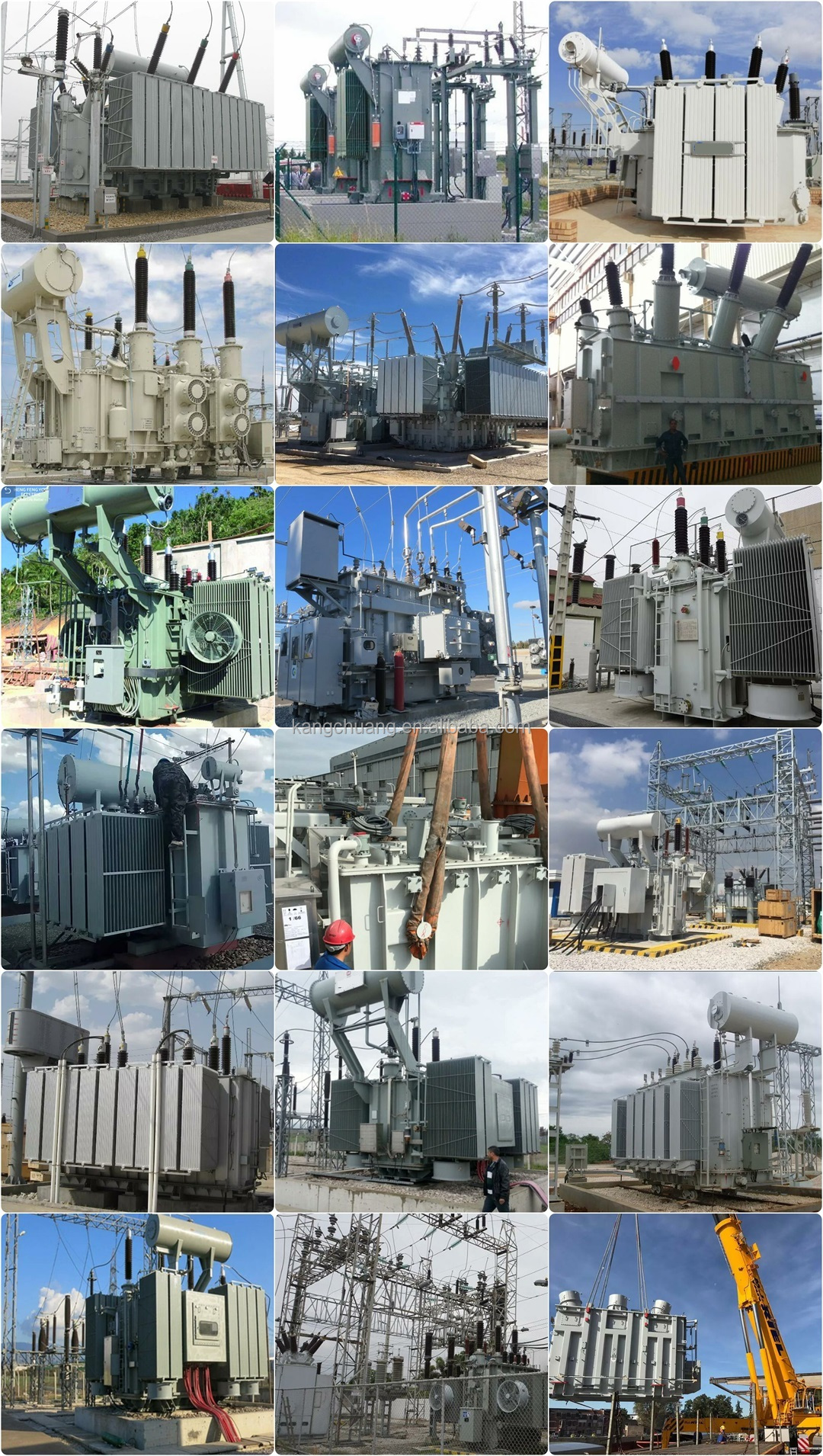

Applicable to: Power plants, substations, large factories and mining enterprises, etc.
Compliance Standards: GB1094.1-2013, GB1094.2-2013, GB1094.3-2003, GB1094.5-2003, IEC international standards, and IEEE standards.

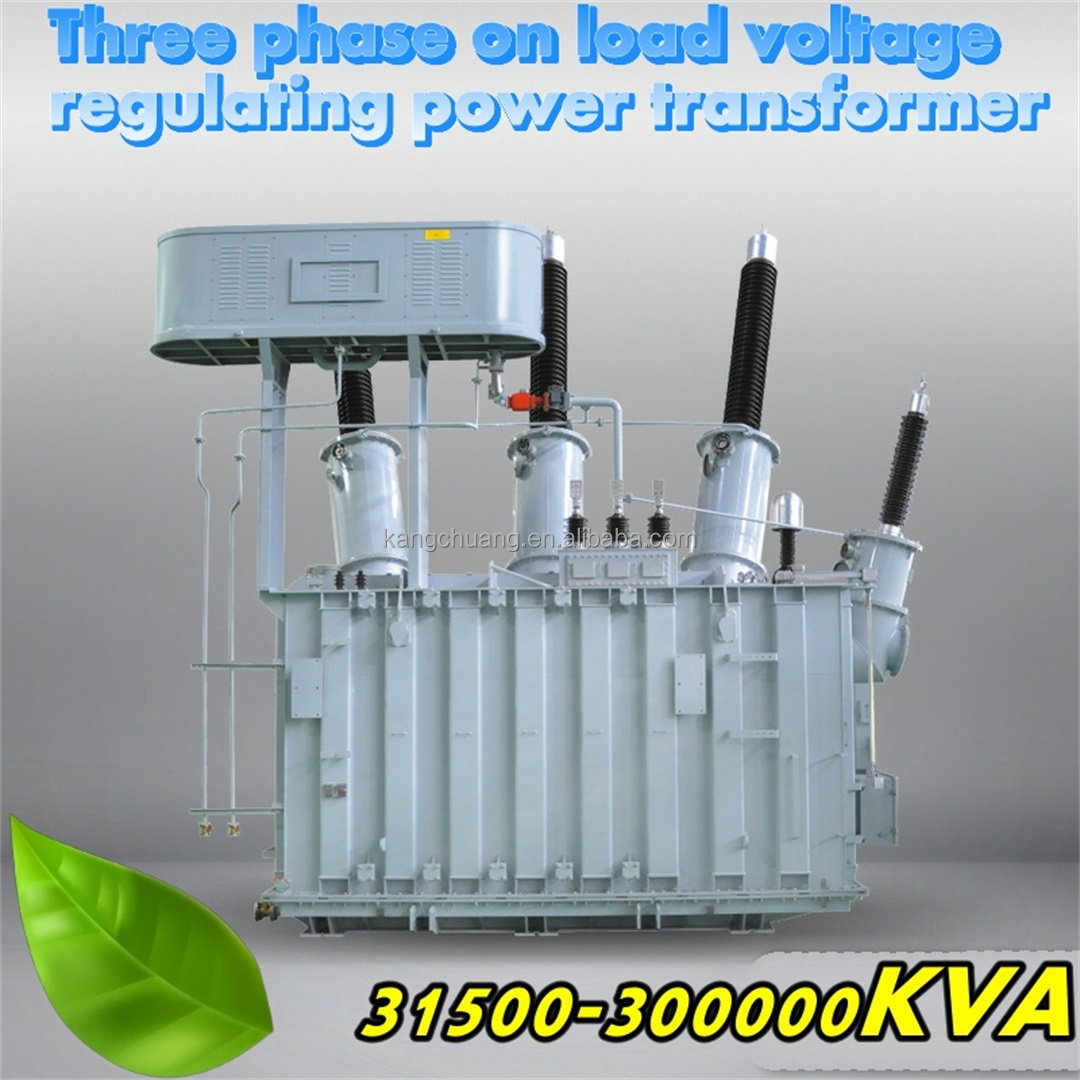

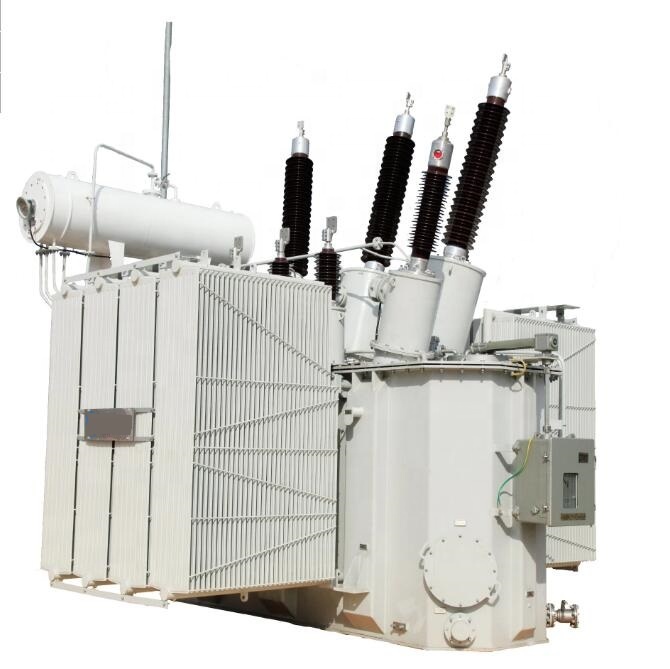

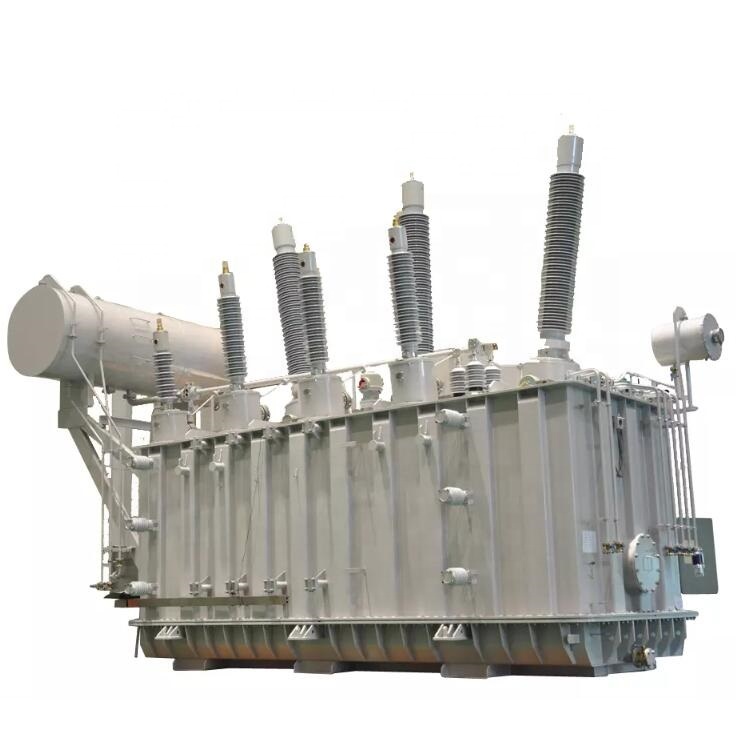

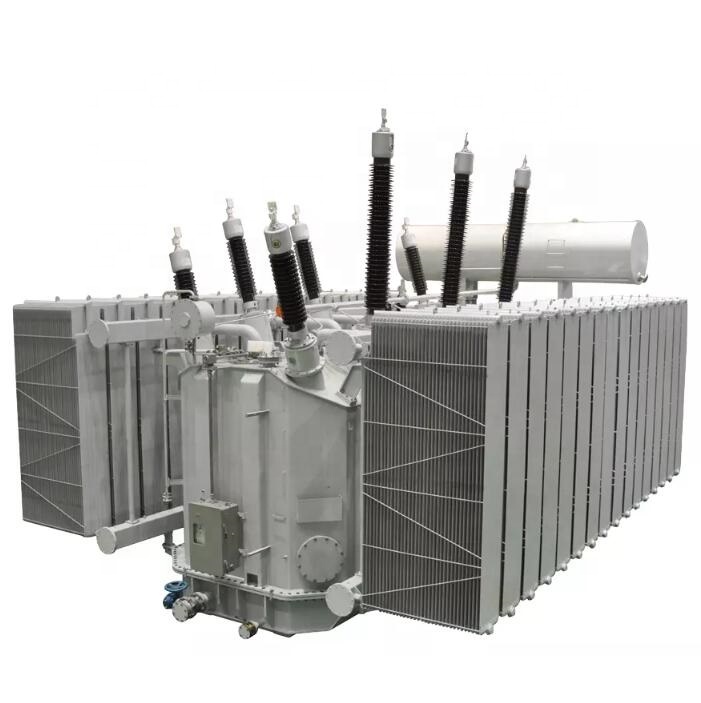

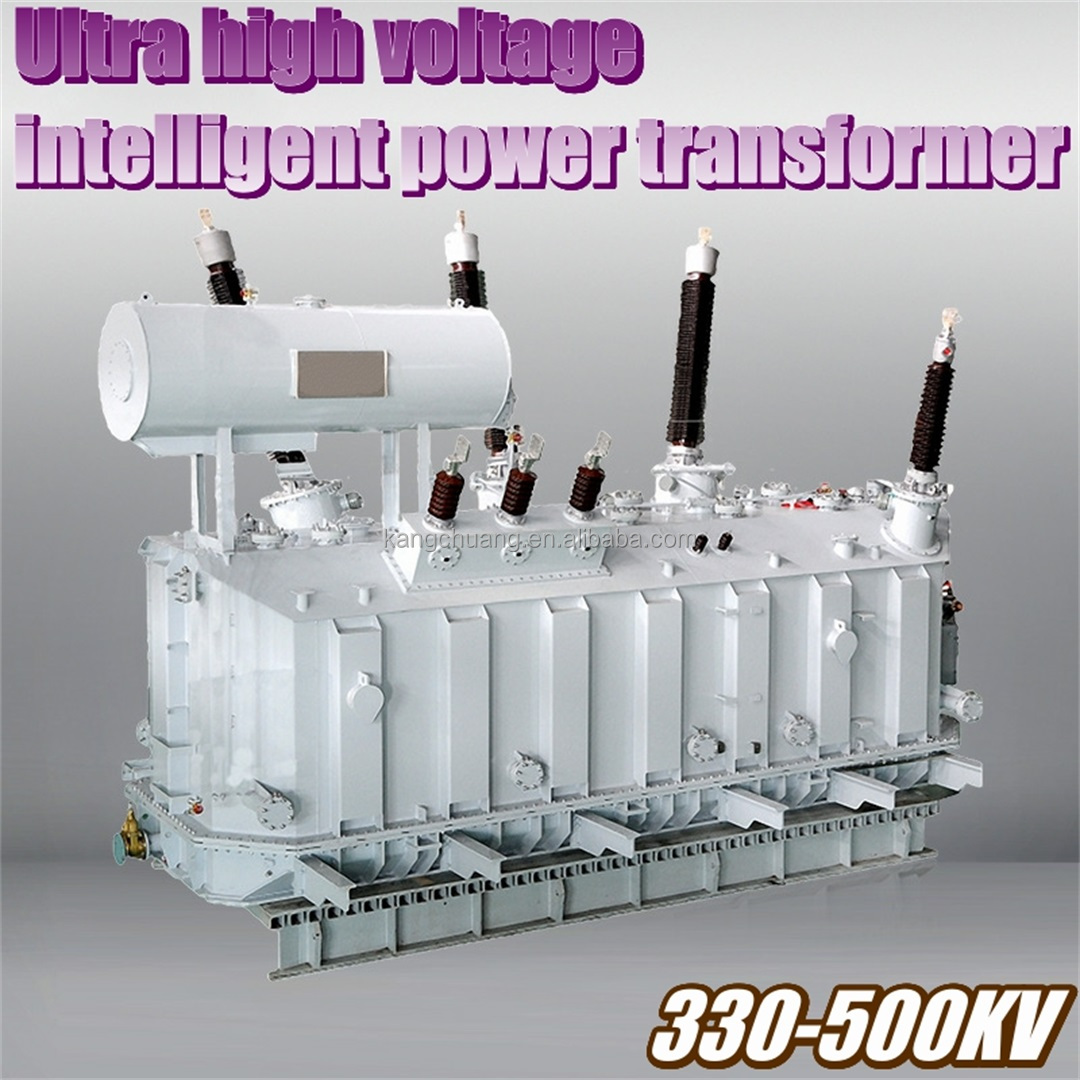

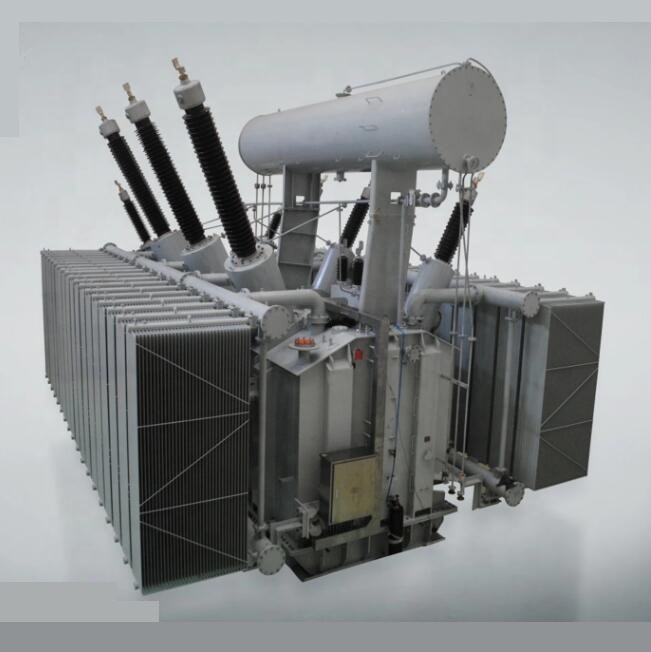

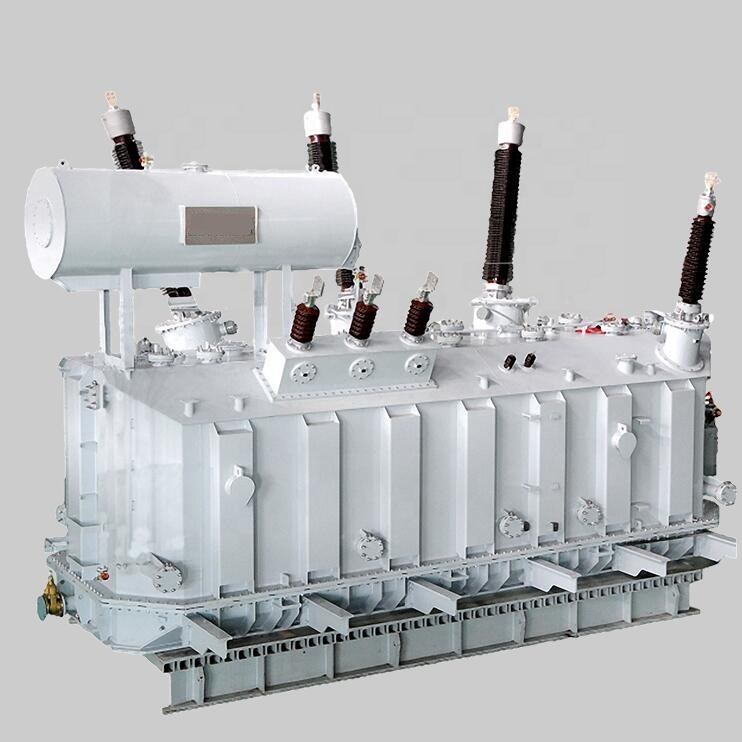

220/330/500kV transformers are high voltage oil-immersed transformers with a heart structure. Available in single-phase or three-phase, on-load or non-excitation regulating, and various winding configurations including double-winding, three-winding, and autotransformers.
Product Superiority
1
Low loss & Low noise
Adopt multistage step lapped joint fully-oblique structure to reduce magnetic resistance. High temperature annealing eliminates stress, greatly reducing no-load loss.
2
Strong overload capacity
Advanced oil flow guide control technology ensures winding hot-spot temperature does not exceed 140ºC under rigorous overloading conditions.
3
Strong anti-short circuit ability
Utilizes high strength wire and effective supports based on worst-case short circuit analysis to ensure structural integrity.
4
Low partial discharge
Dustproof workshop assembly and high vacuum oil injection process effectively control partial discharge.

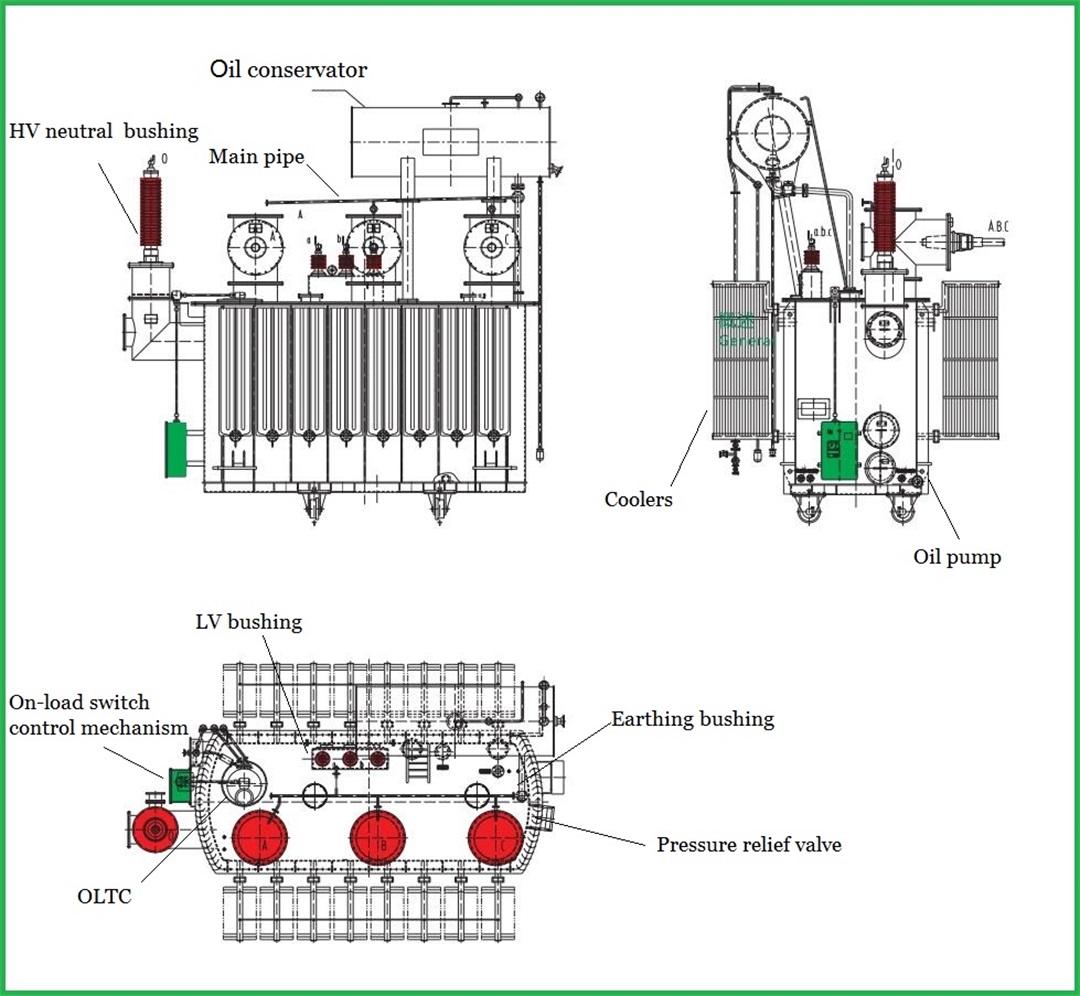

Structural Characteristics
1. Iron Core: High quality cold-rolled crystal-oriented silicon steel (30Z140) with pulling board frame structure for noise control.
2. Winding: Mature structure with insulation power field intensity controlled below 1.6kV/mm.
3. Body: Multi-coil whole assembly processed in constant voltage to enhance mechanical and electric strength.
4. Leading Wire: Reasonably laid out to guarantee electric distance and mechanical strength.
5. Oil Tank: Bell jar type structure for strength and aesthetics; vacuum oiling prevents leakage and distortion.
6. Oil Conservation: Capsule type with finger oil level indicator, equipped with oil-sealed moisture absorber.
7. Safety: Gas relay and reliable pressure release devices with downward oil spray direction.

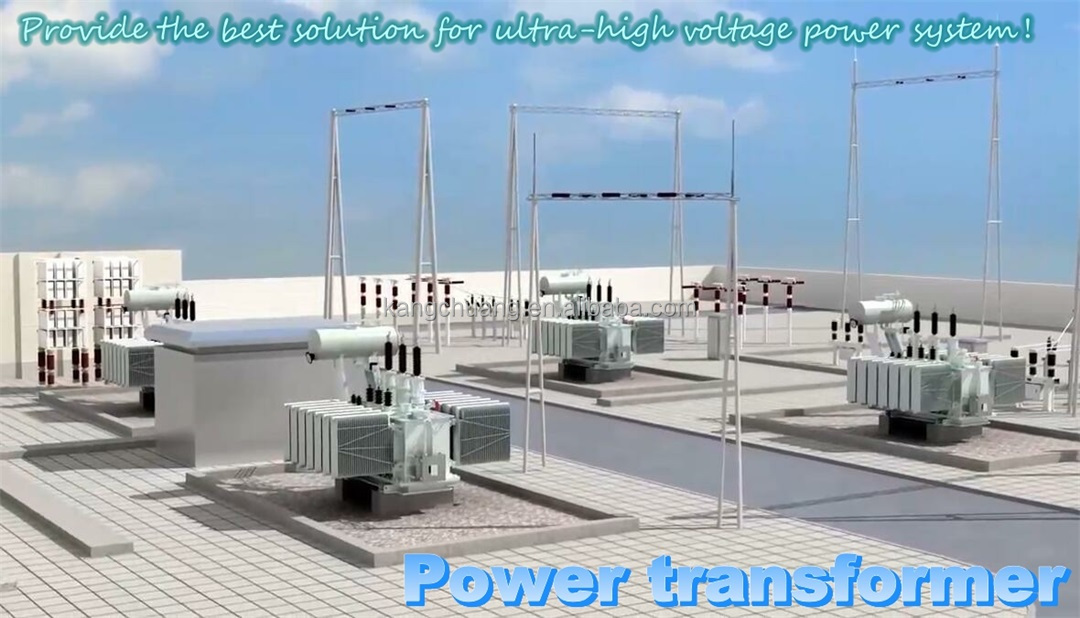

Service Conditions
- Device type: Outdoor
- Environment temperature: -40ºC ~ +40ºC
- Altitude: ≤1000 meters (Correction needed if higher)
- Relative humidity: ≤ 90% (25ºC)
- Installation: No corrosive gas, pollution class IV and below.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a factory with more than 20 years of experience in transformer manufacturing.
Q: Is it possible to use a custom brand name?
A: Yes, we accept OEM services with your brand authorization.

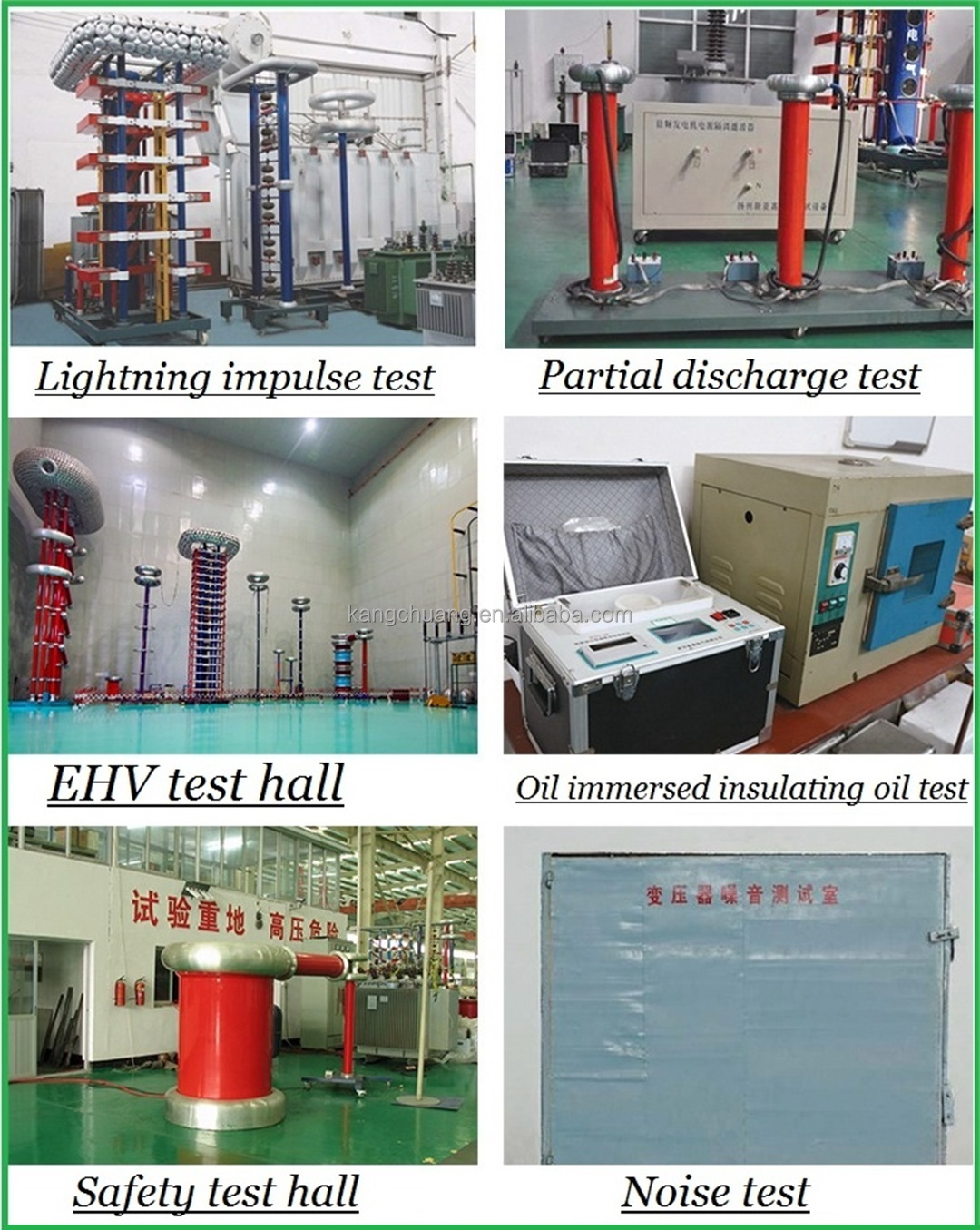

Q: How do you ensure product quality?
A: Our QC team follows TQM standards. Every step is monitored, and we provide photos and videos of the process upon request.
Q: How long does it take to receive a quotation?
A: For customized products, we typically provide a detailed quote within 48 hours after receiving all required specifications.
Q: What are the advantages of choosing your factory?
A: We offer superior quality at competitive prices, a professional technical team, rich industry experience, timely delivery, and excellent after-sales service.
Q: Do the products comply with international standards?
A: Yes, all products are designed and tested according to IEC, IEEE, and national standards.
