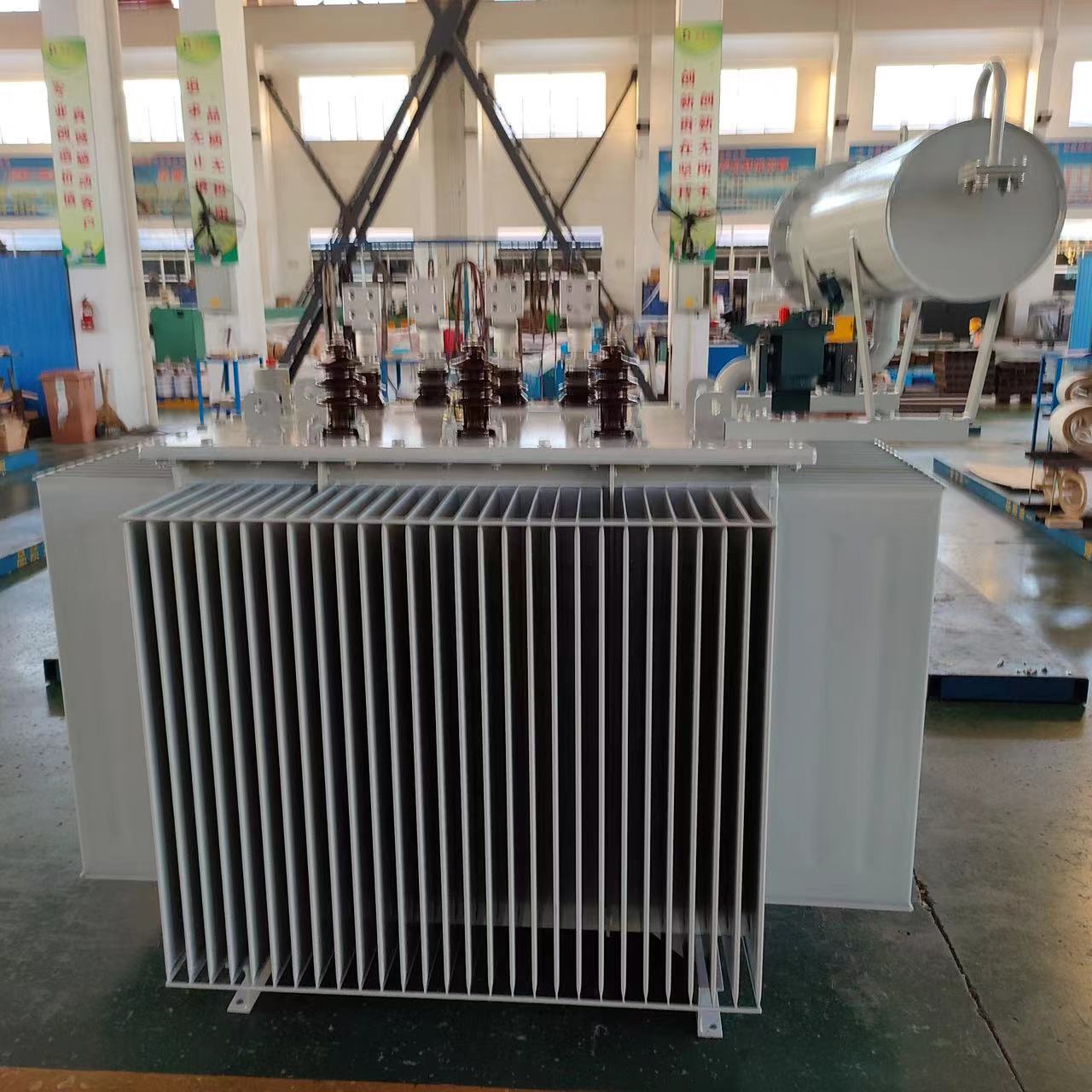

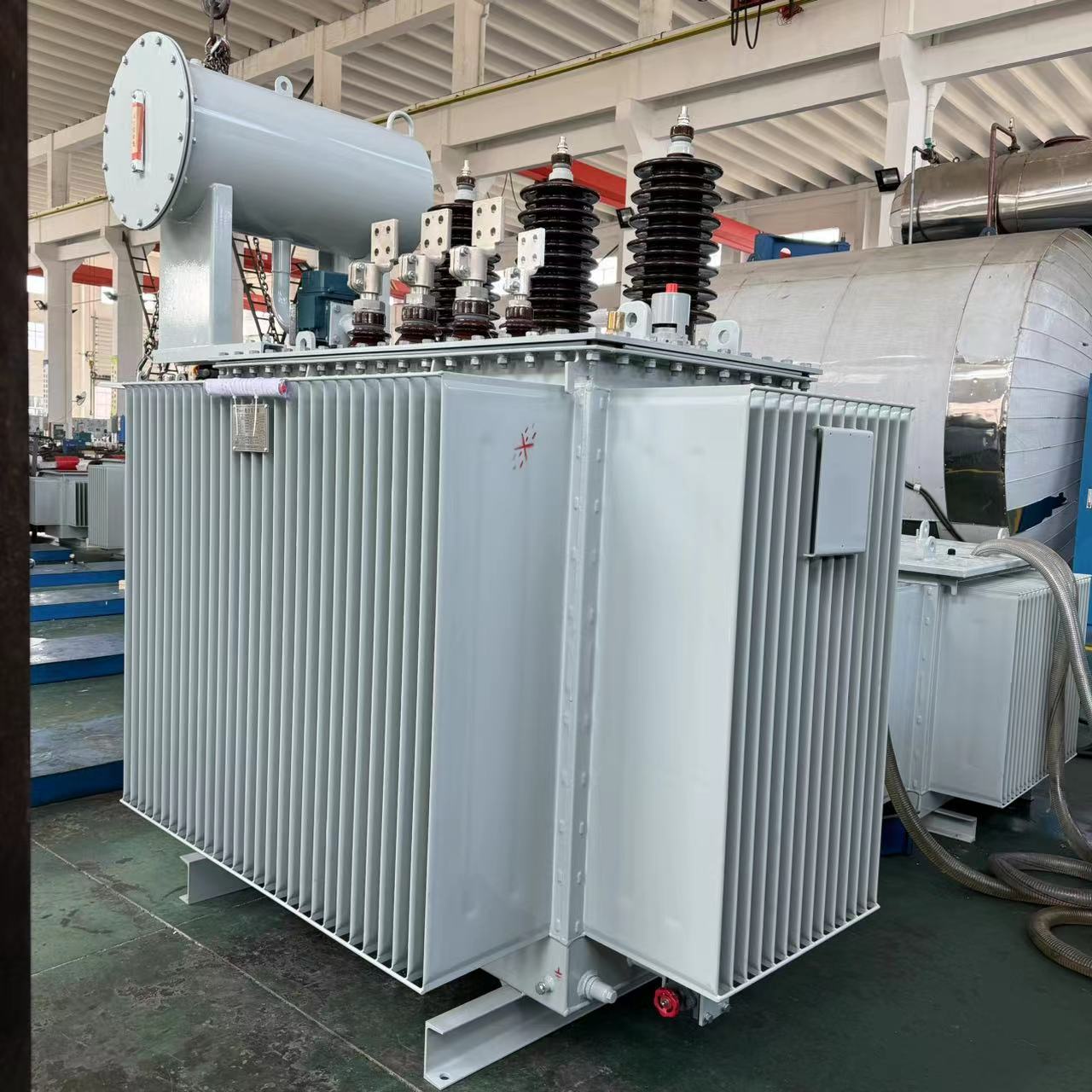

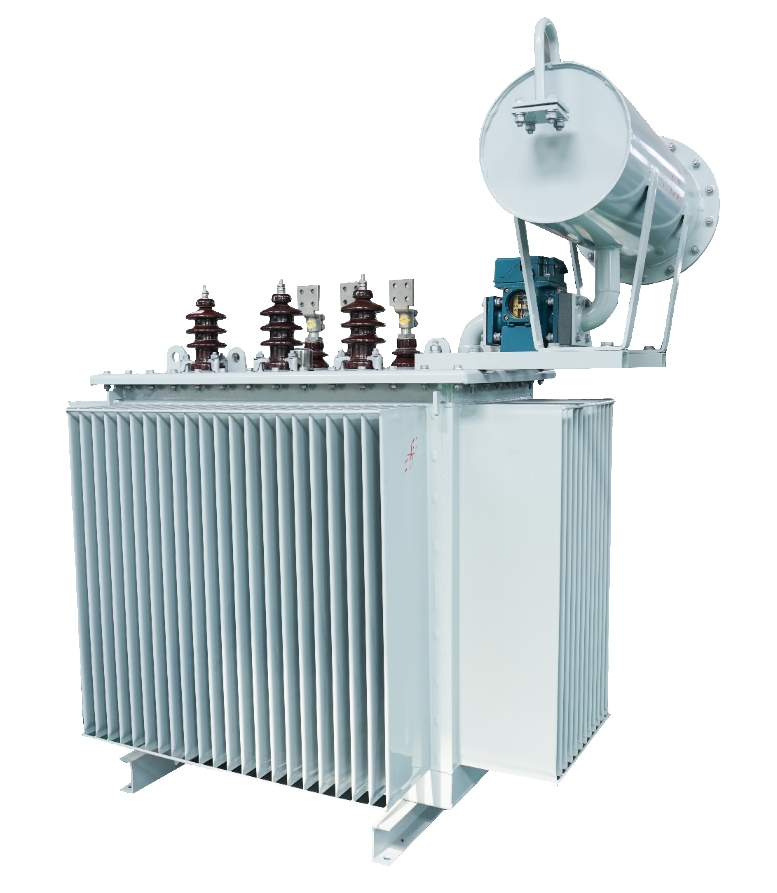

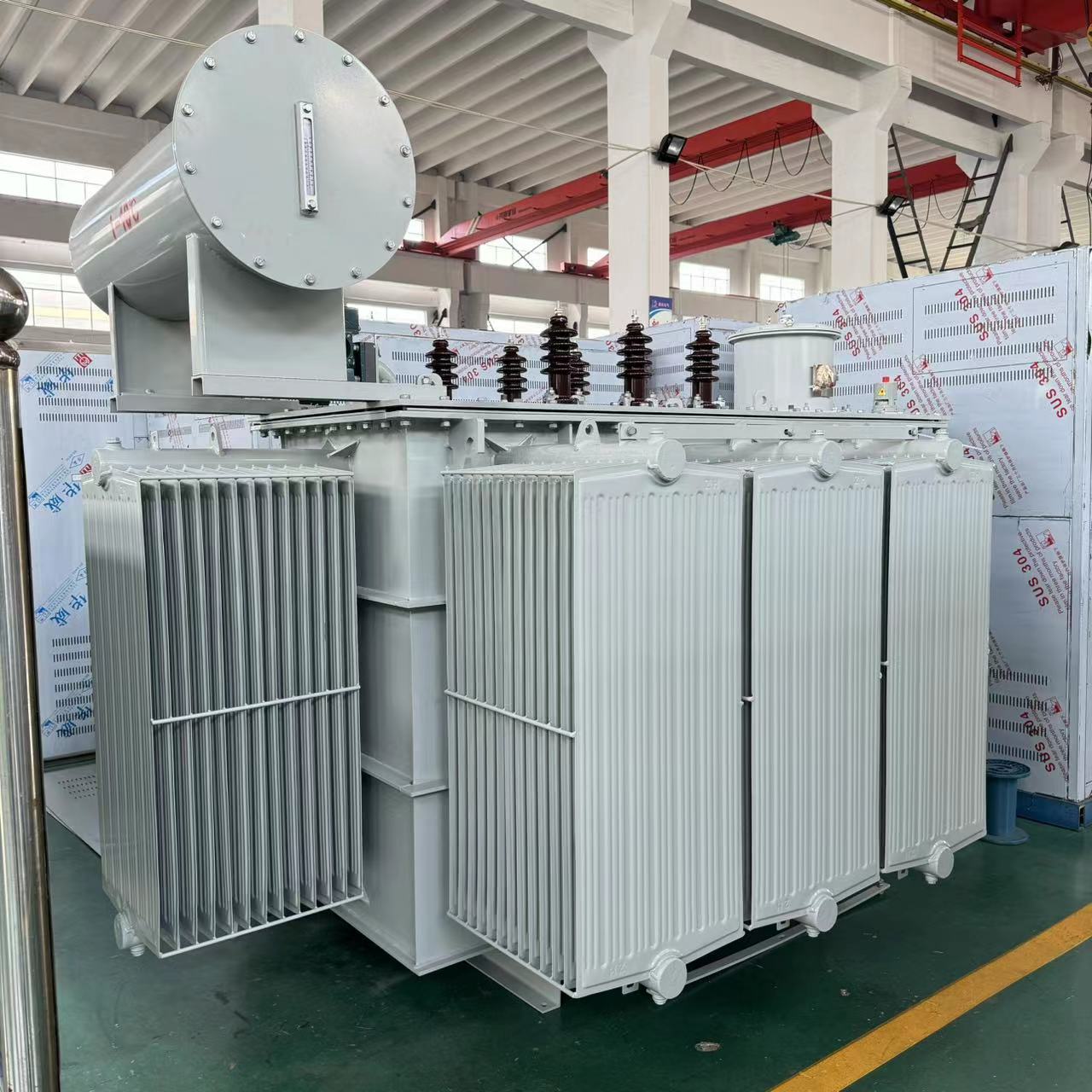

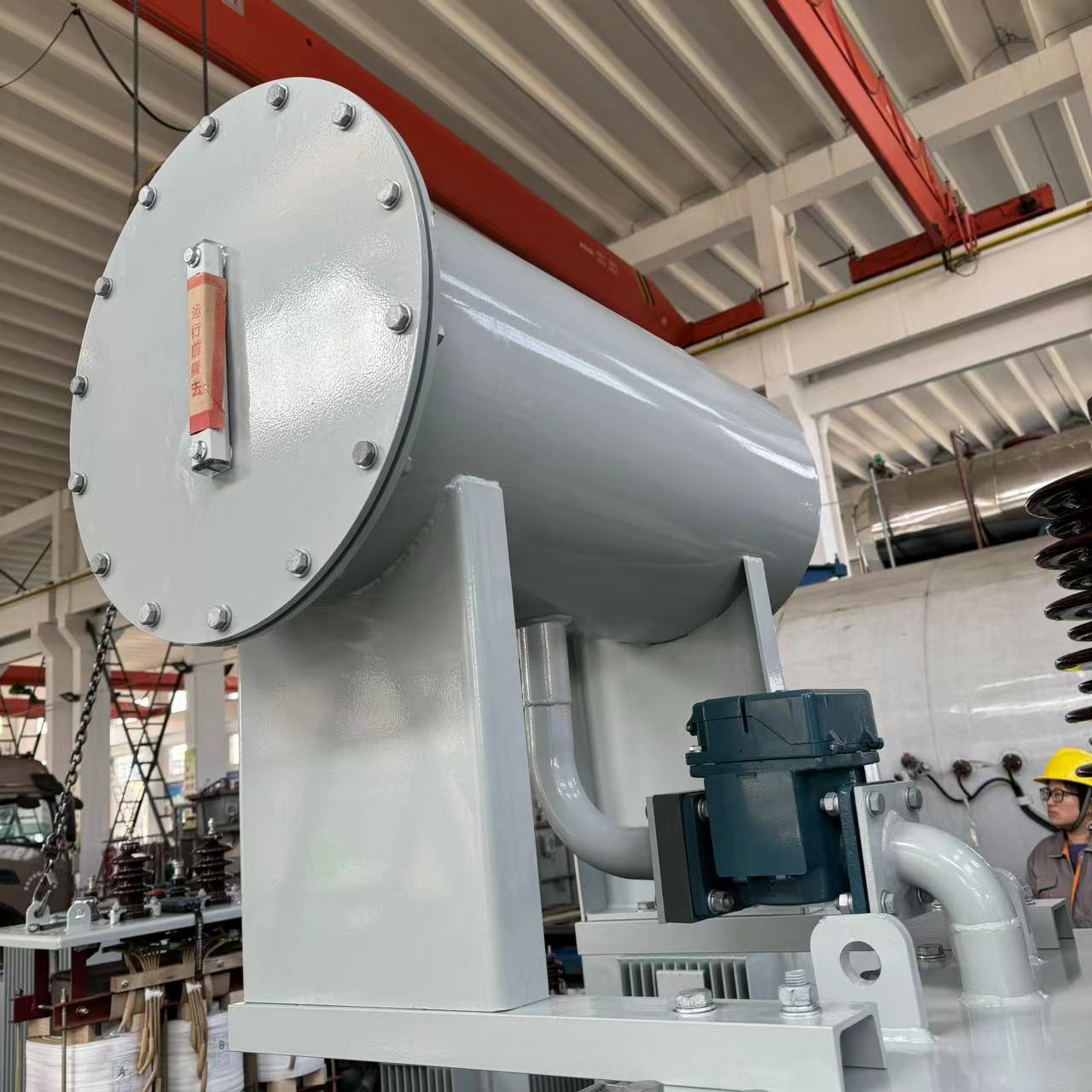

Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
1 / 5
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz
Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz

Oil Immersed Three-phase Voltage Regulating Distribution Transformer Industrial All Copper Oil 3kVA-10000kVA 50/60Hz

Send Inquiry

Product Description

Products Description
The fully sealed transformer adopts the fully oil-filled sealed type. The corrugated tank shell is a permanently sealed tank with its elasticity adapting to the expansion of oil, which can adapt to a variety of outdoor harsh environments and has been widely used in various power distribution equipment.

The product is stable, reliable, economic, and environmentally friendly. It can be applied to many places such as power plants, transformer substations, large industrial mining, and petrochemical enterprises.

Details Images
Transformer Detail 1

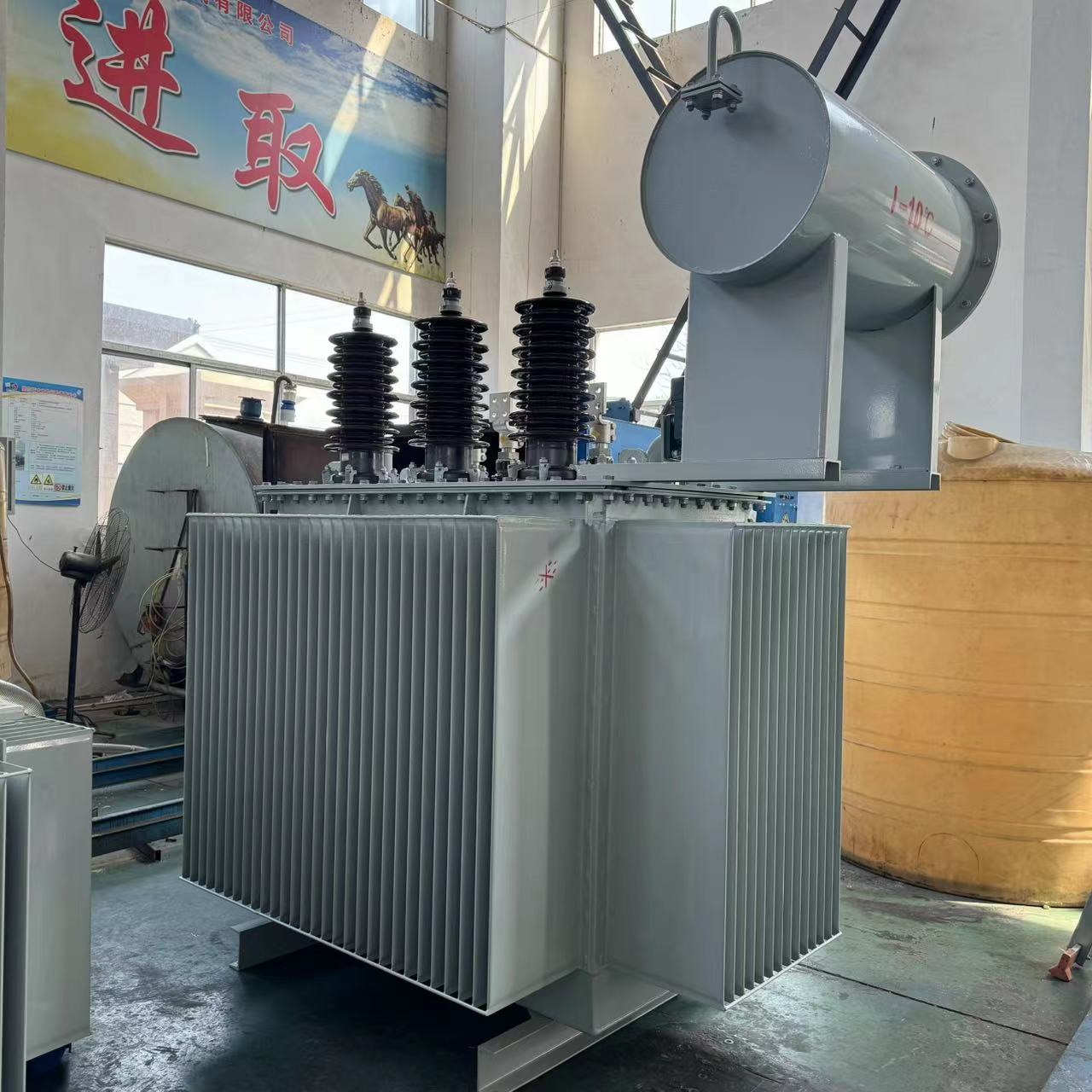

Transformer Detail 2

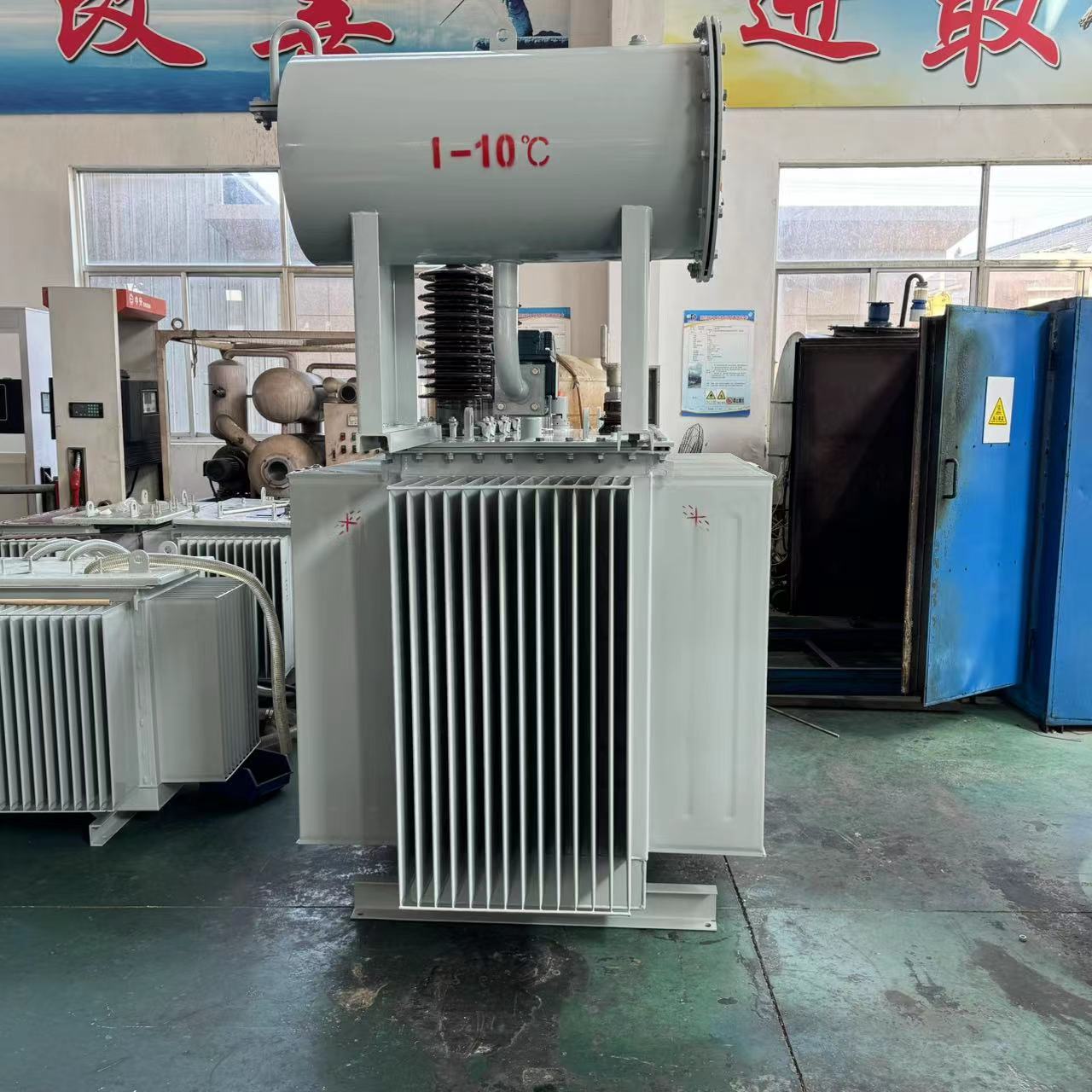

Transformer Detail 3

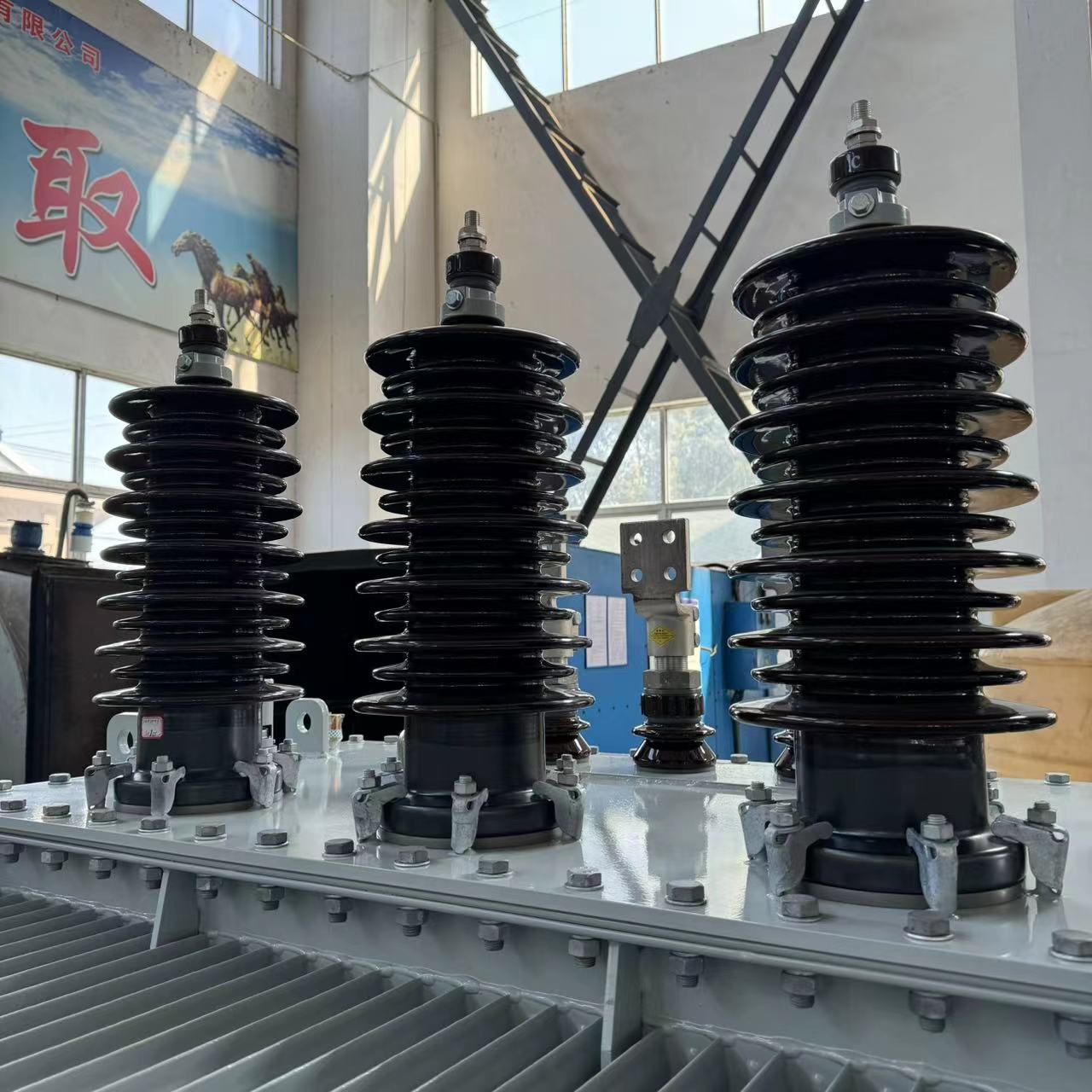

Transformer Detail 4

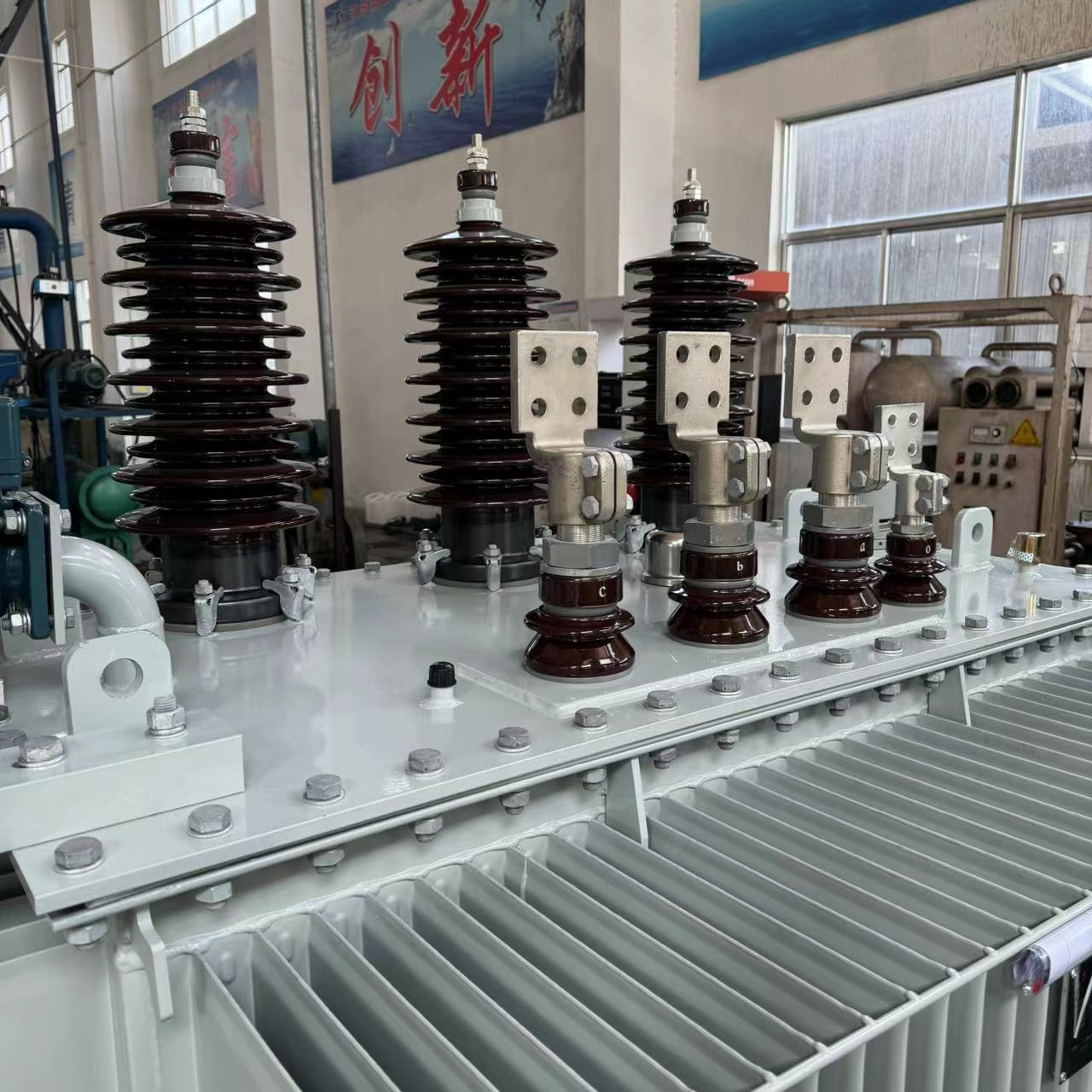

Transformer Detail 5

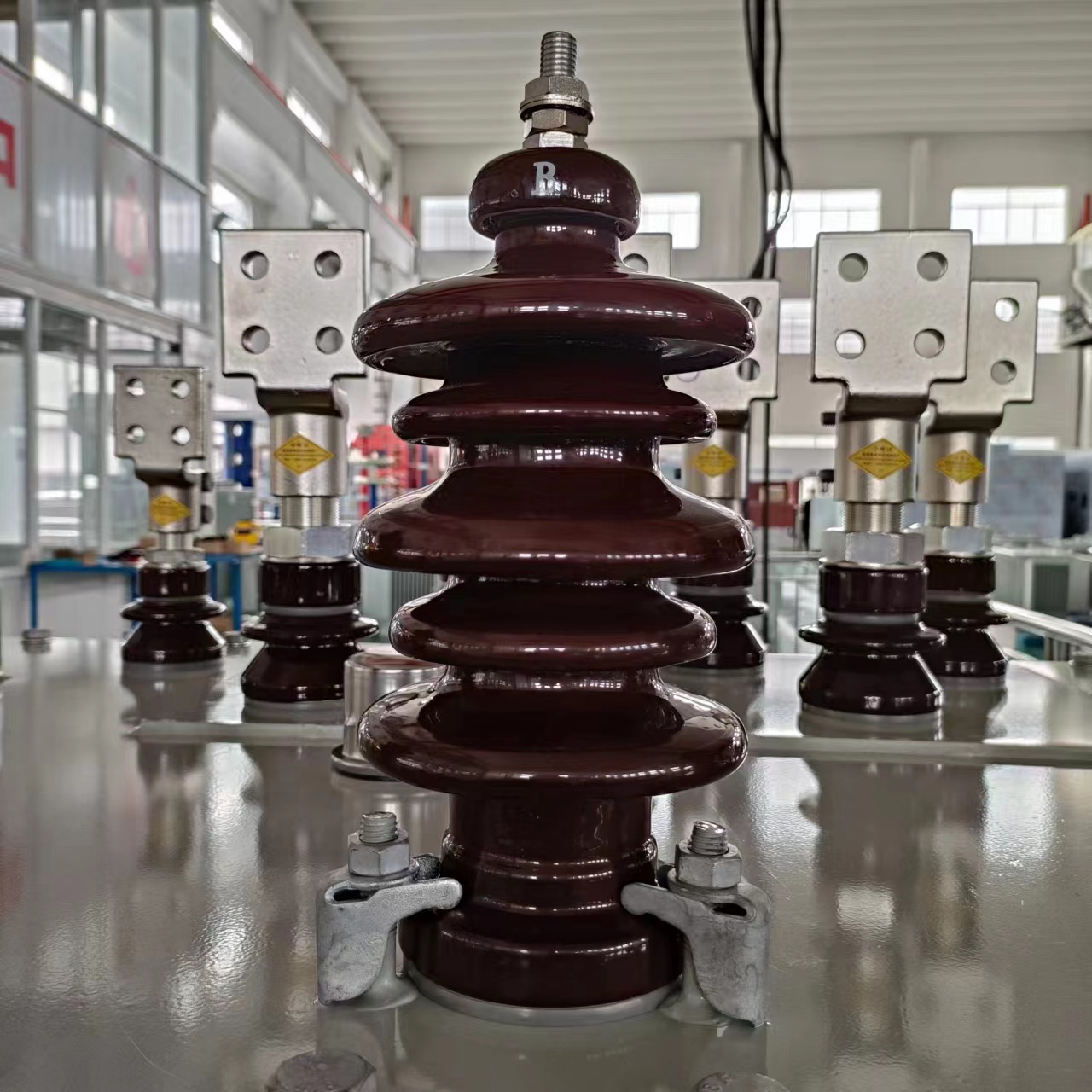

Transformer Detail 6

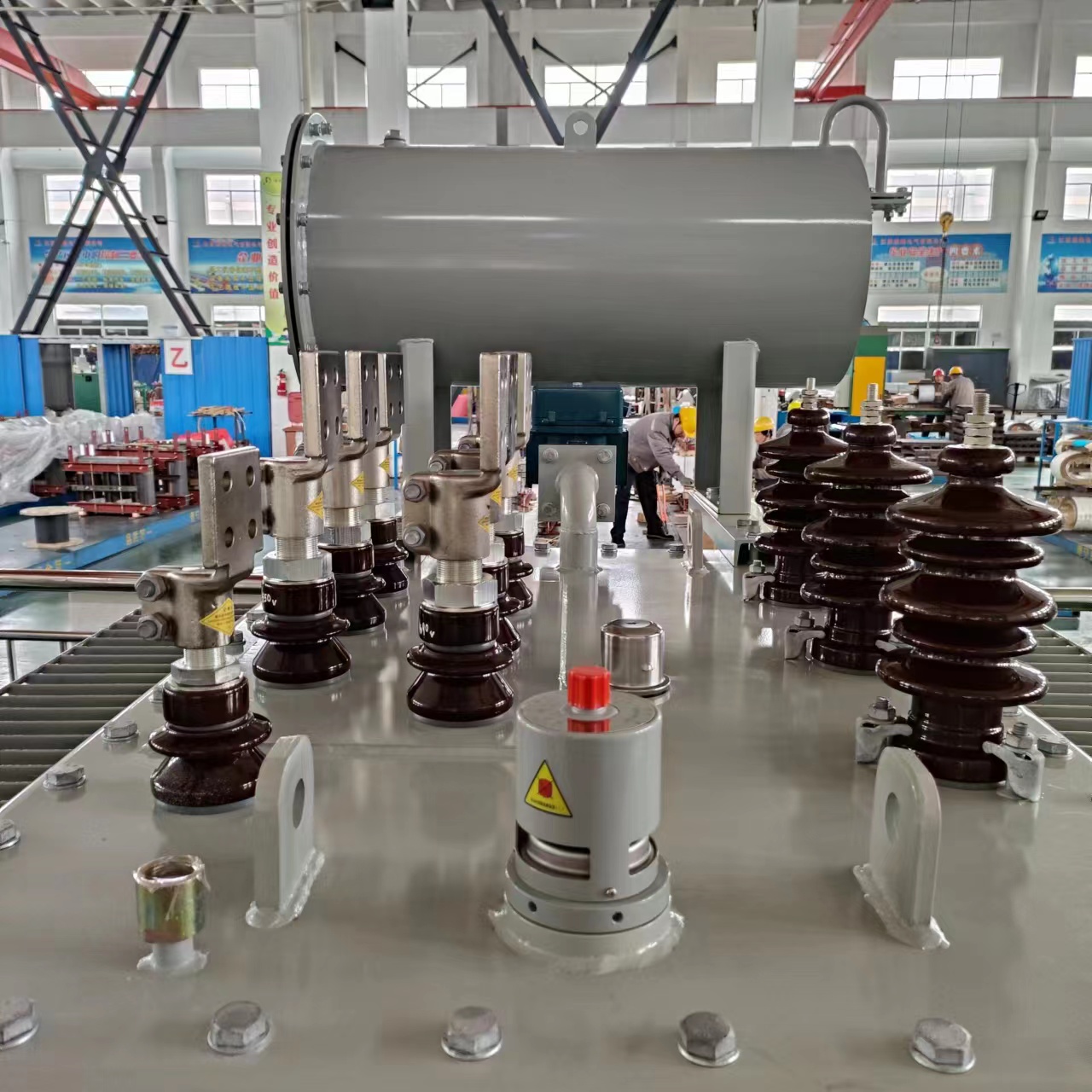

Transformer Detail 7

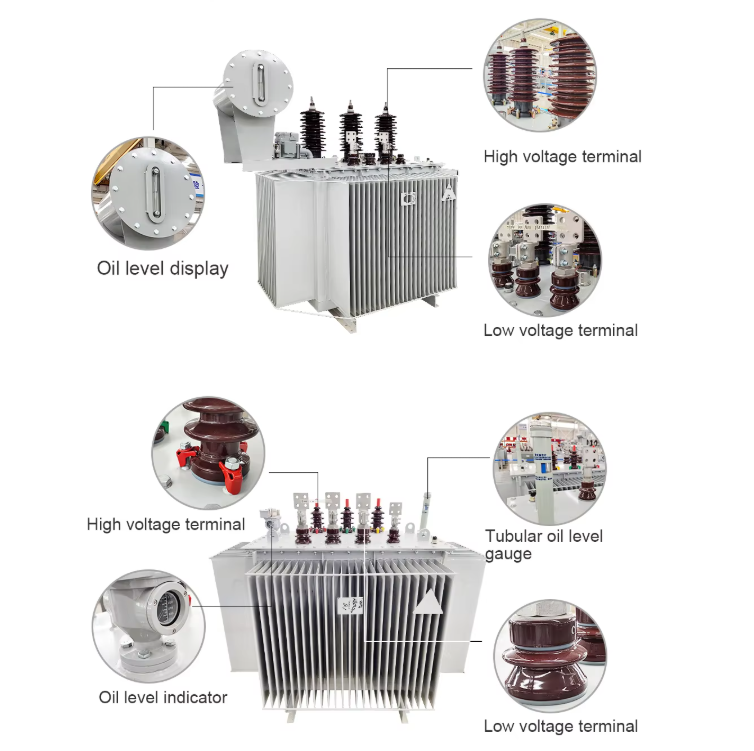

Product Diagram
Product Parameters
S11-M-30~3150/10 oil immersed transformer main technical parameters
Rated capacity (KVA) Voltage combination Connection group label No-load loss(W) On-Load loss (W) 75℃ No-load electricity(%) Short-circuit impedance(%)
High voltage (KV) Tap scope Low voltage (KV)
306, 6.3, 10±5% or ±2×2.5%0.4Yyn0/Dyn111006002.14.0
501308702.0
10020015001.6
16029022001.4
25040030501.2
40057043001.0
50068051501.0
63081062000.94.5
10001150103000.7
31502730237600.5
Note: The data in the table is subject to change without prior notice, and the product is subject to delivery.
Product Packaging

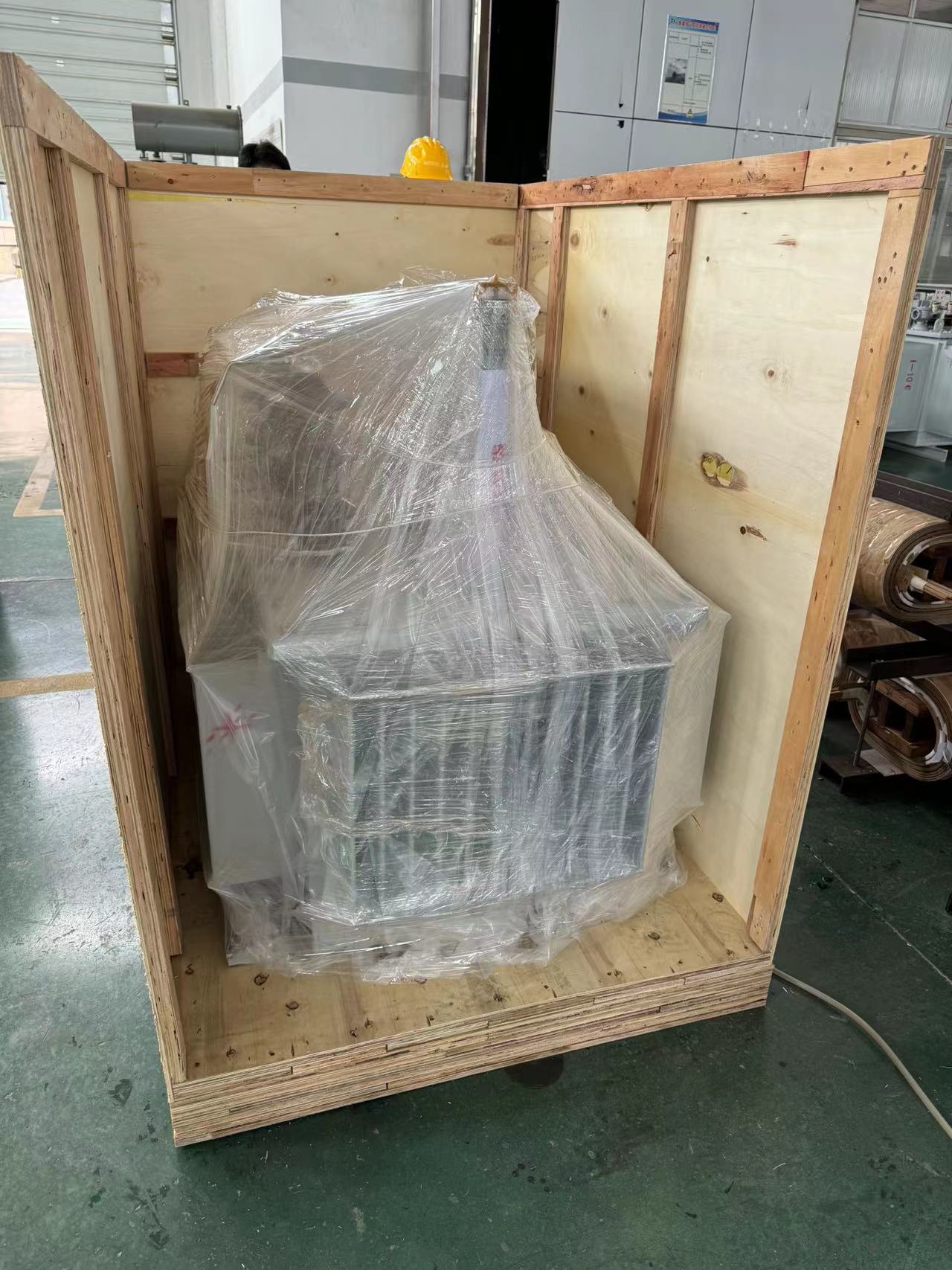

Packaging 1

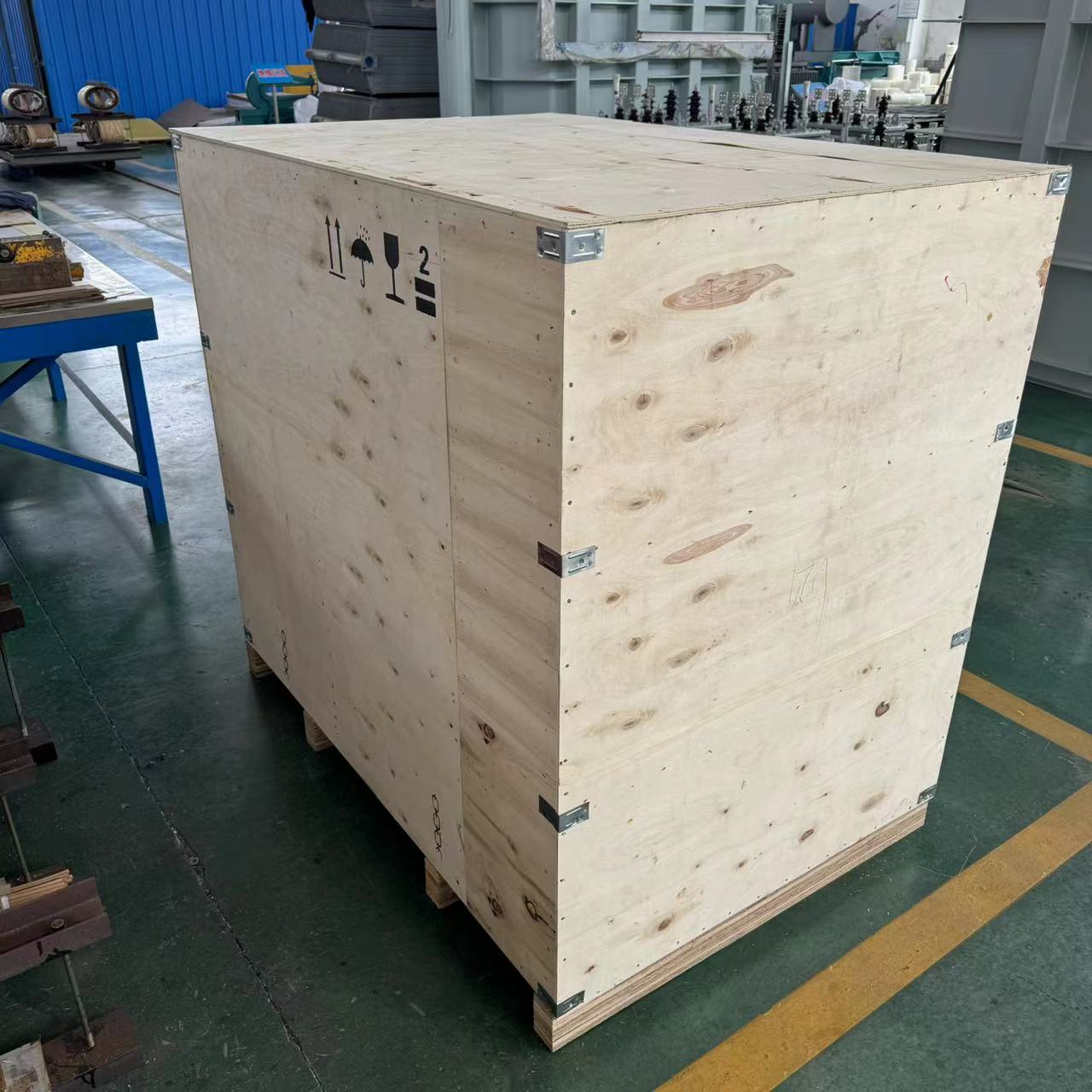

Packaging 2
Wooden Box Package.
Why Choose Us
Core Strengths
Factory Photos

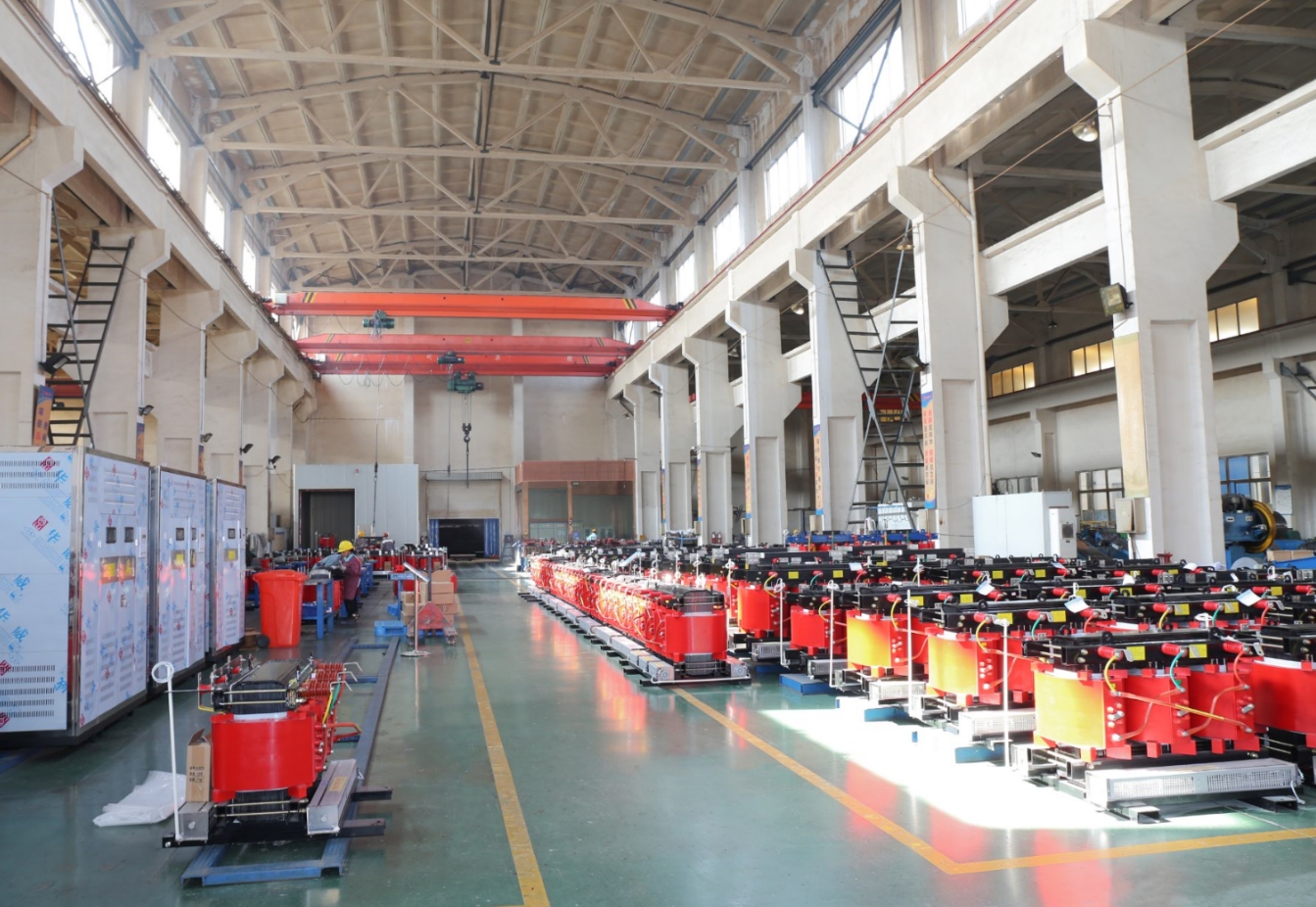

Factory 1

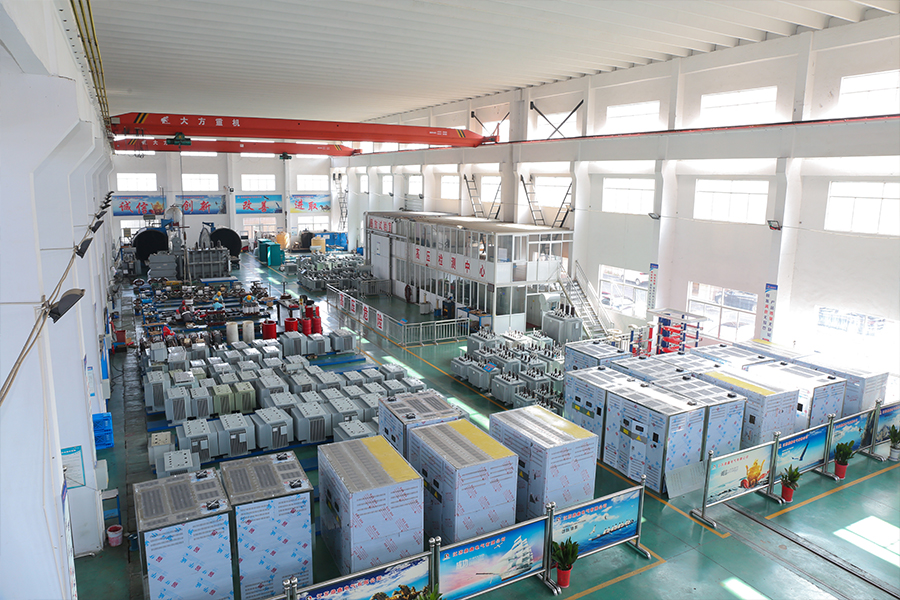

Factory 2

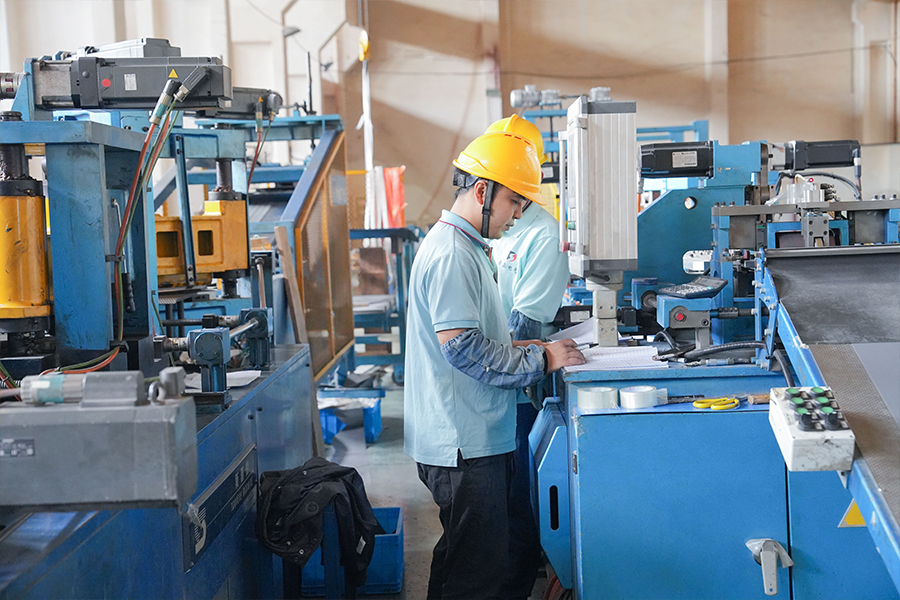

Factory 3

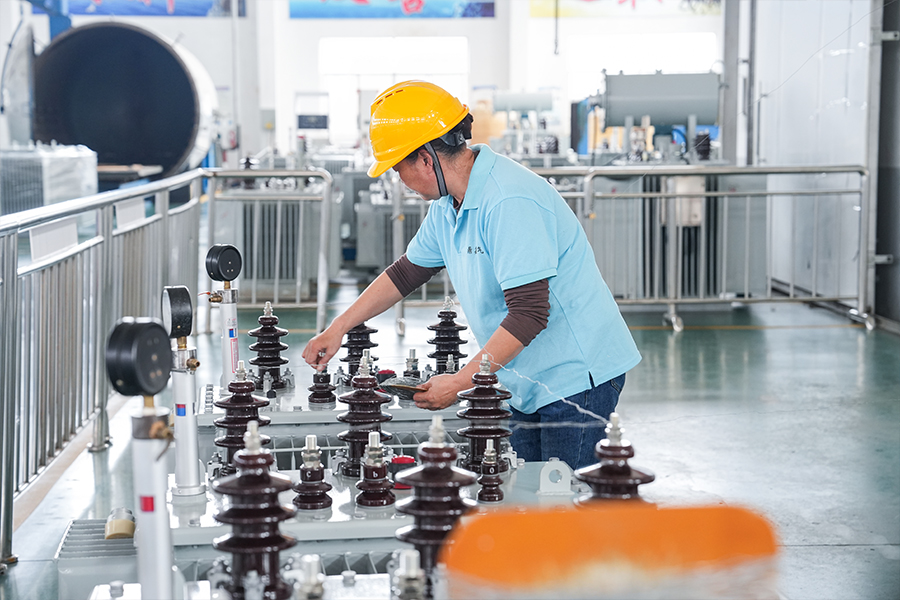

Factory 4

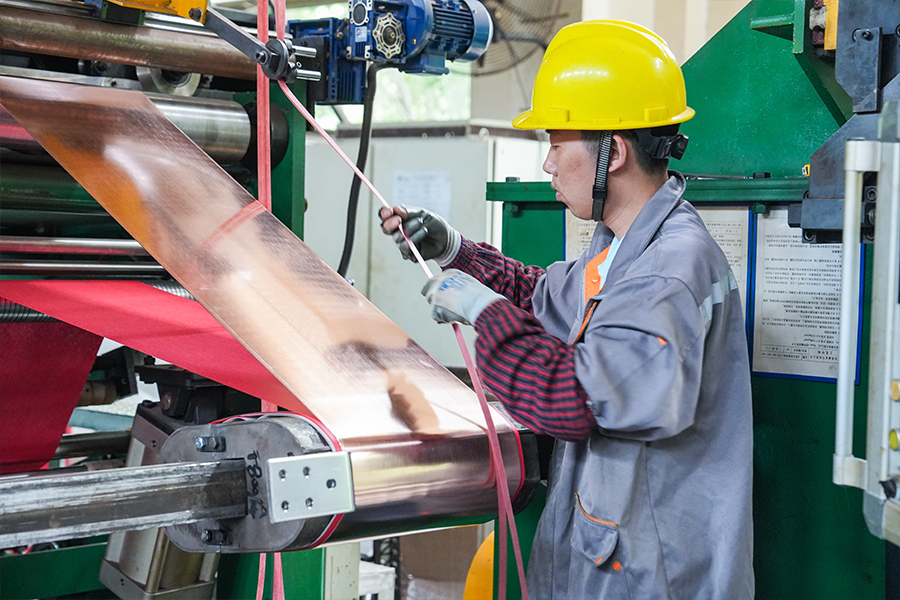

Factory 5

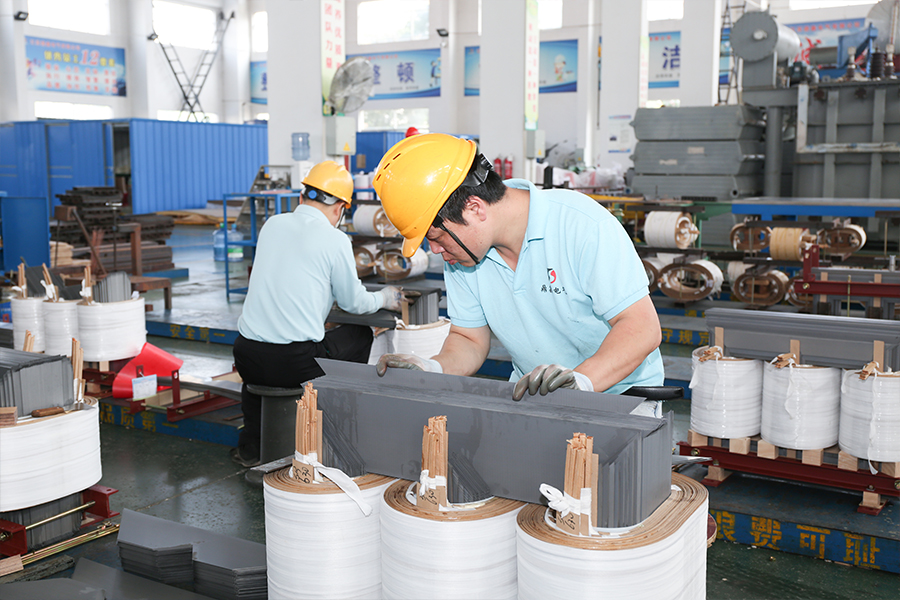

Factory 6

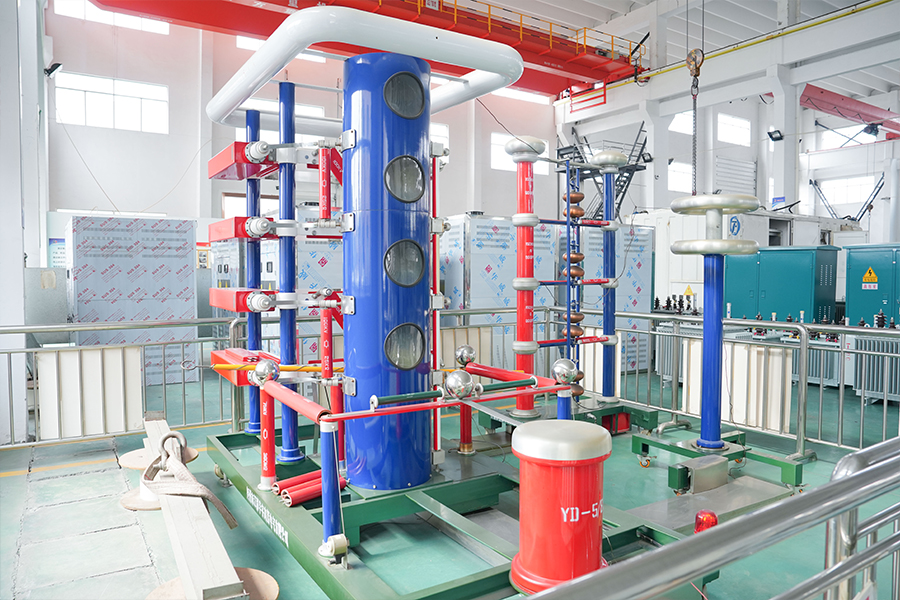

Factory 7
Certifications

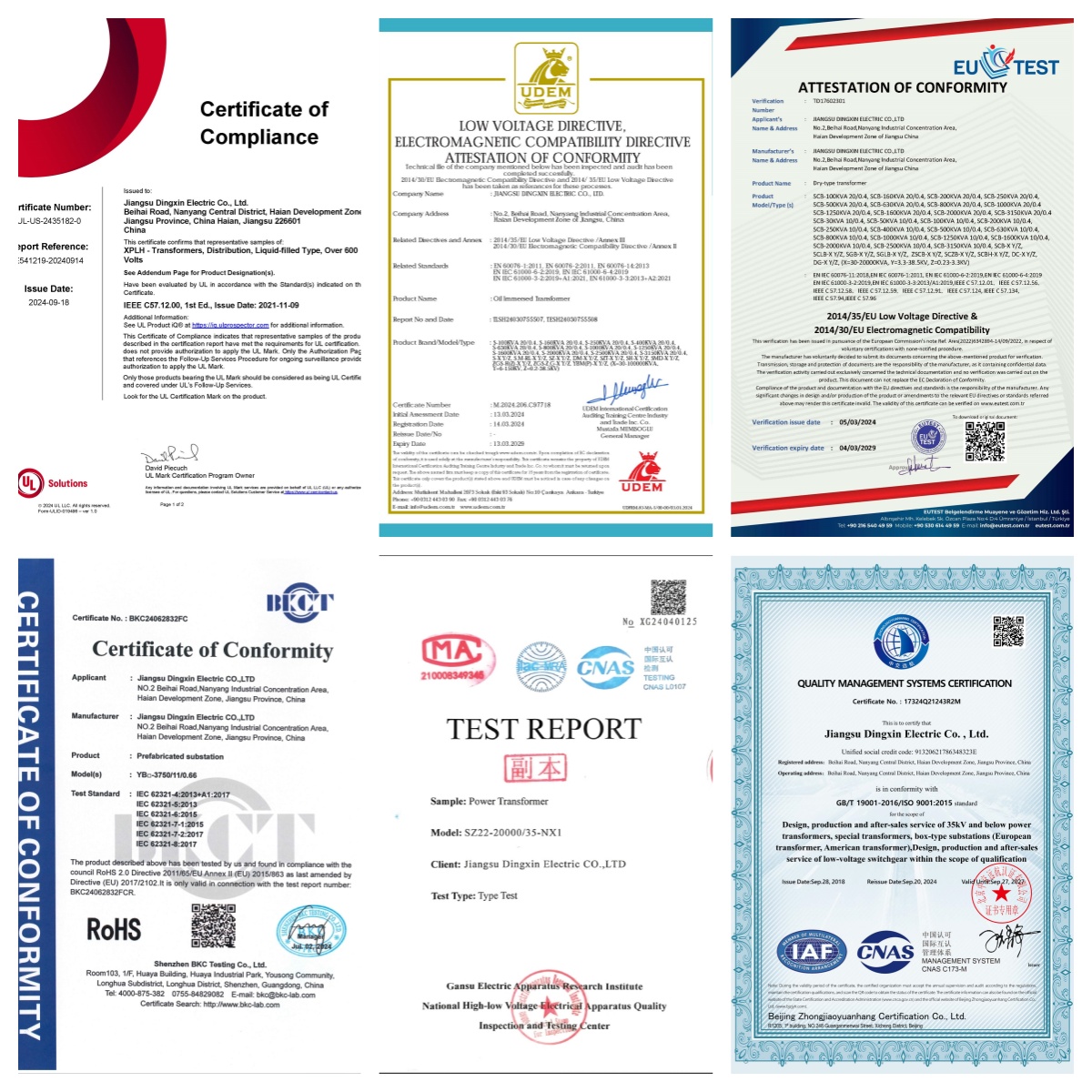

Certificate 1
Certificate 2
Customer Photos
Customer 1
Customer 2
Customer 3
Customer 4
Customer 5
Export Image 1
Export Image 2
Export Image 3
Export Image 4
Frequently Asked Questions
What is a fully sealed oil-immersed transformer?
It is a transformer where the oil is completely isolated from the outside atmosphere. The corrugated tank expands and contracts to accommodate oil volume changes, preventing moisture and oxygen from entering.
What are the main applications for these transformers?
They are widely used in power plants, electrical substations, industrial mining sites, and petrochemical enterprises due to their robust performance in harsh outdoor environments.
What are the benefits of using a corrugated tank?
Corrugated tanks provide excellent heat dissipation and act as an expansion vessel, eliminating the need for an oil conservator and reducing the overall footprint and maintenance requirements.
How is the product protected during shipping?
We typically use high-quality wooden box packaging to ensure the transformer is shielded from physical damage and environmental factors during transit.
Does the transformer comply with international standards?
Yes, our products are manufactured according to strict quality guidelines and come with relevant certifications ensuring safety, efficiency, and environmental compliance.
Are the technical parameters fixed?
While the data table provides standard technical parameters, please note that specifications are subject to change based on specific delivery requirements and product updates.
