| Iron core | The iron core is made of cold-rolled grain-oriented silicon steel with high magnetic conductivity, with inclined joint laminated structure. Section of the core limbs is of multi-class ladder round, with uniform section with that of yoke. |
| Winding | The winding adopts corrugated oil duct with non-dipping process, bound by shrinkable tape; all winding are of concentric coils; taps of HV winding with corresponding tapping voltage shall be led to the tap switch, and the switch shall be installed on the box cover. Power supply must be cut off first when changing the tapping voltage. |
| Protection Device | Transformers of all capacity specifications have been equipped with pressure relief valve. Gas relay with alarm and tripping terminals is available on request. |
| Temperature Measurement | All the transformers are equipped with tube holder for glass-stem thermometer that is set on the top of oil tank, and immersed in oil for about 120 ± 10 mm. 1000~2000 kVA transformer is equipped with outdoor signal thermometer. |

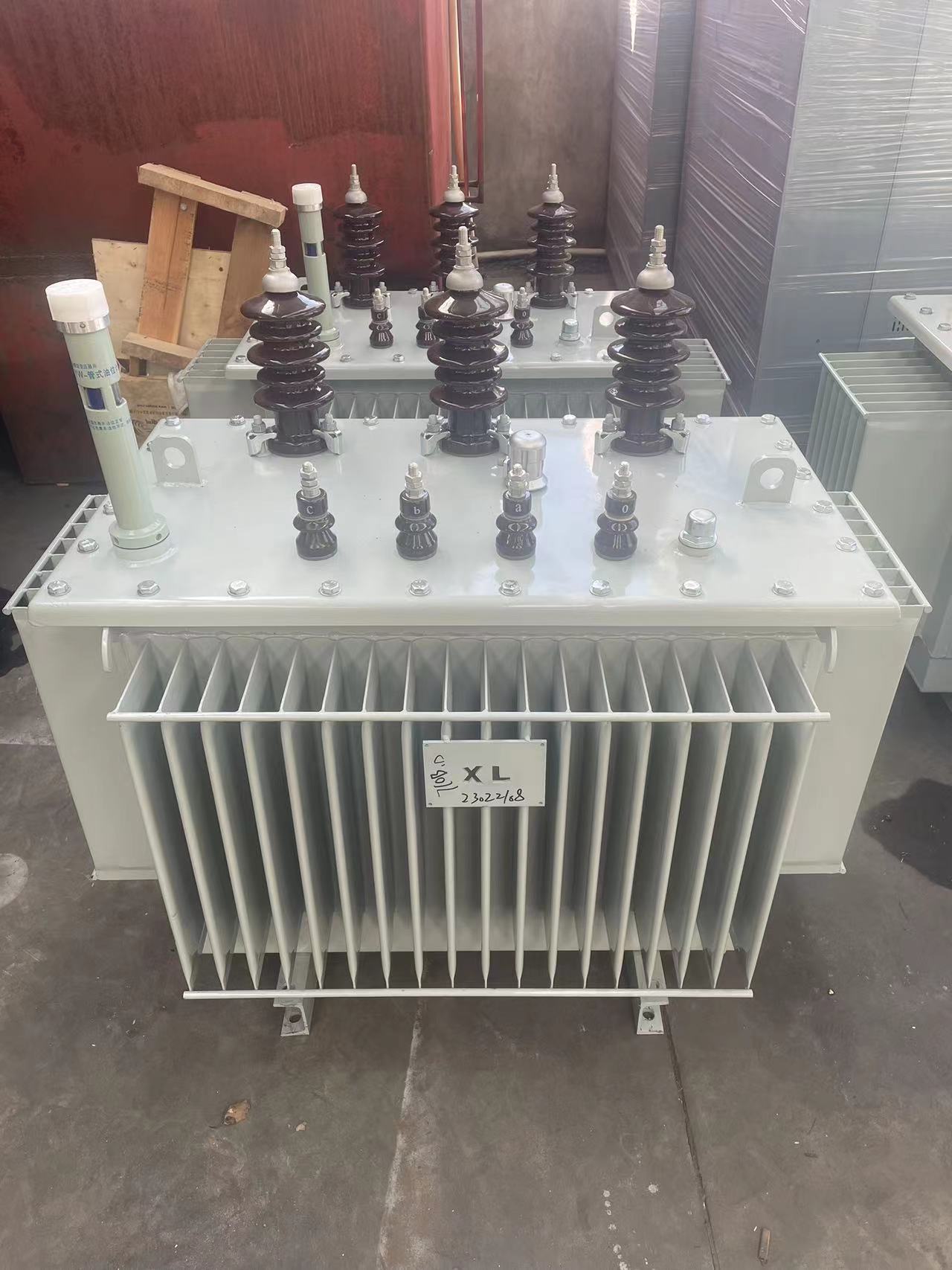

| Transformer Oil Tank | Transformer oil tank is corrugated of corrugated walls with powder painted surface and reinforced with film. Corrugated cooling fin not only has cooling function, but also has "breathing" function, the elasticity of corrugated cooling fin make it adapt to the change of oil volume due to change of temperature. This hermetically sealed design does not require a conservator, which decreases the height of the transformer. The transformer adopts vacuum oil-injection technology during encapsulation that thoroughly removes the moisture and keeps the oil from contacting the air. This prevents insulation performance reduction and oil aging. |
