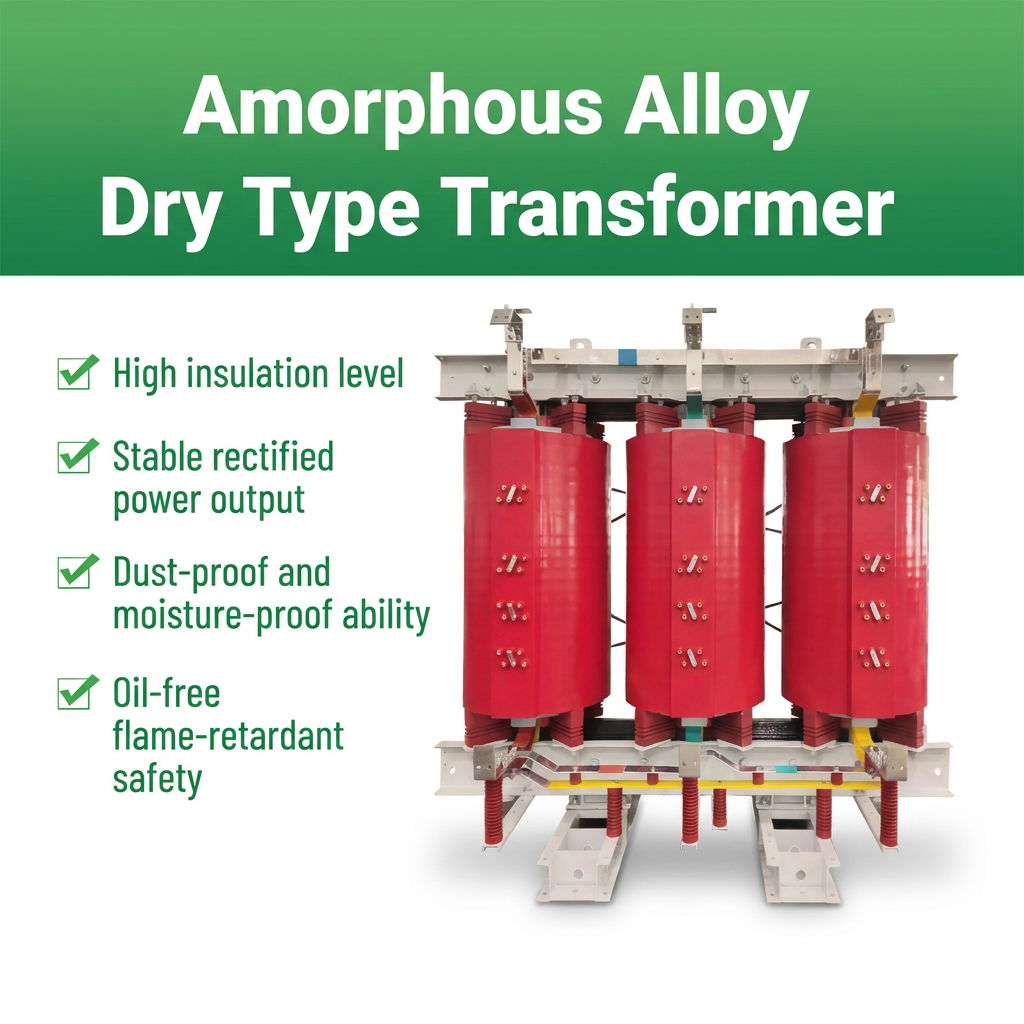

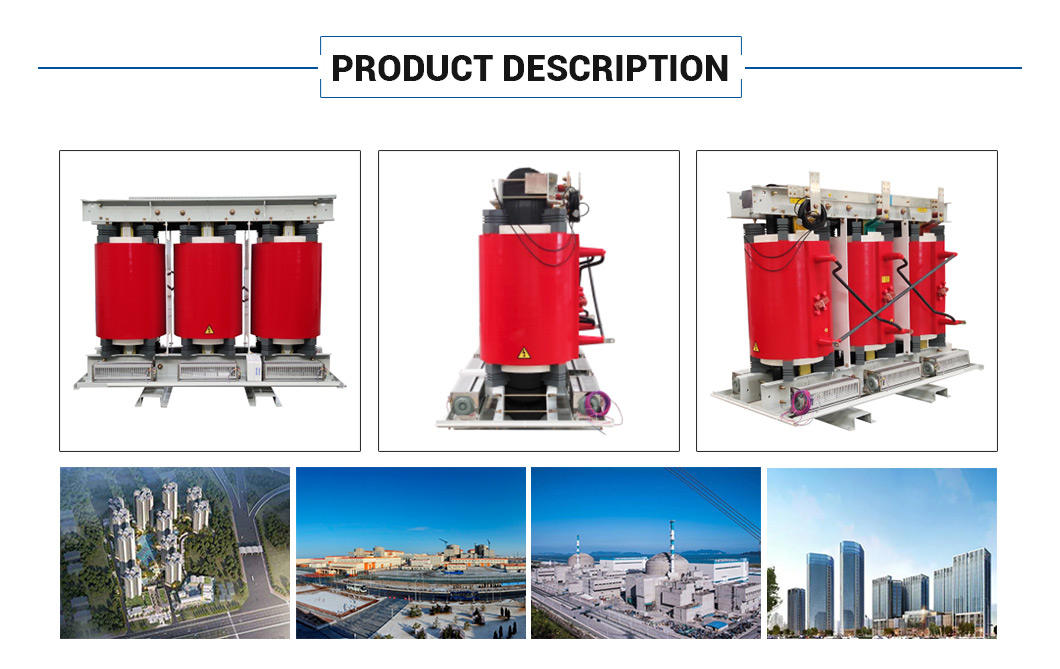

Product Description

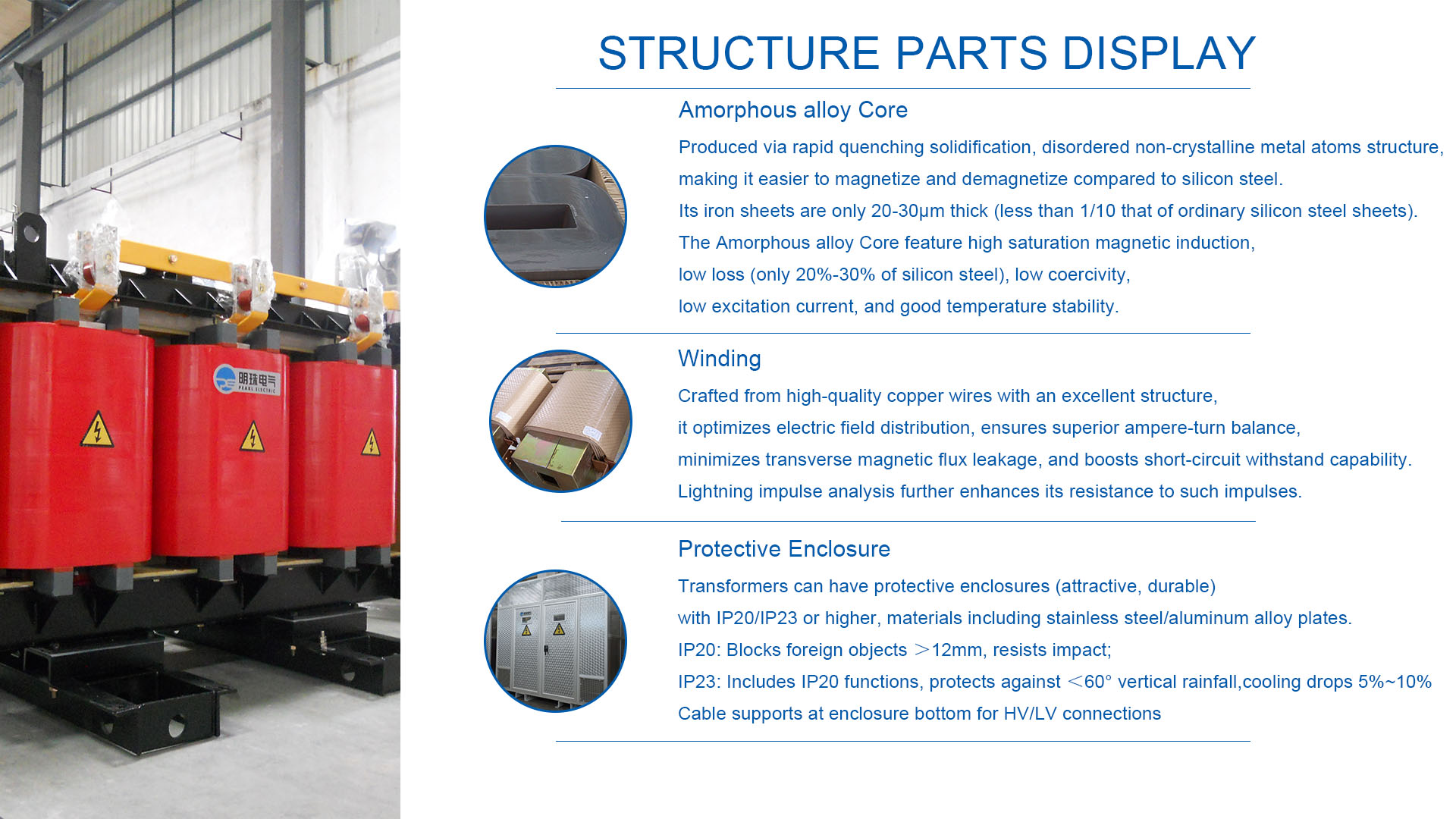

Amorphous alloy is a new type of magnetic and prominent energy-saving materials. With the rapid quenching solidification production process, the metal atoms are disordering and arranged non crystal. Unlike the crystal structure of silicon steel, it is easier to be magnetized and demagnetized. 80 percent of the typical amorphous alloy is composed by iron, while the other ingredient is boron and silicon. The amorphous alloy iron chip is very thin, the thickness of which is only 20 to 30um, less than 1 / 10 of the common silicon steel sheet. The characteristics of amorphous alloy core are as follows: high saturation magnetic induction intensity, low-loss (equivalent to 20% - 30% of the silicon). low coercivity, low excitation current, and stability of temperature.

Considering the characteristics of the amorphous alloy, three-phase five-volume core is used as the structure of amorphous alloy dry-type transformer, and the iron is clamped with sheet or molding frame. The structure of HV winding is multisegment and multiplayer, and LV winding is foil. The products have many excellencies as excellent energy-saving, low loss, powerful anti-short circuit capability, low partial-discharge and low noise. We successfully developed the largest capacity amorphous alloy dry-type transformer (SCBH15-2000/10) in domestic market, which one-time passed all the tests of the National Transformer Quality Supervision and Inspection Center, including all the routine tests, type tests and special tests. In a word, our company plays a leading role in design and technology both home and abroad.

Product Features

• Low loss, especially no-load loss, 70% lower than the value of GB, economy and energy saving.
• Low noise, low partial discharge, high reliability, outstanding anti-short-circuit capability, high anti-lighting impulse receptivity.
• HV winding being cast with epoxy resin at vacuum state with pressure, more excellent than without pressure.
• Simulating analysis being used in the core model, the resonance can be avoided and the noise is reduced. Simulation calculation and analysis of lighting impulse wave being used in the HV winding model, anti- lightning Impulse capability is improved.

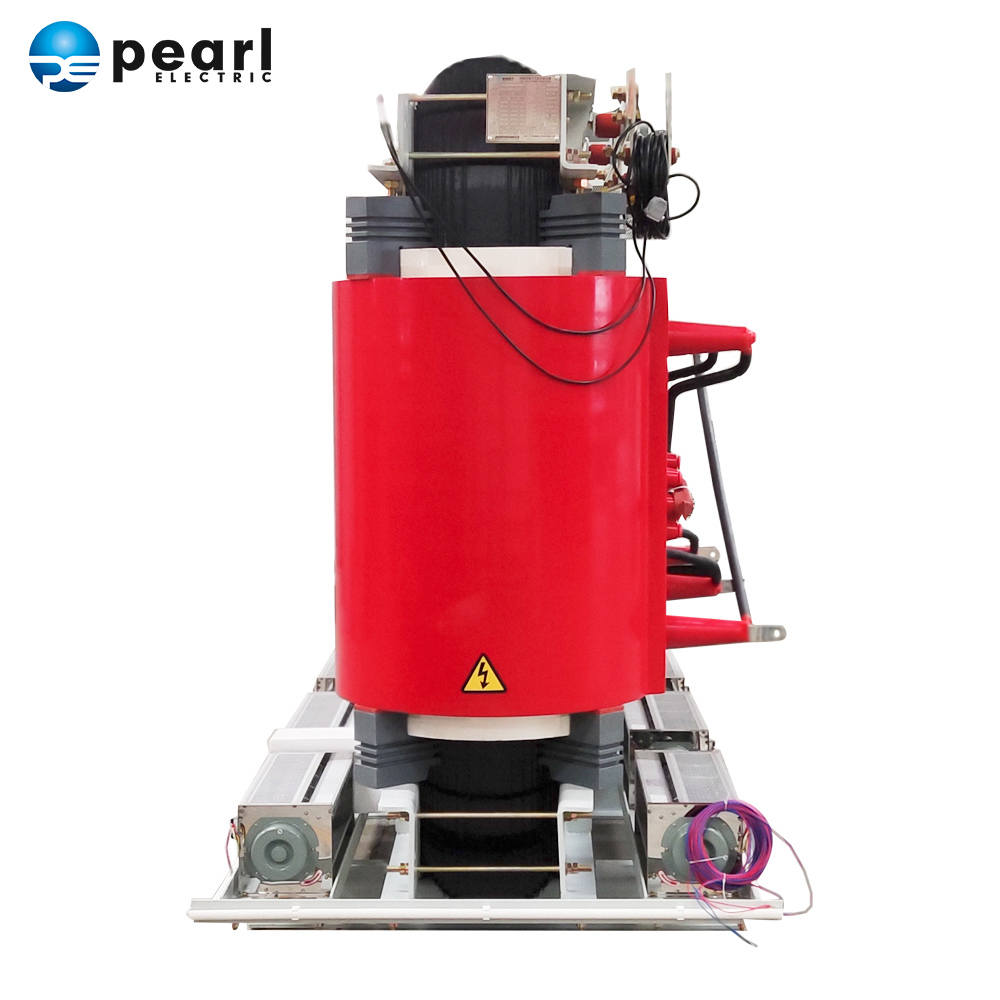

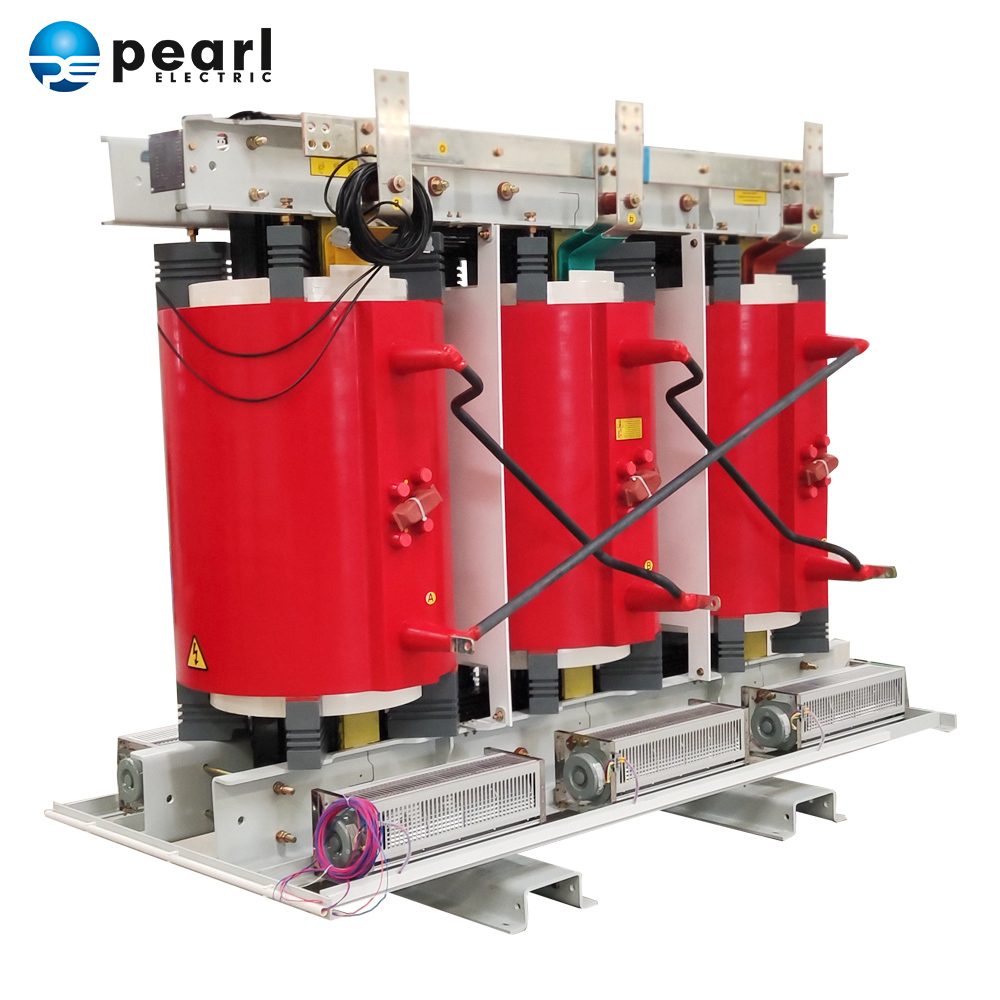

The SCBH15 series amorphous alloy dry type transformer is a new type of energy-saving product. With excellent energy saving, and all excellences of epoxy resin dry-type transformer, the characteristics of product are as follows:

• Flameproof and no blast, no pollution, no venomous gas.
• Excellent capacity of moisture proofing and safe running at 100% relative humidity and other bad environment without pre- drying.
• Strong capacity of heat resistant.
• High over-load capability, running at 110% rated load, and 150% rated load at AF.
• Contour artistic.
• Performance and parameter conform to or excel the standards of GB, IEC or industry.

Specification

Economic Analysis

According to the State Power Industry Standard DL/T 985-2005 Guide for determining energy efficiency for distribution transformers, and the current international conventional economic evaluation methods for transformers the energy efficiency for transformers is judged by the total owning cost and the payback period of investment.

• Total owning cost (TOC) is the syntheses of the initial cost and the equal loss cost, and can fully indicate the integrative cost of the transformer.
• Total owning cost = costs of transformer equipment + costs of no-load loss + costs of load loss.
• According to the current load, the cost of no-load loss of 20-years is 58.3 RMB/W, and the cost of load loss is 21.1RMB. Taking SCBH15-630 amorphous alloy for example, contrasting with conventional SCB9-630, the price difference is about 42 965 (reference), then the cost saving of amorphous alloy transformer is TOC=-42965+58.3x(1460-410)+21.1x(5510-5200)=24791 RMB.
• Above description shows that, integrative costs of amorphous alloy dry-type transformer are less than costs of ordinary dry-type transformers.

• Without regard to the time factor of funds, investment payback period = price difference of equipment/ costs of electricity a year. Taking SCBH15-630 amorphous alloy for example, the payback period (N) is: N = 42965 /[8760 x 0.7x (1.46- 0.41+5.51-5.2)] = 5.2 years. 8760: the hours of one year, electricity costs calculated by 0.7 RMB/kWh.
• Through above analysis, amorphous alloy dry-type transformer has better economic and social benefits.

GB/T 22072, GB1094.11, IEC 60076-11, DIN 42523

Rated HV: 10 (10.5, 11, 6, 6.3, 6.6) kV | Vector Group: Dyn11 | Rated LV: 0.4kV | Insulation Level: H.V LI/AC 75/35 L.V LI/AC 0/3

Certifications

We have established a sound quality management system, and have passed the certification of ISO 9001:2015 quality management system, ISO 14001:2015 environmental management system, and ISO 45001:2018 occupational health and safety management system.

In order to ensure product quality and in order to meet the development and supply of our dry-type transformers in overseas international markets, we all participate in type and special tests of internationally recognized independent testing laboratories, and obtain relevant reports.

Company Profile

A professional manufacturer of power transmission and distribution equipment and power transformers, founded in 1958. With more than 600 employees, we’ve achieved an annual turnover of 140 million USD, over 200,000 units in stable operation globally. Housing plant area of more than 100,000 square meters and a national-level R&D center, we dedicated to power transformer innovation and technological advancement.

We manufacture distribution transformer and power transformer up to 200MVA 230KV, deliver tailored solutions for diverse grid requirements worldwide. Our core products cover 35kV and below dry-type transformers, 220kV and below oil-immersed transformers, pad mounted transformer, prefabricated substations, and special transformers for wind, photovoltaic and nuclear power projects, widely trusted in the global power equipment industry.

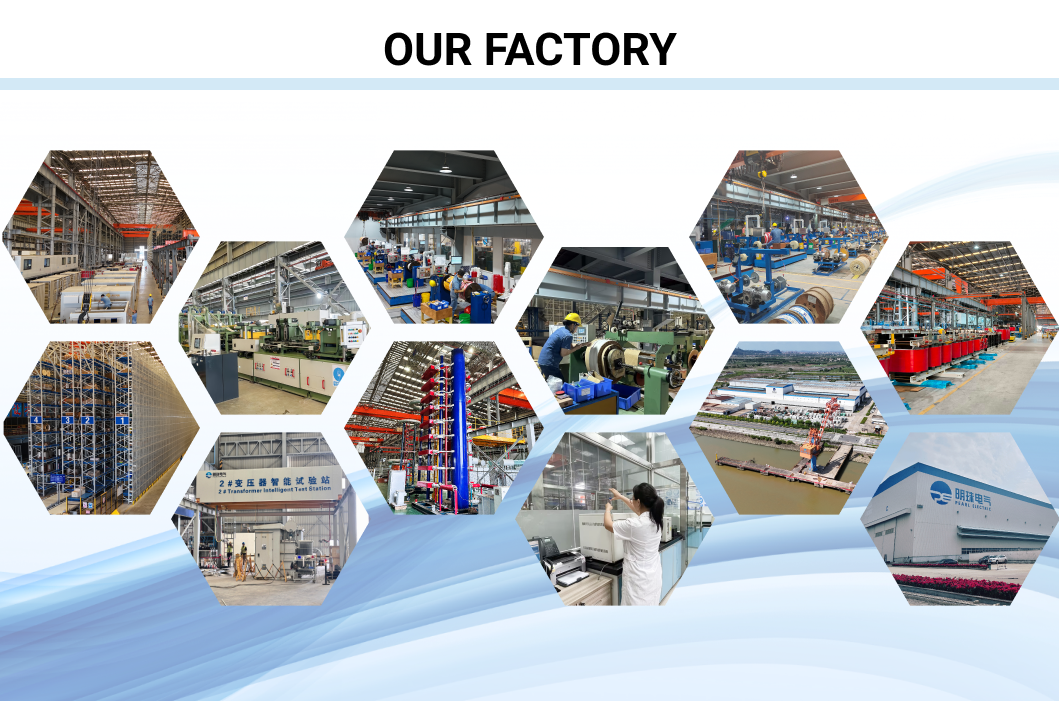

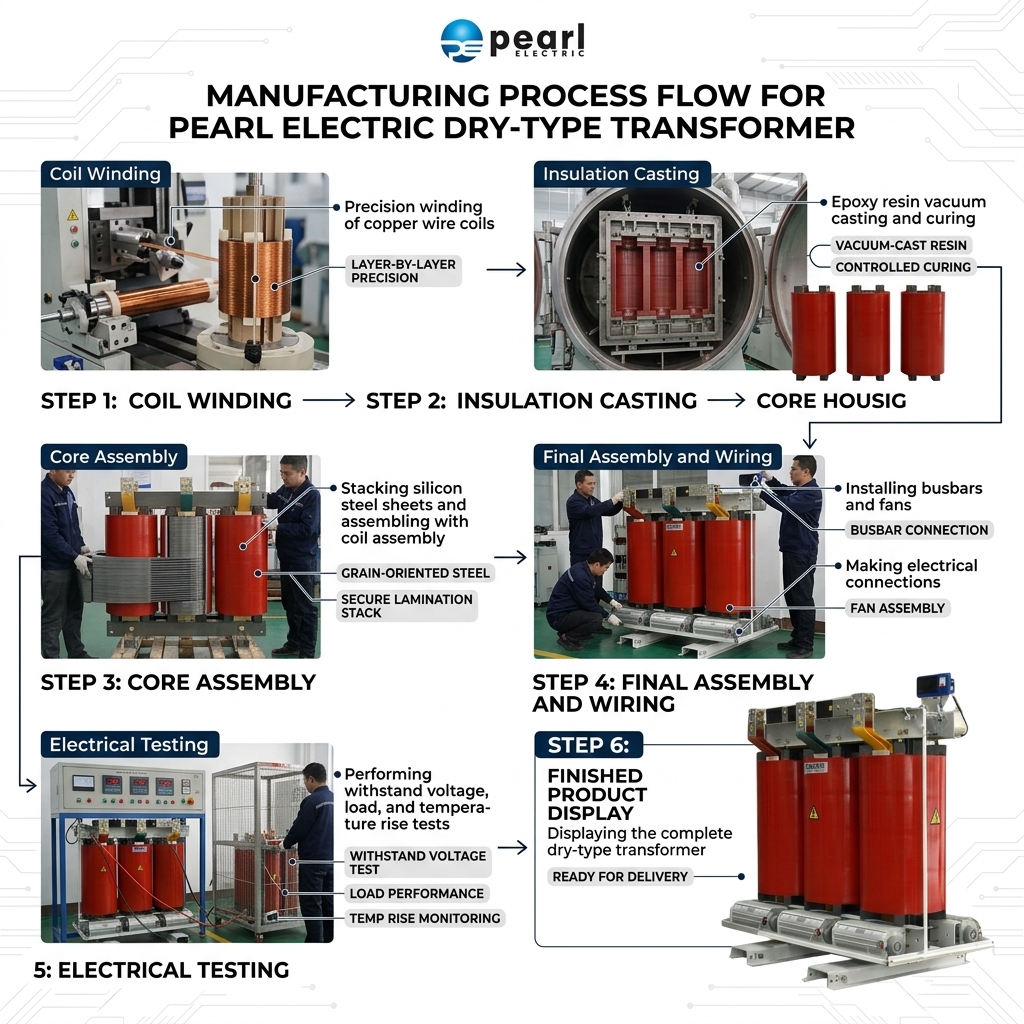

We adopt German-imported HÜBERS vacuum casting equipment to ensure excellent long-term reliability. Implementing full-process quality control – from raw material inspection to final product testing Five testing labs and four test bays drive continuous technological breakthroughs. From extreme environment endurance tests to microscopic defect detection, every step ensures our product meets the highest quality standards.

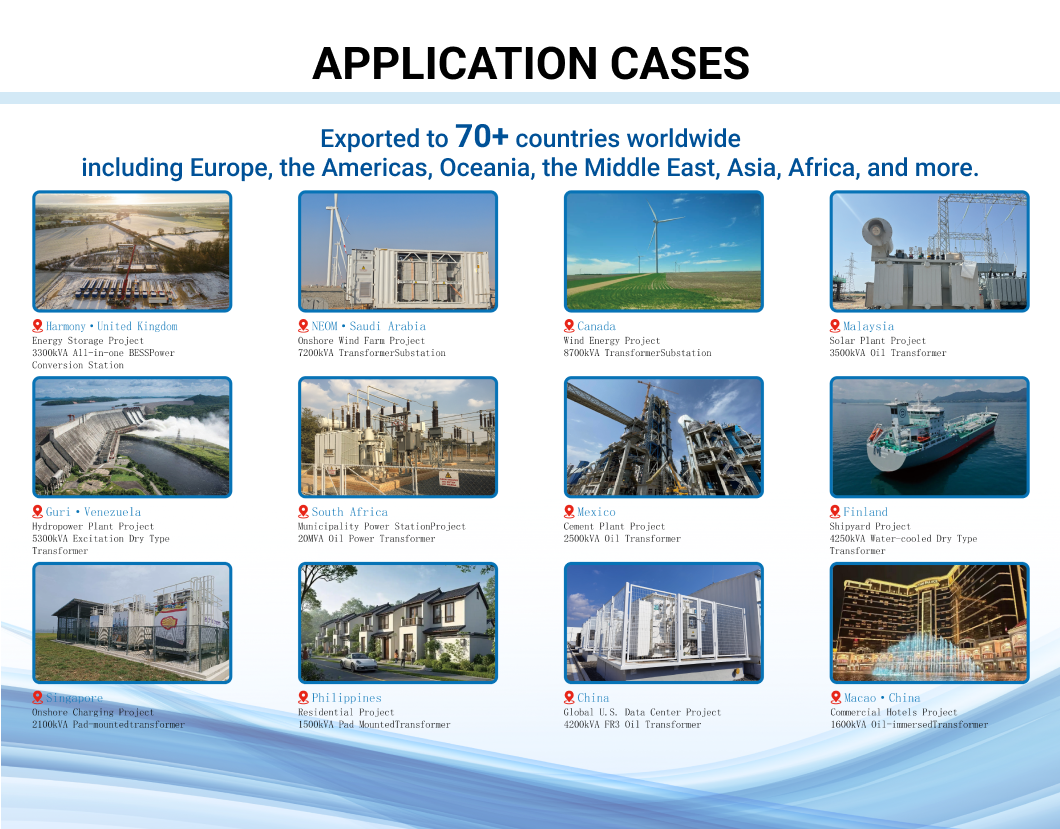

To provide satisfying products and services for worldwide customers, we have set up a modern quality management system in strict accordance with international standards. Exported to over 70 countries, our products have obtained authoritative certifications including ISO9001, ISO14001, UL and CE, fully meeting global market access requirements.

By integrating cutting-edge innovation with industry-leading practices，we are dedicated to accelerating the global energy transition, supporting carbon neutrality goals, and powering a clean, sustainable future for all.
