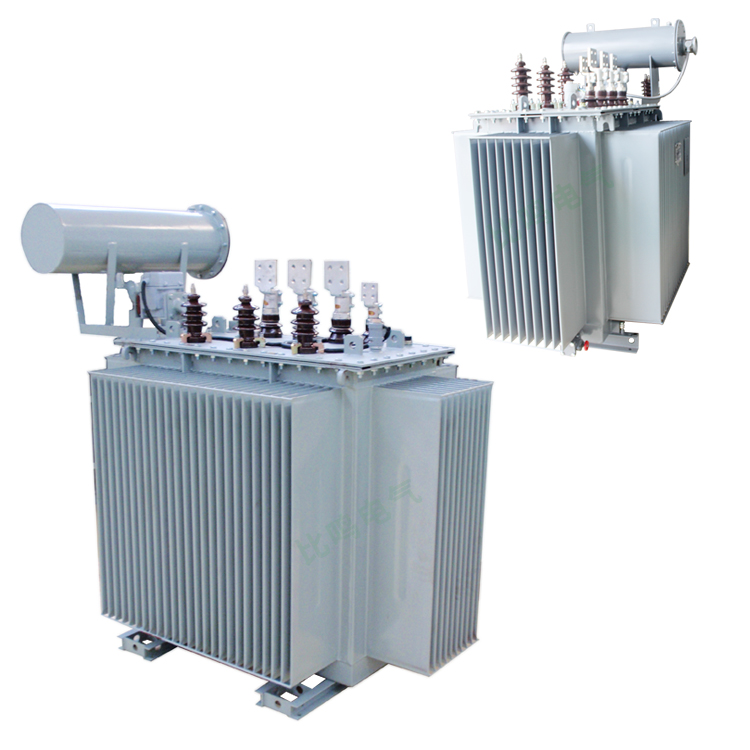

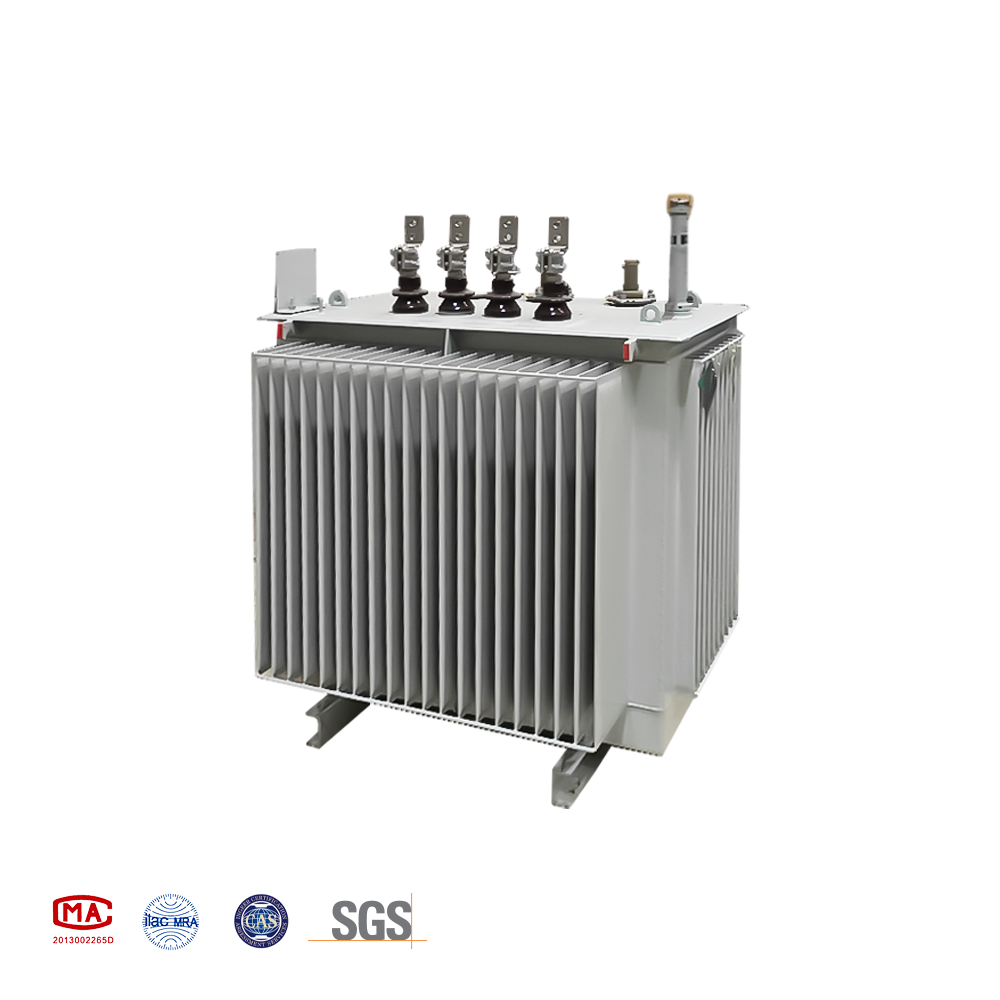

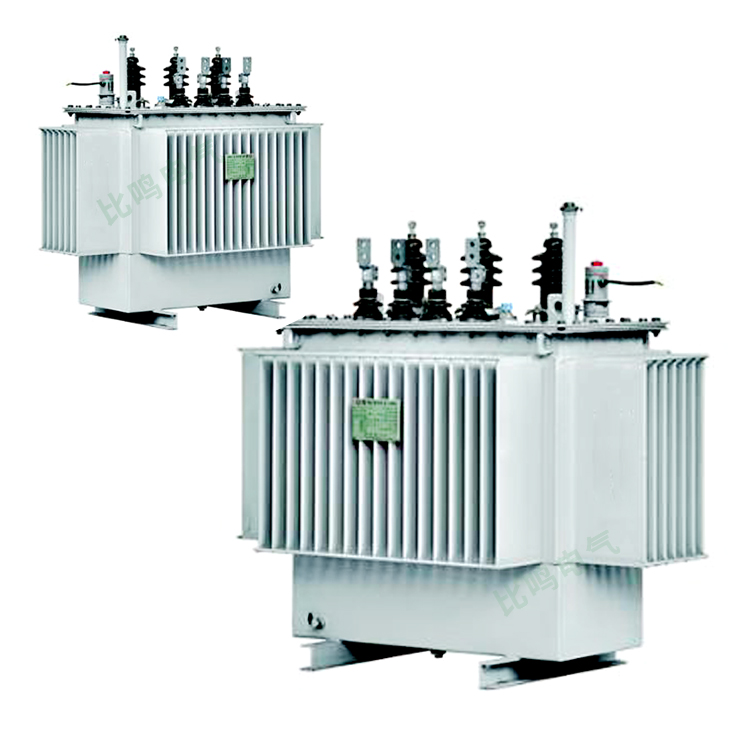

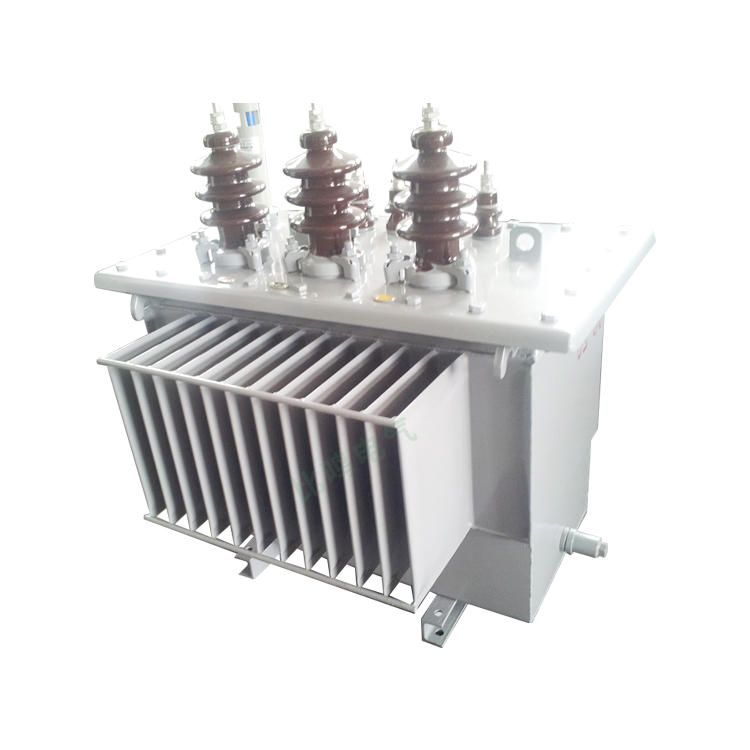

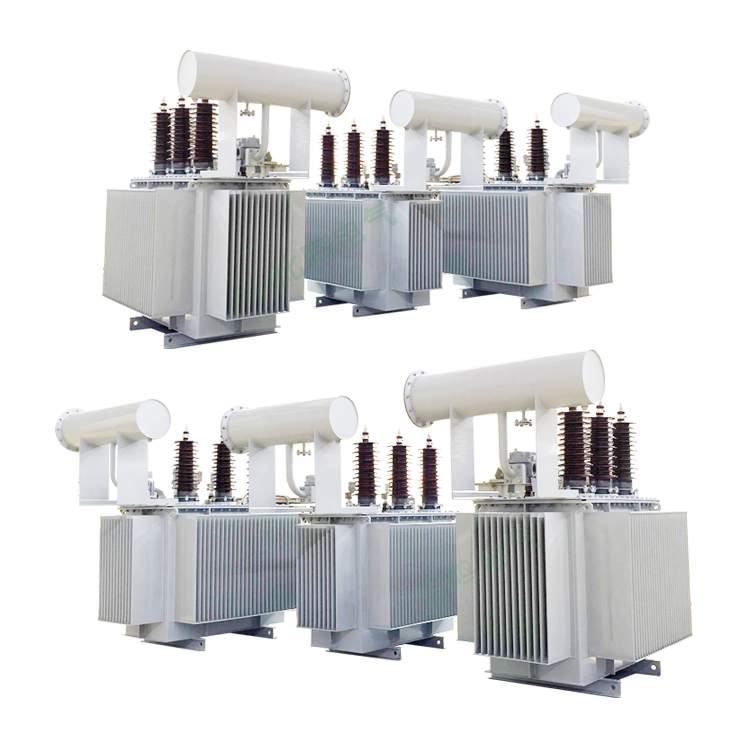

Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
1 / 5
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer
Three Phase Distribution Transformer Oil Immersed Distribution Transformer

Three Phase Distribution Transformer Oil Immersed Distribution Transformer

Send Inquiry

Product Description

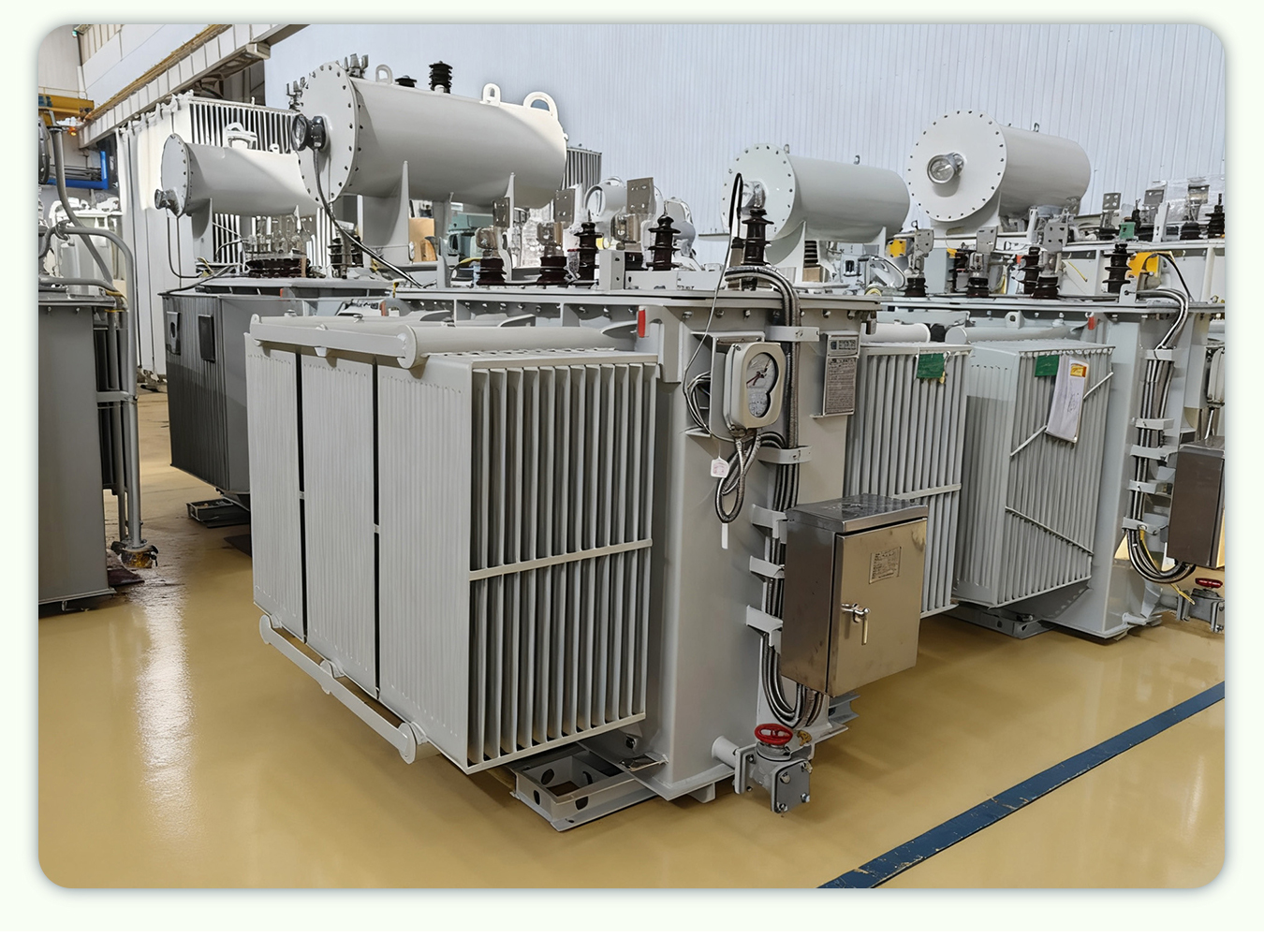

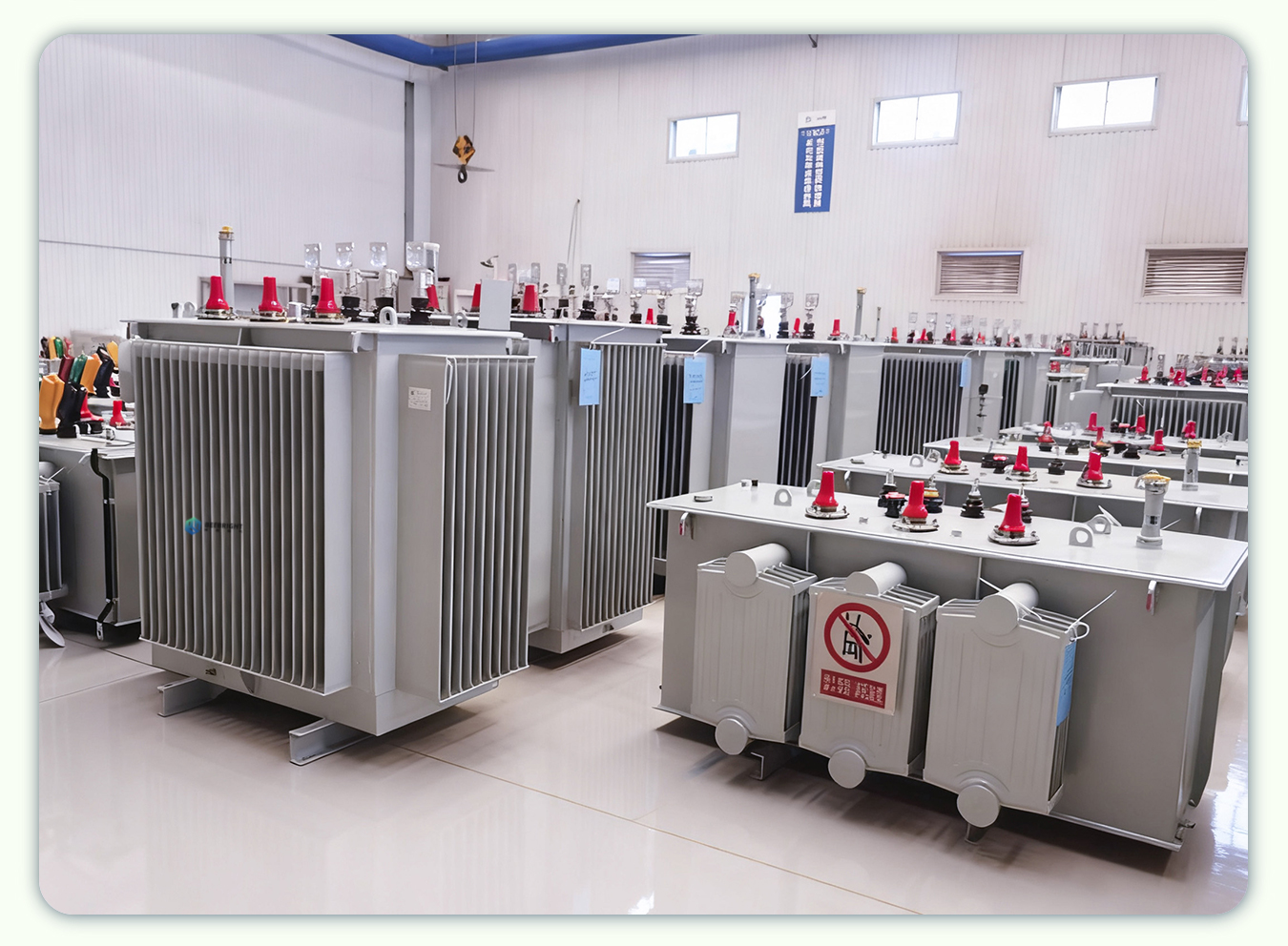

Transformer Showcase 1
Transformer Showcase 2
Transformer Showcase 3
Transformer Showcase 4

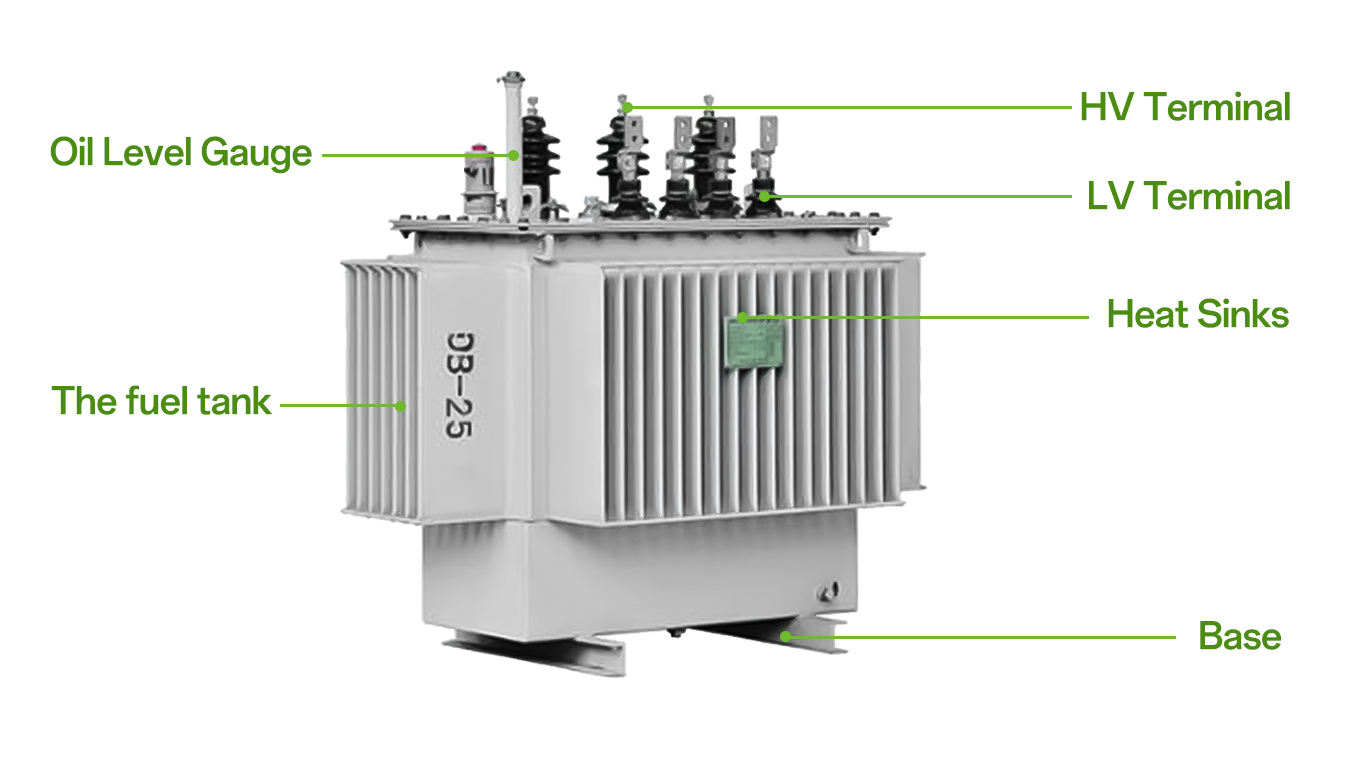

Transformer Showcase 5
1
Low Loss
2
Low Noise
3
High Mechanical Strength
4
Maintenance Free

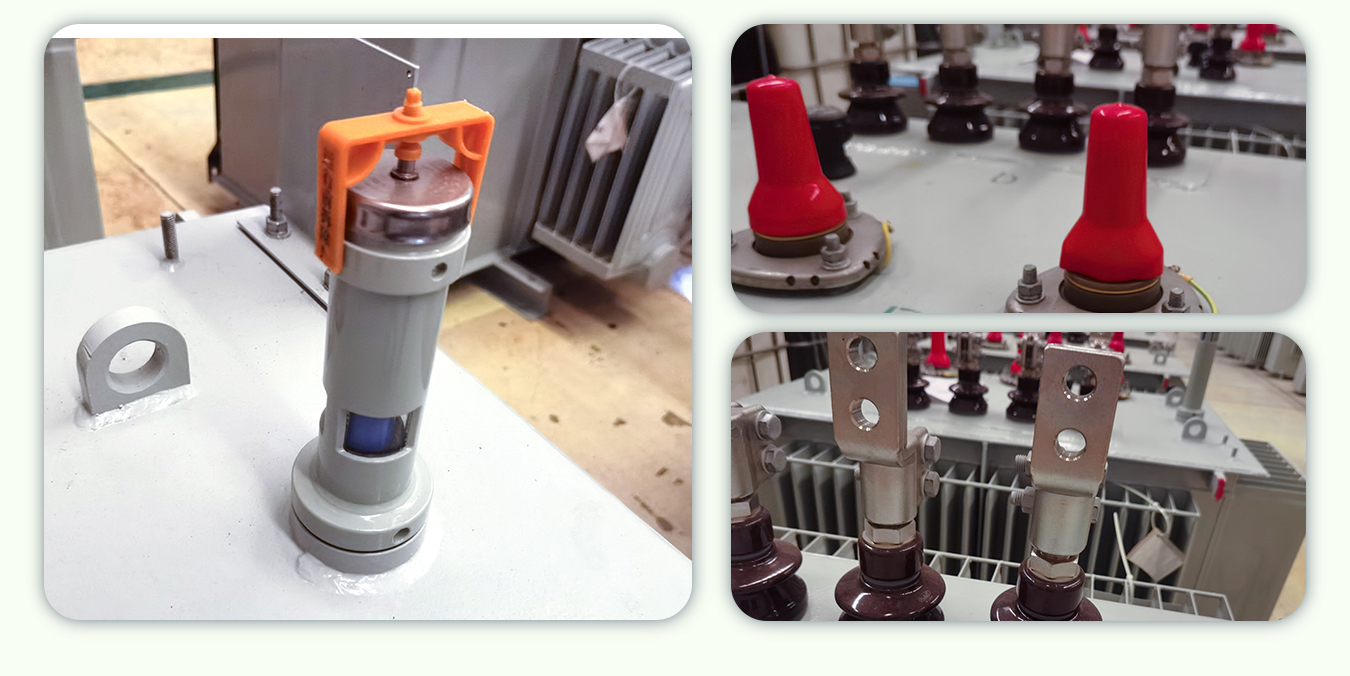

Internal Component

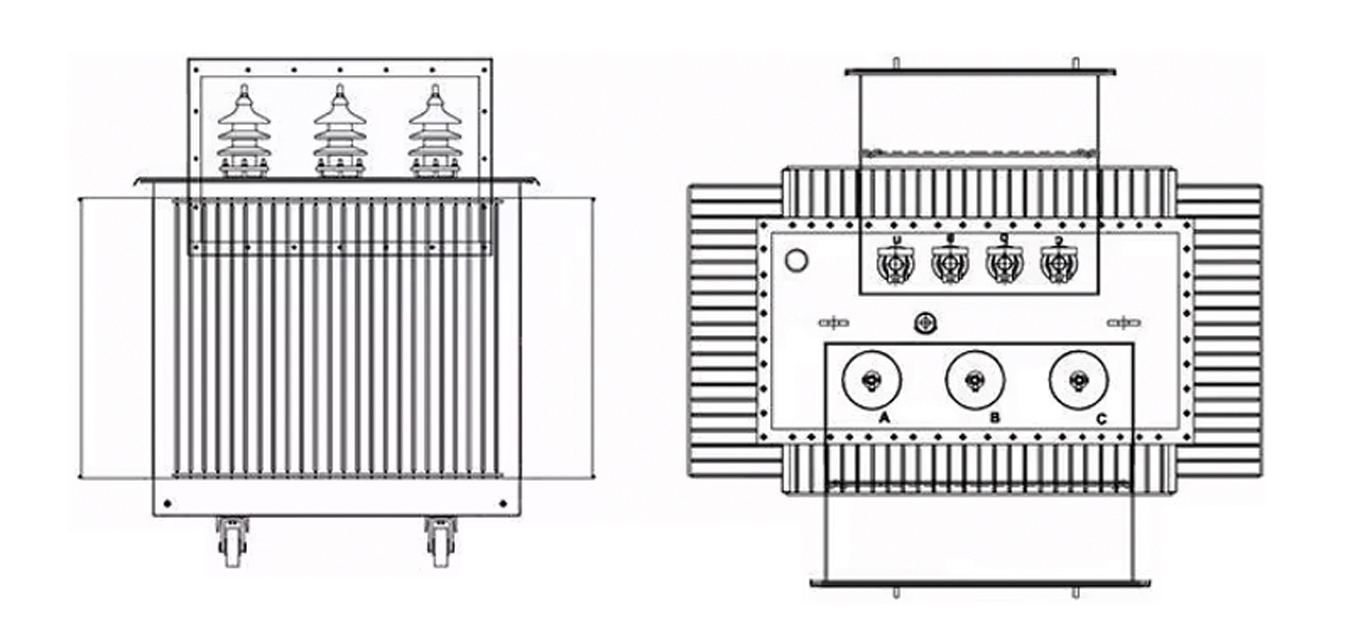

Technical Design
Rated Capacity (kVA) High Voltage (V) Low Voltage (V) Connection Symbol Standard Short-circuit Impedance (%) Efficiency (%)
75 4160 / 7200 / 12000 / 12470 / 13200 / 13800 / 19920 / 24940 / 34500 110 / 220 / 230 / 400 / 480 Delta-Wye / Dyn1 / Ynyn0 IEEE / ANSI / DOE 4-7% 99.03
112.599.11
15099.16
22599.23
30099.27
50099.35
75099.40
100099.43
150099.48
200099.51
250099.53
Product Footer Image
Frequently Asked Questions
What are the main advantages of these transformers?
Our transformers feature low energy loss, low operating noise, high mechanical strength, and are designed to be maintenance-free for long-term reliability.
Which international standards do your products comply with?
The equipment is manufactured and tested in accordance with IEEE, ANSI, and DOE standards to ensure high quality and safety.
What range of capacity is available?
We offer a wide range of rated capacities starting from 75 kVA up to 2500 kVA to suit various industrial and commercial needs.
What are the typical high voltage ratings supported?
Supported high voltages range from 4160V up to 34500V, providing flexibility for different power grid requirements.
What is the efficiency rating of these units?
The efficiency of our transformers is exceptionally high, ranging from 99.03% for smaller units up to 99.53% for our 2500 kVA models.
Are different connection symbols available?
Yes, we support multiple connection configurations including Delta-Wye, Dyn1, and Ynyn0 to match your specific system design.
