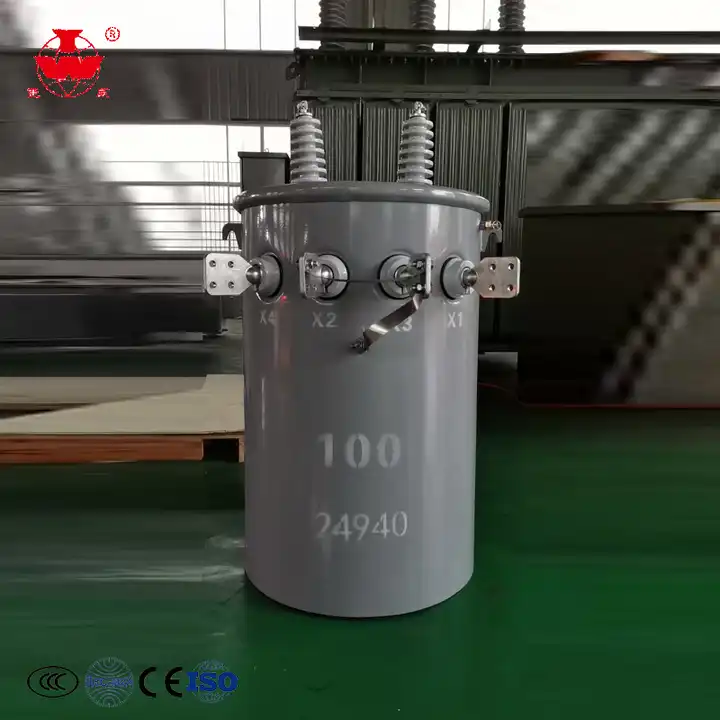

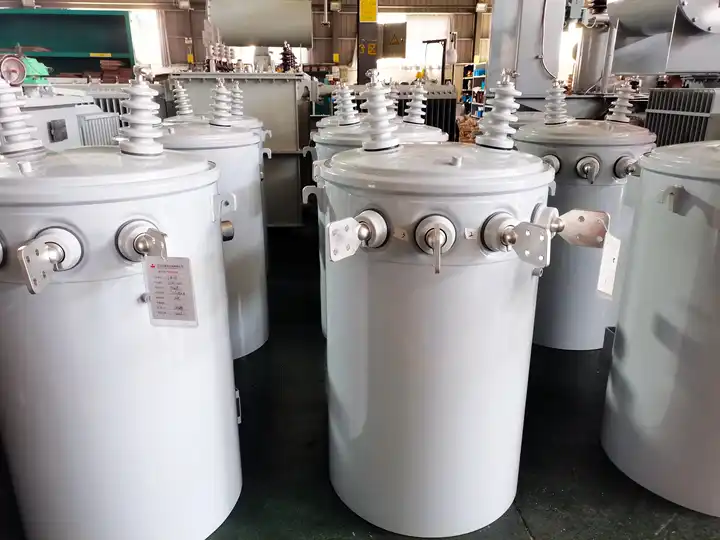

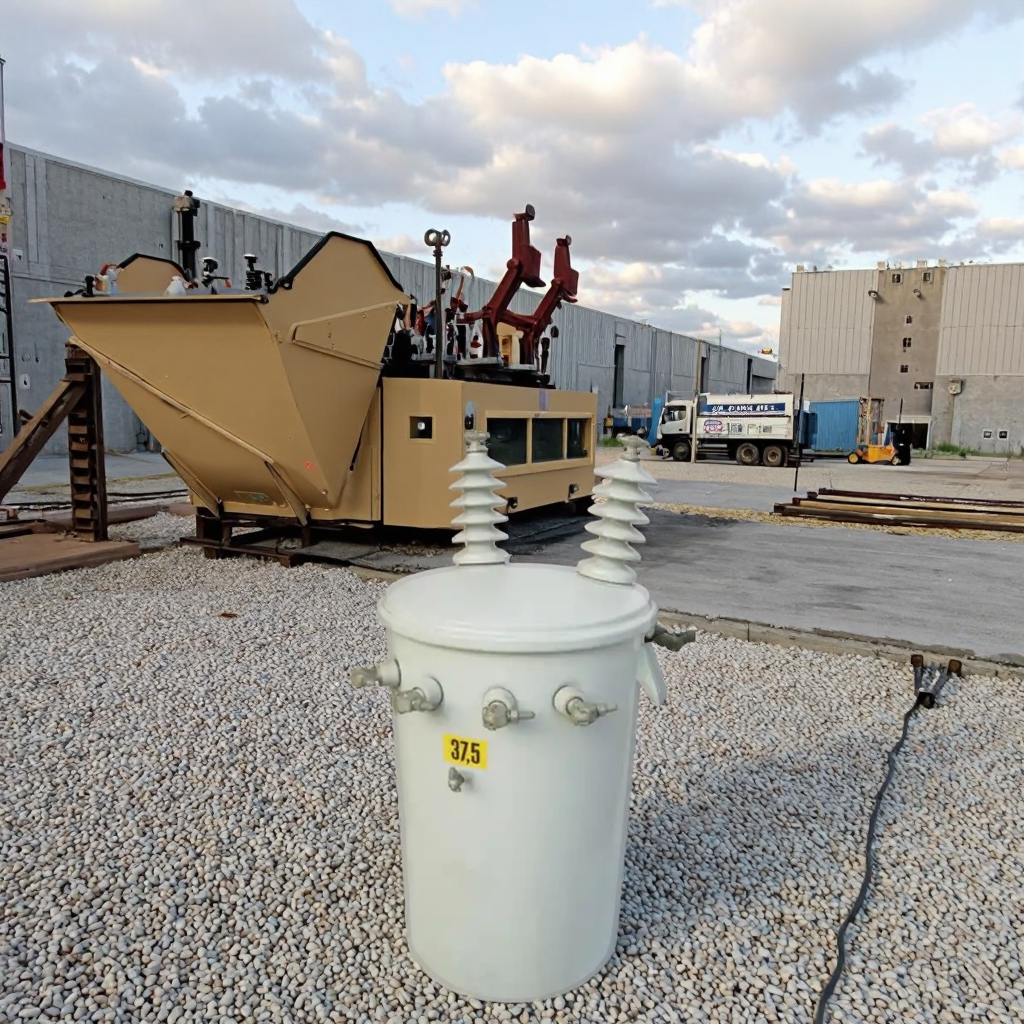

Single phase pole-mounted transformers are manufactured with power ratings up to 333 kVA, with high voltage capabilities up to 34.5 kV. These units are designed and tested in accordance with international standards including ANSI/CSA, IEEE C57, and IEC60076.

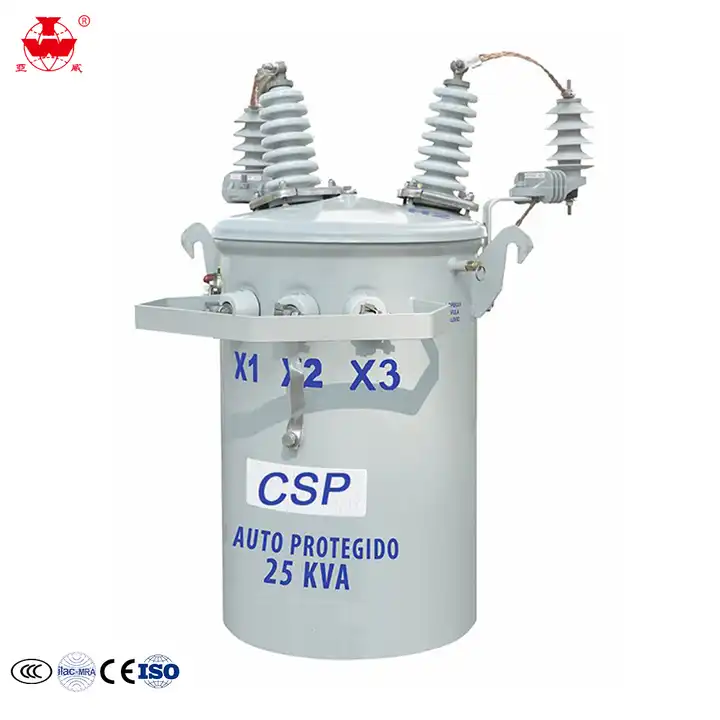

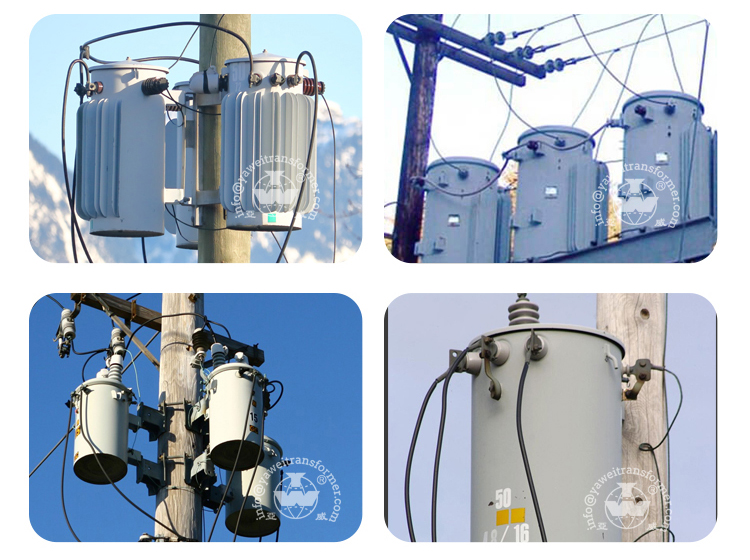

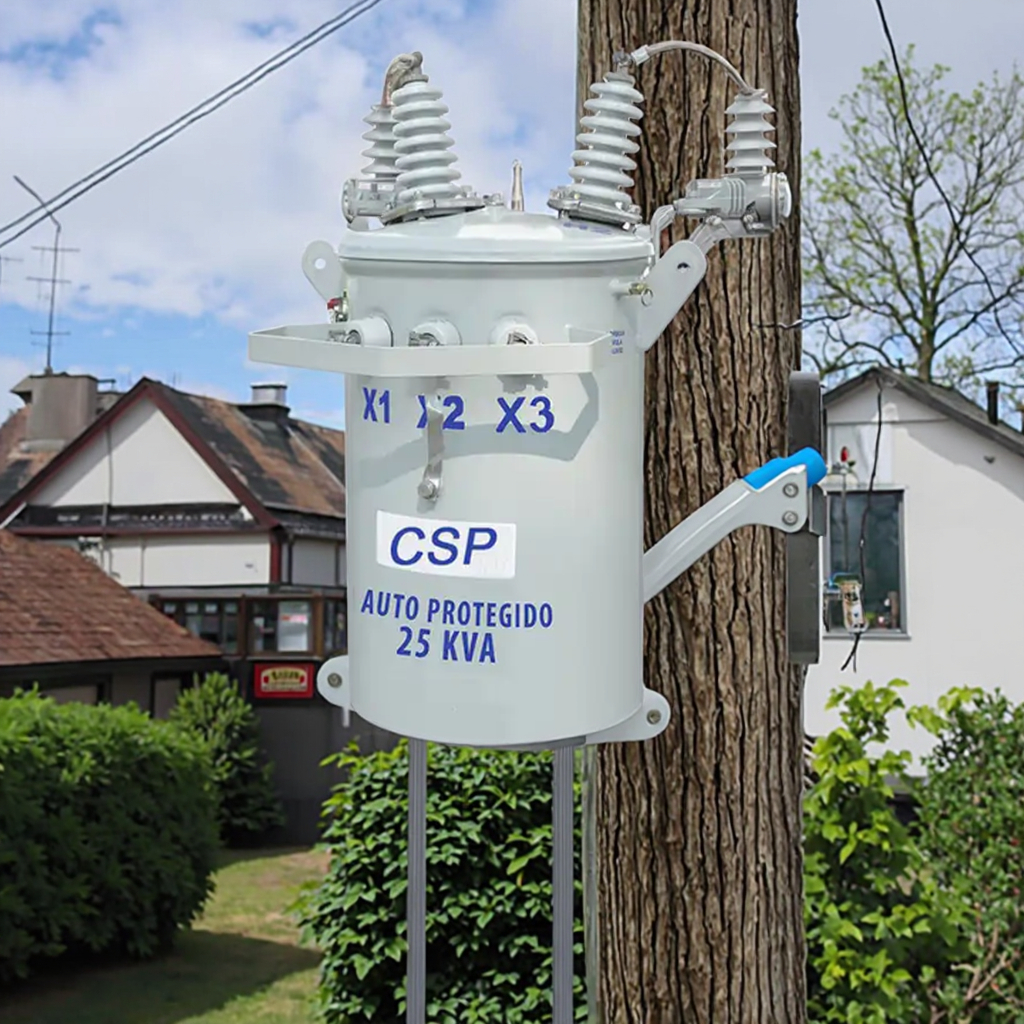

Commonly mounted directly on wooden or concrete poles, these single-phase cylinders are ideal for multi-scenario applications such as residential overhead distribution and light commercial loads. Available configurations include conventional and CSP (Completely Self-Protected) types.

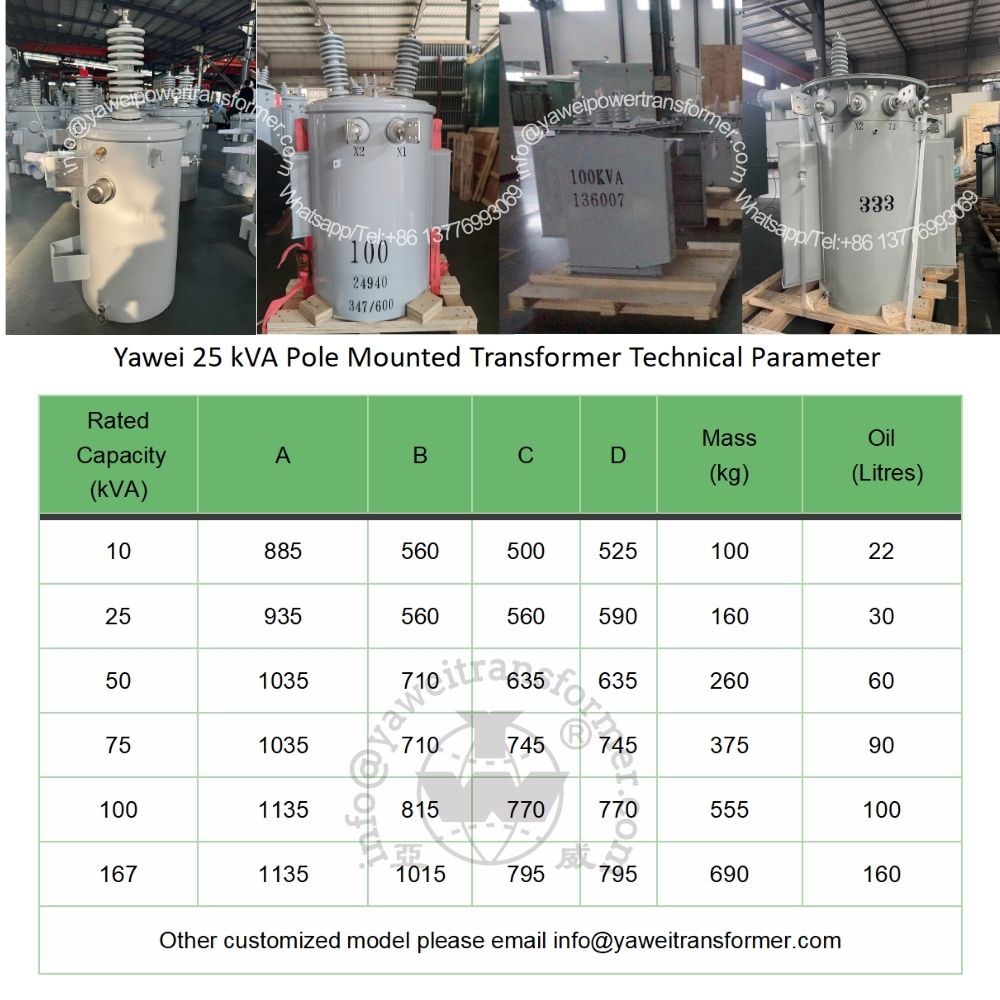

| Rated Capacity (kVA) | A (mm) | B (mm) | C (mm) | D (mm) | Mass (kg) | Oil (litres) |
|---|---|---|---|---|---|---|
| 10 | 885 | 560 | 500 | 525 | 100 | 22 |
| 25 | 935 | 560 | 560 | 590 | 160 | 30 |
| 50 | 1035 | 710 | 635 | 635 | 260 | 60 |
| 75 | 1035 | 710 | 745 | 745 | 375 | 90 |
| 100 | 1135 | 815 | 770 | 770 | 555 | 100 |
| 167 | 1135 | 1015 | 795 | 795 | 690 | 160 |

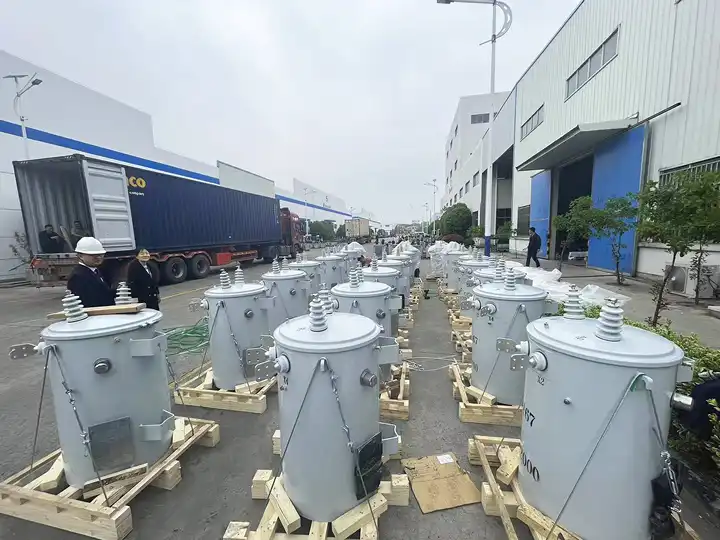

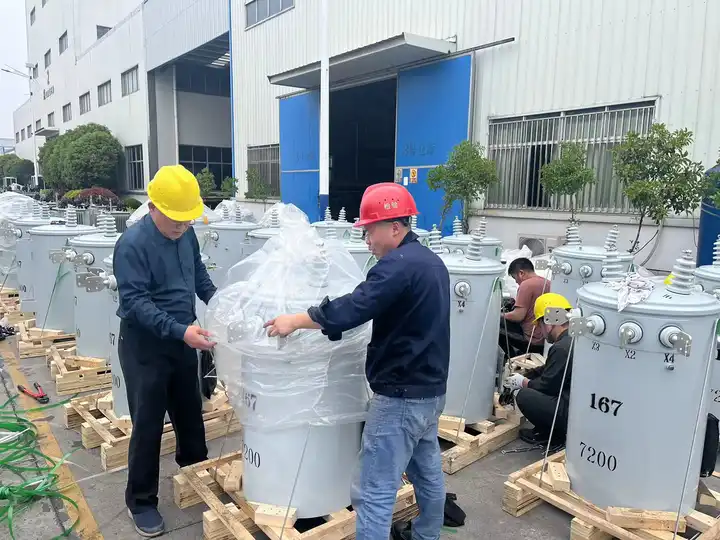

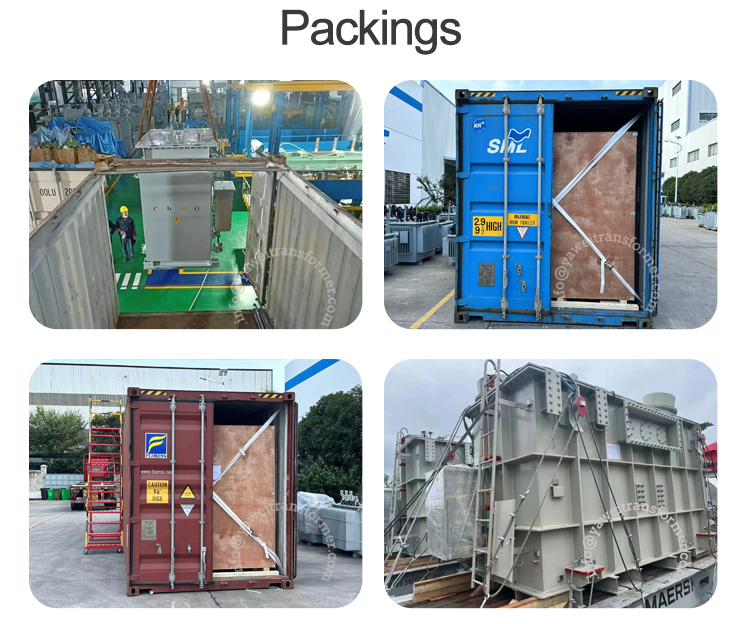

Packaging options include wooden cases or nude packing according to specific requirements. We strictly adhere to international standards for reinforcement and marking to ensure safe transit.

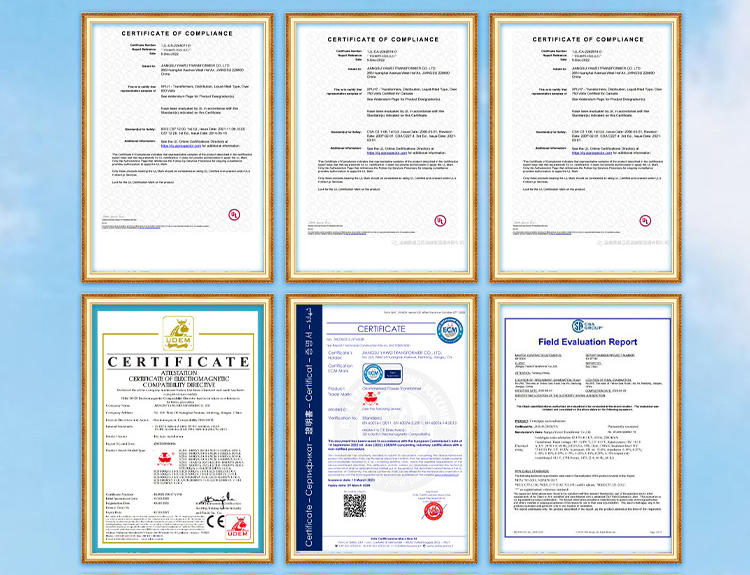

UL for North-America, UDEM and ECM for Europe, SA, CQS, CNAS certificates, and more.

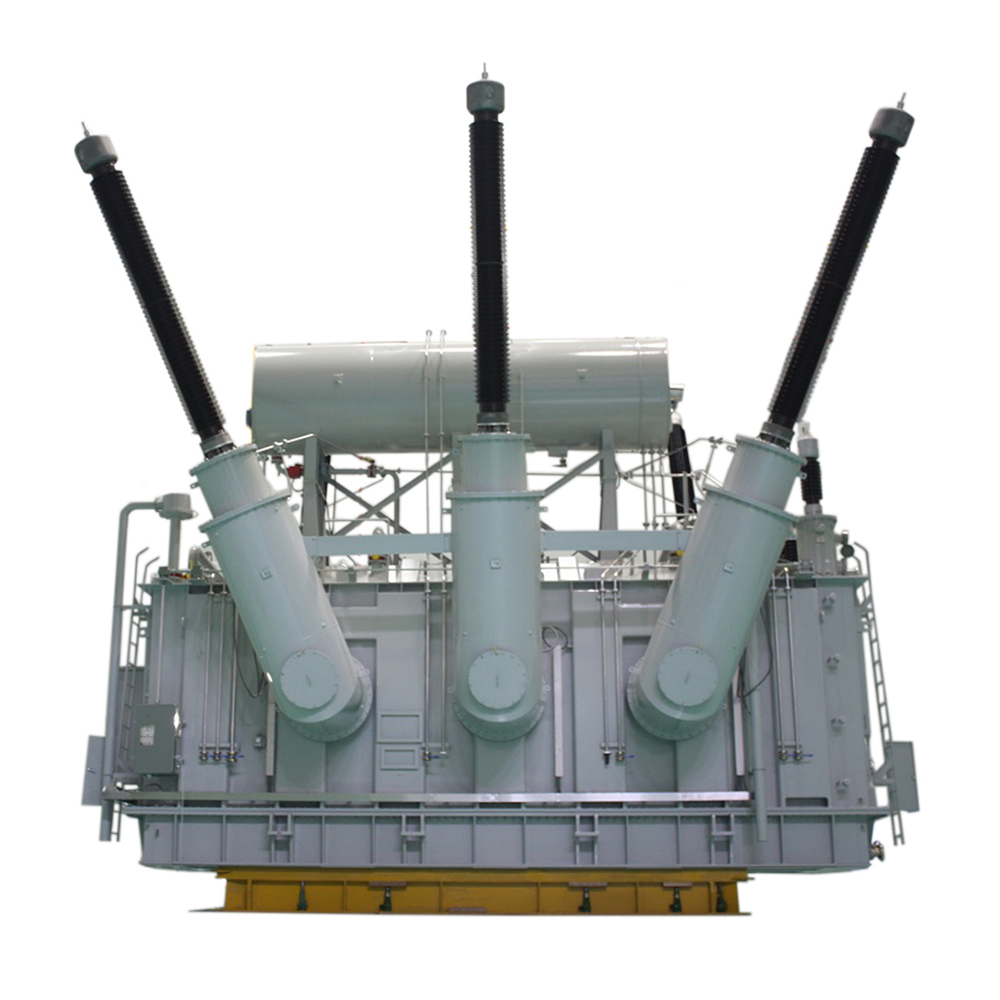

Power Transformer

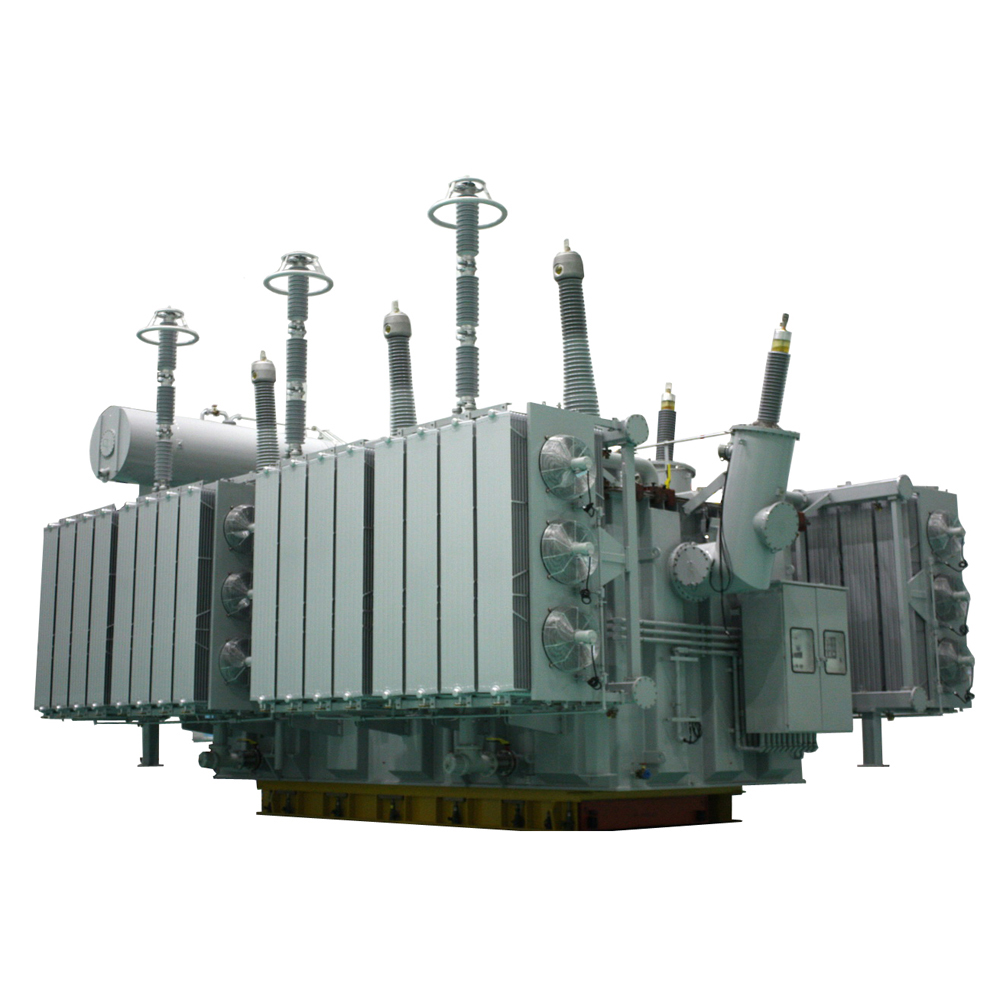

Customized Transformer
Three Phase Pad-mounted

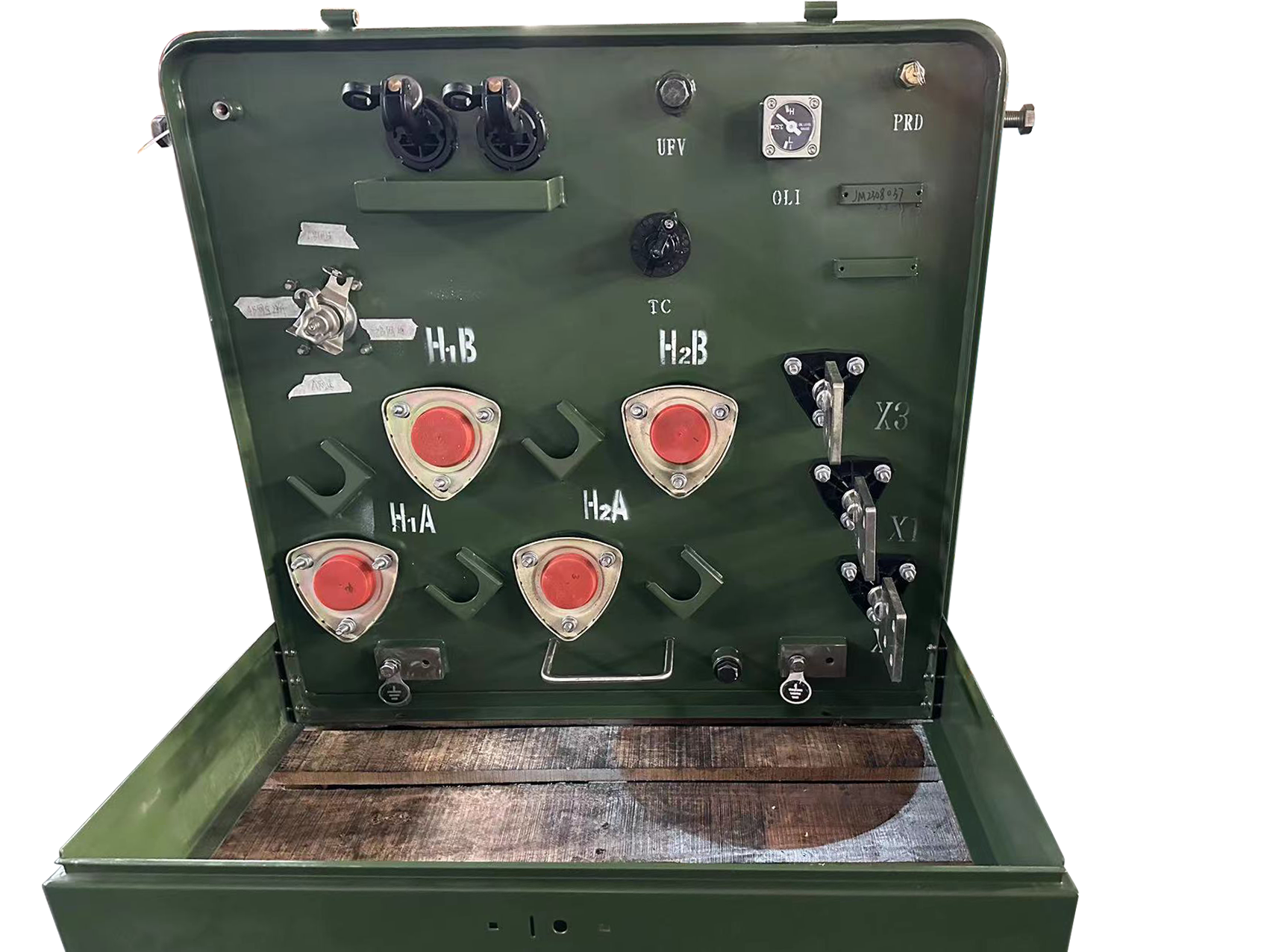

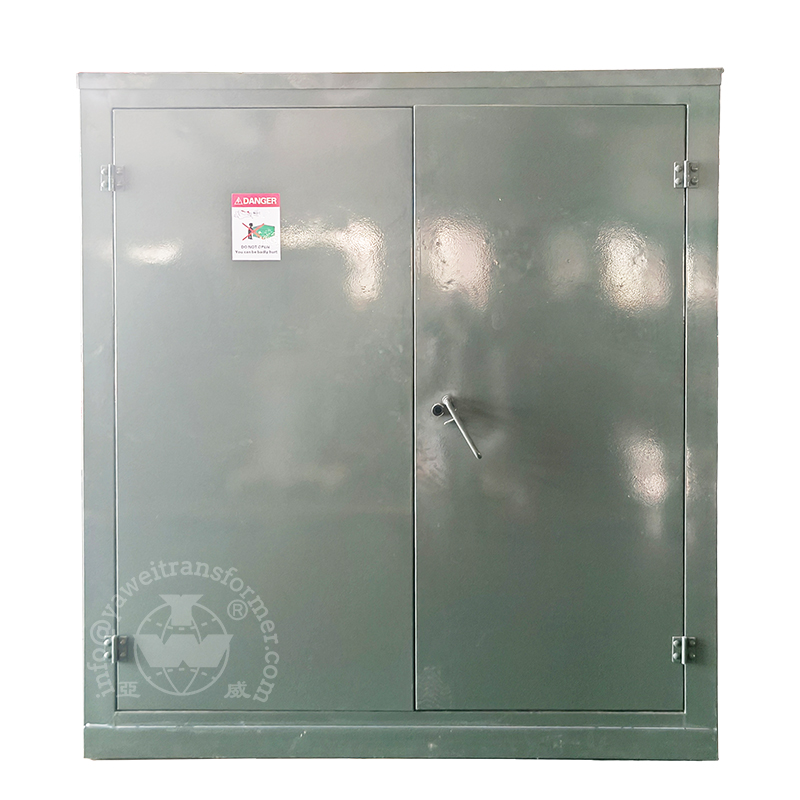

Single Phase Pad-mounted

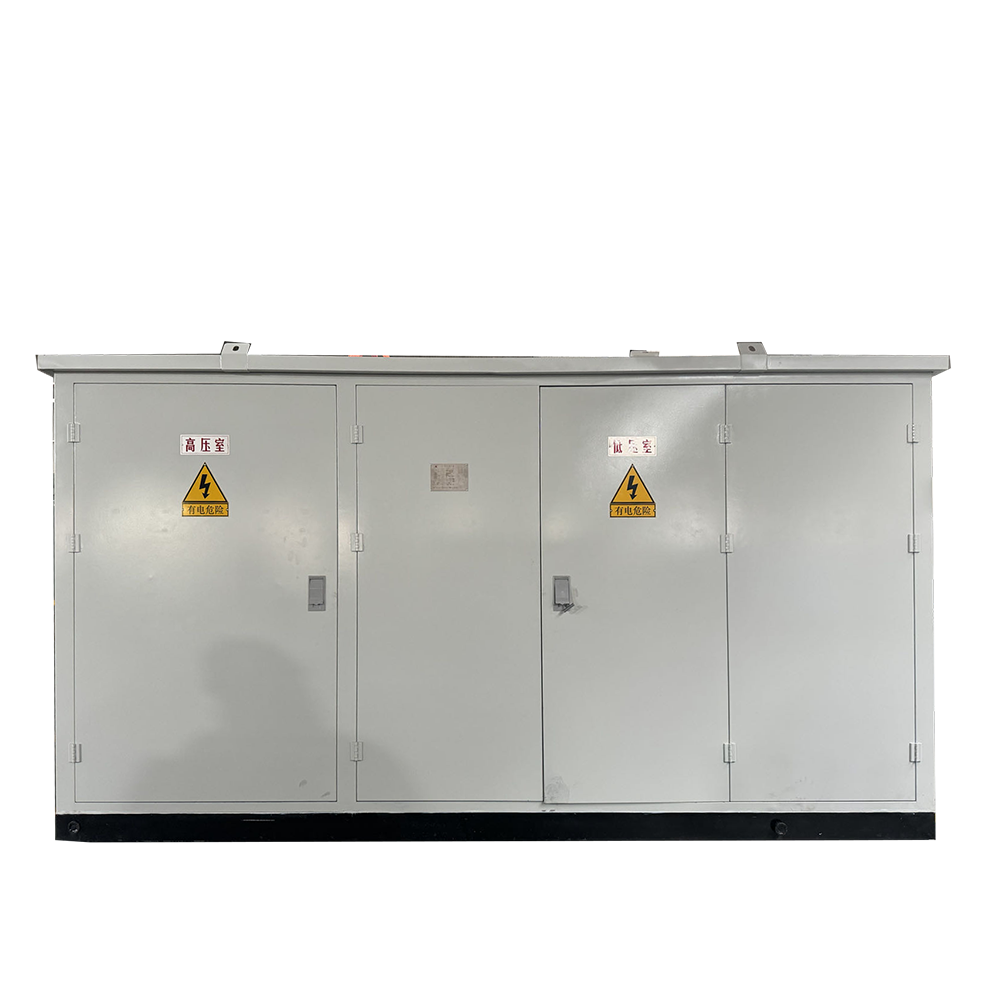

Compact Transformer

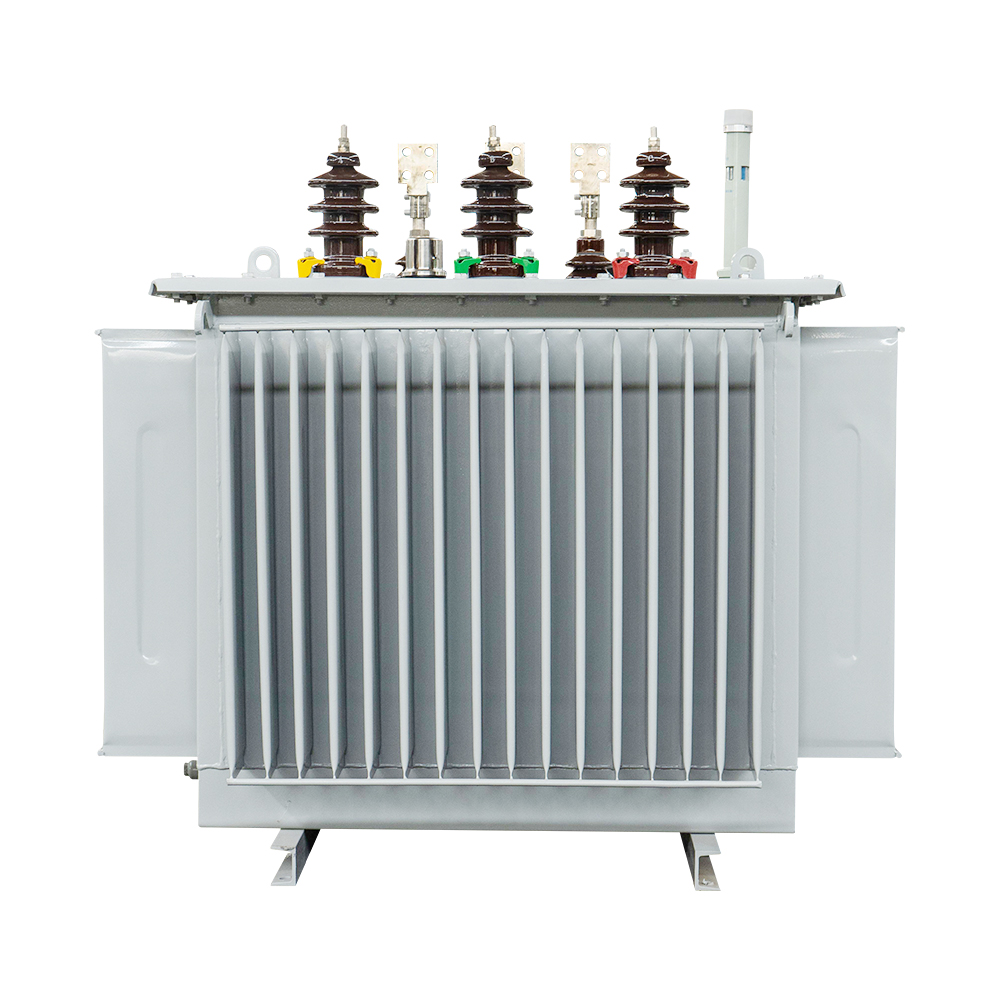

Oil Immersed Transformer
Seeking an OEM/ODM supplier or a professional power transformer factory in China? We offer competitive pricing, low MOQ, and fully customized solutions to meet your program requirements while saving time and trouble.
A: Our single-phase pole-mounted transformers are available in power ratings up to 333 kVA with high voltage ratings up to 34.5 kV.
A: Our products are designed and tested according to ANSI/IEEE, CSA, and IEC 60076 standards, ensuring global compatibility and safety.
A: Conventional transformers require external protection, while CSP (Completely Self-Protected) types include internal components like circuit breakers and surge arresters for enhanced safety.
A: Yes, we provide full OEM and ODM services. Our technical team can customize electrical and mechanical specifications to meet your unique project needs.
A: Our transformers typically come with at least a two-year warranty, backed by over 20 years of manufacturing and export experience.
A: We use a high-performance paint system that meets or exceeds the IEEEC57.12.28 Standard, including rigorous salt spray testing for durability in harsh environments.
