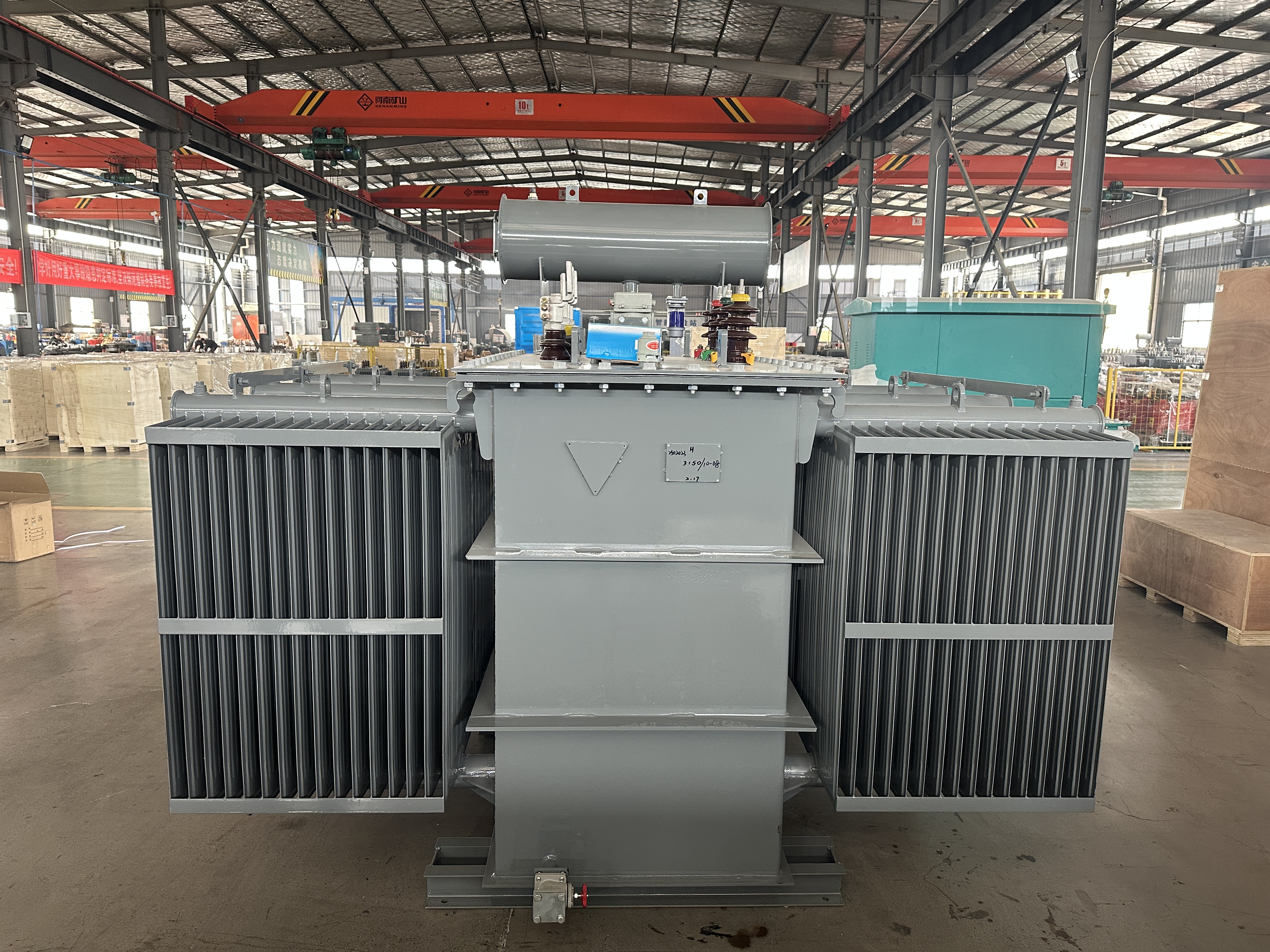

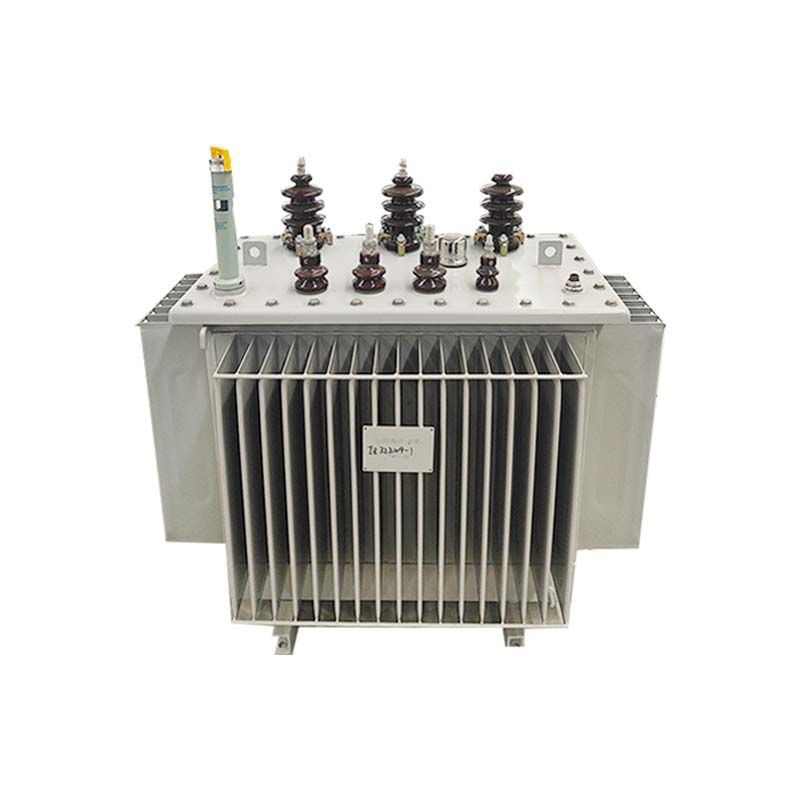

High Voltage Three Phase MV&HV Transformers 10KV 440V 110V 380V 220V 6KV 480V 400V Pole Mounted Distribution Transformers

Product Description

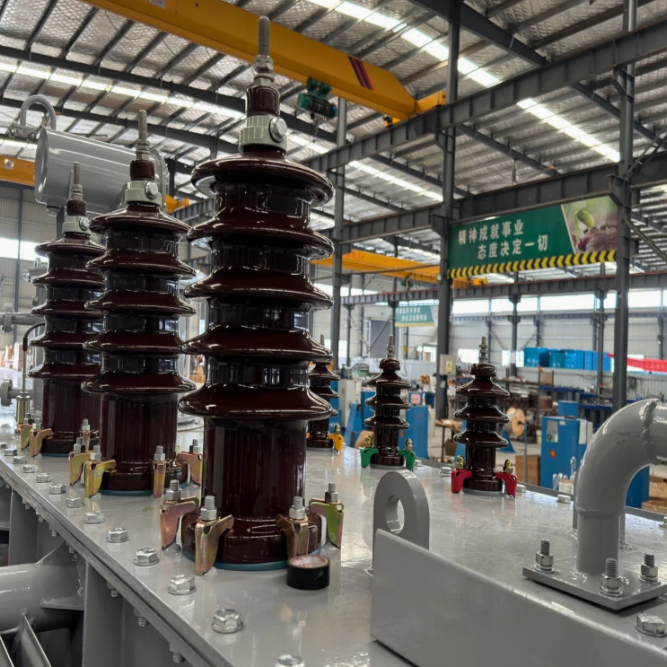

Power Transformer Image 1

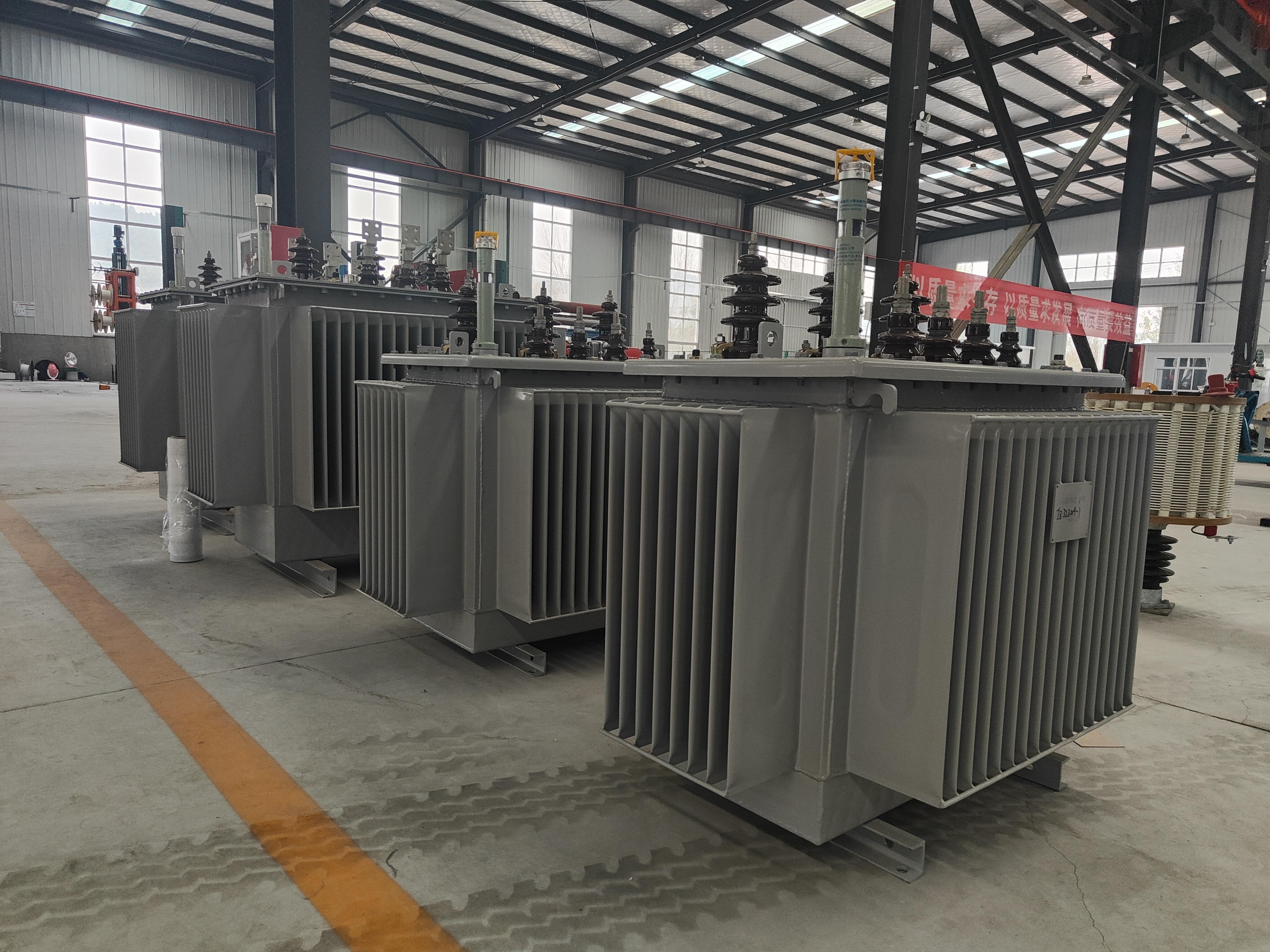

Power Transformer Image 2
📊 Technical data of S11 series 10KV low-loss and non-exciting regulation power transformer
Rated capacity (KVA) Rated voltage (KV) Vector group No-load loss (W) 75℃ Load-loss (W) No-load current (%) Short-circuit impedance (%)
HV Tapping ranges LV
306, 6.3, 10, 10.5, 11±5%, ±2*2.5%0.4Yyno/Dyn11100630/6002.34.0
50Yyno/Dyn11130910/8702.04.0
100Yyno/Dyn112001580/15001.84.0
250Yyno/Dyn114003200/30501.44.0
630Yyno/Dyn1181062001.14.5
1000Yyno/Dyn111150103001.04.5
1600Yyno/Dyn111640145000.84.5
📊 Technical data of S9 series 10KV Low-loss and non-exciting regulation power transformer
Rated capacity (KVA) Voltage Combined Vector group No-Load loss (W) 75℃ Load-loss (W) No-load current (%) Short-circuit impedance (%)
HV (KV) Tapping ranges LV (KV)
306, 6.3, 10, 10.5, 11±5%, ±2*2.5%0.4Dyn11/Yyn0130630/6002.34.0
100Dyn11/Yyn02901580/15001.84.0
500Dyn11/Yyn09605410/51501.24.0
800Dyn11/Yyn0140075001.04.5
1600Dyn11/Yyn02400145000.84.5
💎 Technical Data Sheet for SH15 Series 10KV Grade Amorphous Alloy Transformers
Rated capacity (KVA) Rated voltage (KV) Vector group No-load loss (W) 75℃ Load-loss (W) No-Load current (%) Short-circuit Impedance (%)
HV Tapping ranges LV
306, 6.3, 10, 10.5, 11±5%, ±2*2.5%0.4Yyno/Dyn11306001.74.0
100Yyno/Dyn117515001.04.0
500Yyno/Dyn1124051500.54.0
1000Yyno/Dyn11450103000.36.0
2500Yyno/Dyn11800172700.16.0

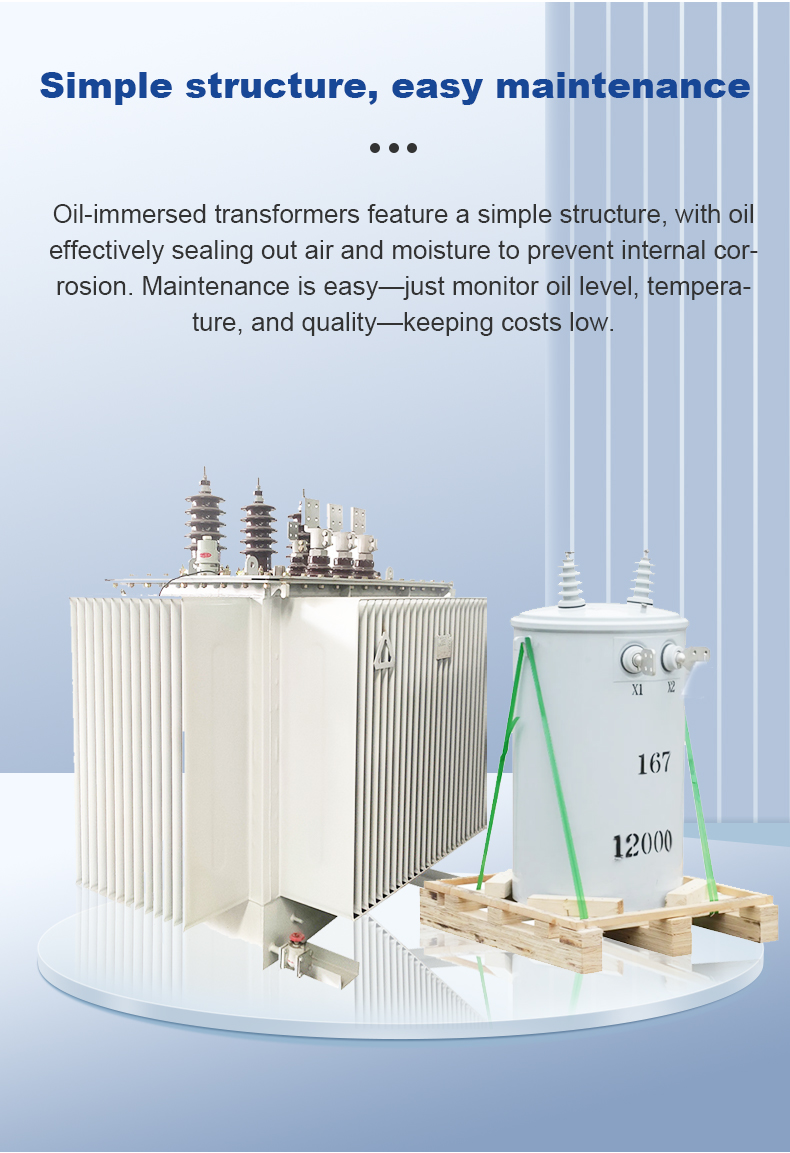

Product Image 1

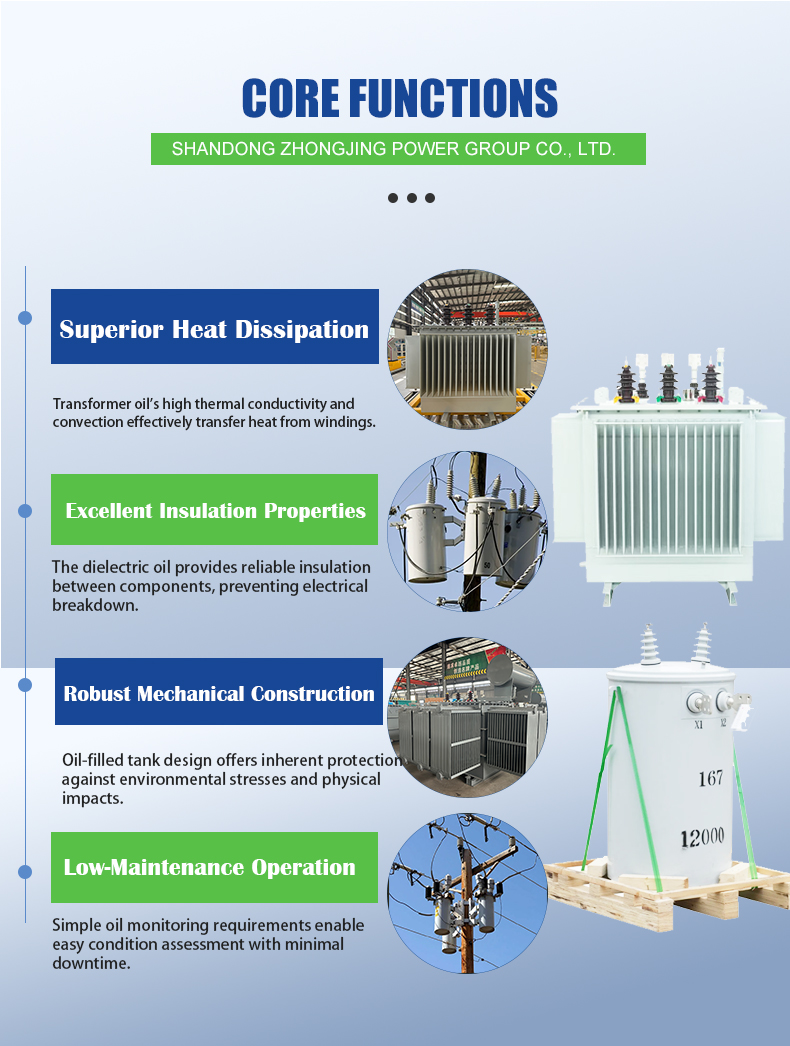

Product Image 2
Product Image 3
Product Image 4
Product Image 5
Product Image 6
Product Image 7
Product Image 8
Product Image 9
Product Image 10
Frequently Asked Questions
Q1: What is your manufacturing capability?
We are a large professional manufacturer of oil-immersed transformers, dry-type transformers, reactors, transformer substations, and HV/LV switchgear. We are an excellent supplier for major power corporations.
Q2: Why should we choose your products over other suppliers?
We specialize in transformer production for 20 years and hold certifications including ISO9001-2008, OHSAS 18001:2007, ISO4001:2004, CE, CCC, UL, CSA, and various TYPE TEST REPORTS.
Q3: Can the transformers be customized?
Yes. Considering the differences in voltage, frequency, and other specifications across different countries and regions, our products can be customized according to your specific requirements.
Q4: What is the product guarantee period?
We offer at least a two-year guarantee for all of our transformer products.
Q5: What is the standard delivery lead time?
It depends on your specific requirements and quantity. Generally, the delivery lead time is between 7 to 15 working days.
Q6: What are your payment and after-sales terms?
We accept 30% T/T in advance and 70% before shipment. West Union and L/C are also acceptable. We provide after-sale installation guides and question inquiry services.
