IEC ANSI 10kV 240v 15KVA 25KVA 50/60 HZ Pole Mounted Distribution Transformer Remote Mountainous Areas

Send Inquiry

Product Description

⚡ Transformer Introduction

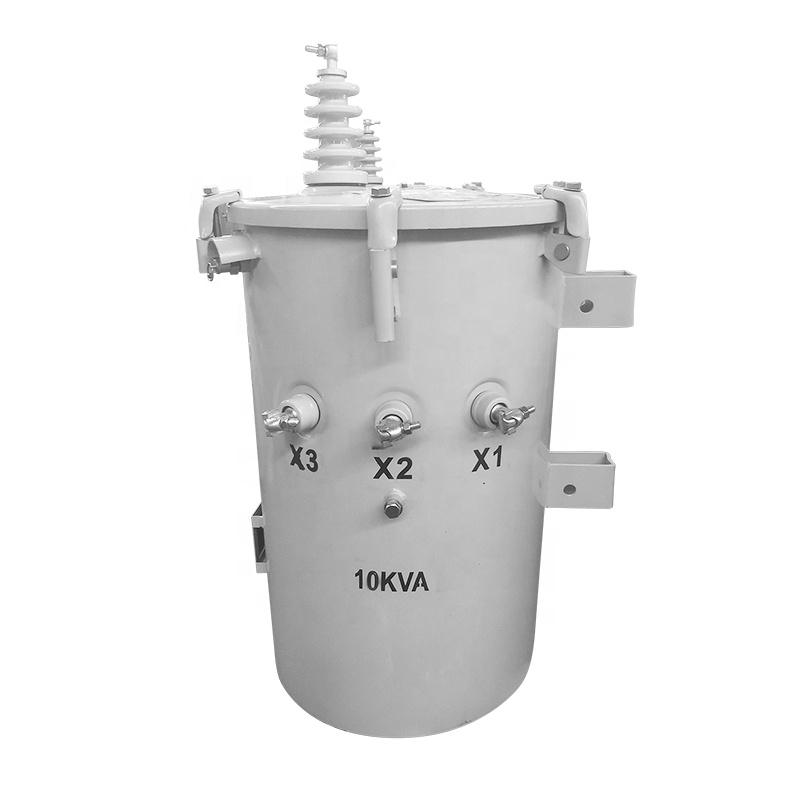

Single Phase Pole Mounted Distribution Transformer

Technical Description:

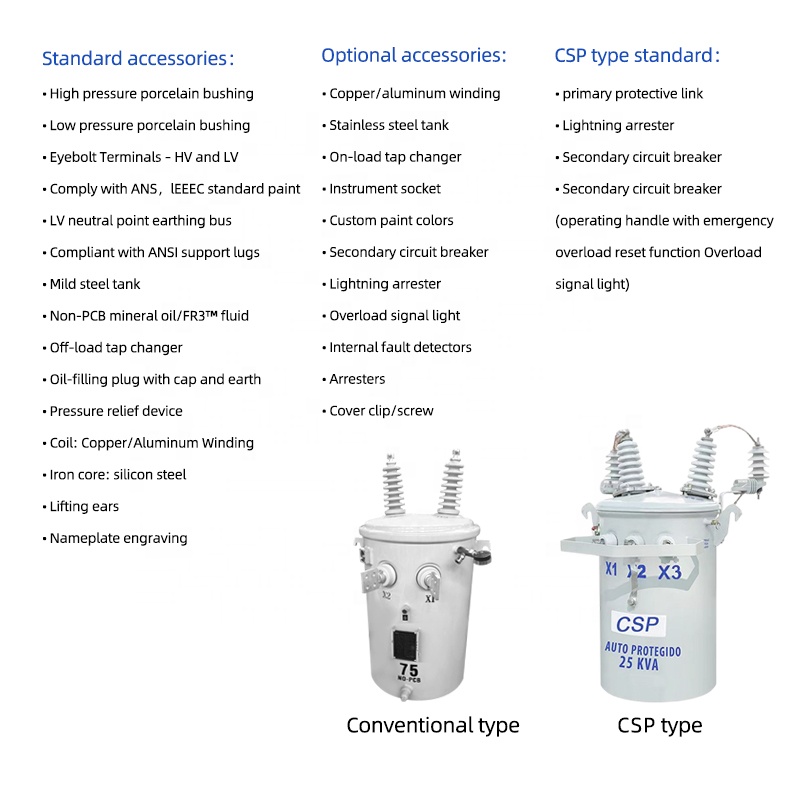

Type: Conventional type / CSP type

Rated Power: up to 333 kVA

Primary Voltage: up to 34.5 kV

Secondary Voltages: up to 500 V

Standards: IEEE / ANSI / CSA / IEC / DOE

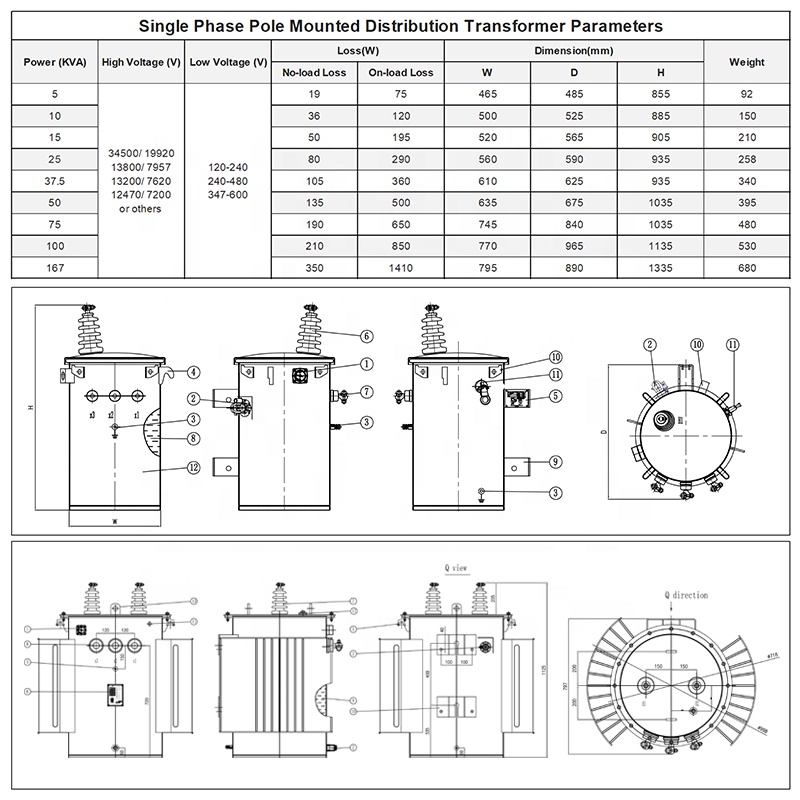

📊 Technical Data For Single Phase Pole Mounted Transformer (Conventional Type)

Rated Power	High Voltage	Low Voltage	No Load Losses (W)	On Load Losses (W)	Weight (kg)
10kVA	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V-600V	36	120	150
15kVA			50	195	210
25kVA			80	290	258
37.5kVA			105	360	340
50kVA			135	500	395
75kVA			190	650	480
100kVA			210	850	583
167kVA			350	1410	680

📊 Technical Data For Single Phase Pole Mounted Transformer (CSP Type)

Rated Power	High Voltage	Low Voltage	No Load Losses (W)	On Load Losses (W)	Weight (kg)
10kVA	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V-600V	50	120	150
15kVA			65	195	205
25kVA			105	290	245
37.5kVA			140	360	335
50kVA			180	500	370
75kVA			250	650	505

🏭 Facility & Production

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional transformer manufacturer with more than 20 years of experience, supporting both OEM and ODM requirements.

Which markets do you mostly export to?

We export to more than 20 countries across South America, North America, Europe, the Middle East, and Africa.

What certificates and standards do your products meet?

We hold ISO9001-2008, OHSAS 18001:2007, and ISO4001:2004L certificates. Our products comply with IEC, ANSI, KEMA, and GOST standards.

How long is the typical delivery time?

Once the plan is determined, production and shipping are typically completed within 20 days, depending on the order quantity.

What are the standard packaging options?

Our standard packaging includes wooden pallets, wooden frames, or wooden boxes. Custom packaging solutions are also available upon request.

What payment methods and currencies are supported?

We support USD and CNY currencies. Accepted payment types include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
