| Capacity (KVA) | High Voltage (KV) | Low Voltage (V) | Loss(W) | Weight(KG) | Height | |
|---|---|---|---|---|---|---|
| No-load Loss | On-load Loss | |||||
| 10 | 6KV/6.3KV/10KV/ 10.5KV/11KV/13.2KV |
120V 240V 480V 347V 600V | 19 | 75 | 161 | 940 |
| 15 | 36 | 120 | 199 | 940 | ||
| 25 | 50 | 195 | 266 | 970 | ||
| 37.5 | 80 | 290 | 313 | 990 | ||
| 50 | 105 | 360 | 375 | 1040 | ||
| 75 | 135 | 500 | 408 | 1060 | ||
| 100 | 190 | 650 | 484 | 1060 | ||
| 167 | 210 | 850 | 741 | 1080 | ||
| 250 | 350 | 1410 | 845 | 1150 | ||

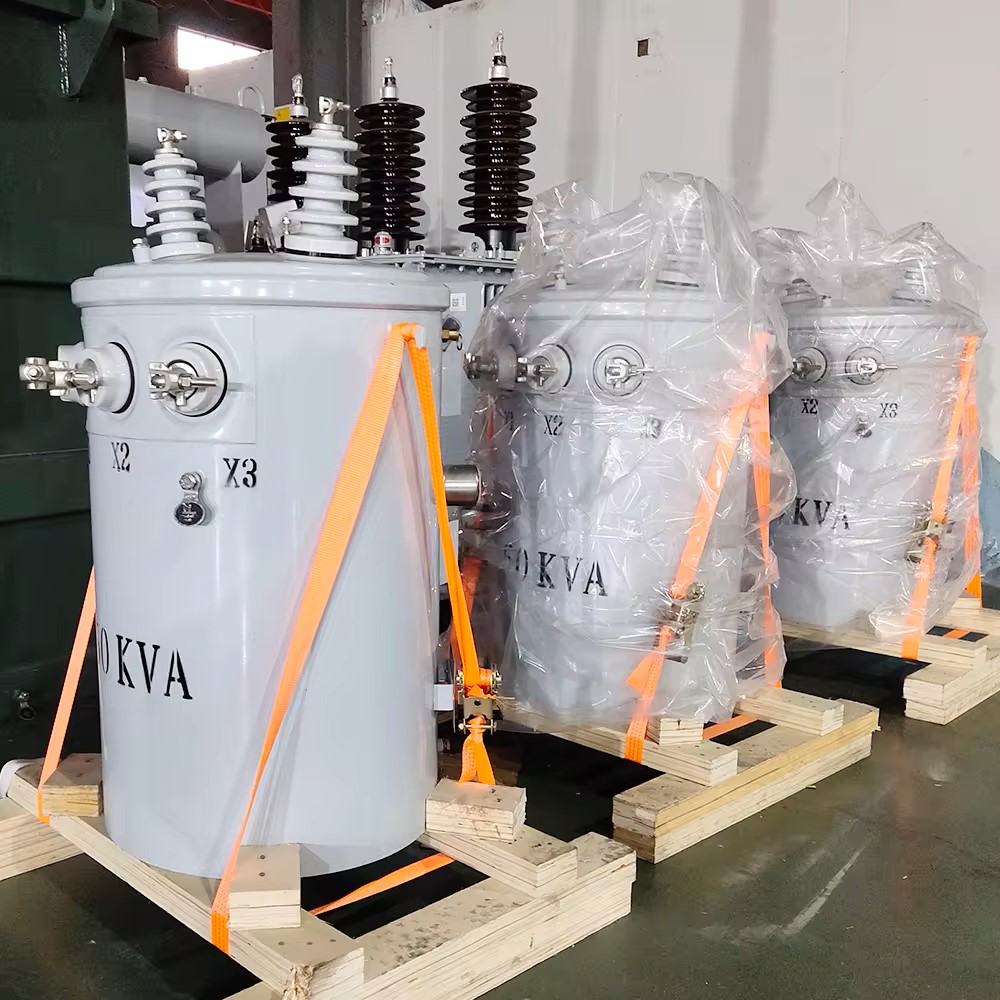

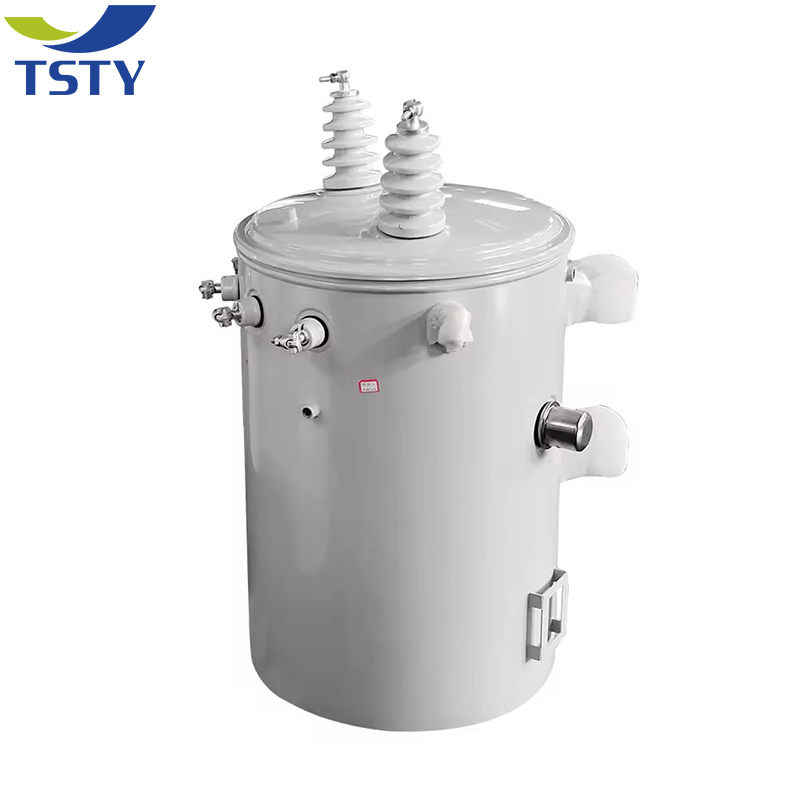

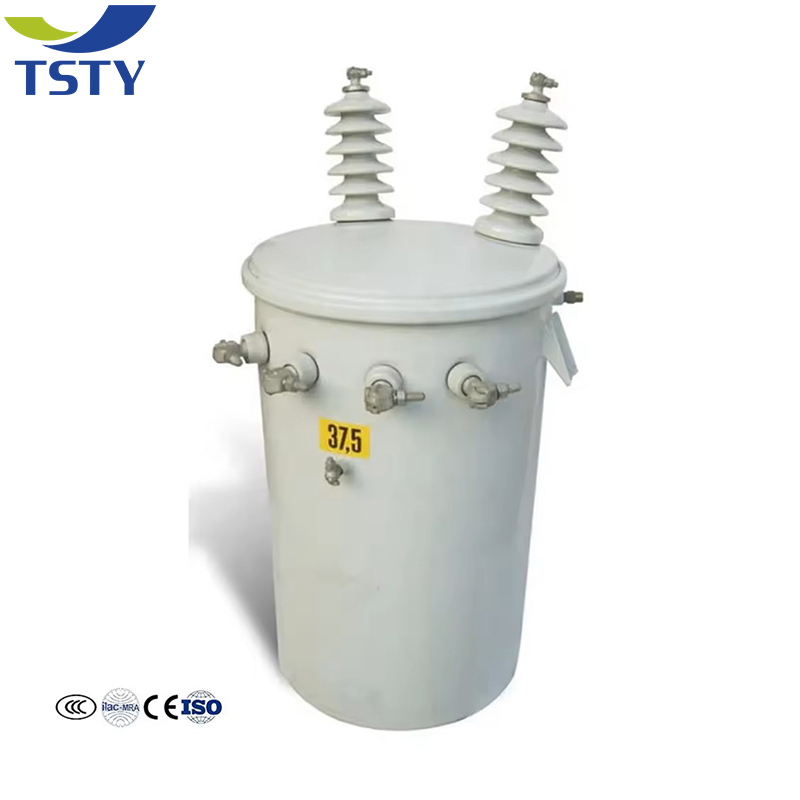

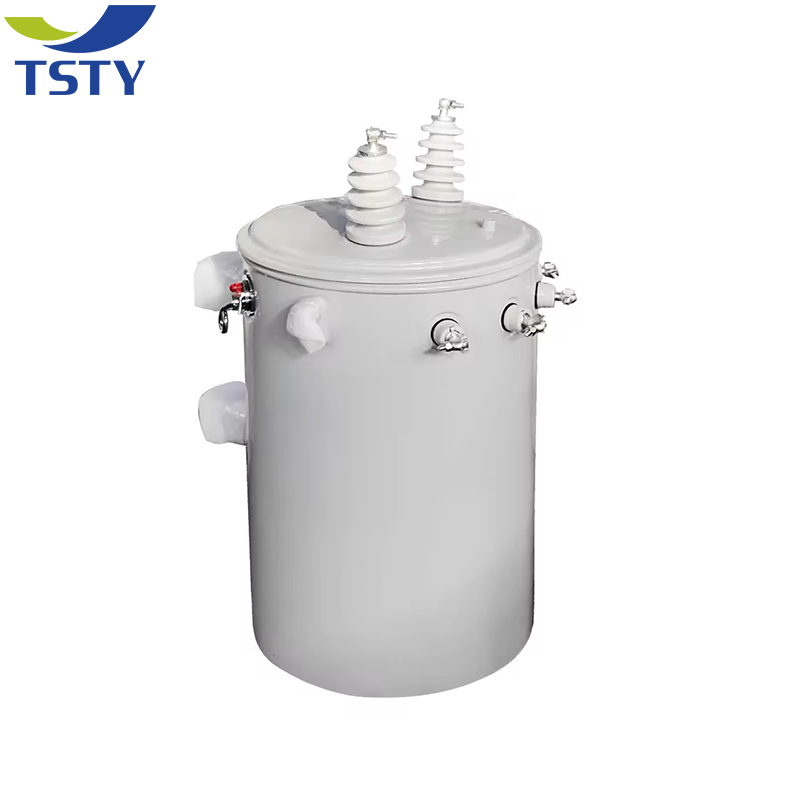

Single-phase pole-mounted transformers are primarily designed for servicing residential overhead distribution loads. They are also highly suitable for light commercial loads, industrial lighting, and various diversified power configurations.
Yes, these units can be used alone to supply a single-phase load, or they can be grouped as one of three units in a bank (cluster-mounted on a pole) to supply a three-phase load configuration.
The transformer units are engineered for convenient overhead installation and can be direct-mounted to either a wooden or a concrete utility pole, as well as cluster-mounted for multi-unit requirements.
They support a wide range of standard high voltages including 6KV, 6.3KV, 10KV, 10.5KV, 11KV, and 13.2KV, with secondary low voltage options such as 120V, 240V, 480V, 347V, and 600V.
Standard capacities span across multiple specifications to suit different load densities, including 10 KVA, 15 KVA, 25 KVA, 37.5 KVA, 50 KVA, 75 KVA, 100 KVA, 167 KVA, and up to 250 KVA.
The transformers are optimized through precise core and coil designs, resulting in low no-load and on-load losses as detailed in the technical specification documentation, ensuring overall power distribution efficiency.
