Factory Sell Single Phase Pole Mounted Oil Power Transformer 75 kVA 50 kVA

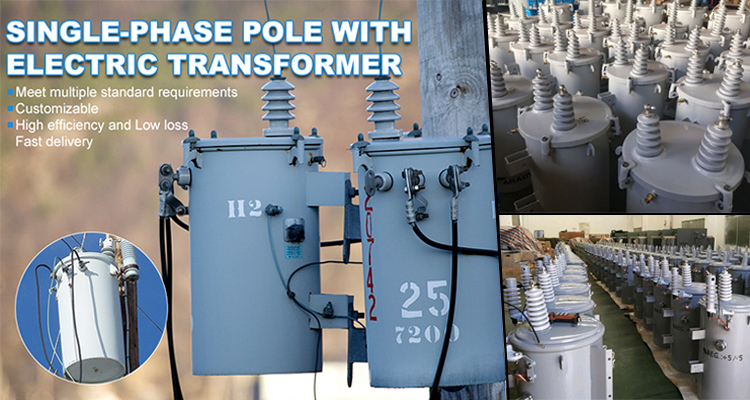

Products Description
Single phase pole mounted transformers are normally used for stepping utility distribution voltages (from 2400V to 34500V) down to lower utilization voltages. Although some are used for stepping down to commercial and industrial voltages such as 277V, 240/480V, 2400V and 4800V, most are used for stepping down to the single phase voltage of 120/240V.
These transformers also used for small substation, miscellaneous applications and can serve to step up voltages. Two main types are produced: single phase pole mounted conventional transformer and completely self protected (CSP) transformer. Power rating up to 167kVA.
The production fully complies with or even exceeds international standards such as ANSI/IEEE, CSA, and DOE. These units have UL/cUL, CSA, IEEE and other certificates and are exported globally in large quantities.
Certifications
Single phase transformers hold UL/cUL, CSA, CESI, and IEEE certifications. In addition, they have SGS, CSA and other third-party inspection reports to ensure global quality compliance.
Local After-sales Service
Complete after-sales service and installation teams provide 24 hours of technology and consulting services. There are local cooperation teams with rich experience in power engineering for timely services.
Transformer Solutions
Providing the best solution for power projects such as mines, factories, and renewable energy power generation (wind power, solar power and BESS, etc.).
Customization Service
Professional engineering teams proficient in various international standards can design and produce according to your specific requirements and technical parameters.
High Quality & Fast Delivery
Strict quality control systems ensure high quality. UL third-party agencies conduct inspections every three months. Production time for conventional distribution transformers is 6-8 weeks.
Product Range Showcase

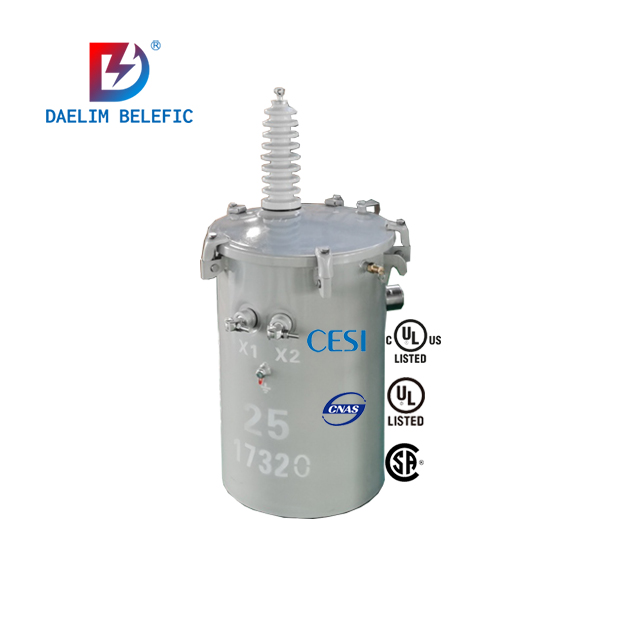

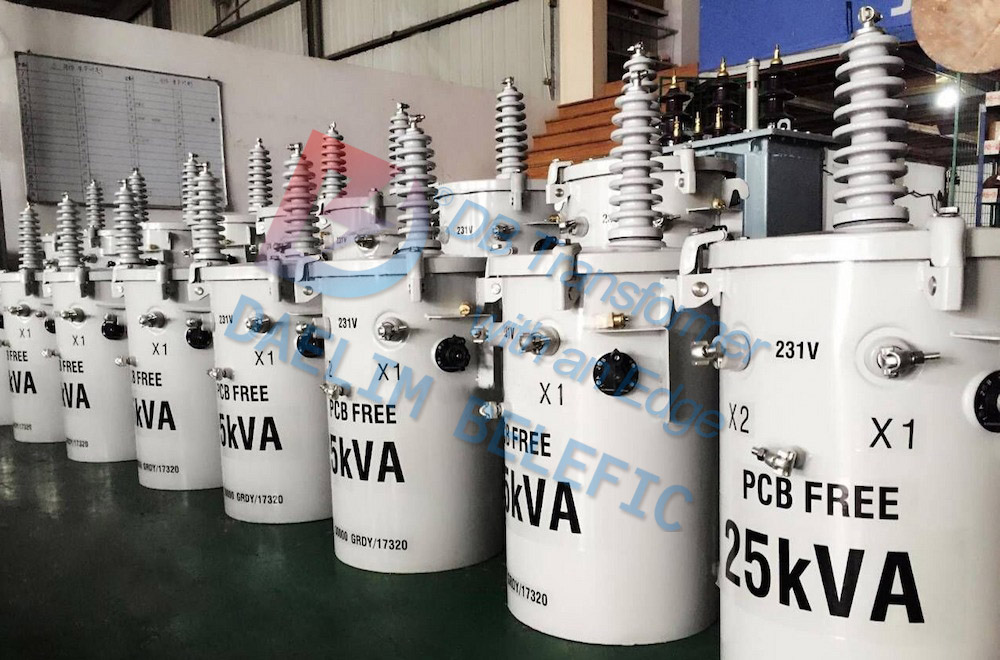

25kVA Single Phase Transformer
50kVA Single Phase Transformer

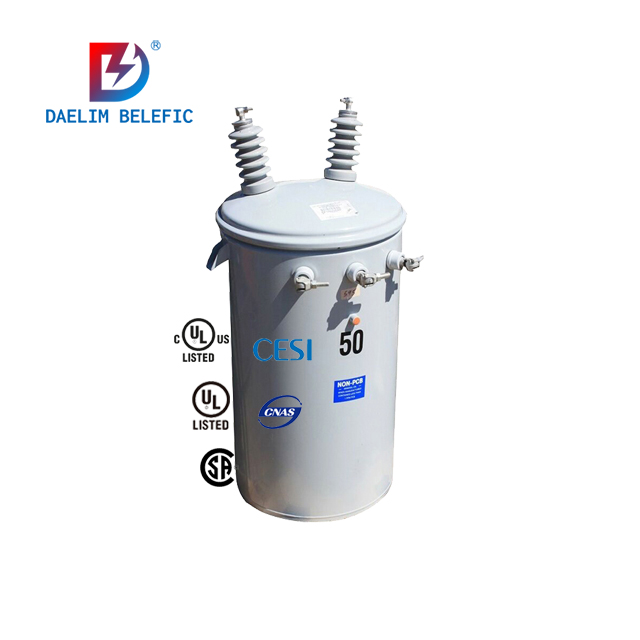

75kVA Single Phase Transformer

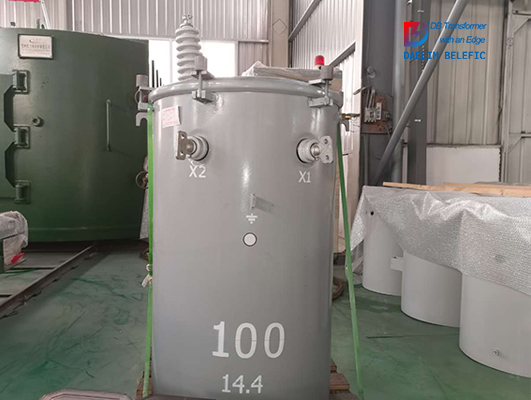

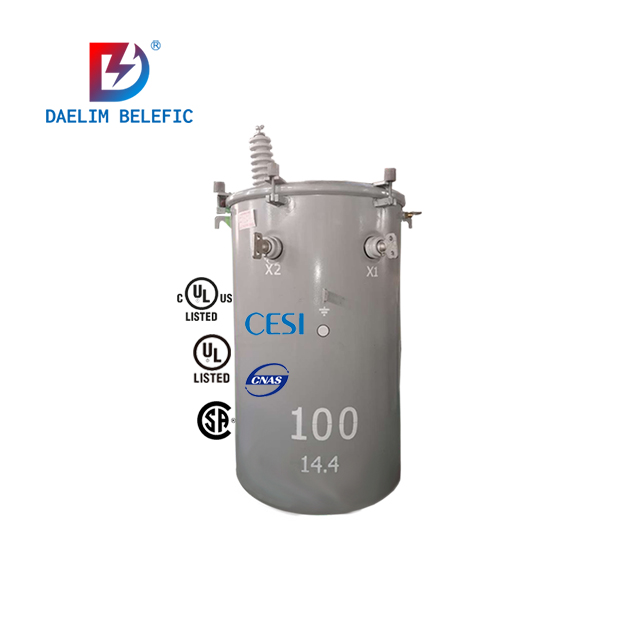

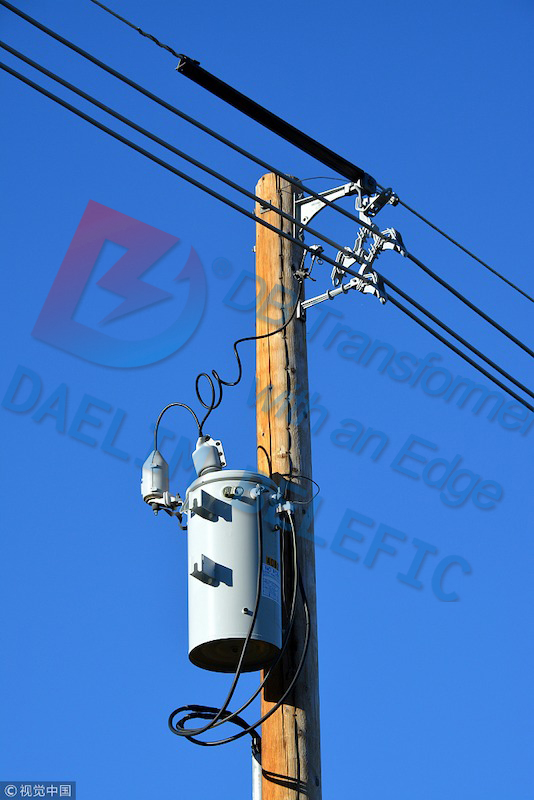

100kVA Pole Mounted Transformer

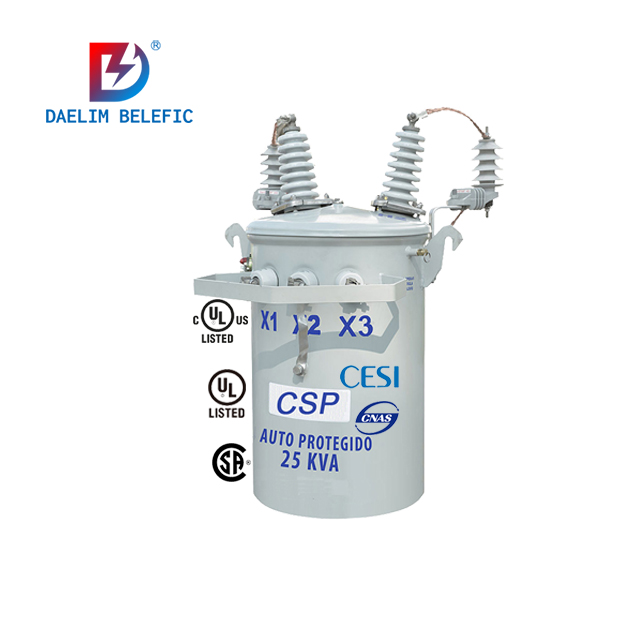

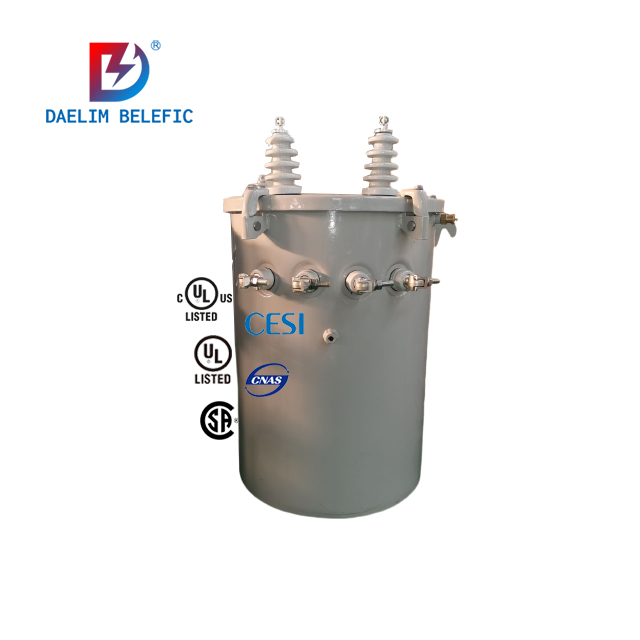

CSP Single Phase Transformer

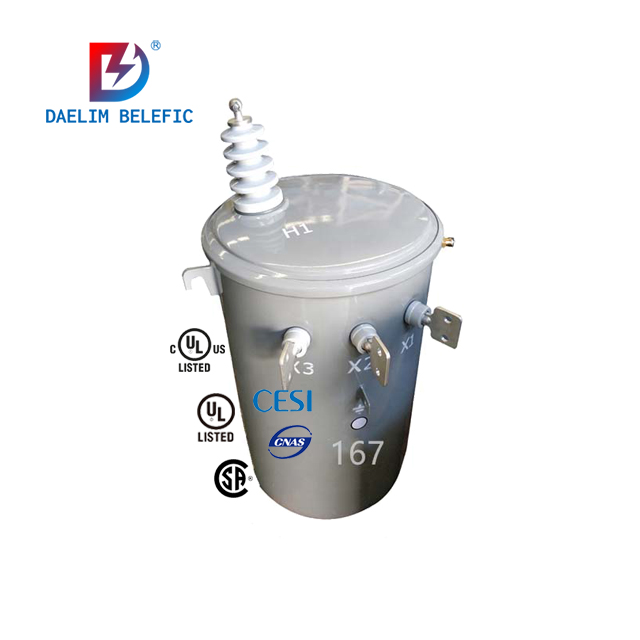

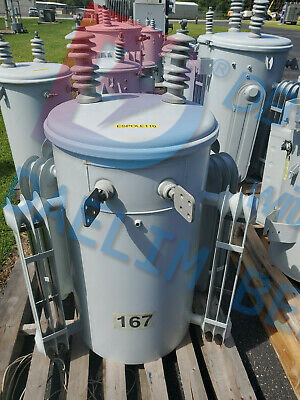

167kVA Transformer

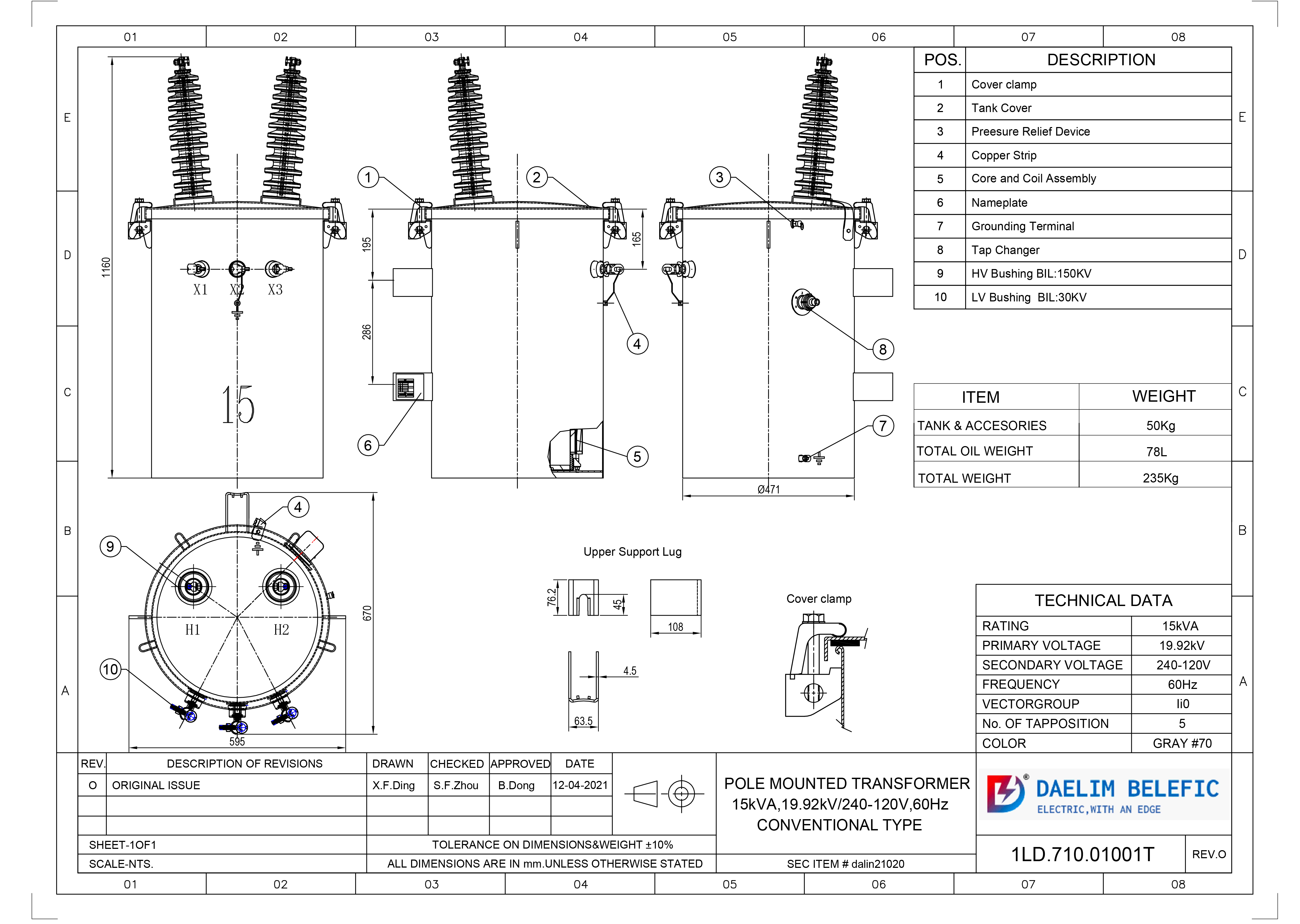

Technical Specifications
| Technical Data For Single Phase Pole Mounted Transformer (Conventional Type) |
| Rated Power |
High Voltage |
Low Voltage |
No Load Loss(w) |
On Load Loss(w) |
Weight(kg) |
| 10kVA | 34500/19920V
13800/7957V
13200/7620V
12470/7200V | 120-240V
240-480V
347V
600V | 36 | 120 | 150 |
| 15kVA | 50 | 195 | 210 |
| 25kVA | 80 | 290 | 258 |
| 37.5kVA | 105 | 360 | 340 |
| 50kVA | 135 | 500 | 395 |
| 75kVA | 190 | 650 | 480 |
| 100kVA | 210 | 850 | 583 |
| 167kVA | 350 | 1410 | 680 |
| Technical Data For Single Phase Pole Mounted Transformer (CSP Type) |
| Rated Power |
High Voltage |
Low Voltage |
No Load Loss(w) |
On Load Loss(w) |
Weight(kg) |
| 10kVA | 34500/19920V
13800/7957V
13200/7620V
12470/7200V | 120-240V
240-480V
347V
600V | 50 | 120 | 150 |
| 15kVA | 65 | 195 | 205 |
| 25kVA | 105 | 290 | 245 |
| 37.5kVA | 140 | 360 | 335 |
| 50kVA | 180 | 500 | 370 |
| 75kVA | 250 | 650 | 505 |
Standard Features & Accessories
Quality System ISO 9001 certified. Meets DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards.
- Lifting lugs
- Arrester mounting pads

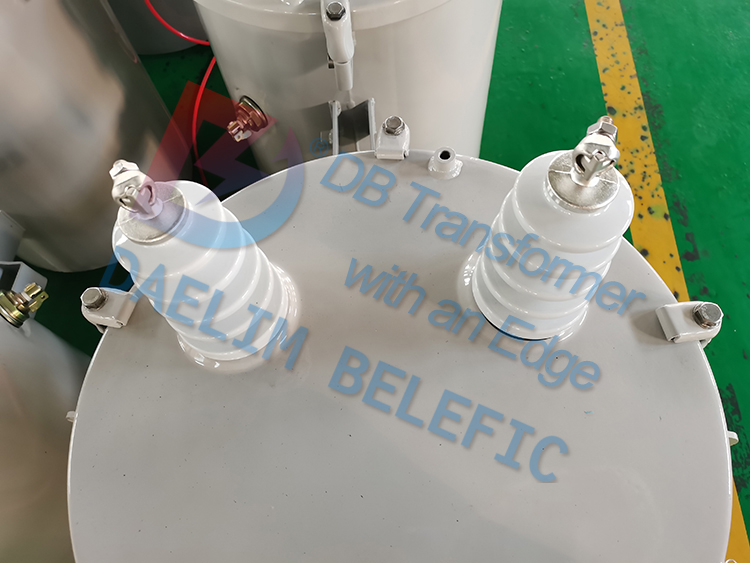

- Cover-mounted high voltage porcelain bushings
- Low voltage bushings with eyebolt terminals
- ANSI support lugs (hanger brackets)
- Polyester insulated cover
- Self-venting and resealing cover assembly
- Core/Coil assembly support brackets
- Oil fill plug with cover ground strap
- Tank ground pad
CSP Unit Additional Features
- Primary protective link (mounted in high voltage bushing)
- Surge arrester
- Secondary circuit breaker
- Secondary breaker operating handle with emergency overload reset
Optional Accessories
- Surge Arrester
- Protective Link
- Current Limiting Fuse
- Low Voltage Circuit Breaker
- Circuit Breaker Emergency Control
- Signal Light
- Tap Changer
- Dual Voltage Switch
- Tank Pressure Relief
Transformer Testing
All transformers are tested in strict accordance with the latest revision of applicable ANSI, IEEE, CSA, DOE, NEMA, and AS standards. Routine tests include:
• Leak test
• Polarity and phase relation
• Resistance
• No-load losses and excitation current
• Load losses and impedance
• Applied and Induced voltage
• Full wave impulse and Ratio test
Design Performance Tests
* Temperature Rise: Ensures designs meet criteria via automated heat run facilities.
* Audible Sound Level: Compliance with NEMA requirements.
* Lightning Impulse: Sequences of chopped and full waves to simulate harsh conditions.
* Short-circuit capability, lifting and moving device tests available as specified.
Recommend Products
Substation transformer
HV transformer
Oil immersed transformer
Single phase pad mounted transformer
Single phase overhead transformer
Three phase pad mounted transformer
Frequently Asked Questions (FAQ)
Q: What is the primary application of a single phase pole mounted transformer?
A: They are primarily used to step down utility distribution voltages (2400V to 34500V) to lower utilization voltages, most commonly the single-phase voltage of 120/240V for residential and light commercial use.
Q: What is the difference between Conventional and CSP type transformers?
A: Conventional types require external protection, whereas CSP (Completely Self Protected) units include internal secondary circuit breakers, primary protective links, and surge arresters for built-in protection.
Q: What standards do these transformers comply with?
A: Our transformers meet or exceed international standards including ANSI/IEEE, CSA, and DOE energy efficiency standards, and carry UL/cUL certifications.
Q: Can these transformers be customized for specific project needs?
A: Yes, we offer full customization services where engineering teams can design and produce transformers based on specific technical parameters and regional requirements.
Q: What is the typical lead time for production?
A: For conventional power distribution transformers, the typical production time is approximately 6 to 8 weeks.
Q: What routine tests are performed before shipment?
A: Routine tests include leak tests, polarity/phase relation, resistance, no-load and load loss tests, applied/induced voltage tests, and full wave impulse tests.
