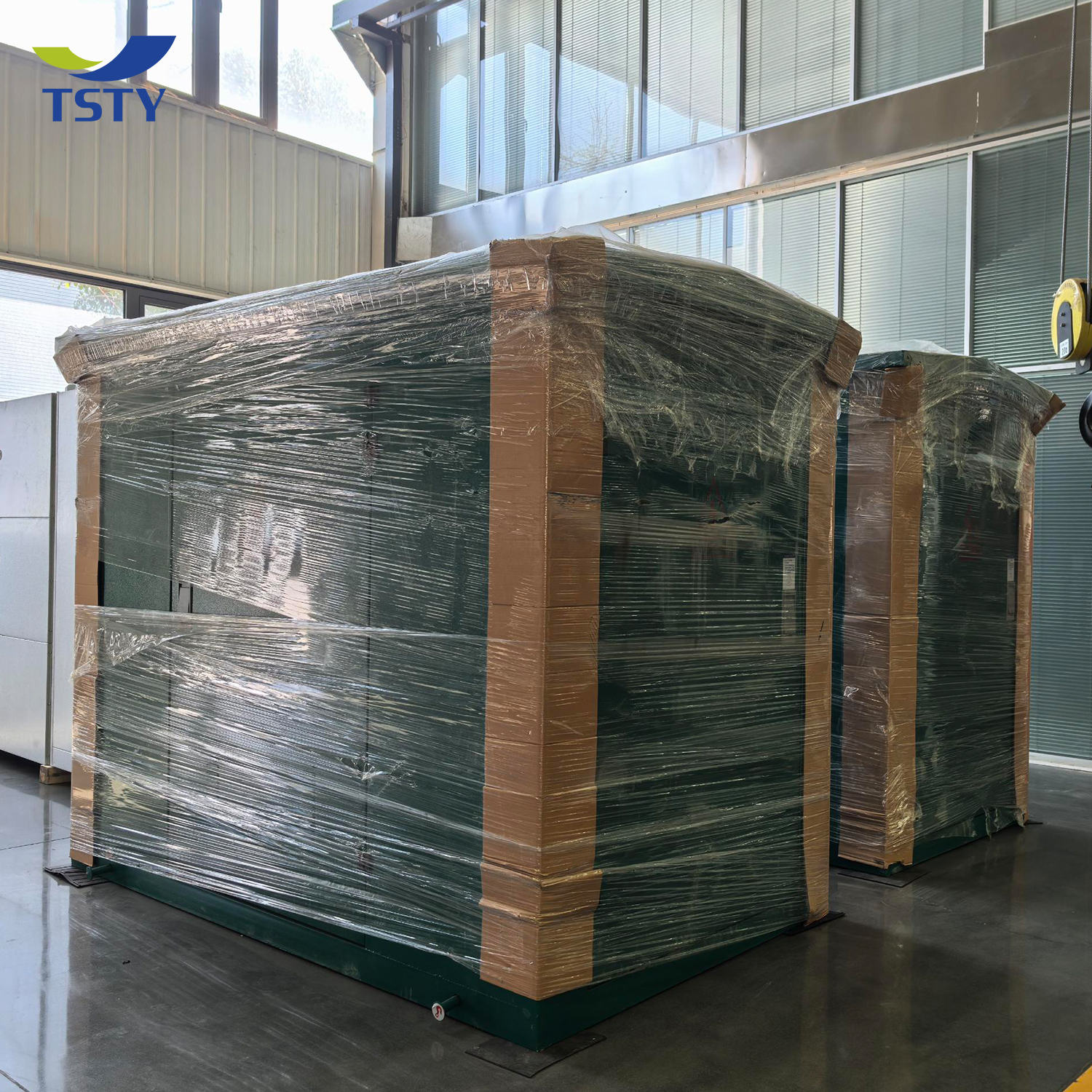

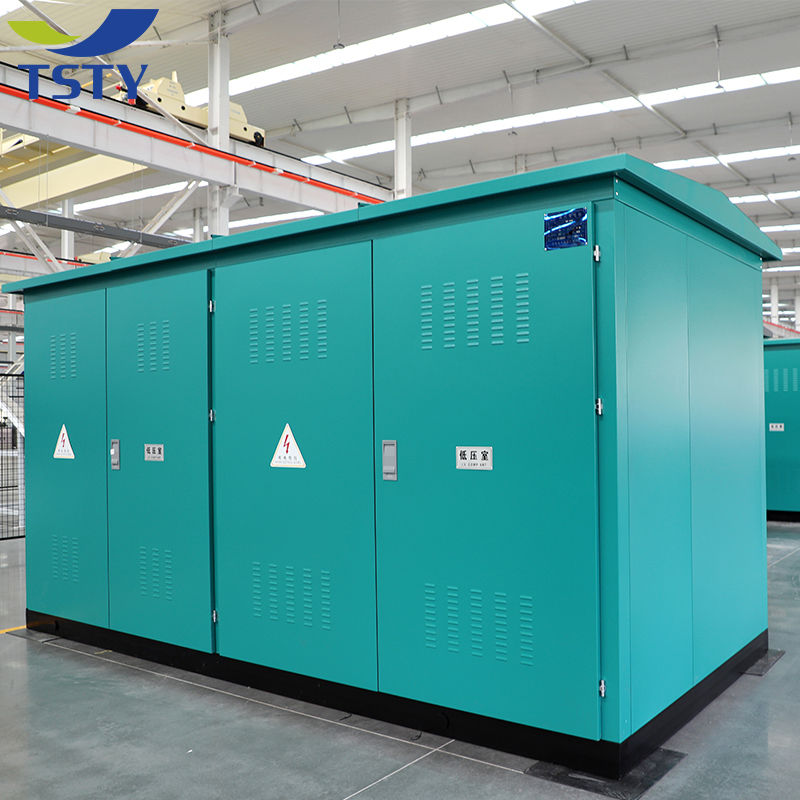

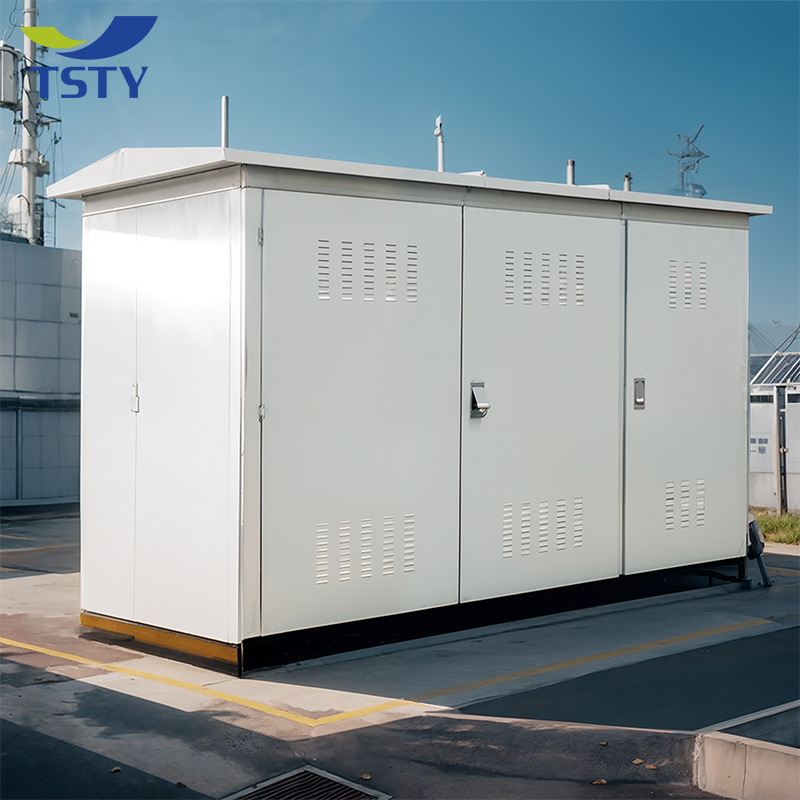

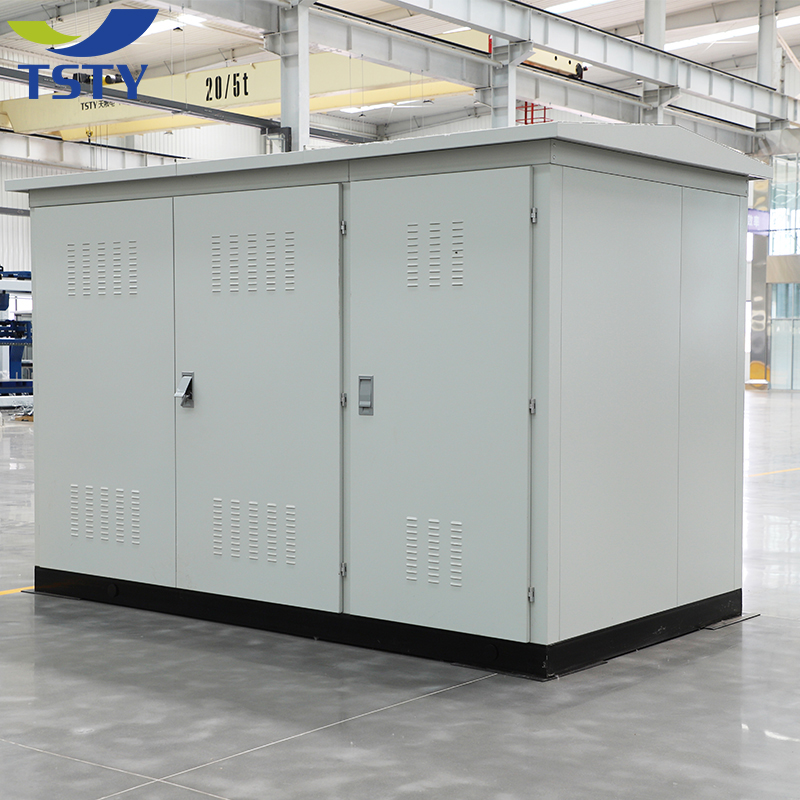

1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1 / 5
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation
1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation

1250 KVA 3 Phase 35KV YB Type IP65 IEC Certified Compact Distribution Container Transformer Substation

Send Inquiry

Product Description

Products Description

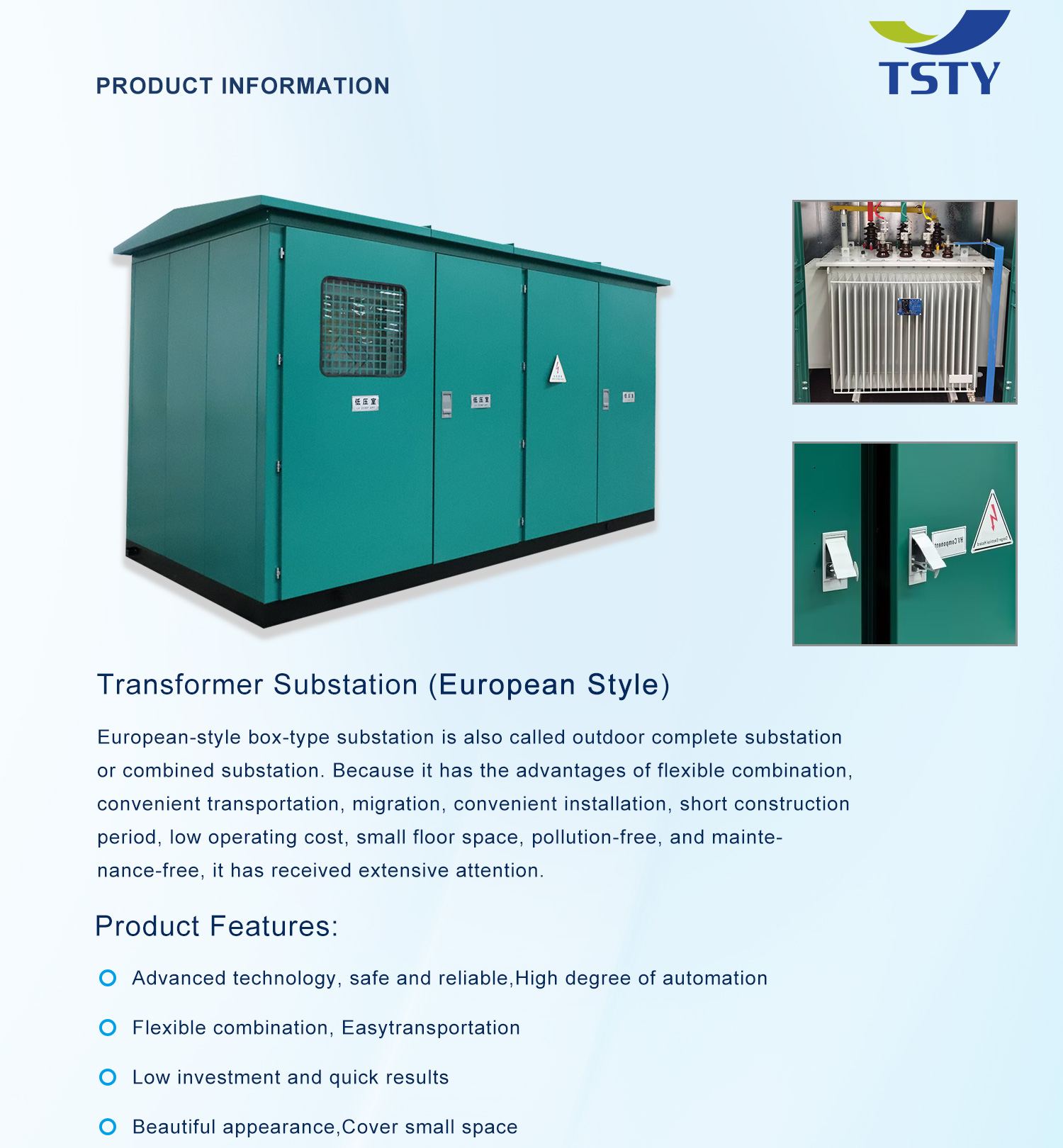

Product Image
Product Diagram
Parameter Table
Rated voltage HV: 6/10KV, LV: 0.4KV
Capacity range 30,50,63,80,100,125,160,200,250,315,400,500,630,800,1000,1250,1600, 2000KVA
Frequency 50Hz
Phase Single-phase and 3-phase
Vector group Dyn 11, Yyn0
Impedance voltage According to national standard operation environment
The cellar loss Reaching national standards operation environment
Enclosure protection level IP68
Noise level ≤55dB
Rated Capacity KVA No-load Loss W On-load Loss (75°) W No-load Current % Short Circuit Impedance %
30916000.634

4.5

5.5
501198700.60
6314010400.57
8016812500.54
10020315000.48
12523818000.45
16028022000.42
20033626000.39
25039230500.36
31546936500.33
Rated Capacity KVA No-load Loss W On-load Loss (75°) W No-load Current % Short Circuit Impedance %
40056043000.304

4.5

5.5
50067251000.30
63081062000.27
80098075000.24
10001150103000.21
12501360120000.18
16001640145000.18
20001960178200.3
25002310207000.25

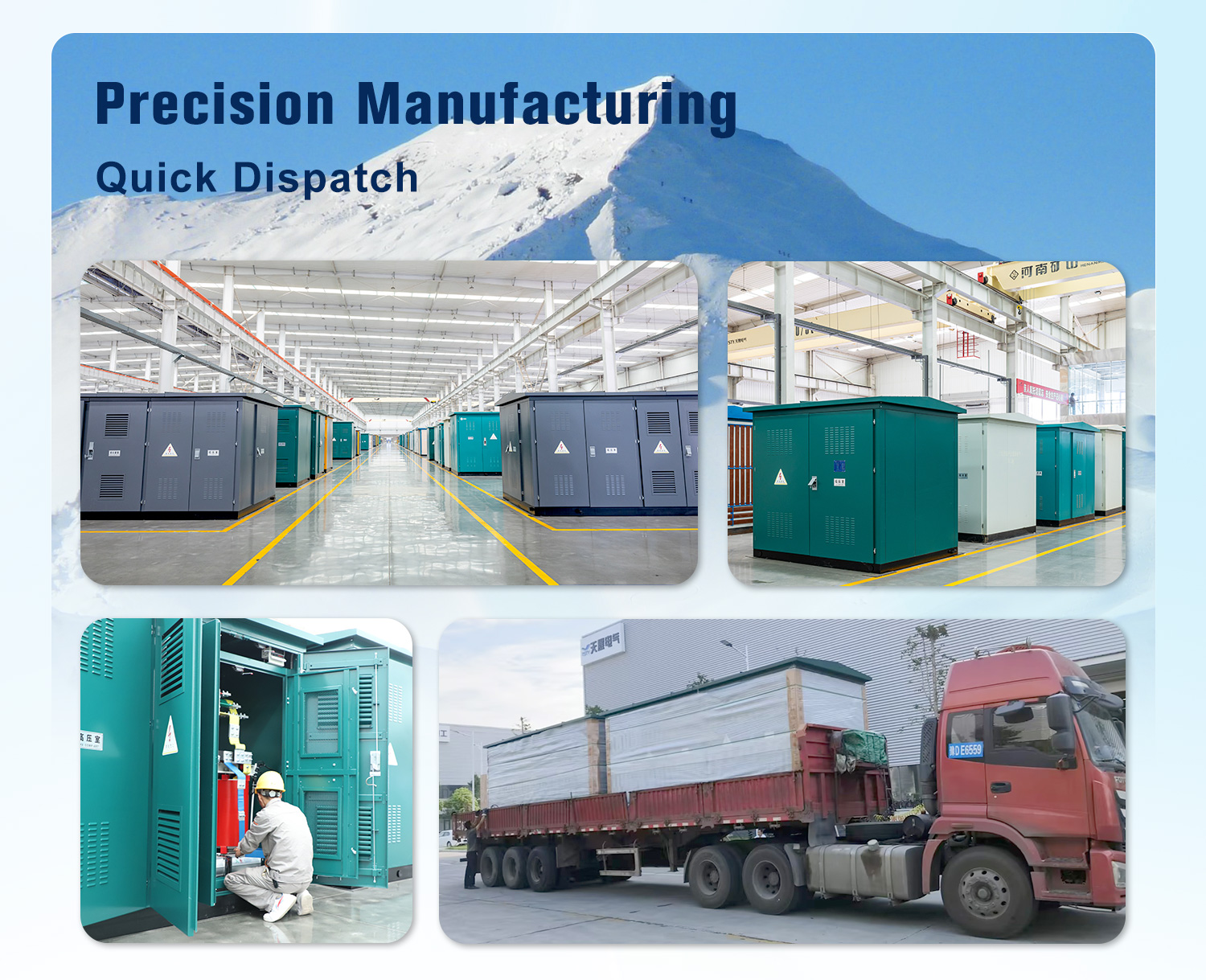

Product Details 1

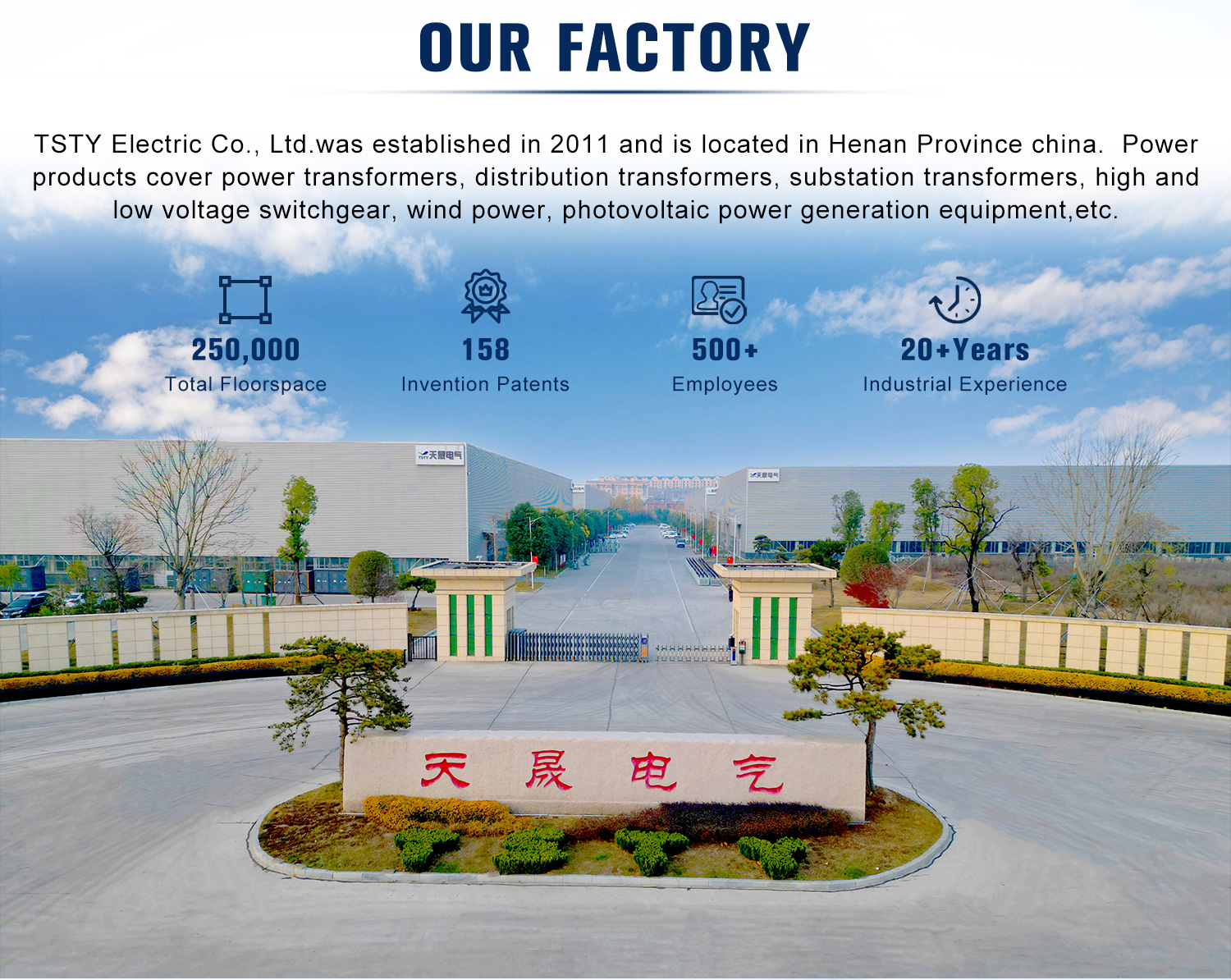

Product Details 2
Product Details 3
Product Details 4
Product Details 5

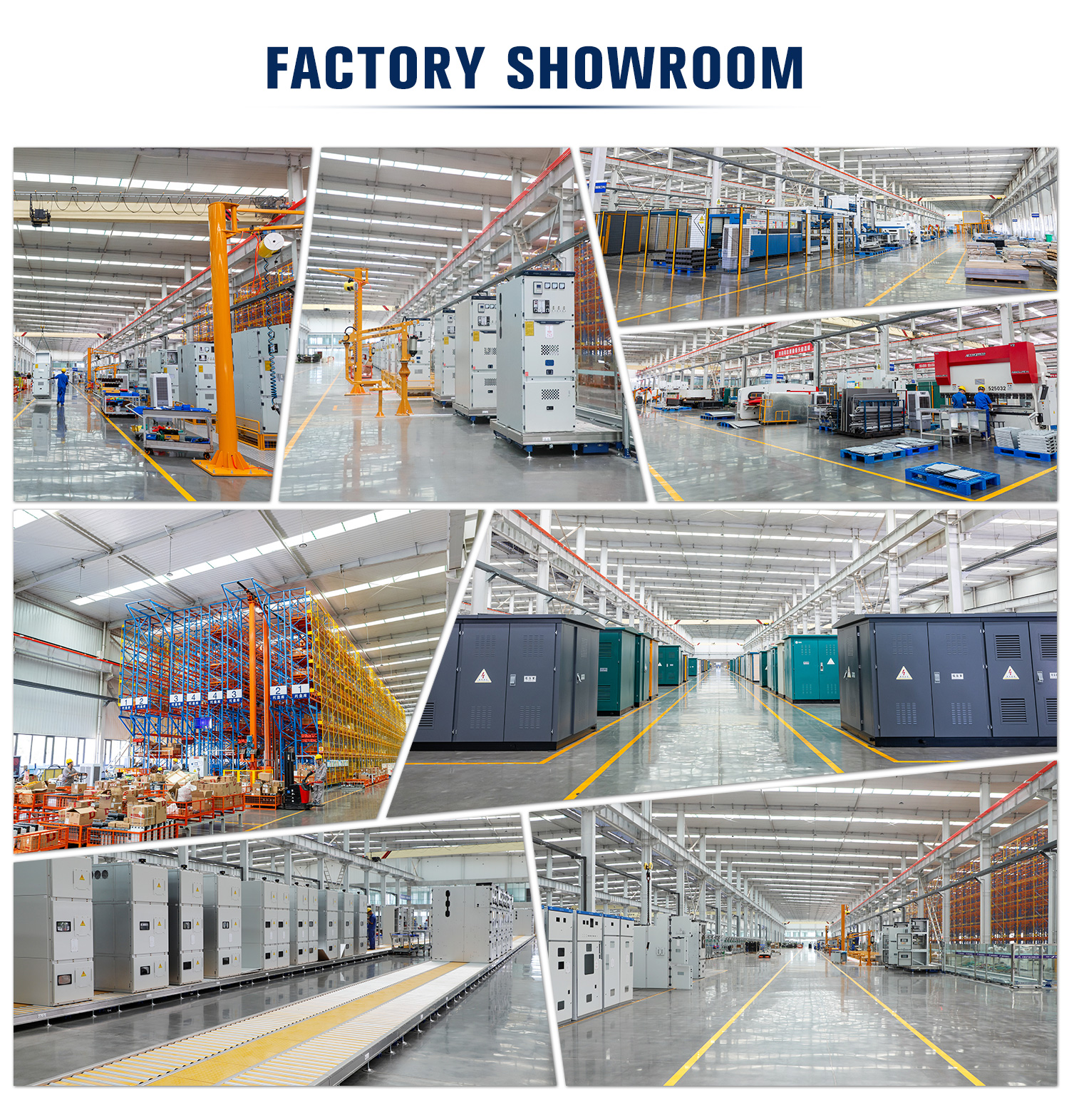

Product Details 6
Product Details 7
Product Details 8

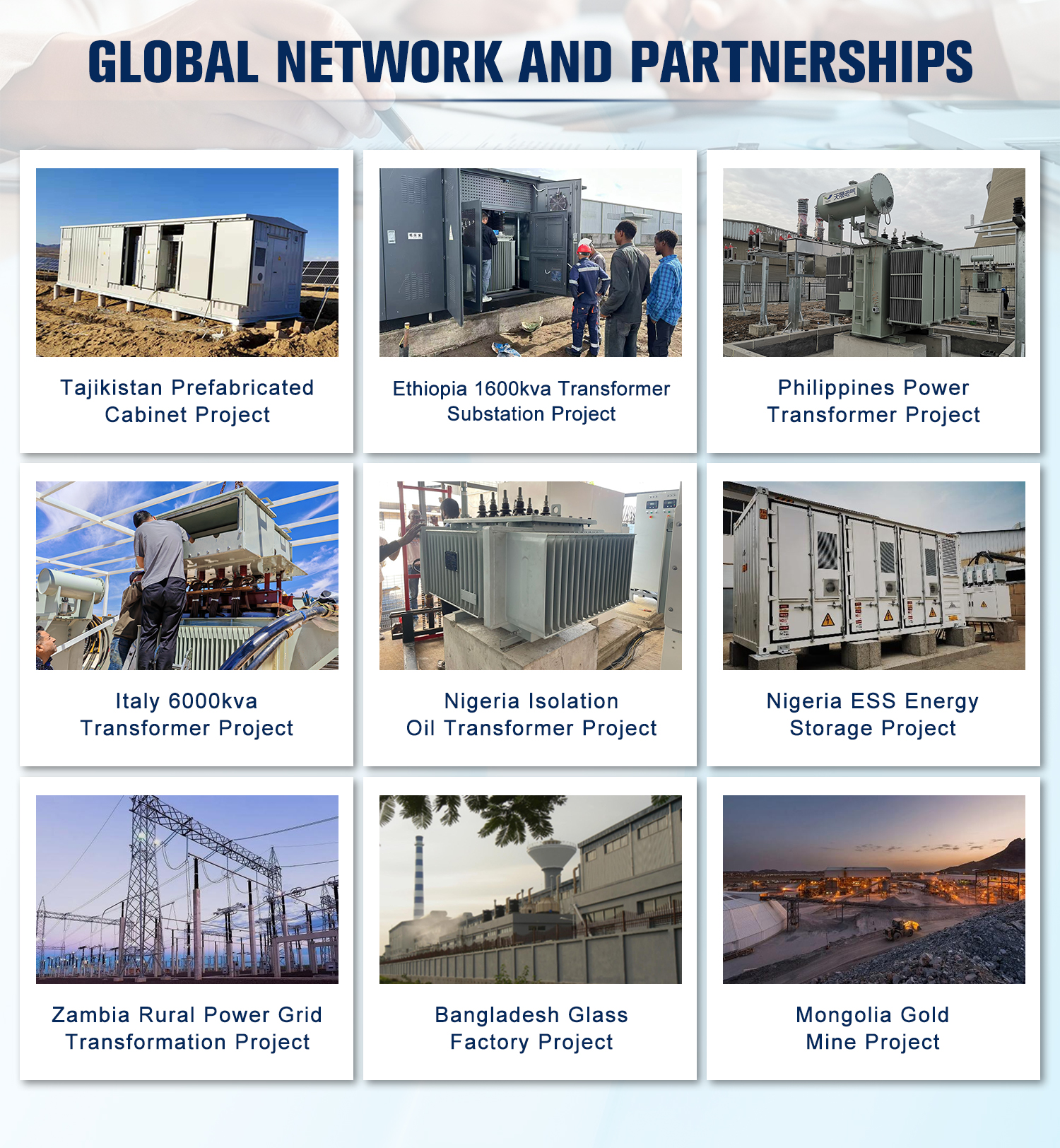

Product Details 9

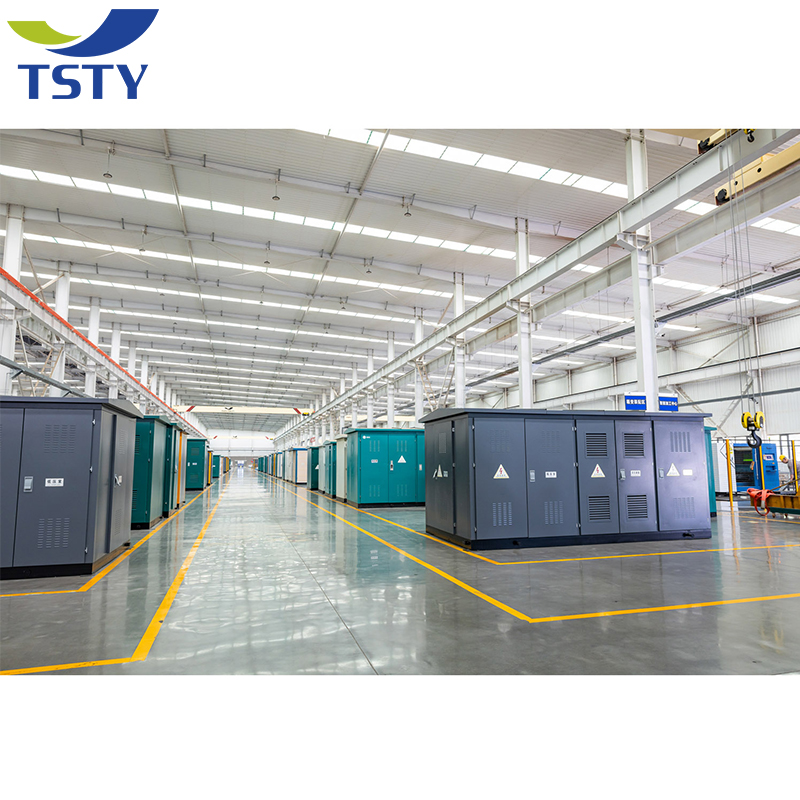

Product Certification/Factory
FAQ
What's your major products?
Oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear.
Can your product be customerized?
Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions, our product can be customerized according to your requirements.
When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
What about lead or shipping time?
The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.
Do you offer guarantee for the products?
Yes. We offer at least one years guarantee for all of our transformers.
Your Advantage?
15 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
