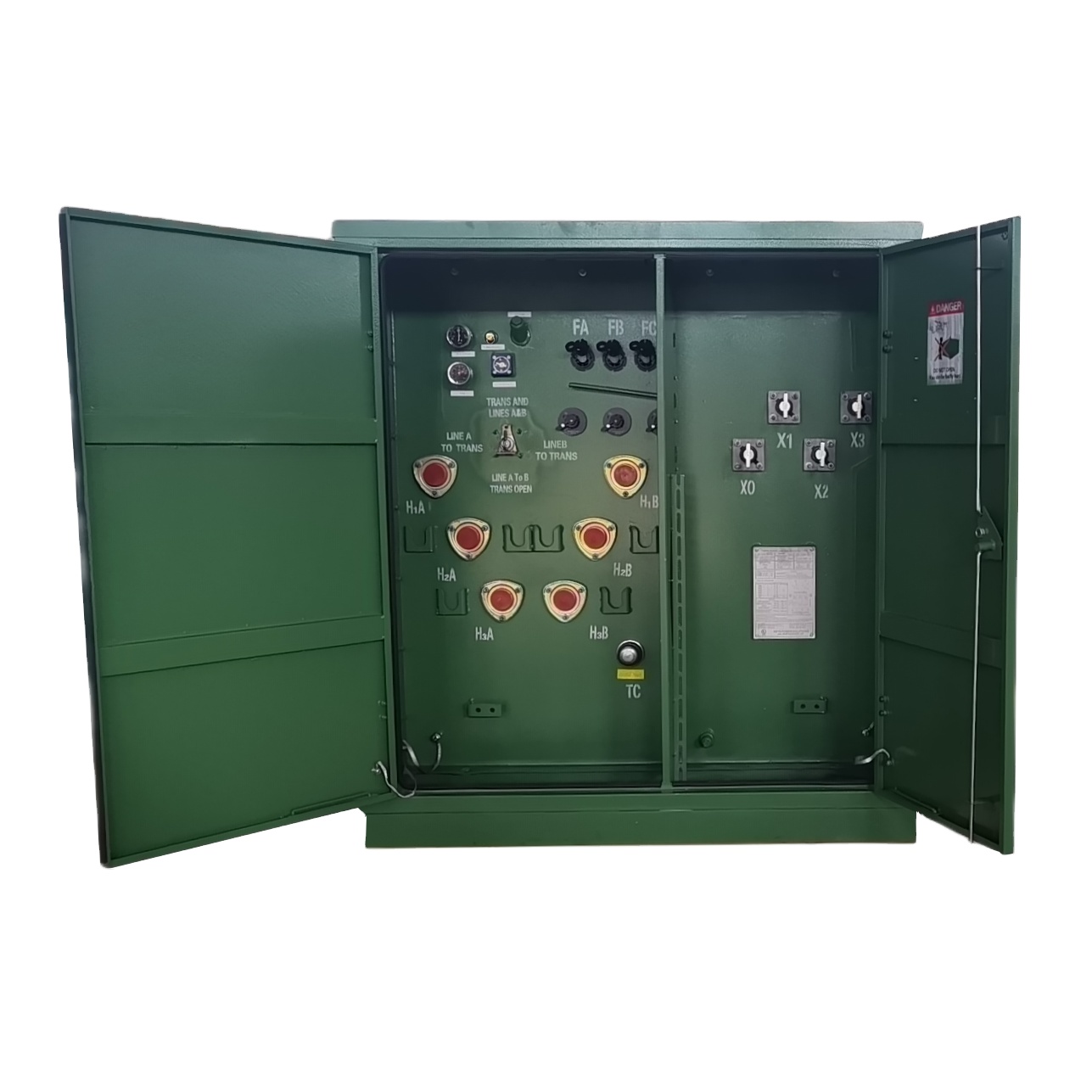

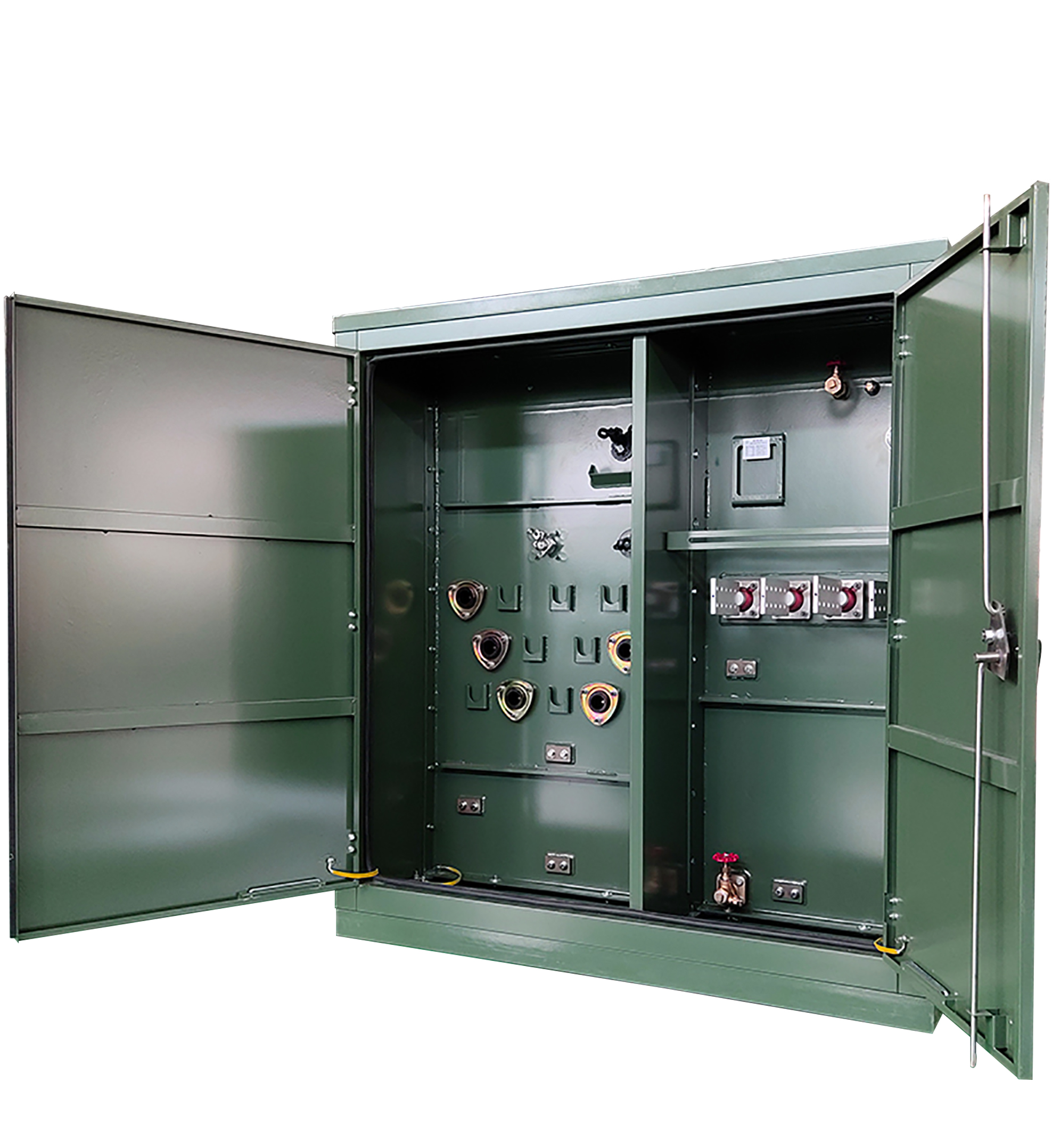

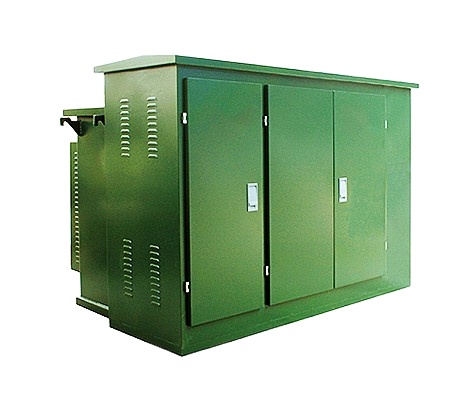

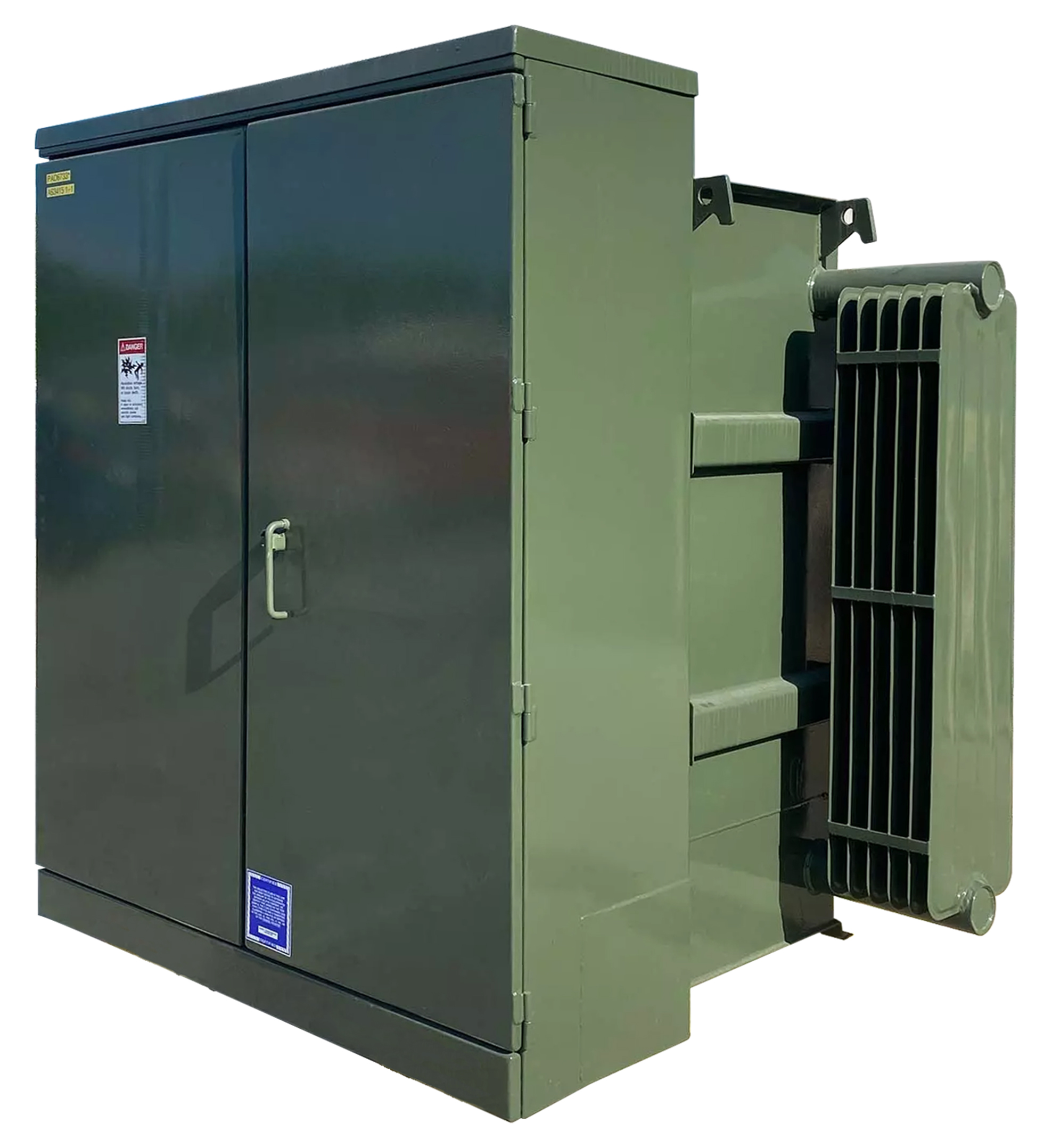

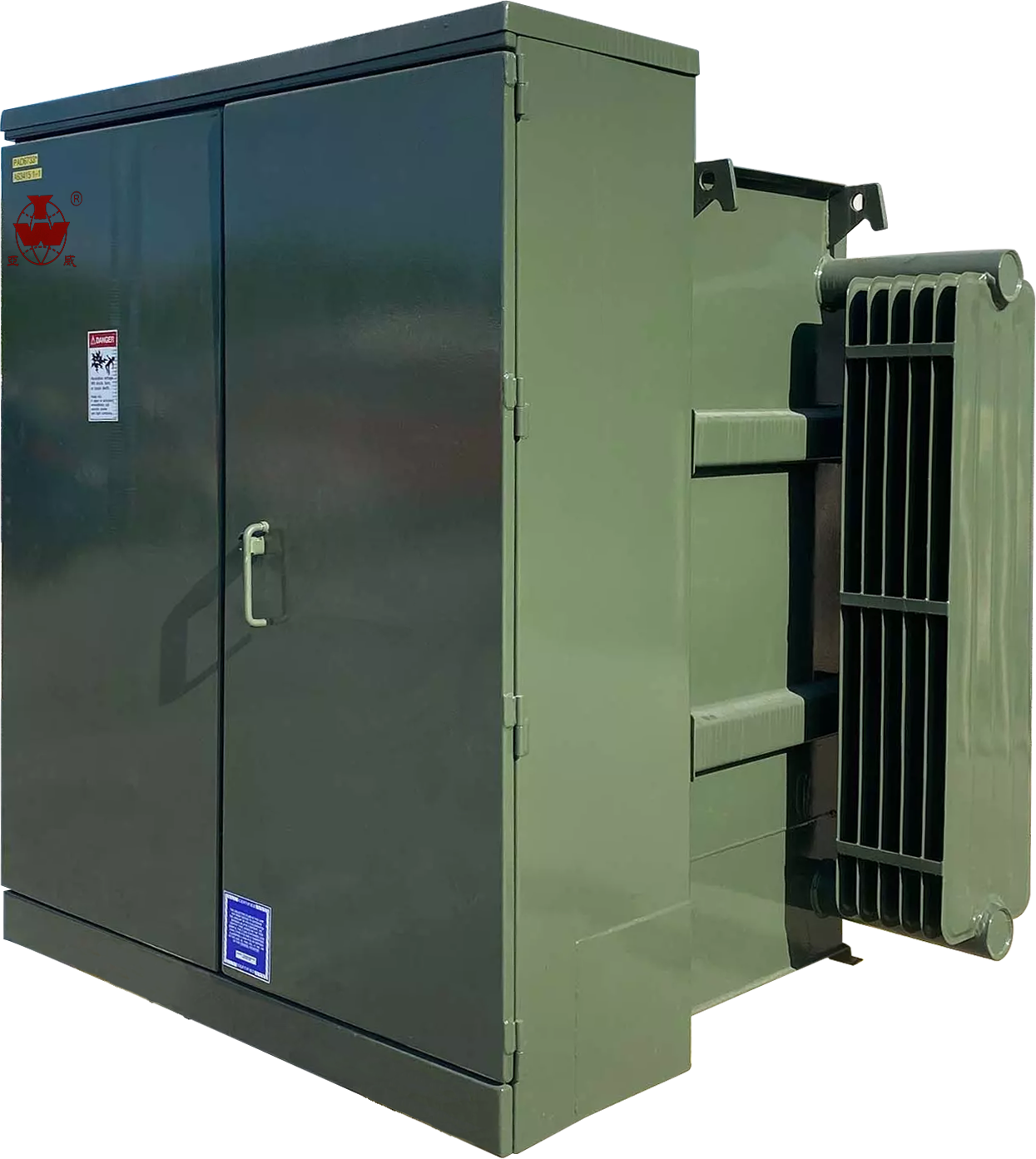

ZGS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply.
What's more, this series of products have been widely used in communities, public places and industrial mining enterprise and other distribution sites.

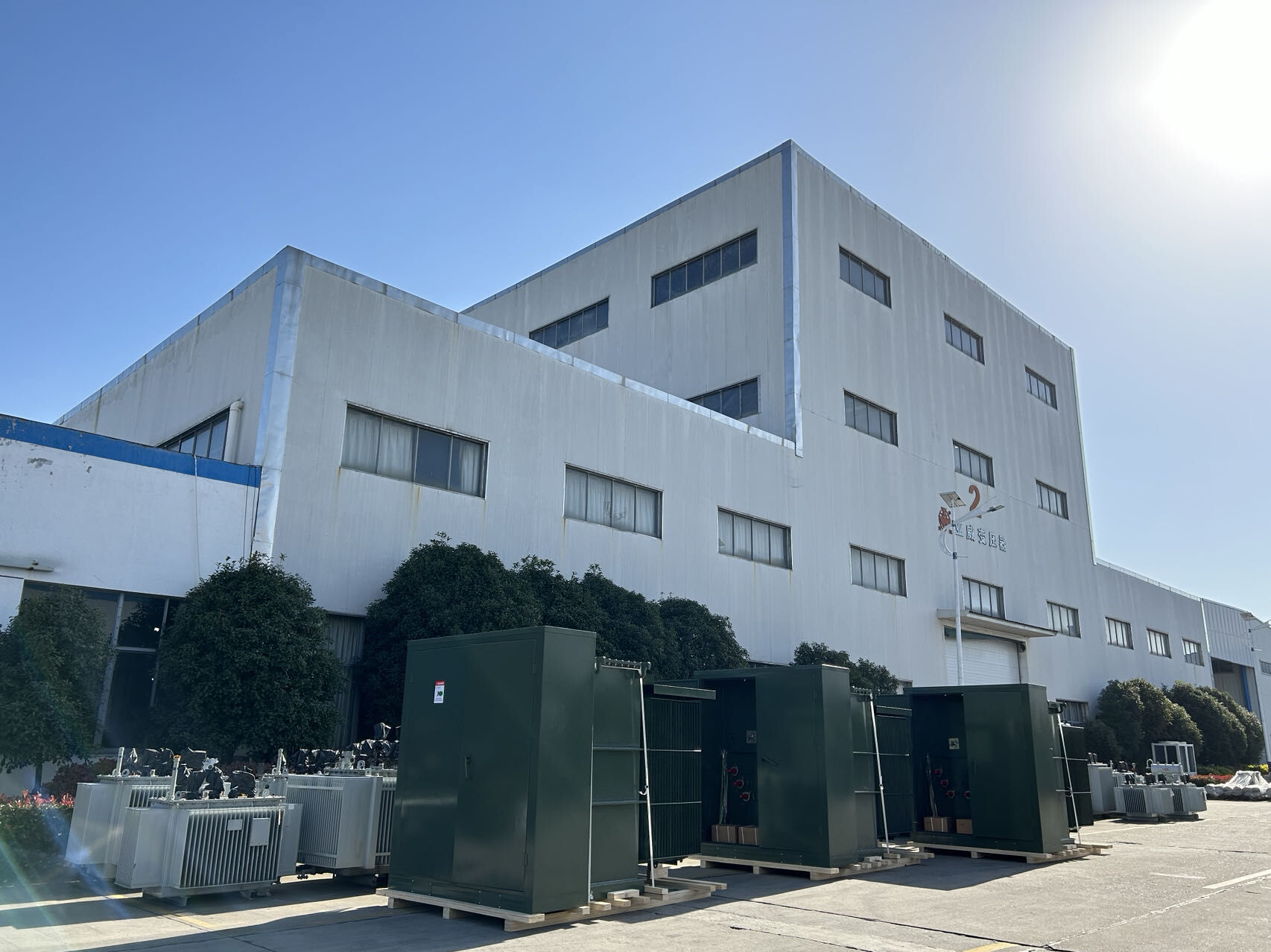

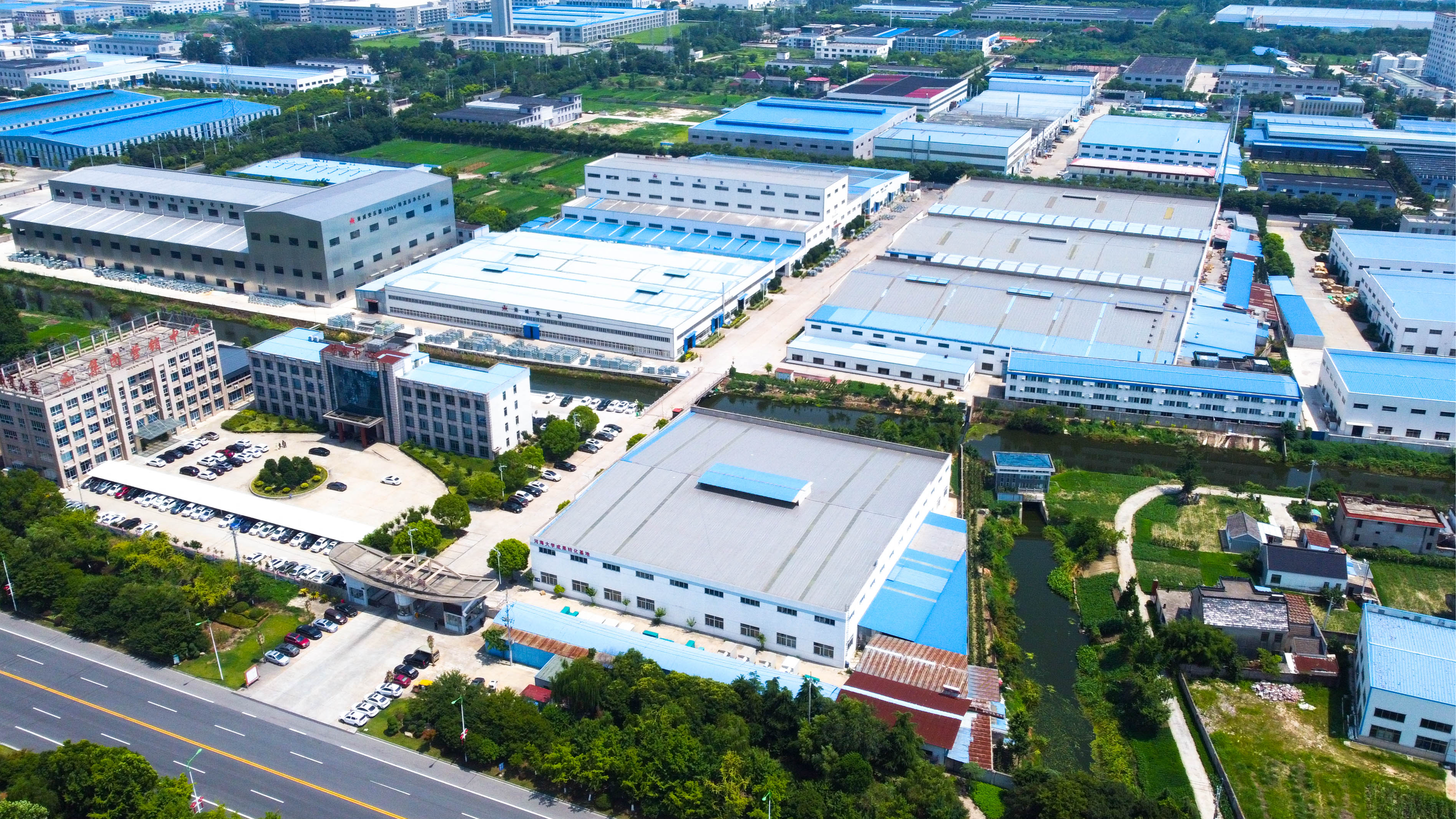

The enterprise has more than 500 engineering and technical personnel, more than 1700 employees, covering an area of 400,000 square meters. The enterprise has successively won numerous quality trust and high-tech honors.
The company has strong production capacity and a highly efficient marketing team. Products include 110kV, 220kV and 500kV ultra-high voltage transformers, 35kV and below dry-type transformers, oil immersed transformers, wind and solar storage new energy transformers, prefabricated substation and special transformers.
All products have passed routine and special tests by National Transformer Quality Supervision and Inspection Centers. The enterprise has passed ISO9001, ISO14001, ISO45001 system certifications. Product sales cover the international market, exported to Australia, New Zealand, India, Vietnam, and other countries.
| Rated Capacity (kVA) | No-load Loss (kW) | Load Loss (kW) | No-load Current (%) | Impedance Voltage (%) | Dimension LxWxH (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|
| 100 | 200 | 1500 | 0.65 | 4.0 | 1180x1355x1735 | 729 |
| 150 | 280 | 2200 | 0.60 | 1830x1375x1735 | 989 | |
| 200 | 340 | 2600 | 0.50 | 1830x1375x1735 | 1195 | |
| 250 | 400 | 3050 | 0.50 | 1830x1405x1735 | 1355 | |
| 315 | 480 | 3650 | 0.45 | 1830x1425x1735 | 1415 | |
| 400 | 570 | 4300 | 0.45 | 1830x1435x1805 | 1675 | |
| 500 | 680 | 5150 | 0.40 | 1830x1445x1860 | 1905 | |
| 630 | 810 | 6200 | 0.40 | 4.5 | 1830x1445x1860 | 2165 |
| 800 | 980 | 7500 | 0.35 | 1830x1490x1860 | 2755 | |
| 1000 | 1150 | 10300 | 0.35 | 1830x1675x2005 | 3235 | |
| 1250 | 1360 | 12000 | 0.30 | 2100x1845x2035 | 4905 | |
| 1600 | 1640 | 14500 | 0.30 | 2100x1885x2135 | 5835 |
