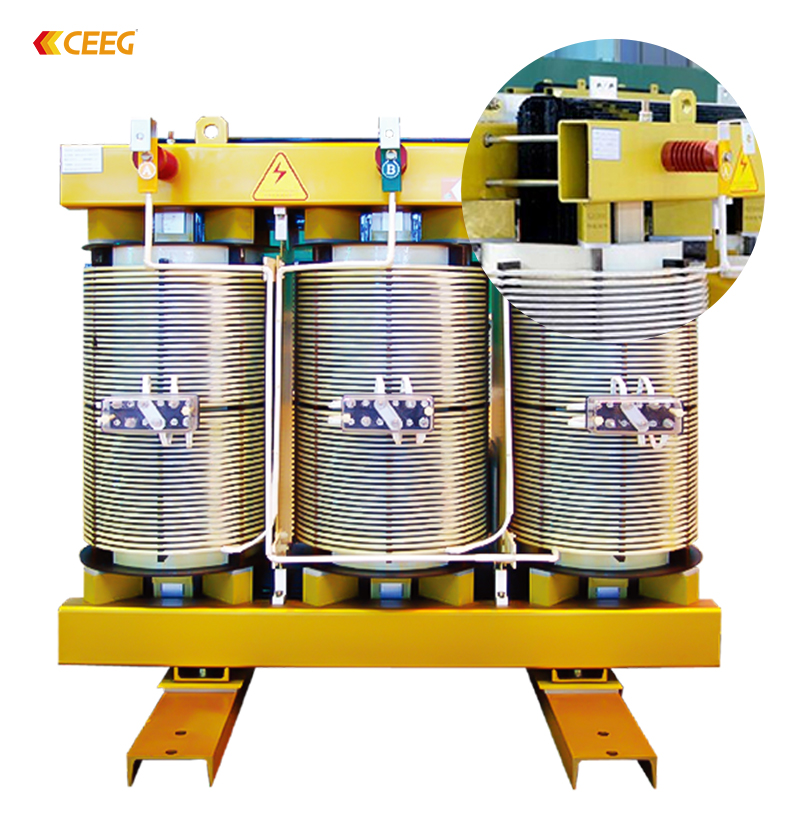

CEEG Transformer Electrical 630 KVA 800 KVA Safe Reliable Energy Saving Vacuum Pressure Impregnated VPI Dry Type Transformer

1 / 5

CEEG Transformer Electrical 630 KVA 800 KVA Safe Reliable Energy Saving Vacuum Pressure Impregnated VPI Dry Type Transformer

Send Inquiry

Product Description

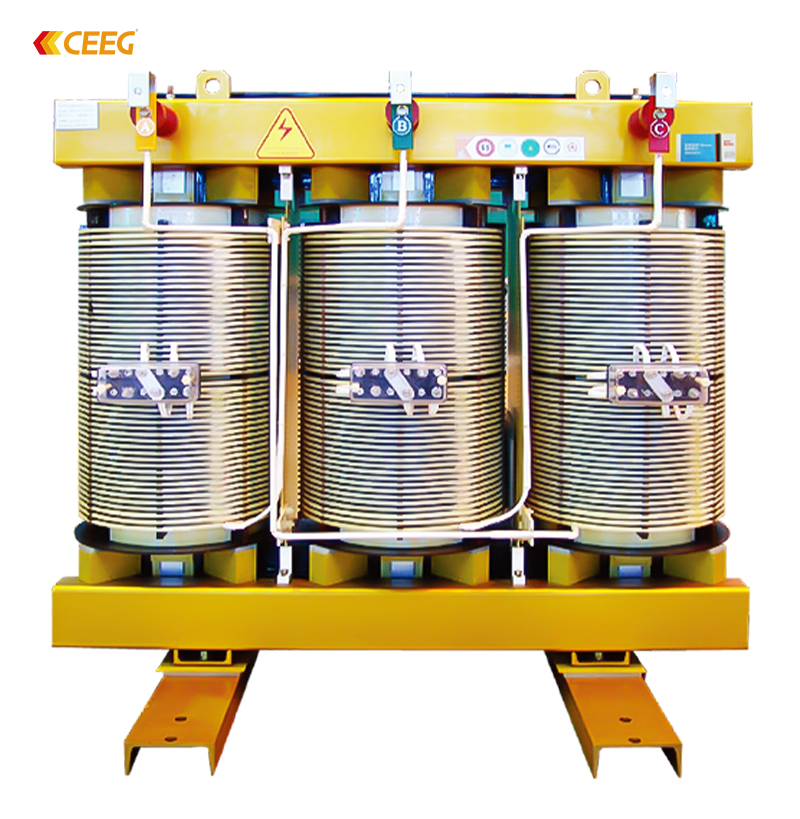

Open Ventilated Dry Type Transformer

Safe, Reliable, Environmentally Friendly and Energy Efficient

Super Insulation Extreme Overload: Class C SG (B) VPI transformer is a high insulation grade transformer made of class C (220°C heat-resistant) insulation material.

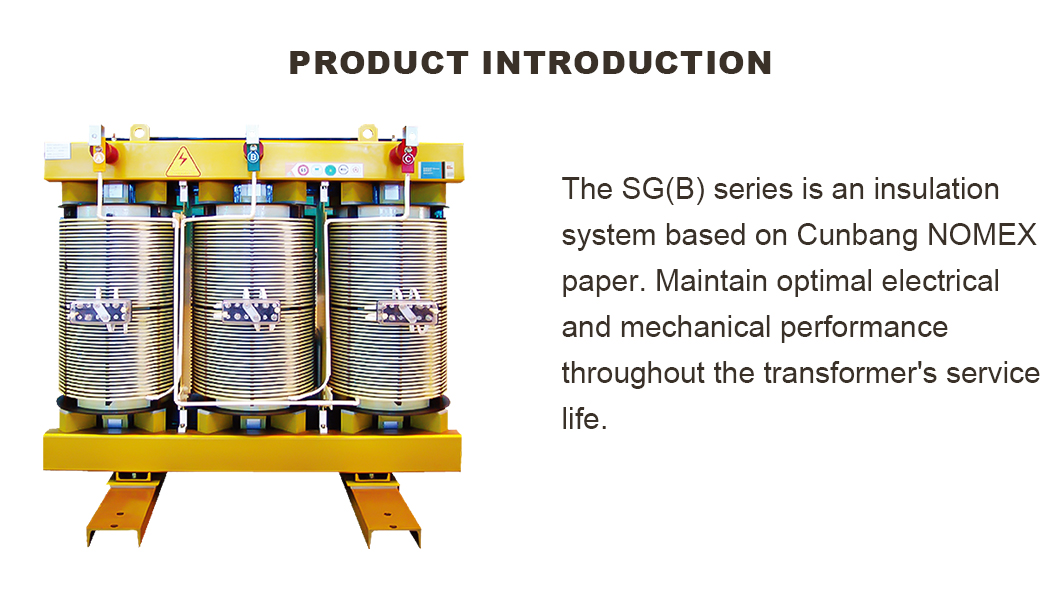

Product Introduction

High Performance: The product is class H and the insulation material is class C. It has strong overload capacity, strong short-circuit resistance, and high safety performance.
Energy Saving: High quality high permeability silicon steel with multi-stage stepping process leads to low no-load loss.
Eco-Friendly: Copper and silicon steel can be recycled, and the insulation material is completely degraded.
Advanced Technology: Adopting DuPont ReliatraN core technology, the volume is reduced by 10% and the material is saved by 10%.
Intelligent Monitoring: Its intelligent "brain" can use full intelligent data collection and analysis to achieve active operation and maintenance.

Insulation system temperature (°C)	Average winding temperature rise limit (k)
105 (A)	60
120 (E)	75
130 (B)	80
155 (F)	100
180 (H)	125
200 (N)	135
220 (C)	150

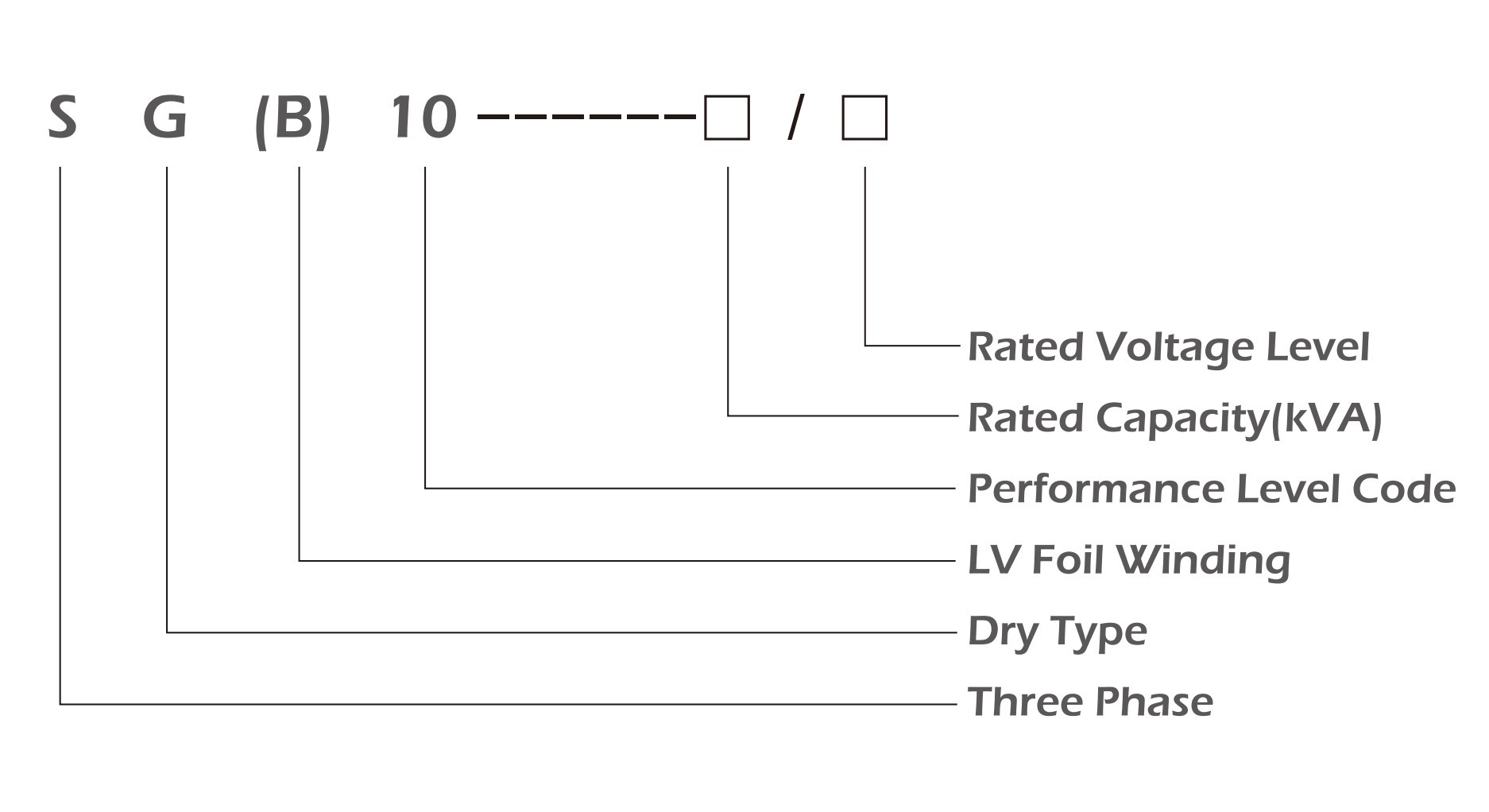

Available Models: SG (B) 10, SG (B) 11, SGZB, SGRB, SCRB etc.
Voltage Ratings: 6kV, 10kV, 20kv-10kv, 35kV, etc.

Performance Characteristics

1. Main features of class C dry type transformer: High insulation grade, strong impact resistance, strong overload capacity, stability and reliability.

2. Insulation System: According to IEC 60076-11:2004, the winding temperature rise limits are designed for extreme heat resistance.

Technical Specifications

Series: SG(B)10-100~3150/10 | HV: 10 (10.5, 11, 6.6, 6.3, 6)kV | LV: 0.4kV | Tapping: ±2x2.5%

Model No.	UK %	PO (W)	Pk (75°) (W)	IO (%)	LPA (dB)	L×B×H (mm)
SG(B)10-100/10	4%	360	1370	0.7	42	930×750×840
SG(B)10-160/10	4%	490	1860	0.7	43	1010×750×880
SG(B)10-250/10	4%	650	2410	0.7	43	1050×860×890
SG(B)10-400/10	4%	880	3490	0.7	45	1130×860×1000
SG(B)10-630/10	4%	1210	5130	0.6	46	1280×860×1100
SG(B)10-800/10	6%	1370	6080	0.4	49	1400×1020×1040
SG(B)10-1000/10	6%	1590	7140	0.4	50	1410×1020×1050
SG(B)10-1600/10	6%	2210	10190	0.3	51	1470×1150×1270
SG(B)10-2500/10	6%	3240	15000	0.3	53	1610×1150×1490
SG(B)10-3150/10	6%	4540	18190	0.3	56	1700×1150×1490

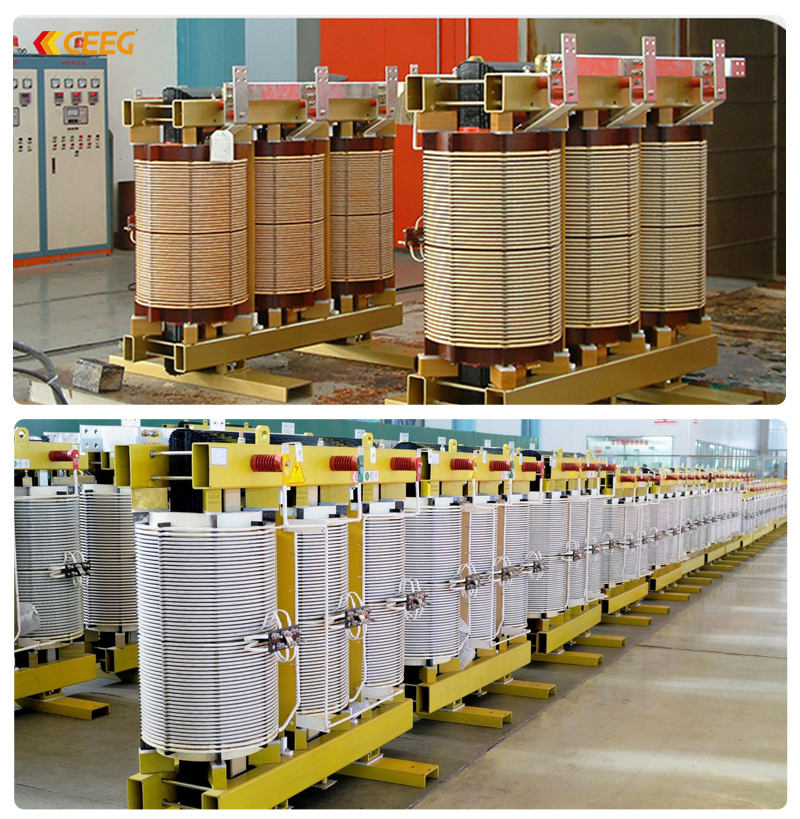

Manufacturing & Certifications

Frequently Asked Questions

Are you a professional manufacturer?

Yes. We are a one-stop power transformer manufacturer founded in 1990. We operate three factories with over 1,000 employees, covering a construction area of 180,000 square meters. We possess one of the world's largest dry-type transformer production facilities with an annual capacity of 30 million kVA.

What types of transformers do you produce?

We produce a wide range of products including 100kVA-25,000kVA Dry Type Transformers, 1,000kVA-420,000kVA Oil Immersed Transformers, and specialized Explosion-proof Transformers.

What international certifications do your products hold?

Our products are certified by UL, CE, TUV, ISO, and meet IEC EN Standards. We also hold EMC Certificates and maintain long-term strategic partnerships with industry leaders like DuPont, ABB, and Siemens.

What is the standard lead time for an order?

The lead time typically ranges from 15 to 45 days, depending on the specific power capacity requirements and the total quantity of the order.

What makes the Class C insulation system superior?

The Class C insulation system supports temperatures up to 220°C. This allows for superior overload capacity and extreme reliability in harsh environments compared to standard insulation classes.

Are these transformers environmentally friendly?

Yes. The insulation materials used are completely degradable, and the copper and silicon steel components are fully recyclable, making it an ideal choice for green energy projects.
