Product Description

MV/HV TRANSMISSION & SUBSTATION SOLUTIONS

  • High-Performance Medium & High Voltage Electrical Power Transformer
  • Capacity Range: 5MVA-125MVA
  • Primary Voltage: 33kV-220kV (Up to 230kV)
  • Standards: IEC 60076 / IEEE C57 / KEMA Certified

Technical Specifications

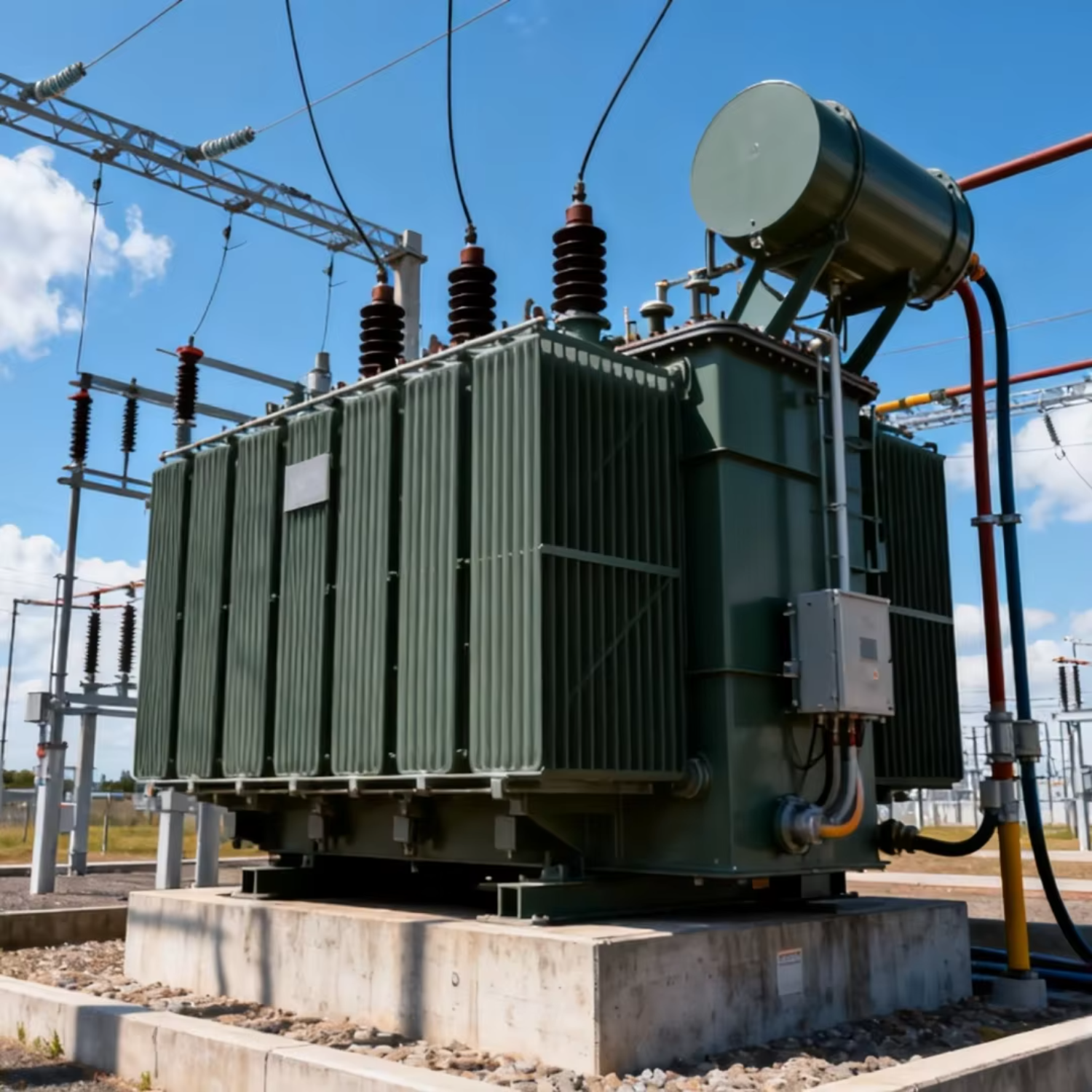

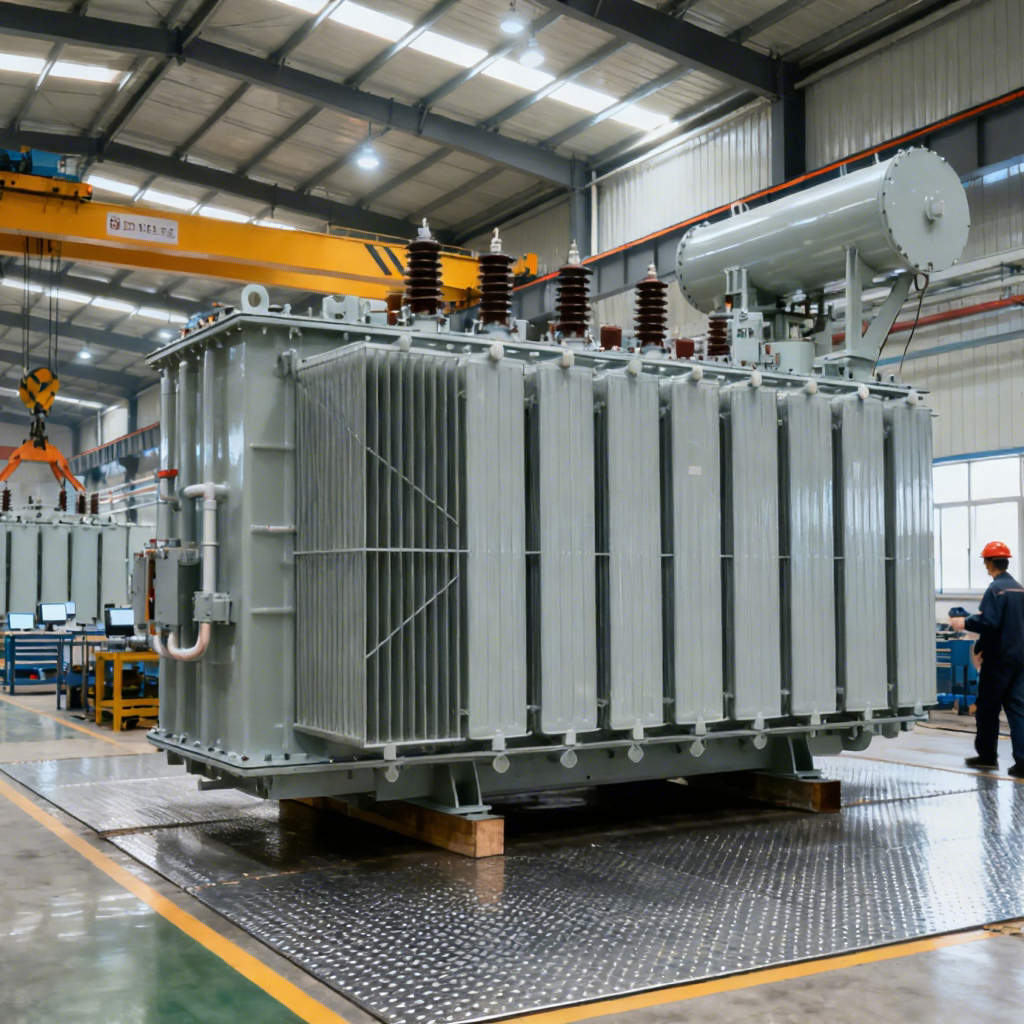

Transformer Specifications

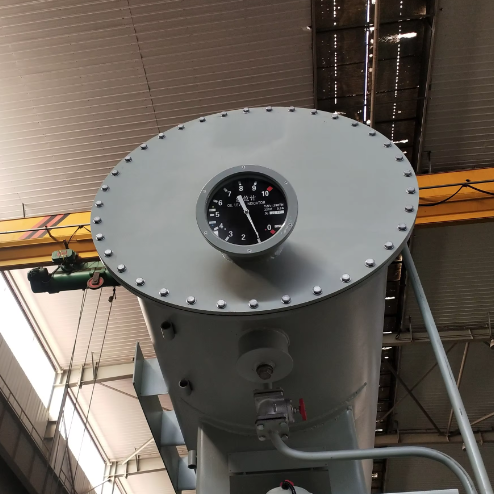

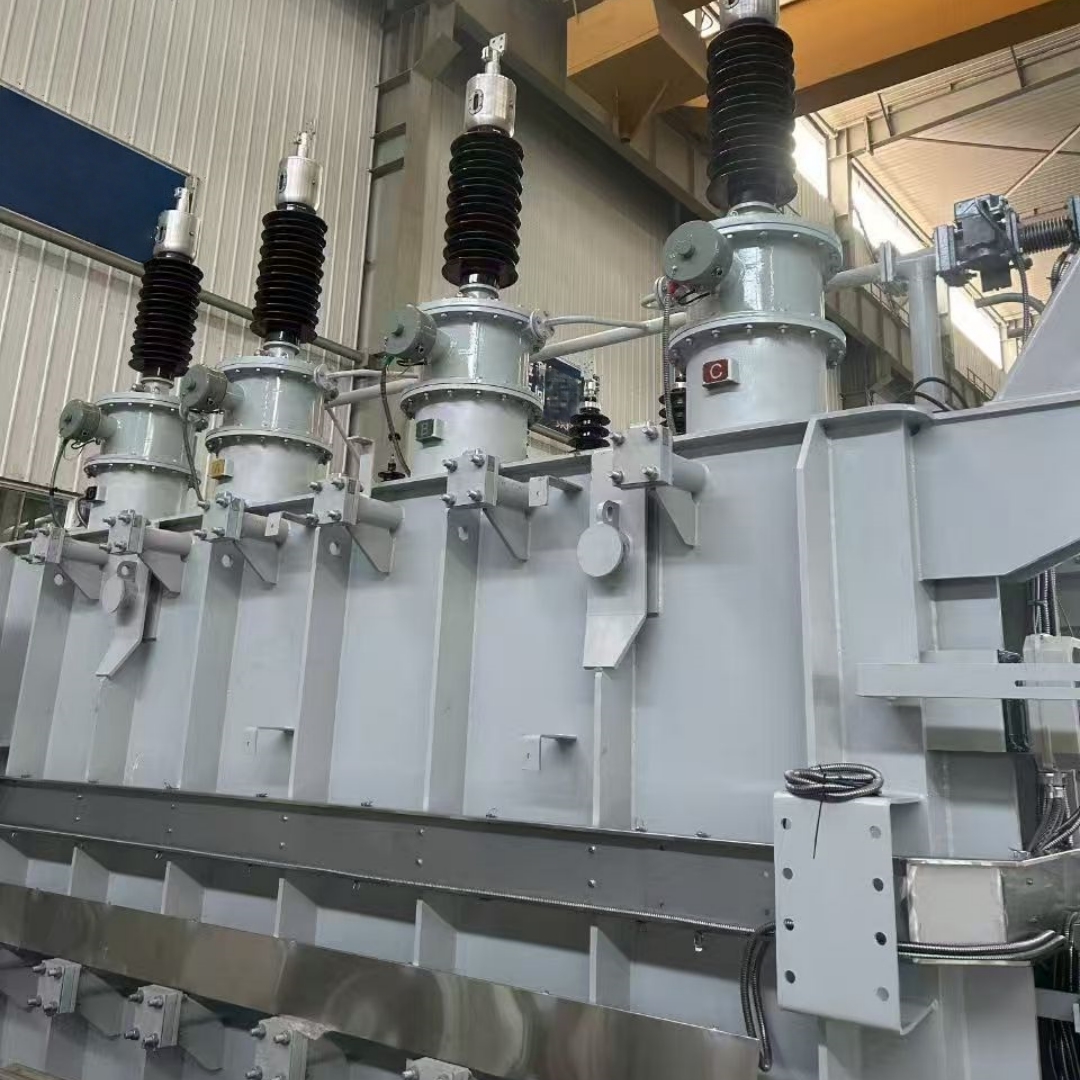

Detail 1

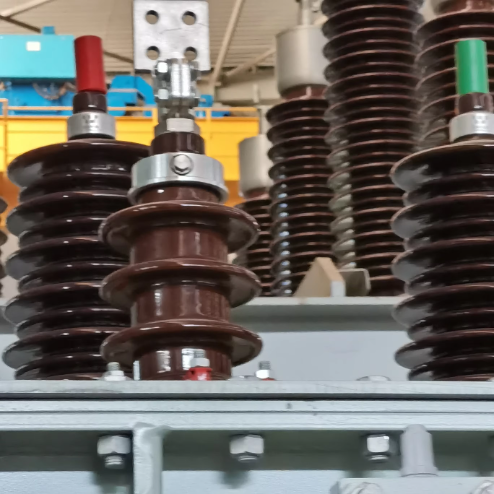

Detail 2

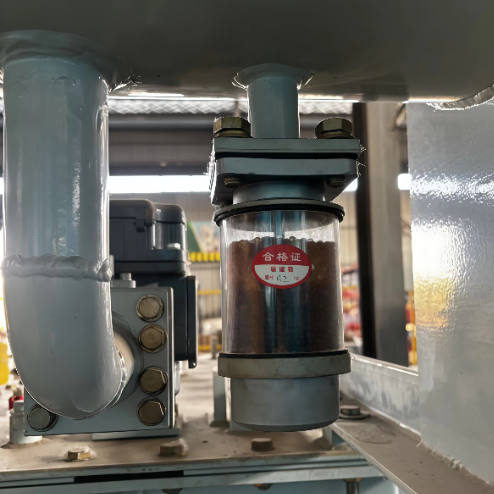

Detail 3
Technical Parameter Product Specifications & Grid-Level Standard Value
Transformer Type Liquid-Immersed / Oil-Filled Conservator Type
Cooling Method ONAN (Oil Natural Air Natural) / ONAF (Oil Natural Air Forced)
Rated Capacity 5MVA / 10MVA / 20MVA / 31.5MVA / 50MVA / 63MVA / 100MVA / 125MVA (Customizable)
Primary Voltage (HV) 33kV / 35kV / 66kV / 69kV / 110kV / 115kV / 132kV / 138kV / 220kV / 230kV (Customizable)
Secondary Voltage (LV) 6.3kV / 10.5kV / 11kV / 22kV / 33kV / 34.5kV (Customizable)
Vector Group YNd11 / YNyn0d11 / Yd11 (In accordance with grid requirements)
Tap Changer Type OLTC (On-Load Tap Changer) or NLTC (No-Load Tap Changer)
Tapping Range ±8 × 1.25% / ±4 × 2.5% / ±2 × 2.5% (Customizable)
Winding Material 100% Electrolytic Oxygen-Free Copper (Premium CTC Continuous Transposed Conductor)
Core Structure 3-Column / 5-Column High-Grade CRGO (Cold-Rolled Grain-Oriented) Silicon Steel
Partial Discharge Level ≤10pC (At 1.5Um/√3, significantly below international standards)
Standards Compliance IEC 60076, IEEE C57, ANSI, KEMA Typetest, GB/T 6451

Core Technology & Details

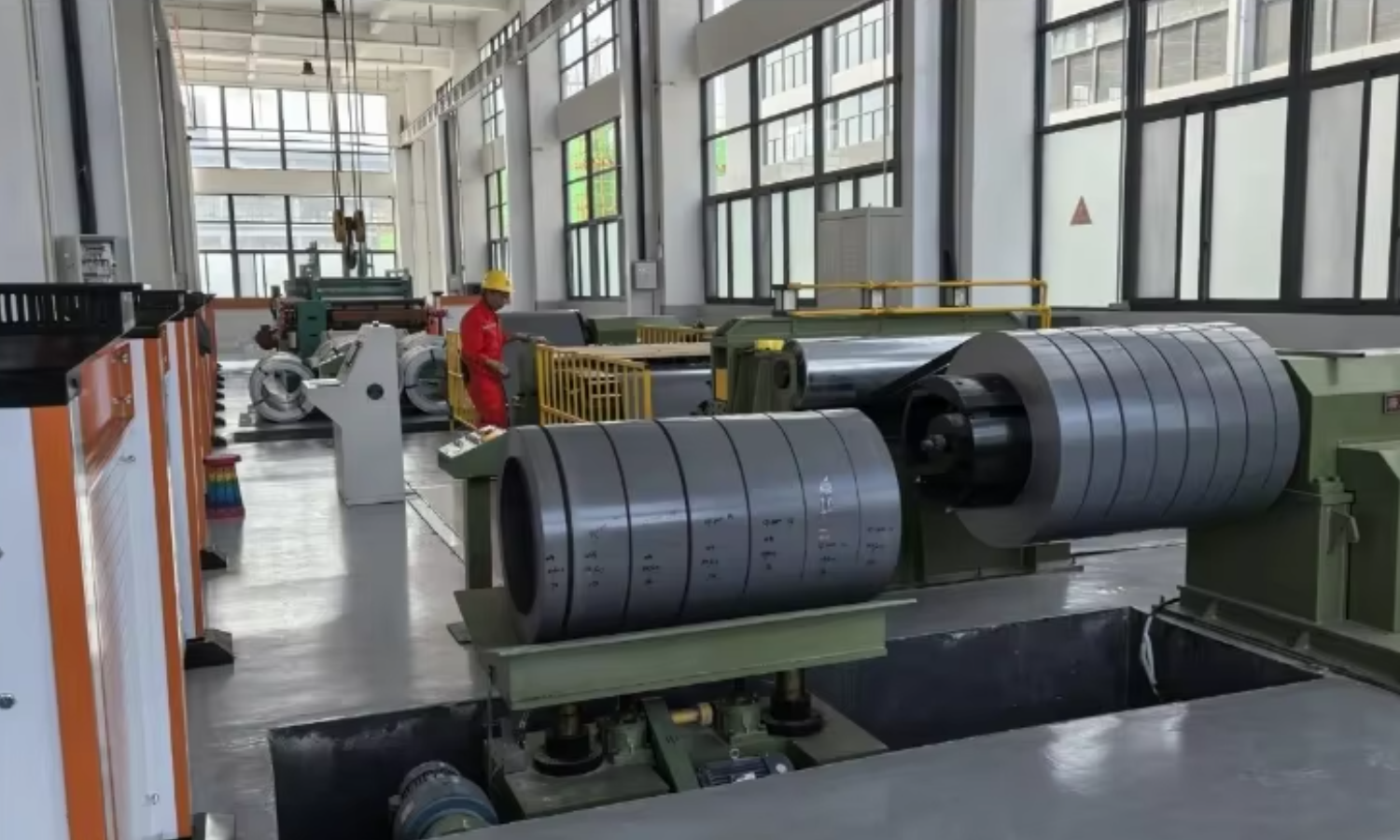

CRGO Core Technology
Ultra-Low-Loss CRGO Core Technology
  • Manufactured using high-permeability, laser-treated, cold-rolled grain-oriented silicon steel laminations.
  • Significantly minimizes eddy current losses, no-load losses, and magnetostriction noise.
  • Optimized core clamping structures ensure excellent mechanical strength during seismic events.

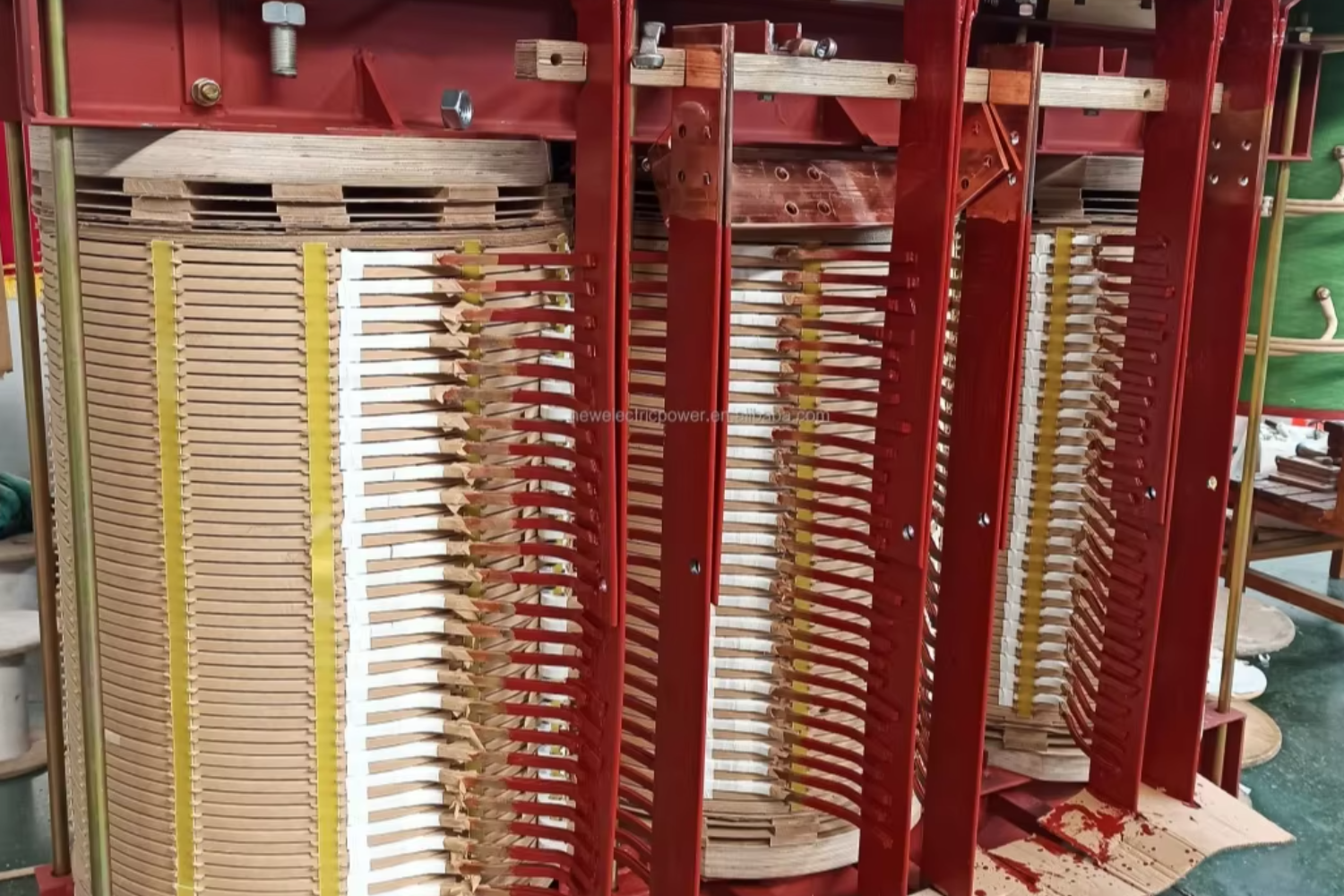

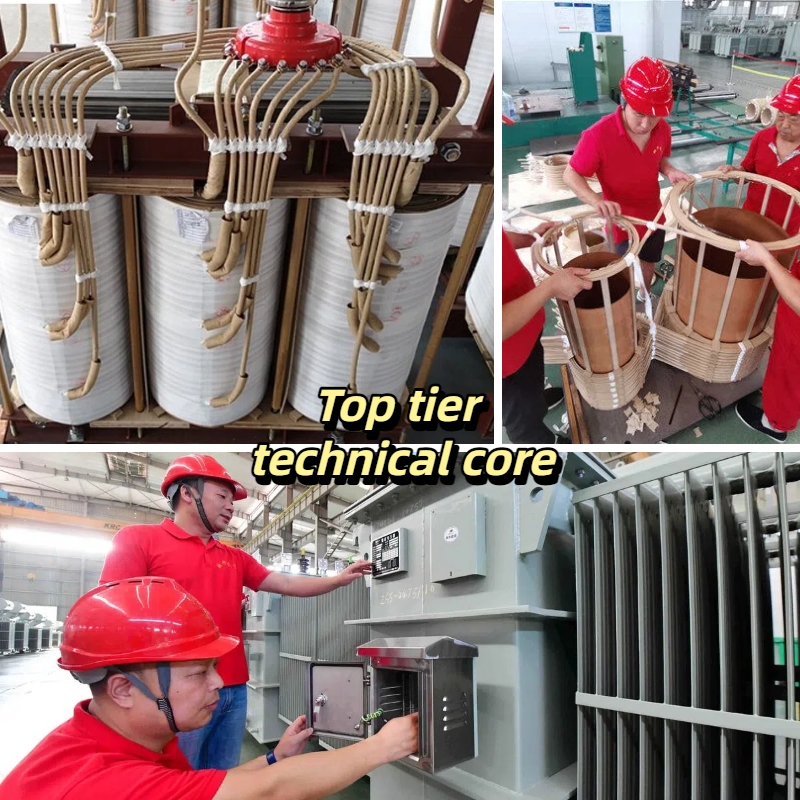

High-Reliability Windings & CTC
  • Utilizes Continuous Transposed Conductor (CTC) for high-capacity windings to lower eddy current losses.
  • Coils are uniformly pressed and dried under vacuum to ensure short-circuit withstand capability.
  • Premium insulation paper (Class A) ensures partial discharge levels are kept under 10pcs.
Winding Technology

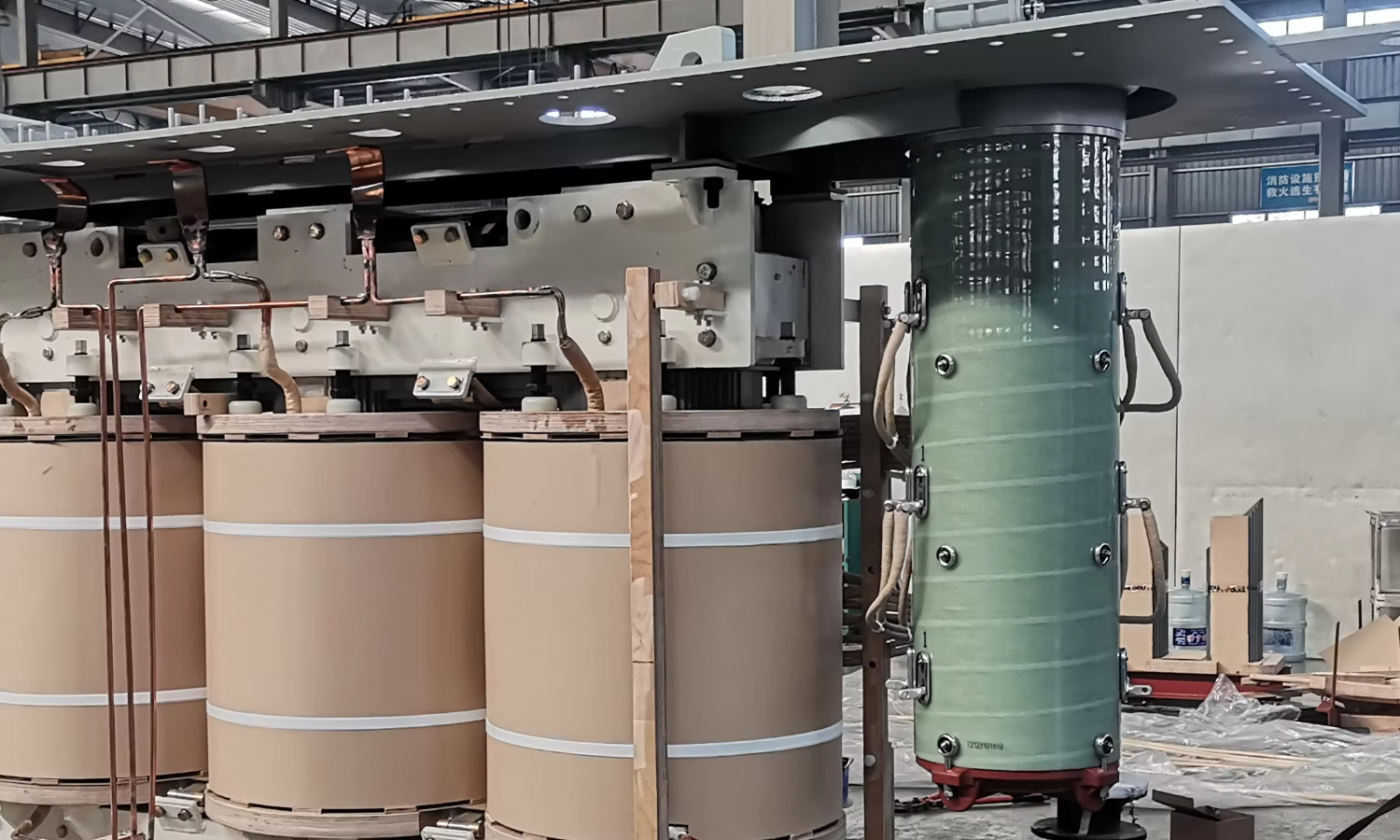

OLTC Control
Precision Voltage Control: Advanced OLTC
  • Equipped with high-reliability On-Load Tap Changers (OLTC) for automated, uninterrupted voltage regulation.
  • Ensures consistent secondary voltage delivery despite fluctuating grid loads.
  • Vital for sensitive industrial manufacturing and utility distribution.

Safety & Monitoring Components

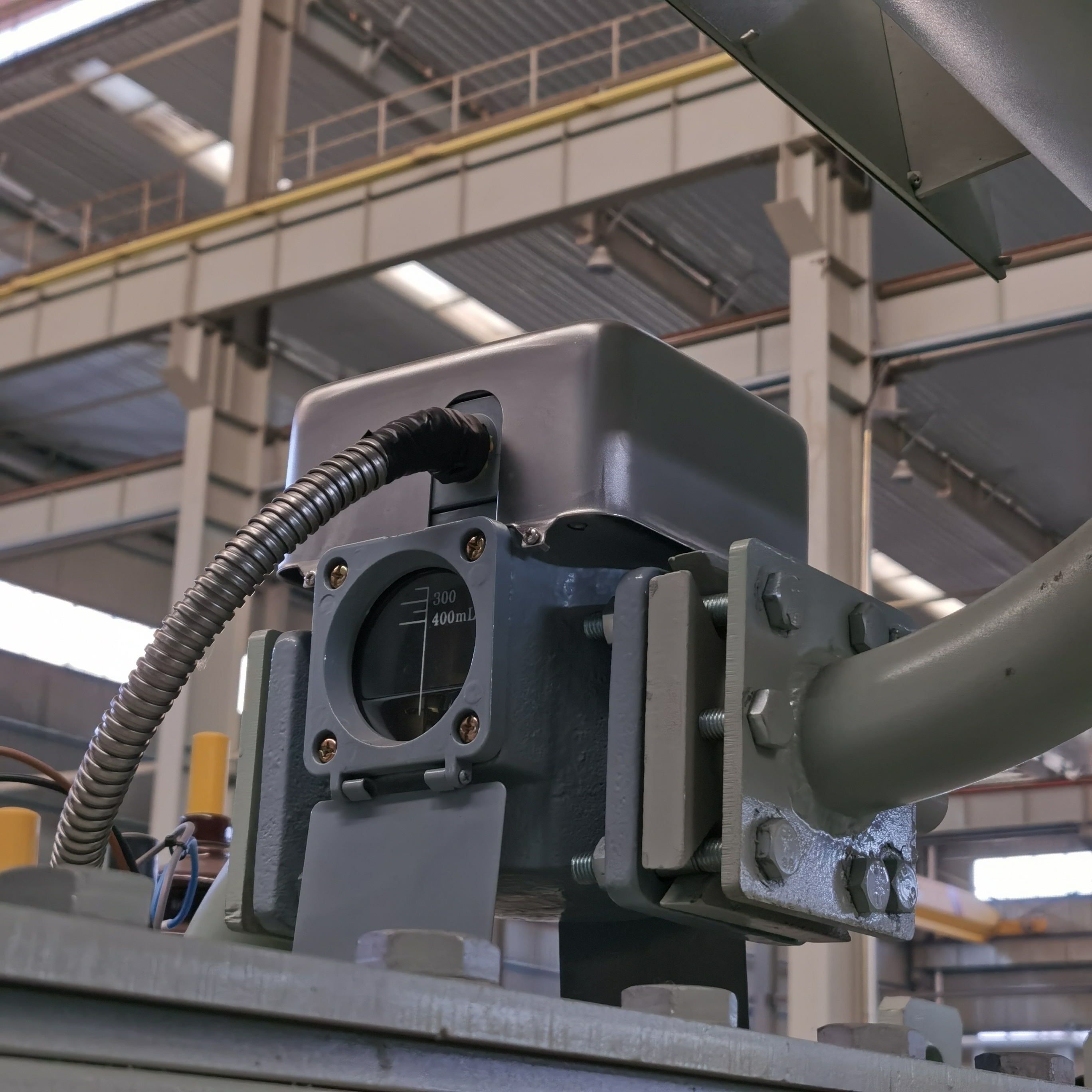

Buchholz Relay

Buchholz Relay

Dual-float type with alarm and trip contacts to detect internal gas accumulation and oil surges.

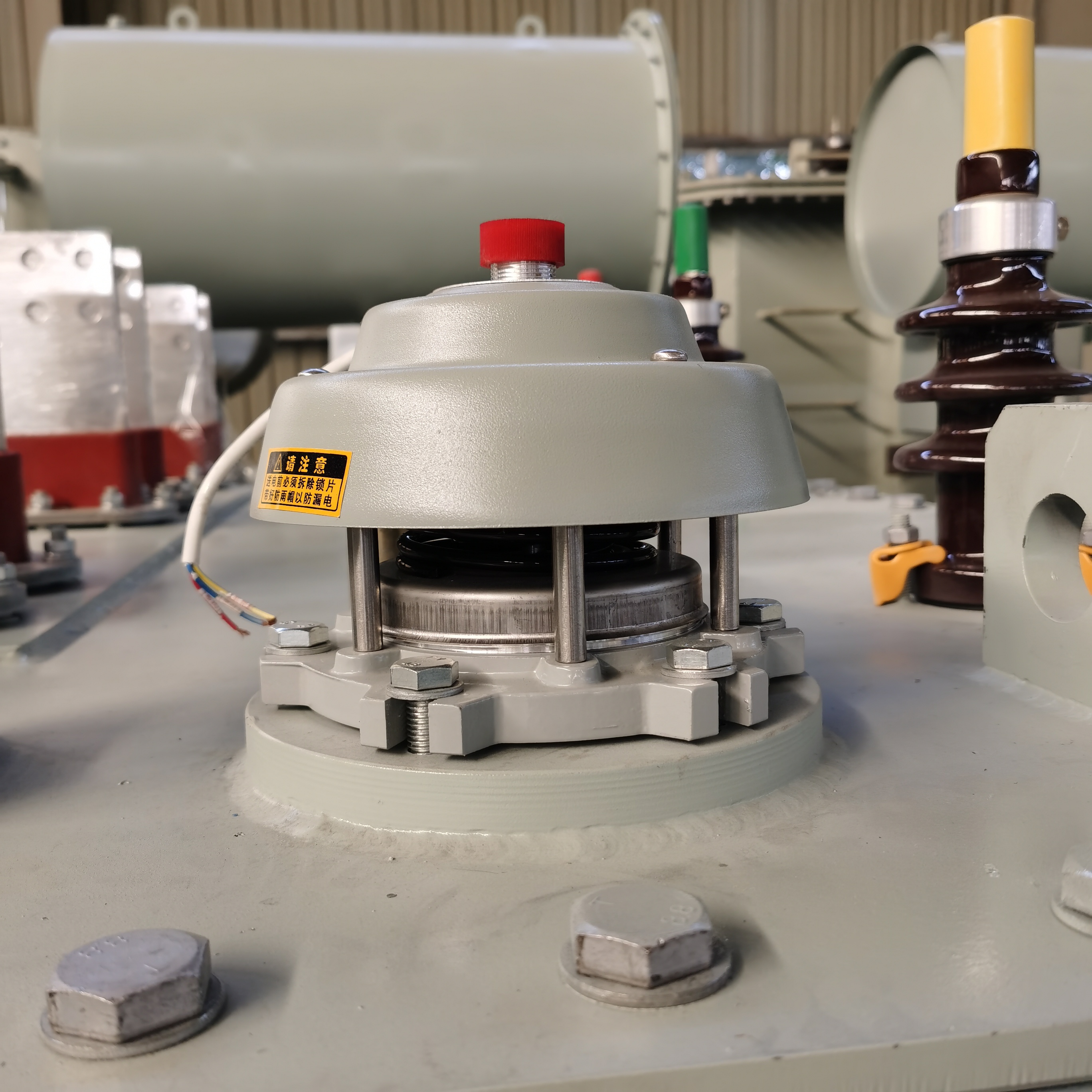

Pressure Relief Valve

Pressure Relief Valve

Instantaneous mechanical release with micro-switch to protect the tank against overpressure.

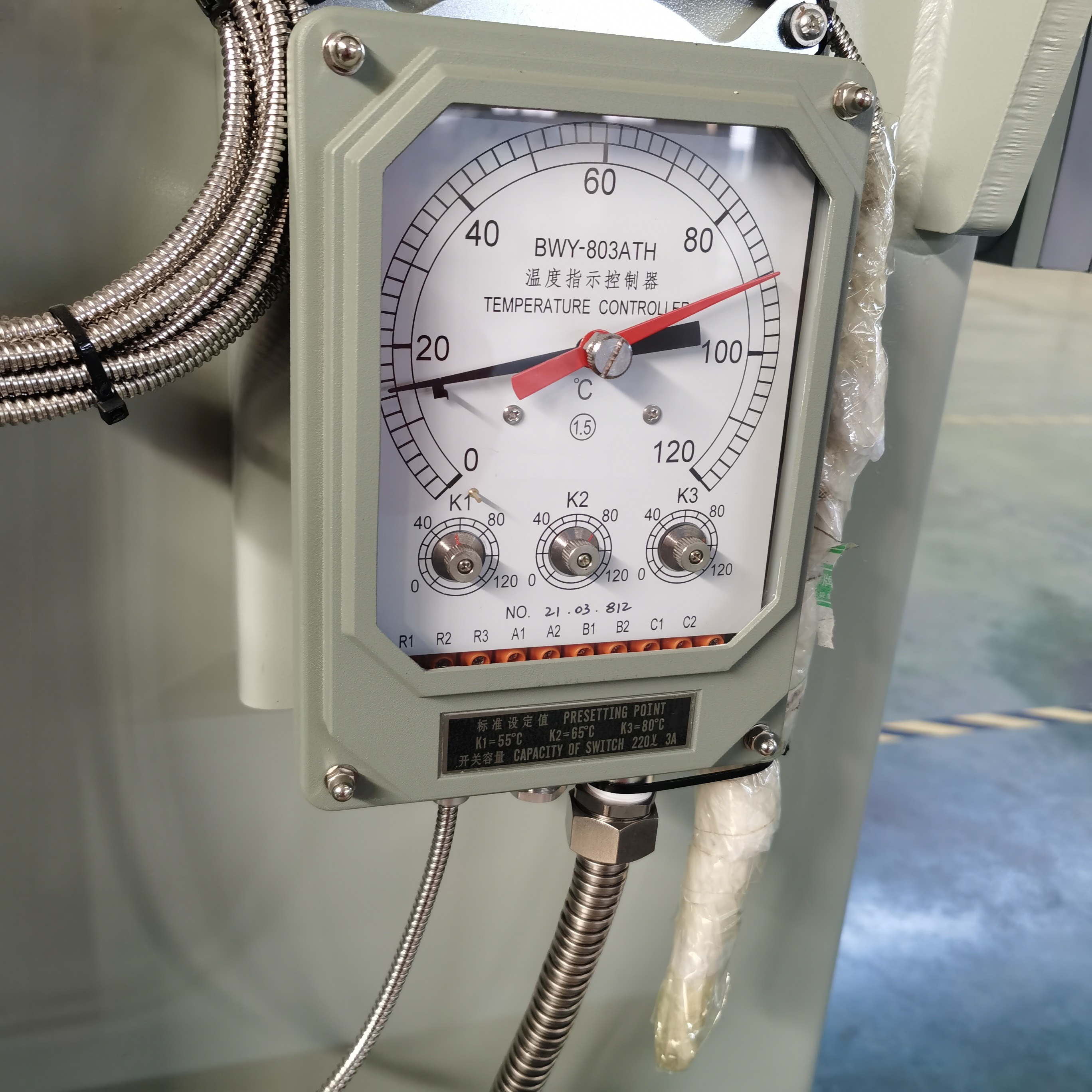

Temperature Controllers

Intelligent Controllers

Multi-channel OTI & WTI with analog/digital output (4-20mA, RS485 Modbus) for SCADA integration.

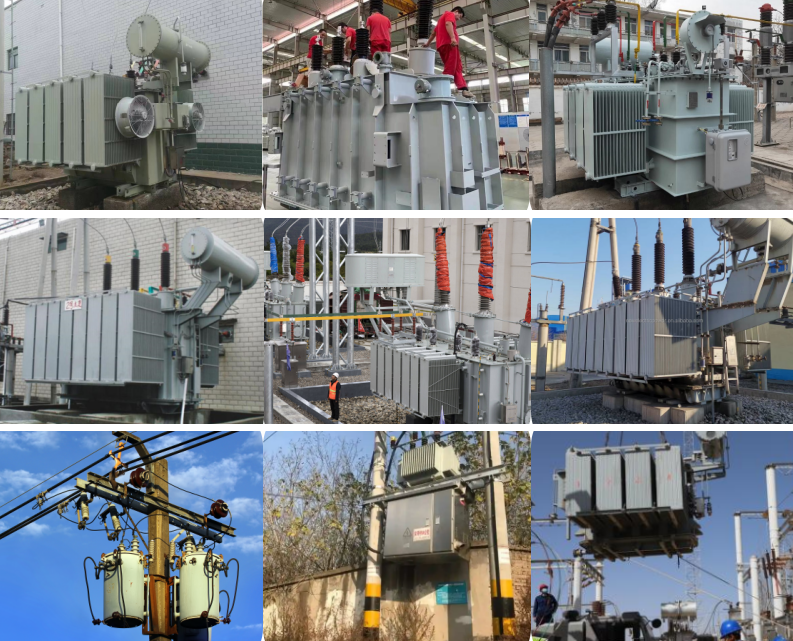

Global Substation Project Showcases

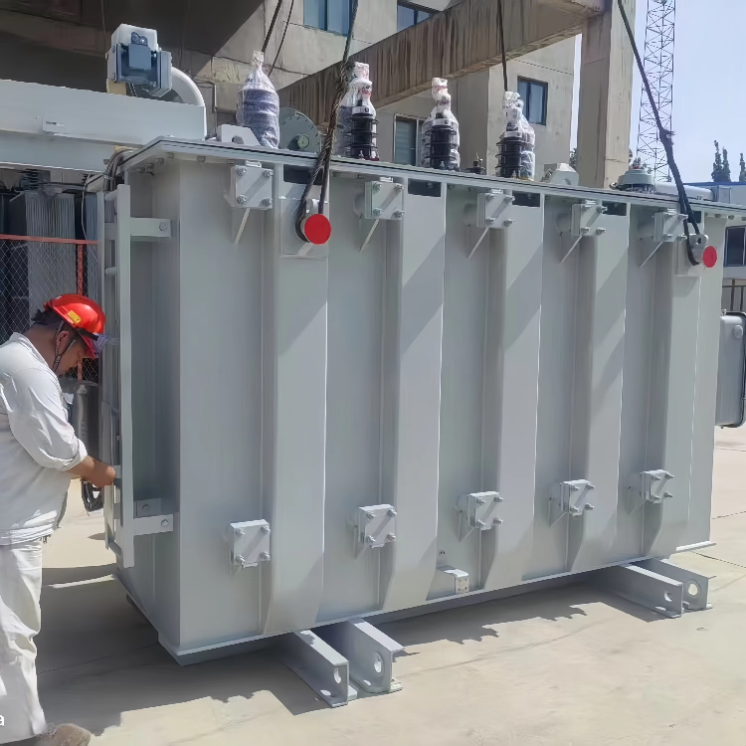

Project 1
Heavy Metal Smelting Plant Substation (Middle East)

Specification: 80MVA, 220kV to 33kV Heavy-Duty Industrial Transformer.

Outcome: Sustained continuous operation under 50°C ambient temperatures with C5-M marine-grade painting.

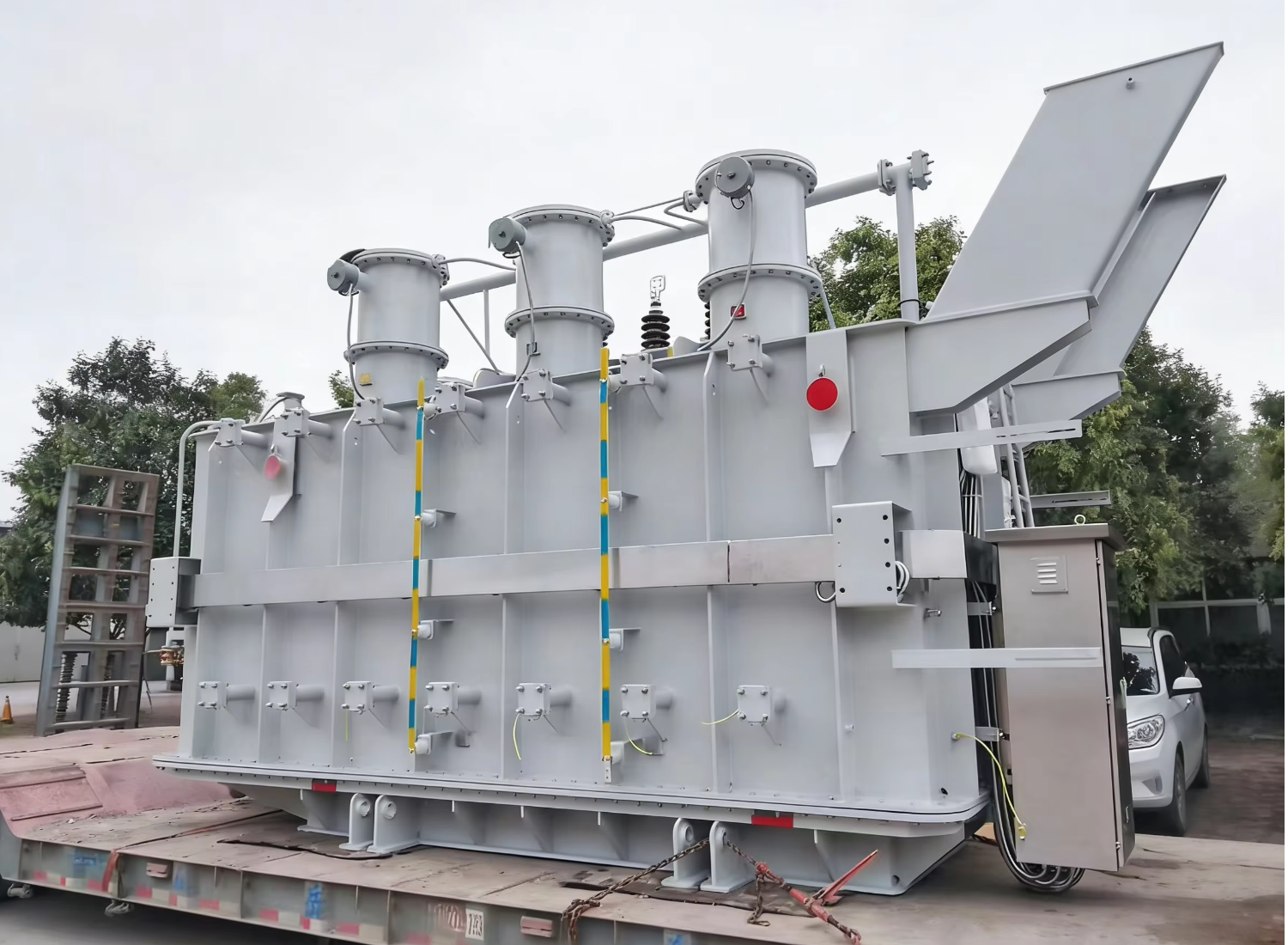

Project 2
150MW Onshore Wind Farm Step-Up Station (Europe)

Specification: 63MVA, 34.5kV to 132kV Step-Up Generation Transformer.

Outcome: Successfully step-up fluctuating wind power to national grid with high annual efficiency.

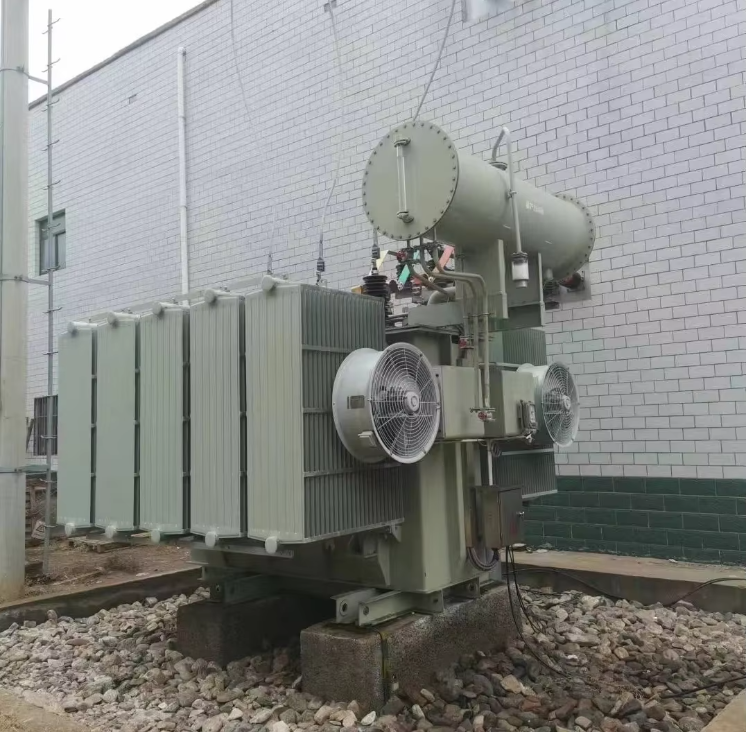

Project 3
110kV Regional Transmission Substation Upgrade (South America)

Specification: 50MVA, 110kV to 13.8kV ONAN/ONAF Step-Down with OLTC.

Outcome: Resolved voltage sag issues during peak hours with advanced SCADA thermal monitoring.

Customization & Manufacturing

We provide reliable, energy-saving and durable transformers for power grids, infrastructure, industry and construction projects worldwide. We accept OEM & ODM orders with professional technical support.

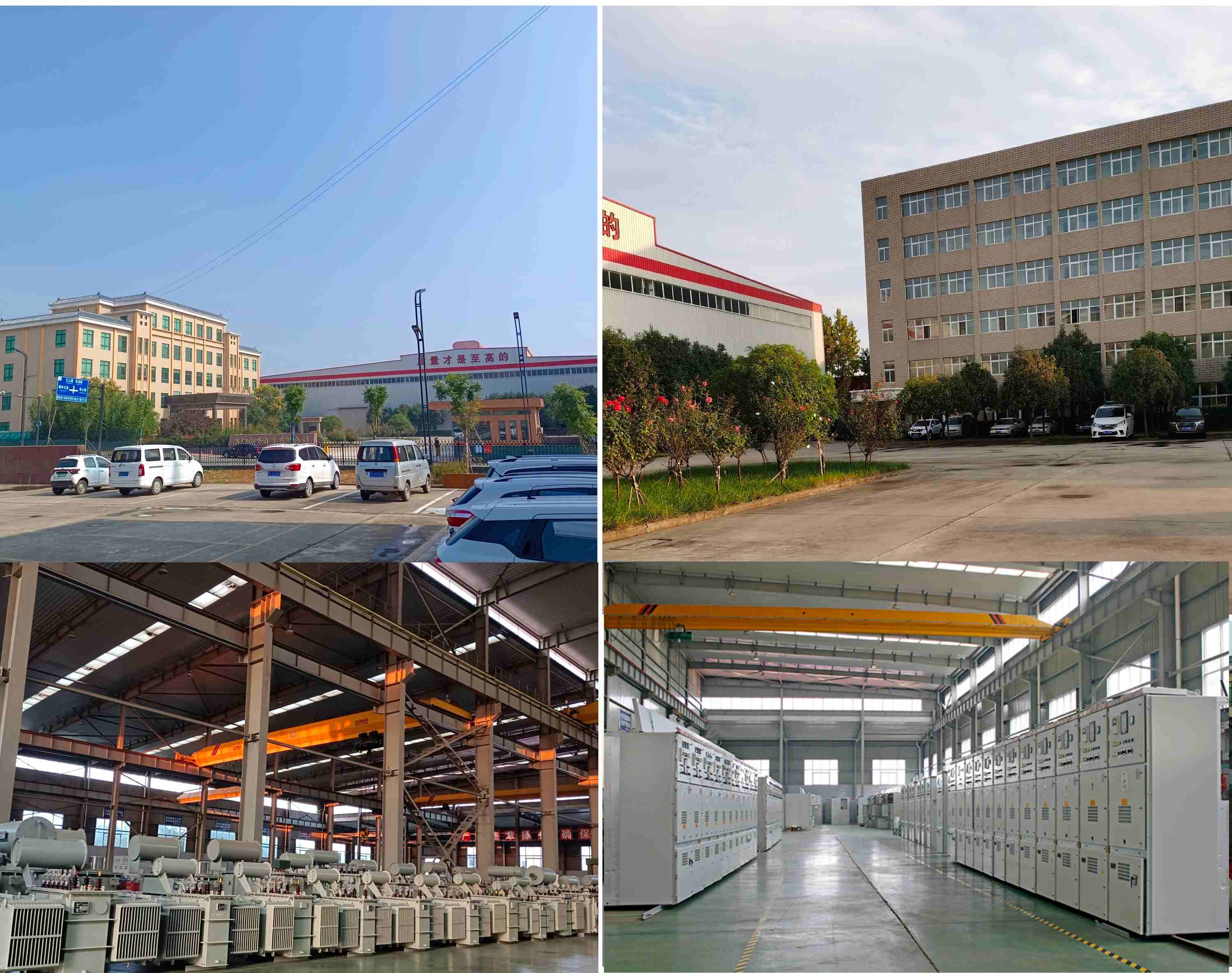

Factory 1

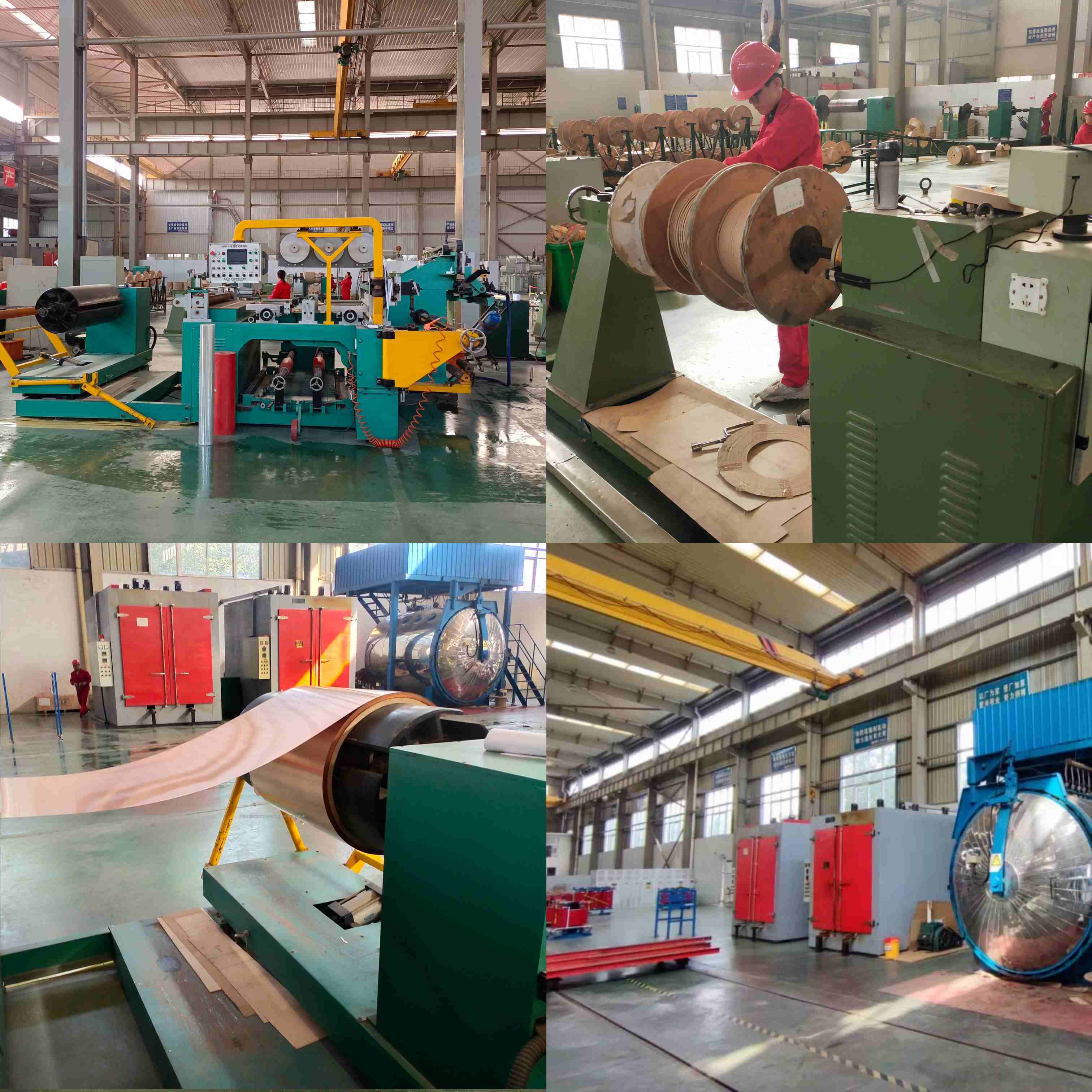

Factory 2

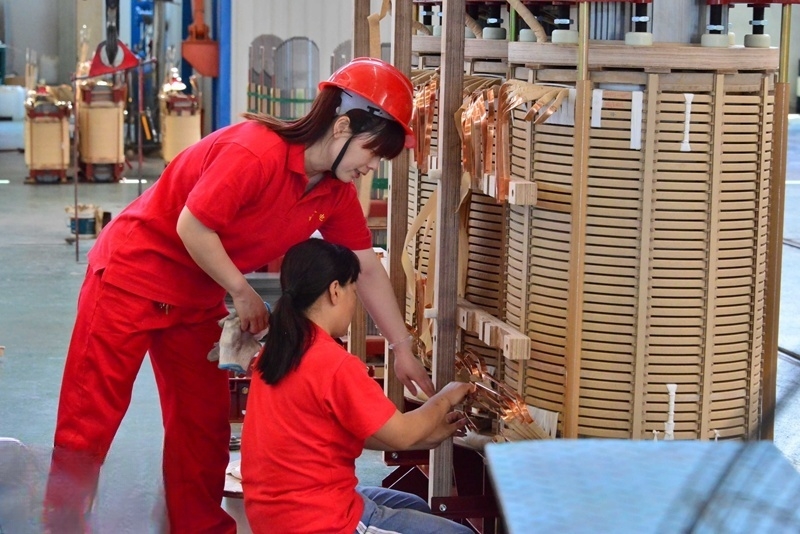

Custom Design

Comprehensive Custom Design: Tailored designs based on specific capacity, voltage, and cooling requirements for complex load demands.

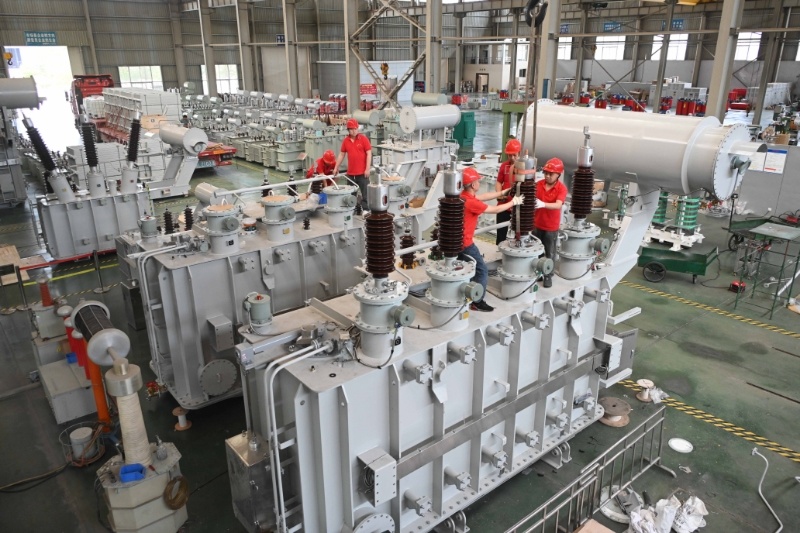

Production

Flexible Production: Advanced automation and precision testing systems allow for fast delivery and high-quality customized production.

Frequently Asked Questions

1. What is the customization cycle for transformers?
7-15 working days for regular models; 15-25 working days for complex configurations such as non-standard voltage or explosion-proof designs.
2. Do your customized products comply with international standards?
Yes, all products adhere to IEC/IEEE/GB standards. CE or UL certification can be arranged upon request to ensure grid compatibility.
3. How do I determine the suitable power and voltage parameters?
Simply provide your load type, working environment, and installation space. Our engineers provide free customization plans for precise matching.
4. What is the standard warranty period?
We provide a 1-3 year warranty (extendable), covering free repair and parts replacement, plus lifelong technical support.
5. Can these transformers adapt to extreme environments?
Yes, we offer protection levels up to IP65 and temperature-resistant materials suitable for environments ranging from -40°C to 60°C.
6. What cooling methods are available?
We provide both ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced) cooling methods depending on the capacity and load requirements.
