Product Description

Vacuum Impregnation Equipment

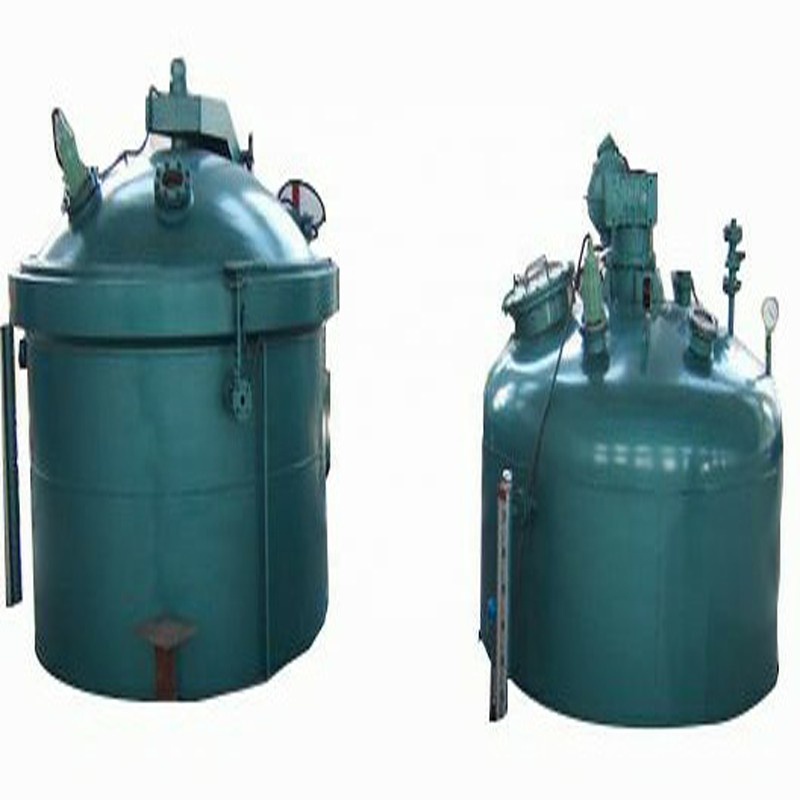

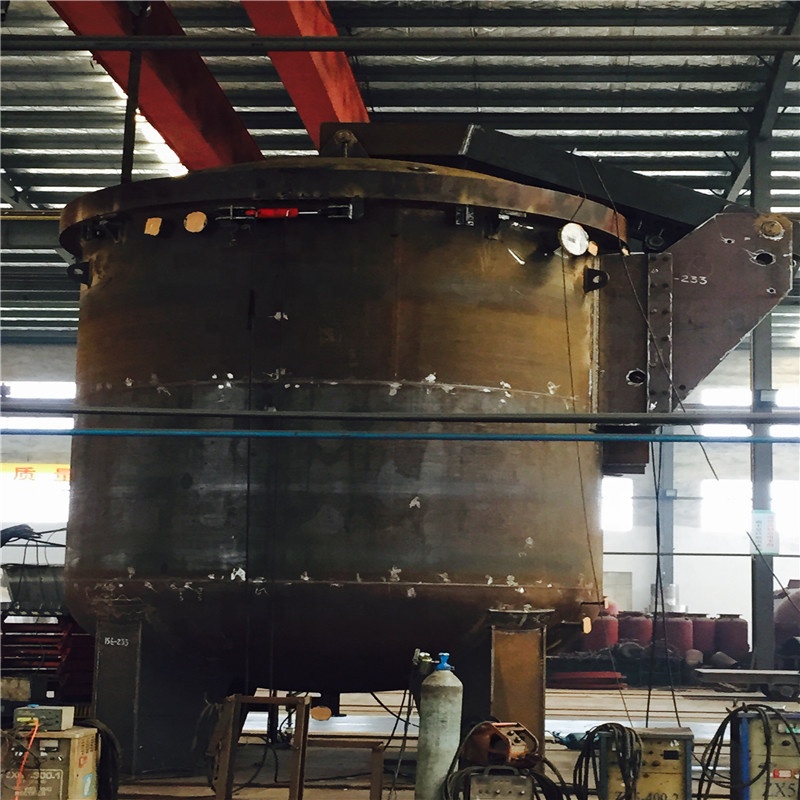

🔹 Vacuum Impregnation Tank VPI 1400*1400MM

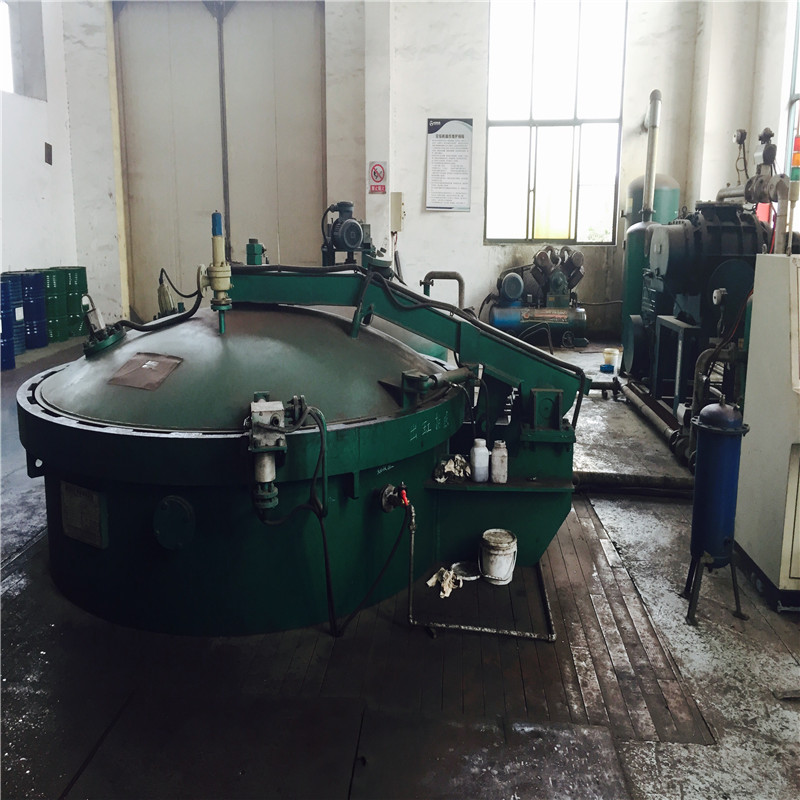

Tank Detail
  • Head Material: 16MnR
  • Tank Body: Q345R
  • Flange: 16MnR forging parts
  • Dimensions: 1400mm diameter * 1400mm height

The vacuum pressure impregnation system is also known as a varnish vacuum impregnation machine or VPI system, designed for high-efficiency insulation processing.

🔹 Advanced Electrical Control System

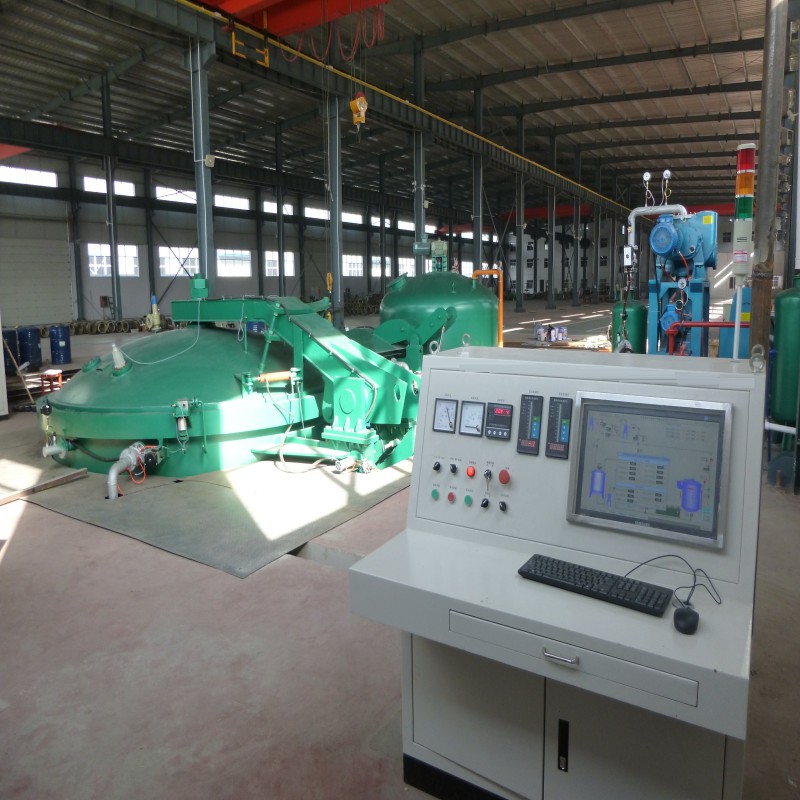

Control System
  • Real-time memory and data storage
  • Impregnation tank vacuum degree vs. Time tracking
  • Impregnation tank pressure vs. Time monitoring
  • Resin level management and resin storage tank temperature control
🔹 Technical Specifications & Parameters
Varnish Vacuum Impregnation Equipment VPI
Working Pressure 0-0.6MPA (Adjustable)
Vacuum Degree 100~200 Pa
Hydraulic System Automatic opening, closing, and locking mechanism with safety interlocks
Monitoring Equipped with peephole lights, observation windows, and level transmitters
Safety Overpressure alarms, safety devices, and non-contact proximity switches
🔹 Supply Scope
  • Vacuum impregnation tank (Vertical type) - 1 set
  • Resin storage tank (Vertical type) - 1 set
  • Complete Vacuum System - 1 set
  • Resin supply and return system - 1 set
  • High-precision Hydraulic system - 1 set
  • Control and measurement system (PLC based) - 1 set
🔹 Equipment Gallery

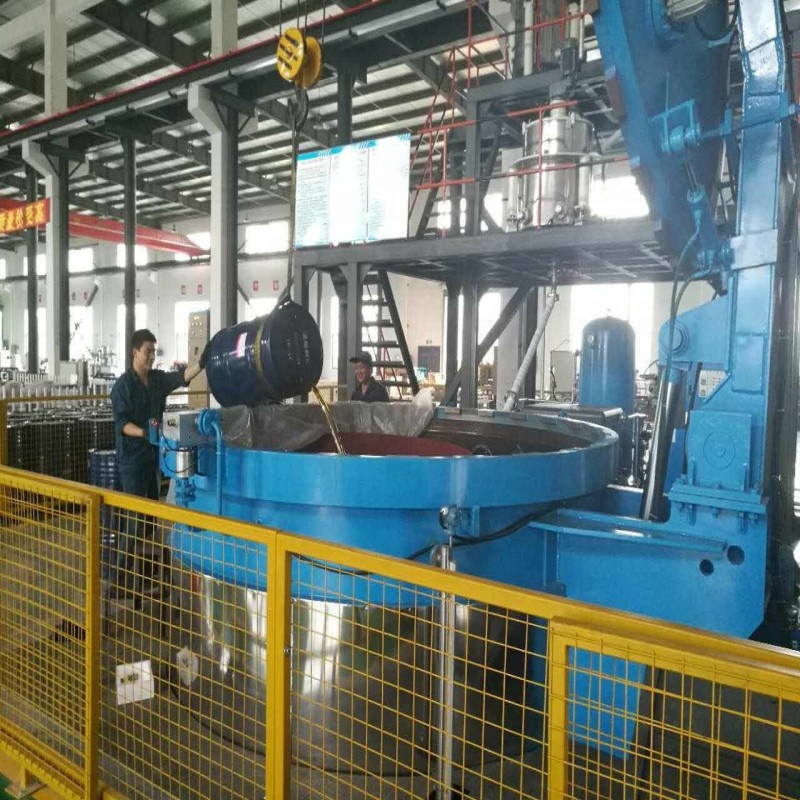

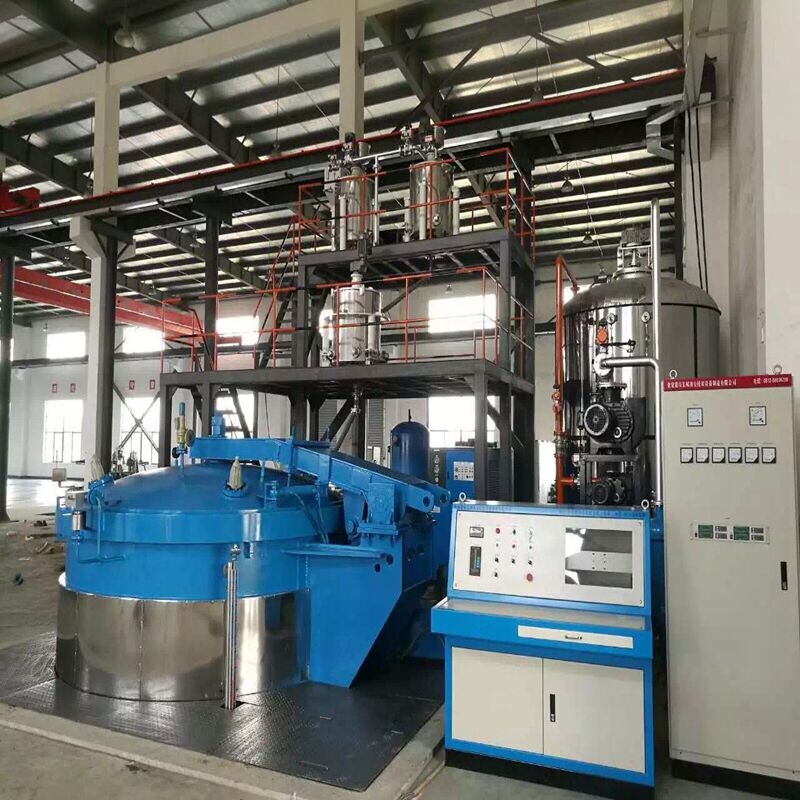

Installation

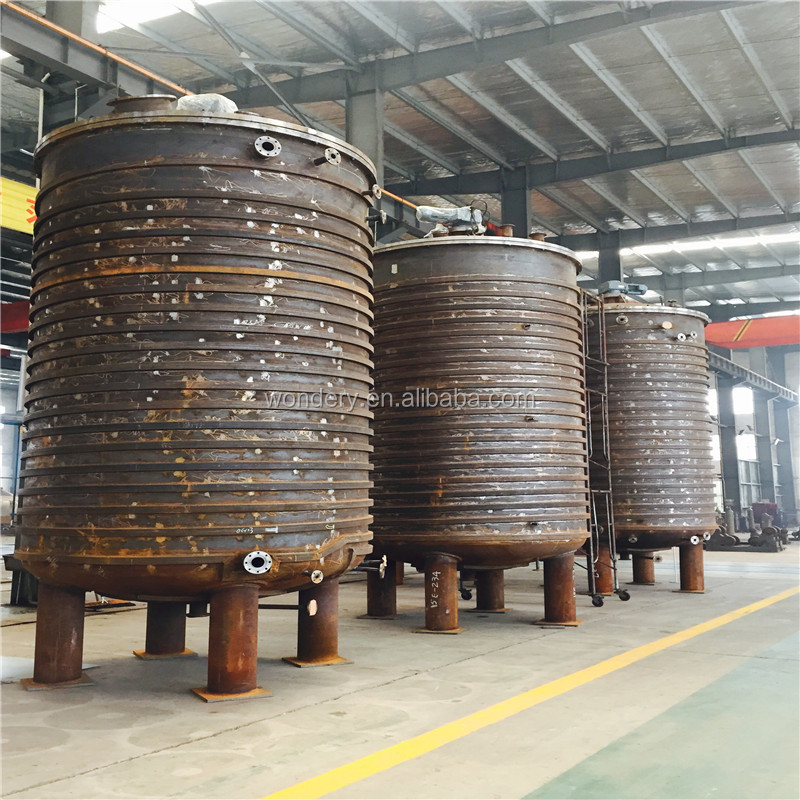

VPI Detail

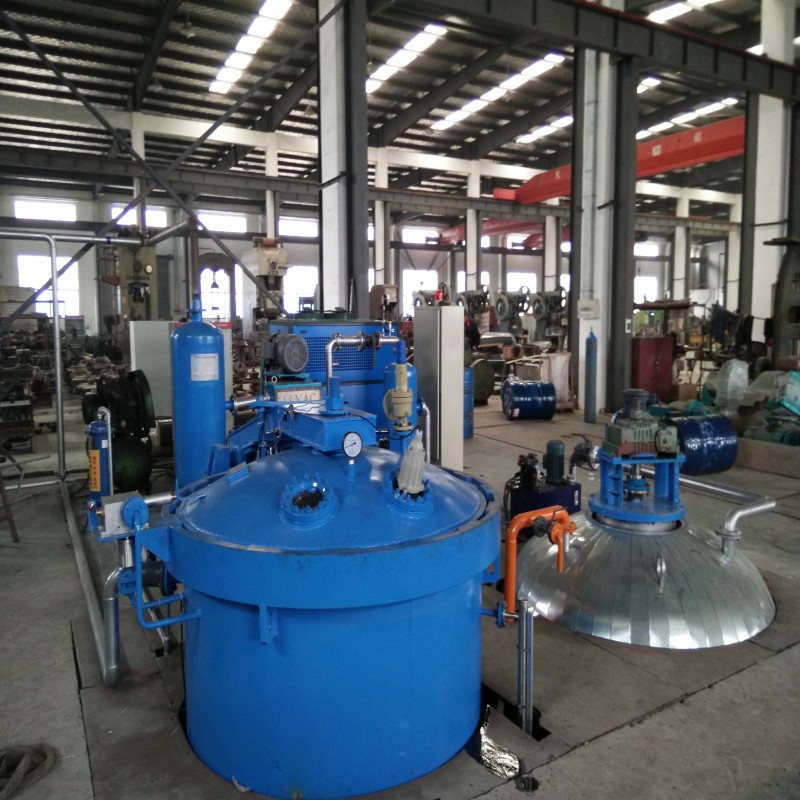

Tank Interior

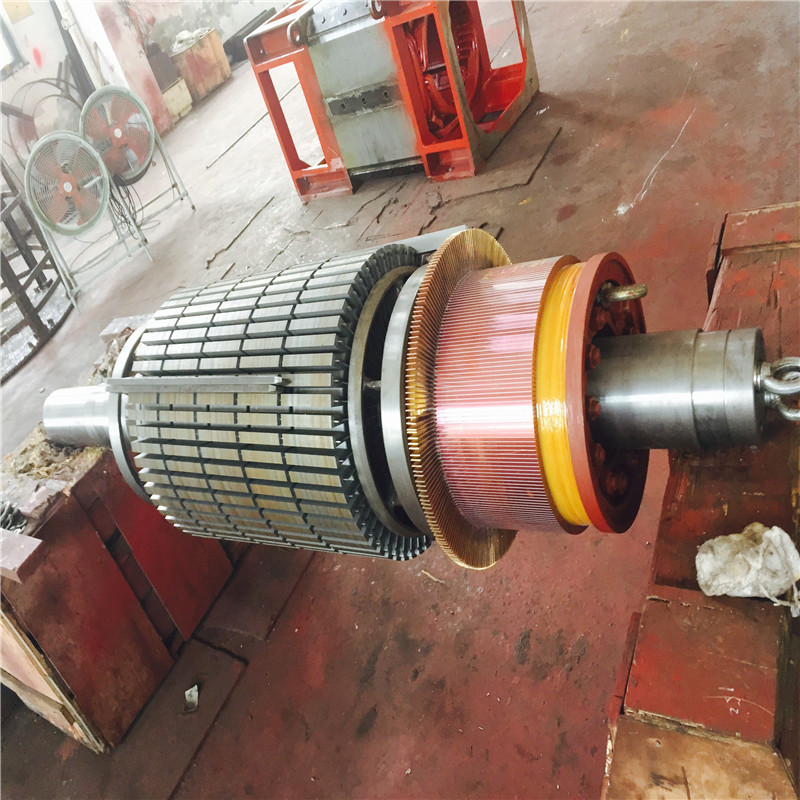

Storage Tank

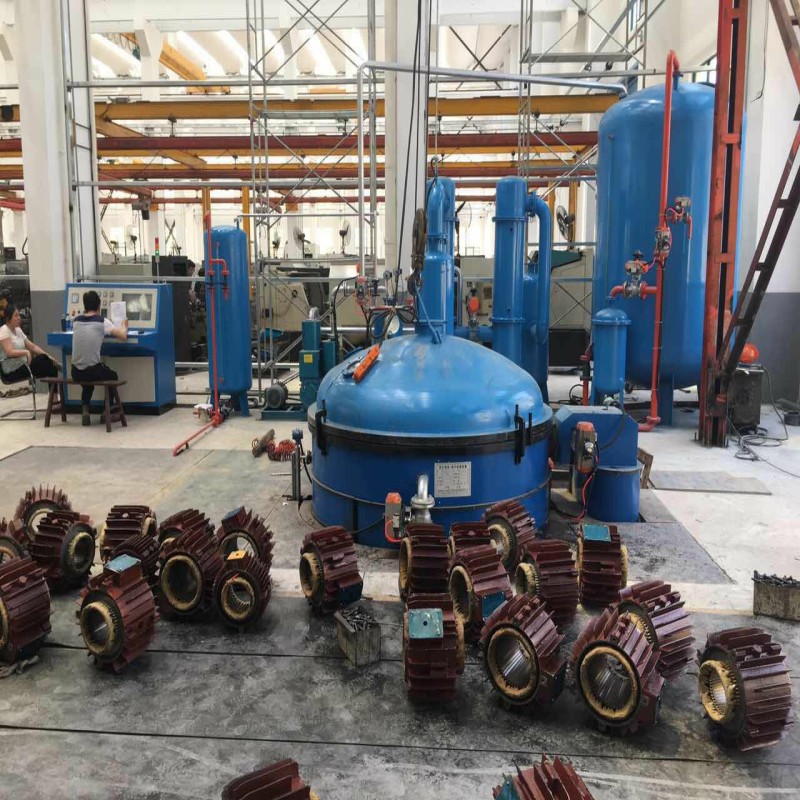

Valves
Processing
🔹 Related Equipment Solutions

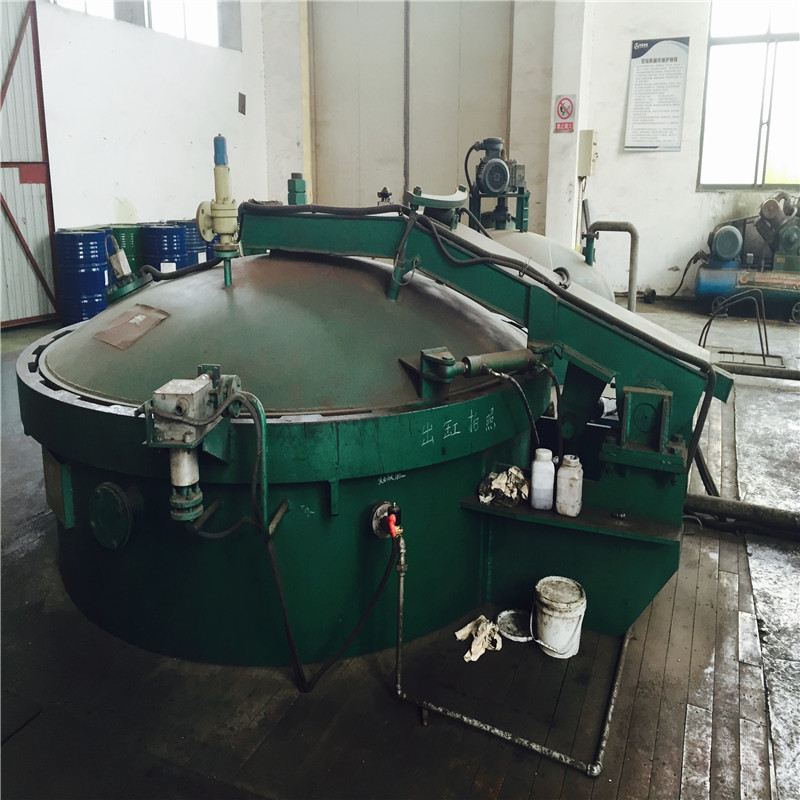

VPI Equipment

VPI Impregnation Equipment

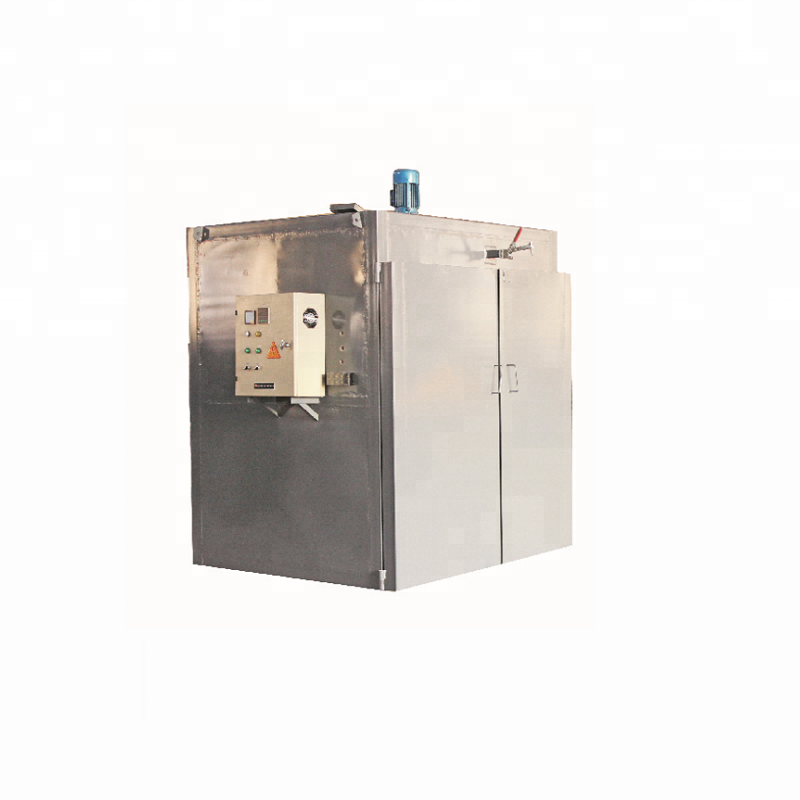

Drying Oven

Electric Drying Oven

Vacuum Casting

Vacuum Casting Equipment

🔹 Application & Benefits

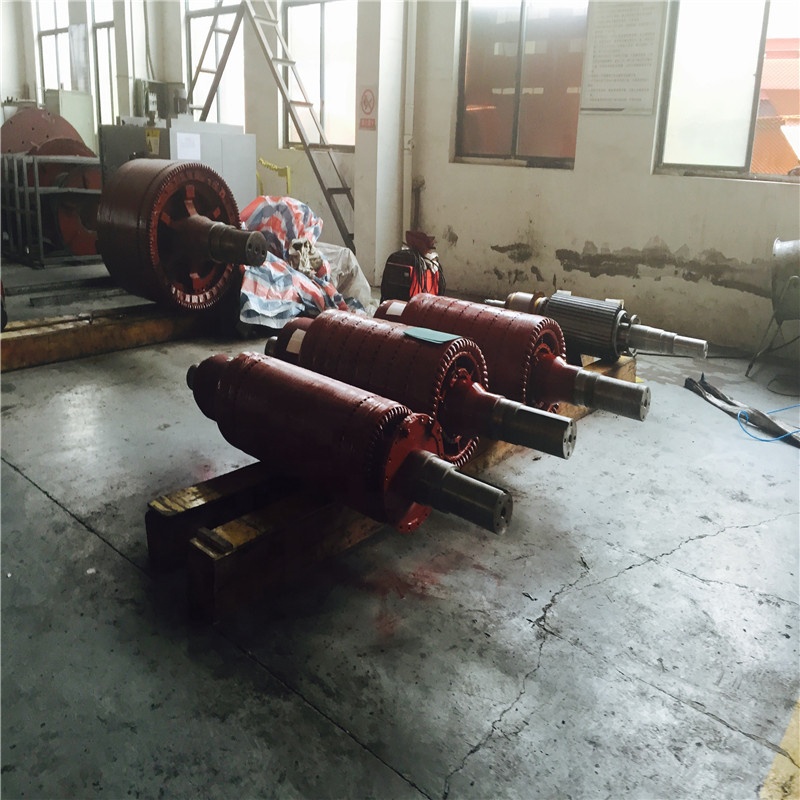

Our industrial equipment solutions are specialized for the treatment of windings in transformers, voltage stabilizers, motors, pumps, and C-shape/O-shape iron cores. The VPI process significantly improves:

  • Mechanical strength of the windings
  • Anti-moisture and anti-corrosion properties
  • Overall insulation levels for electrical equipment
  • Cost-effectiveness and environmental friendliness in production
🔹 Packing & Delivery

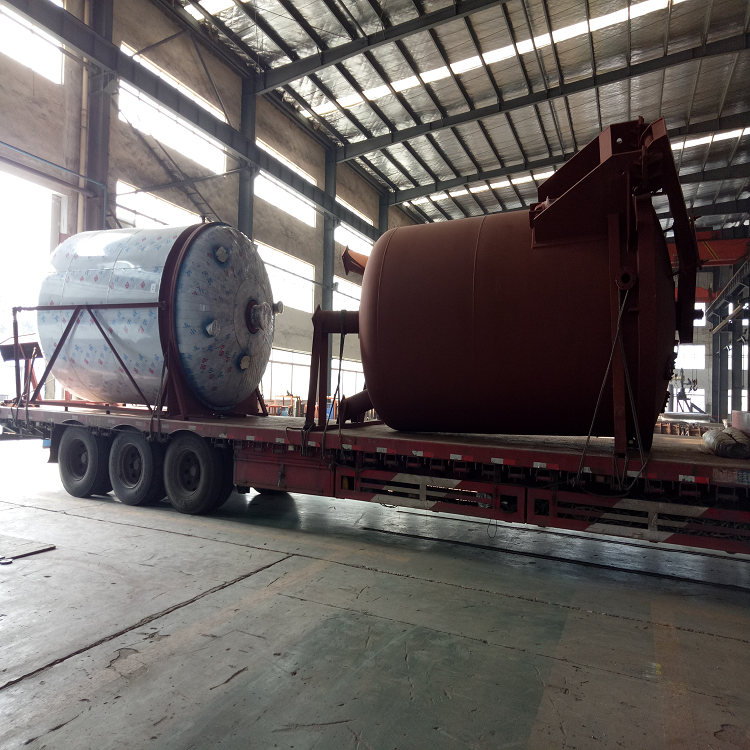

Packaging 1

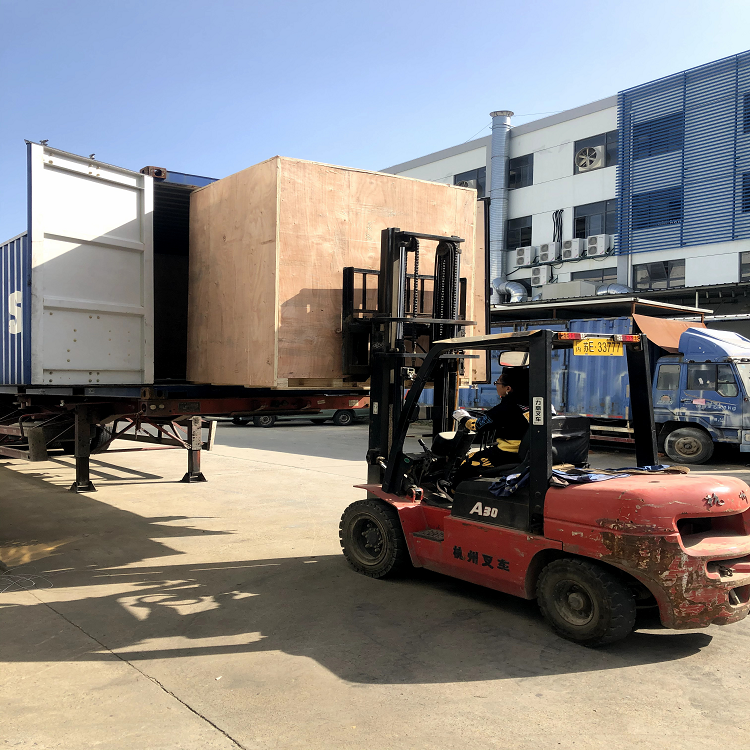

Packaging 2
Packaging 3
❓ Frequently Asked Questions (FAQ)
1. What is the power supply requirements for the equipment?
The power supply is customized based on the customer's site requirements. We can adjust voltage and phase through transformers to ensure compatibility with your local industrial power grid.
2. What information is needed for an accurate quotation?
To provide a precise quote, please provide the effective size of the impregnation tank (diameter and height), required vacuum degree, working pressure, industrial voltage, and any specific technical drawings or photos.
3. What are the standard payment terms?
Our standard payment terms are a 40% down payment, with the remaining 60% due before delivery via T/T mode.
4. What is the typical delivery time for a VPI system?
The standard delivery time is approximately 60 days following the receipt of the initial down payment.
5. What does the warranty period cover?
The equipment comes with a 1-year warranty period starting from the successful completion of the test-running phase at the end-user site.
6. Which industries benefit most from vacuum pressure impregnation?
VPI systems are essential for manufacturers of high-voltage motors, transformers, and traction motors where high insulation reliability and mechanical stability are required to withstand harsh operating conditions.
