⚡ Overview

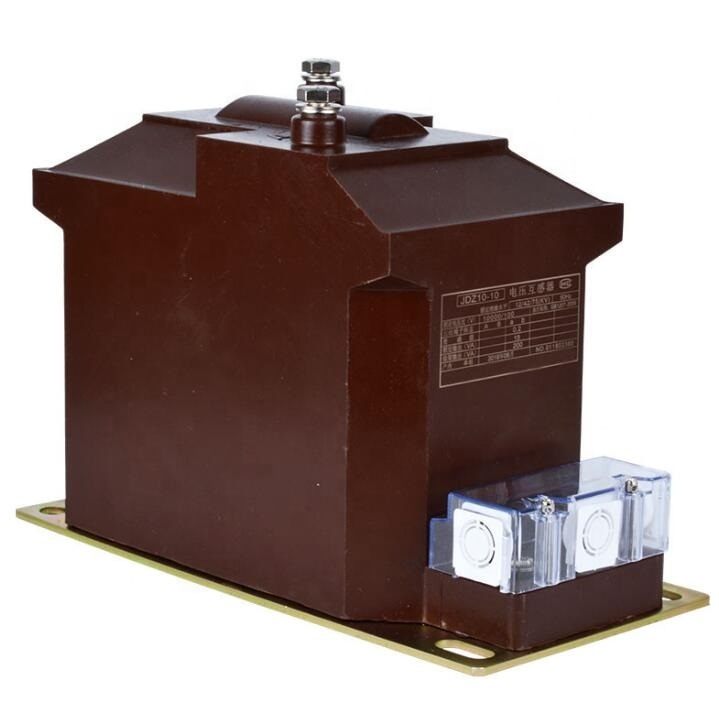

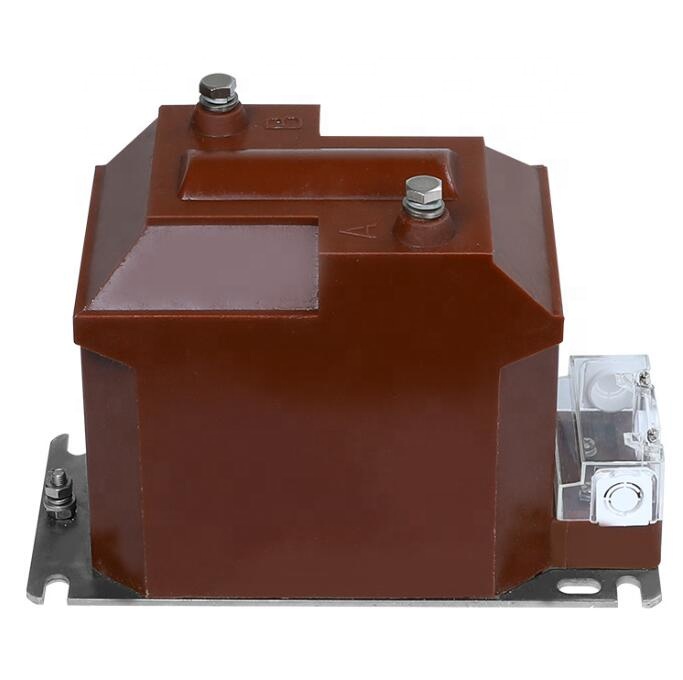

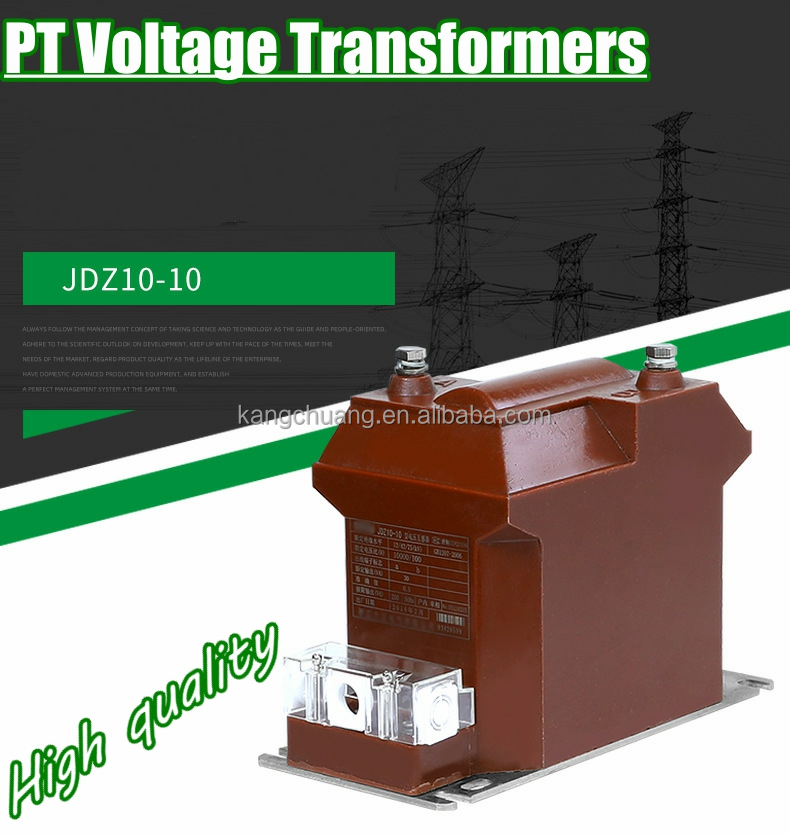

The JDZ10-3 6 10 Series Electric Voltage Transformer / 10KV Cast Resin Insulated Enclosed / Indoor AC transformer is the type of cast resin insulation and full enclosed, used for electric energy metering, voltage control and relay protection in the power systems of rated voltage 3kV, 6kV, and 10kV or below. The products are in accordance with IEC60044 and GB20840.3-2013 "voltage transformer".

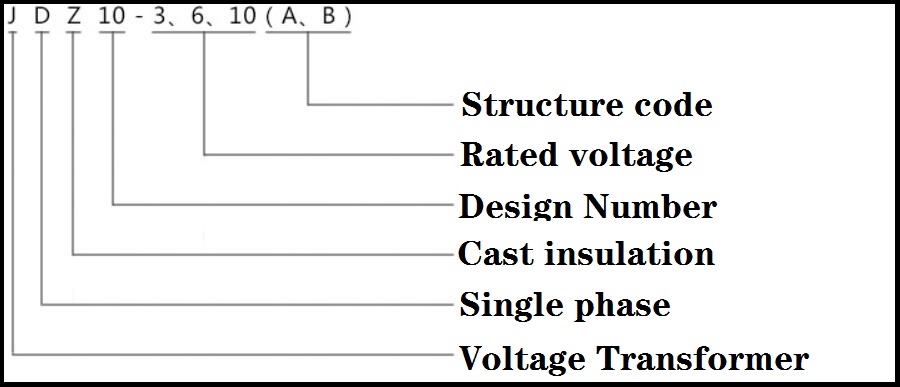

📋 Model Description

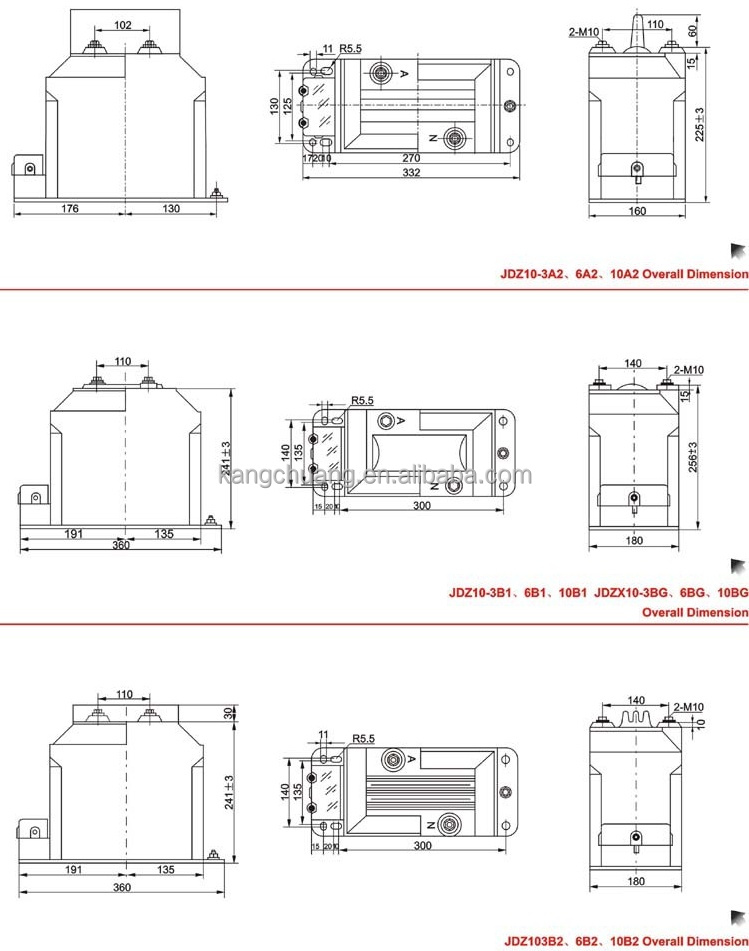

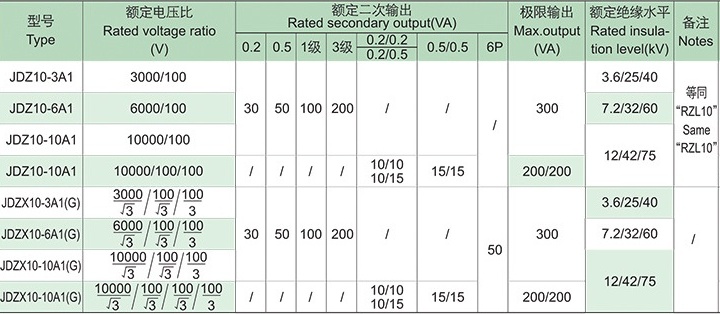

📊 Technical Parameters & Structure Dimensions

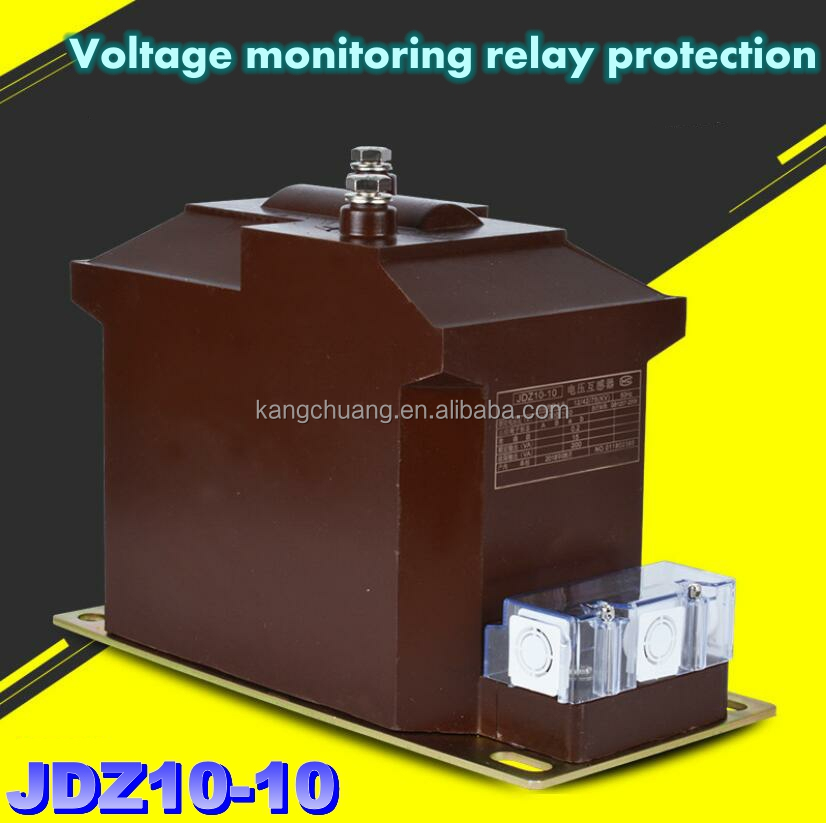

🏗️ Product Structural Features

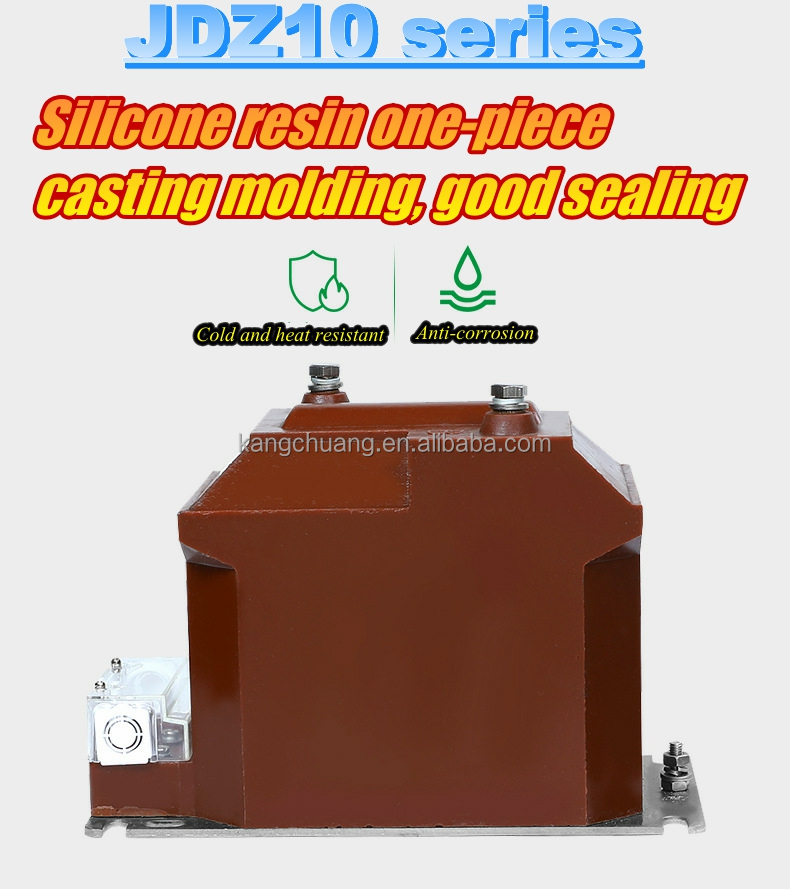

This type of transformer is a pillar-type structure cast with epoxy resin. It adopts high-quality steel sheet and undergoes strict heat treatment. The iron core is cast with epoxy resin together with the primary winding and the secondary winding. The secondary outgoing terminal is installed with a terminal box; there are three directions on the terminal box to lead out secondary wiring, and the protective cover has the function of preventing electricity theft.

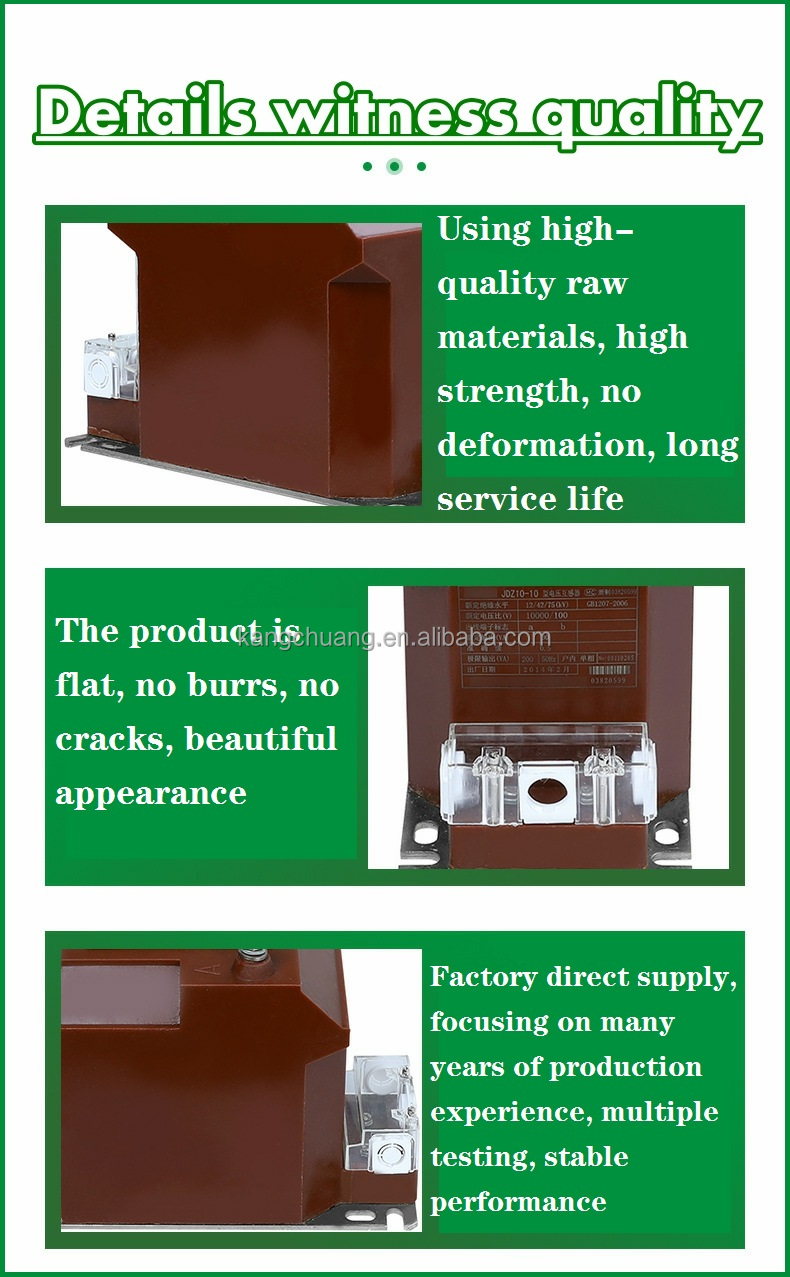

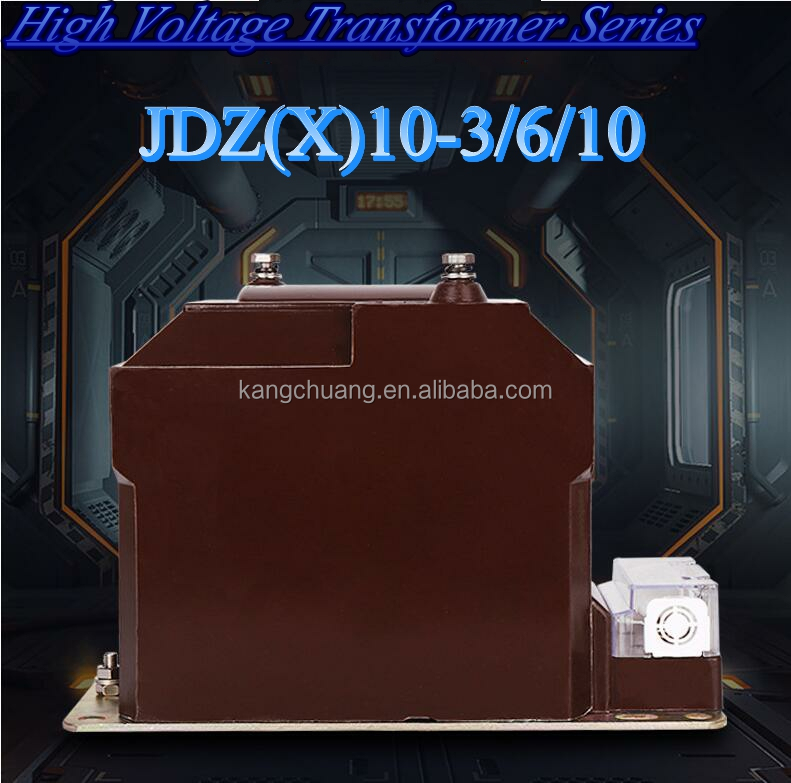

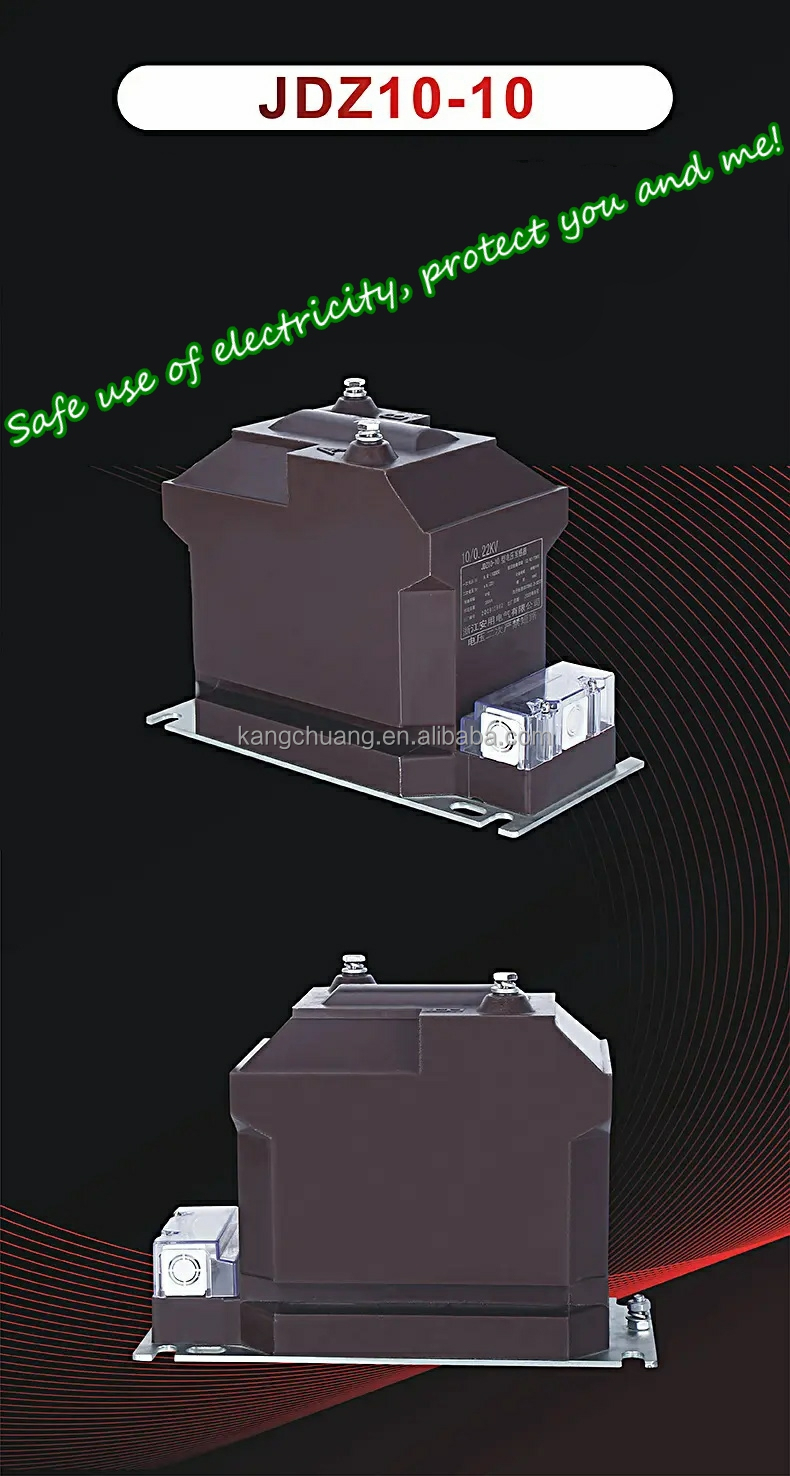

🔍 Product Details
🌍 Product Use Environment
🔹 Ambient temperature: -10°C - +40°C
🔹 Relative humidity: Daily average ≤ 95%, Monthly average ≤ 90%.
🔹 Earthquake intensity: Not exceeding 8 degrees.
🔹 Saturated vapor pressure: Daily average ≤ 2.2kPa, Monthly average ≤ 1.8kPa.
🔹 Height above sea level: ≤ 1000 m (Except special requirements).
🔹 Installation: Areas without fire, explosion, serious filth, chemical erosion, and violent vibration.

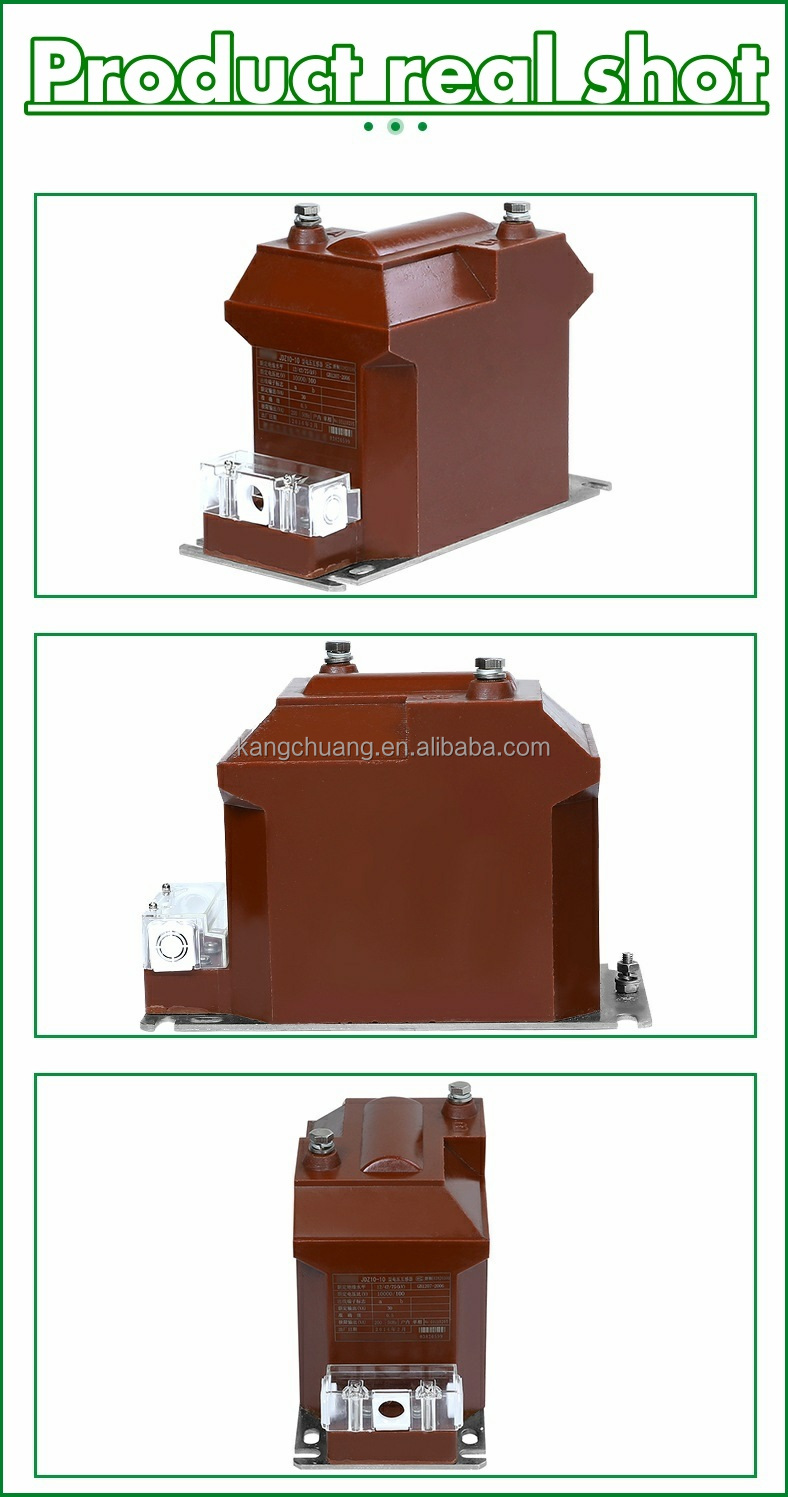

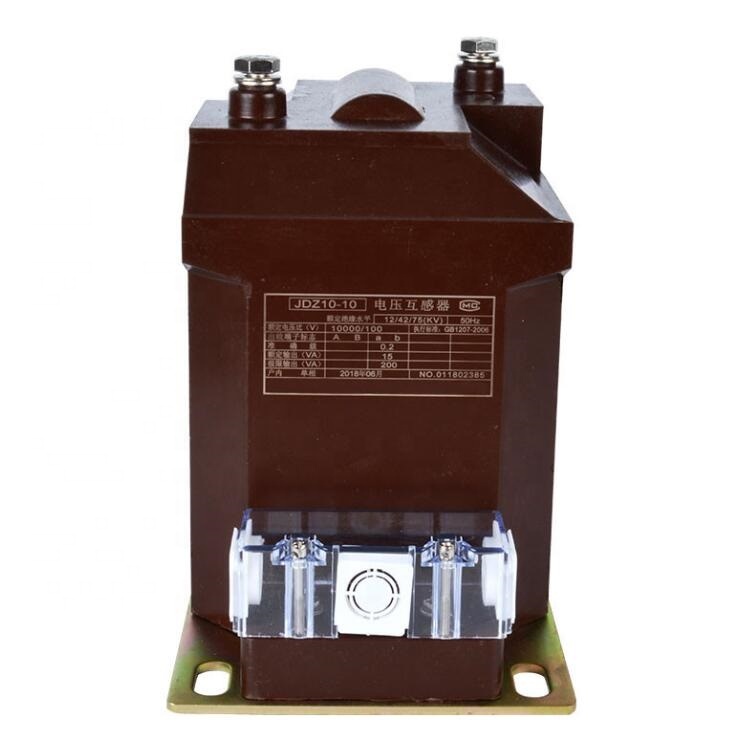

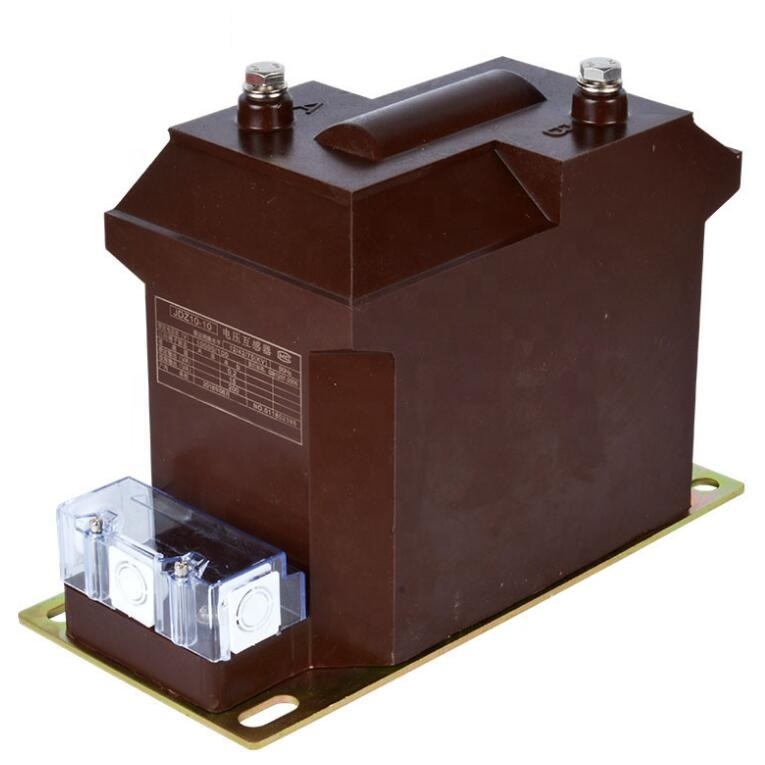

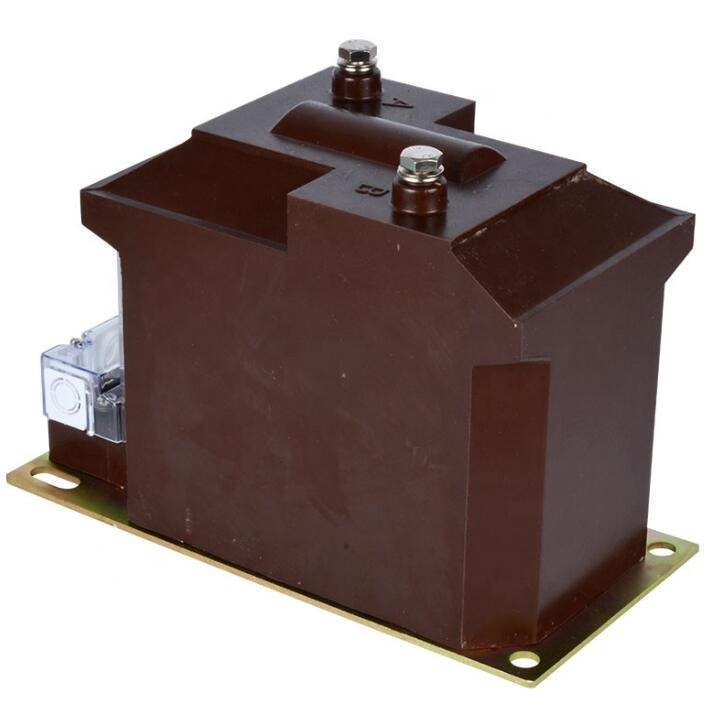

📸 Products Real Shot

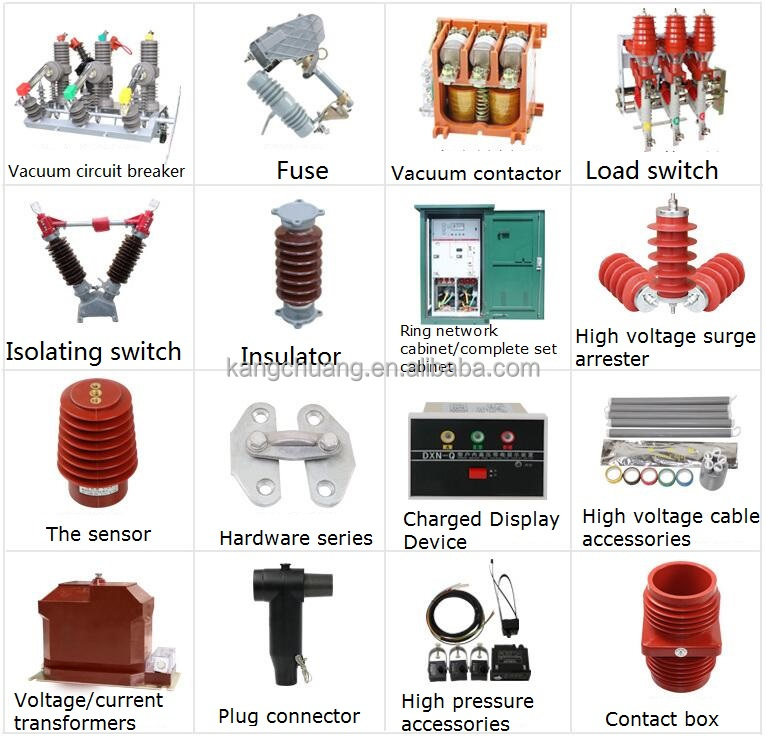

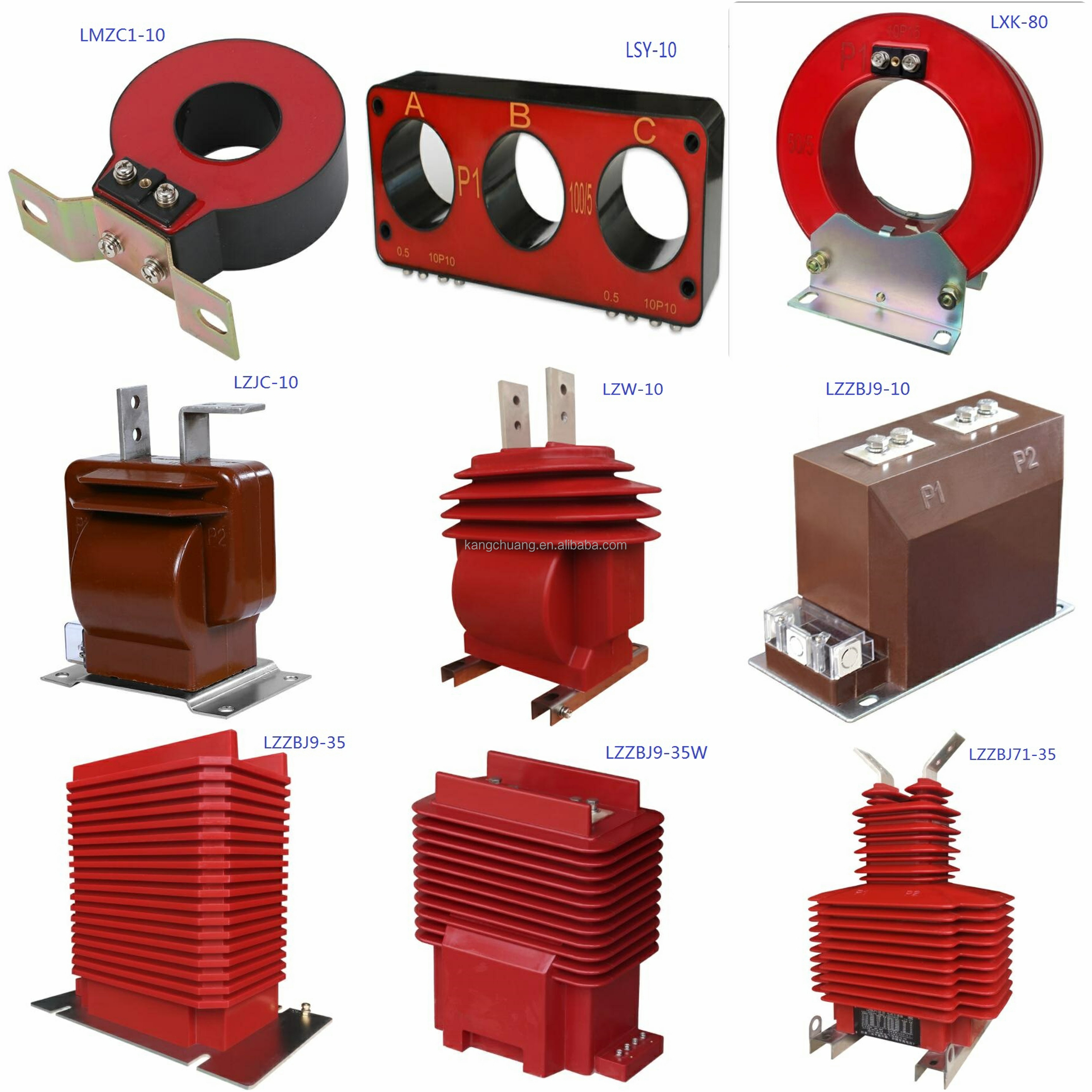

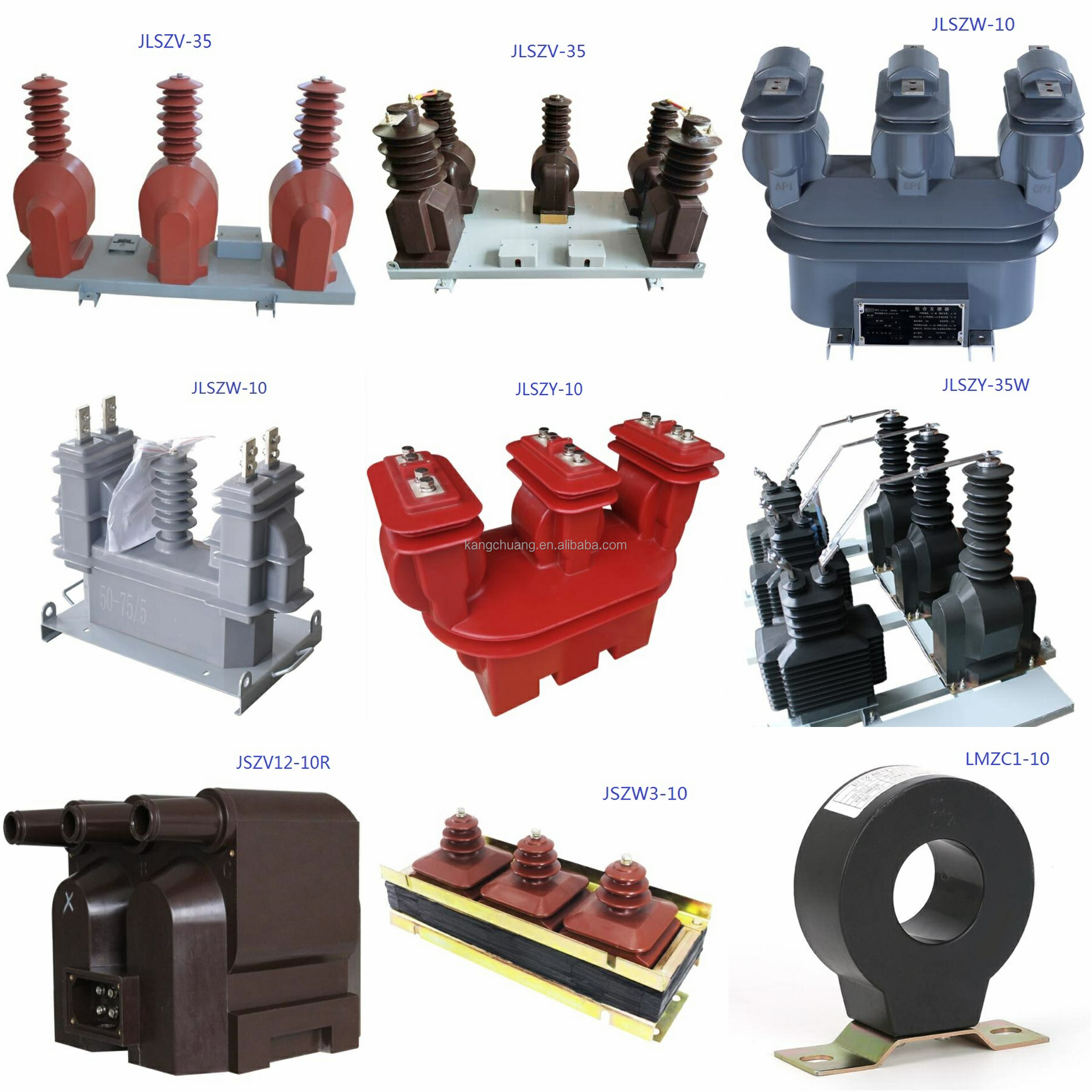

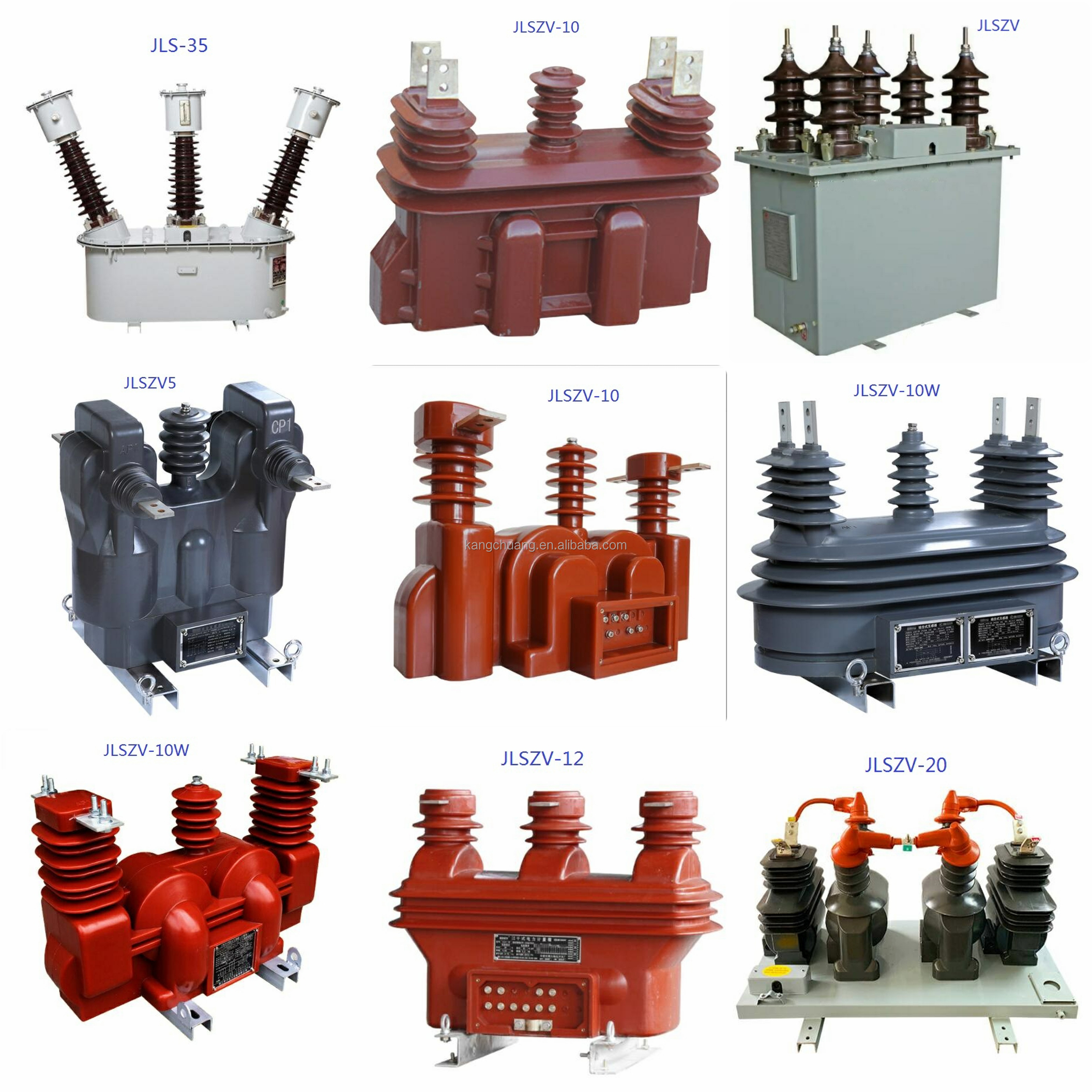

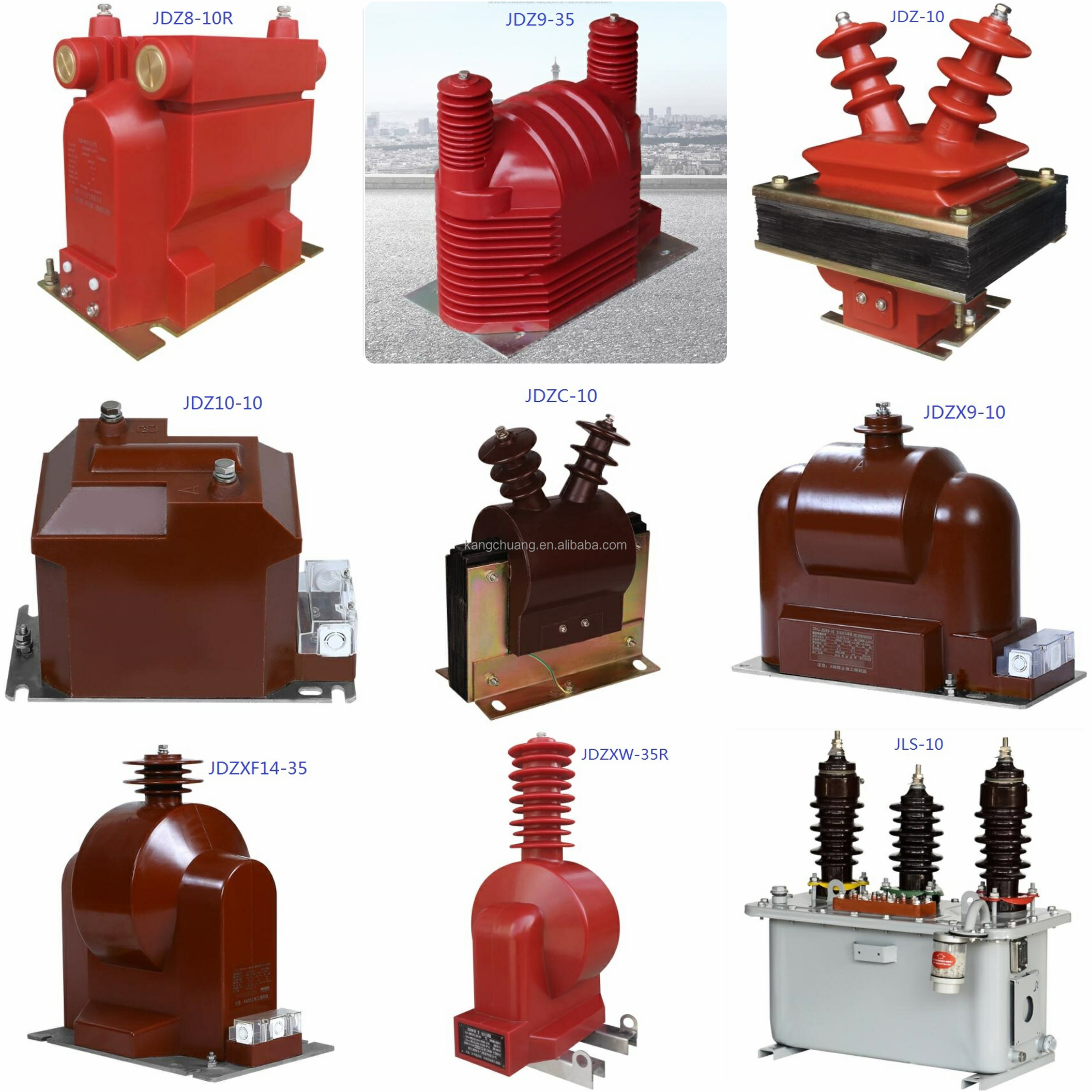

💡 More Products

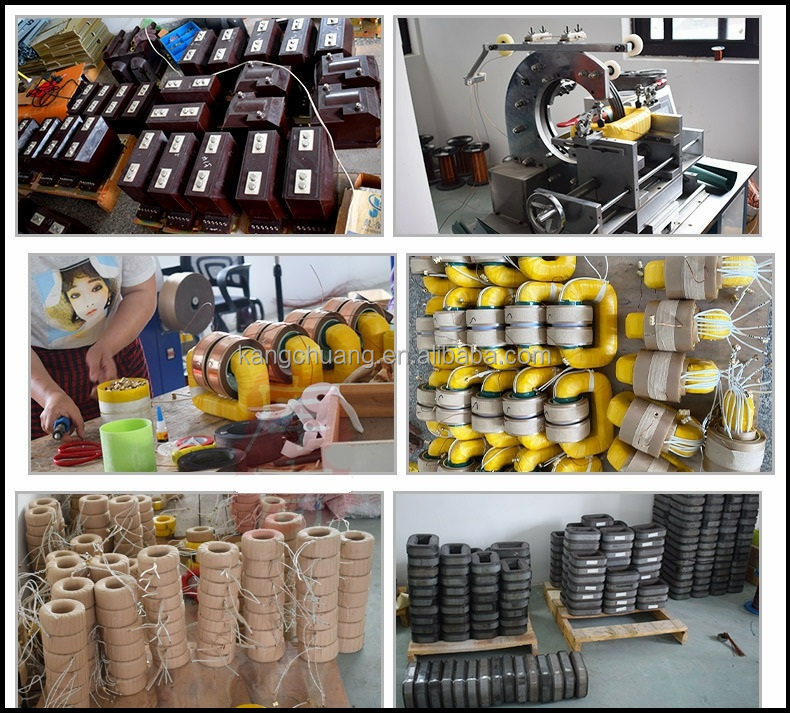

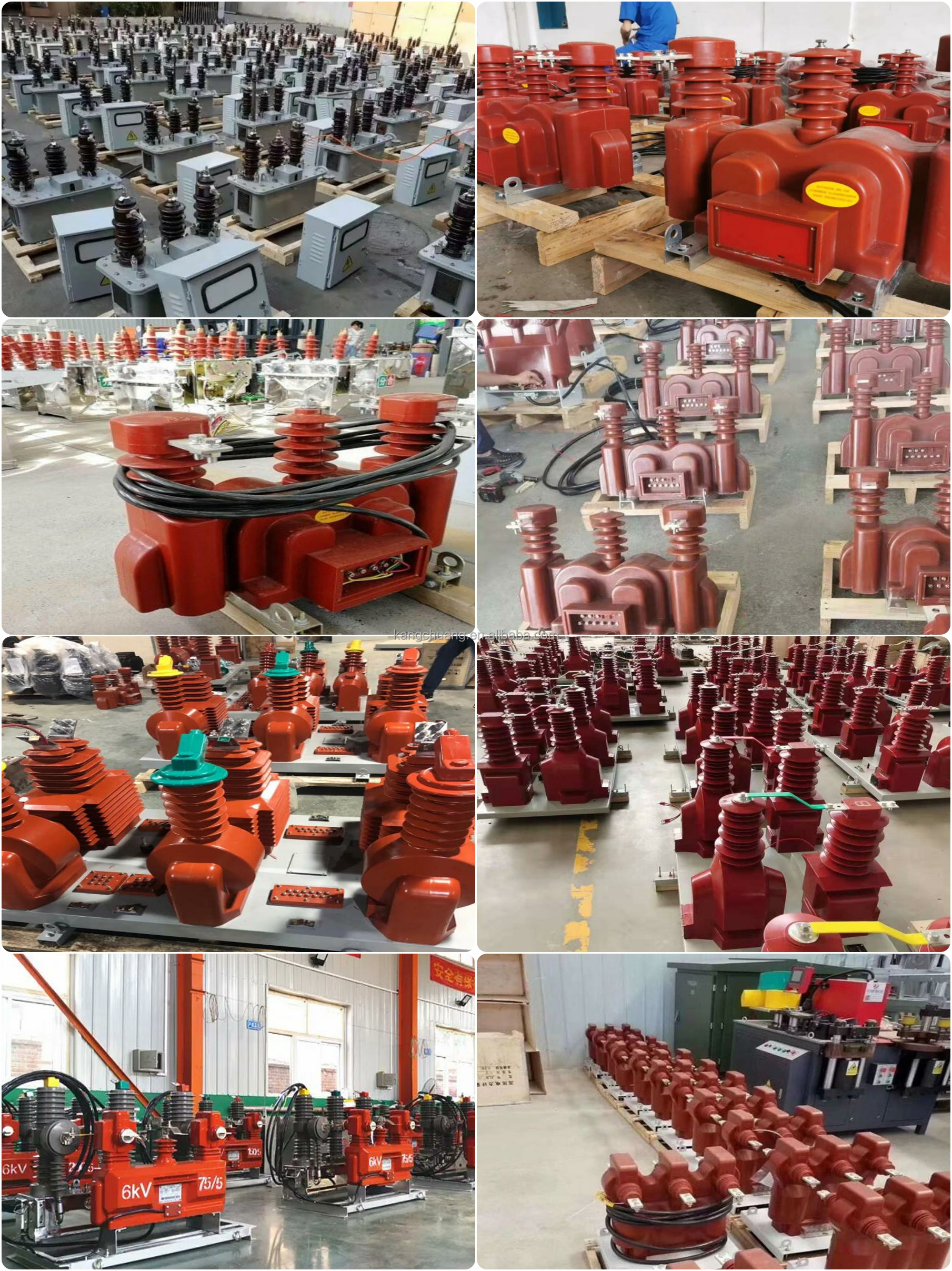

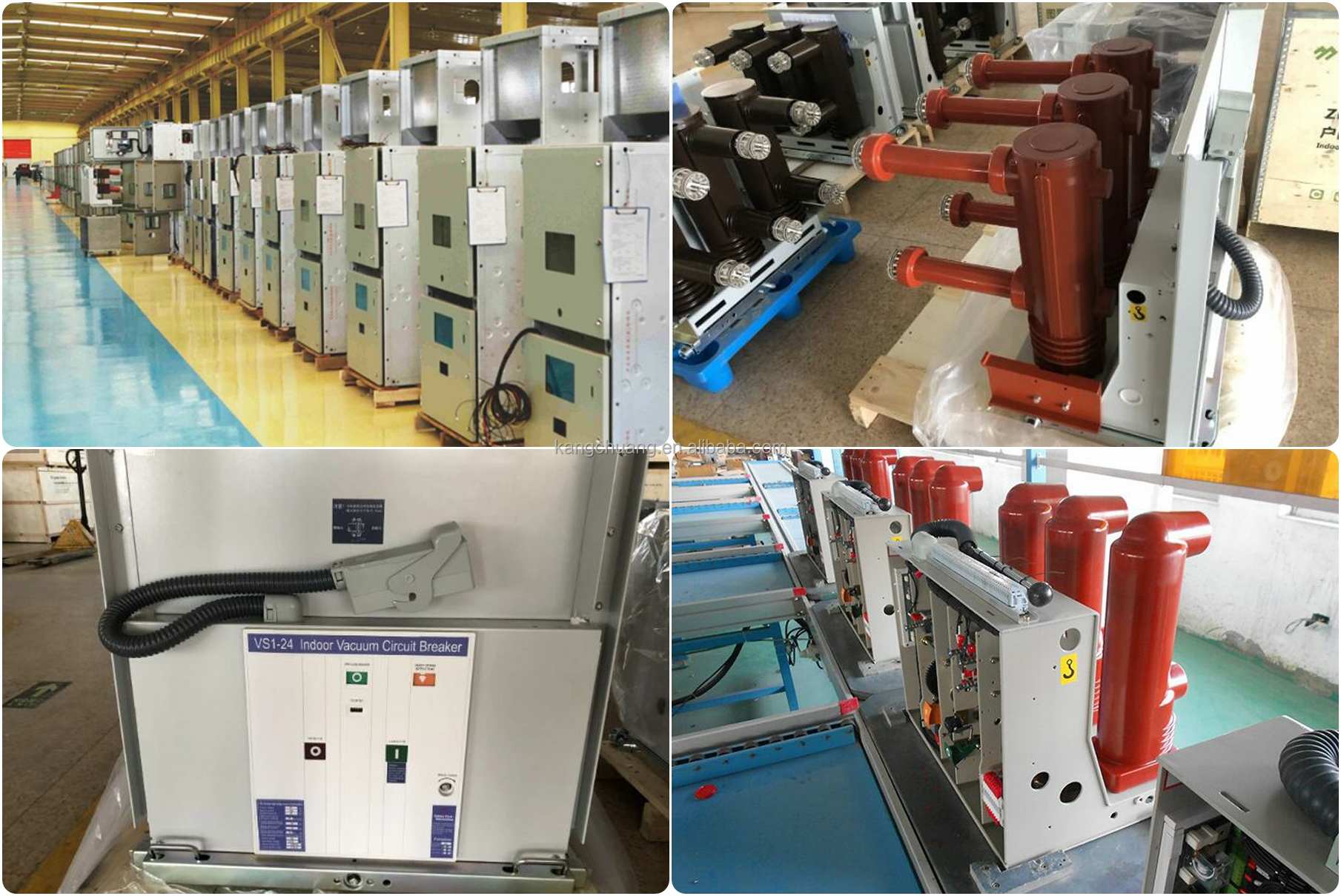

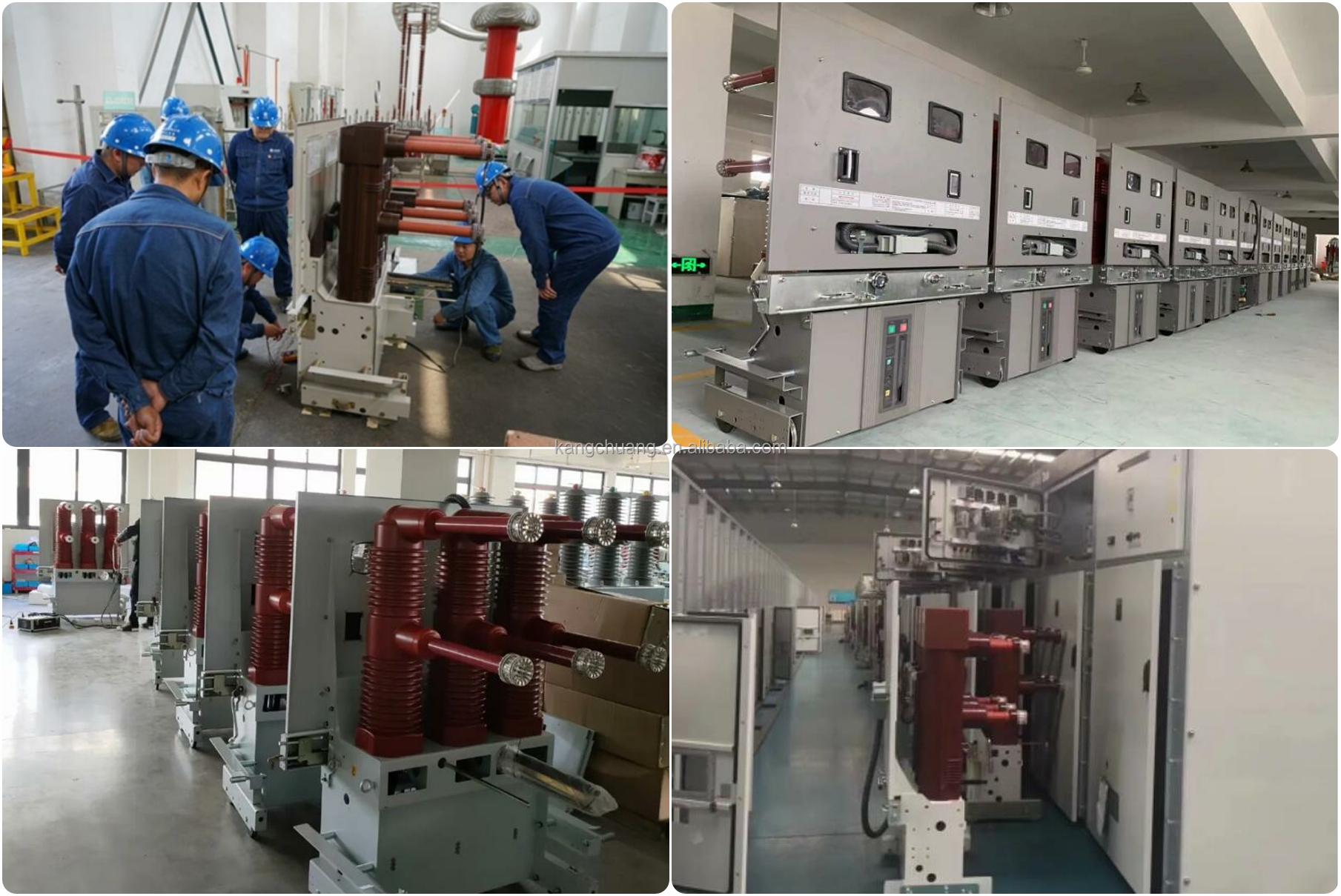

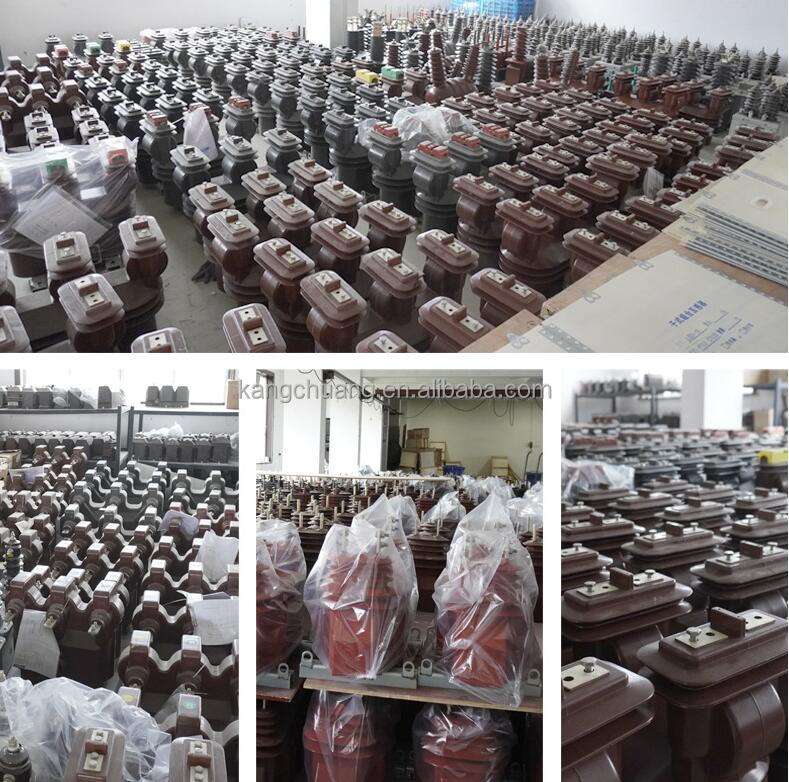

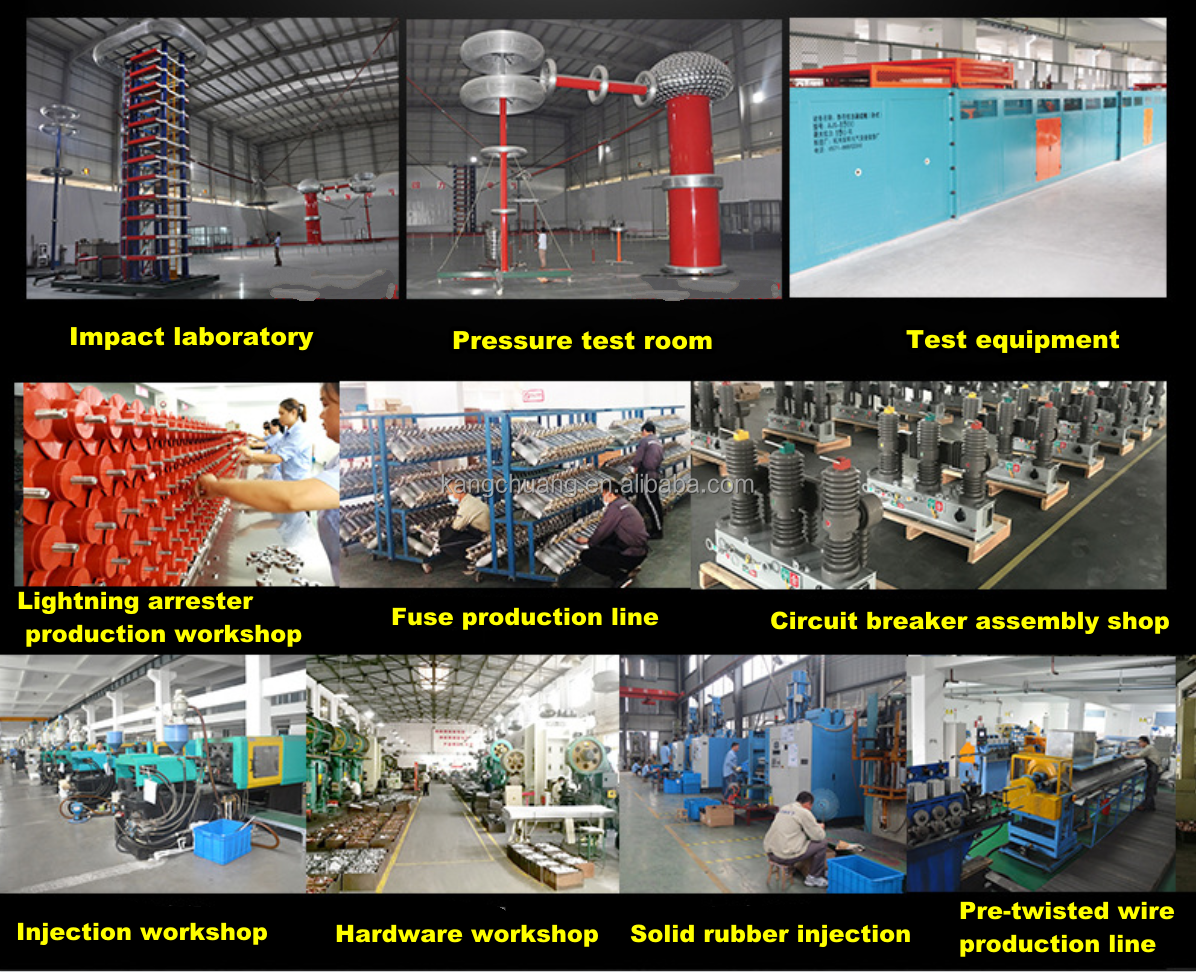

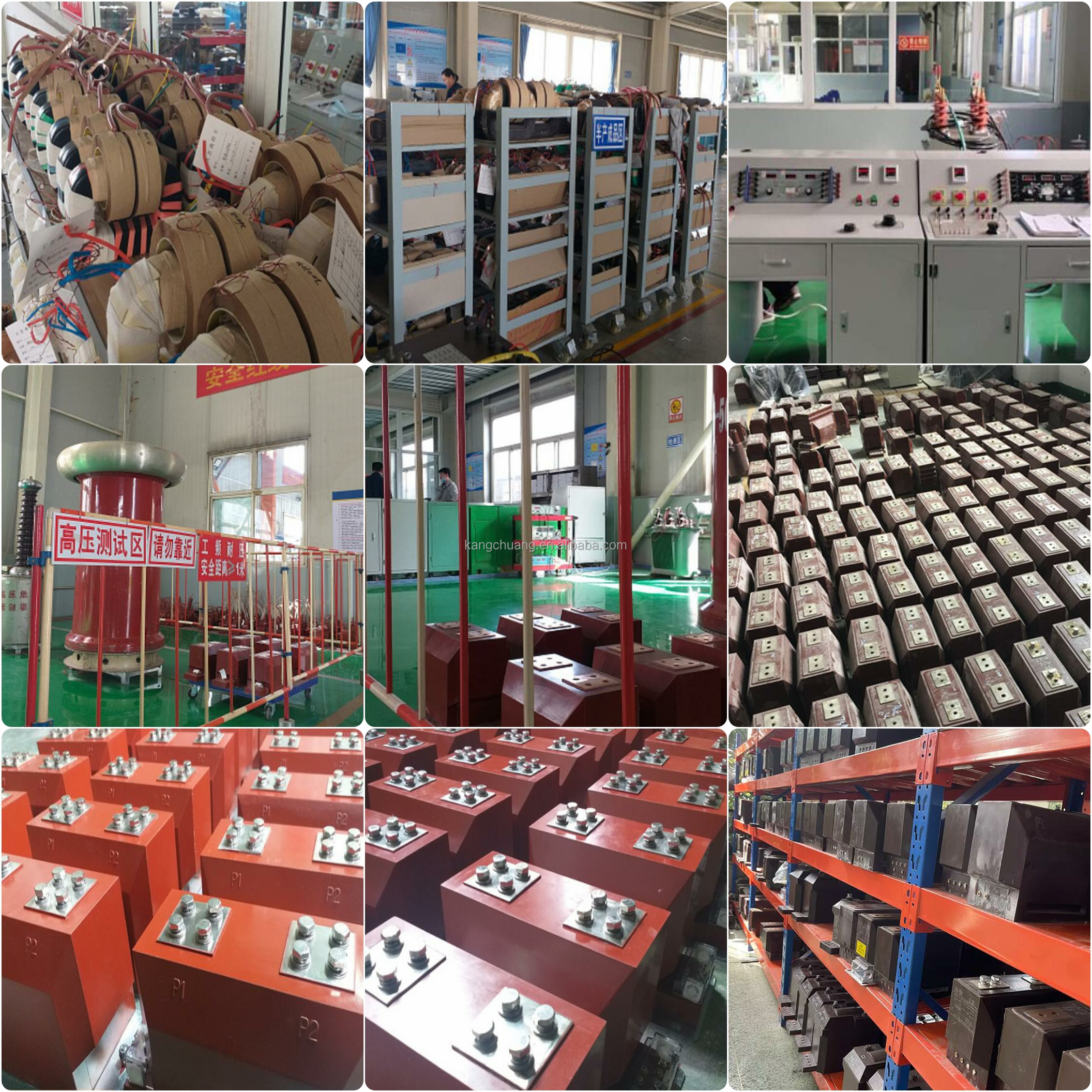

🏭 Production Workshop

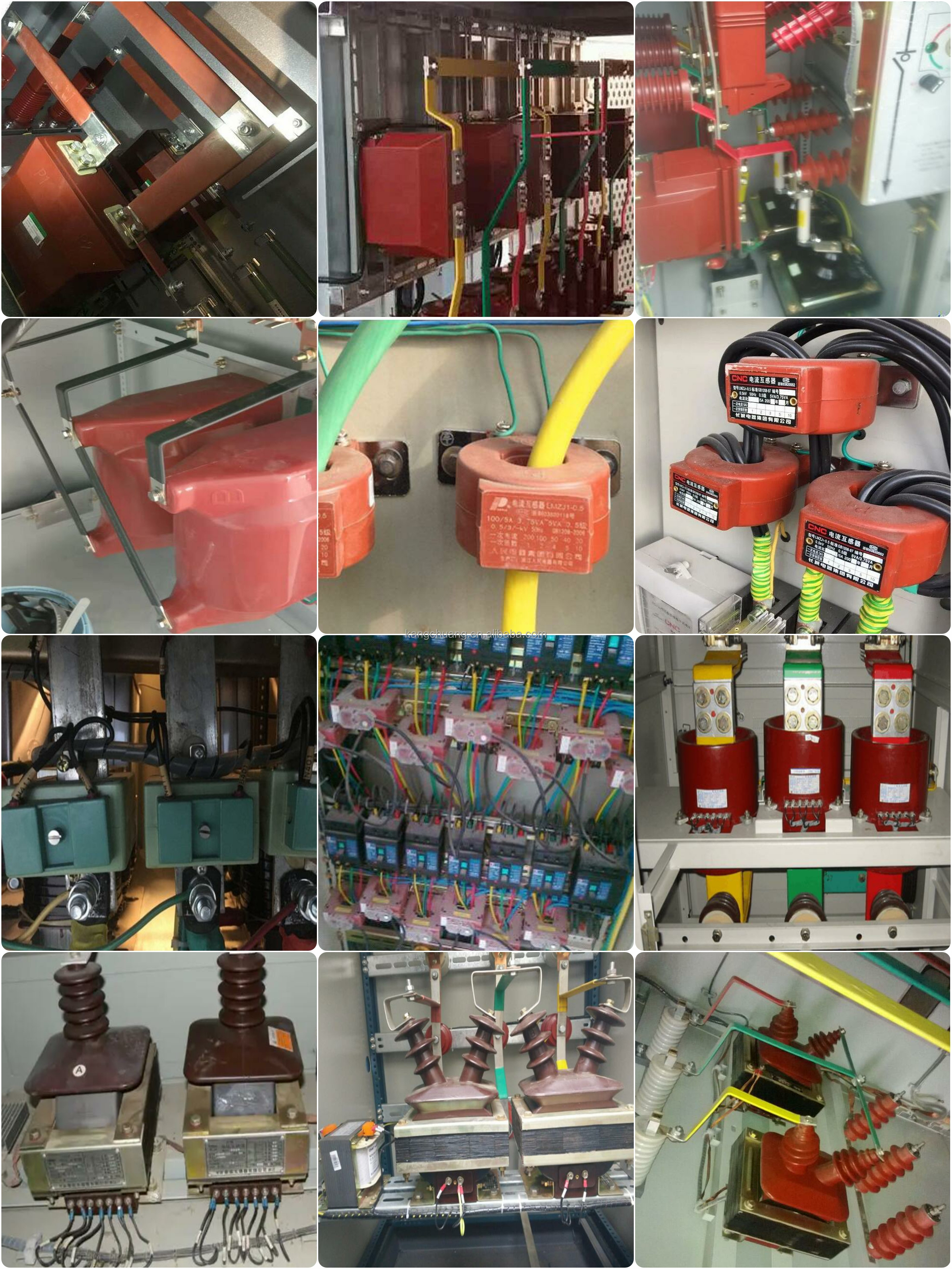

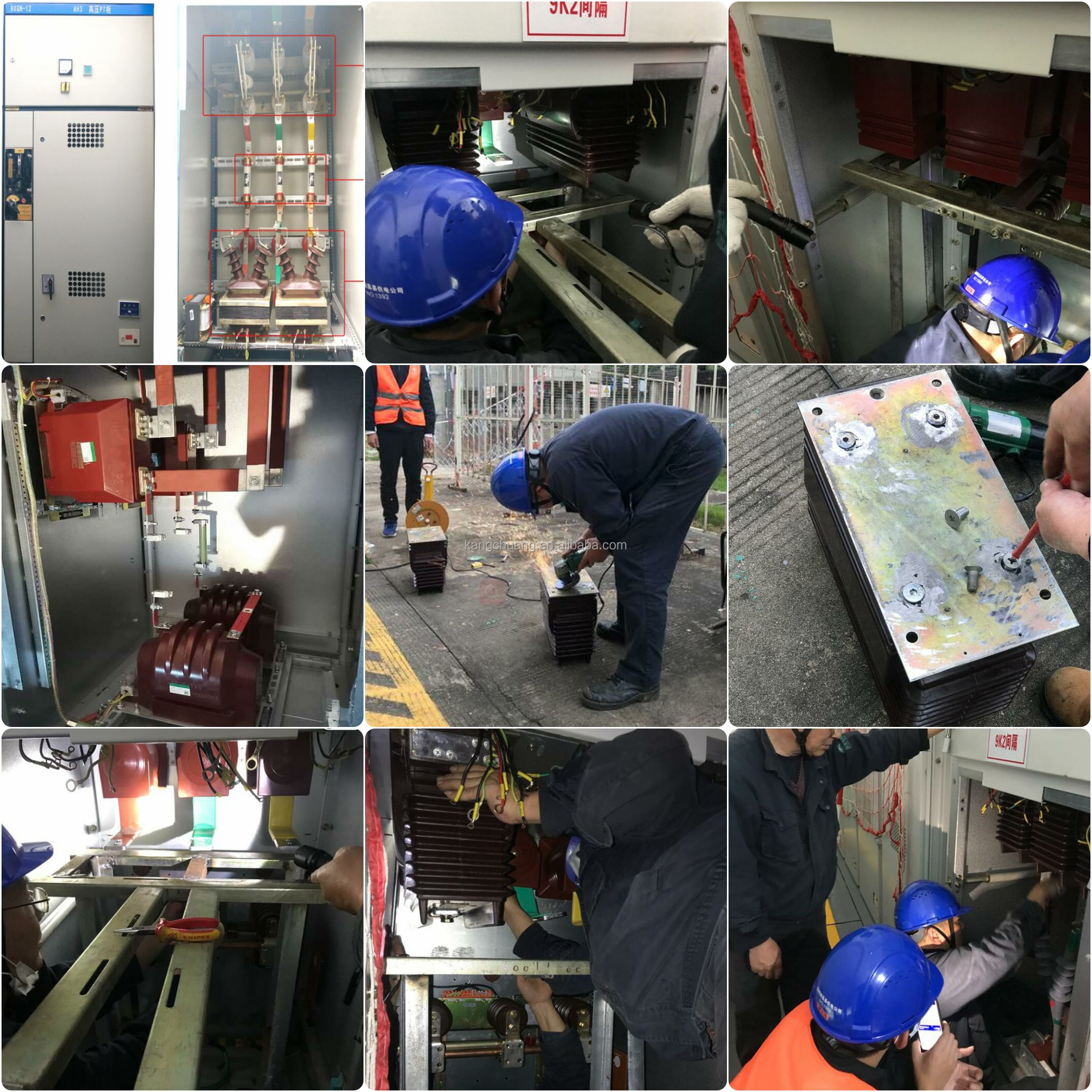

🛠️ Product Application
📦 Packaging and Shipping
❓ FAQ
Q: Are you a trading company or manufacturer?
A: We are a factory with more than 20 years of experience in the industry.
Q: Do you accept OEM service and custom branding?
A: Yes, we accept OEM services and can make products with your own brand name given your authorization.
Q: How do you ensure product quality?
A: We have a dedicated QC team complying with TQM to ensure quality at every step. We also provide photos and videos of the production process upon request.
Q: What is your standard warranty period?
A: We offer a comprehensive 24-month warranty on our products.
Q: What are your main product lines?
A: Our main products include drop-out fuses, lightning arresters, compact transformers, substations, HRC fuses, power cables, and various high/low voltage electrical goods.
Q: What payment terms do you accept?
A: We usually accept T/T, L/C, Western Union, and Cash.
