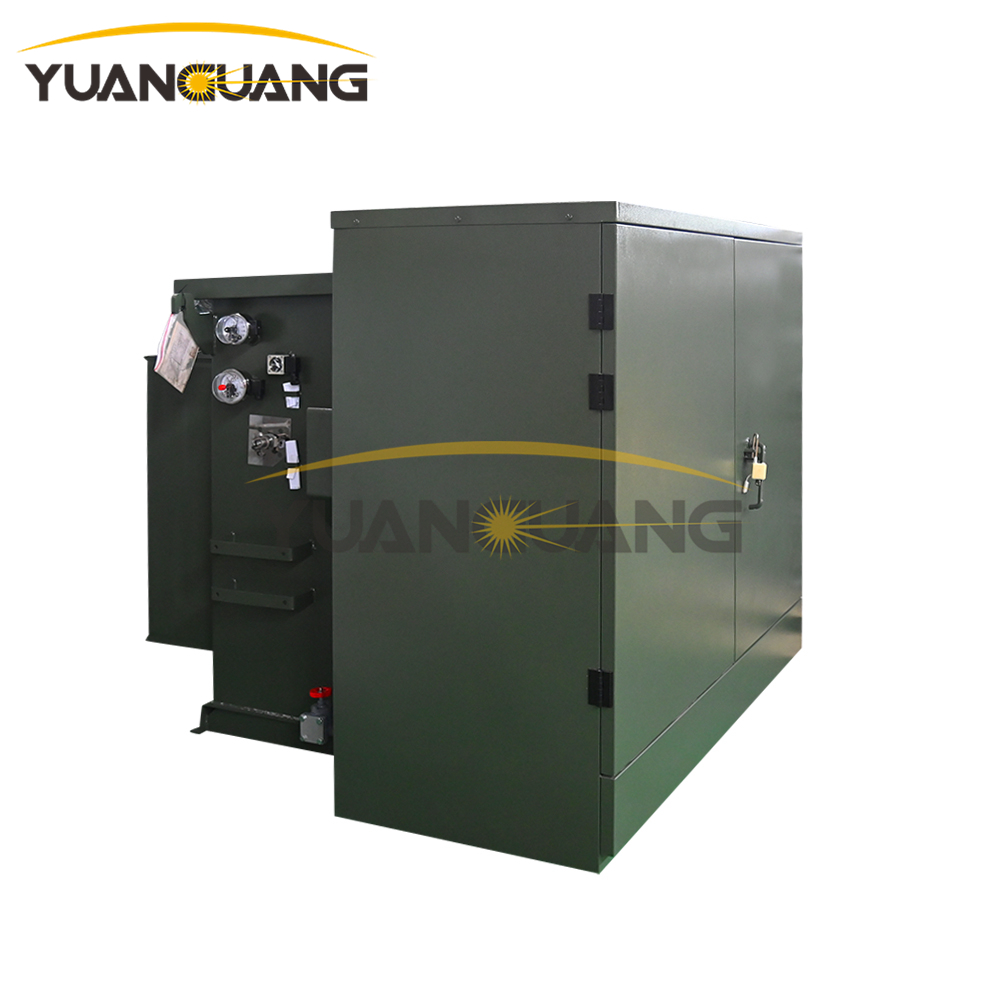

Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
1 / 5
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers
Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers

Pad Mounted Transformer Copper Aluminum Winding 4000 KVA 5000 KVA Loop Feed Live Front 3 Phase Padmounts Transformers

Send Inquiry

Product Description

Transformer Banner
Transformer Showcase
⚡
Transformer Introduction

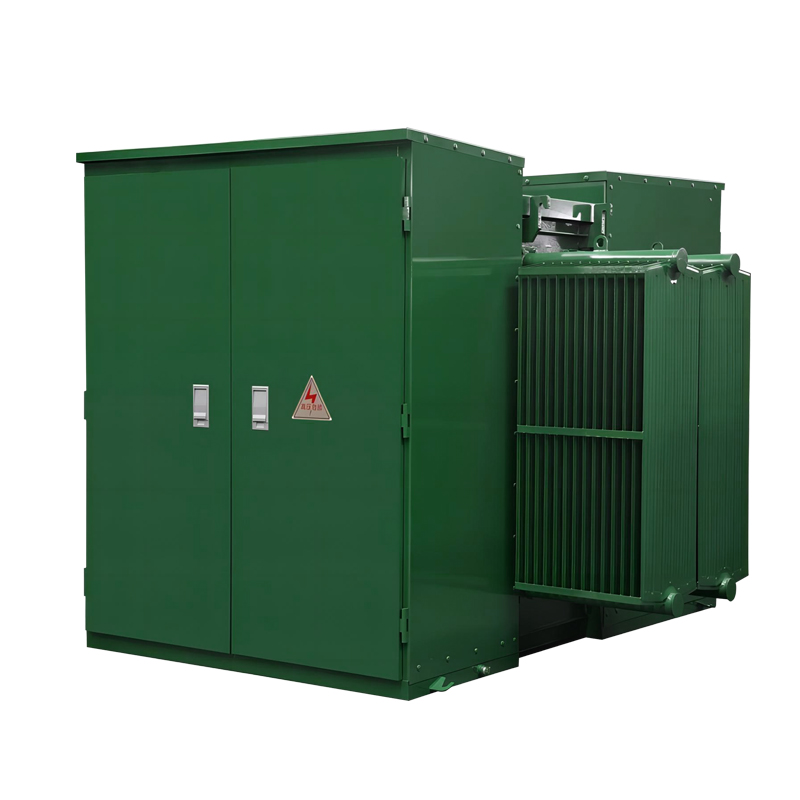

Pad Mounted Transformer
Pad Mounted Transformer

Technical Description:

  • Type: Loop feed / Radial feed
  • Primary voltage: Up to 36kV
  • Secondary voltage: 120/240/480/600V
  • Rating power: Up to 10000 kVA
Three Phase Pad Mounted Transformer General

Our manufacturer provides a complete line of single phase residential pad mounted distribution transformers. They are available in standard ratings and configurations or can be customized to meet specific needs.

  • Three-phase transformers are available as ANSI I & II transformers. All units are oil-insulated, self-cooled, and available in loop or radial feed.
  • All transformers meet or exceed ANSI, IEEE, and NEMA standards.
  • The ANSI and IEEE Type-1 frontplate arrangement allows vertical feed to the primary and secondary bushings, ideal for industrial and residential applications.
Key Advantages
  • Strong overload capacity without affecting service life.
  • Energy saving, environmental protection, and stable operation.
  • Three-phase five-column structure ensures high voltage quality and prevents neutral point drift.
  • Low noise, minimal heat generation, and excellent lightning protection performance.
Technical Specifications
Phase Single / Three Phase
Power Usage Power Distribution
Rated Primary Voltage 7.2kv / 7.62kv / 7.957kv / 12.47kv / 13.2kv / 13.8kv / 14.4kv
Rated Secondary Voltage 120/240V / 240/347V / 480V / 600V
Rated Power Up to 10000kVA
Frequency 50Hz / 60Hz
Winding Material Dyn11 / Yyn0 / Yd11 / YNd11
Applications

Padmounted transformers are usually installed at streets, parks, hotels, countryside, residential or commercial areas.

Design Features
  • Compartmental available in live-front or dead-front design.
  • Critical load designed with special attention to surge protection.
  • Data center hardened design for superior performance under stressful electrical environments.
  • Solar specific designs for Photovoltaic generator step-up (GSU) applications.
  • Vacuum fault interrupter combines transformation and overcurrent protection in one package.
Transport Packaging

Outdoor transformers are packed with plastic cloth, protected with pearl cotton at the corners, and wrapped with winding film for maximum safety during transit.

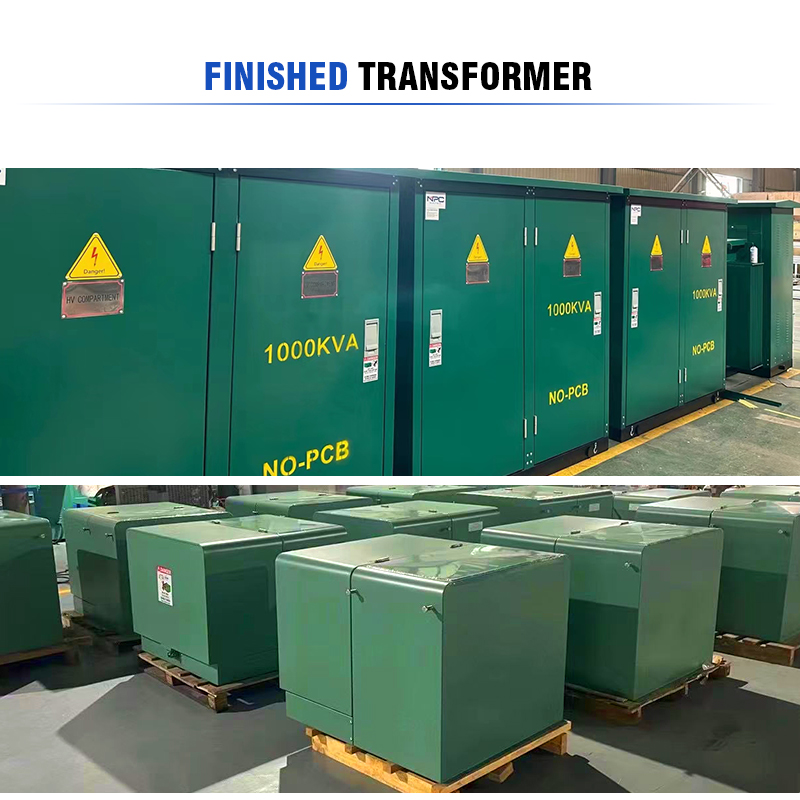

Product Detail 1
Product Detail 2
Product Detail 3
❓
Frequently Asked Questions
Q: Are you a professional manufacturer?
A: Yes, we are a professional transformer manufacturer with more than 20 years of experience. We support both OEM and ODM requirements.
Q: Which markets do you mostly export to?
A: We export to more than 20 countries across South America, North America, Europe, the Middle East, and Africa.
Q: What certificates and standards do you comply with?
A: We hold ISO9001-2008, OHSAS 18001:2007, and ISO4001:2004L certificates. Our products comply with IEC, ANSI, KEMA, and GOST standards.
Q: How long is the typical delivery time?
A: Once the plan is determined, production and shipping are typically completed within 20 days, depending on the order quantity.
Q: What is your standard for packaging?
A: Our standard packaging includes wooden pallets, wooden frames, or wooden boxes. Custom packaging options are also available.
Q: What payment types and currencies do you support?
A: We support USD and CNY currencies. Accepted payment types include T/T and L/C.
