Product Features
| Phase | Three, Single |
| Place of Origin | China |
| Warranty | 2 Years |
| Cooling Method | ONAN |
| Standard | IEC ANSI IEEE |
| Rated capacity | 10KVA-50000KVA |
| Model Number | ZGS11 |
| Rated Secondary Voltage | 0.4 |
| Vector Group | Dyn11/Yyn0/Yd11/YNd11 |
| Coil Number | 2 |
| Type | Oil Immersed |
| Coil Structure | toroidal |
| Winding Material | Copper\Aluminum |
| Frequency | 50/60Hz |
| Application | power supply, Power Distribution System |
| Power | AC/AC |

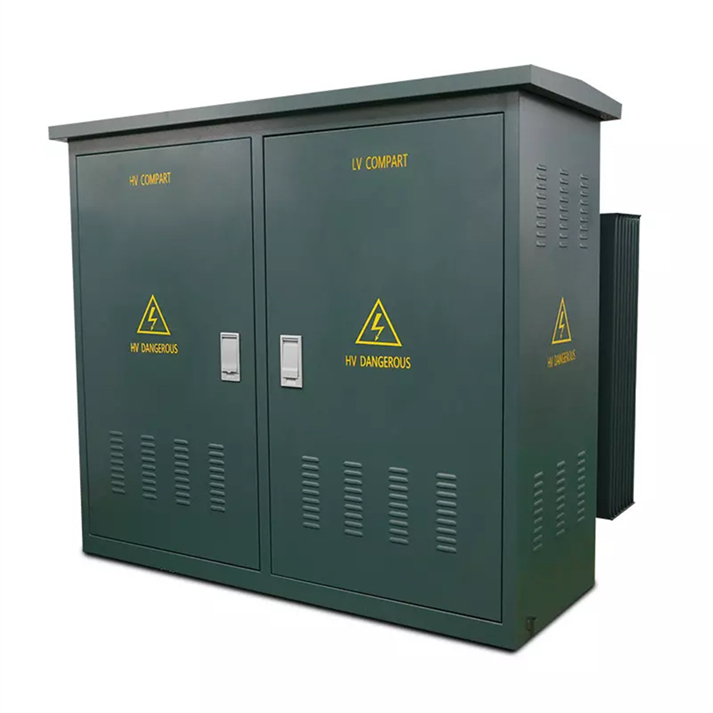

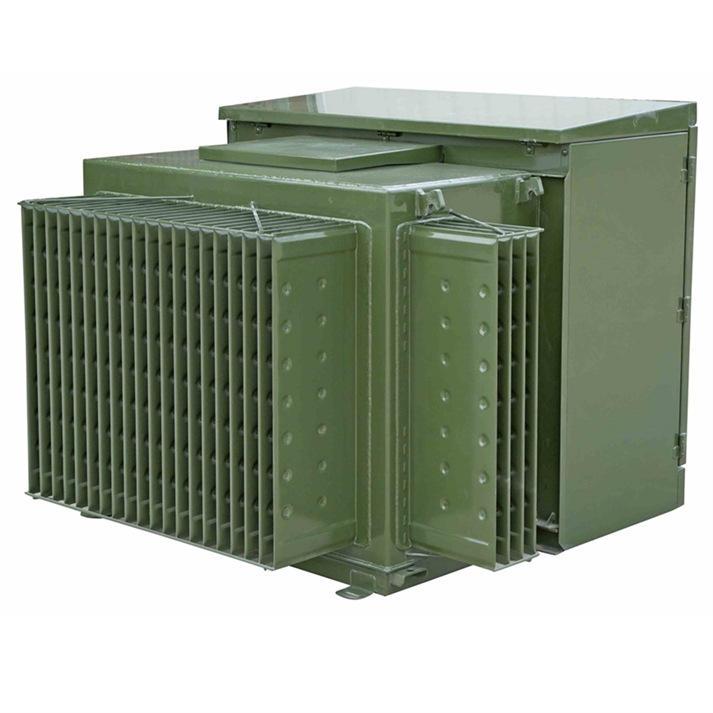

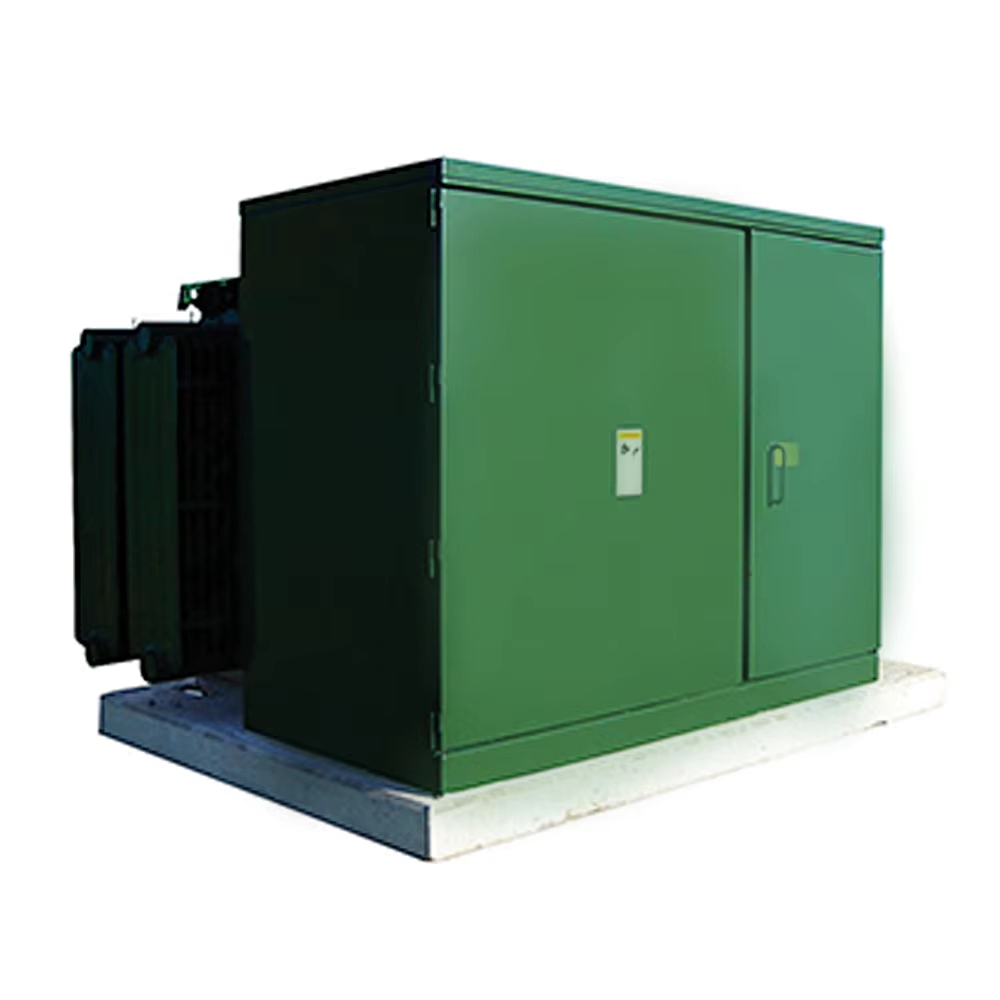

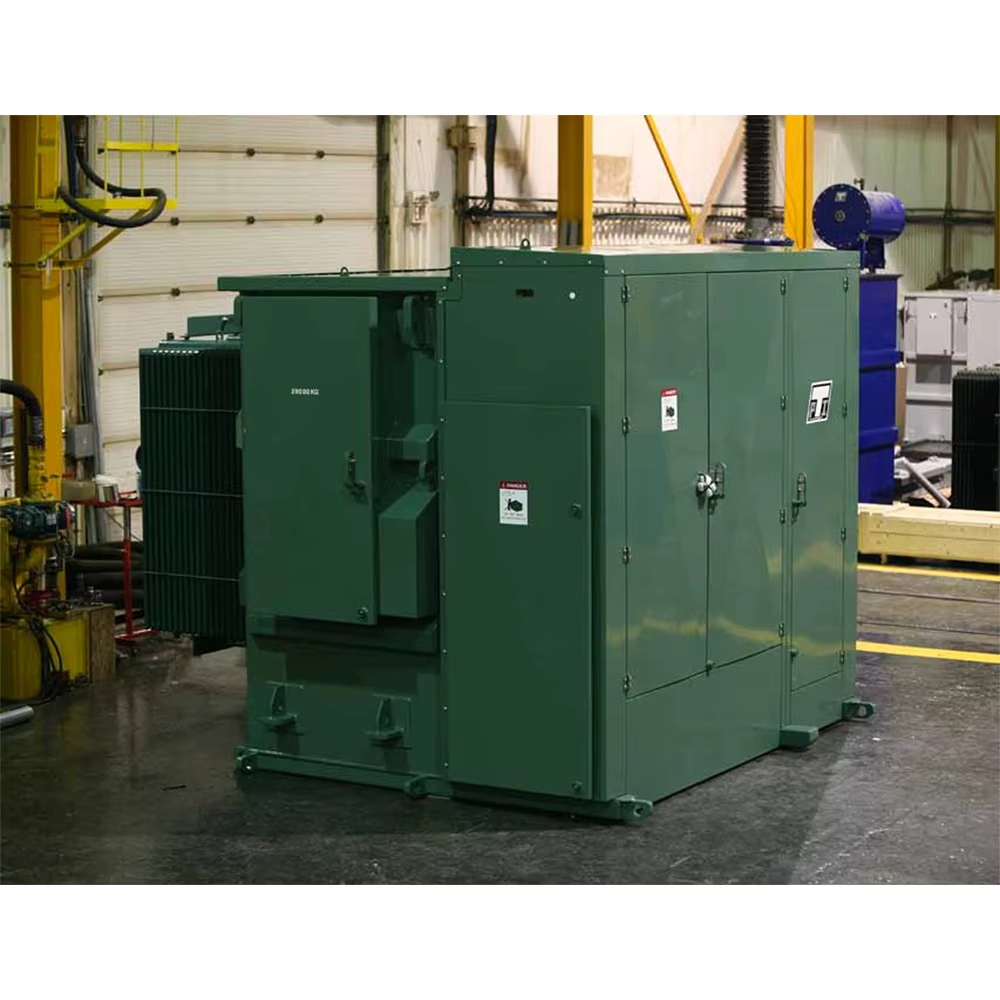

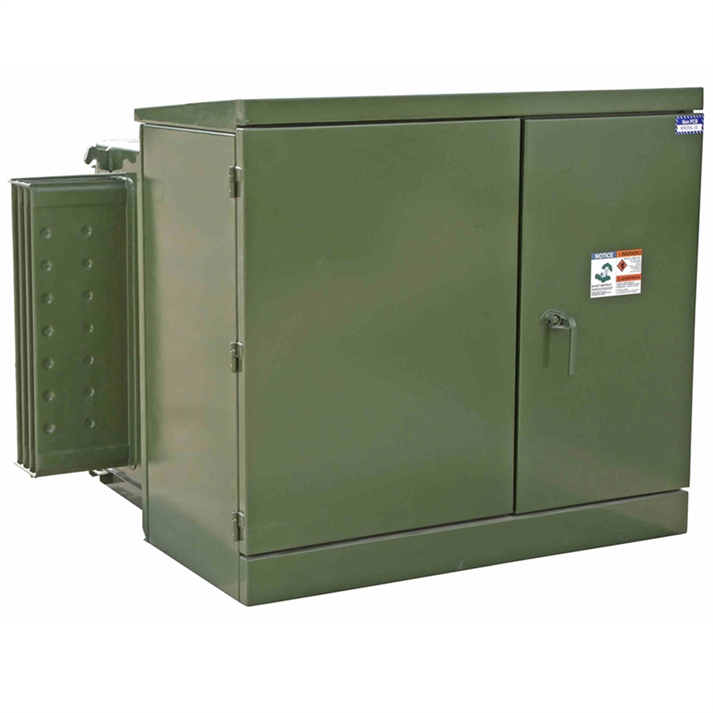

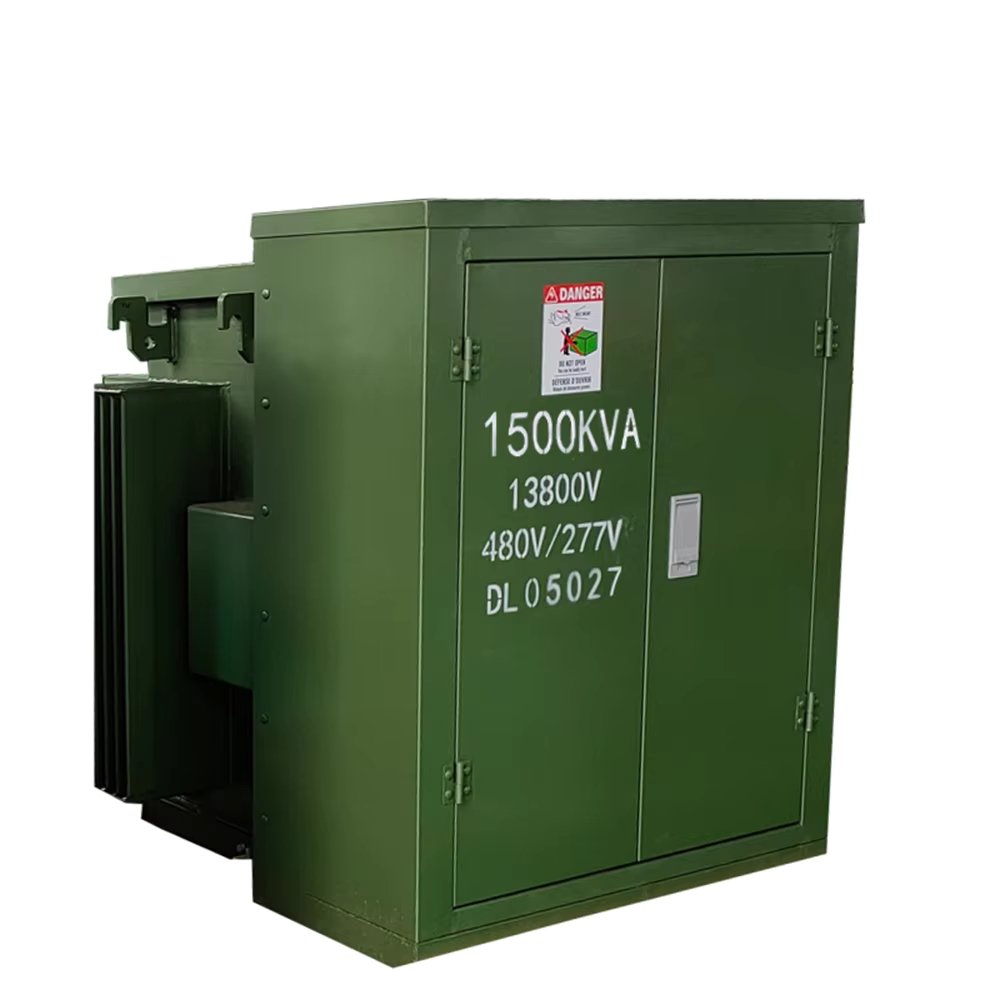

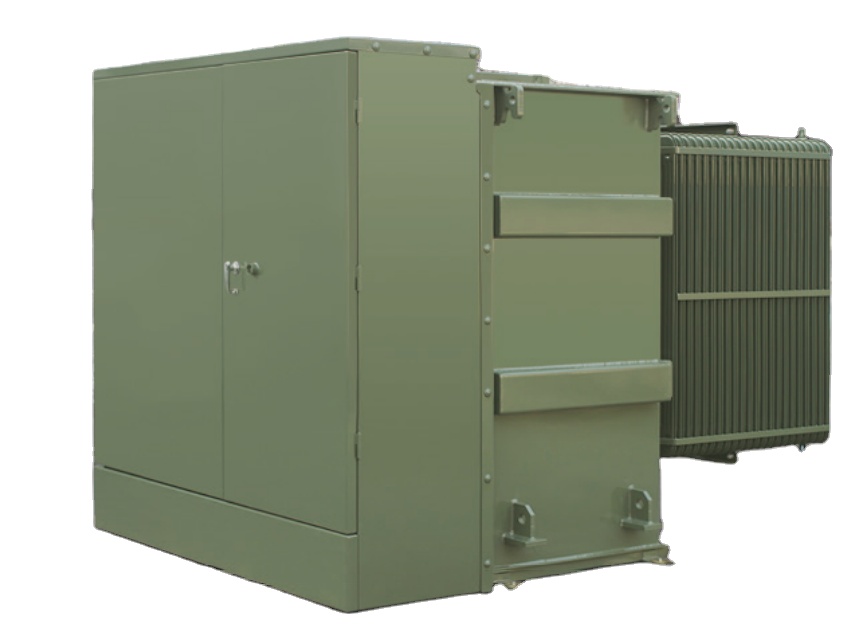

⚡ U L Listed 13.2kV 13.8kV 15kV to 0.4kv 0.415kv 0.46kv 0.48kv 60Hz 1250kVA Pad Mount Transformer
Specification
| Rated Capacity |
Voltage Ratio |
Vector Group |
No-load Losses(kw) |
Impedance |
| 30kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.1 | 4% |
| 50kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.13 | 4% |
| 100kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.2 | 4% |
| 200kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.34 | 4% |
| 315kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.42 | 4% |
| 500kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.6 | 4% |
| 1000kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 1.15 | 4.5% |
| 1250kva | 6kv/11kv/33kv | Dyn11/Yd11/Yyno | - | 4.5% |
| 2500kva | 11kv/33kv | Dyn11/Yd11/Yyno | 2.3 | - |
| 4000kva | 11kv/33kv | Dyn11/Yd11/Yyno | 2.8 | - |
Frequently Asked Questions
Why choose us?
We have a strong R&D team with more than 16 years of transformer design experience. We are familiar with international transformer standards such as IEC, IEEE / ANSI, CSA, etc. We provide excellent and stable quality with the best cost performance and various payment terms.
Can I visit your factory?
Sure, we warmly welcome your visit to our factory. Please contact our sales representative first to make an appointment and organize the most reasonable planning for your transportation.
What is your minimum order quantity?
We offer a very low MOQ for common items. For customized items, the MOQ depends on specific requirements.
What products can I buy from you?
We offer 400V~220kV Oil-immersed Power Transformers, Dry-type Transformers, Unpacked H Grade Dry Transformers, Oil-immersed Distribution Transformers, and Pad mounted Transformers, etc.
Can you offer customized service?
Yes, both OEM and ODM are available. Let us know your ideas or requirements, and we will tailor the products to meet your needs.
How long is your delivery time?
Generally, delivery takes 15-30 days for mass production after sample confirmation and receipt of the formal purchase order or deposit.
