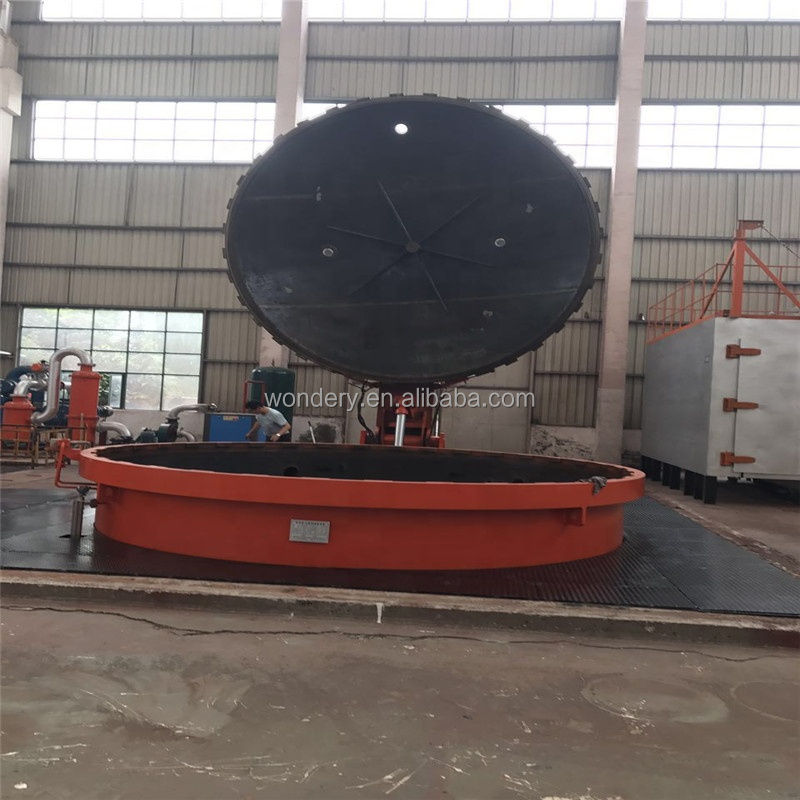

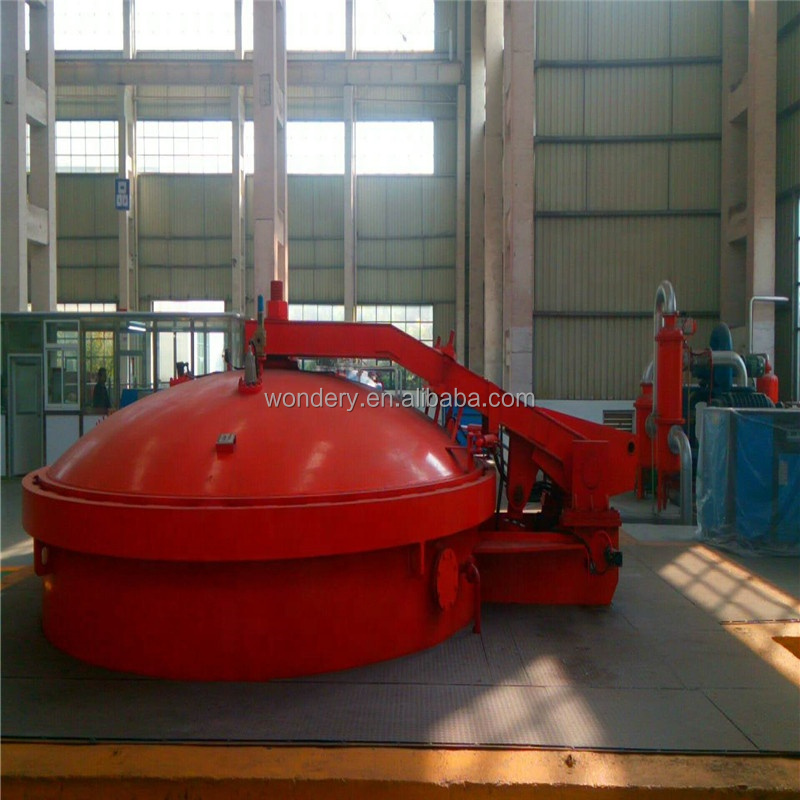

Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
1 / 5
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment
Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment

Wondery Fully Automatic VPI1500 Vacuum Pressure Impregnation Equipment System for Transformer Motor Winding Insulation Treatment

Send Inquiry

Product Description

VPI1500 System Overview
💠 Product Description
The VPI1500 is a fully automatic vacuum pressure impregnation system designed for the insulation treatment of high-voltage motors and transformers. It significantly enhances winding strength and insulation performance through precise vacuum and pressure processes. The system features a robust vertical design, PLC automation, and premium Schneider components for reliable operation. Complete with heating, stirring, and safety controls, it provides a turnkey solution for efficient and consistent industrial impregnation.

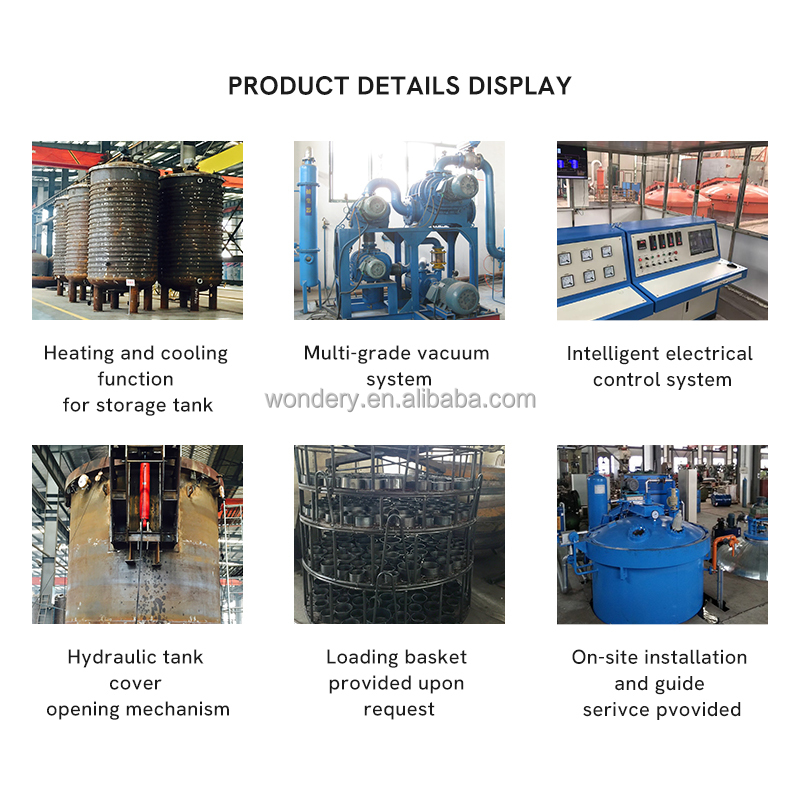

VPI1500 Technical View
📊 Main Technical Parameters
Parameter Category Specification
Model VPI1500
Impregnation Tank (Effective) Φ1500×2500 mm
Working Pressure 0.6 MPa (Adjustable)
Limit Vacuum 200 Pa
Resin Tank (Effective) Φ1800×1900 mm
Vacuum System Pump: 2X-100 Rotary Vane Pump (100 L/S)
Heating System Power: 32 kW

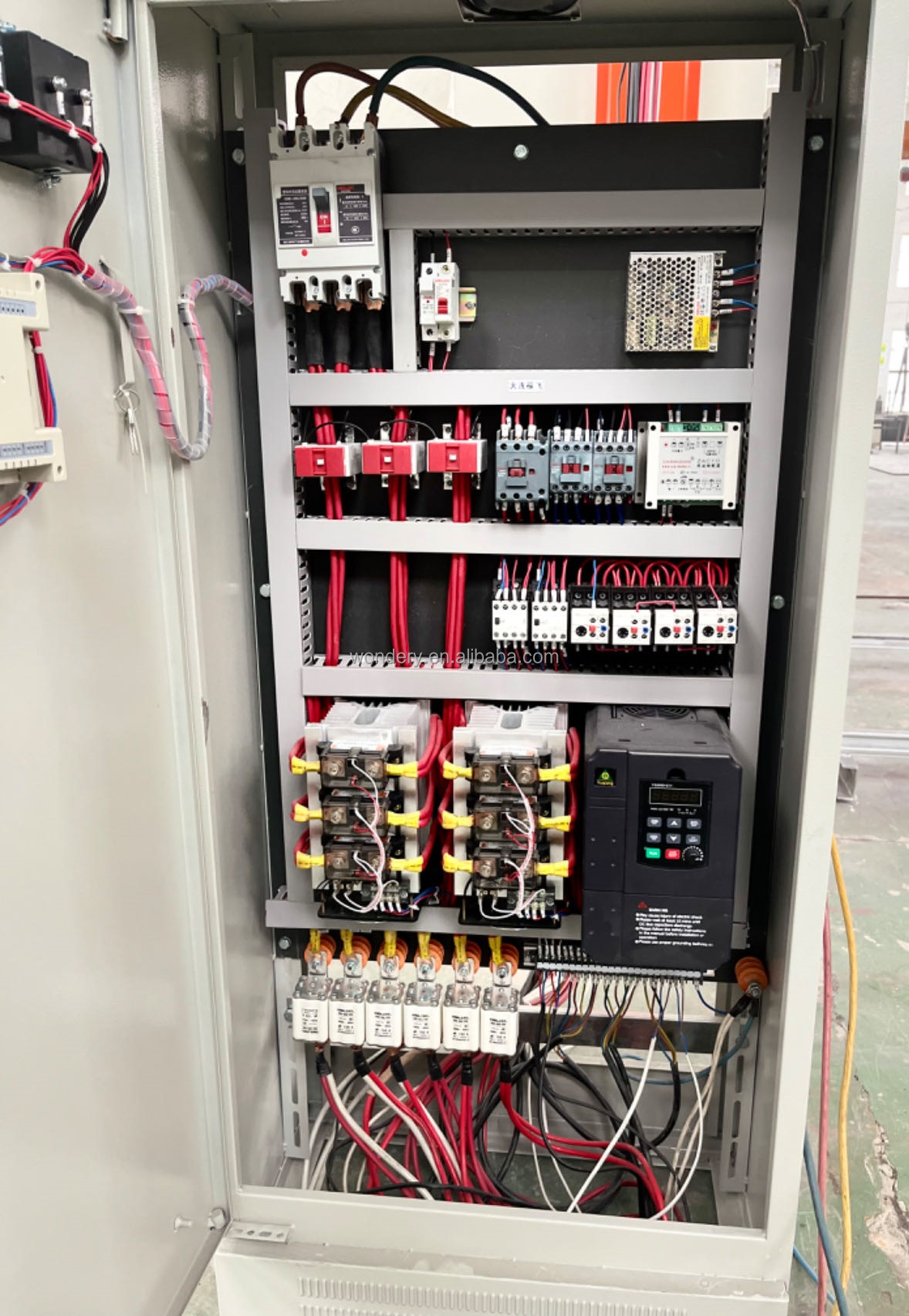

Control System PLC + 21" Touch Screen HMI + Industrial PC
Power Supply AC380V, 50Hz, 3-Phase
Main Electrical Brand Schneider Electric
Warranty 13 Months (from shipment)

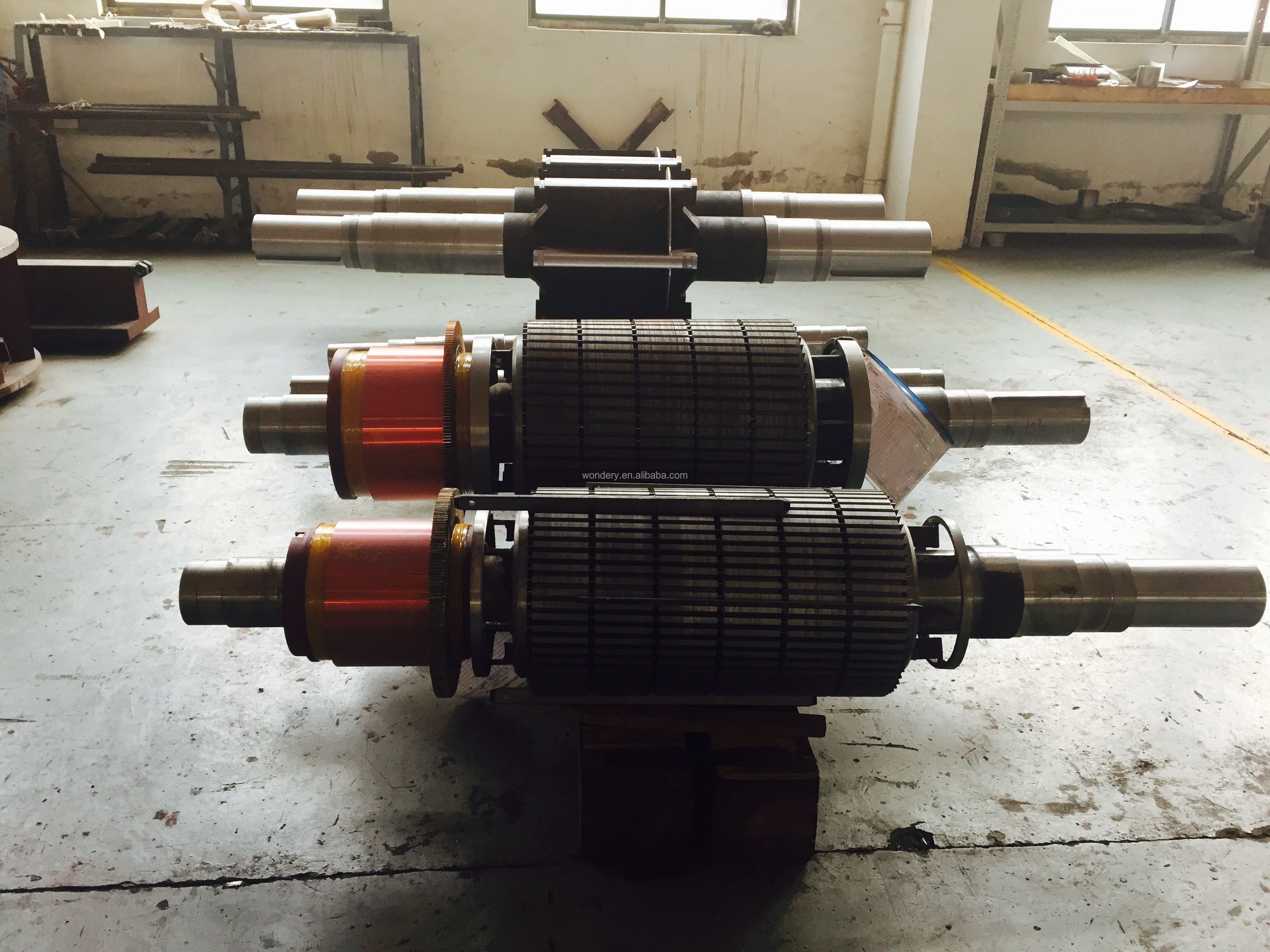

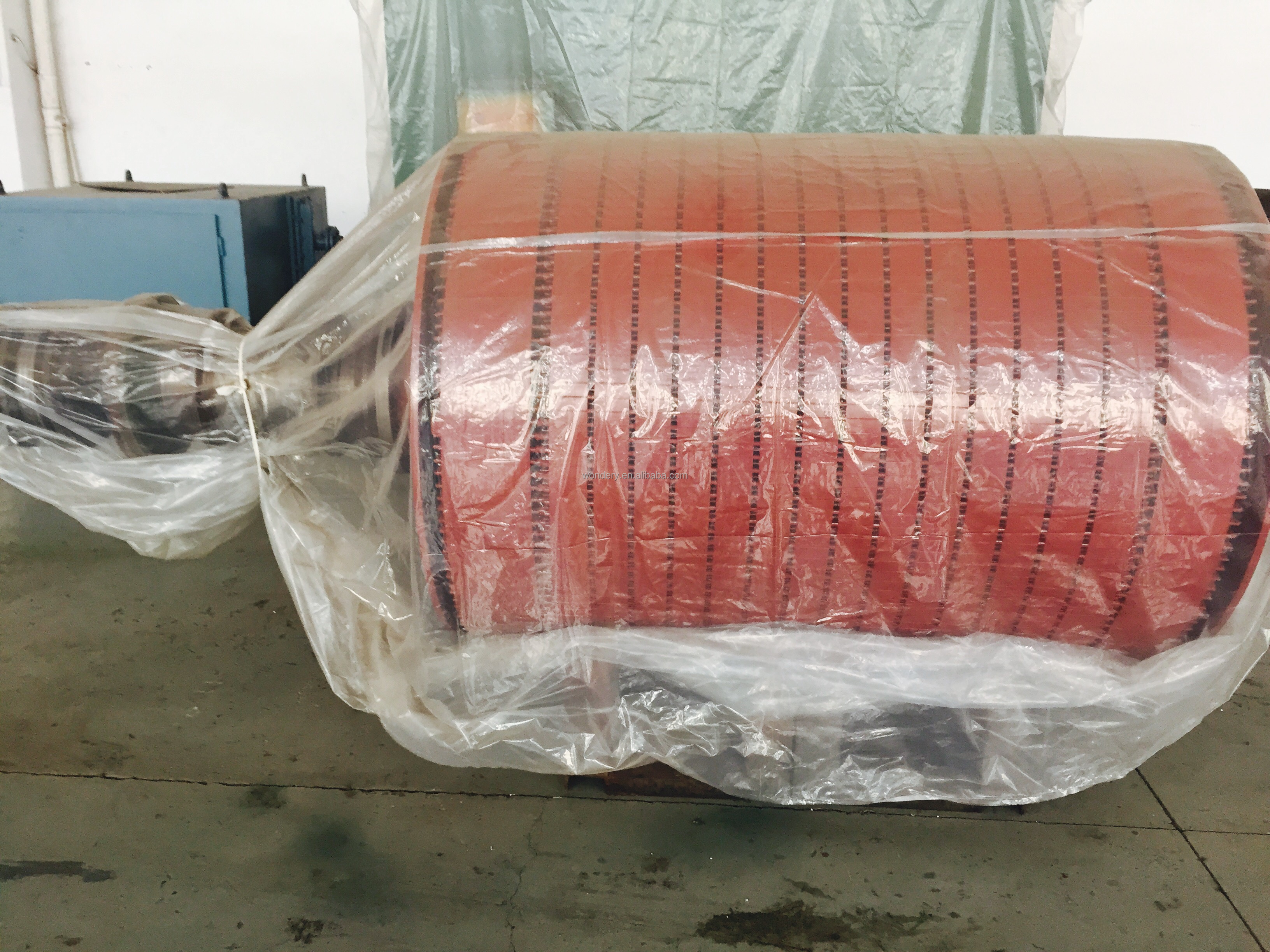

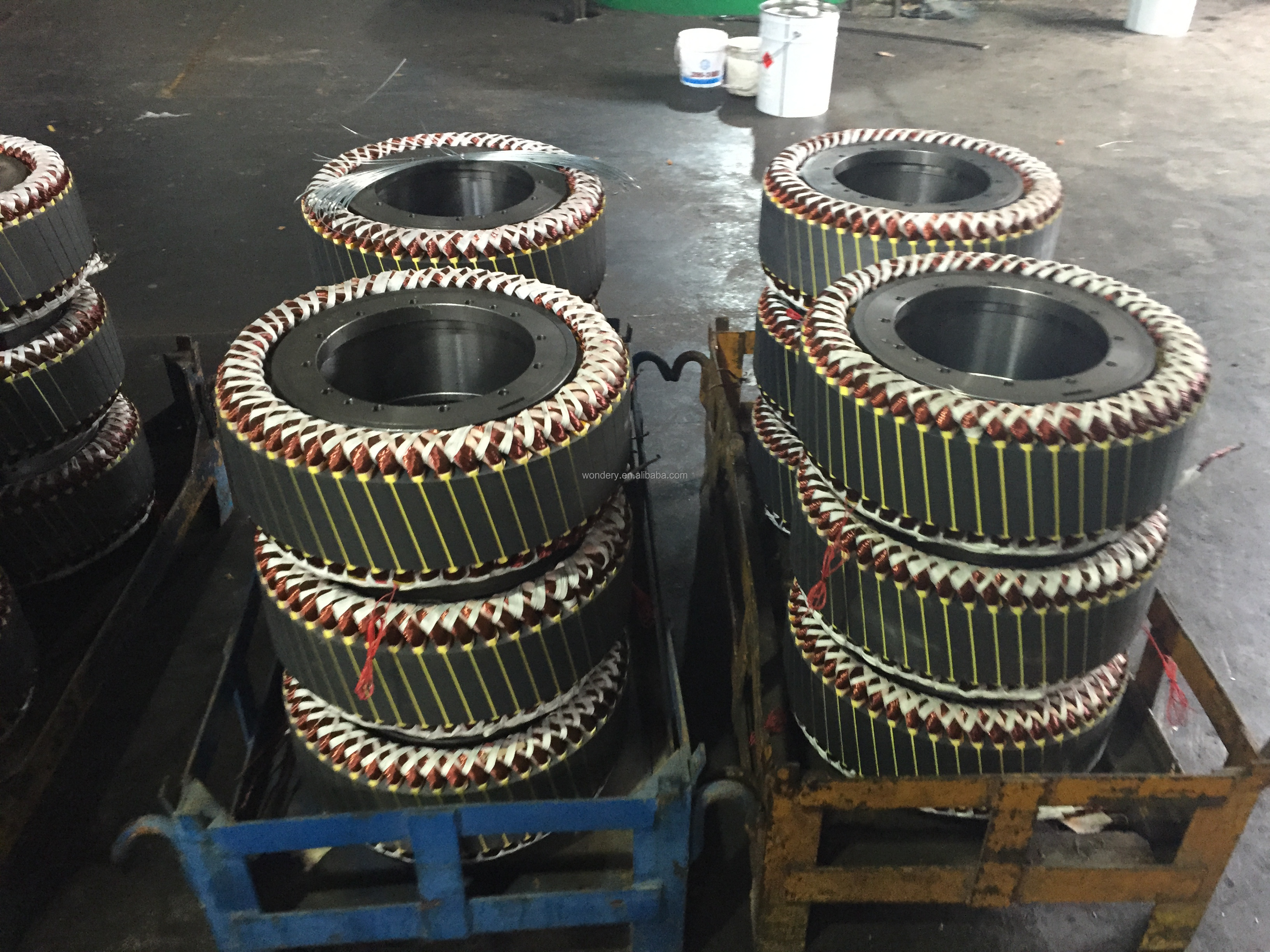

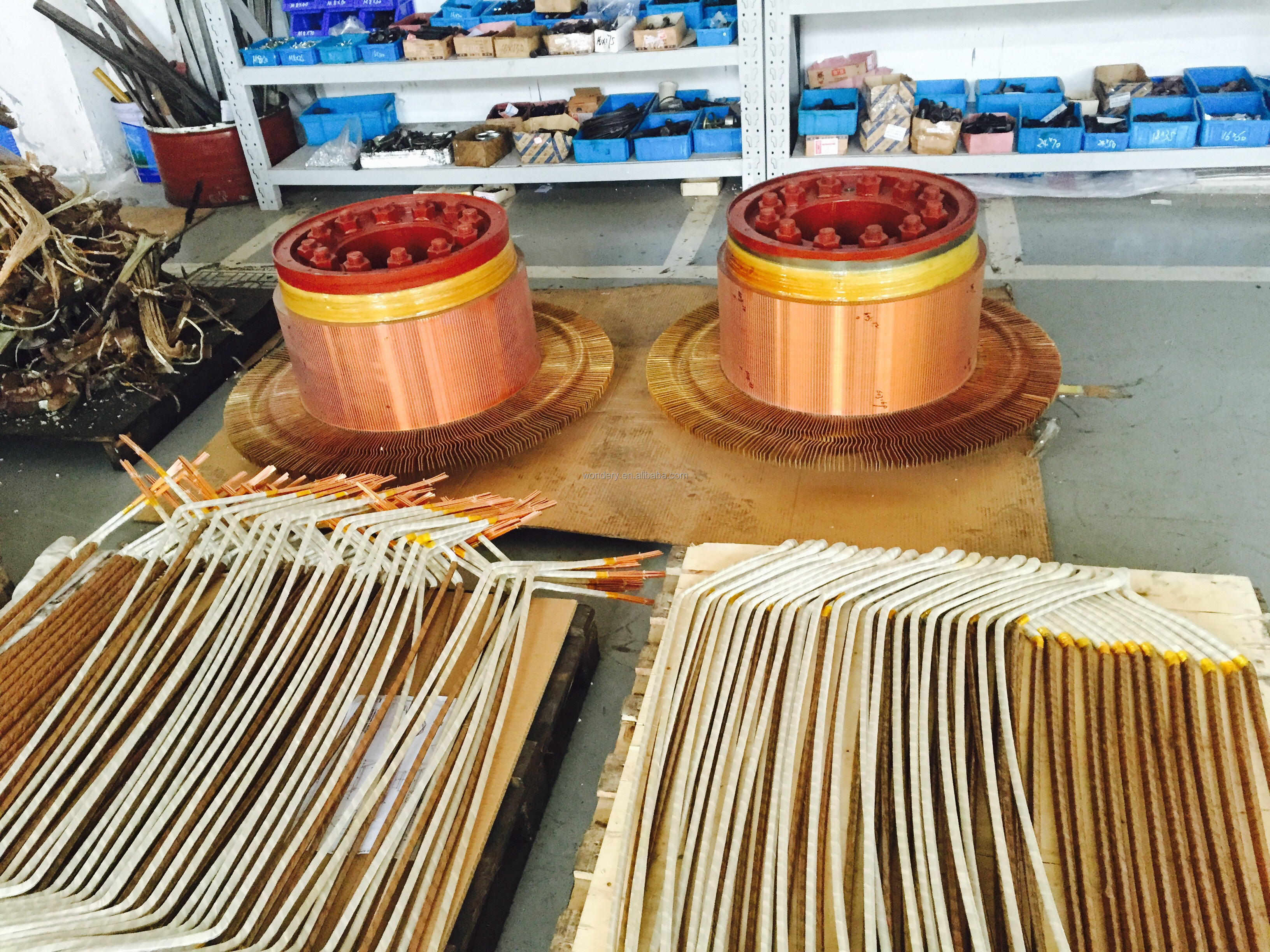

⚙️ Products to be treated

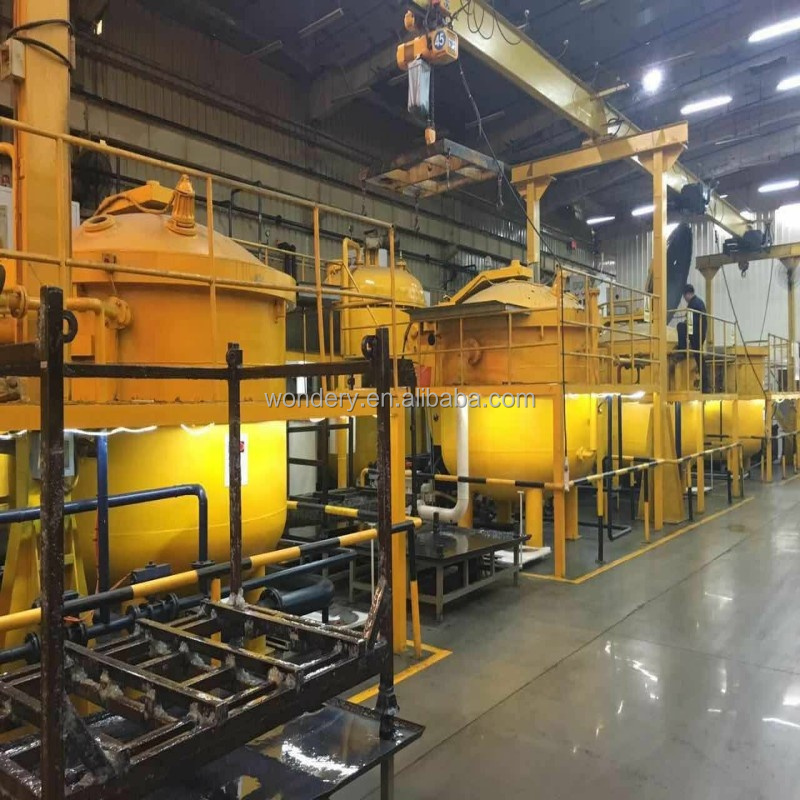

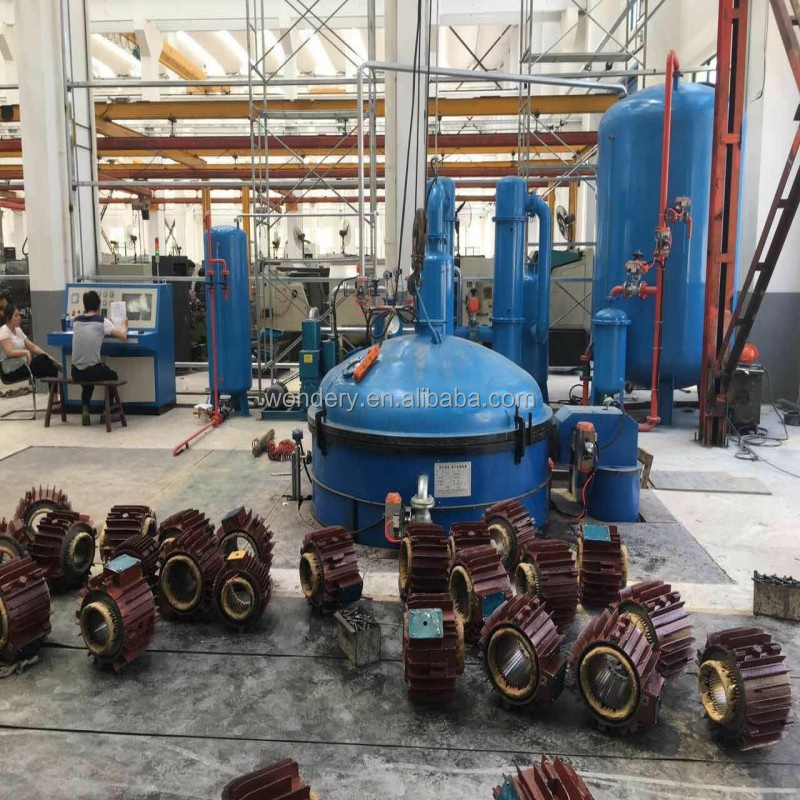

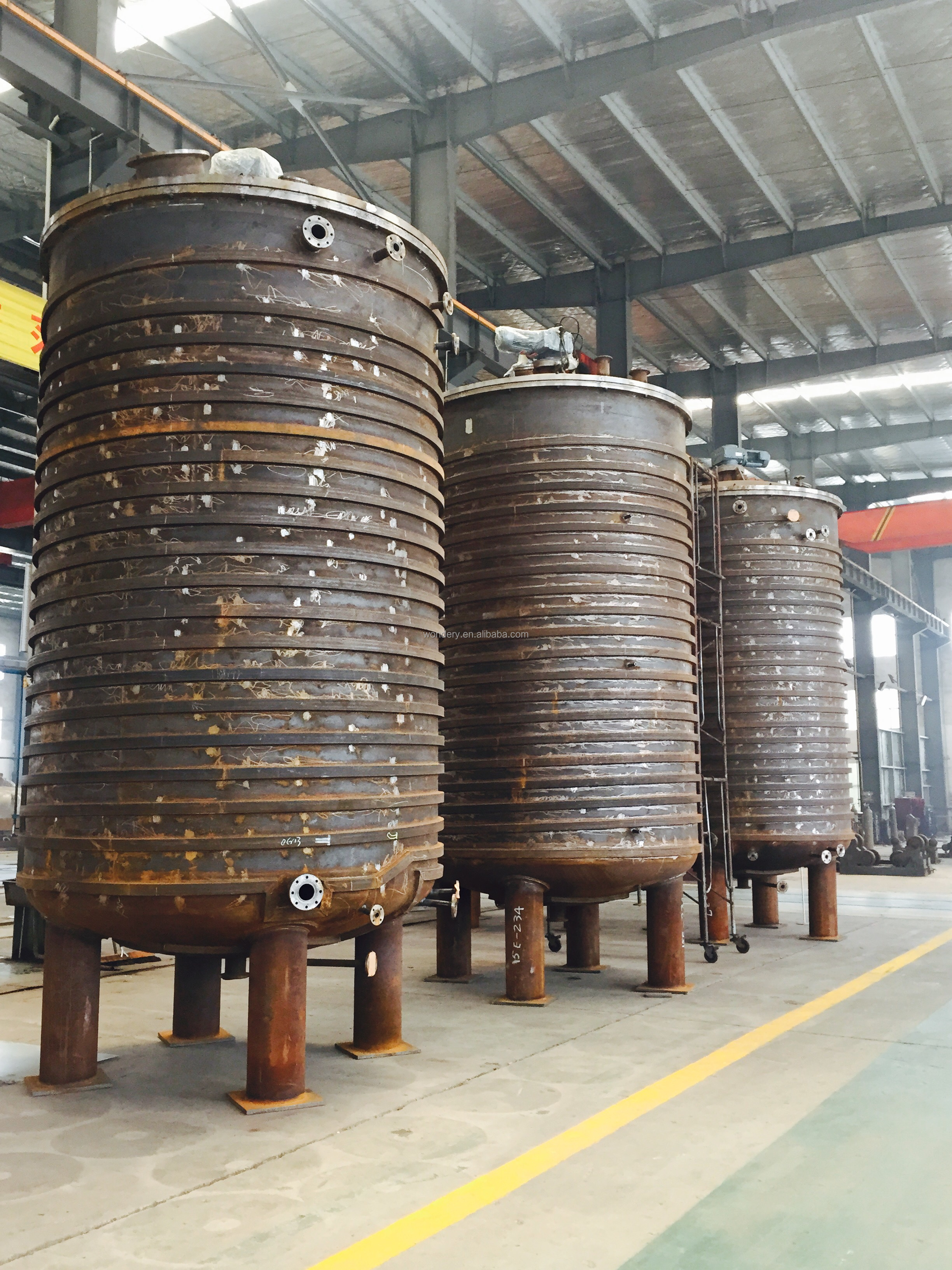

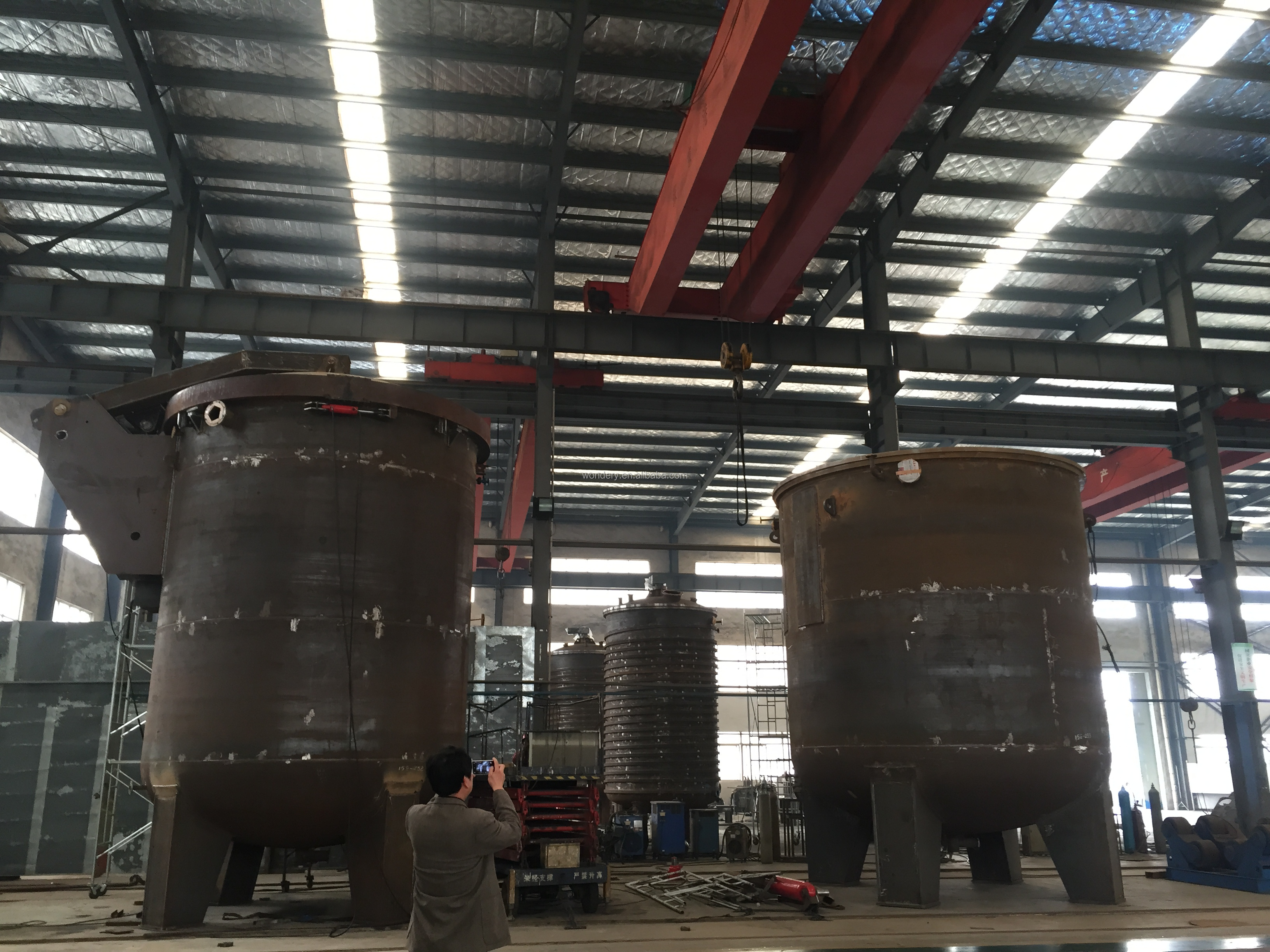

🏢 Our Factory
📜 Certifications
🛠 Our Service

Pre-Sales Service

Inquiry and consulting support.

Sample testing support.

View our Factory.

After-Sales Service

Training how to install the transformer pressure impregnation machine.

Training how to use the transformer pressure impregnation machine.

Engineers available to service machinery overseas.

Frequently Asked Questions
Q1: What are the primary applications for the VPI1500 system?
A: It is specifically designed for the vacuum pressure impregnation of high-voltage motor windings and transformers to improve insulation and structural integrity.
Q2: How does the PLC control system improve the process?
A: The PLC integrated with a 21" touch screen and Industrial PC allows for fully automatic control, ensuring precision, repeatability, and easy monitoring of the vacuum and pressure cycles.
Q3: What components are used for the electrical control?
A: The system utilizes high-quality Schneider Electric components for the main electrical parts to ensure long-term reliability and safety.
Q4: What is the warranty period for the VPI1500?
A: We provide a 13-month warranty starting from the date of shipment.
Q5: Can the working pressure be adjusted for different products?
A: Yes, the working pressure is adjustable up to 0.6 MPa to suit various technical requirements of the items being treated.
Q6: Are there support services for overseas installation?
A: Yes, our after-sales service includes training on installation and operation, with engineers available to provide on-site service machinery overseas.
