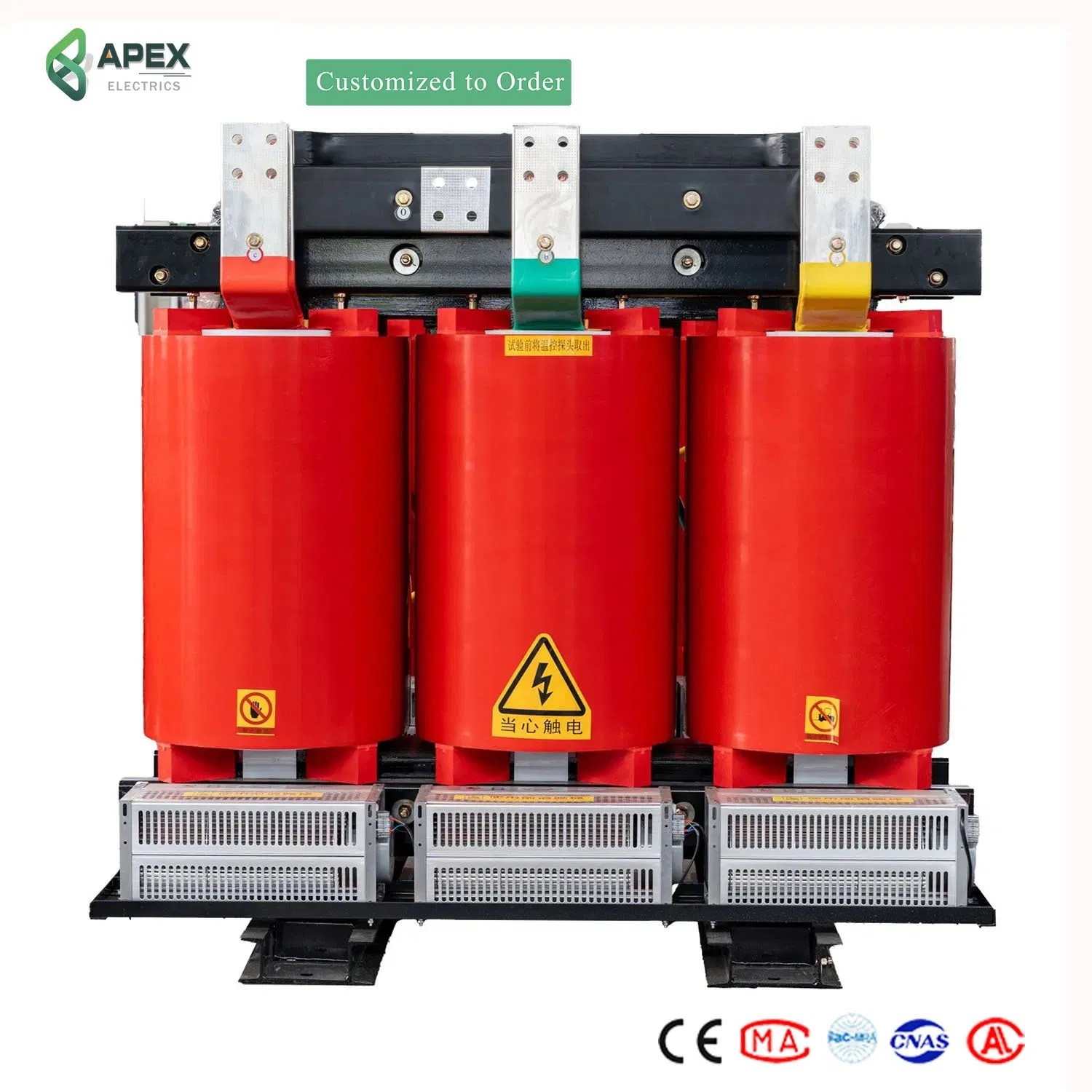

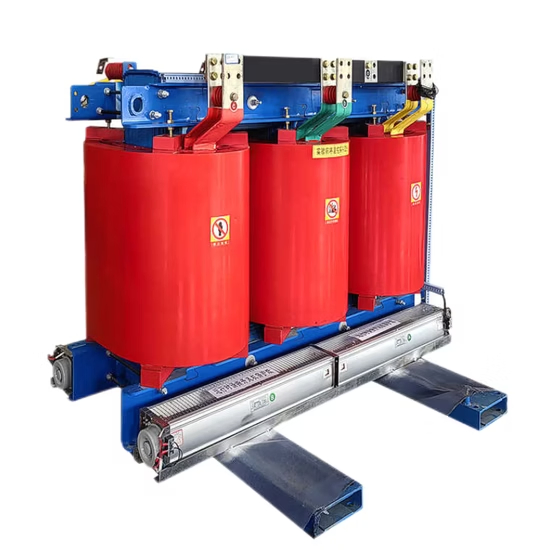

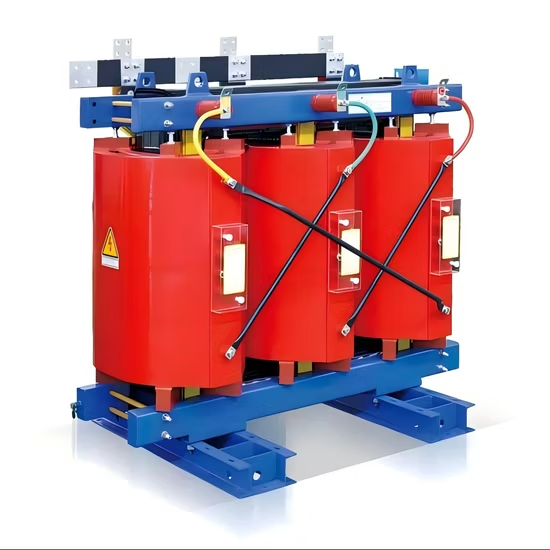

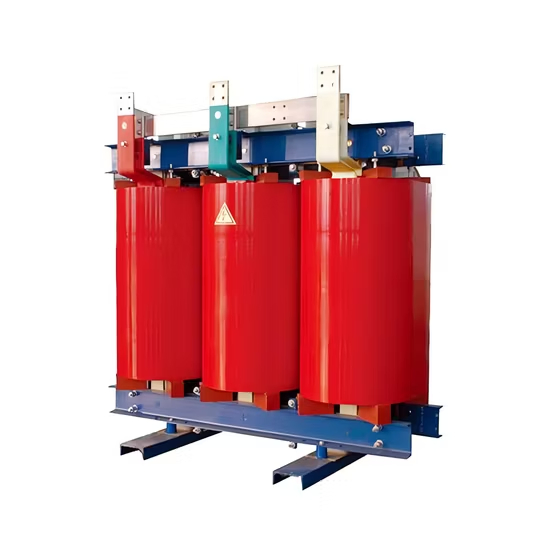

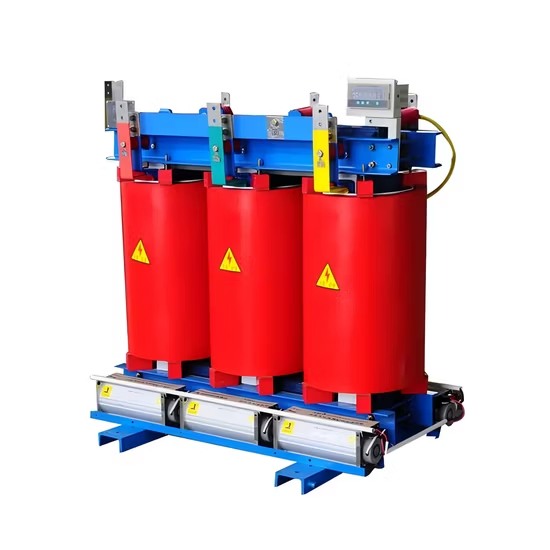

10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
1 / 5
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical
10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical

10kv/0.4kv Energy Saving Cast Resin Dry Type Power Distribution Transformer Electrical

Customization: Available
Application: Power, Industrial,Commercial, Utility,Data Center,Indoor
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.:SCB
Core:Core-type Transformer
Cooling Method:Dry-type Transformer
Winding Type:Two-winding Transformer
Certification:ISO9001, CCC, CE, IEC60076, UL, cUL Certified
Usage:Distribution Transformer, Industrial, Data Center
Rated Capacity:100kVA - 3150kVA
Input Voltage:6kv, 10kv, 11kv, 20kv, 33kv, 35kv
Output Voltage:0.2kv, 0.4kv, 0.69kv, 0.8kv
Warranty:2 Years
Product Description

Three Phase Dry Type Distribution Transformer for Safe and Environment-Friendly Power Systems

Our Three Phase Dry Type Distribution Transformer is designed to deliver safe, efficient, and reliable power distribution for modern electrical systems. Constructed without insulating oil, this dry type transformer eliminates the risk of leakage and fire hazards, making it ideal for indoor installations and safety-critical environments such as commercial buildings, hospitals, data centers, and industrial facilities.

Key Features

Maintenance-free design, no oil change required.
Ultra-low loss design, up to 30% lower no-load loss.
Ultra-low noise operation ≤50 dB(A).
High-efficiency heat dissipation, supporting 100% continuous load.
Up to 150% rated load capacity under forced air cooling (AF).
Built-in intelligent temperature monitoring system.
Product Video & Visuals
Transformer Details

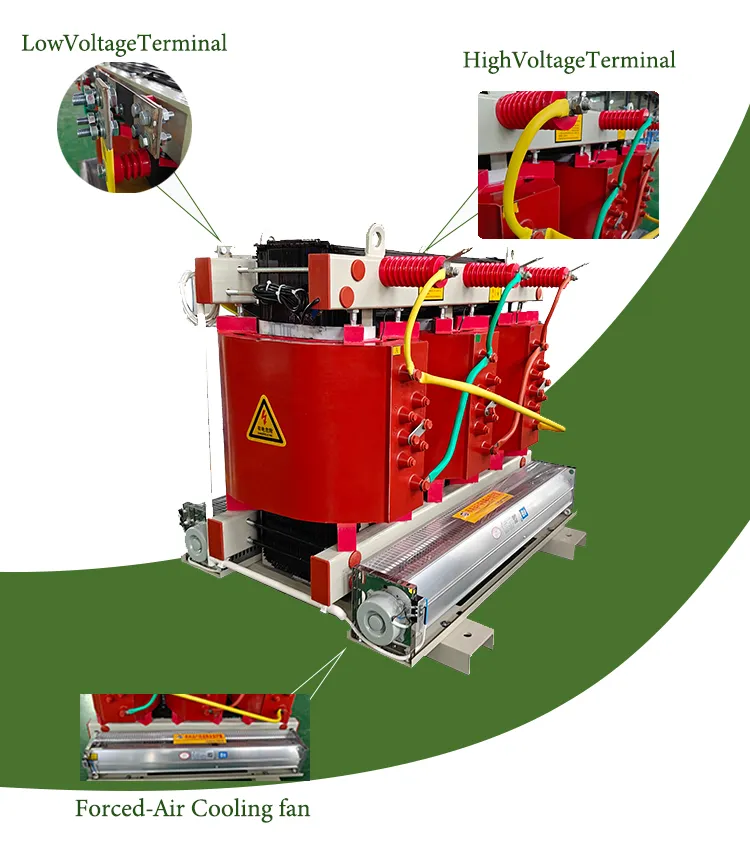

Core Construction
Winding Process
Cast Resin Insulation
Packaging
Technical Specifications
Parameter Specification Details
Rated Capacity500 kVA ~ 5000 kVA or Customized
Rated Frequency60 Hz / 50 Hz
Primary Voltage12.47 kV, 13.2 kV, 13.8 kV, 24.94 kV, 34.5 kV
Secondary Voltage480 Y / 277 V, 208 Y / 120 V, 600 Y / 347 V
Core MaterialCRGO Silicon Steel
Winding MaterialCopper Winding / Aluminum Winding
Cooling MethodAN (Natural) / AF (Forced)
Sound Level≤50 dB (A)
Design Life25 Years

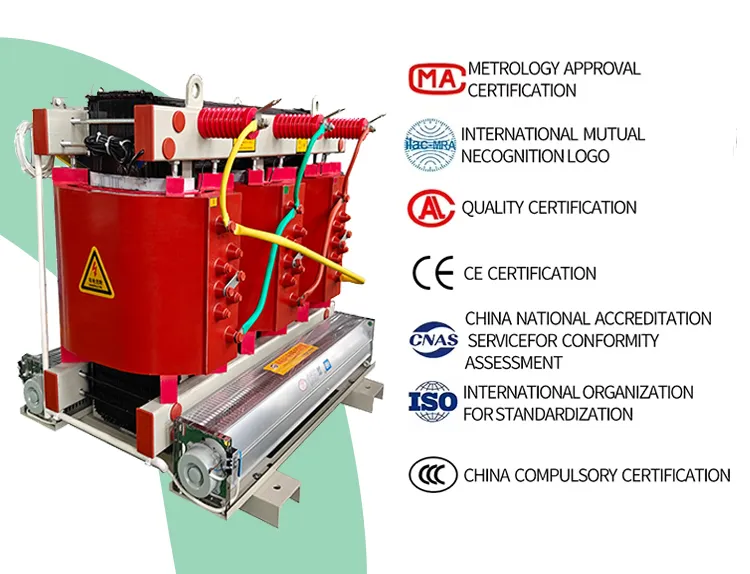

Certifications & Quality
Certification 1
Certification 2
Certification 3
Frequently Asked Questions
What are your preferred payment methods?
Wire transfer (T/T), letter of credit (L/C) are acceptable. Usually 30%-50% deposit upon order confirmation, with the balance due before dispatch.
Can your products be customized?
Yes, absolutely. We understand that different countries and regions have specific requirements regarding voltage, frequency, and environmental conditions.
What is your Minimum Order Quantity (MOQ) and lead-time?
We maintain a flexible MOQ starting from 1 set. For standard specifications, the typical production lead-time is approximately 30-45 days.
How long is the warranty of your product?
Our standard warranty period is two years (24 months) from the date of delivery.
How can you guarantee quality?
We provide a pre-production sample before mass production and conduct final inspections before shipment. We provide QC and test reports and accept Factory Acceptance Tests (FAT).
What is your packaging assurance?
We strictly adhere to export-standard packaging (typically wooden cases) to ensure the safety of goods during transit.
