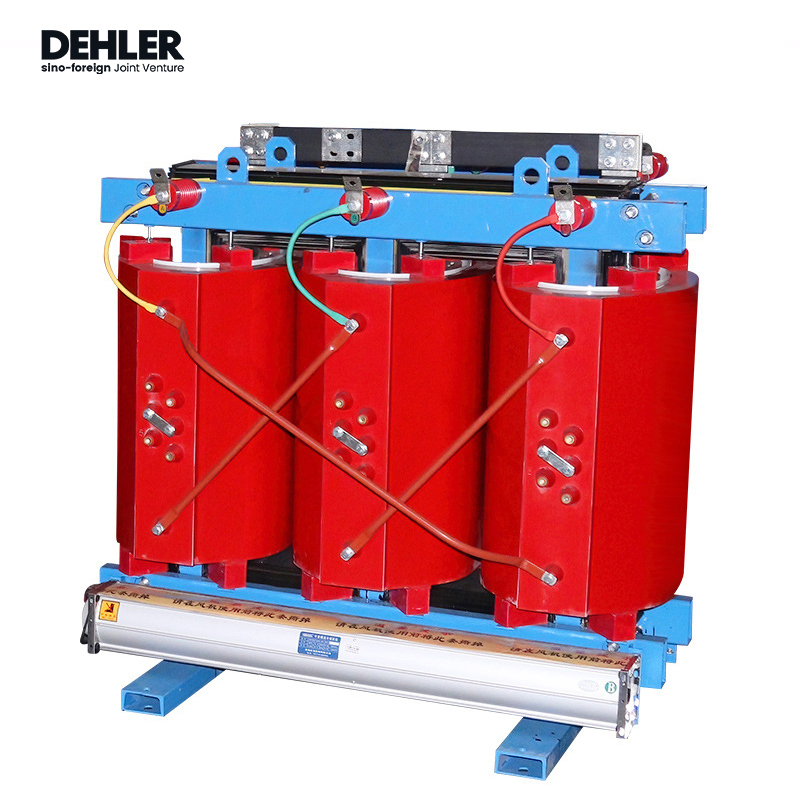

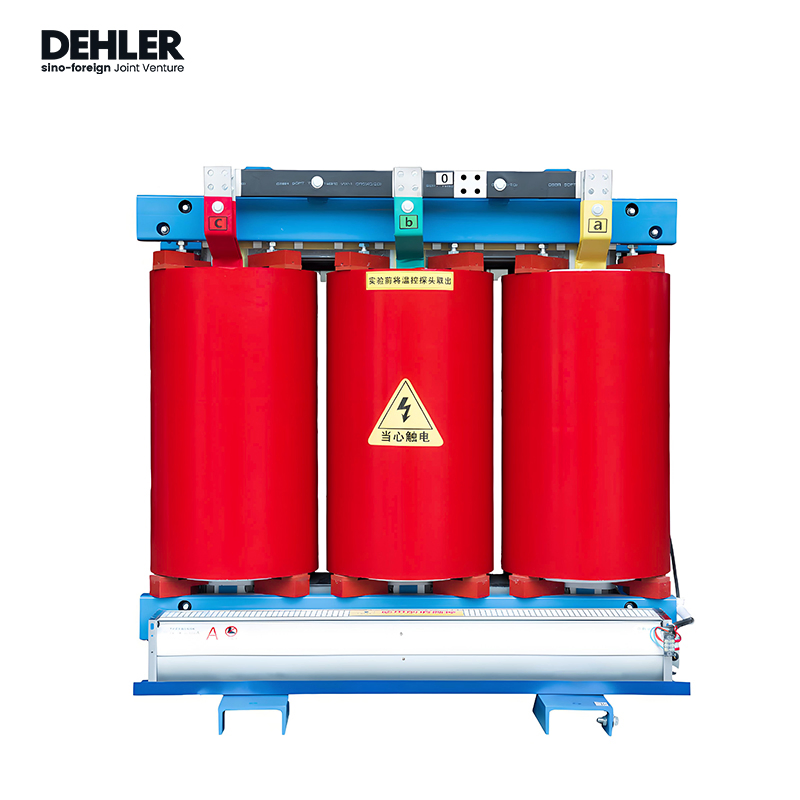

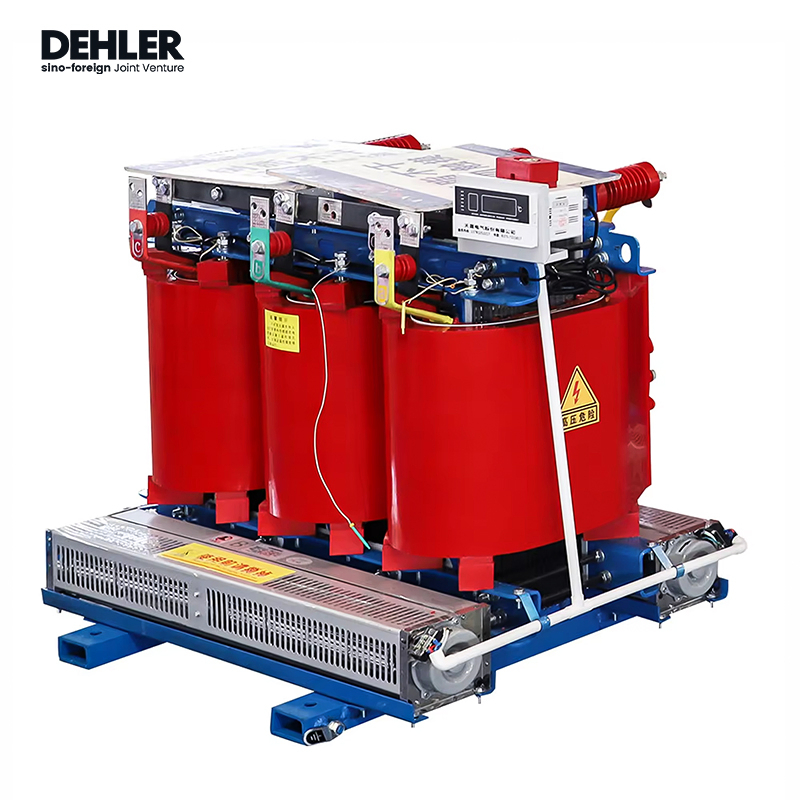

Product Description

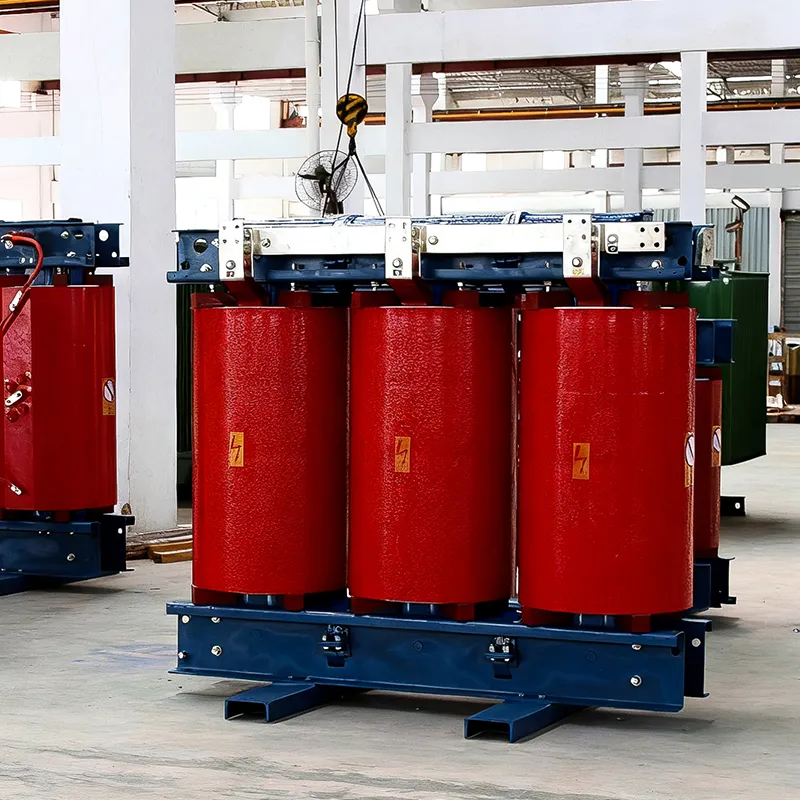

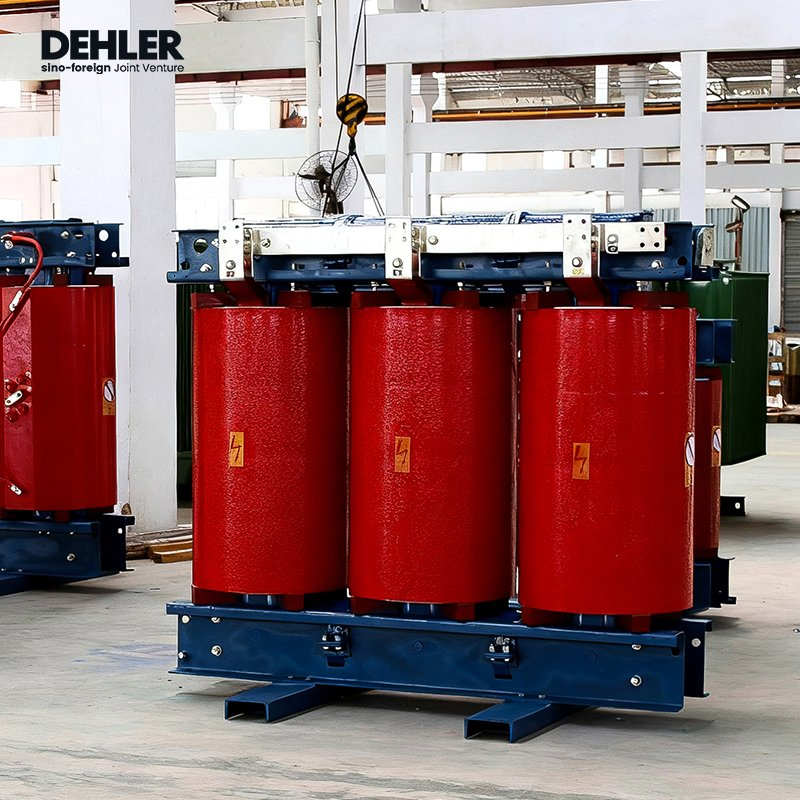

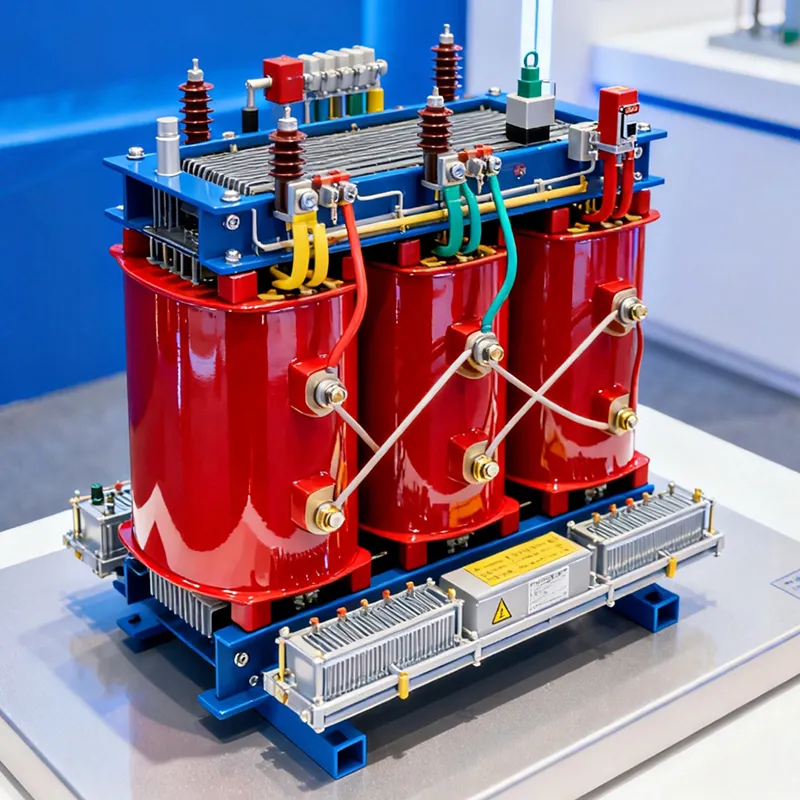

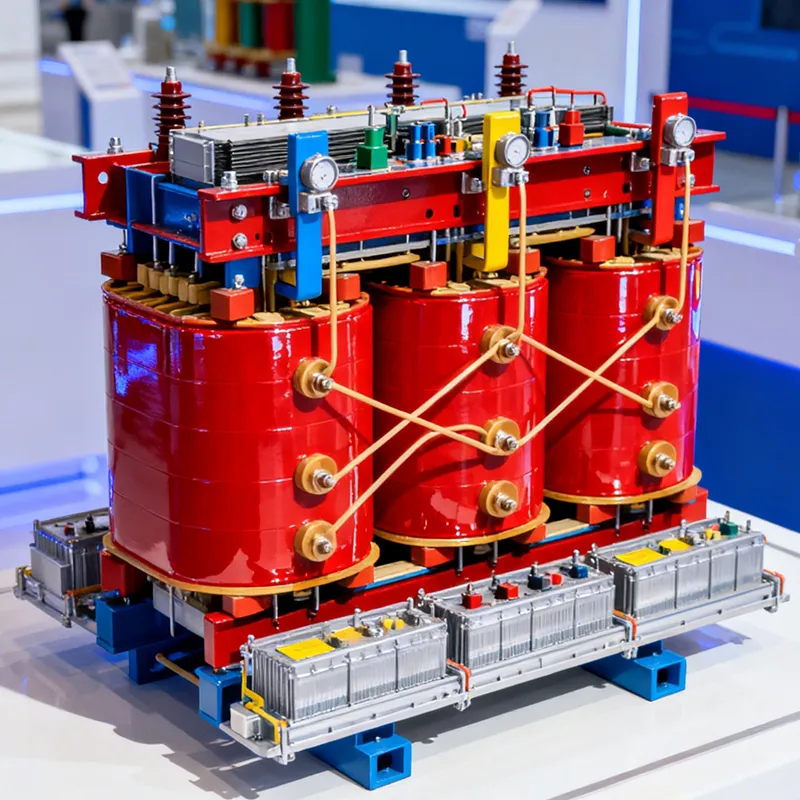

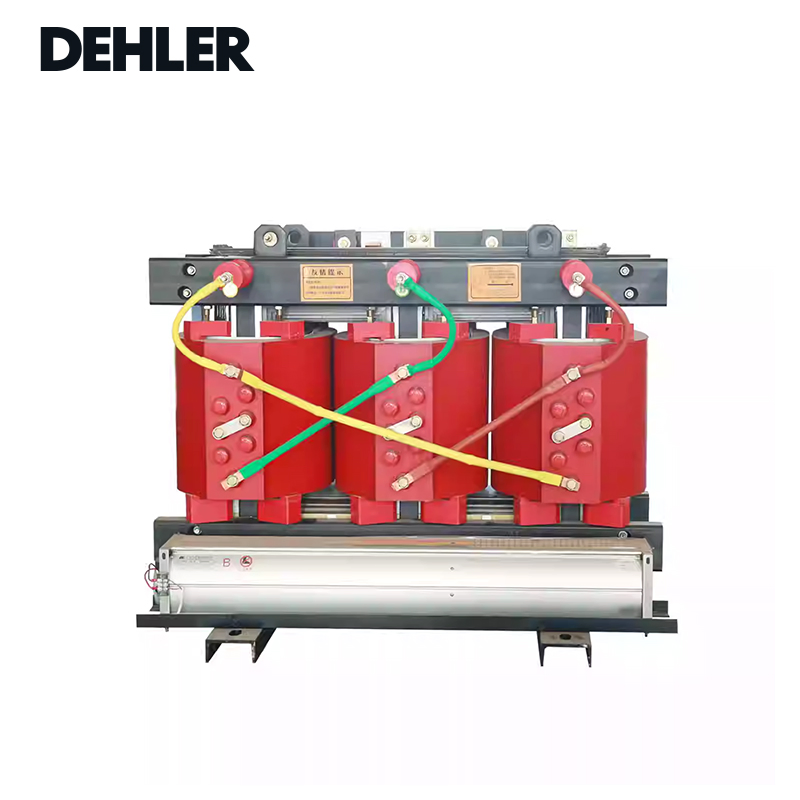

SC(B) series dry type transformer is designed and developed by ourselves. It has passed the strict test by National Transformer Quality Supervision Test Center. It's an excellent performance and environmentally friendly type of dry transformer.
Benefits & Features
-
1. H-Grade Insulation
SC10 Series power transformer use NOMEX material and new technology to achieve H-grade insulation, it is reliably used in ambient temperature up to 180ºC and the main part of the transformer can sustain up to 220ºC.
-
2. Safety
SC10 and SC11 series power transformer using insulated materials which is flame retardant and moisture-proof, the combustible material is only 10% of the epoxy resin transformer. There's no poisonous fumes during long time burning at 800ºC. SC10 and SC11 series power transformer is mainly applied to high safety requirements, moist and poorly ventilated installation site, such as power station, railway, shipbuilding, chemical industry, metallurgic industry.
-
3. Reliable
SC10 and SC11 series power transformer using special coil design and technology to achieve moisture proof, mould proof and fame proof. It can sustain high thermal shock and without rimous nor partial discharge.
-
4. Strong over-load ability
SC10 and SC11 series power transformer can sustain 120% rated capacity. It can longtime running under IP23 without force air cooling.
Application
With advanced structure and performance,this series transformer can sustain large load fluctuation and over-load, it has high anti-flaming level and can adapt to the high humidity, dusty and other harsh environment. It is widely used in airport, power station, metallurgy industry, hospital, high-rise buildings, shopping center, heavily populated region,petrochemical industry, nuclear power station and nuclear submarine, etc.
Specification Summary:
Capacity: 30~3500kVA
Voltage grade: 6~35kV
Tapping range: ± 2× 2.5% or others
Number of phases: Three-phase or single phase
Frequency: 50Hz or 60Hz
Connection symbol: Dyn11 / Yyn0 or others
Impedance voltage: 4% 6%
Insulation level: L175AC35/LI0AC3
Insulation grade: F grade
Frequently Asked Questions
Are you a trade company or a manufacturer?
We are a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.
What are your major products?
It specializes in producing complete sets of high and low voltage switchgear, box type substations, cable branch boxes, indoor and outdoor vacuum circuit breakers, isolating switches, grounding switches, load switches, and low voltage components.
Can your product be customized?
Yes, Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions, our product can be customized according to your requirements.
Do you offer guarantee for the products?
Yes. We offer at least one years guarantee for all of our products.
How can I place an order with you?
You should first provide us with detailed technical specifications or SLD (single line diagram) or related drawings, etc. via email, WeChat, whatsapp, phone, etc. You can contact any of our sales staff at any time for quotation and further communication.
