| Rated Capacity (KVA) | Junction group labe | Voltage combination (KV) | No-load current (%) | Load loss (W) | No-load loss (W) | Short circuit impedance (%) | ||
|---|---|---|---|---|---|---|---|---|
| (H.V.) | High voltage tap range(%) | (L.V.) | ||||||
| 30 | Dyn11 YynQ | 10 6.3 6 | ±5 ±2×2.5% or -1 ×2.5% +3 | 0.4 | 2.00 | 710 | 150 | 4.0 |
| 50 | 2.00 | 1000 | 215 | |||||
| 80 | 1.50 | 1380 | 295 | |||||
| 100 | 1.50 | 1570 | 320 | |||||
| 125 | 1.30 | 1850 | 375 | |||||
| 160 | 1.30 | 2130 | 430 | |||||
| 200 | 1.10 | 2530 | 495 | |||||
| 250 | 1.10 | 2760 | 575 | |||||
| 315 | 1.00 | 3470 | 705 | |||||
| 400 | 1.00 | 3990 | 785 | |||||
| 500 | 1.00 | 4880 | 930 | |||||
| 630 | 0.85 | 5880 | 1070 | |||||
| 630 | 0.85 | 5960 | 1040 | 6.0 | ||||
| 800 | 0.85 | 6960 | 1210 | |||||
| 100C | 0.85 | 8130 | 1410 | |||||
| 1250 | 0.85 | 9690 | 1670 | |||||
| 1600 | 0.85 | 11730 | 1960 | |||||
| 2000 | 0.70 | 14450 | 2440 | |||||
| 2500 | 0.70 | 17170 | 2880 | |||||
Low loss: The no-load loss of the product is more than 30% lower than that of the SCB10 product, and all losses are lower than the SCB13 dry-type transformer, with excellent energy-saving effect, economic operation, and maintenance-free.
Low partial discharge: The resin mixture adopts advanced mixing methods and vacuum film degassing technologies to make the mixture evenly stirred and completely eliminate air bubbles in the mixture.

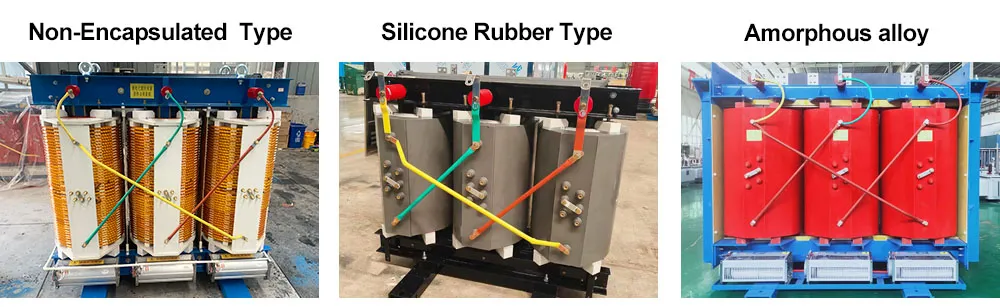

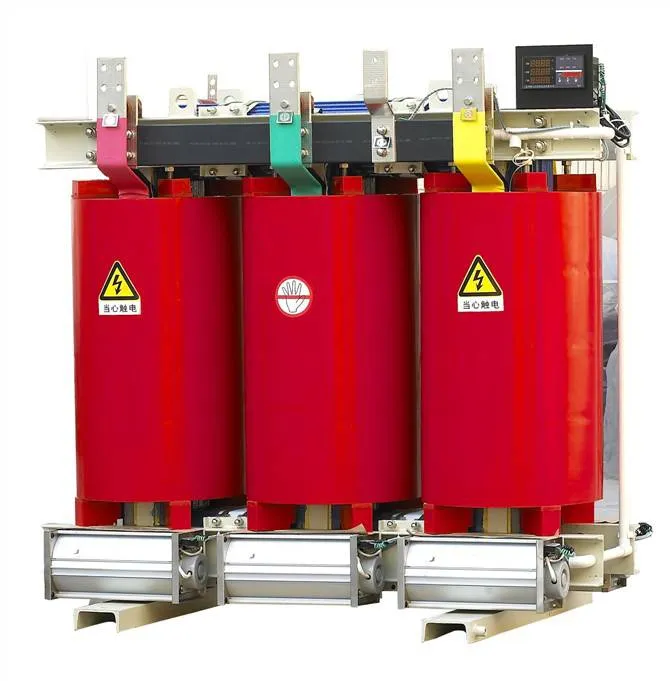

Dry-type transformer has many types you can to choose. They have epoxy resin cast dry-type transformer, non-encapsulated dry type transformer, amorphous alloy dry type transformer, three-dimensional wound core dry-type transformer.

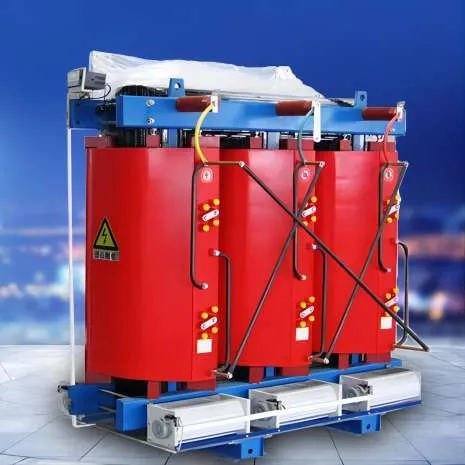

Dry-type transformer is a high-performance electrical equipment. It adopts advanced insulation technology, does not require oil immersion, and is safe and environmentally friendly. It is fireproof and explosion-proof, and its operation is stable and reliable. Compared with oil-immersed transformers, dry-type transformers are more adaptable to various environments and have lower maintenance costs. It is widely used in high-rise buildings, commercial centers, hospitals, factories and other places. It efficiently converts and distributes electrical energy, providing continuous and stable power support for our lives and production. It is an indispensable and important part of the modern power system.

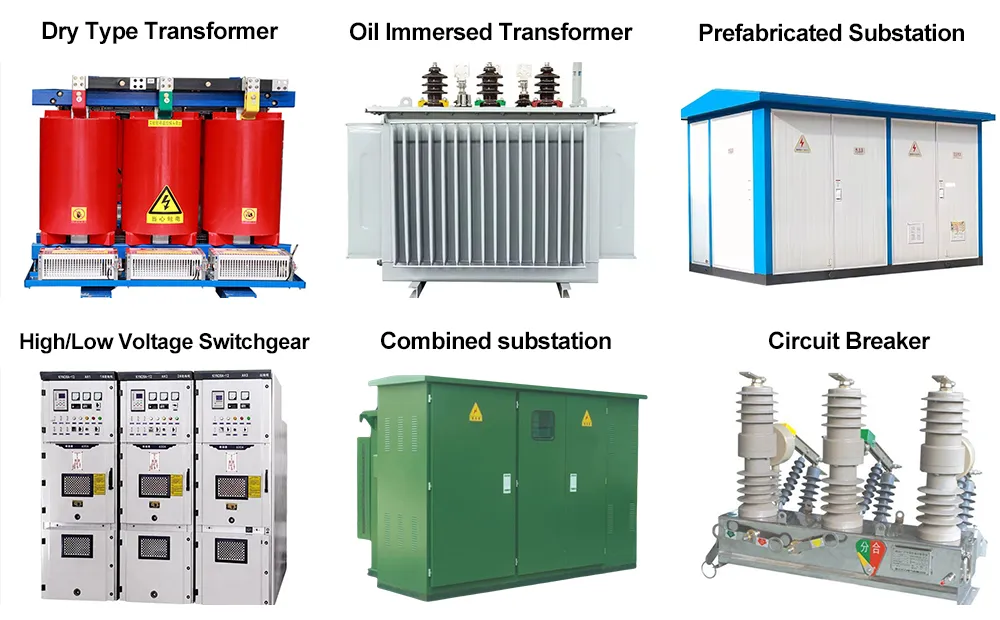

We are an intelligent technology enterprise engaged in R&D manufacturing and sales of power transformers, high and low voltage switch cabinets, box-type substations and supporting products.

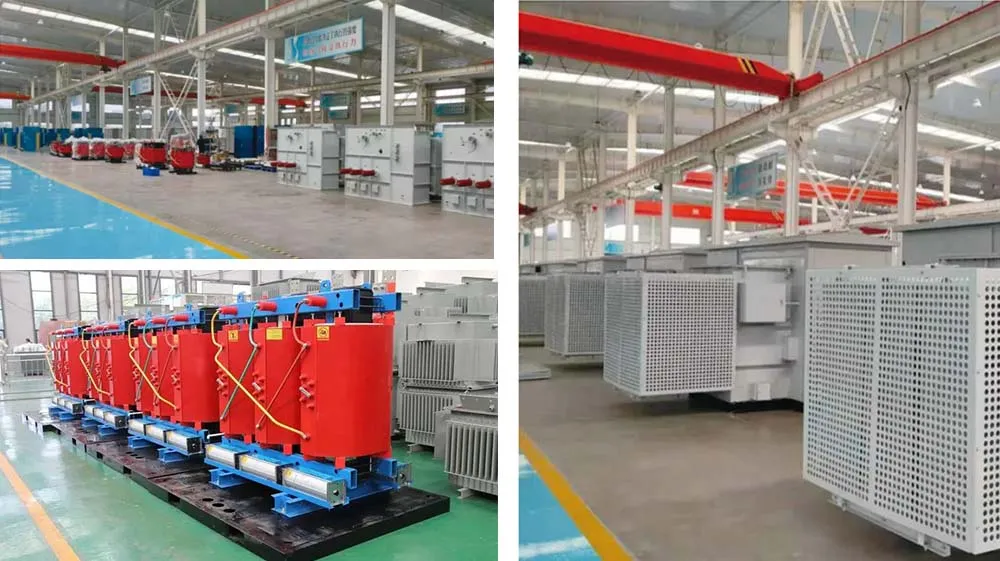

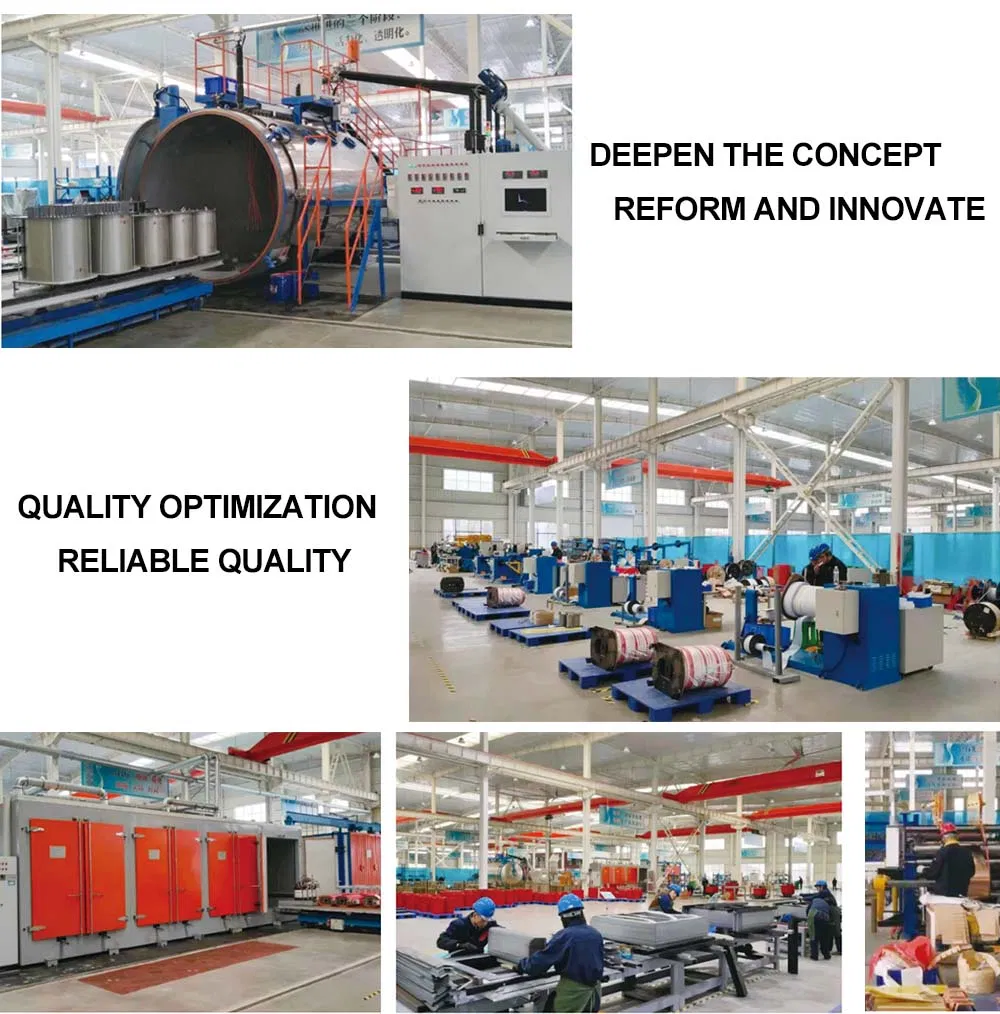

The factory covers an area of nearly 100,000 square meters, with a registered capital of 60.6 million yuan. It has more than 300 employees, 20 party branch members, nearly 20 engineers, and nearly 50 technical personnel with intermediate technical titles. The company relies on domestic advanced technology and production. And testing equipment, in accordance with the operating standards of the ISO9000 quality certification system, using computer-aided design, to provide customers with environmentally friendly, energy-saving, low-carbon and high-quality products that meet the characteristics of each region to meet the fundamental requirements of the market and different customers.
Our team always insists on "striving for progress with science and technology, for survival with quality, for efficiency with management, for market with integrity, and for development with innovation". Insist on the meticulousness and excellence of every detail and link, strive to realize the standardization and systematic management of product quality, and accelerate the innovative application, digestion and absorption of new technologies. Through extensive technical exchanges and cooperation, research and development of high-reliability, maintenance-free, intelligent, energy-saving and environmentally friendly power transmission and transformation equipment products. To achieve the goal of building a R&D and manufacturing base for advanced equipment as the medium and long-term development of the enterprise. Committed to becoming the world's leading supplier of power equipment, making our brand more outstanding due to quality, and comprehensively revitalizing the national industry.
