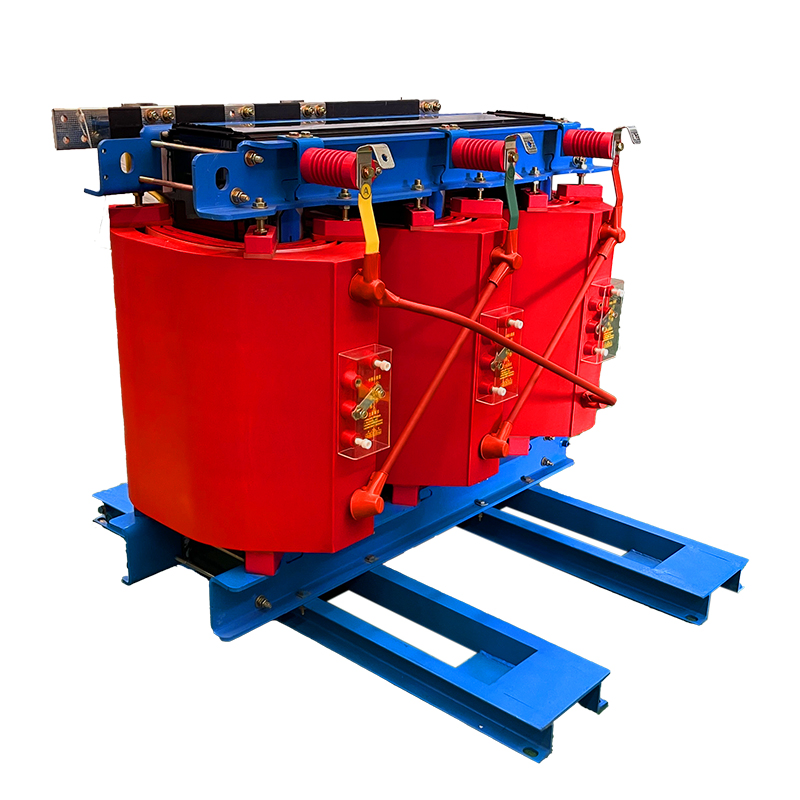

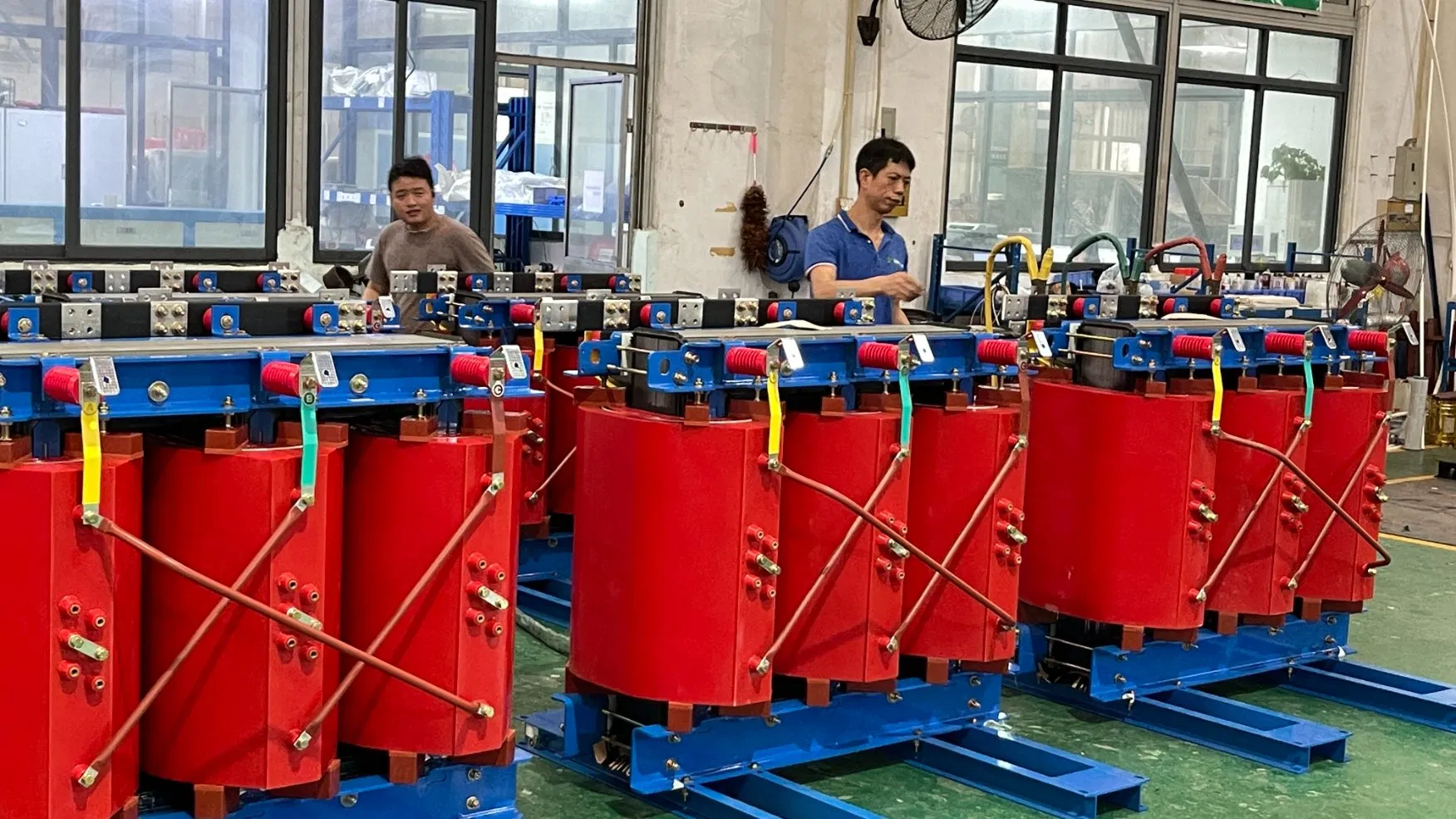

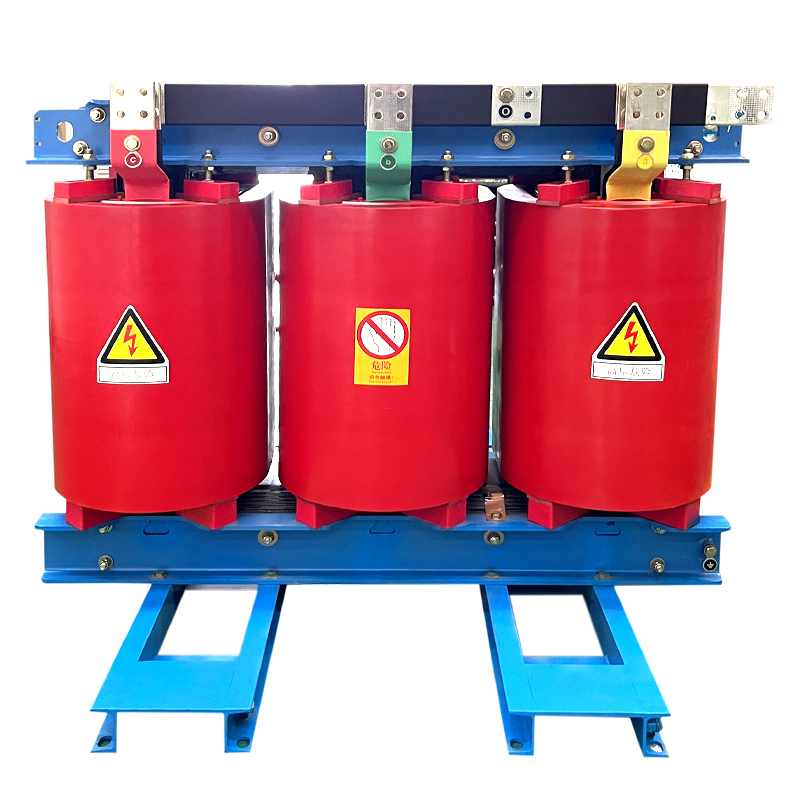

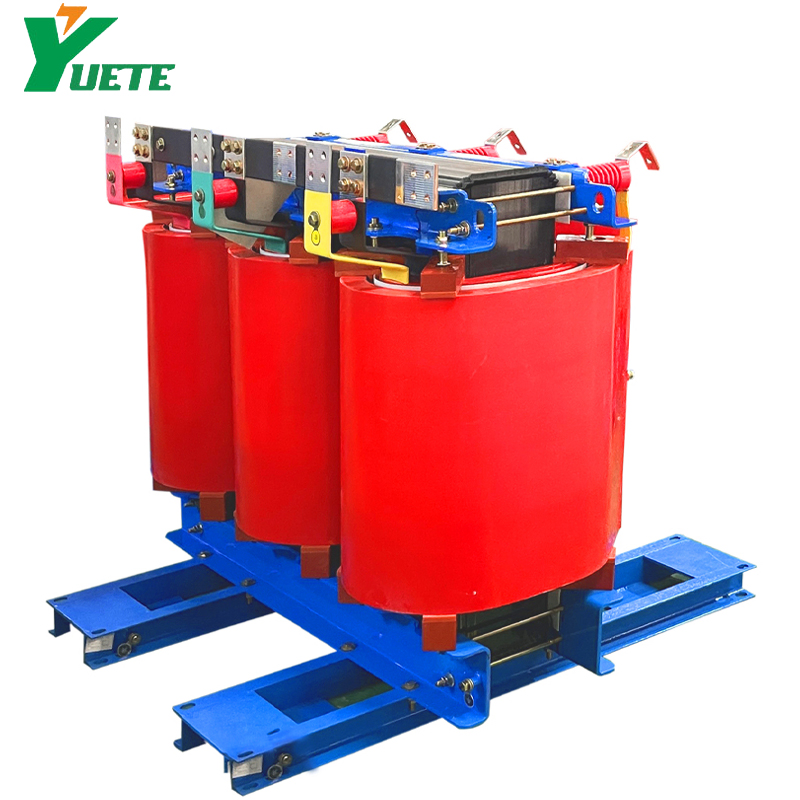

33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
1 / 5
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer

33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer

Customization: Available
Application: Power, Power Transmission
Phase: Three
Send Inquiry

Product Description

Basic Specifications
Model NO.SCB11
CoreCore-type Transformer
Cooling MethodDry-type Transformer
Winding TypeTwo-winding Transformer
CertificationISO9001, CCC
UsagePower/Distribution Transformer
Rated H.V.33/34.5/35/38kv
Rated L.V.0.4kv - 0.48kv
Frequency50/60Hz
Winding MaterialCopper/Aluminium
Vector GroupDyn11/Yyn0/Yzn11/Dyn5
Applied StandardIEC60076/IEEE/ANSI/DOE
Packaging & Delivery
Package Size100.00cm * 120.00cm * 150.00cm
Gross Weight2000.000kg
Transport PackageWooden Box
Production Capacity10000 Units/Year
Three Phase Dry Type Transformer

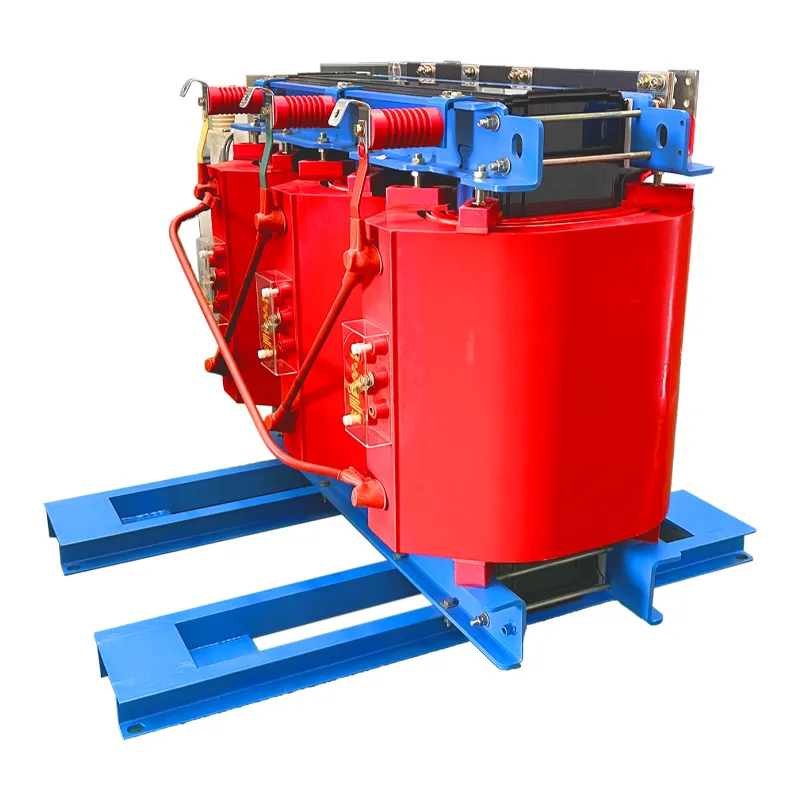

Dry Type Transformer

Product Features:

◈
Safe, inflammable, fireproof, no pollution, can be directly installed in the load center;
◈
Maintenance free, easy installation, low overall operation cost;
◈
Good moisture-proof performance, can operate normally under 100% humidity;
◈
Low loss, low partial discharge, low noise, strong heat dissipation capacity;
◈
Equipped with perfect temperature protection and control system;
◈
High reliability reaching international advanced levels.

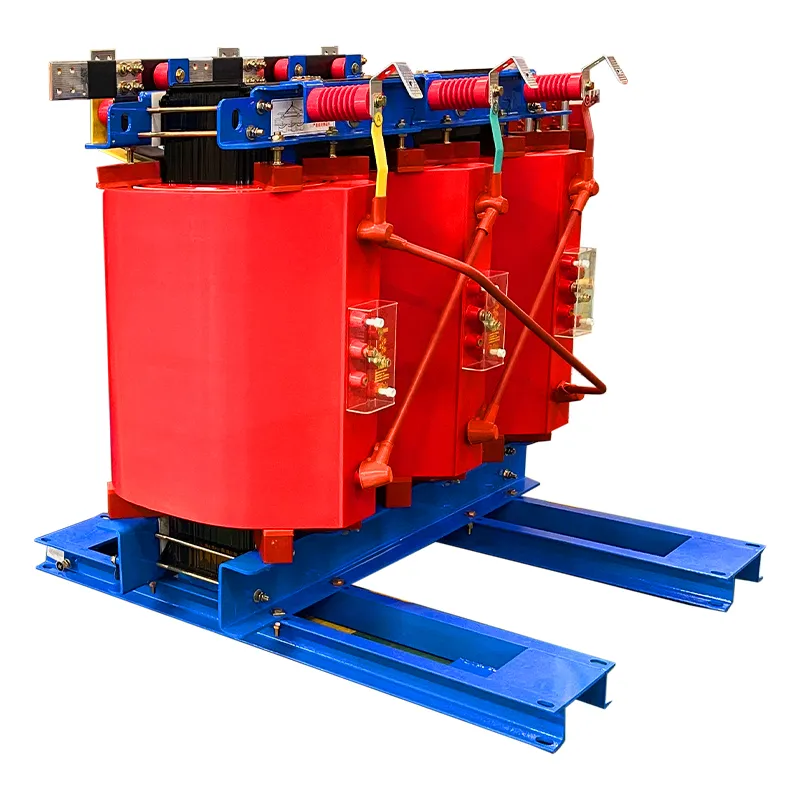

Transformer View 1

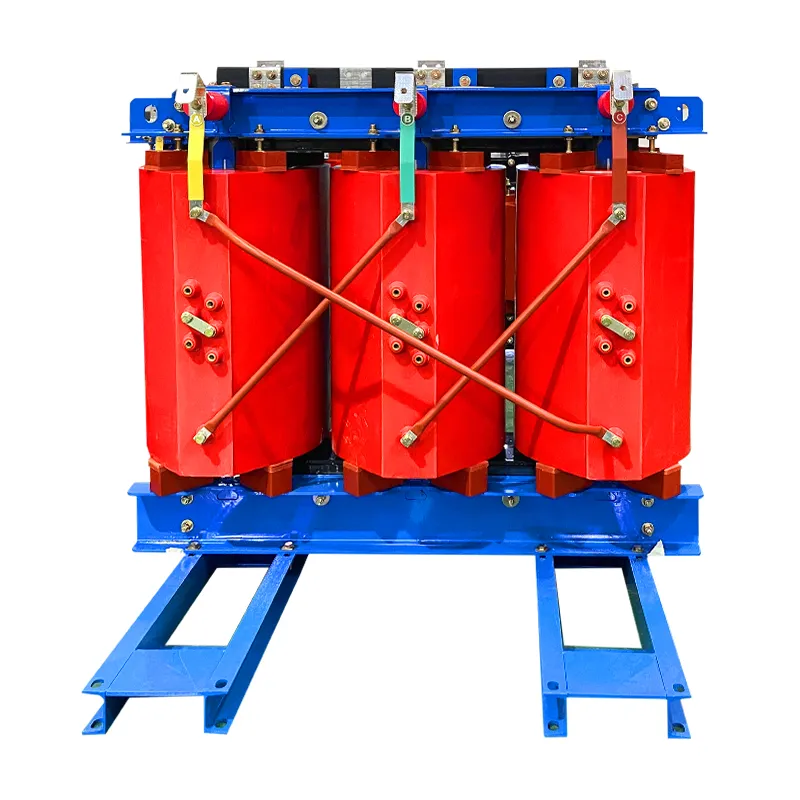

Transformer View 2

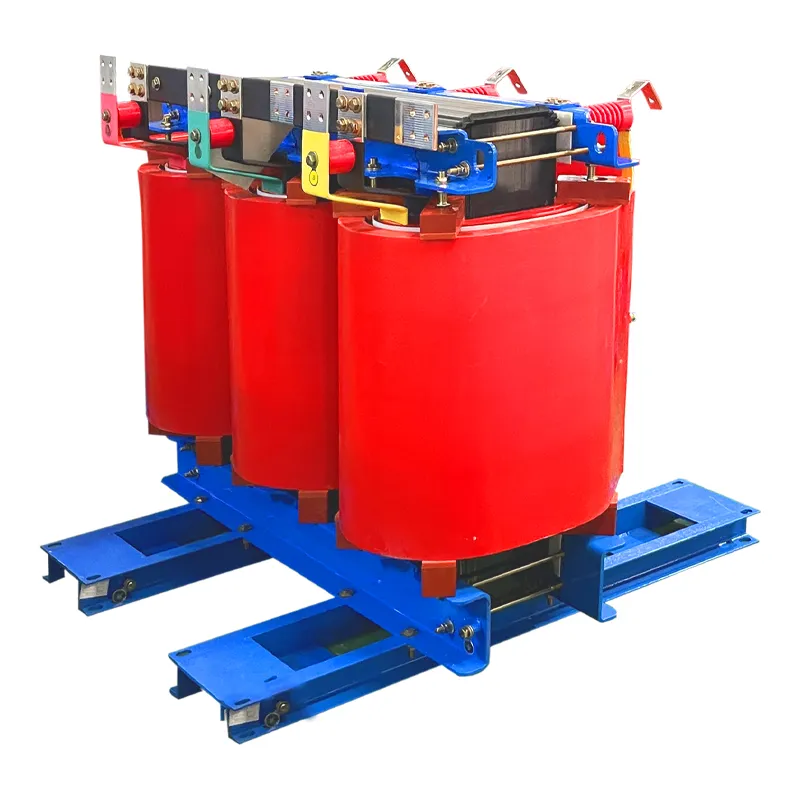

Transformer View 3
Technical Specifications
Rated Power (kVA) Rated Voltage (kV) Vector Group No-load loss (W) Load loss (W) Impedance (%)
HV LV
3033 / 34.5 / 35 / 380.4 / 0.415 / 0.433Dyn11 / Yyn040012006
10063020906
500162066506
10002430104006
20003820182006
31505280252006
Detailed Components

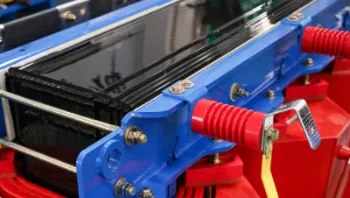

Core
Transformer Core
Clamp
Transformer Clamp
HV Terminations
HV Terminations
LV Terminations
LV Terminations
Production & Testing Equipment

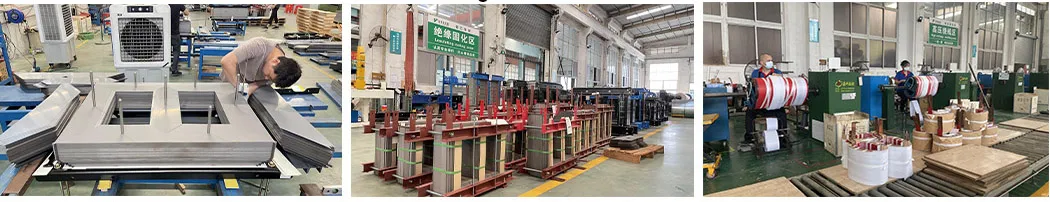

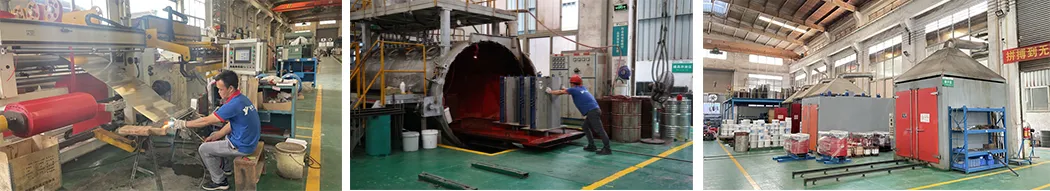

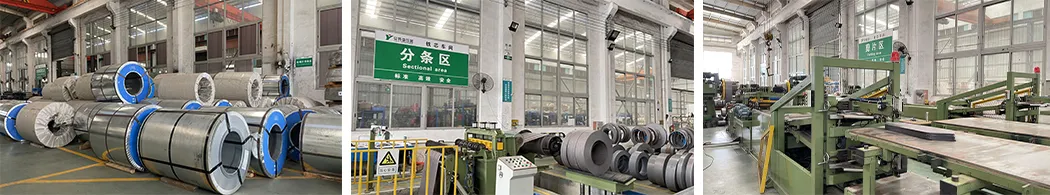

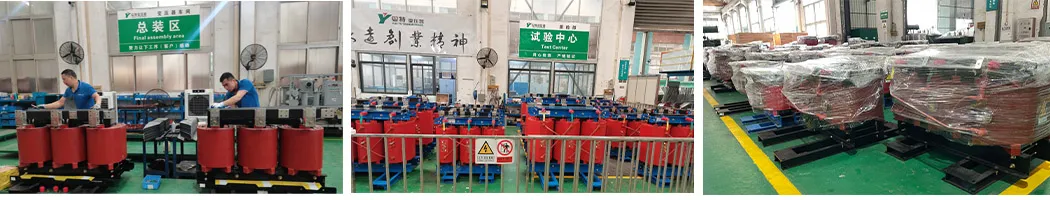

Production 1 Production 2 Production 3 Production 4
Quality Assurance Bench

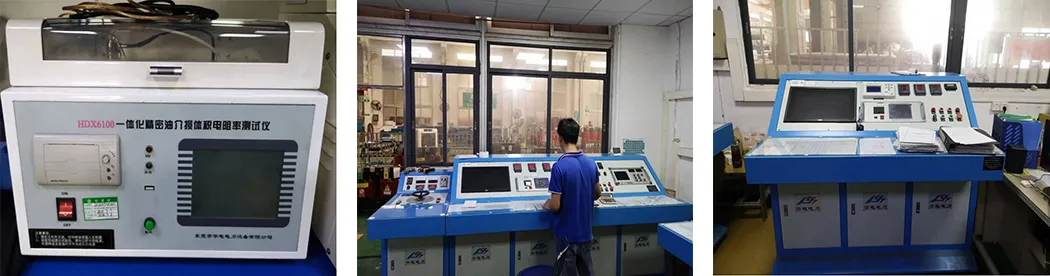

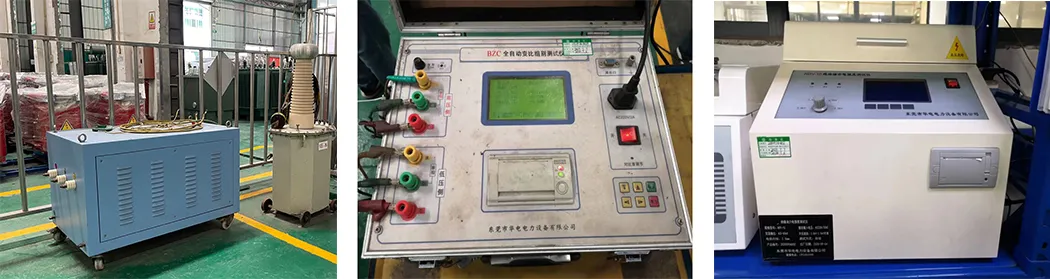

Test Bench 1 Test Bench 2
Enterprise Profile
Established in 2009, we are a professional high-tech enterprise of manufacturing, researching, and sales. Our main products include power transformers (Oil immersed, Dry type, Rectifier, Furnace, Isolation) and box-type substations. Our products are widely used in Southeast Asia, Africa, North America, South America, and the Middle East, strictly following IEC, IEEE, and ANSI standards.

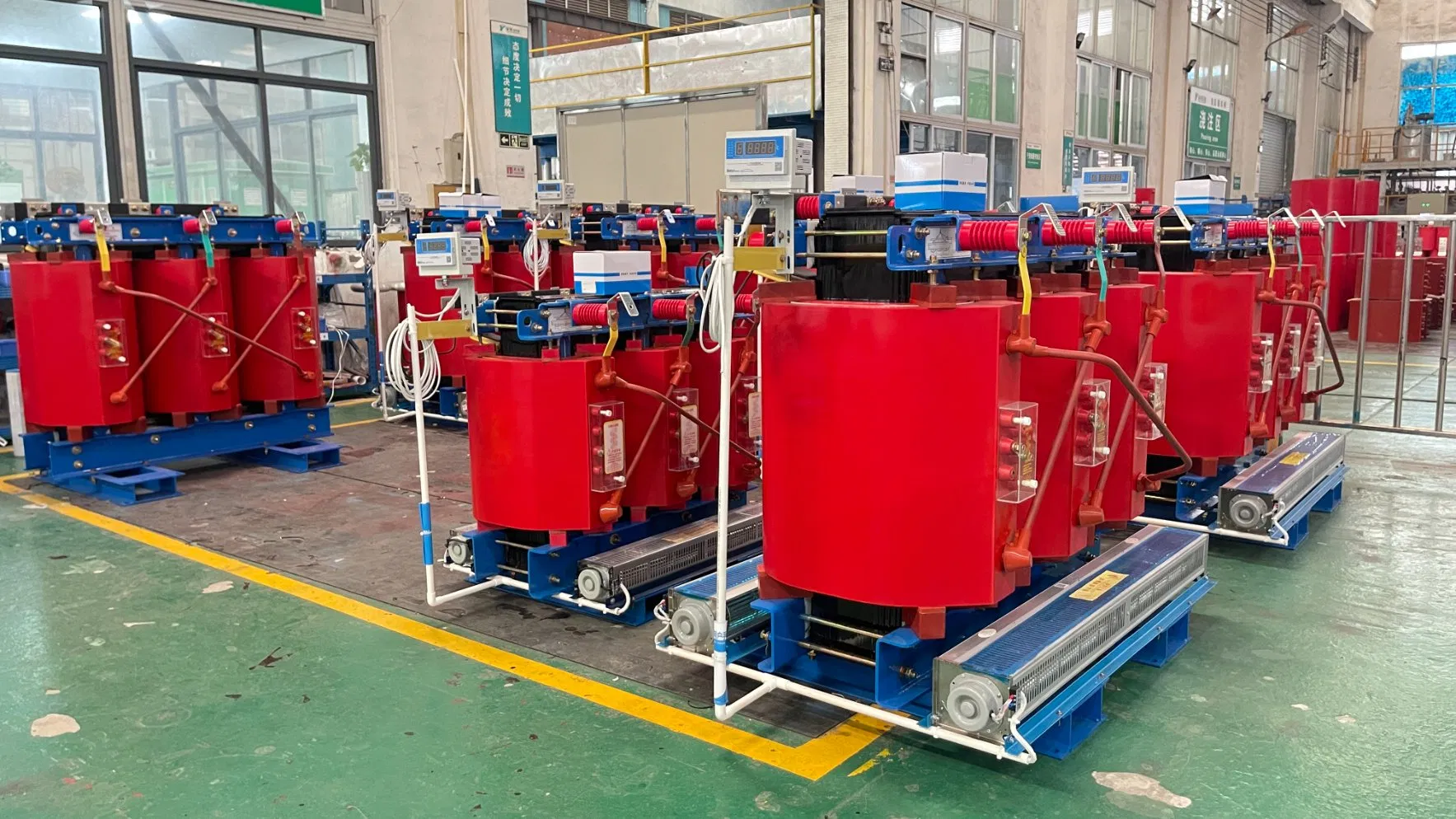

Factory View
Workshop
Certificates
Certificates
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer specializing in oil immersed transformers, dry type transformers, and substations for over 14 years.
What is the Minimum Order Quantity (MOQ)?
We accept OEM/ODM projects with an MOQ of 1 unit. Providing technical drawings and specifications is recommended.
What is the standard production time?
Production typically takes about 25-30 days depending on specific order requirements.
What are the accepted payment terms?
We currently accept T/T, LC, or Cash payments.
What is the guarantee period for your products?
We offer a standard 12-month (1 year) guarantee on our products.
Why should I trust your company?
We are an audited diamond supplier with a complete quality control system based on IEC, IEEE, and ANSI standards, holding ISO and Type Test reports.
