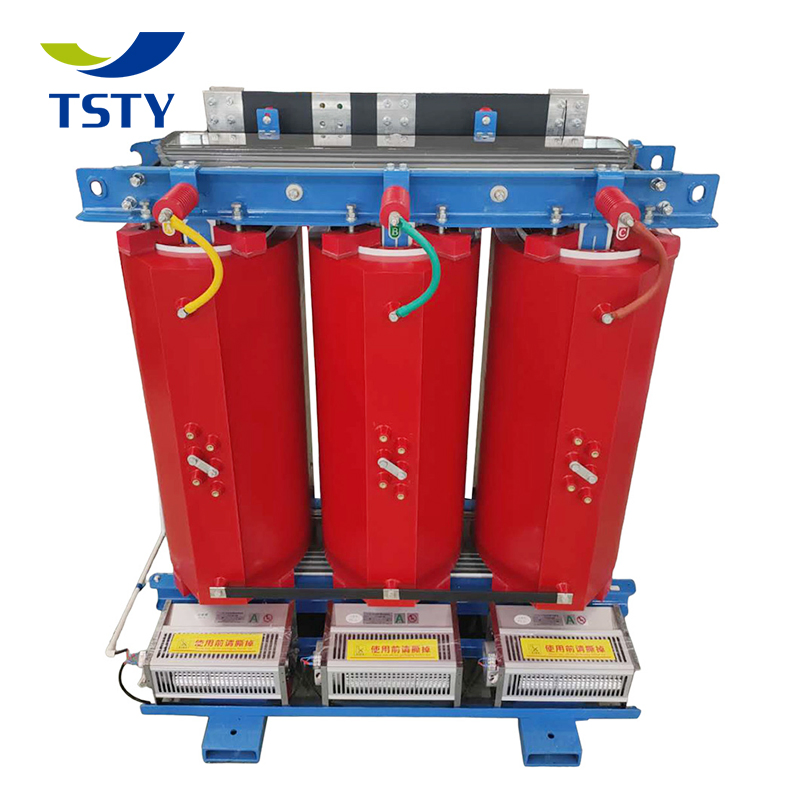

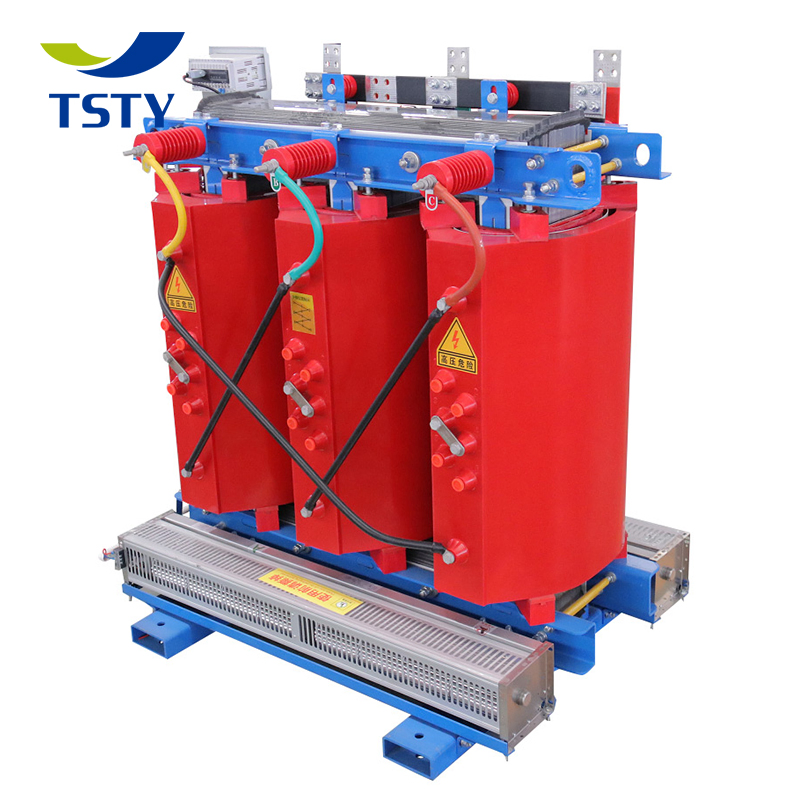

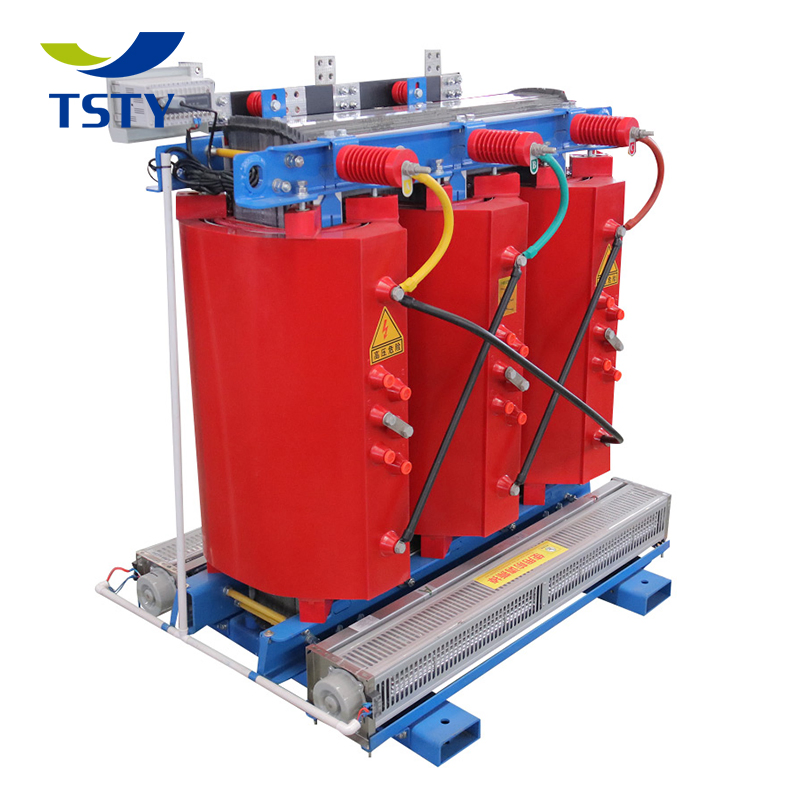

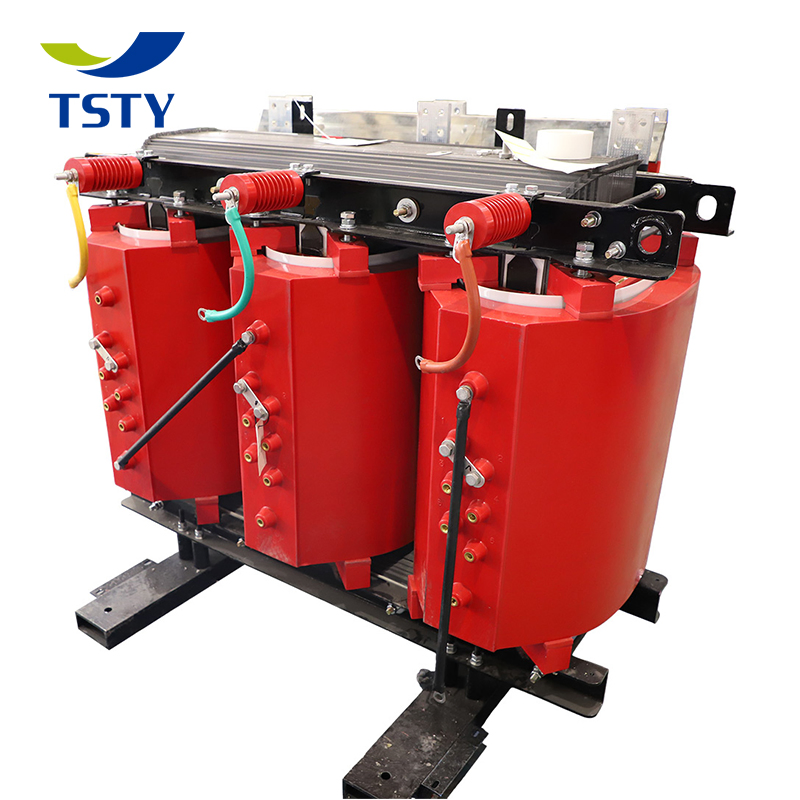

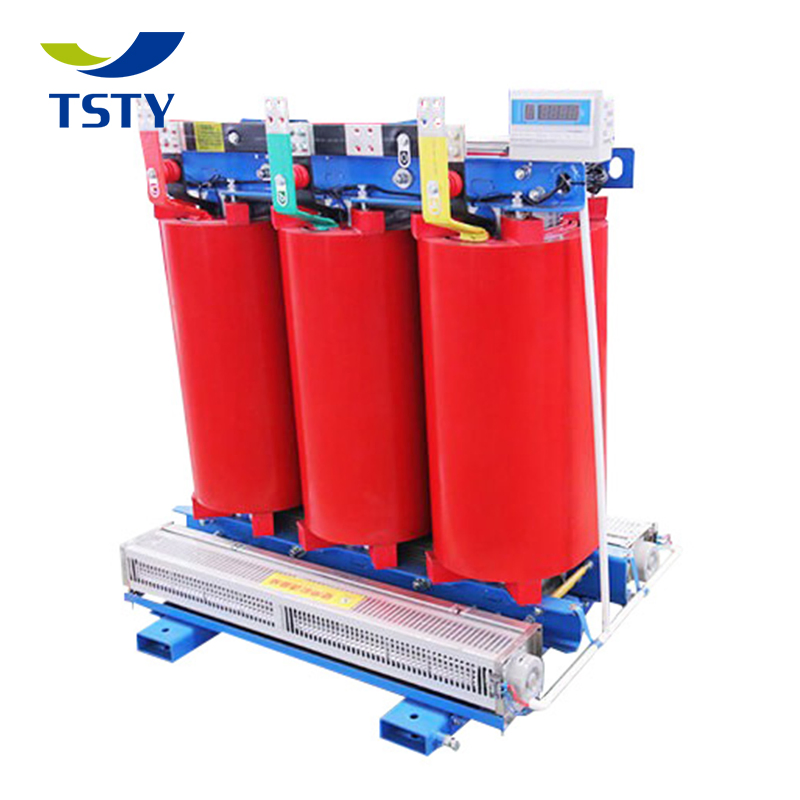

Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
1 / 5
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer
Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer

Custom Cast Resin Dry Type Distribution Transformer 1000-3000 kVA Power Supply Transformer

Customization: Available
Application: Power, Electronic, Electric
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.SCB 30kVA-2500kVA
CoreCore-type Transformer
Cooling MethodDry-type Transformer
Winding TypeMulti-winding Transformer
CertificationISO9001, CCC
UsageDistribution Power Transformer
Coil MaterialAluminum/Copper
Warranty2 Years
Low Voltage0.4kv
High Voltage10/11kv/22kv/35kv
Product Description

Custom Manufacture 1000 1250 1600 2000 2500 3000 kVA Phase 3 Stepdown Cast Resin Dry Type Distribution Power Transformer

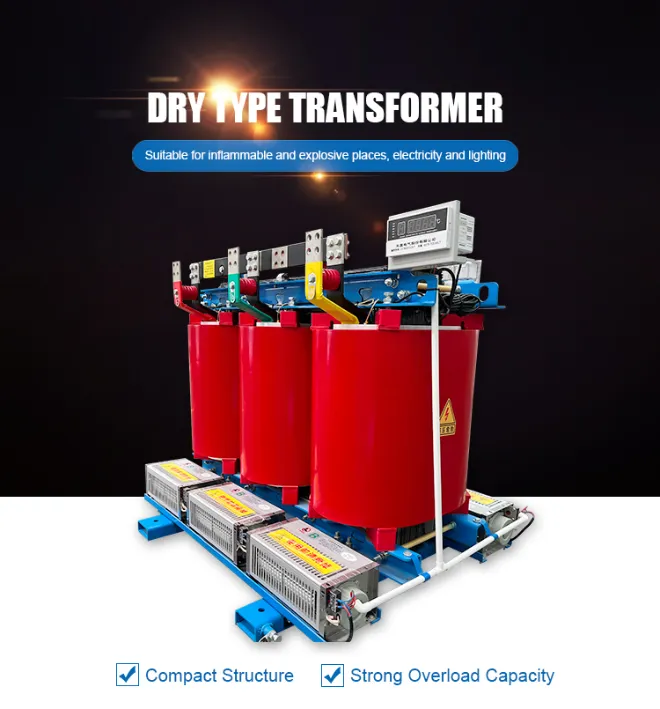

Cast Resin Dry Type Distribution Transformer

Dry-type power transformers adopt special process technology to ensure that the products fully meet requirements such as fire prevention, waterproof, and environmental protection. By optimizing the structure of the high-voltage coil, these series improve the distribution of voltage and capacitance between layers, enhancing the ability to withstand atmospheric overvoltage and operating overvoltage.

Product Parameters
Transformer TypeResin Cast Dry Type
ModelSCB10-50/10
Number of PhaseThree Phase
Winding MaterialAluminum/Copper
Rated Capacity50kVA - 3000kVA
High Voltage10/11kV
Low Voltage0.4kV
Frequency50/60Hz
Insulation ClassF/H
Protection LevelIP00/IP20/IP30

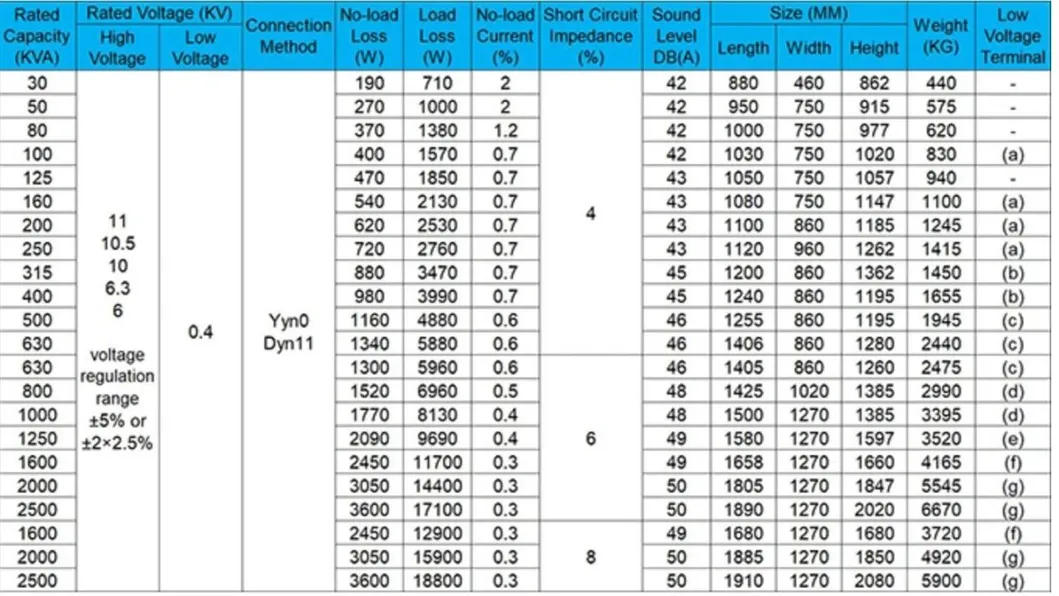

Product Parameter Table
Product Details & Advantages

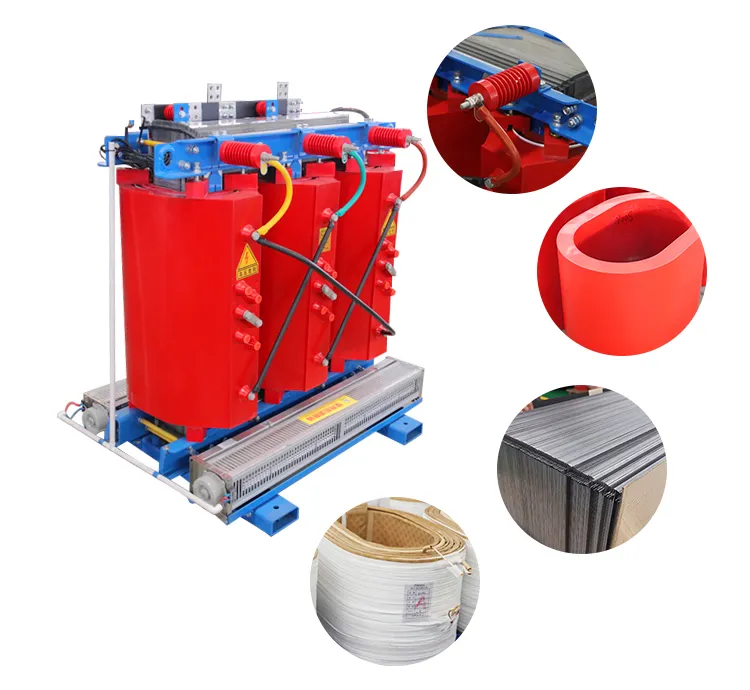

Transformer Details
  • H-Grade Insulation: Uses advanced materials to achieve H-grade insulation, reliably used in ambient temperatures up to 180ºC.
  • Safety: Uses flame retardant and moisture-proof insulated materials. No poisonous fumes are produced during combustion.
  • Reliability: Special coil design achieves moisture-proof, mould proof, and flame proof performance.
  • Strong Over-load Ability: Can sustain 120% rated capacity and long-time running under IP23 without forced air cooling.
Manufacturing Excellence

Our manufacturing facility is a digital management enterprise integrating R&D, production, sales, and installation of power equipment. Products cover 6kv, 11kv, 22kv, 35kv power transformers, distribution transformers, and substation equipment. Our products are exported to over 40 countries across the Middle East, Americas, Europe, and Africa.

The facility spans 250,000 square meters and utilizes advanced production equipment. Technical performance has reached advanced international industry levels, ensuring safe and reliable quality.

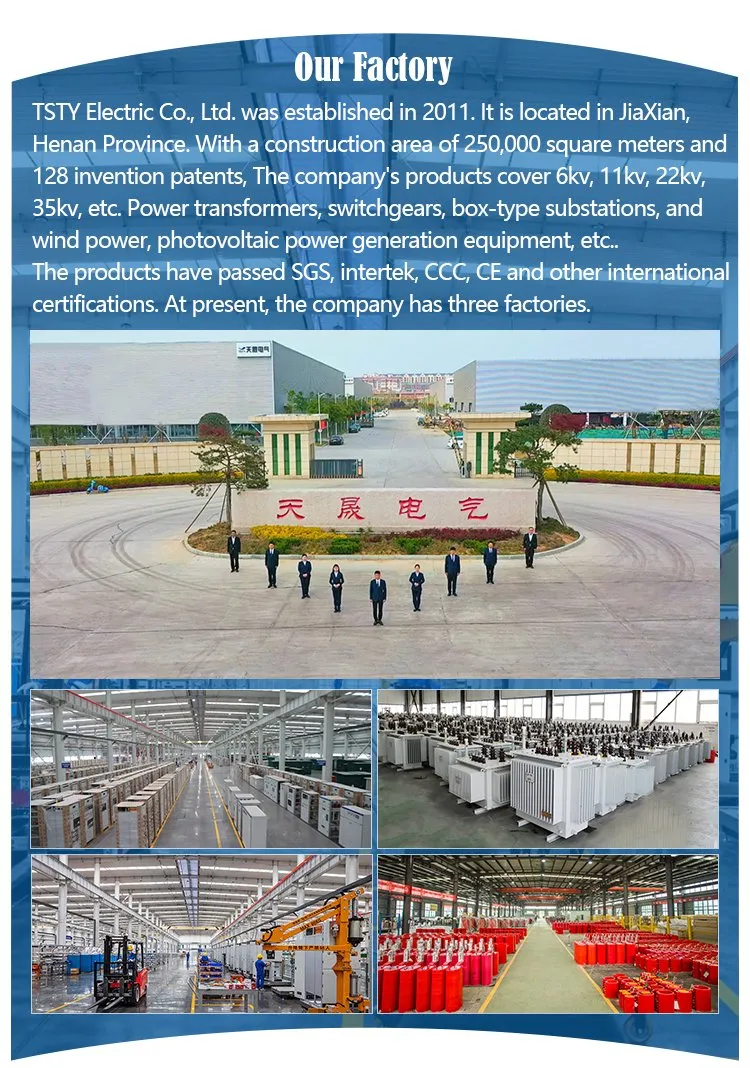

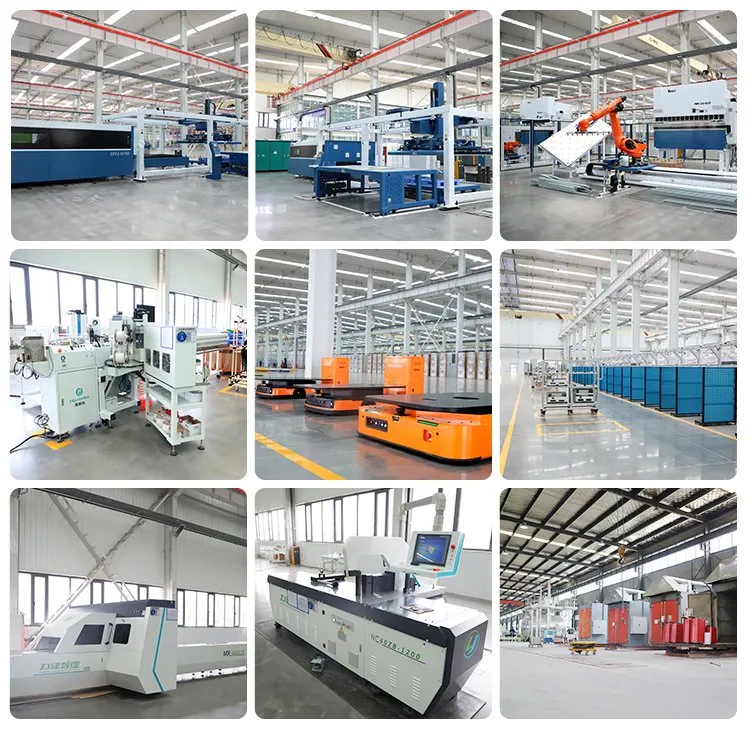

Factory Workshop Certifications Production Equipment
Packaging & Shipping
Customer Case Shipping Package
Package TypeStandard Wooden Case
Production Capacity1000 pieces / Month
Frequently Asked Questions
What are your major power products?
Our main products include oil-immersed transformers, dry-type transformers, transformer substations, and high/low voltage switchgear.
Can your transformers be customized?
Yes, considering differences in voltage, frequency, and other local requirements, our products can be fully customized to your specific needs.
What is the standard lead time for orders?
The lead time depends on the order quantity, but it is generally within 15 days upon receipt of advance payment.
Do you offer a guarantee for the products?
Yes, we offer at least a 2-year guarantee for all of our transformer products to ensure long-term reliability.
What are your advantages in manufacturing?
We bring over 15 years of experience, advanced production equipment, stable quality control, fast delivery, and professional technical service.
Which international certifications do your products have?
Our products have passed international certifications including IEC, SGS, Intertek, CCC, and CE.
