| Model NO. | 30~6300KVA | Core | Core-type Transformer |
|---|---|---|---|
| Cooling Method | Dry-type Transformer | Winding Type | Two-winding Transformer |
| Certification | ISO9001-2000 | Usage | Power/Distribution Transformer |
| Frequency | 50/60Hz | Core Shape | Stacked Core-Type |
| Winding Material | Copper/Aluminium | After-Sales | 2 Years |

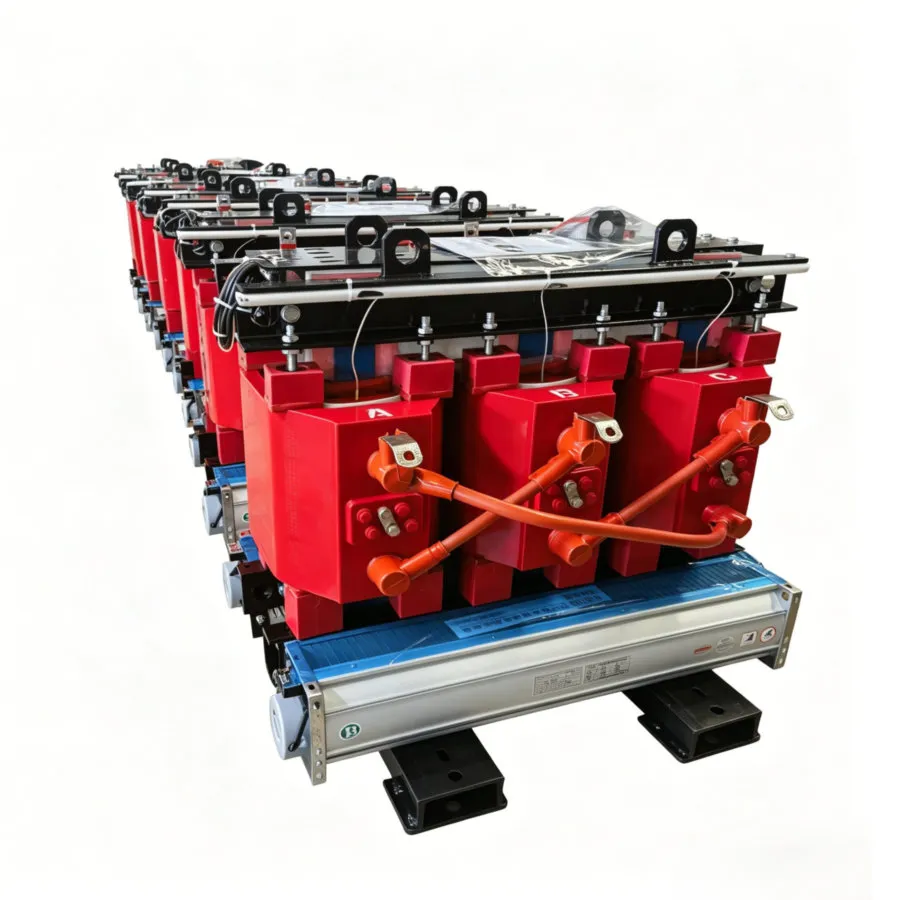

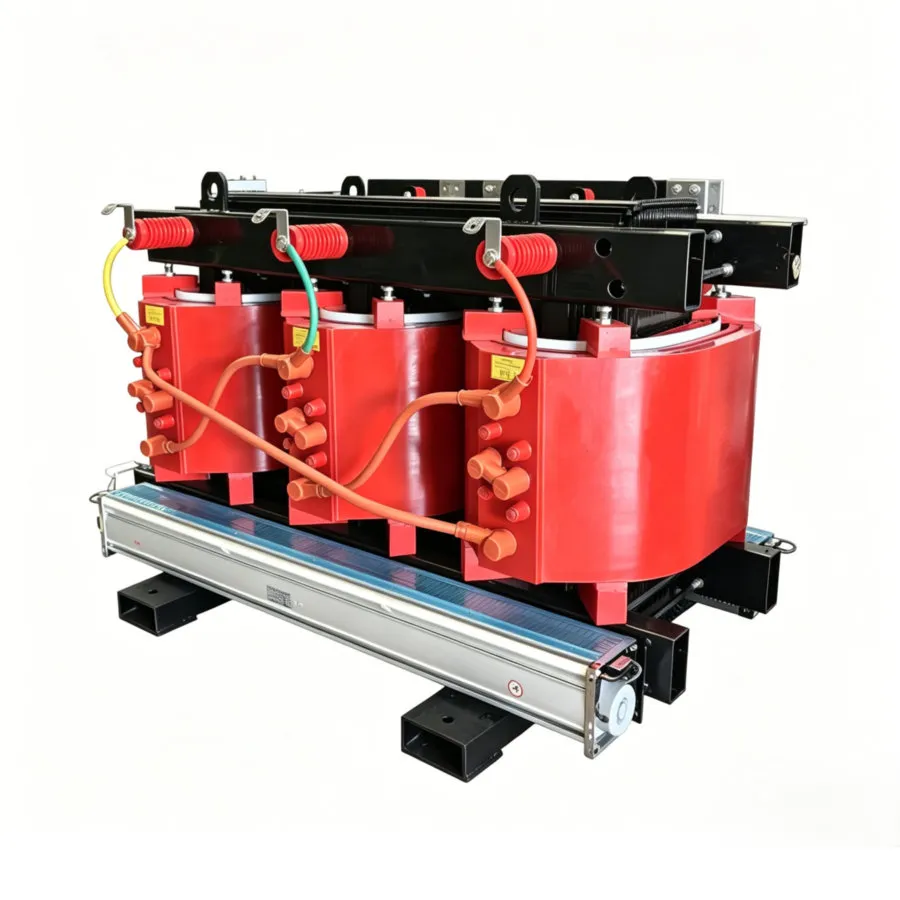

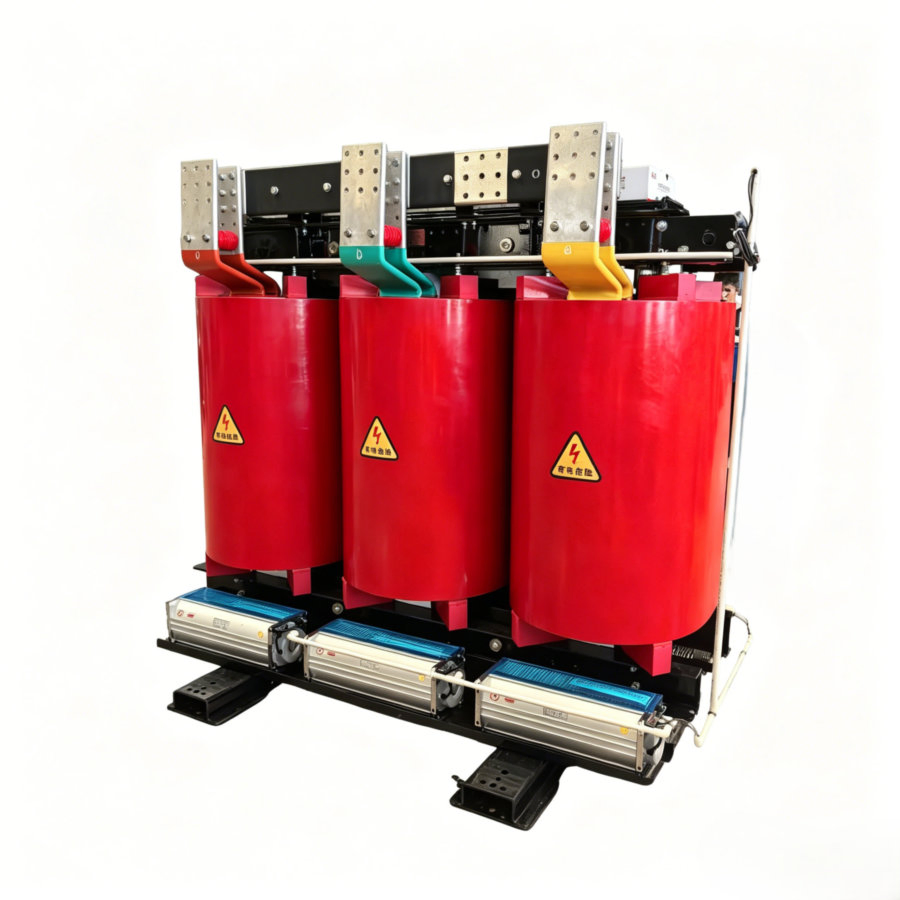

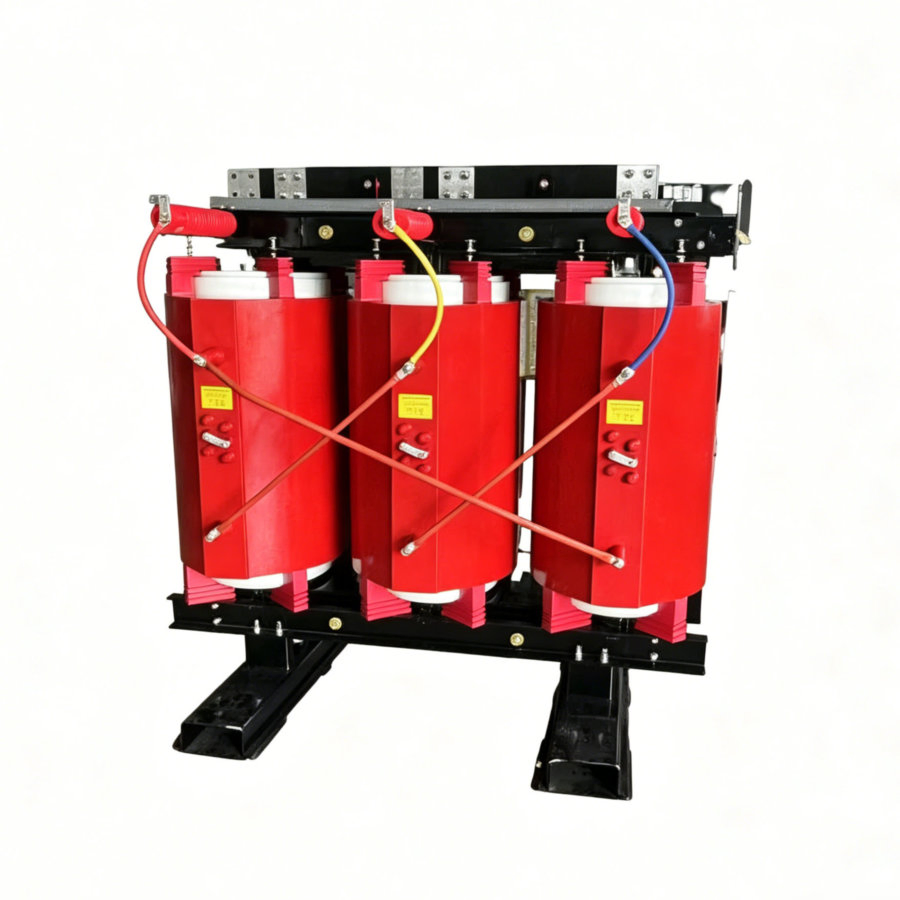

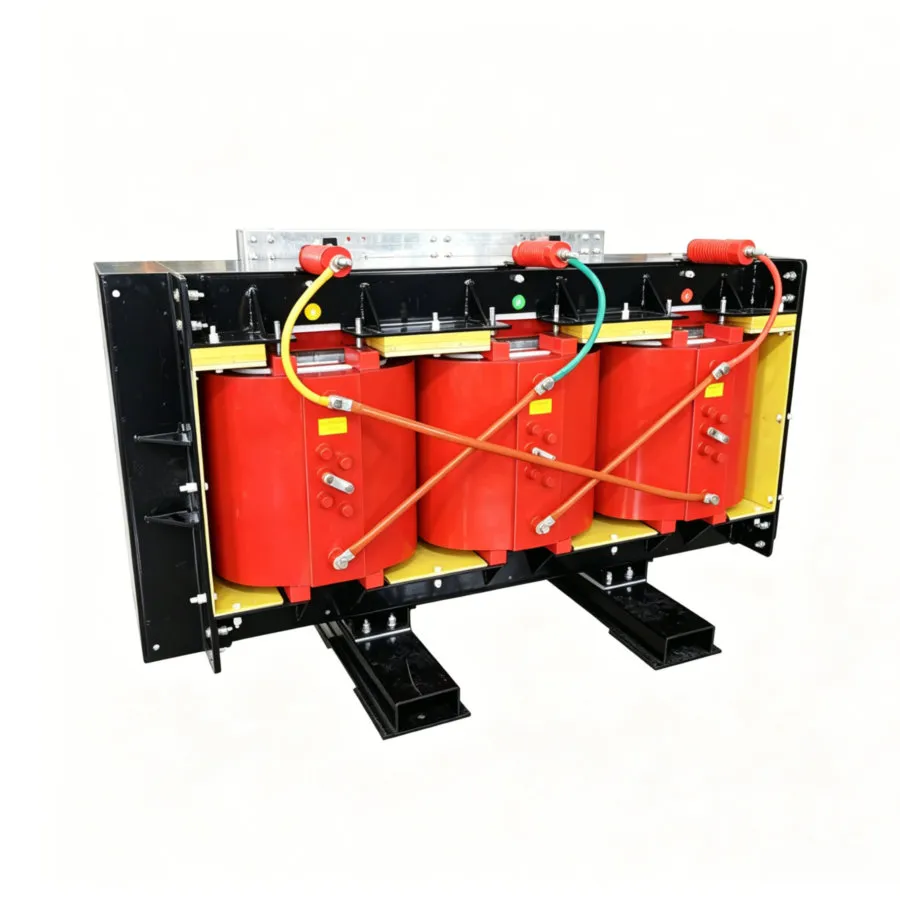

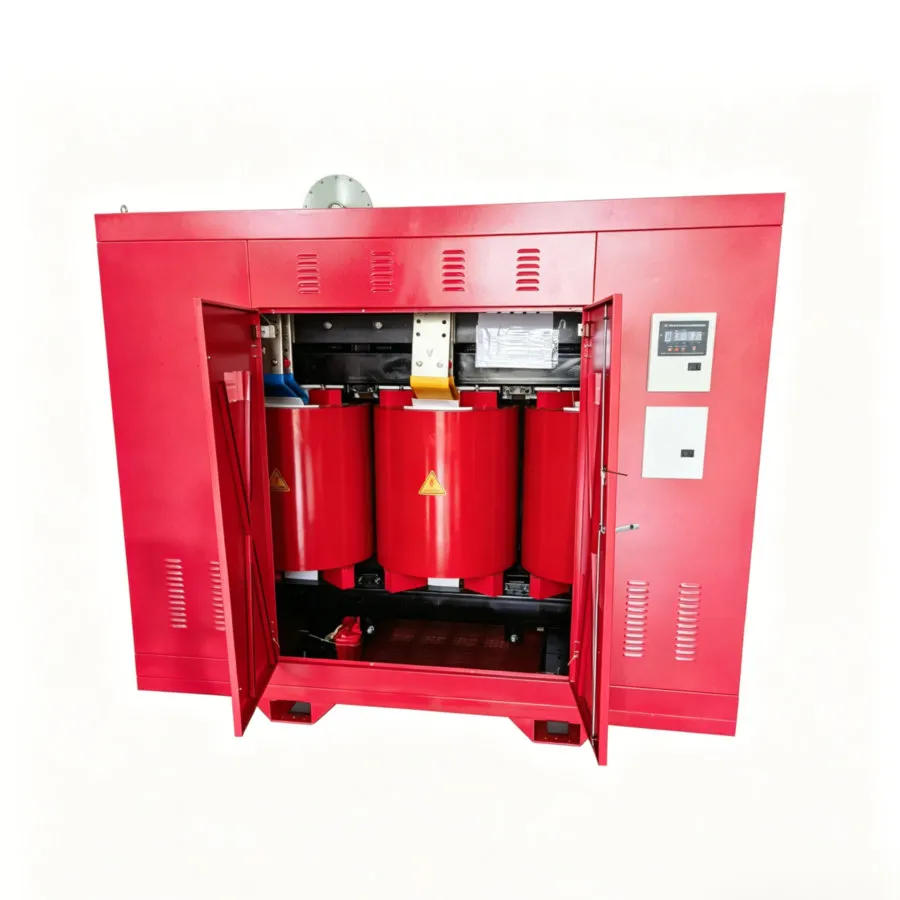

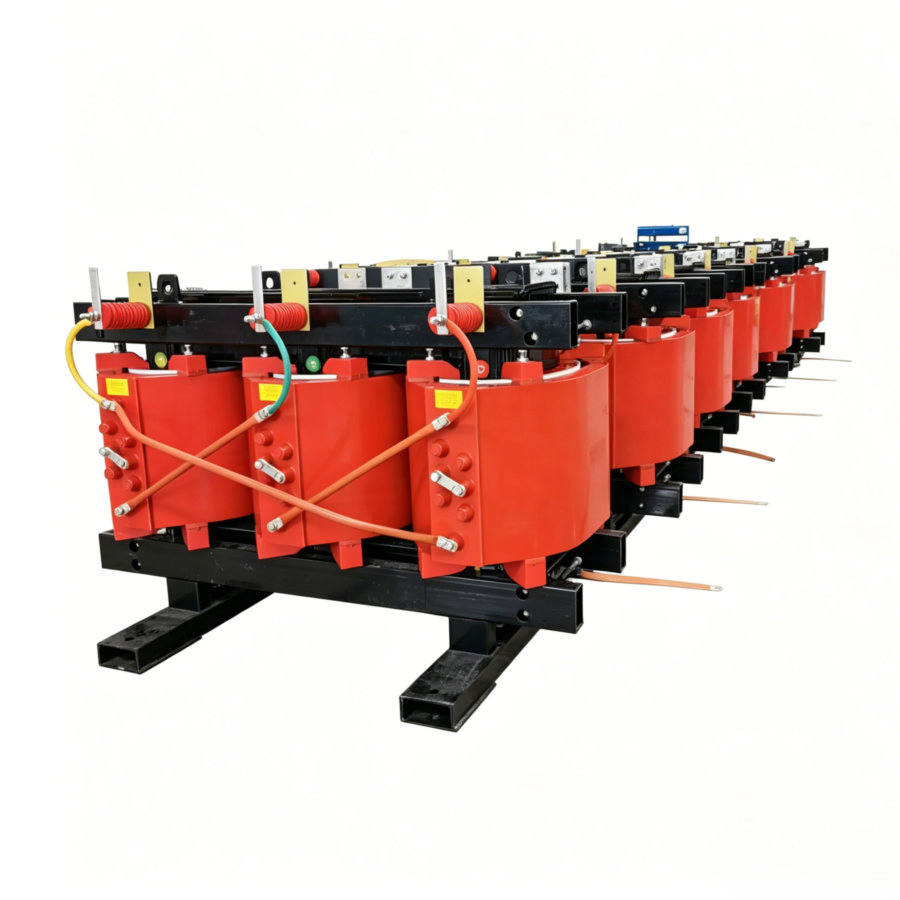

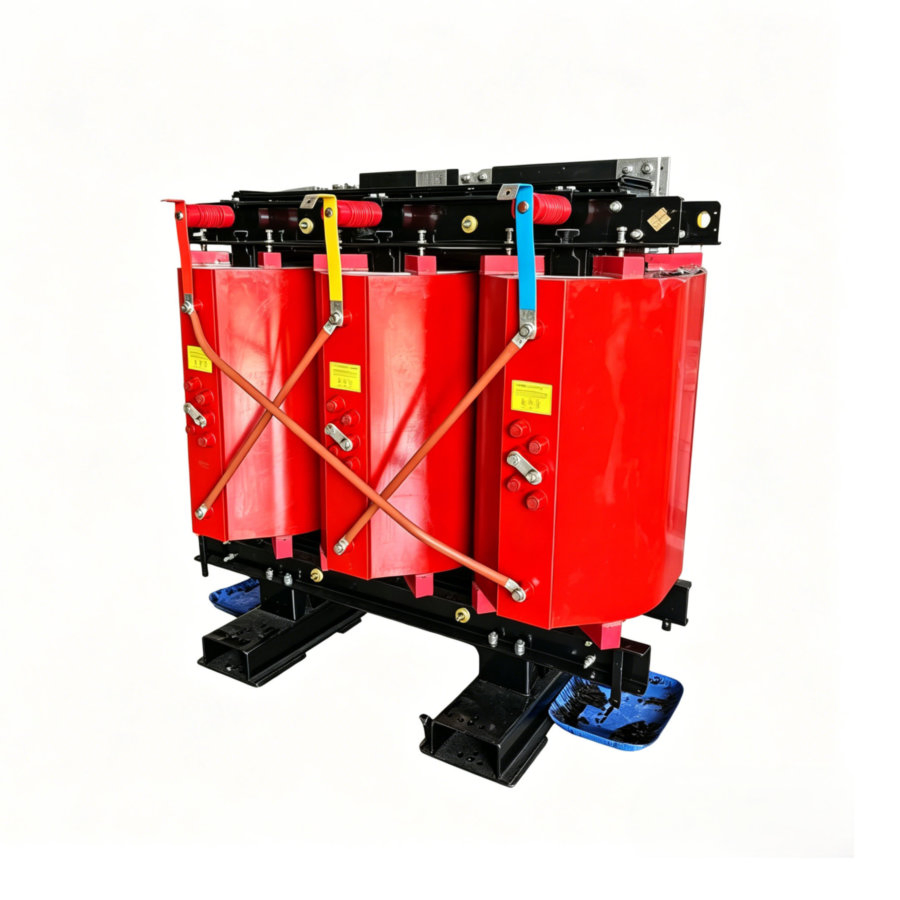

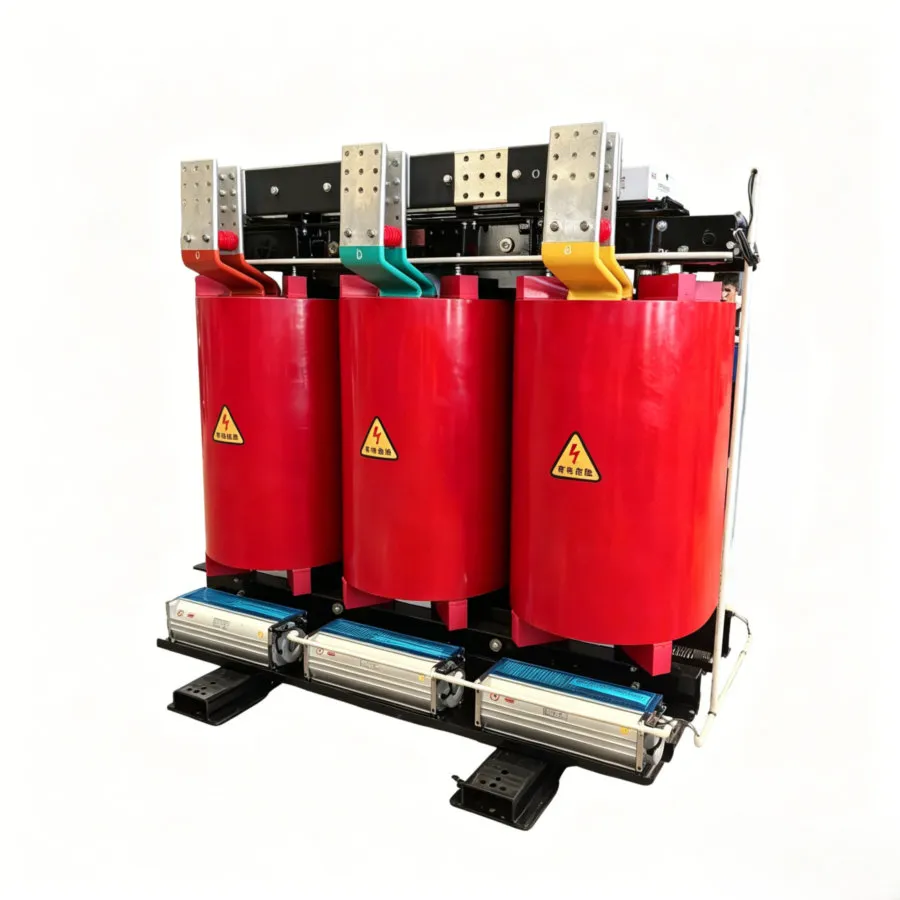

SC(ZB)10-10KV EPOXY RESIN CAST DRY-TYPE DISTRIBUTION TRANSFORMER
This transformer is a high-performance electrical component engineered for efficient power distribution in industrial, commercial, and utility applications. Built with advanced epoxy resin casting technology, it delivers exceptional low operating losses, outstanding fire-resistant and explosion-proof capabilities, and superior environmental protection.
Featuring stacked core-type construction and robust mechanical design, this unit ensures reliable long-term operation with minimal maintenance. Ideal for businesses seeking dependable voltage transformation that combines energy efficiency and safety.
Power Distribution Networks
Ideal for municipal and utility grids, stepping down voltage for residential and industrial zones.
Industrial Facilities
Ensures reliable power for manufacturing plants and processing complexes.
Commercial Buildings
Perfect for office towers, shopping centers, and data centers requiring quiet operation.
| 10kV Transformer Technical Data | |
|---|---|
| Rated HV | 10(6, 6.3, 6.6, 10.5, 11)kV |
| Rated LV | 0.4(0.38, 0.415, 0.433, 0.69)kV |
| Vector Group | D yn11 or Y yn0 |
| Insulation Level | LI75AC35/AC5 |
| Cooling Method | AN (Air Natural) |
| Capacity (KVA) | No-load Loss (W) | Load Loss (120℃) (W) | Sound Level (dB) | Weight (kg) |
|---|---|---|---|---|
| 100 | 400 | 1570 | 44 | 640 |
| 400 | 980 | 3990 | 47 | 1760 |
| 1000 | 1770 | 8130 | 51 | 2730 |
| 2000 | 3050 | 14450 | 51 | 4920 |
| 2500 | 3600 | 17170 | 51 | 5780 |
